WPF内容

<Window x:Class="WpfApp2.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:local="clr-namespace:WpfApp2"
        mc:Ignorable="d"
        Title="MainWindow" Height="600" Width="900" Loaded="Window_Loaded">
    <Grid>
        <Grid.RowDefinitions>
            <RowDefinition Height="auto"/>
            <RowDefinition Height="*"/>
            <RowDefinition Height="auto"/>
            <RowDefinition Height="auto"/>
            <RowDefinition Height="auto"/>
            <RowDefinition Height="*"/>
            <RowDefinition/>
        </Grid.RowDefinitions>
        <TextBlock Grid.Row="0" Text="SVG内容" Margin="10,10,0,0" />
        <TextBox Grid.Row="1" x:Name="SVG_Text" TextChanged="SVG_Text_TextChanged" Margin="10,10,10,0" />
        <Button Grid.Row="2" Click="Button_Click" Width="150" Height="30" HorizontalAlignment="Left" Content="SVG内容转WPF内容" Padding="10,0,10,0" Margin="10,10,0,0"/>
        <TextBlock Grid.Row="3" Text="WPF内容" VerticalAlignment="Center" Margin="10,10,0,0" />
        <TextBox Grid.Row="4" x:Name="Geometry_Text" Height="30" VerticalAlignment="Center" VerticalContentAlignment="Center" Margin="10,10,10,0" />
        <Image Grid.Row="5" HorizontalAlignment="Left" Width="100" Height="100" x:Name="Image1" Margin="10,10,0,0">
        </Image>
    </Grid>
</Window>

C#代码

using System.ComponentModel;
using System.Text.RegularExpressions;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Media;

namespace WpfApp2
{
    /// <summary>
    /// MainWindow.xaml 的交互逻辑
    /// </summary>
    public partial class MainWindow : Window
    {
        public MainWindow()
        {
            InitializeComponent();
        }
        /// <summary>
        /// SVG内容改变事件
        /// </summary>
        /// <param name="sender"></param>
        /// <param name="e"></param>
        private void SVG_Text_TextChanged(object sender, TextChangedEventArgs e)
        {
            SvgToWPF();
        }
        /// <summary>
        /// SVG转WPF方法
        /// </summary>
        private void SvgToWPF()
        {
            string text = SVG_Text.Text;
            if (text != "")
            {
                string[] matchCollections = Regex.Split(text, "<path d=\"", RegexOptions.IgnoreCase);
                string str = string.Empty;

                DrawingImage drawingImage = new DrawingImage();
                DrawingGroup drawingGroup = new DrawingGroup();

                for (int i = 1; i < matchCollections.Length; i++)
                {
                    string geometry = Regex.Replace(matchCollections[i], "\"[\\w|\\W]*", "");
                    string brush = Regex.Match(matchCollections[i], "fill=\"#[\\w]*\"", RegexOptions.IgnoreCase).Value;
                    if (!string.IsNullOrWhiteSpace(geometry))
                    {
                        str += $"<GeometryDrawing Geometry=\"{geometry}\" ";
                        GeometryDrawing geometryDrawing = new GeometryDrawing();
                        TypeConverter converter = TypeDescriptor.GetConverter(typeof(Geometry));
                        geometryDrawing.Geometry = (Geometry)converter.ConvertFrom(geometry);

                        if (!string.IsNullOrWhiteSpace(brush))
                        {
                            brush = brush.Replace("fill=\"", "").Replace("\"", "");
                            str += $"Brush=\"{brush}\"";
                            geometryDrawing.Brush = new SolidColorBrush(HexToColor(brush));
                        }
                        else
                        {
                            str += $"Brush=\"#000000\"";
                            brush = "#000000";
                            geometryDrawing.Brush = new SolidColorBrush(HexToColor(brush));
                        }
                        str += " />";
                        drawingGroup.Children.Add(geometryDrawing);
                    }
                }

                if (!string.IsNullOrWhiteSpace(str))
                {
                    str = $"<Image Width=\"50\" Height=\"50\"><Image.Source><DrawingImage><DrawingImage.Drawing><DrawingGroup>{str}</DrawingGroup></DrawingImage.Drawing></DrawingImage></Image.Source></Image>";
                    Geometry_Text.Text = str;
                    drawingImage.Drawing = drawingGroup;
                    Image1.Source = drawingImage;
                }
            }
        }
        /// <summary>
        /// #FFFFFF颜色转Color
        /// </summary>
        /// <param name="hex"></param>
        /// <returns></returns>
        private Color HexToColor(string hex)
        {
            return (Color)ColorConverter.ConvertFromString(hex);
        }
        /// <summary>
        /// SVG转WPF
        /// </summary>
        /// <param name="sender"></param>
        /// <param name="e"></param>
        private void Button_Click(object sender, RoutedEventArgs e)
        {
            SvgToWPF();
        }
        /// <summary>
        ///
        /// </summary>
        /// <param name="sender"></param>
        /// <param name="e"></param>
        private void Window_Loaded(object sender, RoutedEventArgs e)
        {
            SvgToWPF();
        }
    }
}

先进行解析SVG内容，通过正则表达式将内容切割，内容分割是为了分析其中有多少个path内容

<svg t="1721529975526" class="icon" viewBox="0 0 1024 1024" version="1.1" xmlns="http://www.w3.org/2000/svg" p-id="6235" width="32" height="32">
 <path d="M906.672 128H309.328A37.328 37.328 0 0 0 272 165.328V320l352 80 320-80v-154.672A37.328 37.328 0 0 0 906.672 128z" fill="#41A5EE" p-id="6236"></path>
<path d="M944 320H272v192l352 96 320-96V320z" fill="#2B7CD3" p-id="6237"></path>
<path d="M272 512v192l352 112 320-112V512H272z" fill="#185ABD" p-id="6238"></path>
<path d="M309.328 896h597.344A37.328 37.328 0 0 0 944 858.672V704H272v154.672A37.328 37.328 0 0 0 309.328 896z" fill="#103F91" p-id="6239"></path>
<path d="M528 325.28v421.44a27.744 27.744 0 0 1-0.64 6.4A37.024 37.024 0 0 1 490.72 784H272V288h218.72A37.216 37.216 0 0 1 528 325.28z" p-id="6240">
</path>
<path d="M544 325.28v389.44A53.792 53.792 0 0 1 490.72 768H272V272h218.72A53.472 53.472 0 0 1 544 325.28z" p-id="6241"></path>
<path d="M528 325.28v389.44A37.216 37.216 0 0 1 490.72 752H272V288h218.72A37.216 37.216 0 0 1 528 325.28z" p-id="6242"></path>
<path d="M512 325.28v389.44A37.216 37.216 0 0 1 474.72 752H272V288h202.72A37.216 37.216 0 0 1 512 325.28z" p-id="6243"></path>
<path d="M64 288m37.328 0l373.344 0q37.328 0 37.328 37.328l0 373.344q0 37.328-37.328 37.328l-373.344 0q-37.328 0-37.328-37.328l0-373.344q0-37.328 37.328-37.328Z" fill="#185ABD" p-id="6244"></path>
<path d="M217.184 574.272q1.104 8.64 1.44 15.056h0.848q0.496-6.08 1.936-14.72t2.8-14.56l39.264-169.376h50.768l40.608 166.848a242.08 242.08 0 0 1 5.072 31.472h0.688a240.288 240.288 0 0 1 4.224-30.448l32.48-167.872h46.208l-56.864 242.656h-53.984L293.92 472.576q-1.68-6.944-3.808-18.112-2.112-11.168-2.624-16.24h-0.672q-0.672 5.92-2.624 17.6t-3.12 17.248l-36.384 160.256h-54.832L132.48 390.672h47.04l35.376 169.728q1.184 5.248 2.288 13.872z" fill="#FFFFFF" p-id="6245"></path>
</svg>

可以看到这个里面有多个path内容，并且每个path内容中都有一个颜色，之前尝试使用WPF的Geometry和GeometryGroup标签进行处理，发现没有办法处理每个path的颜色信息，后来改成了使用WPF的DrawingImage来处理可以解决这个问题，将上述内容分析后的内容如下代码

<Image Width="50" Height="50">
 <Image.Source>
  <DrawingImage>
   <DrawingImage.Drawing>
    <DrawingGroup>
     <GeometryDrawing Geometry="M906.672 128H309.328A37.328 37.328 0 0 0 272 165.328V320l352 80 320-80v-154.672A37.328 37.328 0 0 0 906.672 128z" Brush="#41A5EE" />
     <GeometryDrawing Geometry="M944 320H272v192l352 96 320-96V320z" Brush="#2B7CD3" />
     <GeometryDrawing Geometry="M272 512v192l352 112 320-112V512H272z" Brush="#185ABD" />
     <GeometryDrawing Geometry="M309.328 896h597.344A37.328 37.328 0 0 0 944 858.672V704H272v154.672A37.328 37.328 0 0 0 309.328 896z" Brush="#103F91" />
     <GeometryDrawing Geometry="M528 325.28v421.44a27.744 27.744 0 0 1-0.64 6.4A37.024 37.024 0 0 1 490.72 784H272V288h218.72A37.216 37.216 0 0 1 528 325.28z"  />
     <GeometryDrawing Geometry="M544 325.28v389.44A53.792 53.792 0 0 1 490.72 768H272V272h218.72A53.472 53.472 0 0 1 544 325.28z"  />
     <GeometryDrawing Geometry="M528 325.28v389.44A37.216 37.216 0 0 1 490.72 752H272V288h218.72A37.216 37.216 0 0 1 528 325.28z"  />
     <GeometryDrawing Geometry="M512 325.28v389.44A37.216 37.216 0 0 1 474.72 752H272V288h202.72A37.216 37.216 0 0 1 512 325.28z"  />
     <GeometryDrawing Geometry="M64 288m37.328 0l373.344 0q37.328 0 37.328 37.328l0 373.344q0 37.328-37.328 37.328l-373.344 0q-37.328 0-37.328-37.328l0-373.344q0-37.328 37.328-37.328Z" Brush="#185ABD" />
     <GeometryDrawing Geometry="M217.184 574.272q1.104 8.64 1.44 15.056h0.848q0.496-6.08 1.936-14.72t2.8-14.56l39.264-169.376h50.768l40.608 166.848a242.08 242.08 0 0 1 5.072 31.472h0.688a240.288 240.288 0 0 1 4.224-30.448l32.48-167.872h46.208l-56.864 242.656h-53.984L293.92 472.576q-1.68-6.944-3.808-18.112-2.112-11.168-2.624-16.24h-0.672q-0.672 5.92-2.624 17.6t-3.12 17.248l-36.384 160.256h-54.832L132.48 390.672h47.04l35.376 169.728q1.184 5.248 2.288 13.872z" Brush="#FFFFFF" />
    </DrawingGroup>
   </DrawingImage.Drawing>
  </DrawingImage>
 </Image.Source>
</Image>

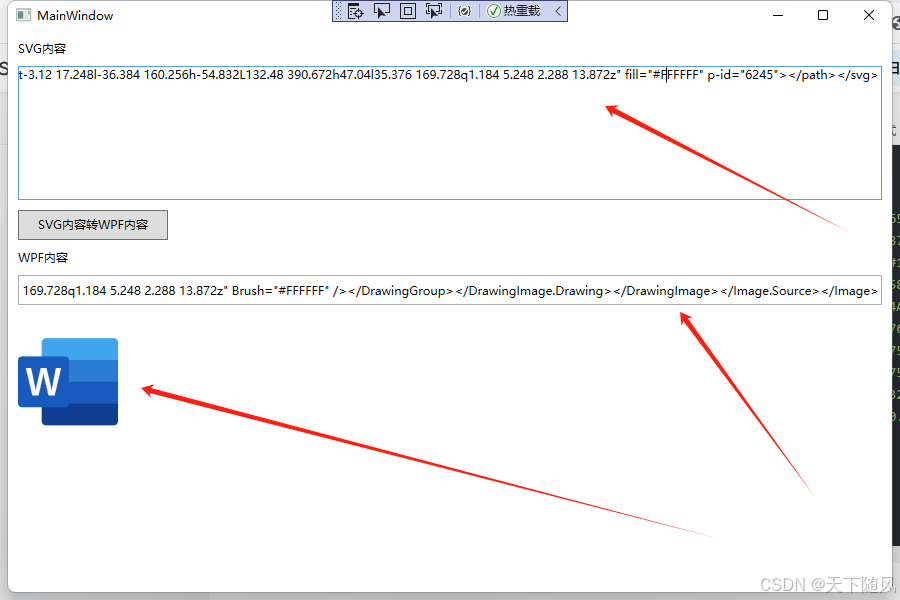

程序执行截图
