有向无环图中的最长路径-PART1
给定一个加权有向无环图DAG和一个源点s在它,找到从s中最长的距离在给定图中的所有其他顶点
一般图的最长路径问题不像最短路径问题那么容易,因为最长路径问题不具有最优子结构属性。事实上,最长路径问题对于一般的图来说是NP-Hard问题。然而,对于有向无环图的最长路径问题,其具有线性时间解。这个想法类似于有向无环图中最短路径的线性时间解决方案,我们使用拓扑排序。
我们将到所有顶点的距离初始化为负无穷大,到源点的距离初始化为 0,然后我们找到图的拓扑排序。图的拓扑排序表示图的线性排序(图b是图a的线性表示)。一旦我们有了拓扑顺序(或线性表示),我们就按照拓扑顺序一一处理所有顶点。对于正在处理的每个顶点,我们使用当前顶点的距离更新其相邻的距离。

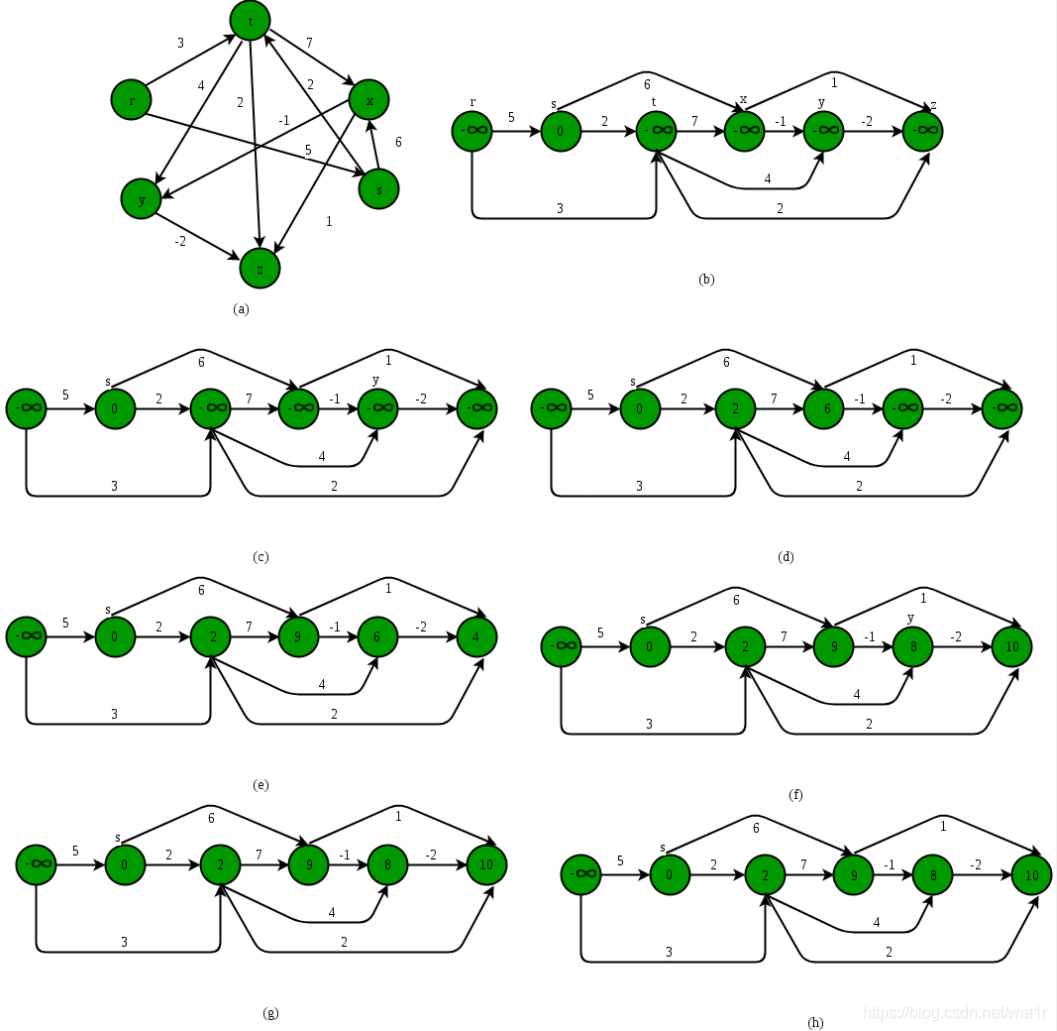

下图显示了寻找最长路径的详细过程。
Alogrithm:
以下是寻找最长距离的完整算法。
- 初始化 dist[] = {NINF, NINF, …} 和 dist[s] = 0 其中 s 是源顶点。这里 NINF 表示负无穷大。
- 创建所有顶点的拓扑顺序。
- 按照拓扑顺序对每个顶点 u 执行以下操作。
………… 对 u 的每个相邻顶点 v 进行跟踪
………………if (dist[v] < dist[u] + weight(u, v))
………………………dist[ v] = dist[u] + weight(u, v)
Code:
static class _4th_1 {
static class AdjListNode {
int v;
int w;
public AdjListNode(int v, int w) {
this.v = v;
this.w = w;
}
public int getV() {
return v;
}
public int getW() {
return w;
}
}
static class Graph {
int V;
List<List<AdjListNode>> adj;
public Graph(int V) {
this.V = V;
adj = new ArrayList<>(V);
for (int i = 0; i < V; i++) {
adj.add(new ArrayList<>());
}
}
void addEdge(int u, int v, int w) {//添加边,有向图
AdjListNode node = new AdjListNode(v, w);
adj.get(u).add(node);
}
void topologicalSortUtil(int v, boolean[] visited, Stack<Integer> stack) {
visited[v] = true;//当前节点被标记为访问过
for (AdjListNode node : adj.get(v)) {//遍历当前节点的相邻节点
if (!visited[node.getV()]) {
topologicalSortUtil(node.getV(), visited, stack);
}
}
stack.push(v);
}
final static Integer NINF = Integer.MIN_VALUE;
void longestPath(int s) {
Stack<Integer> stack = new Stack<>();
int[] dist = new int[V];
boolean[] visited = new boolean[V];
//先做拓扑排序
for (int i = 0; i < V; i++) {
if (!visited[i]) topologicalSortUtil(i, visited, stack);
}
Arrays.fill(dist, NINF);
dist[s] = 0;//初始化源点s
//遍历节点的相邻节点
while (!stack.isEmpty()) {
int u = stack.pop();
if (dist[u] != NINF) {
for (AdjListNode vNode : adj.get(u)) {
int v = vNode.getV(), w = vNode.getW();
if (dist[v] < dist[u] + w) {
dist[v] = dist[u] + w;
}
}
}
}
//打印最长路径
for (int i = 0; i < V; i++)
if (dist[i] == NINF)
System.out.print("INF ");
else
System.out.print(dist[i] + " ");
}
public static void main(String args[]) {
// Create a graph given in the above diagram.
// Here vertex numbers are 0, 1, 2, 3, 4, 5 with
// following mappings:
// 0=r, 1=s, 2=t, 3=x, 4=y, 5=z
Graph g = new Graph(6);
g.addEdge(0, 1, 5);
g.addEdge(0, 2, 3);
g.addEdge(1, 3, 6);
g.addEdge(1, 2, 2);
g.addEdge(2, 4, 4);
g.addEdge(2, 5, 2);
g.addEdge(2, 3, 7);
g.addEdge(3, 5, 1);
g.addEdge(3, 4, -1);
g.addEdge(4, 5, -2);
int s = 1;
System.out.print("Following are longest distances from source vertex " + s + " \n");
g.longestPath(s);
/**
* Following are longest distances from source vertex 1
* INF 0 2 9 8
*/
}
}
}
时间复杂度
- 拓扑排序的时间复杂度为 O ( V + E ) O(V+E) O(V+E)。找到拓扑顺序后,算法处理所有顶点,对于每个顶点,它为所有相邻顶点运行一个循环。图中的总相邻顶点为 O ( E ) O(E) O(E)。所以内循环运行$ O(V+E) $次。因此,该算法的整体时间复杂度为 O ( V + E ) O(V+E) O(V+E)。
