vue项目中使用cn打印组件

最近项目中要对接订单信息，打印快递面单。这里记录下开发流程。

前端方面流程还是很简单的。

1.电脑安装 连接好打印机  并安装对应打印机驱动

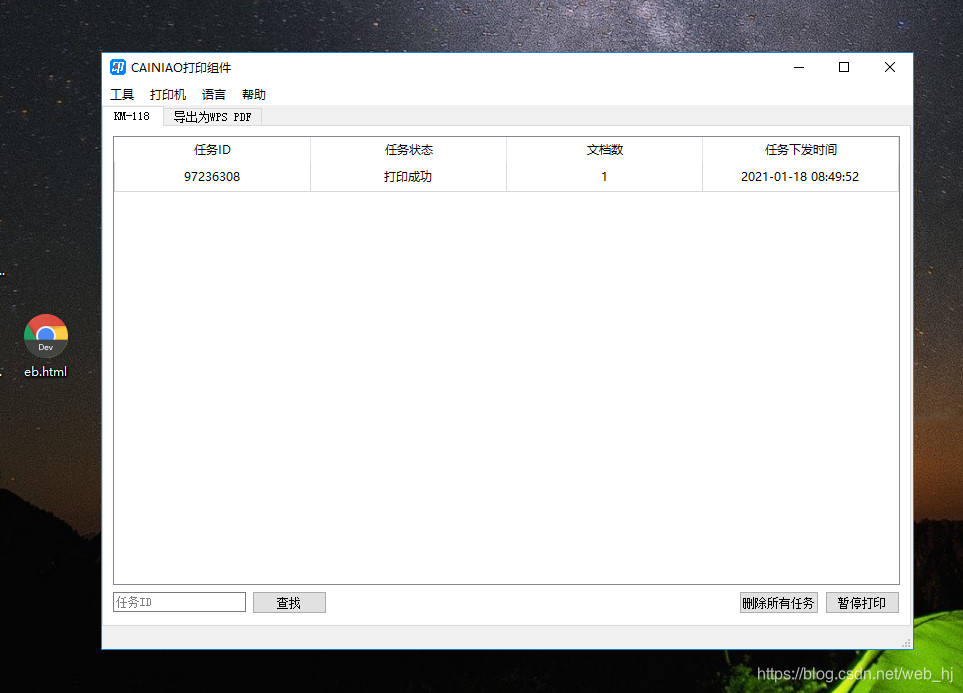

2.电脑安装 菜鸟打印组件
  下载地址：http://cloudprint.cainiao.com/cloudprint/client/CNPrintSetup.exe?spm=a219a.7629140.0.0.YJQX7O&file=CNPrintSetup.exe

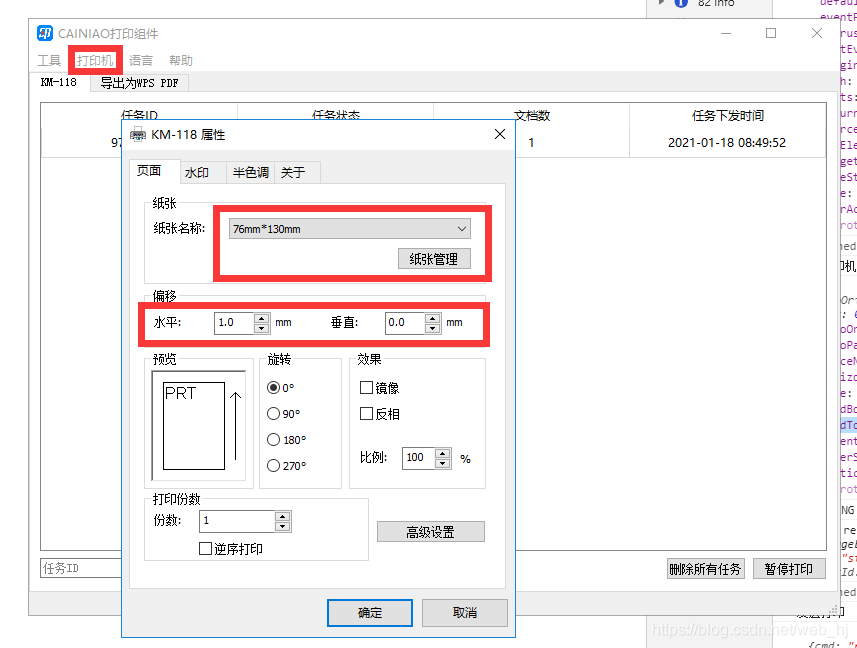

3.在开始打印前 要注意你的快递面单尺寸，在打印组件中需要设置对应打印机的纸张尺寸

4.现在开始使用代码打印了

文档：
开放平台-文档中心

下面贴上我的代码：

<template>
  <div>
    <el-button @click="onStart">打印</el-button>
    <el-button @click="getPrints">获取打印机列表</el-button>
    <el-button @click="setPrinterConfig">设置打印机配置</el-button>
    <el-button @click="getPrinterConfig">获取打印机配置</el-button>
    <el-button @click="getExpressCompaniesPrinter">获取快递设置的打印机</el-button>
  </div>
</template>

<script>

  let socket, defaultPrinter;
  let num = [{
    waybillCode: "3738460008834",
    printData: {
      data: '',
      // templateURL: 'http://cloudprint.cainiao.com/template/standard/101/123'
      templateURL: 'http://cloudprint.cainiao.com/template/standard/101/635'
    },
    objectId: "1"
  }];
  let jsonObject = {
    content: {
      "data": {
        "_dataFrom": "waybill",
        "adsInfo": {
          "adId": "556",
          "advertisementType": "COMMERCIAL",
          "bannerUrl": "http://ad-cdn.cainiao.com/361/1607308583670.JPG",
          "miniBannerUrl": "http://ad-cdn.cainiao.com/361/1607308576681.JPG",
          "trackUrl": "https://ad.cainiao.com/9kESOzk"
        },
        "cpCode": "ZTO",        //不同快递 cpCode不同
        "needEncrypt": false,
        "packageInfo": {
          "currentPackageSequence": 0,
          "id": "-1",
          "totalPackagesCount": 0,
          "volume": 0,
          "weight": 0
        },
        "parent": false,
        "recipient": {
          "address": {
            "city": "杭州市",
            "detail": "文一西路969号",
            "district": "余杭区",
            "province": "浙江省"
          },
          "mobile": "13100000001",
          "name": "李四"
        },
        "routingInfo": {
          "blockCode": "969",
          "consolidation": {
            "code": "571901"
          },
          "origin": {
            "code": "731091",
            "name": "湖南省长沙市岳麓三部"
          },
          "receiveBranch": {
            "code": "571937",
            "name": "浙江省杭州市余杭区桃花港直营"
          },
          "routeCode": "342-075-00 250",
          "sortation": {
            "name": "余杭"
          },
          "startCenter": {},
          "terminalCenter": {
            "code": "571901",
            "name": "杭州转运中心"
          }
        },
        "sender": {
          "address": {
            "city": "长沙市",
            "detail": "东方红中路175号",
            "district": "岳麓区",
            "province": "湖南省"
          },
          "mobile": "13000000000",
          "name": "张三"
        },
        "shippingOption": {
          "code": "STANDARD_EXPRESS",
          "title": "标准快递"
        },
        "waybillCode": "YT5202203890344"
      },
      "signature": "MD:U1Pw5p49tvW2JMD0HlRIEA==",
      //templateURL  每个快递的模板都不同
      "templateURL":"http://cloudprint.cainiao.com/template/standard/308812/7"

    }

  };
  export default {
    name: "frm_orders_ship",
    mounted() {
      const that = this;
      socket = new WebSocket('ws://127.0.0.1:13528');
      socket.onopen = function (event) {

        // 监听消息
        socket.onmessage = function (event) {
          console.log('Client received a message', event);
          console.log(JSON.parse(event.data).defaultPrinter);
          defaultPrinter = JSON.parse(event.data).defaultPrinter;
          that.subscribe(JSON.parse(event.data))
        };
        // 监听Socket的关闭
        socket.onclose = function (event) {
          console.log('Client notified socket has closed', event);
        };
      };
    },
    methods: {
      subscribe: function (data) {
        switch (data.cmd) {
          case 'getPrinters':
            console.log("获取打印机列表");
            console.log(data.printers);
            break;
          case 'getPrinterConfig':
            console.log("获取打印机配置");
            console.log(data.printer);
            break;
          case 'print':
            console.log("发送打印");
            console.log(data);
            break;
          case 'notifyPrintResult':
            console.log("打印通知");
            console.log(data);
            break;
          case 'setPrinterConfig':
            console.log("设置打印机配置");
            console.log(data);
            break;
        }
      },
      getPrints: function () {
        this.getPrintList()//打印机列表
      },
      getExpressCompaniesPrinter: function () {
        let express_companies_printer = localStorage.getItem("rmt_set_express_companies_printer");
        console.log(express_companies_printer)
      },
      getPrinterConfig: function () {
        let request = this.getRequestObject("getPrinterConfig");
        request.printer = "KM-118";
        if (socket.readyState === 1) {
          console.log(request);
          socket.send(JSON.stringify(request));
        }
      },
      setPrinterConfig: function () {
        let request = this.getRequestObject("setPrinterConfig");
        request.printer = {
          "name": "KM-118",
          "needTopLogo": true
        }
        if (socket.readyState === 1) {
          console.log(request)
          socket.send(JSON.stringify(request));
        }
      },
      onStart: function () {
        this.doPrint(defaultPrinter, num)
      },
      getPrintList: function () {
        let request = this.getRequestObject("getPrinters");

        if (socket.readyState === 1) {
          console.log(request)
          socket.send(JSON.stringify(request));
        }
      },
      getRequestObject: function (cmd) {
        let request = new Object();
        request.requestID = this.getUUID(8, 16);
        request.version = "1.0";
        request.cmd = cmd;
        return request;
      },
      getUUID: function (len, radix) {
        let chars = '0123456789ABCDEFGHIJKLMNOPQRSTUVWXYZabcdefghijklmnopqrstuvwxyz'.split('');
        let uuid = [], i;
        radix = radix || chars.length;
        if (len) {
          for (i = 0; i < len; i++) uuid[i] = chars[0 | Math.random() * radix];
        } else {
          let r;
          uuid[8] = uuid[13] = uuid[18] = uuid[23] = '-';
          uuid[14] = '4';
          for (i = 0; i < 36; i++) {
            if (!uuid[i]) {
              r = 0 | Math.random() * 16;
              uuid[i] = chars[(i == 19) ? (r & 0x3) | 0x8 : r];
            }
          }
        }
        return uuid.join('');
      },

      //printer 指定打印机
      doPrint: function (printer, waybillArray) {
        let request = this.getRequestObject("print");
        request.task = new Object();
        request.task.taskID = this.getUUID(8, 10);
        request.task.preview = false;
        request.task.printer = printer;
        let documents = new Array();
        for (let i = 0; i < waybillArray.length; i++) {
          let doc = new Object();
          doc.documentID = waybillArray[i];
          let content = new Array();
          let waybillJson = this.getWaybillJson(waybillArray[i]);
          let customAreaData = this.getCustomAreaData(waybillArray[i]);
          content.push(waybillJson, customAreaData);
          doc.contents = content;
          documents.push(doc);
        }
        request.task.documents = documents
        socket.send(JSON.stringify(request));
      },
      getWaybillJson: function (waybillNO) {
        //获取waybill对应的json object，此处的ajaxGet函数是伪代码
        // let jsonObject = ajaxGet(waybillNO);
        return jsonObject;
      },
      getCustomAreaData: function (waybillNO) {
        //获取waybill对应的自定义区的JSON object，此处的ajaxGet函数是伪代码
        // let jsonObject = ajaxGet(waybillNO);
        let ret = new Object();
        ret.templateURL = jsonObject.content.templateURL;
        ret.data = jsonObject.content.data;
        return ret;
      }
    }
  }
</script>

<style scoped>

</style>

不同快递的模板都不相同，当然可以在自己的菜鸟服务平台自定义模板。下面贴上多家快递定义好的模板，自定义的时候可以将这些模板里面的代码copy过去，修改下就ok拉

{
    "data": [
        {
            "cpCode": "ZTKY",
            "standardTemplateDOs": [
                {
                    "standardWaybillType": "4",
                    "standardTemplateUrl": "http://cloudprint.cainiao.com/template/standard/407120/1",
                    "standa
