MiniFlow
在学习TensorFlow之前,让我们学习可微分图(Differentiable graphs),这是TensorFlow用于运行和训练网络的基本抽象。我们将构建一个叫MiniFlow小型库,在这个过程中,我们将逐渐理解可微分图
完整代码在这里
Graph
一个神经网络,可以看成是一张图,这张图由数学函数组成,比如线性组合,激活函数之类的。图中包含 点(nodes) 和 边(edges) 。
点,可以看成是一个数学函数,利用上一层的输出作为输入。例如一个点可以表示为 f(x,y)=x+y , x,y 为上一层的输出,并作为该点的输入。
边,是点与点之间的连接,使得值能在图中传播。
MiniFlow Architecture
让我们开始构建MiniFLow。用Node
表示一个点,Node
接受一组输入,并计算出一个值。
class Node(object):
def __init__(self, inbound_nodes=[]):
# 保存输入
self.inbound_nodes = inbound_nodes
# 定义输出
self.outbound_nodes = []
# 对于每一个输入,其输出就是这个点(有点绕,看代码),进行点与点之间的连接
for n in self.inbound_nodes:
n.outbound_nodes.append(self)
# 计算出来的值
self.value = None
对于每一个Node,它都应该能够向前(forward)或者向后(backward)传播。
class Node(object):
def __init__(self, inbound_nodes=[]):
# 保存输入
self.inbound_nodes = inbound_nodes
# 定义输出
self.outbound_nodes = []
# 对于每一个输入,其输出就是这个点(有点绕,看代码),进行点与点之间的连接
for n in self.inbound_nodes:
n.outbound_nodes.append(self)
# 计算出来的值
self.value = None
def forward(self):
"""
向前传播
利用inbound_nodes计算输出值
"""
raise NotImplemented
The Input Subclass
Node定义了点的基本熟悉和操作,然而不同类别的节点具有的操作也是不同的。例如,我们来实现Node的一个子类,Input
。
与Node的其他子类不同,Input并没有计算任何东西,只是存放了一个value,这个value可以是数据的特征或者一个权重
class Input(Node):
def __init__(self):
# Input 节点没有输入节点(它就是输入节点)
# 因此输入是空
Node.__init__(self)
# Input 节点是唯一一种不需要输入的节点,其他类型的节点在做forward的时候都需要用到上一层的输入
def forward(self, value=None):
if value is not None:
self.value = value
The Add Subclass
Add 节点,计算多个数的和
class Add(Node):
def __init__(self, *inputs):
Node.__init__(self, list(inputs))
def forward(self):
self.value = 0
for x in self.inbound_nodes:
self.value += x.value
Forward propagation
好的,让我们来测试下我们目前所写的代码。在这之前,我们先说一说拓扑排序(topological sort)。

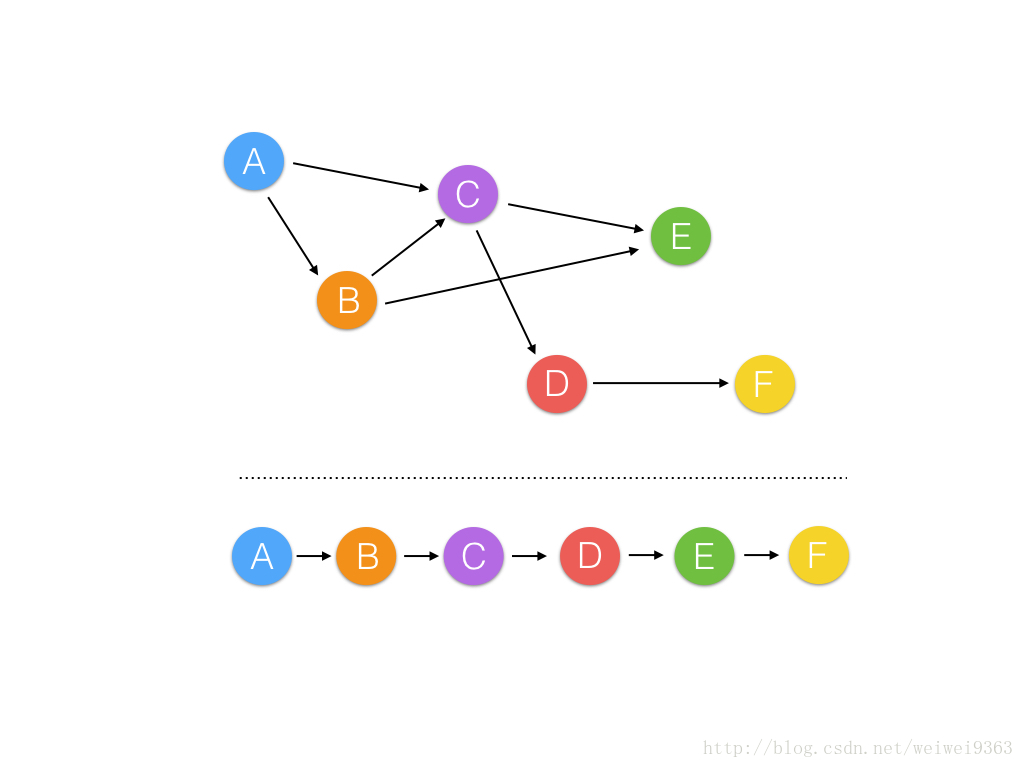

为了定义我们的神经网络,我们就要定义图的运算顺序。考虑到节点与节点之间的相互依赖的关系,我们需要将图”扁平”,拓扑排序就是干这个的,如下图所示。拓扑排序如何实现的,并不重要,我们只要知道它的作用就行了。
我们将用topological_sort()
对图进行”扁平”化,它接受一个feed_dict
,在python中用字典实现,接下来我们演示下如何使用
def topological_sort(feed_dict):
"""
Sort generic nodes in topological order using Kahn's Algorithm.
`feed_dict`: A dictionary where the key is a `Input` node and the value is the respective value feed to that node.
Returns a list of sorted nodes.
"""
input_nodes = [n for n in feed_dict.keys()]
G = {}
nodes = [n for n in input_nodes]
while len(nodes) > 0:
n = nodes.pop(0)
if n not in G:
G[n] = {'in': set(), 'out': set()}
for m in n.outbound_nodes:
if m not in G:
G[m] = {'in': set(), 'out': set()}
G[n]['out'].add(m)
G[m]['in'].add(n)
nodes.append(m)
L = []
S = set(input_nodes)
while len(S) > 0:
n = S.pop()
if isinstance(n, Input):
n.value = feed_dict[n]
L.append(n)
for m in n.outbound_nodes:
G[n]['out'].remove(m)
G[m]['in'].remove(n)
# if no other incoming edges add to S
if len(G[m]['in']) == 0:
S.add(m)
return L
An example of feed_dict
x, y = Input(), Input()
add = Add(x, y)
feed_dict = {x:10, y:20}
sorted_nodes = topological_sort(feed_dict)
sorted_nodes
[<__main__.Input at 0x21ac5c64dd8>,
<__main__.Input at 0x21ac5c64a58>,
<__main__.Add at 0x21ac5c649b0>]
sorted_nodes用到的另外一个函数是forward_pass()
,这个函数实际的让网络“跑”了起来。
sorted_nodes是经过拓扑排序之后的有序节点,output_node是在sorted_nodes中某个节点同时也是我们希望得到其输出的节点
def forward_pass(sorted_nodes):
for n in sorted_nodes:
n.forward()
Passing Values Forward
向前网络我们已经大致搭建好了,我们来进行测试吧。
这里,我们定义了三个输入 x,y和z,并计算它们的和
x,y,z = Input(), Input(),Input()
f = Add(x, y, z)
feed_dict = {x:10, y:5, z:15}
sorted_nodes = topological_sort(feed_dict)
# 未进行forward_pass,这个网络没有“跑”,只有输入节点有值
print(f.value, x.value, y.value, z.value)
# 让网络向前运行,
forward_pass(sorted_nodes)
print(f.value)
None 10 5 15
30
类似的,我们现在随手就能写出一个Mul
类,用于计算节点之间的乘积
class Mul(Node):
def __init__(self, *inputs):
Node.__init__(self, list(inputs))
def forward(self):
self.value = 1
for n in self.inbound_nodes:
self.value *= n.value
x,y,z = Input(), Input(),Input()
f = Mul(x, y, z)
feed_dict = {x:10, y:5, z:15}
sorted_nodes = topological_sort(feed_dict)
forward_pass(sorted_nodes)
print(f.value)
750
Linear Function
接下来,我们将构建一个更为复杂也更有用的节点:Linear。
在神经网络中线性方程写成这样 y=∑wixi+b 。 xi 是输入, wi 是权重, b 是偏移量。
import numpy as np
class Linear(Node):
def __init__(self, inputs, weights, bias):
Node.__init__(self, [inputs, weights, bias])
def forward(self):
self.value = 0
inputs = self.inbound_nodes[0].value
weights = self.inbound_nodes[1].value
bias = self.inbound_nodes[2].value
self.value = np.dot(inputs, weights) + bias
X, W, b = Input(), Input(), Input()
f = Linear(X, W, b)
X_ = np.array([[-1., -2.], [-1, -2]])
W_ = np.array([[2., -3], [2., -3]])
b_ = np.array([-3., -5])
feed_dict = {X: X_, W: W_, b: b_}
graph = topological_sort(feed_dict)
forward_pass(graph)
"""
Output should be:
[[-9., 4.],
[-9., 4.]]
"""
print(f.value)
[[-9. 4.]
[-9. 4.]]
Sigmoid Function
一个sigmoid函数可以定义为
接下来,我们实现Sigmoid节点
class Sigmoid(Node):
def __init__(self, node):
Node.__init__(self, [node])
def _sigmoid(self, x):
return 1./(1 + np.exp(-x))
def forward(self):
input_value = self.inbound_nodes[0].value
self.value = self._sigmoid(input_value)
X, W, b = Input(), Input(), Input()
f = Linear(X, W, b)
g = Sigmoid(f)
X_ = np.array([[-1., -2.], [-1., -2.]]) # 2x2
W_ = np.array([[2., -3.], [2., -3.]]) # 2x2
b_ = np.array([[-3., -5.]])
feed_dict = {X:X_, W:W_, b:b_}
graph = topological_sort(feed_dict)
forward_pass(graph)
"""
Output should be:
[[ 1.23394576e-04 9.82013790e-01]
[ 1.23394576e-04 9.82013790e-01]]
"""
print(g.value)
[[ 1.23394576e-04 9.82013790e-01]
[ 1.23394576e-04 9.82013790e-01]]
Cost
网络训练发生在向后传播,训练的过程就是让Cost变得最小。
对于一个Cost,比如MSE,定义如下:
w 是所有权重,
所谓的学习,就是通过调整权重和偏移让Cost变小的过程。调整的过程需要计算 Cost对w以及b的偏导
接下来,我们设计一个MSE节点,用于计算MSE
class MSE(Node):
def __init__(self, y, a):
Node.__init__(self, [y, a])
def forward(self):
self.value = 0
y = self.inbound_nodes[0].value.reshape(-1, 1)
a = self.inbound_nodes[1].value.reshape(-1, 1)
m = a.size
diff = y - a
self.value = np.mean(diff**2)
y, a = Input(), Input()
cost = MSE(y, a)
y_ = np.array([[1, 2, 3]])
a_ = np.array([[4.5, 5, 10]])
feed_dict = {y:y_, a:a_}
graph = topological_sort(feed_dict)
forward_pass(graph)
print(cost.value)
23.4166666667
Backward propagation
向前传播大致已经写好了,那接下来我们考虑向后传播的实现。

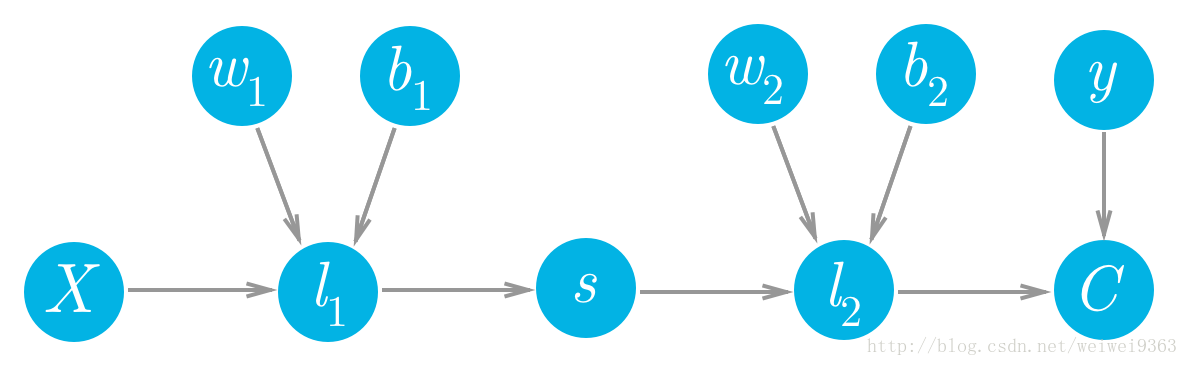

稍微了解过神经网络的同学会知道,向后传播本质就是一个求偏导的过程。举个例子,假设我们有下面这样的一个网络
这个网络用我们现在的框架来写的话,应该长这样
X, y = Input(), Input()
W1, b1 = Input(), Input()
W2, b2 = Input(), Input()
l1 = Linear(X, W1, b1)
s = Sigmoid(l1)
l2 = Linear(s, W2, b2)
cost = MSE(l2, y)

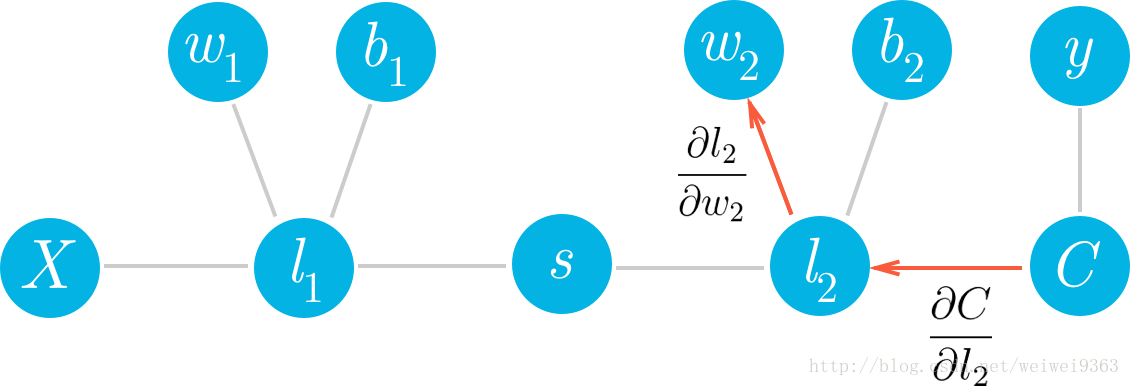

这个网络向后传播的过程是这样的
更直观的,我们用数学公式表达,可以写成这样
这就是求导的链式法则。我们的代码实现上就是根据链式法则来完成的。
至此我们可以做一个大致的分析,假设,有一个
L
层节点,那么在向前传播forward()
中,这个节点接收inbound_nodes
,并且根据inbound_nodes
的值,进行运算,最终得到一个value
。因此,向前传播的时候,传播的是运算结果,”值”。
那么在向后传播中,一个
L
层的节点,接收的应该是outbound_nodes
作为输入,并根据outbound_nodes
的梯度,进行运算,最终得到一个gradient
。因此,向后传播的时候,传播的是”梯度”,准确的说,应该是目标函数对当前节点的梯度。
基于这样的想法,对原有的代码进行添加backward
def __init__(self, inbound_nodes=[]):
self.inbound_nodes = inbound_nodes
self.value = None
self.outbound_nodes = []
self.gradients = []
for node in inbound_nodes:
node.outbound_nodes.append(self)
def forward(self):
"""
每一个继承了这个类的子类,都应该实现这个方法
"""
raise NotImplementedError
def backward(self):
"""
每一个继承了这个类的子类,都应该实现这个方法
"""
raise NotImplementedError
def forward_and_backward(graph):
# 向前传播
for n in graph:
n.forward()
# 向后传播
for n in graph[::-1]:
n.backward()
接下来,对之前所有继承了Node
节点的子类进行改写。
MSE
均方误差MSE,为了求导方便,我们用矩阵向量的形式重写MSE的表达式,下面所有变量都是向量或者矩阵
如果你对矩阵向量求导有了解,那么可以计算得到:
class MSE(Node):
def __init__(self, y, a):
Node.__init__(self, [y, a])
def forward(self):
y = self.inbound_nodes[0].value.reshape(-1,1)
a = self.inbound_nodes[1].value.reshape(-1,1)
self.m = self.inbound_nodes[0].value.shape[0]
self.diff = y - a
self.value = np.mean(self.diff**2)
def backward(self):
self.gradients = {n:np.zeros_like(n.value) for n in self.inbound_nodes}
# MSE 对 y 求偏导(动手拿笔算一算)
self.gradients[self.inbound_nodes[0]] = (2 / self.m) * self.diff
# MSE 对 a 求偏导
self.gradients[self.inbound_nodes[1]] = (-2 / self.m) * self.diff
Linear
class Linear(Node):
def __init__(self, X, W, b):
Node.__init__(self, [X, W, b])
def forward(self):
self.value = 0
X = self.inbound_nodes[0].value
W = self.inbound_nodes[1].value
b = self.inbound_nodes[2].value
self.value = np.dot(X, W) + b
def backward(self):
self.gradients = { n:np.zeros_like(n.value) for n in self.inbound_nodes}
for n in self.outbound_nodes:
# 获取上一层对改节点的偏导
grad_cost = n.gradients[self]
# 对 X 求偏导
self.gradients[self.inbound_nodes[0]] += np.dot(grad_cost, self.inbound_nodes[1].value.T)
# 对 W 求偏导
self.gradients[self.inbound_nodes[1]] += np.dot(self.inbound_nodes[0].value.T, grad_cost)
# 对 b 求偏导(不明白)
self.gradients[self.inbound_nodes[2]] += np.sum(grad_cost, axis=0, keepdims=False)
Sigmoid
一个sigmoid函数可以定义为 sigmoid(x)=11+e−x ,它的导数与自身相关: σ′(x)=σ(x)(1−σ(x)) 。
class Sigmoid(Node):
def __init__(self, node):
Node.__init__(self, [node])
def _sigmoid(self, x):
return 1. / (1 + np.exp(-x))
def forward(self):
self.value = 0
x = self.inbound_nodes[0].value
self.value = self._sigmoid(x)
def backward(self):
self.gradients = {n:np.zeros_like(n.value) for n in self.inbound_nodes}
for n in self.outbound_nodes:
grad_cost = n.gradients[self]
sigmoid_value = self.value
self.gradients[self.inbound_nodes[0]] = grad_cost * sigmoid_value * (1 - sigmoid_value)
class Input(Node):
def __init__(self):
Node.__init__(self)
def forward(self):
pass
def backward(self):
# Input节点没有输入,因此它的梯度应该是0
self.gradients = {self:0}
#Weights and bias may be inputs, so you need to sum
#the gradient from output gradients.
for n in self.outbound_nodes:
grad_cost = n.gradients[self]
self.gradients[self] += grad_cost*1
class Add(Node):
def __init__(self, *input):
Node.__init__(self, list(input))
def forward(self):
self.value = 0
for n in self.inbound_nodes:
self.value += n.value
def backward(self):
self.gradients = {n:np.zeros_like(n.value,dtype='float32') for n in self.inbound_nodes}
for n in self.outbound_nodes:
grad_cost = n.gradients[self]
print(grad_cost)
for i in self.inbound_nodes:
self.gradients[i] += np.sum(grad_cost)
x,y,z = Input(), Input(),Input()
yy = Input()
f = Add(x, y, z)
x_ = np.array([2, 2])
y_ = np.array([3, 3])
z_ = np.array([5, 5])
yy_ = np.array([7, 7])
feed_dict = {x:x_, y:y_, z:z_,yy:yy_}
cost = MSE(yy, f)
sorted_nodes = topological_sort(feed_dict)
# 未进行forward_pass,这个网络没有“跑”,只有输入节点有值
#print(f.value, x.value, y.value, z.value)
# 让网络向前运行,
forward_and_backward(sorted_nodes)
print(cost.gradients)
print(f.gradients)
[[ 3.]
[ 3.]]
{<__main__.Input object at 0x0000021AC7514828>: array([[-3.],
[-3.]]), <__main__.Add object at 0x0000021AC7514DA0>: array([[ 3.],
[ 3.]])}
{<__main__.Input object at 0x0000021AC7514860>: array([ 6., 6.], dtype=float32), <__main__.Input object at 0x0000021AC7514E48>: array([ 6., 6.], dtype=float32), <__main__.Input object at 0x0000021AC75149B0>: array([ 6., 6.], dtype=float32)}
向后传播也写完了,我们可以测试一下
X, W, b = Input(), Input(), Input()
y = Input()
f = Linear(X, W, b)
a = Sigmoid(f)
cost = MSE(y, a)
X_ = np.array([[-1., -2.], [-1, -2]])
W_ = np.array([[2.], [3.]])
b_ = np.array([-3.])
y_ = np.array([1, 2])
feed_dict = {
X: X_,
y: y_,
W: W_,
b: b_,
}
graph = topological_sort(feed_dict)
forward_and_backward(graph)
# return the gradients for each Input
gradients = [t.gradients[t] for t in [X, y, W, b]]
"""
Expected output
[array([[ -3.34017280e-05, -5.01025919e-05],
[ -6.68040138e-05, -1.00206021e-04]]), array([[ 0.9999833],
[ 1.9999833]]), array([[ 5.01028709e-05],
[ 1.00205742e-04]]), array([ -5.01028709e-05])]
"""
print(gradients)
[array([[ -3.34017280e-05, -5.01025919e-05],
[ -6.68040138e-05, -1.00206021e-04]]), array([[ 0.9999833],
[ 1.9999833]]), array([[ 5.01028709e-05],
[ 1.00205742e-04]]), array([ -5.01028709e-05])]
SGD 梯度下降
接下来实现SGD梯度下降,用一个例子(波士顿房价预测)来运用以上所有代码
def sgd_update(trainables, learning_rate=1e-2):
for t in trainables:
partial = t.gradients[t]
t.value -= learning_rate * partial
import numpy as np
from sklearn.datasets import load_boston
from sklearn.utils import shuffle, resample
# Load data
data = load_boston()
X_ = data['data']
y_ = data['target']
# Normalize data
X_ = (X_ - np.mean(X_, axis=0)) / np.std(X_, axis=0)
n_features = X_.shape[1]
n_hidden = 10
W1_ = np.random.randn(n_features, n_hidden)
b1_ = np.zeros(n_hidden)
W2_ = np.random.randn(n_hidden, 1)
b2_ = np.zeros(1)
# Neural network
X, y = Input(), Input()
W1, b1 = Input(), Input()
W2, b2 = Input(), Input()
l1 = Linear(X, W1, b1)
s1 = Sigmoid(l1)
l2 = Linear(s1, W2, b2)
cost = MSE(y, l2)
feed_dict = {
X: X_,
y: y_,
W1: W1_,
b1: b1_,
W2: W2_,
b2: b2_
}
epochs = 10
# Total number of examples
m = X_.shape[0]
batch_size = 11
steps_per_epoch = m // batch_size
graph = topological_sort(feed_dict)
trainables = [W1, b1, W2, b2]
print("Total number of examples = {}".format(m))
# Step 4
for i in range(epochs):
loss = 0
for j in range(steps_per_epoch):
# Step 1
# Randomly sample a batch of examples
X_batch, y_batch = resample(X_, y_, n_samples=batch_size)
# Reset value of X and y Inputs
X.value = X_batch
y.value = y_batch
# Step 2
forward_and_backward(graph)
# Step 3
sgd_update(trainables)
loss += graph[-1].value
print("Epoch: {}, Loss: {:.3f}".format(i+1, loss/steps_per_epoch))
