FTP文件服务器

"""
FTP服务器(File Transfer Protocol Server)是在互联网上提供文件存储和访问服务的计算机，它们依照FTP协议提供服务。 FTP是File Transfer Protocol(文件传输协议)。顾名思义，就是专门用来传输文件的协议。简单地说，支持FTP协议的服务器就是FTP服务器。
"""

从上述定义中，我们知道了文件服务器的两个核心功能：上传和下载。

在现实生活中，常用的文件服务器有哪些了？

Xftp,WinScp,FileZilla

如何实现FTP文件服务器

"""
我们需要一个客户端，和一个服务端（基本需求）：
1、客户端用来发送服务请求
2、服务端用来处理服务请求，并返回相应的数据给客户端
3、使用socket来实现客户端和服务端之间的通信
"""

实验准备

为了模拟并发的效果，我们准备两个客户端，一个服务端

"""
服务端：阿里云服务器(172.21.44.11)
客户端1：本地虚拟机1(192.168.80.129)
客户端2：本地虚拟机1(192.168.80.130)
"""

主要实现功能

"""
1.文件上传
2.文件下载
3.文件MD5校验
4.文件进度条显示
"""

使用模块

import os
import sys
import struct
import json
import hashlib
import argparse
from prettytable import PrettyTable
from socket import *

客户端代码

"""

FTP客户端
time:2020/4/21
version:1.0
coder:surpass

"""

import os
import sys
import struct
import json
import hashlib
import argparse
from prettytable import PrettyTable
from socket import *

func_dic = {
    'upload': ['上传文件', 'upload'],
    'download': ['下载文件', 'download']
}

base_path = os.path.dirname(os.path.abspath(__file__))


def get_file_md5(file_path):
    if os.path.isfile(file_path):
        size = os.path.getsize(file_path) // 5
        m = hashlib.md5()
        with open(file_path, mode='rb') as f:
            for i in range(4):
                m.update(f.read(5))
                f.seek(size, 1)
        return m.hexdigest()


def check_file_md5(filename, file_md5):
    size = os.path.getsize(filename) // 5
    m = hashlib.md5()
    with open(filename, mode='rb') as f:
        for i in range(4):
            m.update(f.read(5))
            f.seek(size, 1)
    if m.hexdigest() == file_md5:
        return True


def get_pretty_tb(table_list, *args):
    tb = PrettyTable(field_names=table_list)
    for item in args:
        tb.add_row(item)
    return tb


class MYFTPClient:
    def __init__(self, ip_address, buf_size=1024):
        self.ip_address = ip_address
        self.buf_size = buf_size
        self.client = socket(AF_INET, SOCK_STREAM)
        self.client_connect()

    def client_connect(self):
        try:
            self.client.connect_ex(self.ip_address)
        except Exception as e:
            sys.stderr.write(f'connect error:{e}')

    def client_close(self):
        self.client.close()

    def send_head_pack(self, cmd=None, file=None, remote_path=None, file_path=None,
                       filename=None, file_size=None, file_md5=None):
        """
        cmd:操作命令，file:文件或文件夹集合，remote_path:远程路径，file_path：文件路径
        filename:文件名，file_size:文件大小，file_md5:文件的md5值
        """
        head_dic = {'cmd': cmd, 'file': file, 'remote_path': remote_path, 'file_path': file_path,
                    'filename': filename, 'file_size': file_size, 'file_md5': file_md5}
        head_dic = {k: v for k, v in head_dic.items() if v is not None}
        # print(head_dic)
        head_json = json.dumps(head_dic)
        head_bytes = bytes(head_json, encoding='utf-8')
        head_struct = struct.pack('i', len(head_bytes))
        # 将报头传给服务端
        self.client.send(head_struct)
        self.client.send(head_bytes)

    def show_remote_path(self, remote_path=None):
        """
        获取远端的文件夹，包括文件和文件夹
        """
        self.send_head_pack(cmd='show_remote_path', file={}, remote_path=remote_path)

        recv_size = struct.unpack('i', self.client.recv(4))[0]
        file_dic = json.loads(self.client.recv(recv_size).decode('utf-8'))

        print('获取远程路径'.center(60, '='))
        print(f"{file_dic.get('base_path')}")
        table_list = ['名字', '属性', '大小', '创建日期']
        result = []
        file_list = []
        dir_list = []
        for item in file_dic['file_list']:
            item.insert(1, 'file')
            result.append(item)
            file_list.append(os.path.join(file_dic.get('base_path'), item[0]))
        for obj in file_dic['dir_list']:
            obj.insert(1, 'dir')
            result.append(obj)
            dir_list.append(os.path.join(file_dic.get('base_path'), obj[0]))
        tb_show = get_pretty_tb(table_list, *result)
        print(tb_show)
        dir_list.append(os.path.dirname(file_dic.get('base_path')))
        return file_list, dir_list

    def show_progress(self, func=None, filename=None, percent=None):
        res = int(50 * percent) * '#'
        sys.stdout.write('r%s %s[%-50s] %d%%' % (func, filename, res, int(100 * percent)))
        sys.stdout.flush()

    def upload(self, msg):
        cmd = msg
        while 1:
            filepath = input('请输入上传文件的路径>>:').strip()
            if not filepath: continue
            break
        filename = os.path.basename(filepath)
        file_size = os.path.getsize(filepath)
        file_md5 = get_file_md5(filepath)
        if not file_md5:
            raise FileNotFoundError(f'file does not exits:{filepath}')
        self.send_head_pack(cmd=cmd, filename=filename, file_size=file_size, file_md5=file_md5)
        current_size = 0
        with open(filepath, mode='rb') as f:
            for line in f:
                current_size += len(line)
                self.show_progress('upload', filename, current_size // file_size)
                self.client.send(line)
        res = self.client.recv(4)
        msg_len = struct.unpack('i', res)[0]
        msg = self.client.recv(msg_len).decode('utf-8')
        print(f'n{msg}')

    def download(self, msg):
        cmd = msg
        file_all = self.show_remote_path()
        while 1:
            choice = input("请选择相应的文件下载,或者通过选相应的路径切换路径:")
            if choice in file_all[1]:
                file_all = self.show_remote_path(choice)
                continue
            elif choice in file_all[0]:
                self.send_head_pack(cmd=cmd, file_path=choice, filename=os.path.basename(choice))

                file_struct = struct.unpack('i', self.client.recv(4))[0]
                file_json = self.client.recv(file_struct).decode('utf-8')
                file_dic = json.loads(file_json)
                # print(file_dic)
                filename = file_dic.get('filename')
                file_size = file_dic.get('file_size')
                download_size = 0
                while download_size < file_size:
                    content = self.client.recv(1024)
                    download_size += len(content)
                    self.show_progress('download', filename, download_size // file_size)
                    with open(os.path.join(base_path, filename), mode='ab+') as fw:
                        fw.write(content)
                else:
                    file_path = os.path.join(base_path, filename)
                    if check_file_md5(file_path, file_dic.get('file_md5')):
                        sys.stdout.write(f'ndownload {filename} success!n')
                    else:
                        os.remove(file_path)
                        sys.stderr.write(f'nfiled to download {filename}!n')
                break
            else:
                print('请输入正确的文件或路径！')

    def run(self):
        while 1:
            func_table_list = ['功能选项', '功能名称', '操作示例']
            result = [(lambda x, y, z: [x, y, z])(k, v[0], v[1]) for k, v in func_dic.items()]
            tb_func = get_pretty_tb(func_table_list, *result)
            msg = input(f'{tb_func}nplease enter the operate signal>>:').strip()
            if not msg: continue
            if hasattr(self, msg):
                func = getattr(self, msg)
                func(msg)
            _continue = input('是否继续进行操作(y,n):').strip().lower()
            if _continue == 'n': break
        self.client_close()


def main():
    parser = argparse.ArgumentParser(description='MY FTP Client v1.0')
    parser.add_argument('--ip', action='store', dest='ip', required=True, help='The remote ip to connect')
    parser.add_argument('--port', action='store', dest='port', required=True, type=int, help='The port to connect')
    parser.add_argument('--buf_size', action='store', dest='buf_size', type=int,
                        help='the max size(one time) to upload/download')
    args = parser.parse_args()
    if args.buf_size:
        client = MYFTPClient((args.ip, args.port), args.buf_size)
    else:
        client = MYFTPClient((args.ip, args.port))
    client.run()


if __name__ == '__main__':
    main()

服务端代码

基于socketserver实现并发

"""
FTP服务端
time:2020/4/21
version:v1.0
coder:surpass
"""

import os
import sys
import json
import struct
import time
import hashlib
import socketserver

IP_ADDRESS = ('0.0.0.0', 9090)
BUF_SIZE = 1024


def get_file_md5(file_path):
    if os.path.isfile(file_path):
        size = os.path.getsize(file_path) // 5
        m = hashlib.md5()
        with open(file_path, mode='rb') as f:
            for i in range(4):
                m.update(f.read(5))
                f.seek(size, 1)
        return m.hexdigest()


def check_file_md5(filename, file_md5):
    size = os.path.getsize(filename) // 5
    m = hashlib.md5()
    with open(filename, mode='rb') as f:
        for i in range(4):
            m.update(f.read(5))
            f.seek(size, 1)
    if m.hexdigest() == file_md5:
        return True


class MYFTPServer(socketserver.BaseRequestHandler):
    def handle(self):
        while 1:
            try:
                head_struct = self.request.recv(4)
                if not head_struct: break
                head_len = struct.unpack('i', head_struct)[0]
                head_dic_json = self.request.recv(head_len).decode('utf-8')
                head_dic = json.loads(head_dic_json)
                if hasattr(self, head_dic.get('cmd')):
                    func = getattr(self, head_dic.get('cmd'))
                    func(head_dic)
            except Exception as e:
                sys.stderr.write(f'error message:{e}')
        self.request.close()

    def show_remote_path(self, head_dic):
        if not head_dic.get('remote_path'):
            base_path = os.path.dirname(os.path.abspath(__file__))
        else:
            base_path = head_dic.get('remote_path')
        head_dic['file']['base_path'] = base_path
        head_dic['file']['file_list'] = []
        head_dic['file']['dir_list'] = []
        for obj in os.listdir(base_path):
            obj_abs_path = os.path.join(base_path, obj)
            obj_name = os.path.basename(obj_abs_path)
            obj_size = os.path.getsize(obj_abs_path)
            timestamp = os.path.getmtime(obj_abs_path)
            obj_mtime = time.strftime('%Y/%m/%d %X', time.localtime(timestamp))
            if os.path.isfile(obj_abs_path):
                head_dic['file']['file_list'].append([obj_name, obj_size, obj_mtime])
            elif os.path.isdir(obj_abs_path):
                obj_size = ''
                head_dic['file']['dir_list'].append([obj_name, obj_size, obj_mtime])
        head_json = json.dumps(head_dic.get('file'))
        head_bytes = bytes(head_json, encoding='utf-8')
        head_struct = struct.pack('i', len(head_bytes))

        self.request.send(head_struct)
        self.request.send(head_json_bytes)

    def upload(self, head_dic):
        file_size = head_dic.get('file_size')
        recv_size = 0
        while recv_size < file_size:
            content = self.request.recv(BUF_SIZE)
            recv_size += len(content)
            with open(head_dic.get('filename'), mode='ab+') as f:
                f.write(content)
        else:
            if check_file_md5(head_dic.get('filename'), head_dic.get('file_md5')):
                msg = f"upload file {head_dic.get('filename')} success!"
            else:
                os.remove(head_dic.get('filename'))
                msg = f"failed to upload file,file {head_dic.get('filename')} is damaged!"
            msg_len = struct.pack('i', len(msg.encode('utf-8')))
            self.request.send(msg_len)
            self.request.send(msg.encode('utf-8'))

    def download(self, head_dic):
        file_path = head_dic.get('file_path')
        filename = os.path.basename(file_path)
        file_md5 = get_file_md5(file_path)
        file_size = os.path.getsize(file_path)
        file_dic = {'filename': filename, 'file_size': file_size, 'file_md5': file_md5}
        file_json = json.dumps(file_dic)
        file_bytes = bytes(file_json, encoding='utf-8')
        file_struct = struct.pack('i', len(file_bytes))

        # 发送报头消息
        self.request.send(file_struct)
        self.request.send(file_bytes)

        with open(file_path, mode='rb') as fr:
            for line in fr:
                self.request.send(line)


def main():
    server = socketserver.ThreadingTCPServer(IP_ADDRESS, MYFTPServer)
    server.serve_forever()


if __name__ == '__main__':
    main()

但是采用socketserver实现并发，容易遇到地址占用问题：

解决方案：

"""
1.使用Thread实现并发
2.使用 setsockopt(socket.SOL_SOCKET,socket.SO_REUSEADDR,1)解决地址占用问题
"""

基于Thread实现并发

"""
FTP服务端
time:2020/4/24
version:v2.0
coder:surpass
"""

import os
import sys
import json
import struct
import time
import hashlib
from socket import *
from threading import Thread

IP_ADDRESS = ('0.0.0.0', 9090)
BUF_SIZE = 1024
BACK_LOG = 5


class MYFTPServer:
    def __init__(self, ip_address):
        self.ip_address = ip_address
        self.server = socket(AF_INET, SOCK_STREAM)

    def bind(self):
        self.server.setsockopt(SOL_SOCKET, SO_REUSEADDR, 1)
        self.server.bind(self.ip_address)

    def listen(self):
        self.server.listen(BACK_LOG)

    def accept(self):
        return self.server.accept()

    @staticmethod
    def show_remote_path(head_dic, conn):
        if not head_dic.get('remote_path'):
            remote_path = os.path.dirname(os.path.abspath(__file__))
        else:
            remote_path = head_dic.get('remote_path')
        head_dic['file']['base_path'] = remote_path
        head_dic['file']['file_list'] = []
        head_dic['file']['dir_list'] = []
        for item in os.listdir(remote_path):
            obj_path = os.path.join(remote_path, item)
            obj_mtime = os.path.getmtime(obj_path)
            if os.path.isfile(obj_path):
                head_dic['file']['file_list'].append(
                    os.path.basename(obj_path),
                    os.path.getsize(obj_path),
                    time.strftime('%Y-%m-%d %X', time.localtime(obj_mtime))
                )
            elif os.path.isdir(obj_path):
                head_dic['file']['dir_list'].append(
                    os.path.basename(obj_path), '',
                    time.strftime('%Y-%m-%d %X', time.localtime(obj_mtime))
                )
        head_json = json.dumps(head_dic['file'])
        head_bytes = bytes(head_json, encoding='utf-8')
        head_struct = struct.pack('i', len(head_bytes))

        conn.send(head_struct)
        conn.send(head_bytes)

    @staticmethod
    def check_file_md5(filename, file_size, file_md5):
        m = hashlib.md5()
        move_size = file_size // 5
        with open(filename, mode='rb') as fr:
            for i in range(4):
                m.update(fr.read(5))
                fr.seek(move_size, 1)
        if m.hexdigest() == file_md5:
            return True

    @staticmethod
    def get_file_md5(file_path, file_size):
        m = hashlib.md5()
        move_size = file_size // 5
        with open(file_path, mode='rb') as fr:
            for i in range(4):
                m.update(fr.read(5))
                fr.seek(move_size, 1)
        return m.hexdigest()

    def upload(self, head_dic, conn):
        recv_size = 0
        file_size = head_dic.get('file_size')
        while recv_size < file_size:
            content = conn.recv(BUF_SIZE)
            recv_size += len(content)
            with open(head_dic.get('filename'), mode='ab+') as fw:
                fw.write(content)
        else:
            filename = head_dic.get('filename')
            file_size = head_dic.get('file_size')
            file_md5 = head_dic.get('file_md5')
            if self.check_file_md5(filename, file_size, file_md5):
                msg = f'upload file {filename} success!'
            else:
                os.remove(head_dic.get('file_path'))
                msg = f'failed to upload file {filename}!'
            msg_struct = struct.pack('i', len(msg.encode('utf-8')))
            conn.send(msg_struct)
            conn.send(msg.encode('utf-8'))

    def download(self, head_dic, conn):
        file_path = head_dic.get('file_path')
        file_size = os.path.getsize(file_path)
        filename = head_dic.get('filename')
        file_md5 = self.get_file_md5(file_path, file_size)
        head_dic = {'filename': filename, 'file_size': file_size, 'file_md5': file_md5}
        head_json = json.dumps(head_dic)
        head_bytes = bytes(head_json, encoding='utf-8')
        head_struct = struct.pack('i', len(head_bytes))
        conn.send(head_struct)
        conn.send(head_bytes)

        with open(file_path, mode='rb') as fr:
            for line in fr:
                conn.send(line)

    def communicate(self, conn, addr):
        print(f'收到客户端[{addr[0]}:{addr[1]}]的信息...')
        while 1:
            try:
                head_struct = conn.recv(4)
                if not head_struct: break
                head_len = struct.unpack('i', head_struct)[0]
                head_bytes = conn.recv(head_len)
                head_dic = json.loads(head_bytes.decode('utf-8'))
                if hasattr(self, head_dic.get('cmd')):
                    func = getattr(self, head_dic.get('cmd'))
                    func(head_dic, conn)
            except ConnectionResetError as e:
                sys.stderr.write(f'connect error:{e}')
        conn.close()

    def run(self):
        self.bind()
        self.listen()
        while 1:
            conn, addr = self.accept()
            t = Thread(target=self.communicate, args=(conn, addr))
            t.start()


if __name__ == '__main__':
    server = MYFTPServer(IP_ADDRESS)
    server.run()

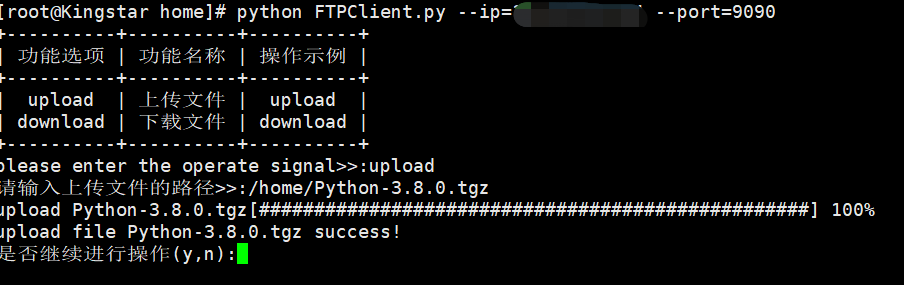

上传功能

客户端1：

客户端2：

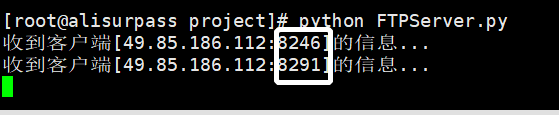

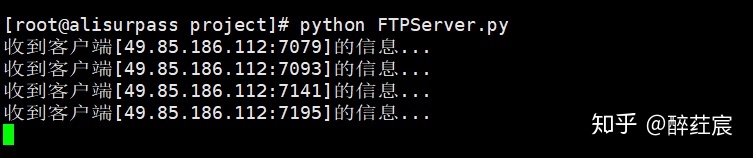

服务端：

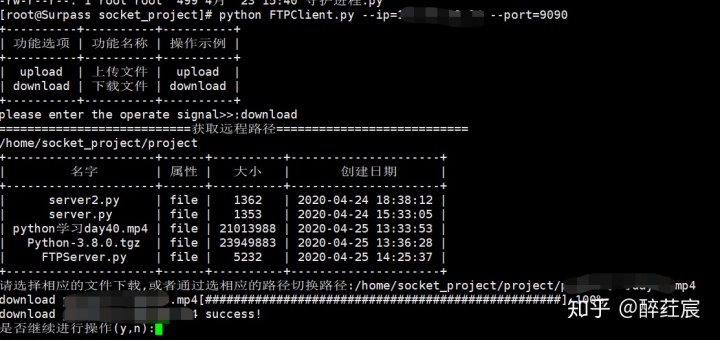

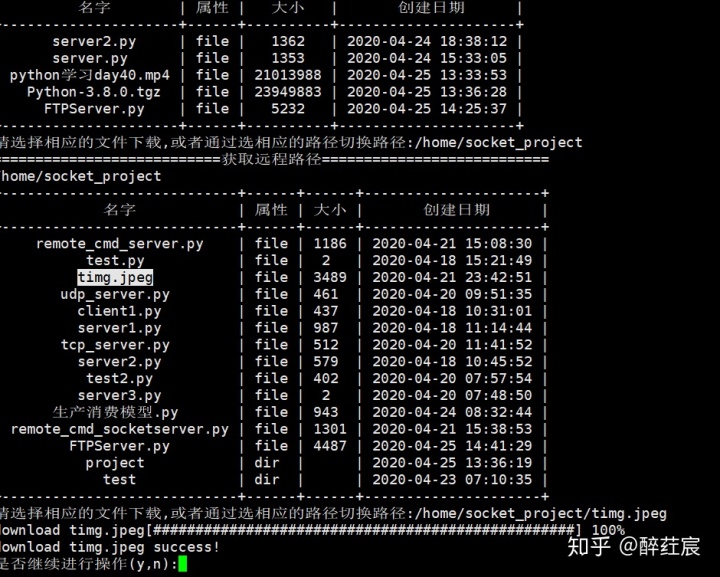

下载功能
