背景

某个设备配套的刷机程序是个Linux recovery kernel，刷机过程会先从U盘加载刷机脚本，仅在签名校验通过后才执行脚本。本文记录了分析和移除签名校验的方法。

分析

刷机程序是一个bzImage文件，从启动的输出来看，内部包含了一个initrd，在initrd中实现了读取U盘中的脚本和签名校验过程。

查看initrd内容

通过增加启动参数(cmdline)rdinit=/bin/sh，可以使Kernel启动后执行/bin/sh，而不是默认的/init程序，有了命令行接口后，就可以查看initrd的内容。

~ # busybox find /

/

/.ash_history

/init

/etc

/etc/shadow

/etc/passwd

/.gnupg

/.gnupg/trustdb.gpg

/.gnupg/secring.gpg

/.gnupg/pubring.gpg~

/.gnupg/pubring.gpg

/bin

/bin/kexec

/bin/gpg2

/bin/busybox

/bin/dd

/bin/umount

/bin/sleep

/bin/rmdir

/bin/rm

/bin/reboot

/bin/mount

/bin/mkdir

/bin/ls

/bin/cat

/bin/sh

/mnt

/sys

/proc

/dev

/dev/pts

/dev/loop0

/dev/tty0

/dev/console

~ # busybox find /

/

/.ash_history

/init

/etc

/etc/shadow

/etc/passwd

/.gnupg

/.gnupg/trustdb.gpg

/.gnupg/secring.gpg

/.gnupg/pubring.gpg~

/.gnupg/pubring.gpg

/bin

/bin/kexec

/bin/gpg2

/bin/busybox

/bin/dd

/bin/umount

/bin/sleep

/bin/rmdir

/bin/rm

/bin/reboot

/bin/mount

/bin/mkdir

/bin/ls

/bin/cat

/bin/sh

/mnt

/sys

/proc

/dev

/dev/pts

/dev/loop0

/dev/tty0

/dev/console

# cat /init

...

gpg2 --ignore-time-conflict --ignore-valid-from --verify $FLASH_FILE_SIG $FLASH_FILE

if [ $? -eq 0 ]; then

echo "PWR_LED 3" > /proc/BOARD_io

/bin/busybox sh $FLASH_FILE

if [ $? -eq 0 ]; then

echo "PWR_LED 1" > /proc/BOARD_io

echo "flash success..."

echo "Please unplug USB drive and power cycle system"

else

echo "PWR_LED 4" > /proc/BOARD_io

echo "flash failed..."

echo "Please try again or try another board"

fi

else

echo "PWR_LED 4" > /proc/BOARD_io

echo "flash failed..."

echo "Script verify failed"

fi

...

# cat /init

...

gpg2 --ignore-time-conflict --ignore-valid-from --verify $FLASH_FILE_SIG $FLASH_FILE

if [ $? -eq 0 ]; then

echo "PWR_LED 3" > /proc/BOARD_io

/bin/busybox sh $FLASH_FILE

if [ $? -eq 0 ]; then

echo "PWR_LED 1" > /proc/BOARD_io

echo "flash success..."

echo "Please unplug USB drive and power cycle system"

else

echo "PWR_LED 4" > /proc/BOARD_io

echo "flash failed..."

echo "Please try again or try another board"

fi

else

echo "PWR_LED 4" > /proc/BOARD_io

echo "flash failed..."

echo "Script verify failed"

fi

...

从initrd的内容来看，由/init调用gpg2对U盘中的刷机脚本执行签名校验，只有公钥集成在initrd中，没有私钥。

到这一步，我们已经清楚了签名校验的实现方法，并且也能使启动过程进入受控的命令行交互状态，其实已经可以手工操作跳过签名过程来刷机。

修改

每次手工操作的确太麻烦，那就来移除initrd中的签名校验过程吧。

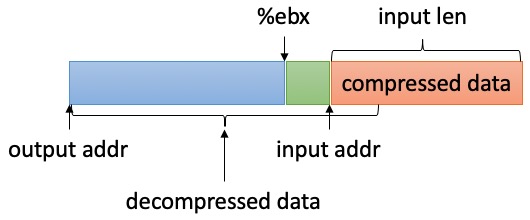

从bzImage的结构来看，要想修改initrd，先要从bzImage中提取出vmlinux，再从vmlinux中提取出initrd。

1. 提取vmlinux

从bzImage中提取vmlinux比较简单，有现成的工具，位于Linux源代码中 scripts/extract-vmlinux

./scripts/extract-vmlinux bzImage > vmlinux

./scripts/extract-vmlinux bzImage > vmlinux

2. 提取initrd

initrd的格式可以是cpio archive，也可以是gzip、bzip2、lzma、xz或lzo压缩的，先用binwalk扫描一遍。

binwalk vmlinux

binwalk vmlinux

DECIMAL HEXADECIMAL DESCRIPTION

--------------------------------------------------------------------------------

0 0x0 ELF, 32-bit LSB executable, Intel 80386, version 1 (SYSV)

3641536 0x3790C0 Linux kernel version "2.6.39 (ubuntu@ubuntu) (gcc version 4.9.3 20150311 (prerelease) (crosstool-NG 1.20.0) ) #24 SMP Fri Jun 7 14:32:37 CST 2019"

3922304 0x3BD980 CRC32 polynomial table, little endian

4318976 0x41E700 Unix path: /home/ubuntu/ce5300/barcelona_kernel/arch/x86/include/asm/desc.h

4321256 0x41EFE8 Unix path: /home/ubuntu/ce5300/barcelona_kernel/arch/x86/include/asm/i387.h

4322244 0x41F3C4 Unix path: /home/ubuntu/ce5300/barcelona_kernel/arch/x86/include/asm/processor.h

4323964 0x41FA7C Unix path: /x86/kernel/cpu/perf_event_intel.c

4324152 0x41FB38 Unix path: /x86/kernel/cpu/perf_event_intel_ds.c

4325960 0x420248 Unix path: /x86/kernel/cpu/mcheck/mce.c

4326820 0x4205A4 Unix path: /x86/kernel/cpu/mcheck/mce_intel.c

4327124 0x4206D4 Unix path: /x86/kernel/cpu/mcheck/therm_throt.c

4328480 0x420C20 Unix path: /x86/kernel/cpu/mtrr/generic.c

4329752 0x421118 Unix path: /x86/kernel/cpu/mtrr/cleanup.c

4329832 0x421168 Unix path: /x86/kernel/cpu/perfctr-watchdog.c

4336148 0x422A14 Unix path: /x86/kernel/apic/apic_noop.c

4336572 0x422BBC Unix path: /x86/kernel/apic/io_apic.c

434
