学用 TStringGrid [9] - OnDrawCell

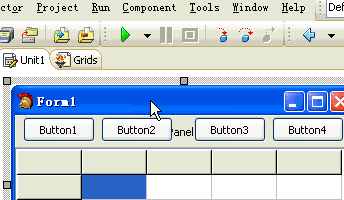

本例效果图:

---

unit Unit1;

interface

uses
  Windows, Messages, SysUtils, Variants, Classes, Graphics, Controls, Forms,
  Dialogs, StdCtrls, ExtCtrls, Grids;

type
  TForm1 = class(TForm)
    StringGrid1: TStringGrid;
    Panel1: TPanel;
    Button1: TButton;
    Button2: TButton;
    Button3: TButton;
    Button4: TButton;
    procedure FormCreate(Sender: TObject);
    procedure StringGrid1DrawCell(Sender: TObject; ACol, ARow: Integer;
      Rect: TRect; State: TGridDrawState);
    procedure Button2Click(Sender: TObject);
    procedure Button1Click(Sender: TObject);
    procedure Button3Click(Sender: TObject);
    procedure Button4Click(Sender: TObject);
  end;

var
  Form1: TForm1;

implementation

{$R *.dfm}

var
  TextFormat: TTextFormat;

procedure TForm1.FormCreate(Sender: TObject);
var
  i,j: Integer;
begin
  with StringGrid1 do
    for i := 0 to ColCount - 1 do
      for j := 0 to RowCount - 1 do
        Cells[i,j] := Format('%d%d',[i,j]);

  StringGrid1.Font.Style := [fsBold];
  StringGrid1.Font.Size := 10;
end;

procedure TForm1.StringGrid1DrawCell(Sender: TObject; ACol, ARow: Integer;
  Rect: TRect; State: TGridDrawState);
var
  str: string;
begin
  Randomize;
  StringGrid1.Canvas.Brush.Color := Random($FFFFFF);
  StringGrid1.Canvas.FillRect(Rect);
  str := StringGrid1.Cells[ACol,ARow];
  StringGrid1.Canvas.TextRect(Rect, str, TextFormat);
end;

procedure TForm1.Button1Click(Sender: TObject);
begin
  Randomize;
  StringGrid1.Font.Color := Random($FFFFFF);
  TButton(Sender).Caption := '字体颜色';
end;

procedure TForm1.Button2Click(Sender: TObject);
begin
  TextFormat := [tfSingleLine, tfCenter, tfVerticalCenter];
  StringGrid1.Refresh;
  TButton(Sender).Caption := '居中对齐';
end;

procedure TForm1.Button3Click(Sender: TObject);
begin
  TextFormat := [tfSingleLine, tfRight, tfVerticalCenter];
  StringGrid1.Refresh;
  TButton(Sender).Caption := '右对齐';
end;

procedure TForm1.Button4Click(Sender: TObject);
begin
  TextFormat := [tfSingleLine, tfLeft, tfVerticalCenter];
  StringGrid1.Refresh;
  TButton(Sender).Caption := '左对齐';
end;

end.

转载于:https://www.cnblogs.com/del/archive/2008/03/06/1094289.html
