figma转换html,GitHub - BuilderIO/figma-html: Figma to HTML, CSS, React, Vue, and more!

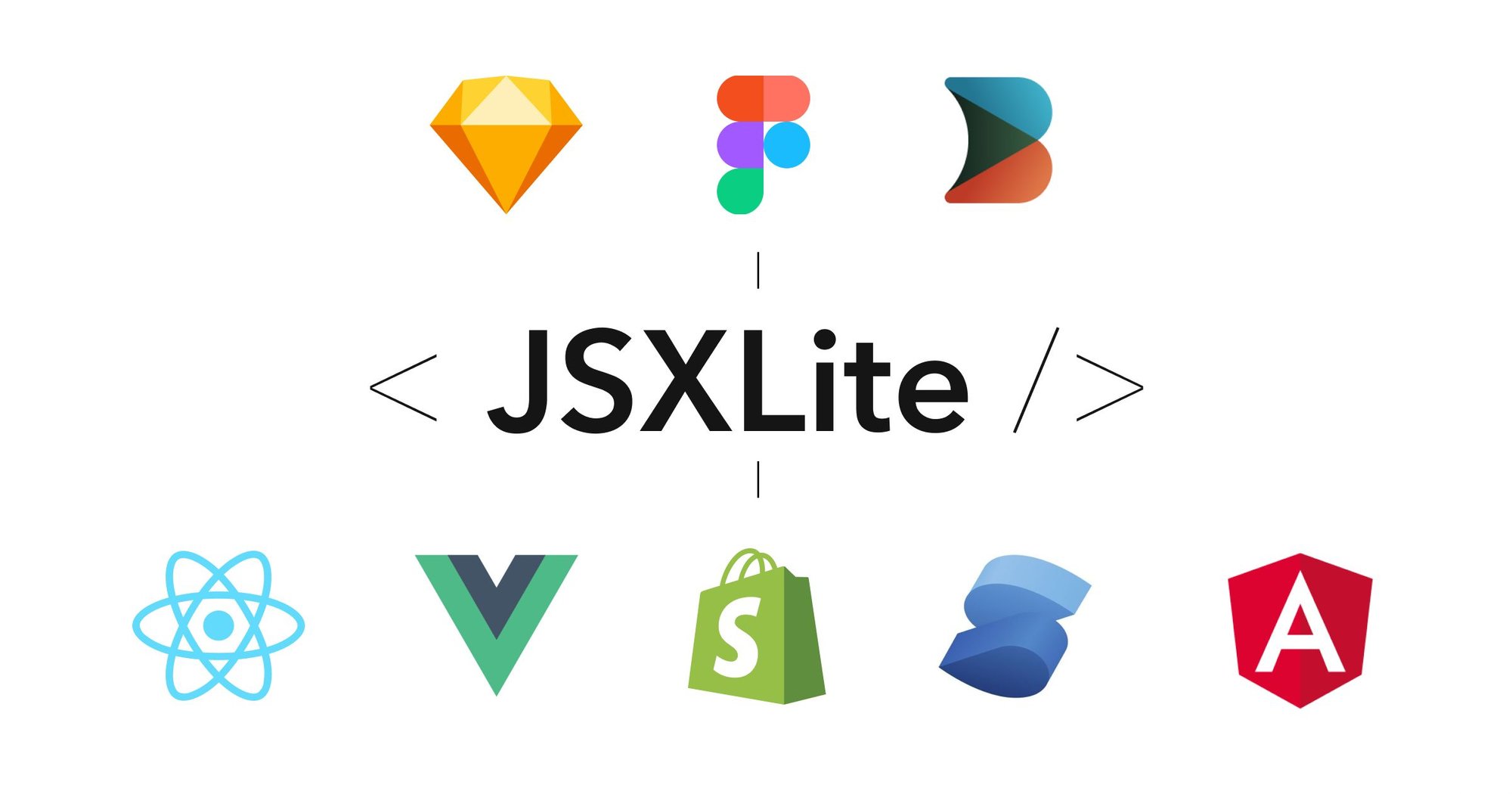

Convert Figma designs into high quality HTML, React, Vue, Svelte, Angular, Solid, etc code via JSX Lite

How does it work

Export designs to code

Ensure all layers you want to import use autolayout as described here

Click the "get code" button to launch into the Builder.io editor

Make any final adjustments, and click "get code" at the top of Builder to view code output, or copy and paste it to content of a Builder account to publish live

Import webpages to Figma designs

In Figma, open a new or existing document, then hit cmd+/ and search "html figma" and hit enter

Enter a URL you want to import

Why?

Instantly convert designs into live webpages and code

Easily import real live site styles for a starting point for designs and prototypes

Quickly turn real site components into design components

Easy import from storybook, etc

Chrome Extension

Want to capture a page behind an auth wall, or in a specific state you need to navigate to? Then the chrome extension is for you!

Using the library

// npm install @builder.io/html-to-figma

import { htmlToFigma } from "@builder.io/html-to-figma";

const layers = htmlToFigma(document.body);

// E.g. send these to the REST API, or generate a .figma.json file that can be uploaded through the Figma plugin

Limitations

Importing HTML layers to Figma is a best-effort process. Even getting 90% there can save you a ton of time, only having to clean up a few things.

A few known limitations:

not all element types are supported (e.g. iframe, pseudoelements)

not all CSS properties are supported or fully supported

not all types of media are supported (video, animated gifs, etc)

all fonts have to be uploaded to Figma or a best effort fallback will be used

If you find any issues or have feedback at all please make an issue

TODO

Support code import from JSX Lite

Support Figma components

Made with ❤️ by Builder.io
