# imshow函数 matlab_大津阈值法matlab实现

## 1、大津阈值法

clear all
%先把彩色图变灰度图

%figure(1)

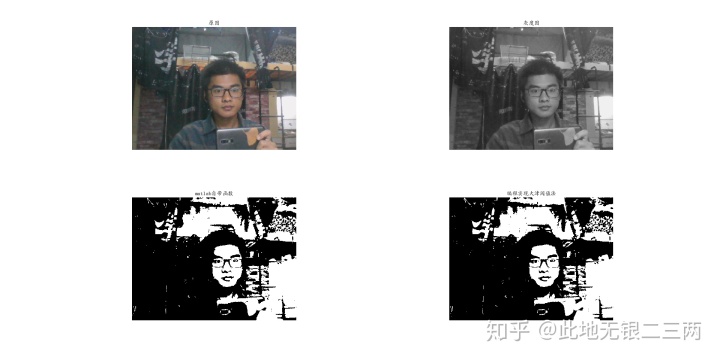

subplot(221)
imshow(I);
title('原图');
I=rgb2gray(I);
subplot(222)
imshow(I);
title('灰度图');
level = graythresh(I);
BW = imbinarize(I,level);
subplot(223)
%figure(2)
imshow(BW);
title('matlab自带函数');
IMAX = max(max(I));
IMIN = min(min(I));

T=IMIN:IMAX;
ISIZE=size(I);  %图像大小

muxSize = ISIZE(1) * ISIZE(2);

Tmp=0;%zeros(1,length(T));
mid=0;
for i=1:length(T)  %从MIN到MAX
TK =T(1,i);
ifground=0;
ibground=0;
FgroundS=0;
BgroundS=0;
for j=1:ISIZE(1)
for k=1:ISIZE(2)
tmp = I(j,k);
if(tmp>=TK)
ifground=ifground+1;%像素个数
FgroundS=FgroundS+double(tmp);%总的前景色灰度
else
ibground=ibground+1;
Bground=BgroundS+double(tmp);
end
end
end

w0=ifground/muxSize;
w1=ibground/muxSize;
u0=FgroundS/ifground;
u1=BgroundS/ibground;

tmp=w0*w1*(u0-u1)*(u0-u1);
if(Tmp<tmp)
mid=TK;
Tmp=tmp;
end
end

for j=1:ISIZE(1)
for k=1:ISIZE(2)
if(I(j,k)>=mid)
I(j,k)=255;
else
I(j,k)=0;
end
end
end
subplot(224)
%figure(3)
imshow(I);
title('编程实现大津阈值法');
