引言

在使用VM VirtualBox过程中，会用到很多平台sdk，每个sdk占用空间都特别大，如果将所有sdk都放置系统盘中，磁盘空间会变得非常巨大，不利于虚拟机备份。VM VirtualBox使用的是虚拟磁盘vdi，可以将系统和sdk分别存储在不同的虚拟磁盘中，需要使用哪个sdk就加载哪个vdi虚拟磁盘就行，这样方便备份虚拟机和sdk。

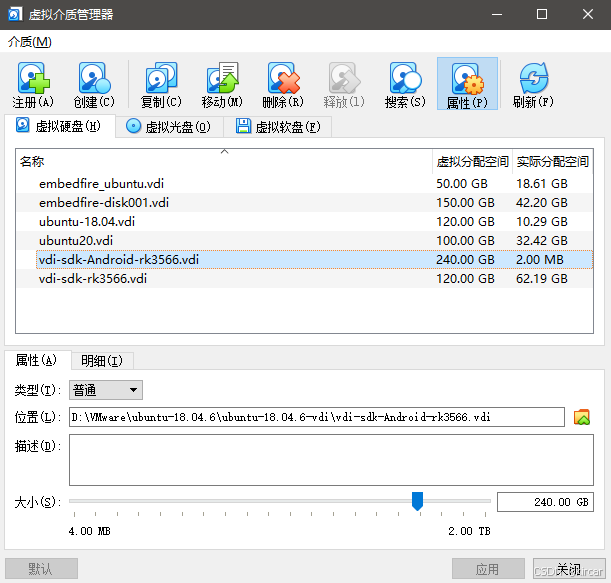

创建一个vdi磁盘

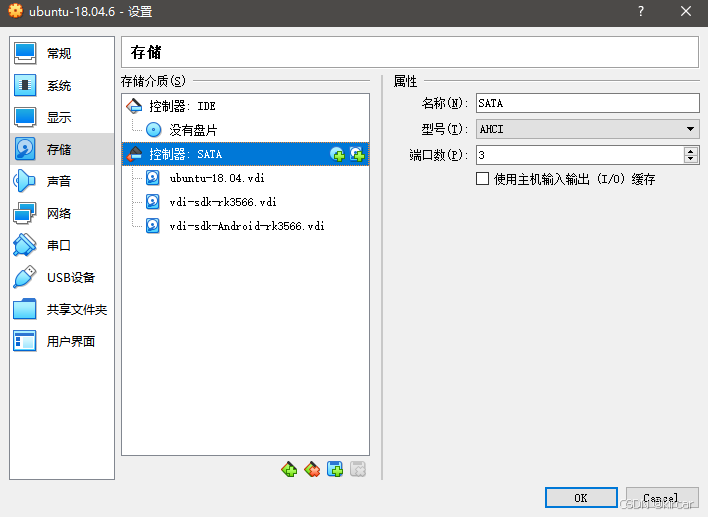

加载到虚拟机中，启动虚拟机

查看分区：

kircar@ubuntu:~$ lsblk
NAME   MAJ:MIN RM   SIZE RO TYPE MOUNTPOINT
loop0    7:0    0  55.4M  1 loop /snap/core18/2128
loop1    7:1    0   704K  1 loop /snap/gnome-characters/726
loop2    7:2    0     4K  1 loop /snap/bare/5
loop3    7:3    0   2.5M  1 loop /snap/gnome-calculator/884
loop4    7:4    0   1.6M  1 loop /snap/gnome-system-monitor/186
loop5    7:5    0   860K  1 loop /snap/gnome-logs/123
loop6    7:6    0  91.7M  1 loop /snap/gtk-common-themes/1535
loop7    7:7    0   219M  1 loop /snap/gnome-3-34-1804/72
loop8    7:8    0  63.7M  1 loop /snap/core20/2434
loop9    7:9    0  44.4M  1 loop /snap/snapd/23545
loop10   7:10   0   2.2M  1 loop /snap/gnome-calculator/955
loop11   7:11   0   516K  1 loop /snap/gnome-characters/797
loop12   7:12   0   548K  1 loop /snap/gnome-logs/106
loop13   7:13   0   2.5M  1 loop /snap/gnome-system-monitor/163
loop14   7:14   0  73.9M  1 loop /snap/core22/1722
loop15   7:15   0 218.4M  1 loop /snap/gnome-3-34-1804/93
loop16   7:16   0  55.4M  1 loop /snap/core18/2846
loop17   7:17   0  65.1M  1 loop /snap/gtk-common-themes/1515
loop18   7:18   0  61.8M  1 loop /snap/core20/1081
loop19   7:19   0 241.4M  1 loop /snap/gnome-3-38-2004/70
loop20   7:20   0 349.7M  1 loop /snap/gnome-3-38-2004/143
sda      8:0    0   120G  0 disk
└─sda1   8:1    0   120G  0 part /
sdb      8:16   0   120G  0 disk
└─sdb1   8:17   0   120G  0 part
sdc      8:32   0   240G  0 disk
sr0     11:0    1  1024M  0 rom
kircar@ubuntu:~$

格式化磁盘

kircar@ubuntu:~$ sudo fdisk /dev/sdc
[sudo] password for kircar:

Welcome to fdisk (util-linux 2.31.1).
Changes will remain in memory only, until you decide to write them.
Be careful before using the write command.

Device does not contain a recognized partition table.
Created a new DOS disklabel with disk identifier 0x07644437.

Command (m for help): m

Help:

  DOS (MBR)
   a   toggle a bootable flag
   b   edit nested BSD disklabel
   c   toggle the dos compatibility flag

  Generic
   d   delete a partition
   F   list free unpartitioned space
   l   list known partition types
   n   add a new partition
   p   print the partition table
   t   change a partition type
   v   verify the partition table
   i   print information about a partition

  Misc
   m   print this menu
   u   change display/entry units
   x   extra functionality (experts only)

  Script
   I   load disk layout from sfdisk script file
   O   dump disk layout to sfdisk script file

  Save & Exit
   w   write table to disk and exit
   q   quit without saving changes

  Create a new label
   g   create a new empty GPT partition table
   G   create a new empty SGI (IRIX) partition table
   o   create a new empty DOS partition table
   s   create a new empty Sun partition table


Command (m for help): n
Partition type
   p   primary (0 primary, 0 extended, 4 free)
   e   extended (container for logical partitions)
Select (default p): p
Partition number (1-4, default 1): 1
First sector (2048-503316479, default 2048):
Last sector, +sectors or +size{K,M,G,T,P} (2048-503316479, default 503316479):

Created a new partition 1 of type 'Linux' and of size 240 GiB.

Command (m for help): w
The partition table has been altered.
Calling ioctl() to re-read partition table.
Syncing disks.

kircar@ubuntu:~$

格式化分区

kircar@ubuntu:~$ sudo mkfs -t ext4 /dev/sdc1
mke2fs 1.44.1 (24-Mar-2018)
Creating filesystem with 62914304 4k blocks and 15728640 inodes
Filesystem UUID: b8767b8e-ac4a-4673-9348-349d21e3aa92
Superblock backups stored on blocks:
	32768, 98304, 163840, 229376, 294912, 819200, 884736, 1605632, 2654208,
	4096000, 7962624, 11239424, 20480000, 23887872

Allocating group tables: done
Writing inode tables: done
Creating journal (262144 blocks): done
Writing superblocks and filesystem accounting information: done

kircar@ubuntu:~$

创建一个文件夹

mkdir sdk-Android-rk3566-vdi

挂载分区

sudo mount /dev/sdc1 sdk-android-rk3566-vdi

文件夹属性是root用户，将文件夹属归属修改为kircar用户

chown kircar sdk-android-rk3566-vdi

设置开机启动自动挂载

编辑/etc/fstab
vim /etc/fstab

在末尾加上
/dev/sdb1 /root/docker ext4 defaults 0 0

以上程序做完，就可以使用这个新建分区了.
