17， 执行runDriver()方法

private def runDriver(): Unit = {
    addAmIpFilter(None, System.getenv(ApplicationConstants.APPLICATION_WEB_PROXY_BASE_ENV))
    //启动用户的应用程序，
    userClassThread = startUserApplication()

    // This a bit hacky, but we need to wait until the spark.driver.port property has
    // been set by the Thread executing the user class.
    logInfo("Waiting for spark context initialization...")
    val totalWaitTime = sparkConf.get(AM_MAX_WAIT_TIME)
    try {
    	//线程等待上一步运行结束，也即startUserApplication()运行的结果
      val sc = ThreadUtils.awaitResult(sparkContextPromise.future,
        Duration(totalWaitTime, TimeUnit.MILLISECONDS))
        //等待成功，继续执行程序
      if (sc != null) {
      //准备通信环境（spark中通过netty框架进行通信）
        val rpcEnv = sc.env.rpcEnv
        val userConf = sc.getConf
        val host = userConf.get(DRIVER_HOST_ADDRESS)
        val port = userConf.get(DRIVER_PORT)
        **//向yarn的RM注册applicationMaster,从而再后续与RM进行交互**
        registerAM(host, port, userConf, sc.ui.map(_.webUrl), appAttemptId)

        val driverRef = rpcEnv.setupEndpointRef(
          RpcAddress(host, port),
          YarnSchedulerBackend.ENDPOINT_NAME)
          //创建分配器：
        createAllocator(driverRef, userConf, rpcEnv, appAttemptId, distCacheConf)
      } else {
        // Sanity check; should never happen in normal operation, since sc should only be null
        // if the user app did not create a SparkContext.
        throw new IllegalStateException("User did not initialize spark context!")
      }
      resumeDriver()
      userClassThread.join()
    } catch {
      case e: SparkException if e.getCause().isInstanceOf[TimeoutException] =>
        logError(
          s"SparkContext did not initialize after waiting for $totalWaitTime ms. " +
           "Please check earlier log output for errors. Failing the application.")
        finish(FinalApplicationStatus.FAILED,
          ApplicationMaster.EXIT_SC_NOT_INITED,
          "Timed out waiting for SparkContext.")
    } finally {
      resumeDriver()
    }
  }

17.1，启动用户应用程序

启动用户应用程序,并且启动Driver线程；其中在Driver中会有SparkContext
AM根据参数启动Driver线程，并初始化SparkContext对象；

  /**
   * Start the user class, which contains the spark driver, in a separate Thread.
   * If the main routine exits cleanly or exits with System.exit(N) for any N
   * we assume it was successful, for all other cases we assume failure.
   *
   * Returns the user thread that was started.
   */
  private def startUserApplication(): Thread = {
    logInfo("Starting the user application in a separate Thread")

    var userArgs = args.userArgs
    if (args.primaryPyFile != null && args.primaryPyFile.endsWith(".py")) {
      // When running pyspark, the app is run using PythonRunner. The second argument is the list
      // of files to add to PYTHONPATH, which Client.scala already handles, so it's empty.
      userArgs = Seq(args.primaryPyFile, "") ++ userArgs
    }
    if (args.primaryRFile != null &&
        (args.primaryRFile.endsWith(".R") || args.primaryRFile.endsWith(".r"))) {
      // TODO(davies): add R dependencies here
    }

	//通过类加载器，加载用户启动程序时，--class传递的类；,并从指定的类当中，找到其中的main方法；
	/**
 		 case ("--class") :: value :: tail =>
          userClass = value
          args = tail
	*/
    val mainMethod = userClassLoader.loadClass(args.userClass)
      .getMethod("main", classOf[Array[String]])
      //构建启动Driver的线程
    val userThread = new Thread {
      override def run(): Unit = {
        try {
          if (!Modifier.isStatic(mainMethod.getModifiers)) {
            logError(s"Could not find static main method in object ${args.userClass}")
            finish(FinalApplicationStatus.FAILED, ApplicationMaster.EXIT_EXCEPTION_USER_CLASS)
          } else {
            mainMethod.invoke(null, userArgs.toArray)
            finish(FinalApplicationStatus.SUCCEEDED, ApplicationMaster.EXIT_SUCCESS)
            logDebug("Done running user class")
          }
        } catch {
           ......
            }
            sparkContextPromise.tryFailure(e.getCause())
        } finally {
          sparkContextPromise.trySuccess(null)
        }
      }
    }
    userThread.setContextClassLoader(userClassLoader)
    userThread.setName("Driver") // 设置线程名称为Driver
    userThread.start() //启动线程
    userThread //返回Driver线程
  }

17.2,启动Driver后，向Yarn的RM注册AM；

注册的目的：AM向RM申请资源；
源码如下：

if (sc != null) {
        val rpcEnv = sc.env.rpcEnv

        val userConf = sc.getConf
        val host = userConf.get(DRIVER_HOST_ADDRESS)
        val port = userConf.get(DRIVER_PORT)
        //触发注册
        registerAM(host, port, userConf, sc.ui.map(_.webUrl), appAttemptId)

        val driverRef = rpcEnv.setupEndpointRef(
          RpcAddress(host, port),
          YarnSchedulerBackend.ENDPOINT_NAME)
        createAllocator(driverRef, userConf, rpcEnv, appAttemptId, distCacheConf)
      }

注册代码：

private def registerAM(
      host: String,
      port: Int,
      _sparkConf: SparkConf,
      uiAddress: Option[String],
      appAttempt: ApplicationAttemptId): Unit = {
    val appId = appAttempt.getApplicationId().toString()
    val attemptId = appAttempt.getAttemptId().toString()
    val historyAddress = ApplicationMaster
      .getHistoryServerAddress(_sparkConf, yarnConf, appId, attemptId)

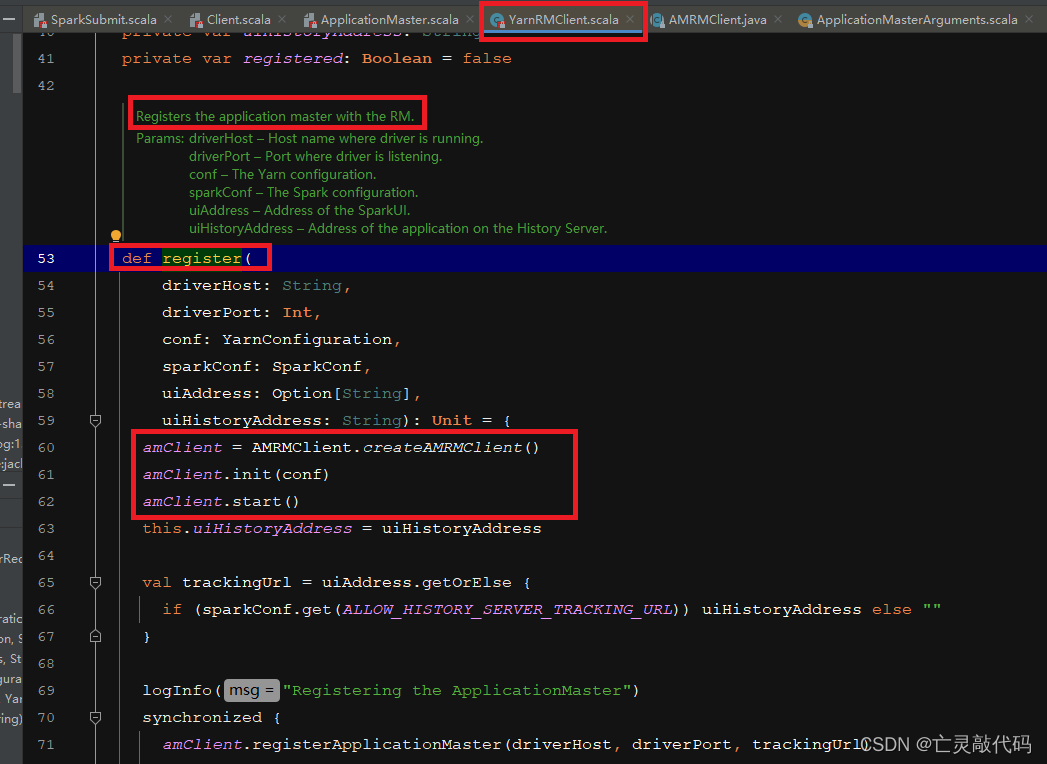

	//通过YarnClient注册
    client.register(host, port, yarnConf, _sparkConf, uiAddress, historyAddress)
    registered = true
  }

17.3：创建分配器

createAllocator(driverRef, userConf, rpcEnv, appAttemptId, distCacheConf)

创建分配器源码：

private def createAllocator(
      driverRef: RpcEndpointRef,
      _sparkConf: SparkConf,
      rpcEnv: RpcEnv,
      appAttemptId: ApplicationAttemptId,
      distCacheConf: SparkConf): Unit = {
    // In client mode, the AM may be restarting after delegation tokens have reached their TTL. So
    // always contact the driver to get the current set of valid tokens, so that local resources can
    // be initialized below.
    if (!isClusterMode) {
      val tokens = driverRef.askSync[Array[Byte]](RetrieveDelegationTokens)
      if (tokens != null) {
        SparkHadoopUtil.get.addDelegationTokens(tokens, _sparkConf)
      }
    }

    val appId = appAttemptId.getApplicationId().toString()
    val driverUrl = RpcEndpointAddress(driverRef.address.host, driverRef.address.port,
      CoarseGrainedSchedulerBackend.ENDPOINT_NAME).toString
    val localResources = prepareLocalResources(distCacheConf)

    // Before we initialize the allocator, let's log the information about how executors will
    // be run up front, to avoid printing this out for every single executor being launched.
    // Use placeholders for information that changes such as executor IDs.
    logInfo {
      val executorMemory = _sparkConf.get(EXECUTOR_MEMORY).toInt
      val executorCores = _sparkConf.get(EXECUTOR_CORES)
      val dummyRunner = new ExecutorRunnable(None, yarnConf, _sparkConf, driverUrl, "<executorId>",
        "<hostname>", executorMemory, executorCores, appId, securityMgr, localResources,
        ResourceProfile.DEFAULT_RESOURCE_PROFILE_ID)
      dummyRunner.launchContextDebugInfo()
    }
	//通过YarnClient 创建分配器
    allocator = client.createAllocator(
      yarnConf,
      _sparkConf,
      appAttemptId,
      driverUrl,
      driverRef,
      securityMgr,
      localResources)

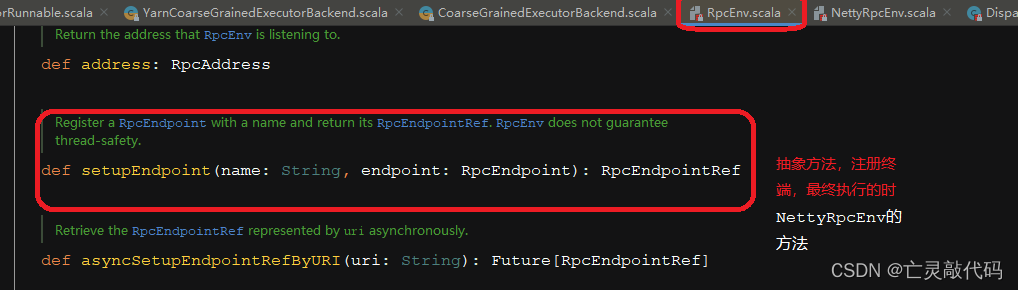

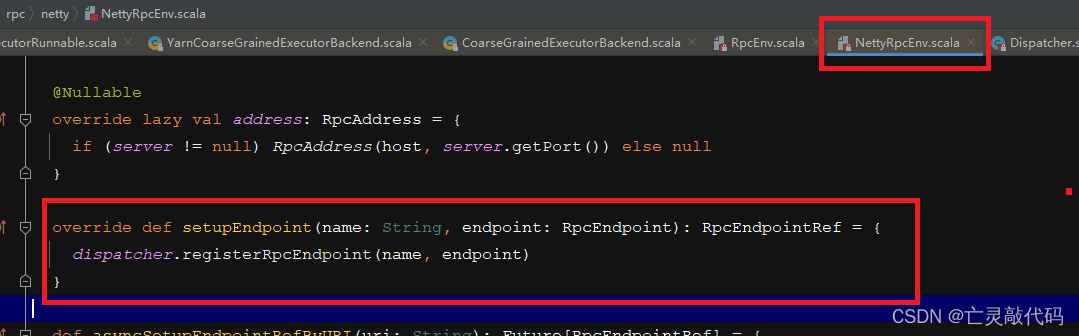

    // Initialize the AM endpoint *after* the allocator has been initialized. This ensures
    // that when the driver sends an initial executor request (e.g. after an AM restart),
    // the allocator is ready to service requests.
    rpcEnv.setupEndpoint("YarnAM", new AMEndpoint(rpcEnv, driverRef))

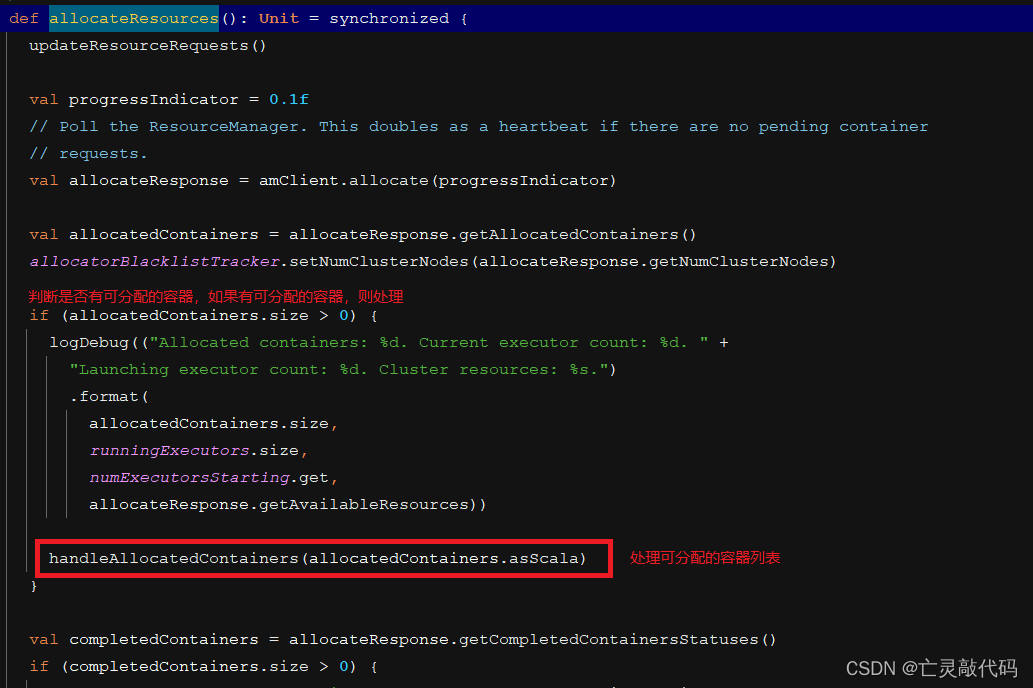

	//分配器告诉AM，有多少资源可以使用
	//Request resources such that, if YARN gives us all we ask for, we'll have a number of      //containers equal to maxExecutors.
//Deal with any containers YARN has granted to us by possibly launching executors in them.
//This must be synchronized because variables read in this method are mutated by other methods.

    allocator.allocateResources()
    val ms = MetricsSystem.createMetricsSystem(MetricsSystemInstances.APPLICATION_MASTER,
      sparkConf, securityMgr)
    val prefix = _sparkConf.get(YARN_METRICS_NAMESPACE).getOrElse(appId)
    ms.registerSource(new ApplicationMasterSource(prefix, allocator))
    // do not register static sources in this case as per SPARK-25277
    ms.start(false)
    metricsSystem = Some(ms)
    reporterThread = launchReporterThread()
  }

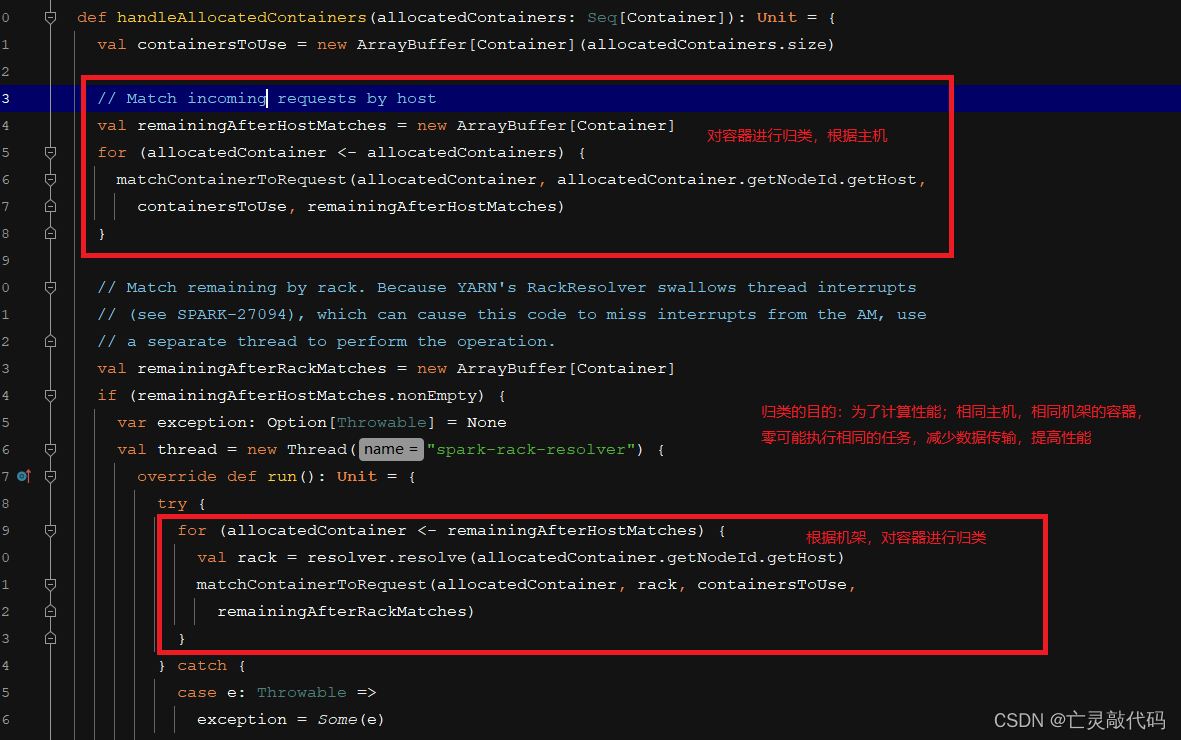

17.4 分配好容器之后，运行容器：

容器运行的目的是启动Executor进程，并再Executor进程中执行计算；

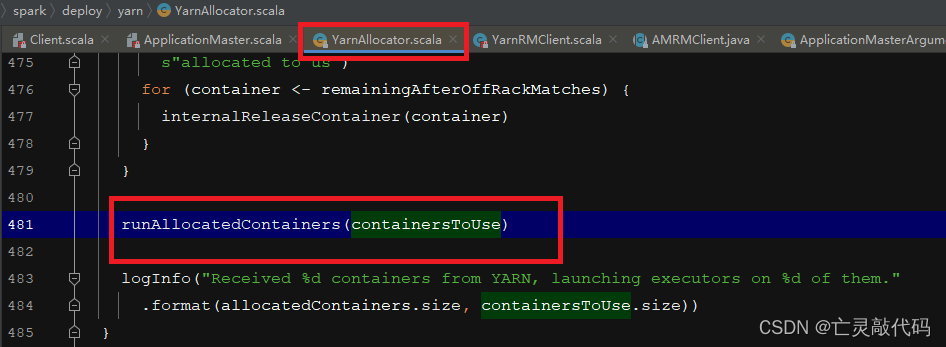

运行容器入口：

运行容器代码逻辑：

/**
   * Launches executors in the allocated containers.
   */
  private def runAllocatedContainers(containersToUse: ArrayBuffer[Container]): Unit = {
    for (container <- containersToUse) {
      executorIdCounter += 1
      val executorHostname = container.getNodeId.getHost
      val containerId = container.getId
      val executorId = executorIdCounter.toString
      assert(container.getResource.getMemory >= resource.getMemory)
      logInfo(s"Launching container $containerId on host $executorHostname " +
        s"for executor with ID $executorId")

      def updateInternalState(): Unit = synchronized {
        runningExecutors.add(executorId)
        numExecutorsStarting.decrementAndGet()
        executorIdToContainer(executorId) = container
        containerIdToExecutorId(container.getId) = executorId

        val containerSet = allocatedHostToContainersMap.getOrElseUpdate(executorHostname,
          new HashSet[ContainerId])
        containerSet += containerId
        allocatedContainerToHostMap.put(containerId, executorHostname)
      }

		//判断正在运行的executor的个数与需要的executors的个数
      if (runningExecutors.size() < targetNumExecutors) {
        numExecutorsStarting.incrementAndGet()
        if (launchContainers) {
       //启动容器的线程池
       private val launcherPool = ThreadUtils.newDaemonCachedThreadPool(
    "ContainerLauncher", sparkConf.get(CONTAINER_LAUNCH_MAX_THREADS))
    //启动一个线程执行启动容器
          launcherPool.execute(() => {
            try {
            //启动Excutor
              new ExecutorRunnable(
                Some(container),
                conf,
                sparkConf,
                driverUrl,
                executorId,
                executorHostname,
                executorMemory,
                executorCores,
                appAttemptId.getApplicationId.toString,
                securityMgr,
                localResources,
                ResourceProfile.DEFAULT_RESOURCE_PROFILE_ID // use until fully supported
              ).run()
      // Excutor的Run方法：
        def run(): Unit = {
		    logDebug("Starting Executor Container")
		    //NodeManegerClient
		    var nmClient: NMClient
		    nmClient = NMClient.createNMClient()
		    nmClient.init(conf)
		    nmClient.start()
		    //启动容器
		    startContainer()
		 }

              updateInternalState()
            } catch {
              case e: Throwable =>
                numExecutorsStarting.decrementAndGet()
                if (NonFatal(e)) {
                  logError(s"Failed to launch executor $executorId on container $containerId", e)
                  // Assigned container should be released immediately
                  // to avoid unnecessary resource occupation.
                  amClient.releaseAssignedContainer(containerId)
                } else {
                  throw e
                }
            }
          })
        } else {
          // For test only
          updateInternalState()
        }
      } else {
        logInfo(("Skip launching executorRunnable as running executors count: %d " +
          "reached target executors count: %d.").format(
          runningExecutors.size, targetNumExecutors))
      }
    }
  }

NMClient 启动容器代码：

def startContainer(): java.util.Map[String, ByteBuffer] = {

    val ctx = Records.newRecord(classOf[ContainerLaunchContext])
      .asInstanceOf[ContainerLaunchContext]
      //封装启动容器的环境变量
    val env = prepareEnvironment().asJava

    ctx.setLocalResources(localResources.asJava)
    ctx.setEnvironment(env)
	//用户的认证信息
    val credentials = UserGroupInformation.getCurrentUser().getCredentials()
    val dob = new DataOutputBuffer()
    credentials.writeTokenStorageToStream(dob)
    ctx.setTokens(ByteBuffer.wrap(dob.getData()))

	//需要执行的命令
    val commands = prepareCommand()

    ctx.setCommands(commands.asJava)
    ctx.setApplicationACLs(
      YarnSparkHadoopUtil.getApplicationAclsForYarn(securityMgr).asJava)

    // If external shuffle service is enabled, register with the Yarn shuffle service already
    // started on the NodeManager and, if authentication is enabled, provide it with our secret
    // key for fetching shuffle files later
    if (sparkConf.get(SHUFFLE_SERVICE_ENABLED)) {
      val secretString = securityMgr.getSecretKey()
      val secretBytes =
        if (secretString != null) {
          // This conversion must match how the YarnShuffleService decodes our secret
          JavaUtils.stringToBytes(secretString)
        } else {
          // Authentication is not enabled, so just provide dummy metadata
          ByteBuffer.allocate(0)
        }
      ctx.setServiceData(Collections.singletonMap("spark_shuffle", secretBytes))
    }

    // Send the start request to the ContainerManager
    try {
     //将启动的容器以及环境信息，执行命令等，传递给NMClient,再对应的节点上启动容器，并执行计算
      nmClient.startContainer(container.get, ctx)
    } catch {
      case ex: Exception =>
        throw new SparkException(s"Exception while starting container ${container.get.getId}" +
          s" on host $hostname", ex)
    }
  }

指令源码：启动Executor进程指令.

private def prepareCommand(): List[String] = {
    // Extra options for the JVM
    val javaOpts = ListBuffer[String]()

    // Set the JVM memory
    val executorMemoryString = executorMemory + "m"
    javaOpts += "-Xmx" + executorMemoryString

    // Set extra Java options for the executor, if defined
    sparkConf.get(EXECUTOR_JAVA_OPTIONS).foreach { opts =>
      val subsOpt = Utils.substituteAppNExecIds(opts, appId, executorId)
      javaOpts ++= Utils.splitCommandString(subsOpt).map(YarnSparkHadoopUtil.escapeForShell)
    }

    // Set the library path through a command prefix to append to the existing value of the
    // env variable.
    val prefixEnv = sparkConf.get(EXECUTOR_LIBRARY_PATH).map { libPath =>
      Client.createLibraryPathPrefix(libPath, sparkConf)
    }

    javaOpts += "-Djava.io.tmpdir=" +
      new Path(Environment.PWD.$$(), YarnConfiguration.DEFAULT_CONTAINER_TEMP_DIR)

    // Certain configs need to be passed here because they are needed before the Executor
    // registers with the Scheduler and transfers the spark configs. Since the Executor backend
    // uses RPC to connect to the scheduler, the RPC settings are needed as well as the
    // authentication settings.
    sparkConf.getAll
      .filter { case (k, v) => SparkConf.isExecutorStartupConf(k) }
      .foreach { case (k, v) => javaOpts += YarnSparkHadoopUtil.escapeForShell(s"-D$k=$v") }

    // Commenting it out for now - so that people can refer to the properties if required. Remove
    // it once cpuset version is pushed out.
    // The context is, default gc for server class machines end up using all cores to do gc - hence
    // if there are multiple containers in same node, spark gc effects all other containers
    // performance (which can also be other spark containers)
    // Instead of using this, rely on cpusets by YARN to enforce spark behaves 'properly' in
    // multi-tenant environments. Not sure how default java gc behaves if it is limited to subset
    // of cores on a node.
    /*
        else {
          // If no java_opts specified, default to using -XX:+CMSIncrementalMode
          // It might be possible that other modes/config is being done in
          // spark.executor.extraJavaOptions, so we don't want to mess with it.
          // In our expts, using (default) throughput collector has severe perf ramifications in
          // multi-tenant machines
          // The options are based on
          // http://www.oracle.com/technetwork/java/gc-tuning-5-138395.html#0.0.0.%20When%20to%20Use
          // %20the%20Concurrent%20Low%20Pause%20Collector|outline
          javaOpts += "-XX:+UseConcMarkSweepGC"
          javaOpts += "-XX:+CMSIncrementalMode"
          javaOpts += "-XX:+CMSIncrementalPacing"
          javaOpts += "-XX:CMSIncrementalDutyCycleMin=0"
          javaOpts += "-XX:CMSIncrementalDutyCycle=10"
        }
    */

    // For log4j configuration to reference
    javaOpts += ("-Dspark.yarn.app.container.log.dir=" + ApplicationConstants.LOG_DIR_EXPANSION_VAR)

    val userClassPath = Client.getUserClasspath(sparkConf).flatMap { uri =>
      val absPath =
        if (new File(uri.getPath()).isAbsolute()) {
          Client.getClusterPath(sparkConf, uri.getPath())
        } else {
          Client.buildPath(Environment.PWD.$(), uri.getPath())
        }
      Seq("--user-class-path", "file:" + absPath)
    }.toSeq

    YarnSparkHadoopUtil.addOutOfMemoryErrorArgument(javaOpts)
    //启动java进程
    // java -sever org.apache.spark.executor.YarnCoarseGrainedExecutorBackend
    //该进行，就是Excutor的执行进程；以及Excutor的通信后台；
    val commands = prefixEnv ++
      Seq(Environment.JAVA_HOME.$$() + "/bin/java", "-server") ++
      javaOpts ++
      Seq("org.apache.spark.executor.YarnCoarseGrainedExecutorBackend",
        "--driver-url", masterAddress,
        "--executor-id", executorId,
        "--hostname", hostname,
        "--cores", executorCores.toString,
        "--app-id", appId,
        "--resourceProfileId", resourceProfileId.toString) ++
      userClassPath ++
      Seq(
        s"1>${ApplicationConstants.LOG_DIR_EXPANSION_VAR}/stdout",
        s"2>${ApplicationConstants.LOG_DIR_EXPANSION_VAR}/stderr")

    // TODO: it would be nicer to just make sure there are no null commands here
    commands.map(s => if (s == null) "null" else s).toList
  }

18，启动Executor进程：

YarnCoarseGrainedExecutorBackend 通过main方法启动进程：

private[spark] object YarnCoarseGrainedExecutorBackend extends Logging {
//启动main方法，启动executor进程
  def main(args: Array[String]): Unit = {
    val createFn: (RpcEnv, CoarseGrainedExecutorBackend.Arguments, SparkEnv, ResourceProfile) =>
      CoarseGrainedExecutorBackend = { case (rpcEnv, arguments, env, resourceProfile) =>
      new YarnCoarseGrainedExecutorBackend(rpcEnv, arguments.driverUrl, arguments.executorId,
        arguments.bindAddress, arguments.hostname, arguments.cores, arguments.userClassPath, env,
        arguments.resourcesFileOpt, resourceProfile)
    }
    val backendArgs = CoarseGrainedExecutorBackend.parseArguments(args,
      this.getClass.getCanonicalName.stripSuffix("$"))
     //通过父类的run方法执行
    CoarseGrainedExecutorBackend.run(backendArgs, createFn)
    System.exit(0)
  }

}

18.1 CoarseGrainedExecutorBackend.run

def run(
      arguments: Arguments,
      backendCreateFn: (RpcEnv, Arguments, SparkEnv, ResourceProfile) =>
        CoarseGrainedExecutorBackend): Unit = {

    Utils.initDaemon(log)

    SparkHadoopUtil.get.runAsSparkUser { () =>
      // Debug code
      Utils.checkHost(arguments.hostname)

      // Bootstrap to fetch the driver's Spark properties.
      val executorConf = new SparkConf
      //获取driver相关信息
      val fetcher = RpcEnv.create(
        "driverPropsFetcher",
        arguments.bindAddress,
        arguments.hostname,
        -1,
        executorConf,
        new SecurityManager(executorConf),
        numUsableCores = 0,
        clientMode = true)

      var driver: RpcEndpointRef = null
      val nTries = 3
      for (i <- 0 until nTries if driver == null) {
        try {
          driver = fetcher.setupEndpointRefByURI(arguments.driverUrl)
        } catch {
          case e: Throwable => if (i == nTries - 1) {
            throw e
          }
        }
      }

      val cfg = driver.askSync[SparkAppConfig](RetrieveSparkAppConfig(arguments.resourceProfileId))
      val props = cfg.sparkProperties ++ Seq[(String, String)](("spark.app.id", arguments.appId))
      fetcher.shutdown()

      // Create SparkEnv using properties we fetched from the driver.
      val driverConf = new SparkConf()
      for ((key, value) <- props) {
        // this is required for SSL in standalone mode
        if (SparkConf.isExecutorStartupConf(key)) {
          driverConf.setIfMissing(key, value)
        } else {
          driverConf.set(key, value)
        }
      }

      cfg.hadoopDelegationCreds.foreach { tokens =>
        SparkHadoopUtil.get.addDelegationTokens(tokens, driverConf)
      }
	  //设置driver配置
      driverConf.set(EXECUTOR_ID, arguments.executorId)
      //创建Executor执行环境
      val env = SparkEnv.createExecutorEnv(driverConf, arguments.executorId, arguments.bindAddress,
        arguments.hostname, arguments.cores, cfg.ioEncryptionKey, isLocal = false)
      //设置终端为Executor: backendCreateFn 对象为：上一步 main方法中创建的
    //  new YarnCoarseGrainedExecutorBackend(rpcEnv, arguments.driverUrl, arguments.executorId,
      //  arguments.bindAddress, arguments.hostname, arguments.cores, arguments.userClassPath, env, arguments.resourcesFileOpt, resourceProfile)
      //也就说：Executor就是YarnCoarseGrainedExecutorBackend对象
      env.rpcEnv.setupEndpoint("Executor",
        backendCreateFn(env.rpcEnv, arguments, env, cfg.resourceProfile))
      arguments.workerUrl.foreach { url =>
        env.rpcEnv.setupEndpoint("WorkerWatcher", new WorkerWatcher(env.rpcEnv, url))
      }
      env.rpcEnv.awaitTermination()
    }
  }

18.2 setupEndpoint 注册通信终端

注册Rpc终端

def registerRpcEndpoint(name: String, endpoint: RpcEndpoint): NettyRpcEndpointRef = {
    val addr = RpcEndpointAddress(nettyEnv.address, name)
    //构建Rpc终端引用
    val endpointRef = new NettyRpcEndpointRef(nettyEnv.conf, addr, nettyEnv)
    synchronized {
      if (stopped) {
        throw new IllegalStateException("RpcEnv has been stopped")
      }
      if (endpoints.containsKey(name)) {
        throw new IllegalArgumentException(s"There is already an RpcEndpoint called $name")
      }

      // This must be done before assigning RpcEndpoint to MessageLoop, as MessageLoop sets Inbox be
      // active when registering, and endpointRef must be put into endpointRefs before onStart is
      // called.
      endpointRefs.put(endpoint, endpointRef)
    //构建消息池
      var messageLoop: MessageLoop = null
      try {
        messageLoop = endpoint match {
          case e: IsolatedRpcEndpoint =>
          //匹配构建消息池
            new DedicatedMessageLoop(name, e, this)
          case _ =>
            sharedLoop.register(name, endpoint)
            sharedLoop
        }
        endpoints.put(name, messageLoop)
      } catch {
        case NonFatal(e) =>
          endpointRefs.remove(endpoint)
          throw e
      }
    }
    endpointRef
  }

DedicatedMessageLoop 消息池结构

/**
 * A message loop that is dedicated to a single RPC endpoint.
 */
private class DedicatedMessageLoop(
    name: String,
    endpoint: IsolatedRpcEndpoint,
    dispatcher: Dispatcher)
  extends MessageLoop(dispatcher) {

//收件箱：
  private val inbox = new Inbox(name, endpoint)

  override protected val threadpool = if (endpoint.threadCount() > 1) {
    ThreadUtils.newDaemonCachedThreadPool(s"dispatcher-$name", endpoint.threadCount())
  } else {
    ThreadUtils.newDaemonSingleThreadExecutor(s"dispatcher-$name")
  }

  (1 to endpoint.threadCount()).foreach { _ =>
    threadpool.submit(receiveLoopRunnable)
  }

  // Mark active to handle the OnStart message.
  setActive(inbox)

  override def post(endpointName: String, message: InboxMessage): Unit = {
    require(endpointName == name)
    inbox.post(message)
    setActive(inbox)
  }

  override def unregister(endpointName: String): Unit = synchronized {
    require(endpointName == name)
    inbox.stop()
    // Mark active to handle the OnStop message.
    setActive(inbox)
    setActive(MessageLoop.PoisonPill)
    threadpool.shutdown()
  }
}

Inbox 结构：

private[netty] class Inbox(val endpointName: String, val endpoint: RpcEndpoint)
  extends Logging {

  inbox =>  // Give this an alias so we can use it more clearly in closures.

	//消息体
  @GuardedBy("this")
  protected val messages = new java.util.LinkedList[InboxMessage]()

  /** True if the inbox (and its associated endpoint) is stopped. */
  @GuardedBy("this")
  private var stopped = false

  /** Allow multiple threads to process messages at the same time. */
  @GuardedBy("this")
  private var enableConcurrent = false

  /** The number of threads processing messages for this inbox. */
  @GuardedBy("this")
  private var numActiveThreads = 0

  // OnStart should be the first message to process
  inbox.synchronized {
  //Onstart 是Executor的收件箱中的消息 ,Onstart消息
    messages.add(OnStart)
  }
 ......
 }

补充说明：在Rpc通信中，每个消息都有生命周期：如下源码注释说讲：
constructor -> onStart -> receive* -> onStop

/**
 * An end point for the RPC that defines what functions to trigger given a message.
 *
 * It is guaranteed that `onStart`, `receive` and `onStop` will be called in sequence.
 *
 * The life-cycle of an endpoint is:
 *
 * {@code constructor -> onStart -> receive* -> onStop}
 *
 * Note: `receive` can be called concurrently. If you want `receive` to be thread-safe, please use
 * [[ThreadSafeRpcEndpoint]]
 *
 * If any error is thrown from one of [[RpcEndpoint]] methods except `onError`, `onError` will be
 * invoked with the cause. If `onError` throws an error, [[RpcEnv]] will ignore it.
 */
private[spark] trait RpcEndpoint {......}

Exexutor 的OnStart消息就是 CoarseGrainedExecutorBackend对象的Onstart

 override def onStart(): Unit = {
    logInfo("Connecting to driver: " + driverUrl)
    try {
      _resources = parseOrFindResources(resourcesFileOpt)
    } catch {
      case NonFatal(e) =>
        exitExecutor(1, "Unable to create executor due to " + e.getMessage, e)
    }
    //获取driver
    rpcEnv.asyncSetupEndpointRefByURI(driverUrl).flatMap { ref =>
      // This is a very fast action so we can use "ThreadUtils.sameThread"
      driver = Some(ref)
      //并向driver发送注册Executor的请求
      ref.ask[Boolean](RegisterExecutor(executorId, self, hostname, cores, extractLogUrls,
        extractAttributes, _resources, resourceProfile.id))
    }(ThreadUtils.sameThread).onComplete {
      case Success(_) =>
        self.send(RegisteredExecutor)
      case Failure(e) =>
        exitExecutor(1, s"Cannot register with driver: $driverUrl", e, notifyDriver = false)
    }(ThreadUtils.sameThread)
  }

Executor发送消息之后，Driver会接受消息，然而，Driver是一个线程，那么Driver通过环境变量SparkContext接受请求；如下图所示：

Driver处理注册Executor 并响应：

case RegisterExecutor(executorId, executorRef, hostname, cores, logUrls,
          attributes, resources, resourceProfileId) =>
        if (executorDataMap.contains(executorId)) {
          context.sendFailure(new IllegalStateException(s"Duplicate executor ID: $executorId"))
        } else if (scheduler.nodeBlacklist.contains(hostname) ||
            isBlacklisted(executorId, hostname)) {
          // If the cluster manager gives us an executor on a blacklisted node (because it
          // already started allocating those resources before we informed it of our blacklist,
          // or if it ignored our blacklist), then we reject that executor immediately.
          logInfo(s"Rejecting $executorId as it has been blacklisted.")
          context.sendFailure(new IllegalStateException(s"Executor is blacklisted: $executorId"))
        } else {
          // If the executor's rpc env is not listening for incoming connections, `hostPort`
          // will be null, and the client connection should be used to contact the executor.
          val executorAddress = if (executorRef.address != null) {
              executorRef.address
            } else {
              context.senderAddress
            }
          logInfo(s"Registered executor $executorRef ($executorAddress) with ID $executorId")
          //配置Executor地址
          addressToExecutorId(executorAddress) = executorId
          //设置总core的消息
          totalCoreCount.addAndGet(cores)
          totalRegisteredExecutors.addAndGet(1)
          val resourcesInfo = resources.map{ case (k, v) =>
            (v.name,
             new ExecutorResourceInfo(v.name, v.addresses,
               // tell the executor it can schedule resources up to numParts times,
               // as configured by the user, or set to 1 as that is the default (1 task/resource)
               taskResourceNumParts.getOrElse(v.name, 1)))
          }
          val data = new ExecutorData(executorRef, executorAddress, hostname,
            0, cores, logUrlHandler.applyPattern(logUrls, attributes), attributes,
            resourcesInfo, resourceProfileId)
          // This must be synchronized because variables mutated
          // in this block are read when requesting executors
          CoarseGrainedSchedulerBackend.this.synchronized {
            executorDataMap.put(executorId, data)
            if (currentExecutorIdCounter < executorId.toInt) {
              currentExecutorIdCounter = executorId.toInt
            }
            if (numPendingExecutors > 0) {
              numPendingExecutors -= 1
              logDebug(s"Decremented number of pending executors ($numPendingExecutors left)")
            }
          }
          listenerBus.post(
            SparkListenerExecutorAdded(System.currentTimeMillis(), executorId, data))
          // Note: some tests expect the reply to come after we put the executor in the map
          //响应注册成功
          context.reply(true)
        }

当Driver发送给Executor注册成功的消息后，Executor接受消息，并创建Executor对象：

private[spark] class CoarseGrainedExecutorBackend(
    override val rpcEnv: RpcEnv,
    driverUrl: String,
    executorId: String,
    bindAddress: String,
    hostname: String,
    cores: Int,
    userClassPath: Seq[URL],
    env: SparkEnv,
    resourcesFileOpt: Option[String],
    resourceProfile: ResourceProfile)
  extends IsolatedRpcEndpoint with ExecutorBackend with Logging {
......
override def receive: PartialFunction[Any, Unit] = {
  //接受注册成功的消息，
    case RegisteredExecutor =>
      logInfo("Successfully registered with driver")
      try {
      //构建Executor对象
        executor = new Executor(executorId, hostname, env, userClassPath, isLocal = false,
          resources = _resources)
          //并向Driver发送ExecutorId
        driver.get.send(LaunchedExecutor(executorId))
      } catch {
        case NonFatal(e) =>
          exitExecutor(1, "Unable to create executor due to " + e.getMessage, e)
      }

    case LaunchTask(data) =>
      if (executor == null) {
        exitExecutor(1, "Received LaunchTask command but executor was null")
      } else {
        val taskDesc = TaskDescription.decode(data.value)
        logInfo("Got assigned task " + taskDesc.taskId)
        taskResources(taskDesc.taskId) = taskDesc.resources
        executor.launchTask(this, taskDesc)
      }
	......
	}

}

19 Spark任务提交流程图

到此步：Spark计算环境创建成功：NodeManager ,ResourceManager ,ApplicationManager, Driver,Executor均已创建成功；

最后附上提交流程图：

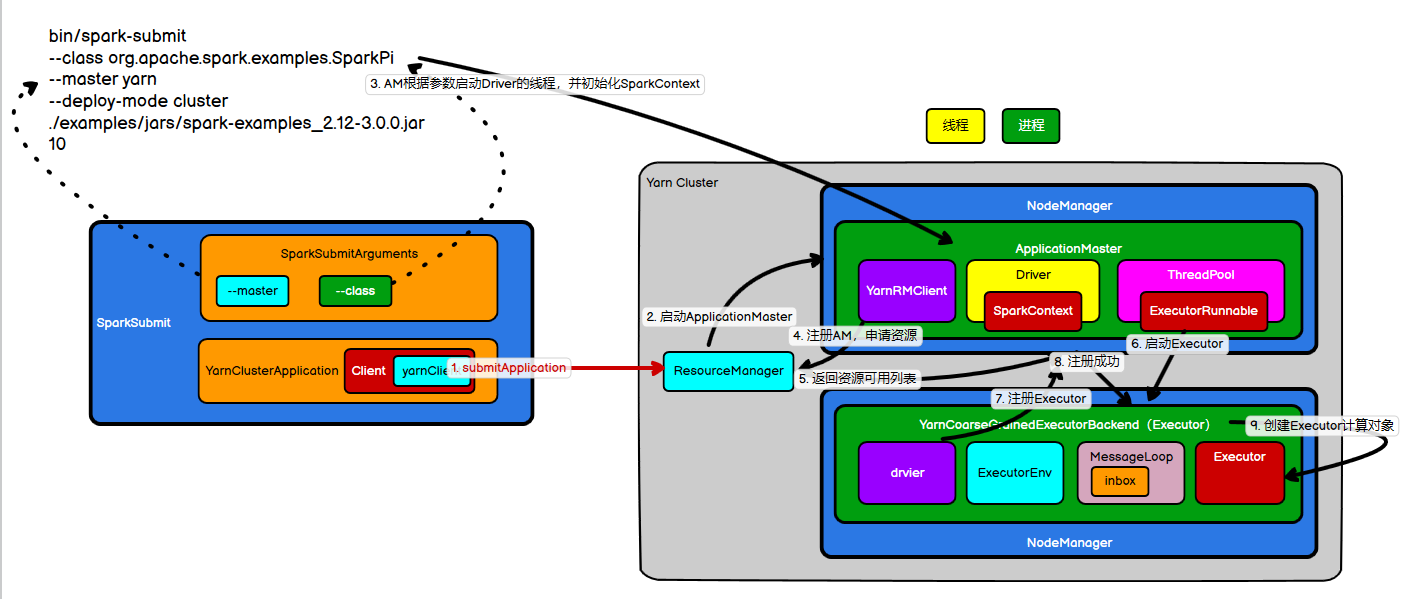

Spark on Yarn ：Cluster模式

Spark on yarn :Client模式，主要区别在于Spark Driver的运行；

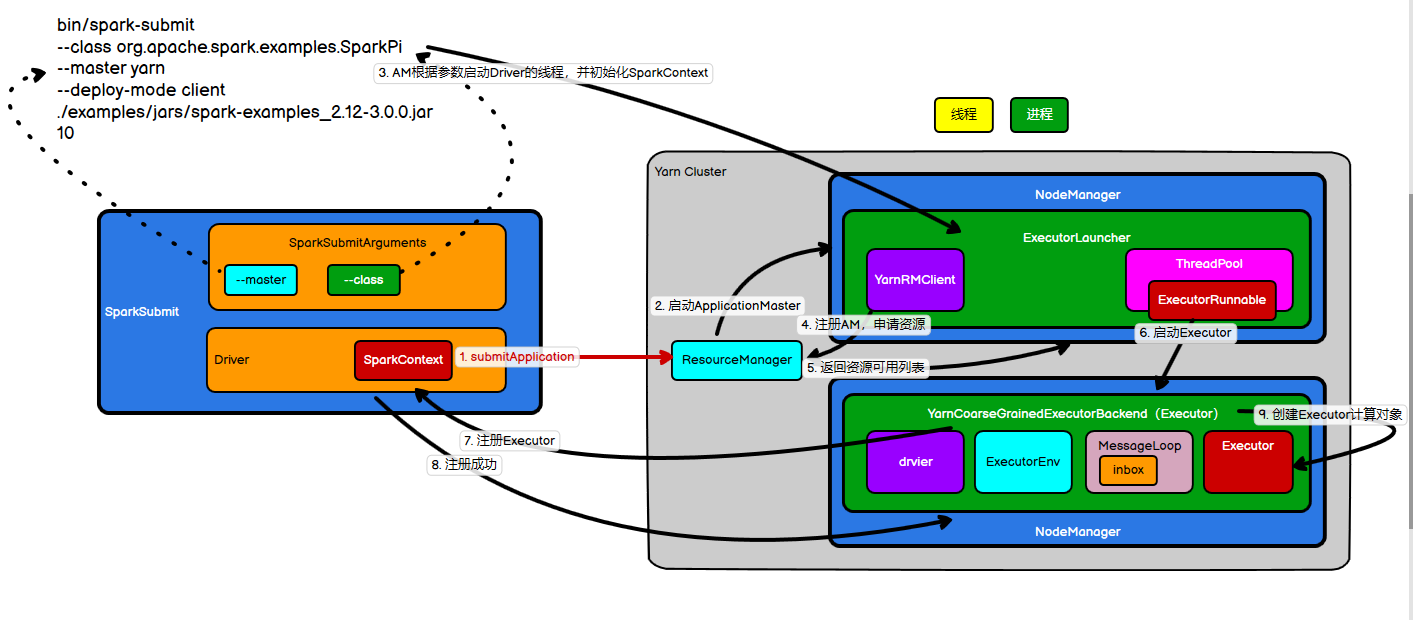

下图是Client模式流程图：
