Springmvc源码解析（二）

根据handler找到对应的handlerAdapter
HandlerAdapter ha = getHandlerAdapter(mappedHandler.getHandler());

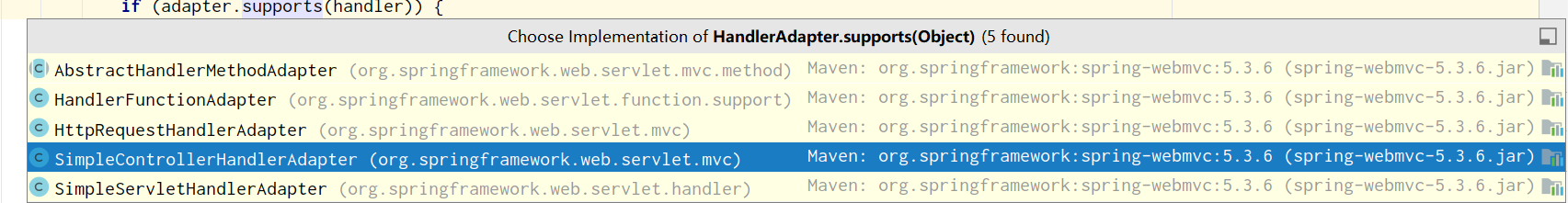

遍历所有的handlerAdapter,找到对应的handler

	protected HandlerAdapter getHandlerAdapter(Object handler) throws ServletException {
		if (this.handlerAdapters != null) {
			for (HandlerAdapter adapter : this.handlerAdapters) {
				if (adapter.supports(handler)) {
					return adapter;
				}
			}
		}
		throw new ServletException("No adapter for handler [" + handler +
				"]: The DispatcherServlet configuration needs to include a HandlerAdapter that supports this handler");
	}

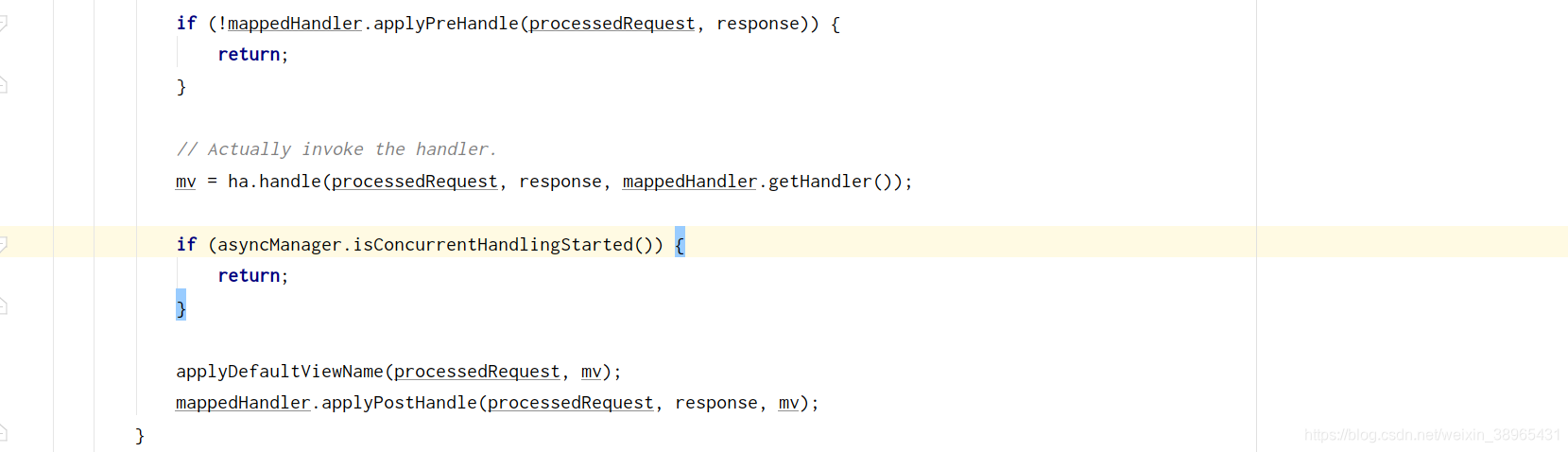

找到相应的handler后接下来就是执行handle方法，在执行之前会调用拦截器HandlerInterceptor 的preHandle方法，在执行方法之后会调用HandlerInterceptor的postHandle方法。因此我们可以实现HandlerInterceptor在方法前后加入自己的处理逻辑。

下面以AbstractHandlerMethodAdapter看一下handle方法执行。

	@Override
	@Nullable
	public final ModelAndView handle(HttpServletRequest request, HttpServletResponse response, Object handler)
			throws Exception {

		return handleInternal(request, response, (HandlerMethod) handler);
	}

RequestMappingHandlerAdapter子类实现了handleInternal方法。这个适配器就是我们requestMapping注解对应的适配器。
调用流程如下：
RequestMappingHandlerAdapter类的handleInternal方法–>RequestMappingHandlerAdapter类的invokeHandlerMethod
–>RequestMappingHandlerAdapter类的invokeAndHandle–>ServletInvocableHandlerMethod类的invokeForRequest–>InvocableHandlerMethod类的invokeForRequest

	@Override
	protected ModelAndView handleInternal(HttpServletRequest request,
			HttpServletResponse response, HandlerMethod handlerMethod) throws Exception {

		ModelAndView mav;
		checkRequest(request);

		// Execute invokeHandlerMethod in synchronized block if required.
		if (this.synchronizeOnSession) {
			HttpSession session = request.getSession(false);
			if (session != null) {
				Object mutex = WebUtils.getSessionMutex(session);
				synchronized (mutex) {
					mav = invokeHandlerMethod(request, response, handlerMethod);
				}
			}
			else {
				// No HttpSession available -> no mutex necessary
				mav = invokeHandlerMethod(request, response, handlerMethod);
			}
		}
		else {
			// No synchronization on session demanded at all...
			mav = invokeHandlerMethod(request, response, handlerMethod);
		}

		if (!response.containsHeader(HEADER_CACHE_CONTROL)) {
			if (getSessionAttributesHandler(handlerMethod).hasSessionAttributes()) {
				applyCacheSeconds(response, this.cacheSecondsForSessionAttributeHandlers);
			}
			else {
				prepareResponse(response);
			}
		}

		return mav;
	}

最后调用doInvoke方法。

    protected Object doInvoke(Object... args) throws Exception {
        Method method = this.getBridgedMethod();
        ReflectionUtils.makeAccessible(method);

        try {
            return KotlinDetector.isSuspendingFunction(method) ? CoroutinesUtils.invokeSuspendingFunction(method, this.getBean(), args) : method.invoke(this.getBean(), args);
        } catch (IllegalArgumentException var5) {
            this.assertTargetBean(method, this.getBean(), args);
            String text = var5.getMessage() != null ? var5.getMessage() : "Illegal argument";
            throw new IllegalStateException(this.formatInvokeError(text, args), var5);
        } catch (InvocationTargetException var6) {
            Throwable targetException = var6.getTargetException();
            if (targetException instanceof RuntimeException) {
                throw (RuntimeException)targetException;
            } else if (targetException instanceof Error) {
                throw (Error)targetException;
            } else if (targetException instanceof Exception) {
                throw (Exception)targetException;
            } else {
                throw new IllegalStateException(this.formatInvokeError("Invocation failure", args), targetException);
            }
        }
    }

参考文档：https://www.cnblogs.com/javammc/p/8600509.html
