金蝶云引入数据时，如何建立与源单的关联关系

引入数据时，如何建立与源单的关联关系

仅分享，因涉及到太多东西难以保证所有数据的准确性。
业务背景：
单据通过Excel引入金蝶云中，引入这些数据时，仅仅能够保存单据本身，其与源单的关联关系则不能引入进来，导致没有反写，不支持上下查等。
解决思路：
通过引入单据的保存插件实现。
1.引入模板中，单据体字段 源单编号 必须引入；
2. 编写单据的保存操作插件重载BeforeExecuteOperationTransaction事件；
3.对单据体行进行循环，取每单据体行的源单编号；
4.根据源单编号，批量读取源单；
5.对源单单据体行进行循环，按照源单编号取到源单单据体行内码等信息；
6.重新对目标单单据体行进行循环，判断目标单单据体行"xxxx_Link"子单据体是否有数据；
7.如果"xxxx_Link"子单据体没有数据，则插件新建数据包，并填写源单信息，追加到目标单单据体中。

依赖原理：单据保存时，会根据单据体的"xxxx_Link"子单据体记录的源单信息，与源单进行关联、反写。

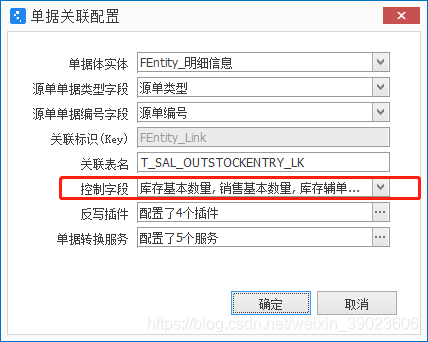

【注意】单据关联配置-控制字段

【注意】反写规则-反写条件（不满足条件则不会反写）

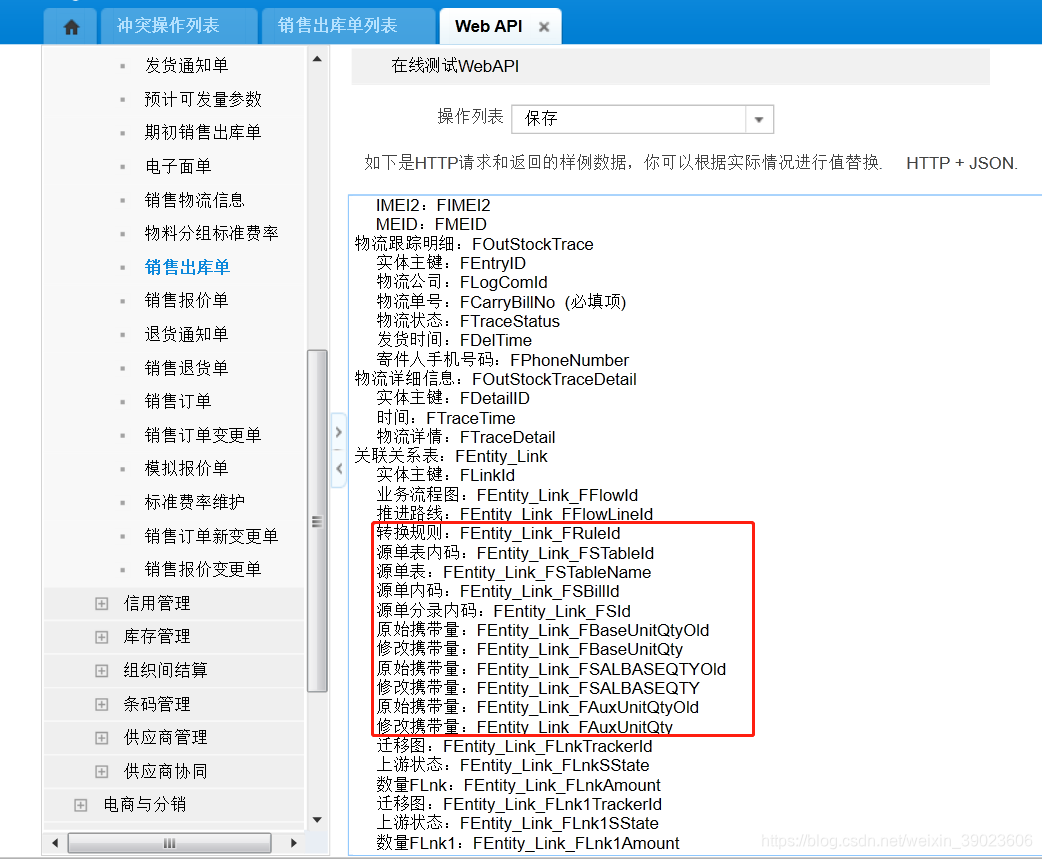

【注意】关联关系字段（可以在API查看）

案例：引入销售出库单时，如何与销售订单建立关联

import clr
clr.AddReference("System")
clr.AddReference("System.Data")
clr.AddReference("System.XML")
clr.AddReference("System.Web.Extensions")
clr.AddReference("Kingdee.BOS")
clr.AddReference("Kingdee.BOS.Core")
clr.AddReference("Kingdee.BOS.DataEntity")
clr.AddReference("Kingdee.BOS.ServiceHelper")
clr.AddReference("Newtonsoft.Json")
clr.AddReference("Kingdee.BOS.Contracts")
clr.AddReference("Kingdee.BOS.App")
clr.AddReference("System.Web")
clr.AddReference("Kingdee.BOS.App.Core")
#clr.AddReference("Kingdee.BOS.WebApi.Client")
import sys
from System import *
from System import String as string
from System.IO import *
from System.Net import *
from System.Web import *
from System.Text import *
from System.Threading import *
from System.Globalization import *
from System.Security.Cryptography import *
from System.Web.Script.Serialization import *
from System.Collections.Generic import List as syslist
from System.Collections.Generic import Dictionary
#from Kingdee.BOS.WebApi.Client import *
from Newtonsoft.Json.Linq import *

from Kingdee.BOS.AppServer import AppServerObject
from Kingdee.BOS.App.Core import *
from Kingdee.BOS.Contracts import *
from Kingdee.BOS.Core.List import *
from Kingdee.BOS.Core.CommonFilter import *
from Kingdee.BOS.Contracts.Report import *
from Kingdee.BOS.Core.Report import ISysReportView
from Kingdee.BOS.Core.Report import ReportTitles
from Kingdee.BOS.App import ServiceHelper as ServiceHelperAPP
from Kingdee.BOS import *
from Kingdee.BOS.Util import *
from Kingdee.BOS.Core.List.PlugIn import *
from Kingdee.BOS.Core.Log import *
from Kingdee.BOS.Core import *
from Kingdee.BOS.Core.DynamicForm import *
from Kingdee.BOS.Orm import OperateOption
from Kingdee.BOS.Core import *
from Kingdee.BOS.Core.DynamicForm import *
from Kingdee.BOS.DataEntity import *
from Kingdee.BOS.Orm.DataEntity import *
from Kingdee.BOS.Core.Bill import *
from Kingdee.BOS.Core.Bill.PlugIn import *
from Kingdee.BOS.ServiceHelper import *
from Kingdee.BOS.Core.Interaction import KDInteractionException
#from Kingdee.BOS import KDBusinessException
from Kingdee.BOS.Core.Metadata.EntityElement import *
from Kingdee.BOS.Core.Metadata import SelectorItemInfo ##字段选择实体类
from Kingdee.BOS.Core.Metadata import OQLFilter ##字段选择实体类
from Kingdee.BOS.Core.SqlBuilder import QueryBuilderParemeter ##查询参数实体类
from Kingdee.BOS.Core.DynamicForm.PlugIn.ControlModel import *
#修改默认编码为utf8
reload(sys)
sys.setdefaultencoding('utf-8')
def _Zstr(a):
    return ("" if a==None else (a if isinstance(a,str) else str(a))).strip();


def LoadData(BillNos):
    formid = "SAL_SaleOrder";#源单标识
    #指定需要加载的销售订单字段
    fields =syslist[SelectorItemInfo]();
    fields.Add( SelectorItemInfo("FID"));#单据主键
    fields.Add( SelectorItemInfo("FSaleOrderEntry_FEntryID"));#单据体主键
    fields.Add( SelectorItemInfo("FBillNo"));#单据编号
    fields.Add( SelectorItemInfo("FBFLowId"));#业务流程
    fields.Add( SelectorItemInfo("FMaterialId"));#物料
    fields.Add( SelectorItemInfo("FBaseCanOutQty"));#基本单位数量
    fields.Add( SelectorItemInfo("FStockBaseCanOutQty"));#基本单位数量
    #指定过滤条件
    filter = string.Format(" FBillNo IN ('{0}') ",string.Join("','",BillNos));
    ofilter = OQLFilter.CreateHeadEntityFilter(filter);
    objs =BusinessDataServiceHelper.Load(this.Context,formid,fields,ofilter);
    return objs;

def BuildDictionary(DDObjs):
    dctAllBills =Dictionary[string, Dictionary[string, DynamicObject]]();
    for DDObj in DDObjs:
        billNo = Convert.ToString(DDObj["BillNo"]);#销售订单单据编号-对应源单编码
        dctOneBill=Dictionary[string, DynamicObject]();
        entryRows = DDObj["SaleOrderEntry"]
        for entryRow in entryRows:
            Seq = Convert.ToString(entryRow["Seq"]);#销售订单分录号-对应销售出库单源单分录码
            dctOneBill[Seq] = entryRow;
        dctAllBills.Add(billNo, dctOneBill);
    return dctAllBills;

def FillLinkRow(srcRow,toRow,linkRow):
    linkRow["FlowId"] = srcRow["FBFLowId_Id"];
    linkRow["FlowLineId"] = 0;
    linkRow["RuleId"] = "SaleOrder-OutStock";#单据转换ID
    linkRow["SBillId"] = (srcRow.Parent)[0];#源单内码
    linkRow["SId"] = srcRow[0];#源单分录内码
    #原始携带量
    BaseCanOutQty = Convert.ToDecimal(srcRow["BaseCanOutQty"]);
    StockBaseCanOutQty = Convert.ToDecimal(srcRow["StockBaseCanOutQty"]);
    linkRow["BaseUnitQtyOld"] =BaseCanOutQty;
    linkRow["SALBASEQTYOld"] =StockBaseCanOutQty;
    linkRow["BaseUnitQty"] = toRow["BaseUnitQty"];
    linkRow["SALBASEQTY"] = toRow["SALBASEQTY"];
    toRow["BaseMustQty"]=BaseCanOutQty
    toRow["MustQty"]=BaseCanOutQty
    toRow["SrcType"]="SAL_SaleOrder"#为满足反写规则条件



def OnPreparePropertys(e):
	e.FieldKeys.Add("F_LYP_Text");#源单编码
	e.FieldKeys.Add("F_LYP_Text1");#源单分录码
def BeforeExecuteOperationTransaction(e):
    try:
        #对单据体进行循环，取关联的源单编号
        for billObj in e.SelectedRows:
            BillNos=syslist[str]();
            entryRows =billObj.DataEntity["SAL_OUTSTOCKENTRY"]
            for entryRow in entryRows:
                FSrcBillNo =entryRow["F_LYP_Text"]
                if FSrcBillNo=="":#源单编码为空跳过
                    continue
                if (BillNos.Contains(FSrcBillNo)):#已存在跳过
                    continue
                BillNos.Add(FSrcBillNo);
        DDObjs=LoadData(BillNos)#查找销售订单数据
        #获取源单单据体表名
        FsrcTableNumber = BusinessFlowServiceHelper.LoadTableDefine(this.Context, "SAL_SaleOrder", "FSaleOrderEntry").TableNumber;
        #构建数据
        dctAllBills =BuildDictionary(DDObjs);

        #记录所有关联，后续为新建的源单关联信息，设置内码
        allNewLinkRows =syslist[DynamicObject]();
        for billObj in e.SelectedRows:
            entryRows =billObj.DataEntity["SAL_OUTSTOCKENTRY"]
            for entryRow in entryRows:
                linkRows =entryRow["FEntity_Link"]

                #获取关联关系对象
                linkRow =DynamicObject(this.BusinessInfo.GetEntity("FEntity_Link").DynamicObjectType);
                linkRow["STableName"] = FsrcTableNumber;

                #按源单编号获取信息
                FSrcBillNo =entryRow["F_LYP_Text"]
                if (FSrcBillNo==""):
                    continue;
                dctOneBill=dctAllBills[FSrcBillNo]

                #按源单分录码获取信息
                Seq=entryRow["F_LYP_Text1"]
                if (Seq==""):
                    continue;
                srcRow=dctOneBill[Seq]

                #关联关系对象赋值和反写规则条件处理
                FillLinkRow(srcRow,entryRow,linkRow);
                if (linkRows.Count>0):#判断是否已存在关联信息
                    continue;
                linkRows.Add(linkRow);
                allNewLinkRows.Add(linkRow);
        #为新建的源单关联信息，设置内码
        _SequenceReader=SequenceReader(this.Context)
        _SequenceReader.AutoSetPrimaryKey(allNewLinkRows.ToArray(),this.BusinessInfo.GetEntity("FEntity_Link").DynamicObjectType);

    except Exception as e:
        raise Exception("BeforeExecuteOperationTransaction:"+e.ToString());

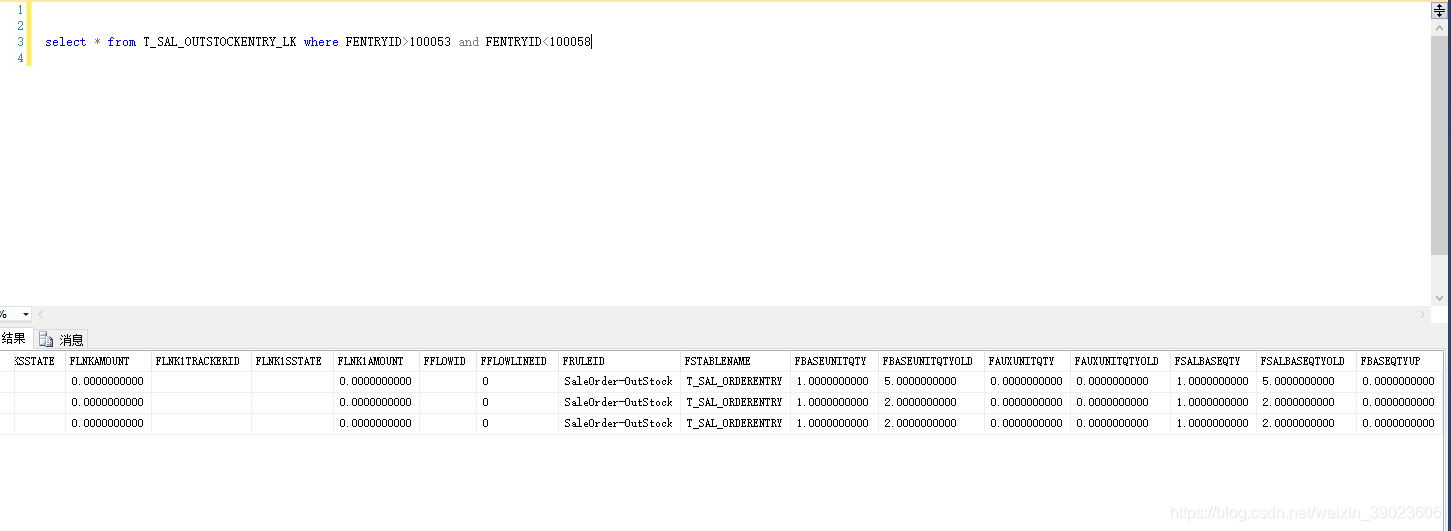

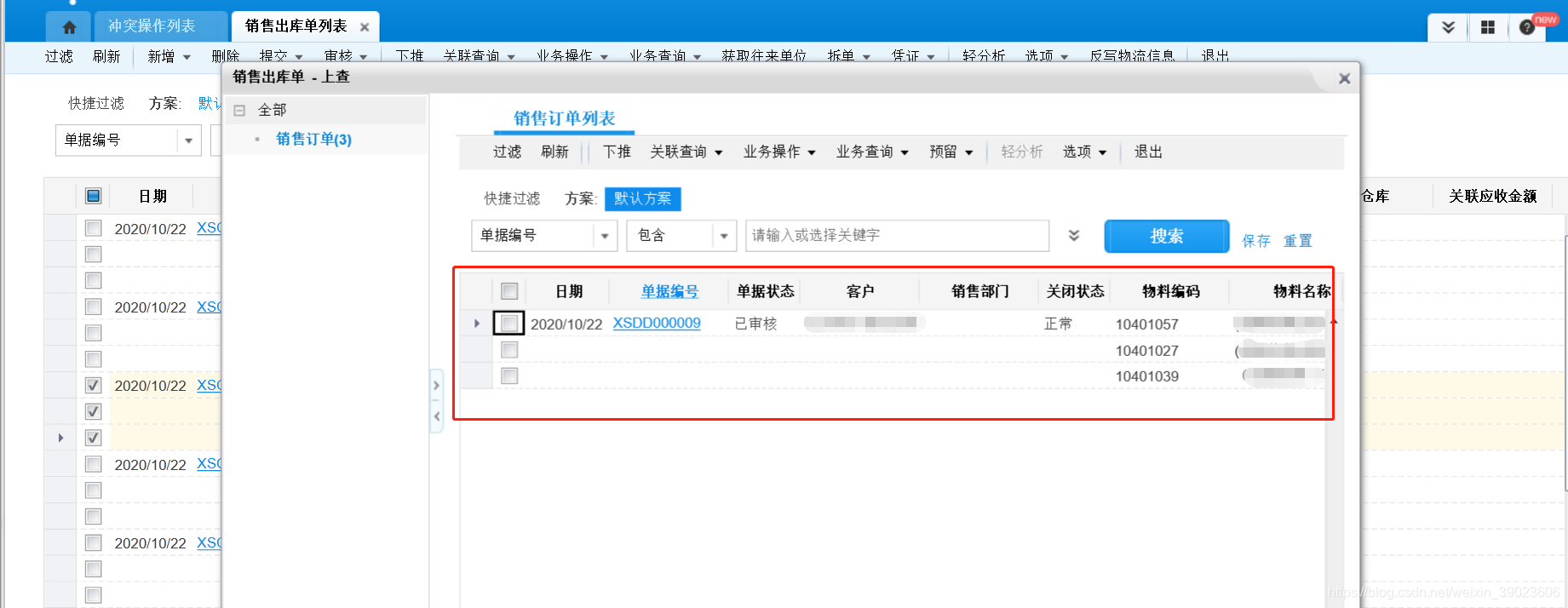

结果展示
