H3C IRF2 4台虚拟化配置DEMO是怎么操作的呢，那么H3C IRF2 4台虚拟化如何配置DEMO?下面是学习啦小编收集整理的H3C IRF2 4台虚拟化如何配置DEMO，希望对大家有帮助~~

H3C IRF2 4台虚拟化配置DEMO的方法

工具/原料

PC一台，内存至少4G，每台设备占用512内存，我的是6G内存，虽然不卡，但是启动的时候也是很卡的，对CPU占用也很高

HCL模拟器一枚

方法/步骤

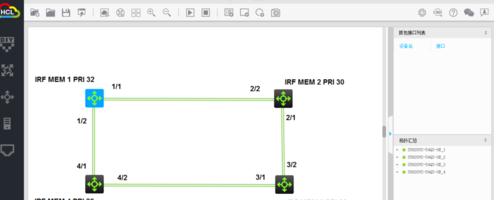

搭建拓扑，如上图所示，四台5820交换机，用万兆口做IRF2

MEM1 配置：

irf member 1 priority 32

#irf-port 1/1

port group interface Ten-GigabitEthernet1/0/49

port group interface Ten-GigabitEthernet1/0/50

#irf-port 1/2

port group interface Ten-GigabitEthernet1/0/51

port group interface Ten-GigabitEthernet1/0/52

#

save之后

敲上irf-port-configuration active接口

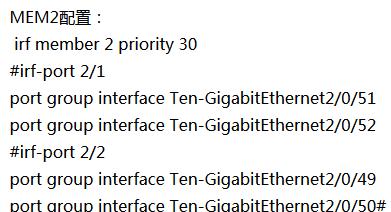

MEM2配置：

irf member 2 priority 30

#irf-port 2/1

port group interface Ten-GigabitEthernet2/0/51

port group interface Ten-GigabitEthernet2/0/52

#irf-port 2/2

port group interface Ten-GigabitEthernet2/0/49

port group interface Ten-GigabitEthernet2/0/50#

save之后

敲上irf-port-configuration active接口

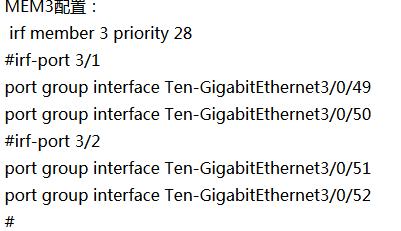

MEM3配置：

irf member 3 priority 28

#irf-port 3/1

port group interface Ten-GigabitEthernet3/0/49

port group interface Ten-GigabitEthernet3/0/50

#irf-port 3/2

port group interface Ten-GigabitEthernet3/0/51

port group interface Ten-GigabitEthernet3/0/52

#

save之后

敲上irf-port-configuration active接口

MEM4配置：

irf member 4 priority 26

#irf-port 4/1

port group interface Ten-GigabitEthernet4/0/51

port group interface Ten-GigabitEthernet4/0/52

#irf-port 4/2

port group interface Ten-GigabitEthernet4/0/49

port group interface Ten-GigabitEthernet4/0/50

#

save之后

敲上irf-port-configuration active接口
