联想 Lenovo ThinkStation P330 Tiny 四网口版展示 – macOS 篇
![fdf4647721c268c458873feb353ec1df.png](https://img-blog.csdnimg.cn/img_convert/fdf4647721c268c458873feb353ec1df.png)
产品配置
原厂配置
主机:联想 P330 Tiny 1L 迷你工作站
处理器:英特尔酷睿 i7-8700
无线网卡:英特尔无线-AC 9560, 双频 2×2 MU-MIMO AC Wi-Fi + 蓝牙 5
定制端口:英特尔 i350-T4 四口网卡
固态硬盘:东芝 128G 固态
内存:三星 64GB(32Gx2) DDR4 2666MHz 非-ECC
调整配置
无线网卡:更换为 博通 BCM94352Z 无线/蓝牙网卡
内存:由于暂时无法驱动32单条内存,故更换内存为 十铨 Team 32GB(16GBx2) DDR4 2666 笔记本内存
操作系统
macOS Catalina 10.15.1
联想 Lenovo ThinkStation P330 Tiny 迷你工作站 macOS Catalina 系统

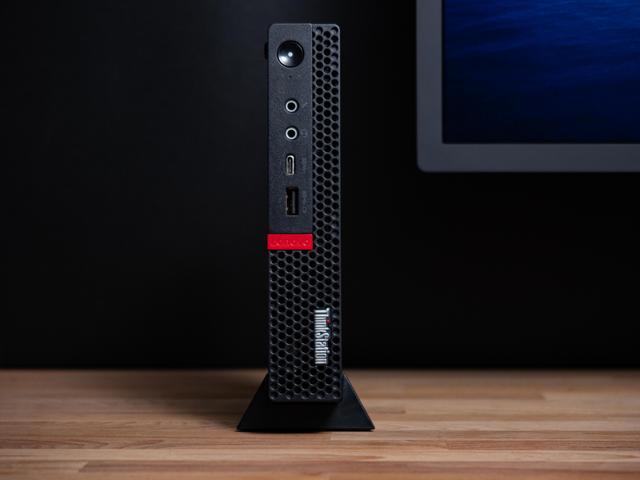

桌面布置

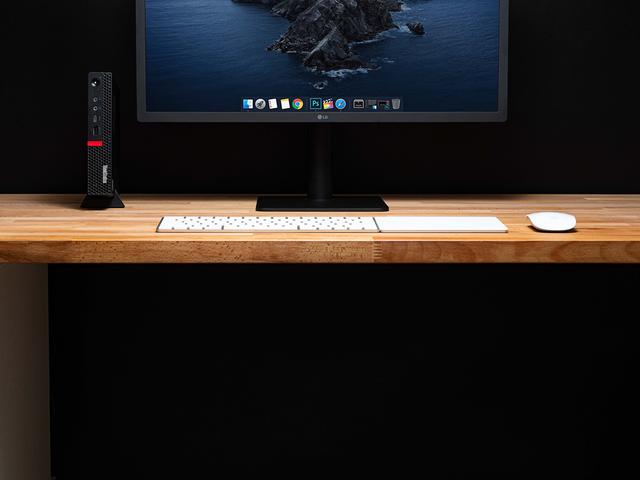

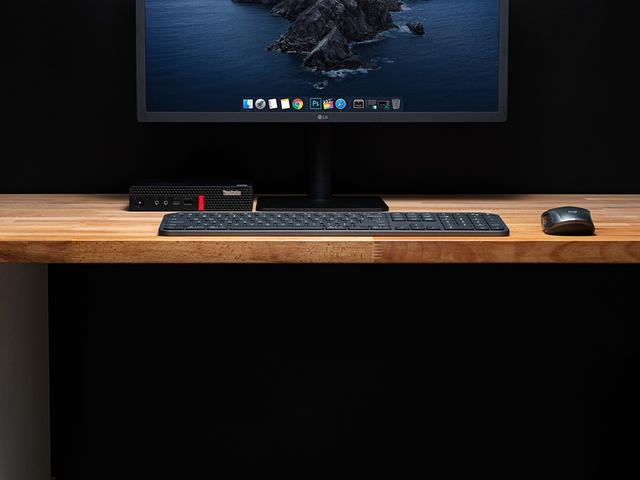

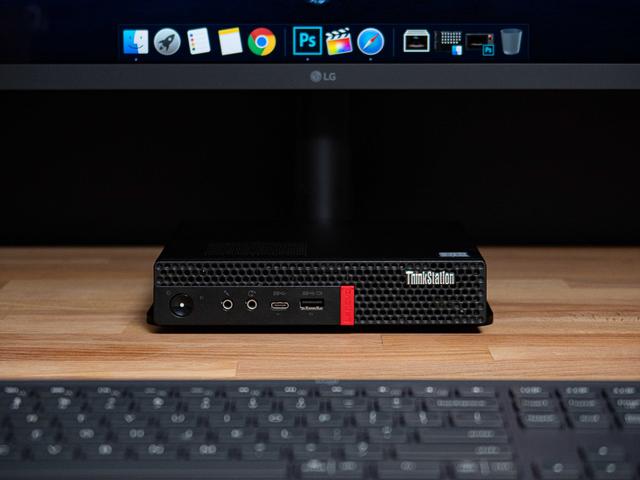

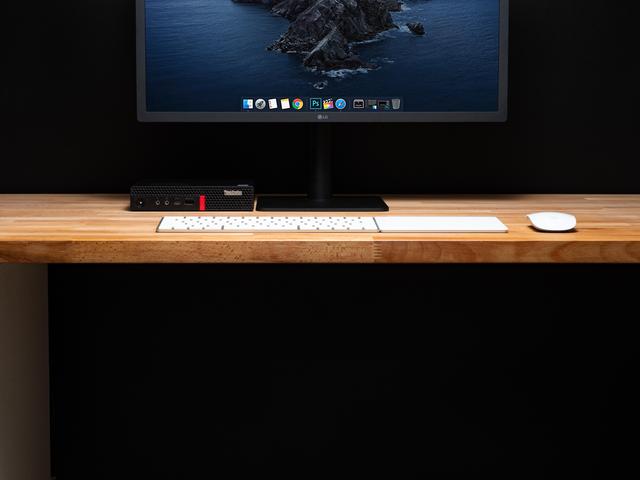

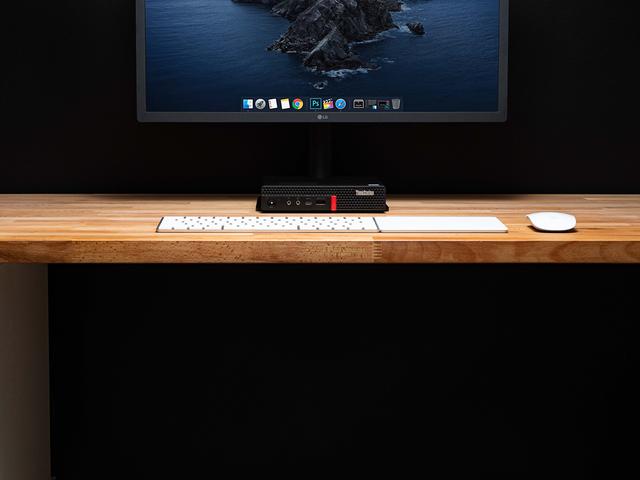

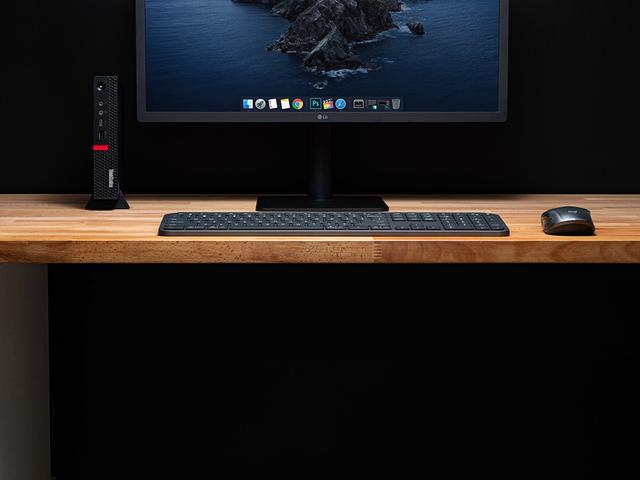

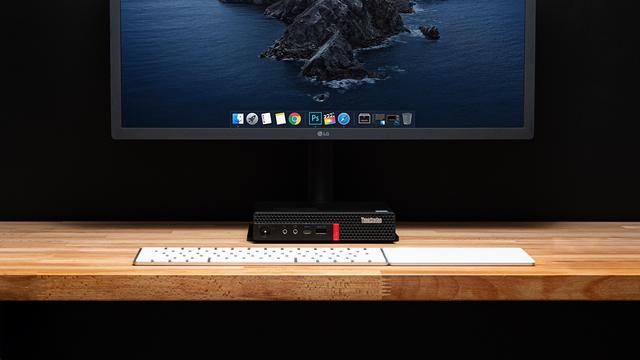

将电源、线缆隐藏于桌下,并使用无线键鼠即可达到极其整洁的桌面效果,也可以使用原厂立式支架将主机立放于桌面任意位置。
![1a2458e0a61b4e619a38fb540589ad6c.png](https://img-blog.csdnimg.cn/img_convert/1a2458e0a61b4e619a38fb540589ad6c.png)
Lenovo-ThinkStation-P330-Tiny-behind-monitor
![d5f7d1e3bee053886127a29d1ea37299.png](https://img-blog.csdnimg.cn/img_convert/d5f7d1e3bee053886127a29d1ea37299.png)
![a832e7d2c3eec676c0b000d618d09978.png](https://img-blog.csdnimg.cn/img_convert/a832e7d2c3eec676c0b000d618d09978.png)
![d41c3b70afdd18038e48044965e4e919.png](https://img-blog.csdnimg.cn/img_convert/d41c3b70afdd18038e48044965e4e919.png)
![d5c63c8830ca9eb831da2253b95f7125.png](https://img-blog.csdnimg.cn/img_convert/d5c63c8830ca9eb831da2253b95f7125.png)
![c85941ffb8da815dc4ac66e2f7bdcb79.png](https://img-blog.csdnimg.cn/img_convert/c85941ffb8da815dc4ac66e2f7bdcb79.png)
![6b614c25dee3f63e86208d06faa53ba9.png](https://img-blog.csdnimg.cn/img_convert/6b614c25dee3f63e86208d06faa53ba9.png)
![deeb7ebbc96bcc89fc3c2d3e3cc7a857.png](https://img-blog.csdnimg.cn/img_convert/deeb7ebbc96bcc89fc3c2d3e3cc7a857.png)
![341e376b83c76b4c016b2a6e2b76d58a.png](https://img-blog.csdnimg.cn/img_convert/341e376b83c76b4c016b2a6e2b76d58a.png)

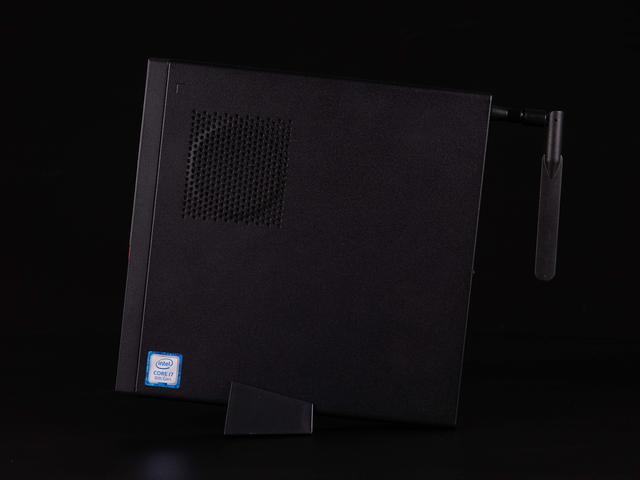

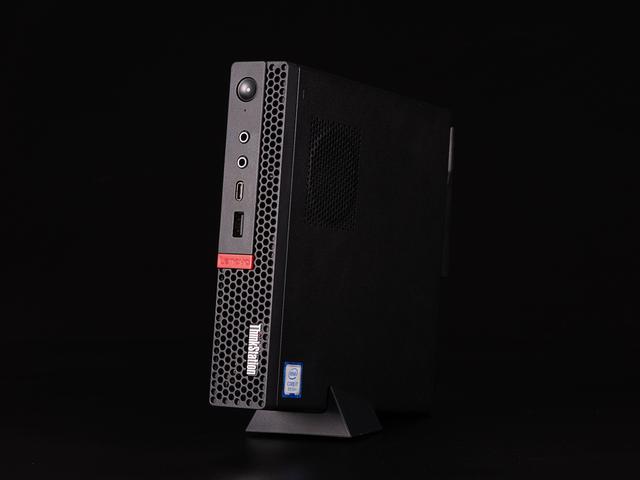

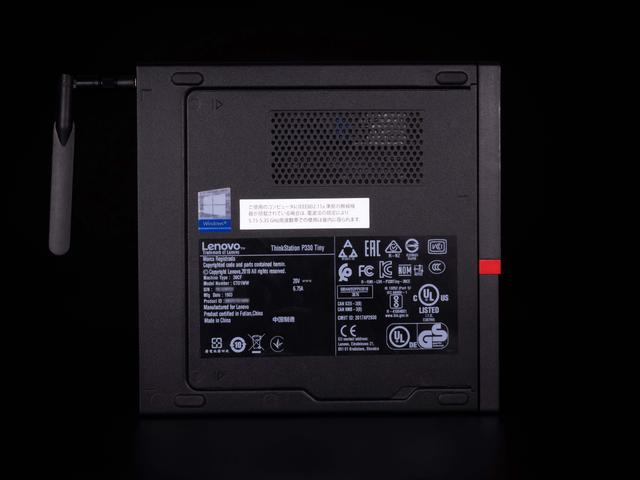

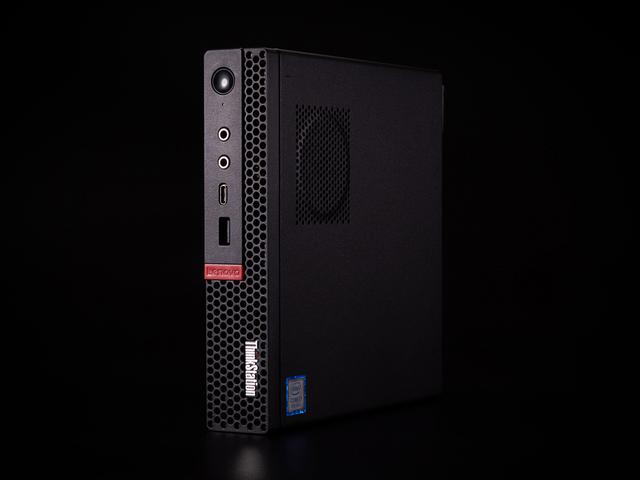

主机展示及参数

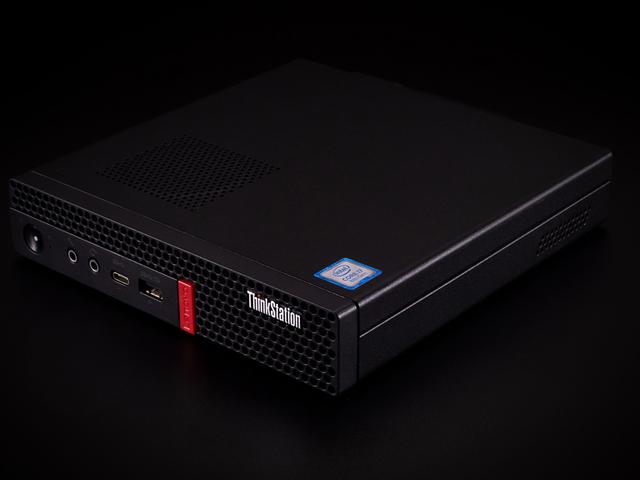

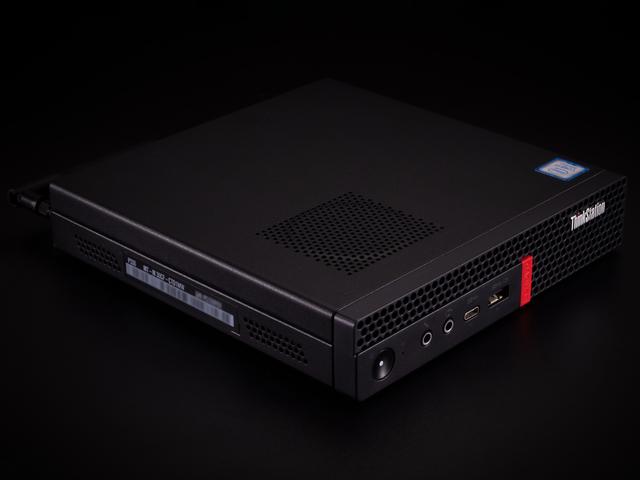

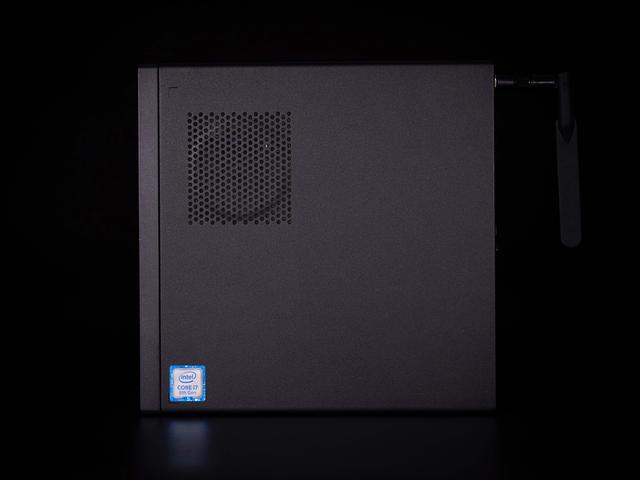

主机本身只有 1L 左右体积,高 17.9 厘米 、宽 3.65 厘米、深 18.29 厘米 。
主机标配包含:

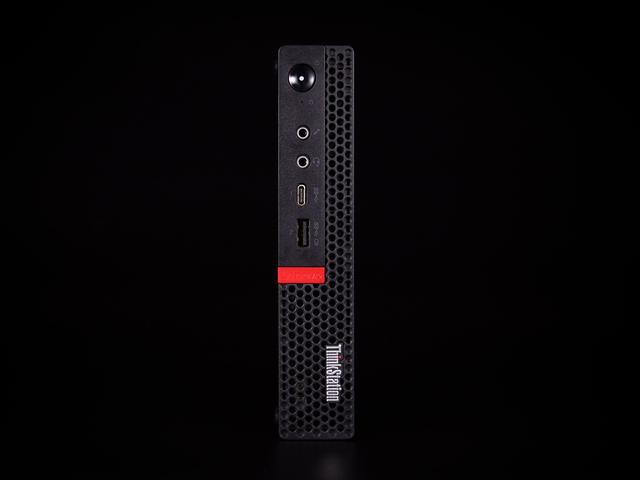

前置端口:1个 USB 3.1 Gen 1(关机充电), 1个 USB 3.1 Type-C Gen 1 、1个 麦克风接口、1个麦克风+音频输出整合接口。

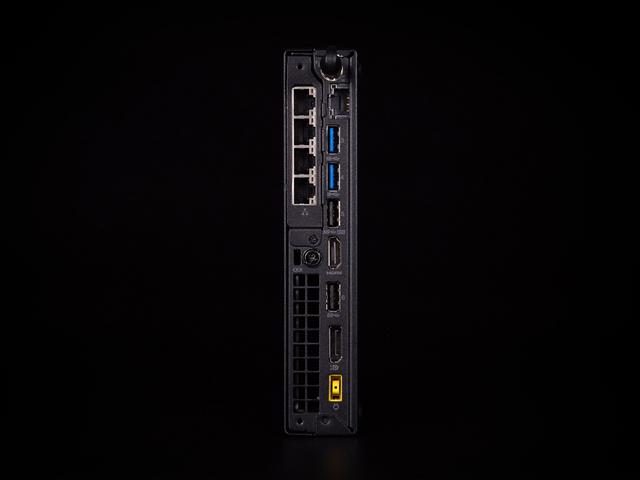

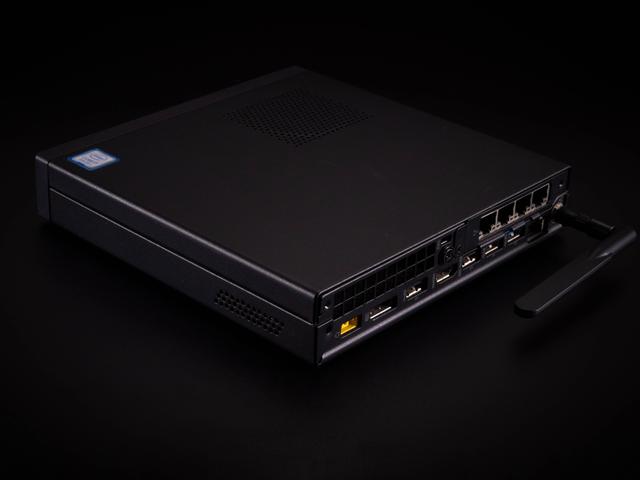

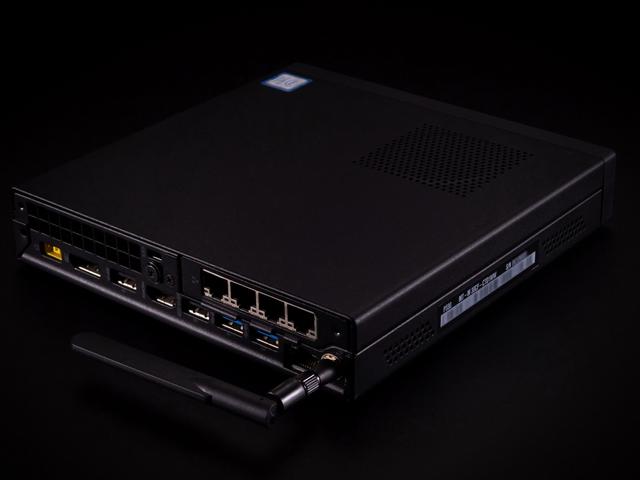

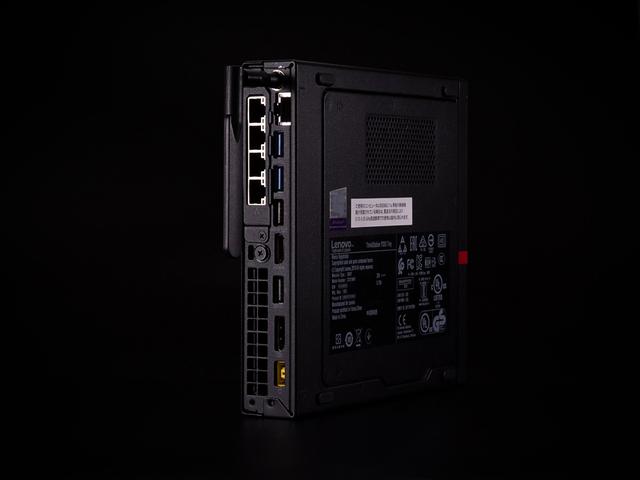

后置端口:2个 USB 3.1 Gen 2、2个 USB 3.1 Gen 1、1个 DisplayPort、1个 HDMI、1个 RJ45。
定制拓展口可选择:(站长选择的 英特尔 i350-T4 四口网卡)
非 PCIe 拓展组件:端口 1 可选 VGA / DisplayPort / HDMI / 串口 / USB 3.1 Type C Gen 1 with DisplayPort,端口 2 只能是串口。
PCIe 拓展组件:2个 USB 3.1 Gen 1,4端口的串行端口 (9-pin),Quadro P620 2G 独显(含4个 miniDP 接口),Quadro P1000 4G 独显(含4个 miniDP 接口)
![2af6210c0fb658397aee40da04a2c394.png](https://img-blog.csdnimg.cn/img_convert/2af6210c0fb658397aee40da04a2c394.png)
![4c4b44fb36e49928c128c9b333b0560a.png](https://img-blog.csdnimg.cn/img_convert/4c4b44fb36e49928c128c9b333b0560a.png)
![4cd8dec5ddb63e9ba2140a01d796f8c0.png](https://img-blog.csdnimg.cn/img_convert/4cd8dec5ddb63e9ba2140a01d796f8c0.png)
![02c7297a9f59d9eb176f3974b9f6b79d.png](https://img-blog.csdnimg.cn/img_convert/02c7297a9f59d9eb176f3974b9f6b79d.png)
![12afbdd3d06ea83e1d7b03f6cf97dd73.png](https://img-blog.csdnimg.cn/img_convert/12afbdd3d06ea83e1d7b03f6cf97dd73.png)
![1b68e384b07881d97211fdfa9f017c63.png](https://img-blog.csdnimg.cn/img_convert/1b68e384b07881d97211fdfa9f017c63.png)
![c5685587ea88f57654bcefff9f35868a.png](https://img-blog.csdnimg.cn/img_convert/c5685587ea88f57654bcefff9f35868a.png)
![2407a341be5db1975b6b271ad224b398.png](https://img-blog.csdnimg.cn/img_convert/2407a341be5db1975b6b271ad224b398.png)
![3b55691d8d98149380ca2136defd9b7d.png](https://img-blog.csdnimg.cn/img_convert/3b55691d8d98149380ca2136defd9b7d.png)
![2a24578905afda6c63c2db7a97d005a3.png](https://img-blog.csdnimg.cn/img_convert/2a24578905afda6c63c2db7a97d005a3.png)
![89fbd9b24877e436d6228e2e45addc86.png](https://img-blog.csdnimg.cn/img_convert/89fbd9b24877e436d6228e2e45addc86.png)
![17b510cf6c5363416d748109d89df0ca.png](https://img-blog.csdnimg.cn/img_convert/17b510cf6c5363416d748109d89df0ca.png)
配件展示
联想 Tiny 机型 VESA 挂架 & 电源架
显示器背挂安装方式
桌下安装方式
为避免篇幅过长,这部分更多详情可前往https://www.hacktiny.com/posts/4339.html查看

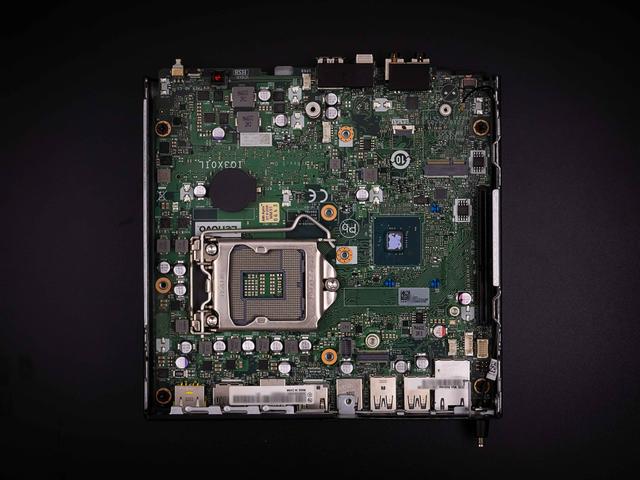

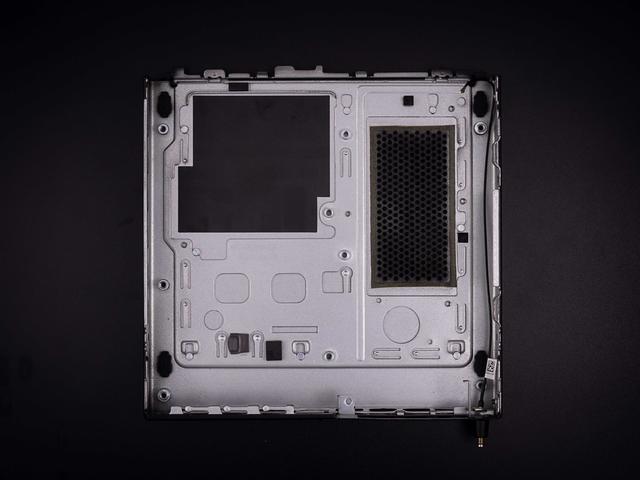

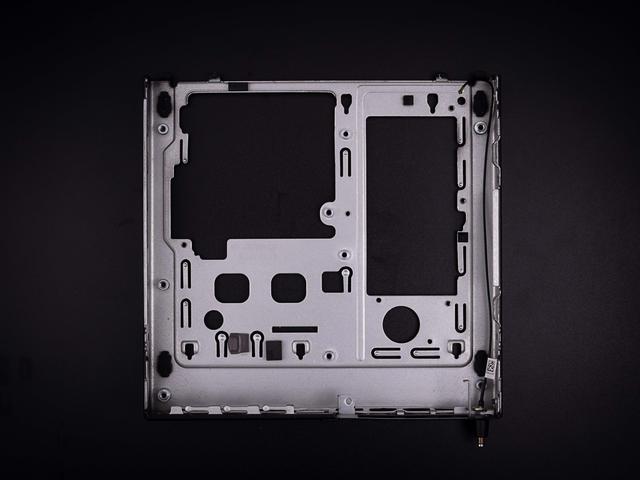

主机拆解
主机后方有颗免工具螺丝,直接手拧就可以,推拉就可以打开顶盖。

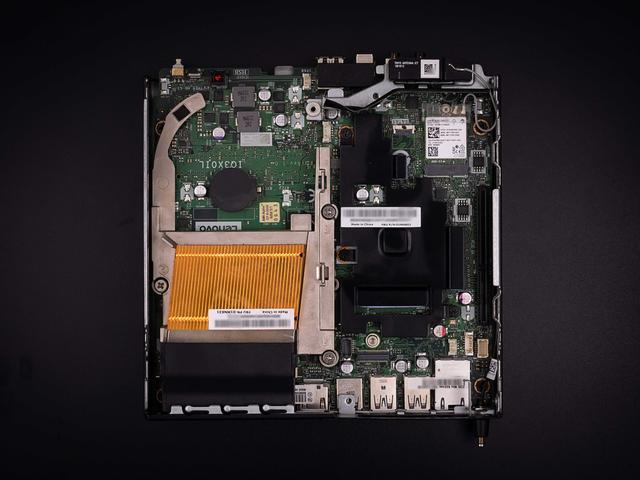

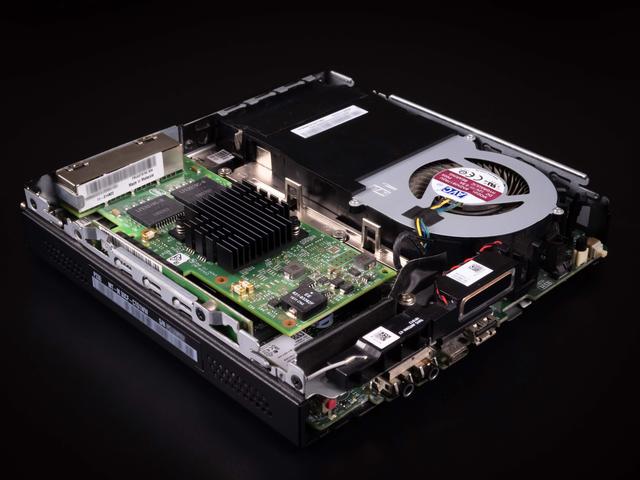

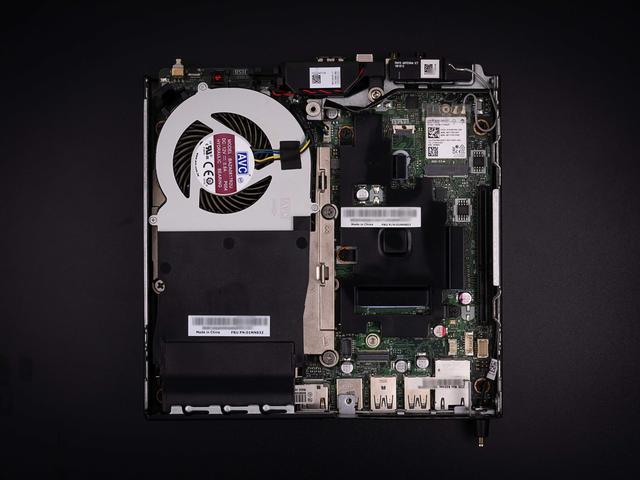

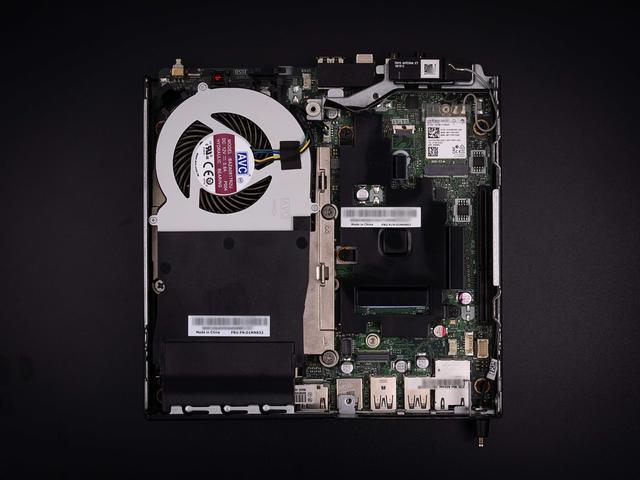

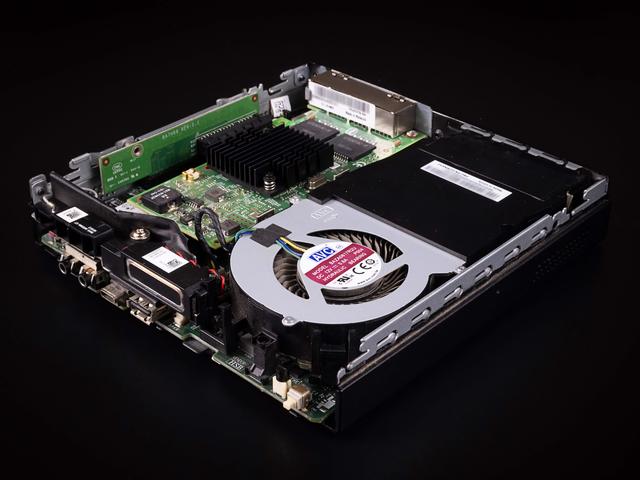

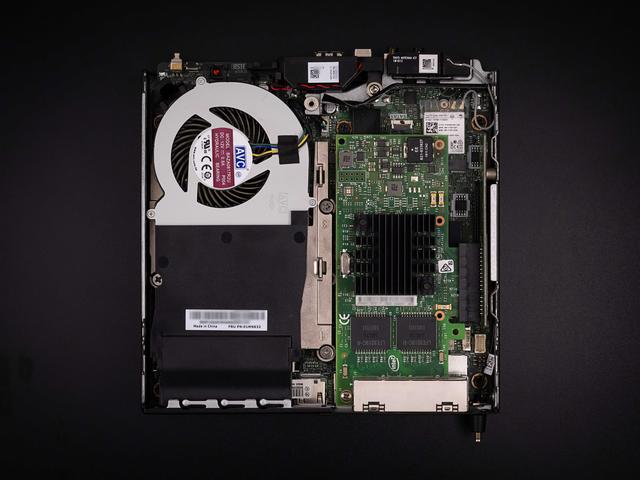

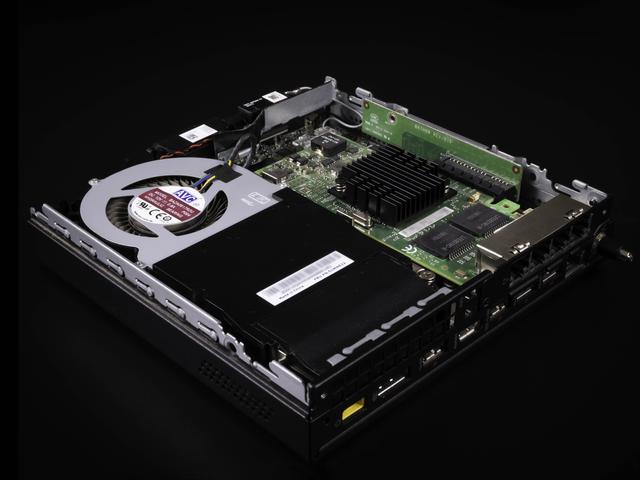

单风扇涡轮散热风扇,铜质散热器,需要同时应付 TDP 65W 的标压处理器的散热。

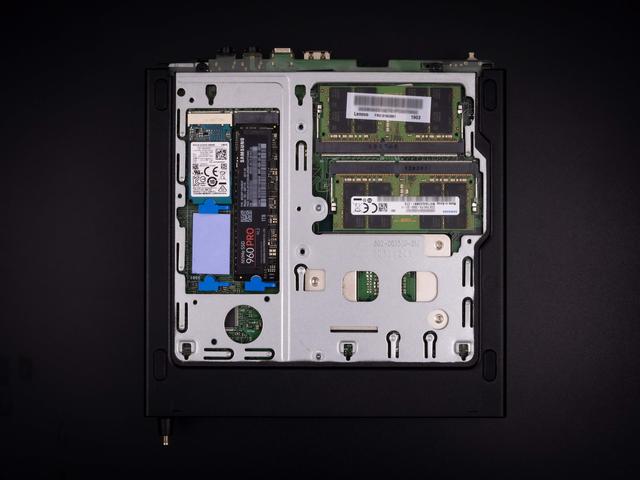

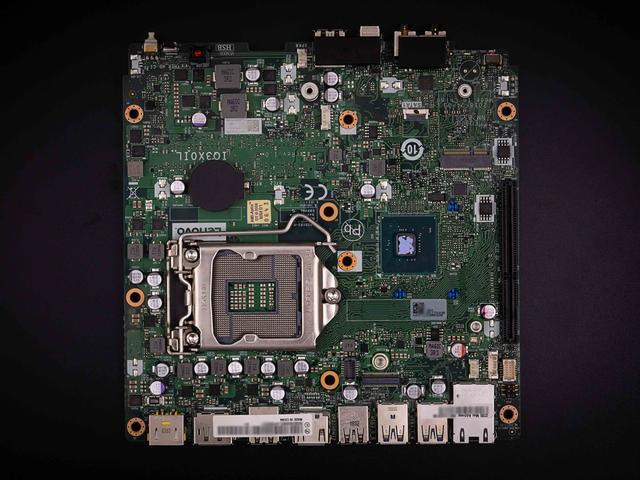

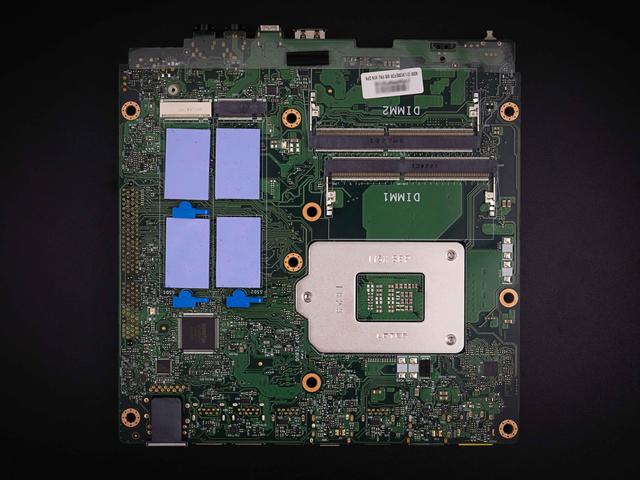

2个 DDR4 SO-DIMM 内存插槽,实际测试过最高可以上到 64G 内存,一般人我觉得 16G 差不多了,实在不行 32G 也不是很贵。注意如果安装苹果系统,64G 不知道为什么无法启动,还得再研究研究。

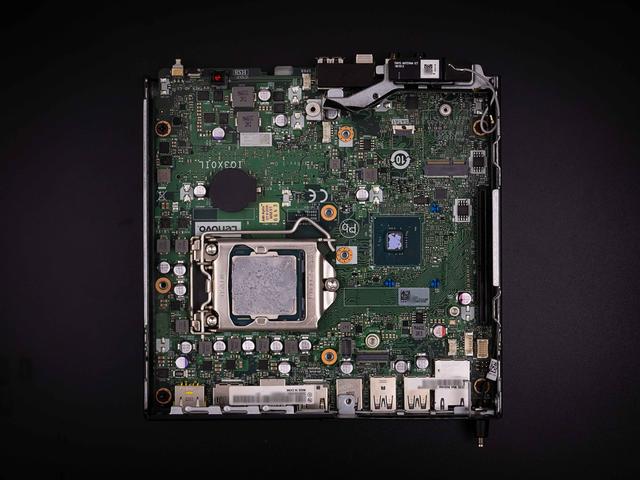

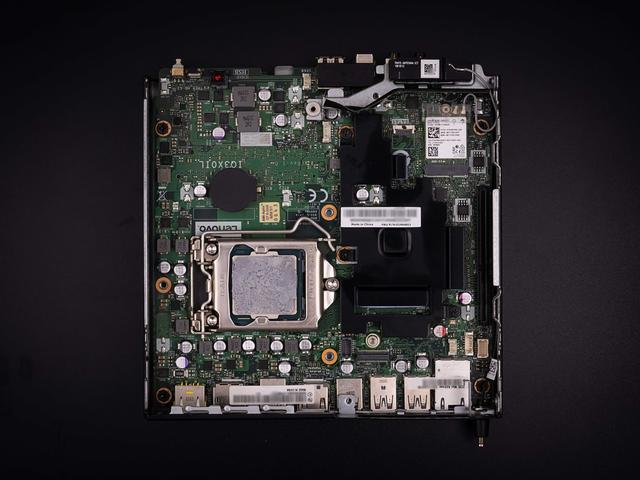

CPU 支持自行更换标压及低压的 8/9 代英特尔处理器,如果搭配独显的话,建议还是安装 T 系列低压处理器,这台是定制的 i7-8700 六核十二线程,电源是 135W 的。
原装英特尔网卡不支持黑苹果,可以换成博通的 BCM94352Z,直接替换就行,现在这款价格已经被炒的太夸张了。
主机自带的固态是东芝的128G,额外插了一条三星 960 Pro 1T,这台机器主要不是用来玩黑苹果的,最初的计划是原来当作超迷你服务器用的。
![28e2df81cf8630c643d2c023cba5022e.png](https://img-blog.csdnimg.cn/img_convert/28e2df81cf8630c643d2c023cba5022e.png)
![ba4a46398da68bc85eb1058bbe749c1b.png](https://img-blog.csdnimg.cn/img_convert/ba4a46398da68bc85eb1058bbe749c1b.png)
![fafd0fb8c23db3248a7bf2c46fccea5c.png](https://img-blog.csdnimg.cn/img_convert/fafd0fb8c23db3248a7bf2c46fccea5c.png)
![ef7cb3743aa676448df2b560b29a8afb.png](https://img-blog.csdnimg.cn/img_convert/ef7cb3743aa676448df2b560b29a8afb.png)
![756df2f755a248a9bfcfe262bac62d5e.png](https://img-blog.csdnimg.cn/img_convert/756df2f755a248a9bfcfe262bac62d5e.png)
![f6fb36cad811caa2229f228c06946f14.png](https://img-blog.csdnimg.cn/img_convert/f6fb36cad811caa2229f228c06946f14.png)
![51b668556eeba02f12a17d6f977dec01.png](https://img-blog.csdnimg.cn/img_convert/51b668556eeba02f12a17d6f977dec01.png)
![c3b3050671cf3850d8510b829af82148.png](https://img-blog.csdnimg.cn/img_convert/c3b3050671cf3850d8510b829af82148.png)
![3f9640834a253f8fe41f1d1d3978c95d.png](https://img-blog.csdnimg.cn/img_convert/3f9640834a253f8fe41f1d1d3978c95d.png)
![5e9e96f6afca33d02001eb7bd51a3c89.png](https://img-blog.csdnimg.cn/img_convert/5e9e96f6afca33d02001eb7bd51a3c89.png)
![3c661204270ed0dda69143228e0ebd5c.png](https://img-blog.csdnimg.cn/img_convert/3c661204270ed0dda69143228e0ebd5c.png)
![8652f1b838541940b5abfbebbdf43be9.png](https://img-blog.csdnimg.cn/img_convert/8652f1b838541940b5abfbebbdf43be9.png)
![6a0e00b402d47a5e45a5fe44b4a7d9d8.png](https://img-blog.csdnimg.cn/img_convert/6a0e00b402d47a5e45a5fe44b4a7d9d8.png)
![b64cdc32ab8920be81caf932c3512e7d.png](https://img-blog.csdnimg.cn/img_convert/b64cdc32ab8920be81caf932c3512e7d.png)
![af17cb739279d1f0bef8ee53b8a5f5ef.png](https://img-blog.csdnimg.cn/img_convert/af17cb739279d1f0bef8ee53b8a5f5ef.png)
![6f029796fda671f7e04d839c2db4651a.png](https://img-blog.csdnimg.cn/img_convert/6f029796fda671f7e04d839c2db4651a.png)
![95fa020fc7a875da10ad4bb6b48065f3.png](https://img-blog.csdnimg.cn/img_convert/95fa020fc7a875da10ad4bb6b48065f3.png)
![879114780e00d2b0230d2ac264ba2680.png](https://img-blog.csdnimg.cn/img_convert/879114780e00d2b0230d2ac264ba2680.png)
![5d7e2e88b4de05e366f5d618bb30cf41.png](https://img-blog.csdnimg.cn/img_convert/5d7e2e88b4de05e366f5d618bb30cf41.png)
![ef792e73480f921a8ec84073bd5fe96d.png](https://img-blog.csdnimg.cn/img_convert/ef792e73480f921a8ec84073bd5fe96d.png)

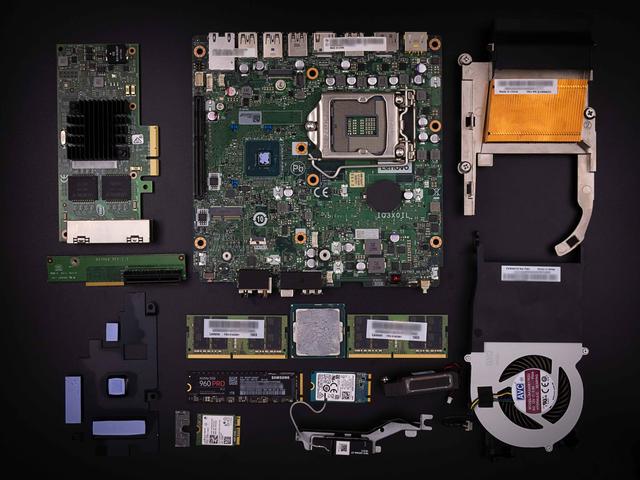

Lenovo-ThinkStation-P330-Tiny-teardown
