Spring的IOC
1 ioc的概念和作用
1、存哪去?
分析:由于我们是很多对象,肯定要找个集合来存。这时候有 Map 和 List 供选择。
到底选 Map 还是 List 就看我们有没有查找需求。有查找需求,选 Map。
所以我们的答案就是 在应用加载时,创建一个 Map,用于存放三层对象。
我们把这个 map 称之为容器。
2、还是没解释什么是工厂?
工厂就是负责给我们从容器中获取指定对象的类。这时候我们获取对象的方式发生了改变。
原来:

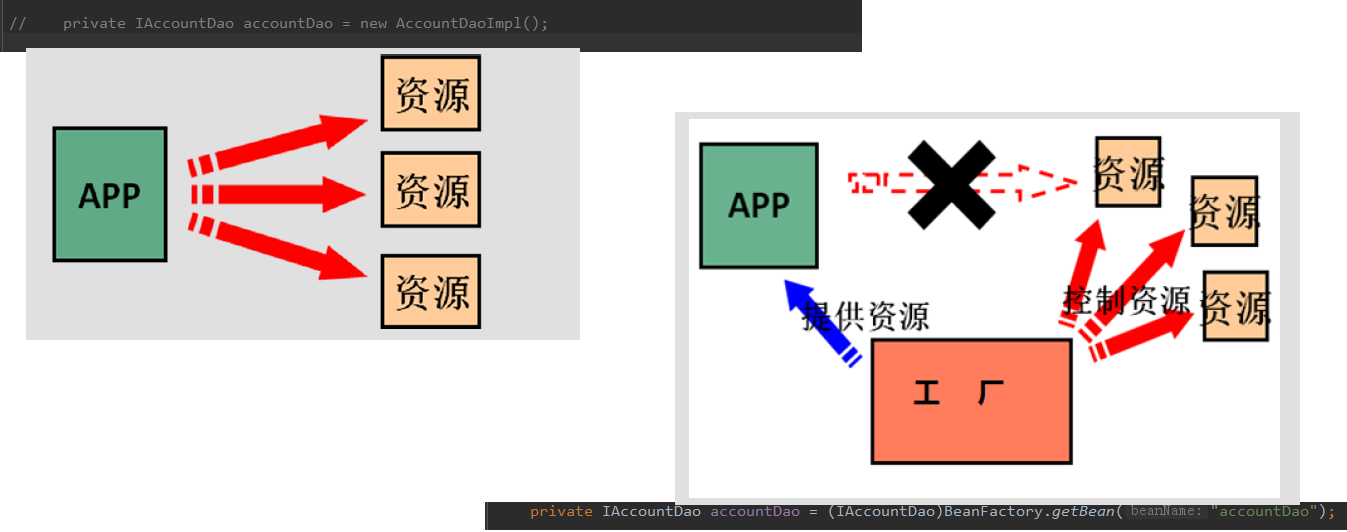

我们在获取对象时,都是采用 new 的方式。是主动的。如图所示:
现在:
我们获取对象时,同时跟工厂要,有工厂为我们查找或者创建对象。是被动的。

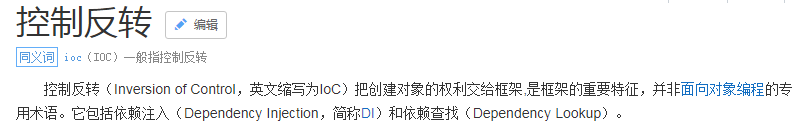

这种被动接收的方式获取对象的思想就是控制反转,它是 spring 框架的核心之一。 如图所示:
明确 ioc的作用:
削减计算机程序的耦合(解除我们代码中的依赖关系)。
2 spring基于XML的IOC环境搭建和入门

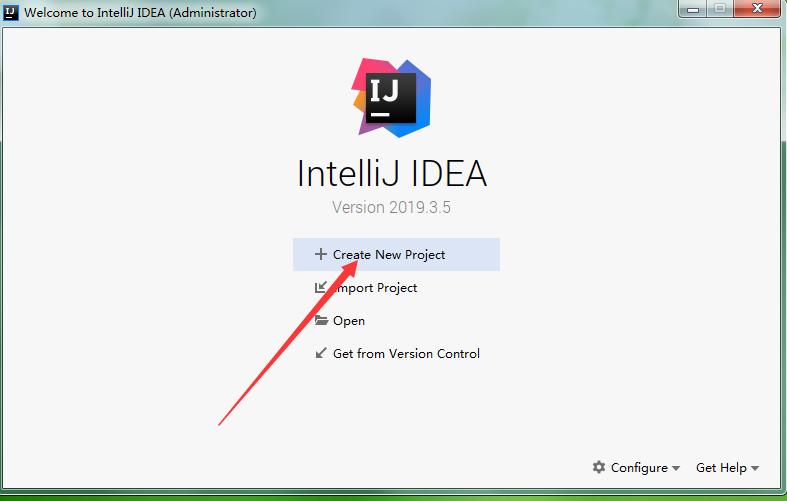

1.打开IDEA工具如图所示的界面,点击Create New Project。

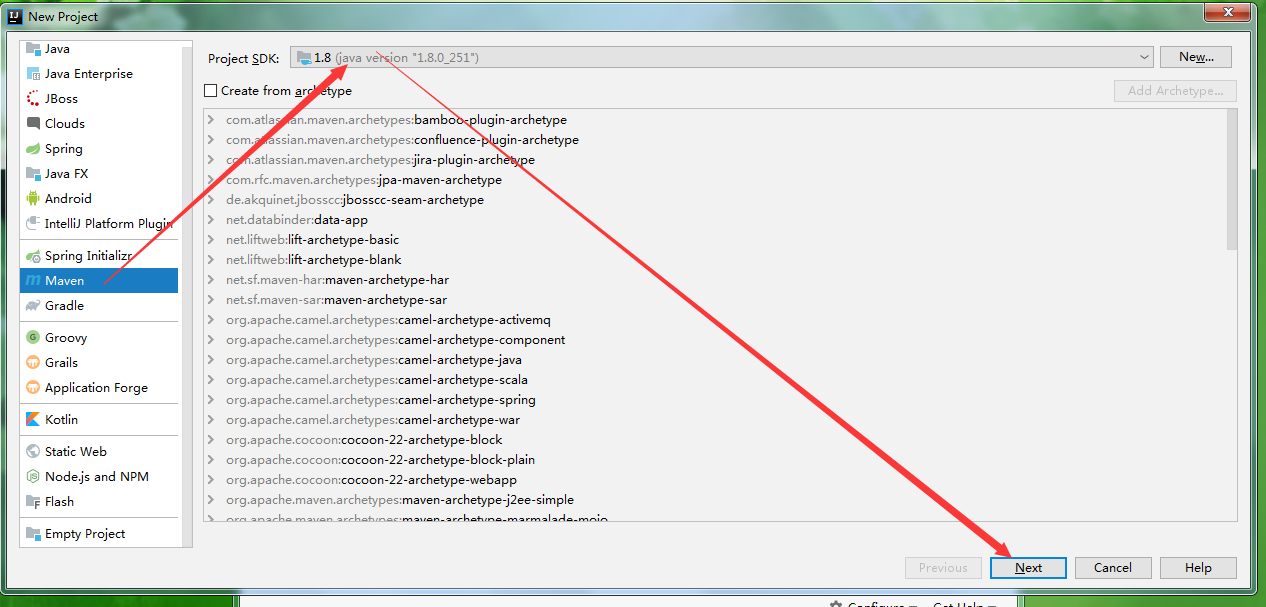

2.选择Maven工程和JDK的版本,如图所示:并点击Next。

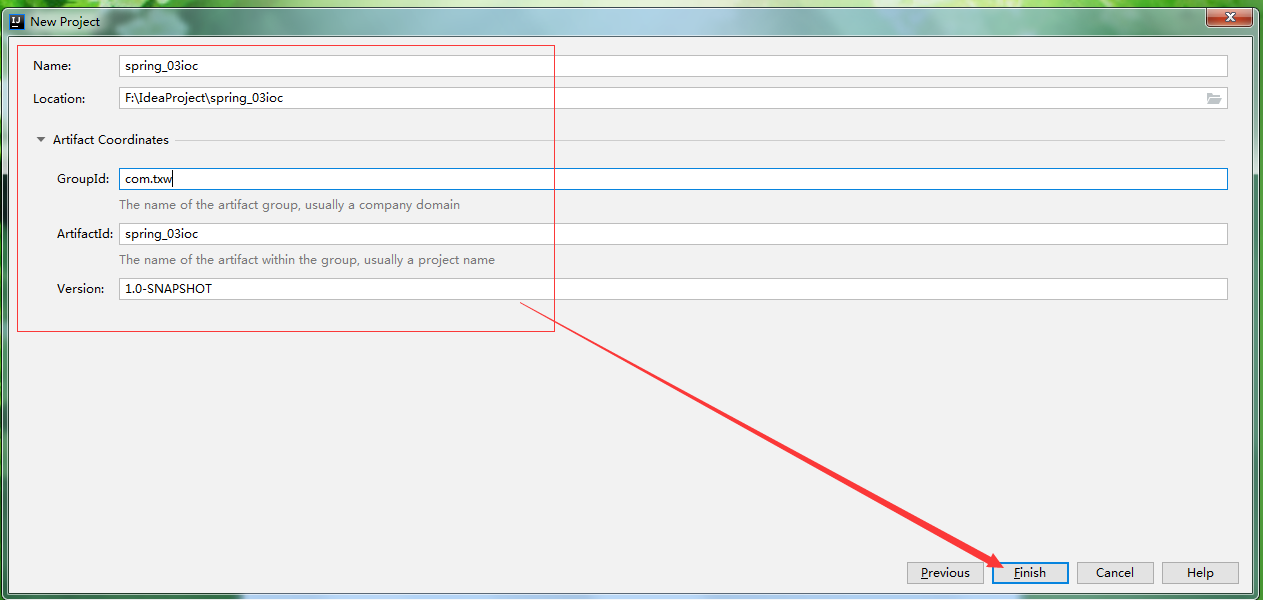

3.填写项目名称和保存的地址,点击Finish。如图所示:
4.导入相应的依赖jar包的代码如下:
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<groupId>com.txw</groupId>
<artifactId>spring_03ioc</artifactId>
<version>1.0-SNAPSHOT</version>
<!--打包的方式-->
<packaging>jar</packaging>
<dependencies>
<!--导入spring-context的依赖坐标-->
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-context</artifactId>
<version>5.2.8.RELEASE</version>
</dependency>
</dependencies>
</project>
5.编写账户的持久层接口代码如下:
package com.txw.dao;
/**
* 账户的持久层接口
*/
@SuppressWarnings("all") // 注解警告信息
public interface AccountDao {
/**
* 模拟保存账户
*/
void saveAccount();
}
6.编写账户的持久层实现类代码如下:
package com.txw.dao.impl;
import com.txw.dao.AccountDao;
/**
* 账户的持久层实现类
*/
@SuppressWarnings("all") // 注解警告信息
public class AccountDaoImpl implements AccountDao {
/**
* 模拟保存账户
*/
public void saveAccount(){
System.out.println("保存了账户");
}
}
7.编写账户业务层的接口代码如下:
package com.txw.service;
/**
* 账户业务层的接口
*/
@SuppressWarnings("all") // 注解警告信息
public interface AccountService {
/**
* 模拟保存账户
*/
void saveAccount();
}
8.编写账户业务层的接口实现类代码如下:
package com.txw.service.impl;
import com.txw.dao.AccountDao;
import com.txw.service.AccountService;
/**
* 账户的业务层实现类
*/
@SuppressWarnings("all") // 注解警告信息
public class AccountServiceImpl implements AccountService {
// 声明AccountDao业务对象
private AccountDao accountDao ;
public AccountServiceImpl(){
System.out.println("对象创建了");
}
public void saveAccount(){
accountDao.saveAccount();
}
}
9.在resource目录下创建bean.xml的代码如下:
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans.xsd">
<!--把对象的创建交给spring来管理-->
<bean id="accountService" class="com.txw.service.impl.AccountServiceImpl"></bean>
<bean id="accountDao" class="com.txw.dao.impl.AccountDaoImpl"></bean>
</beans>
10.编写测试的代码如下:
package com.txw.ui;
import com.txw.dao.AccountDao;
import com.txw.service.AccountService;
import org.springframework.context.ApplicationContext;
import org.springframework.context.support.ClassPathXmlApplicationContext;
import org.springframework.context.support.FileSystemXmlApplicationContext;
/**
* 模拟一个表现层,用于调用业务层
*/
@SuppressWarnings("all") // 注解警告信息
public class Client {
/**
* 获取spring的Ioc核心容器,并根据id获取对象
* ApplicationContext的三个常用实现类:
* ClassPathXmlApplicationContext:它可以加载类路径下的配置文件,要求配置文件必须在类路径下。不在的话,加载不了。(更常用)
* FileSystemXmlApplicationContext:它可以加载磁盘任意路径下的配置文件(必须有访问权限)
* AnnotationConfigApplicationContext:它是用于读取注解创建容器的。
* ApplicationContext: 单例对象适用 采用此接口
* 它在构建核心容器时,创建对象采取的策略是采用立即加载的方式。也就是说,只要一读取完配置文件马上就创建配置文件中配置的对象。
* BeanFactory: 多例对象使用
* 它在构建核心容器时,创建对象采取的策略是采用延迟加载的方式。也就是说,什么时候根据id获取对象了,什么时候才真正的创建对象。
* @param args
*/
public static void main(String[] args) {
// 1.获取核心容器对象
ApplicationContext ac = new ClassPathXmlApplicationContext("bean.xml");
// ApplicationContext ac = new FileSystemXmlApplicationContext("C:\\Users\\Administrator\\Desktop\\bean.xml");
// 2.根据id获取Bean对象
AccountService as = (AccountService)ac.getBean("accountService");
AccountDao adao = ac.getBean("accountDao",AccountDao.class);
System.out.println(as);
System.out.println(adao);
as.saveAccount();
//--------BeanFactory----------
// Resource resource = new ClassPathResource("bean.xml");
// BeanFactory factory = new XmlBeanFactory(resource);
// AccountService as = (AccountService)factory.getBean("accountService");
// System.out.println(as);
}
}
选中ApplicationContext右键选择Diagrams,并点击Show Diagrams。如图所示:
如图所示:继承关系图:

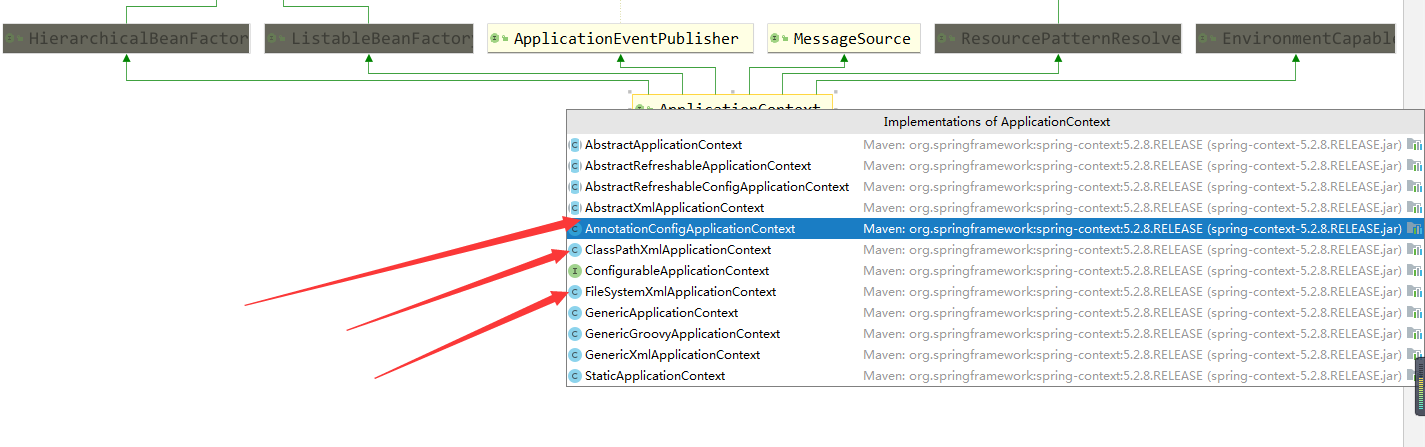

选中ApplicationContext右键选择Show Implements,如图所示:
它的实现类如图所示:
3 spring中bean的细节之三种创建Bean对象的方式

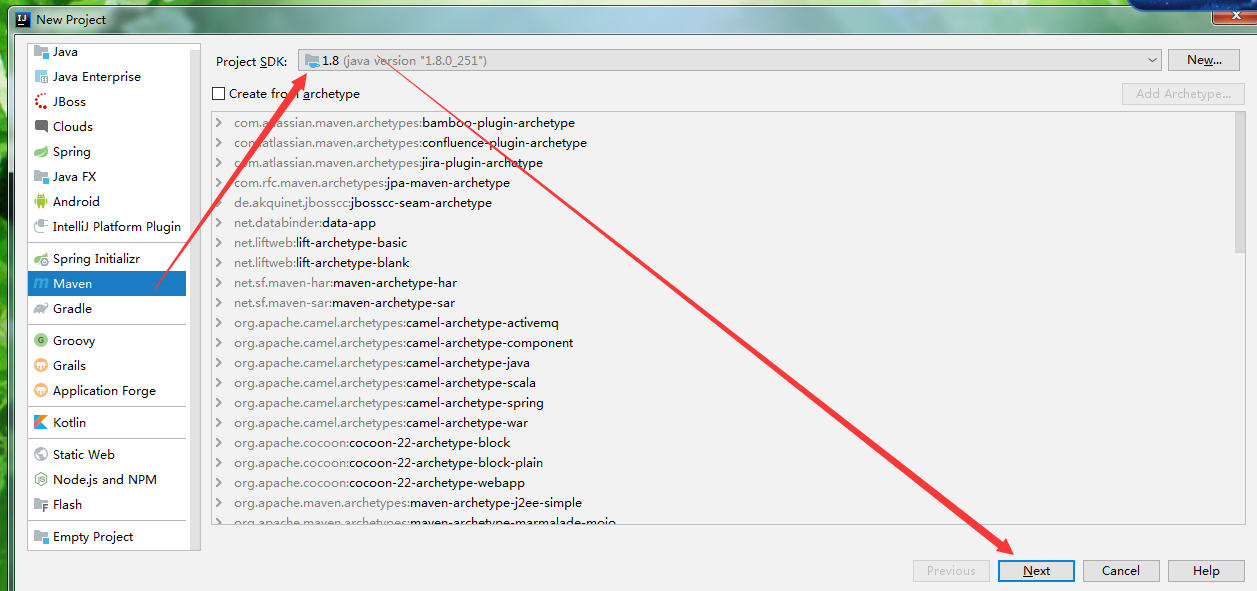

1.打开IDEA工具如图所示的界面,点击Create New Project。2.选择Maven工程和JDK的版本,如图所示:并点击Next。

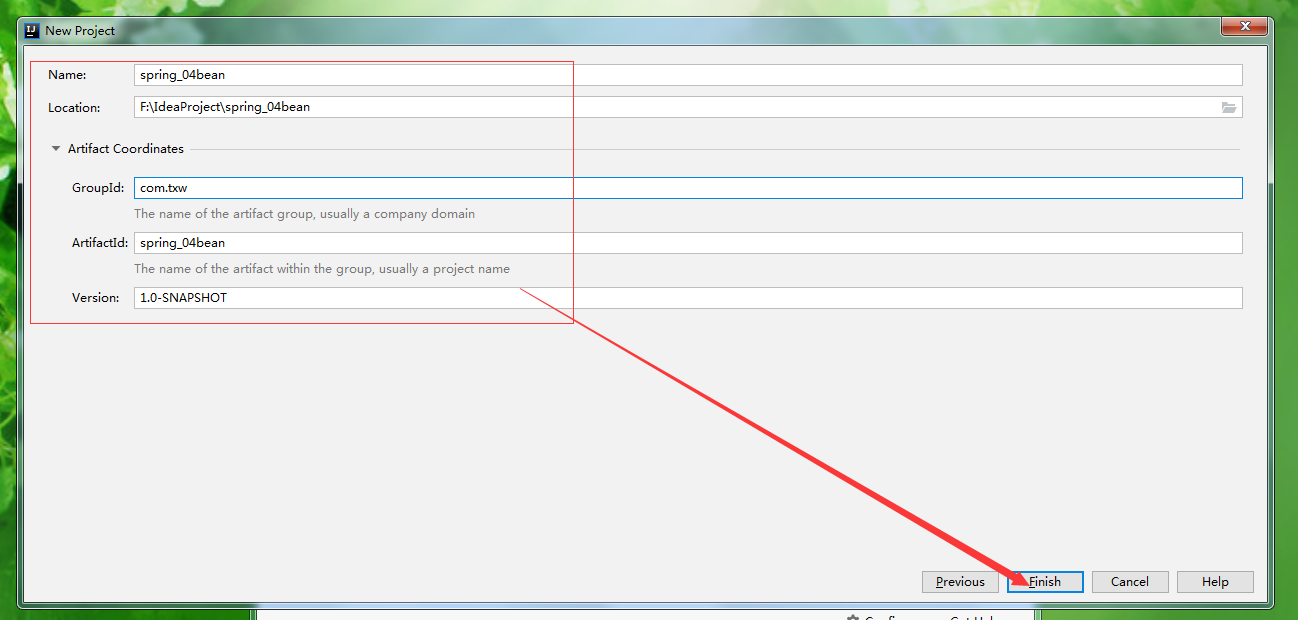

3.填写项目名称和保存的地址,点击Finish。如图所示:
4.导入相应的依赖jar包的代码如下:
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<groupId>com.txw</groupId>
<artifactId>spring_04bean</artifactId>
<version>1.0-SNAPSHOT</version>
<!--打包的方式-->
<packaging>jar</packaging>
<dependencies>
<!--导入的依赖jar包坐标-->
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-context</artifactId>
<version>5.2.8.RELEASE</version>
</dependency>
</dependencies>
</project>
5.编写账户业务层的接口代码如下:
package com.txw.service;
/**
* 账户业务层的接口
*/
@SuppressWarnings("all") // 注解警告信息
public interface IAccountService {
/**
* 模拟保存账户
*/
void saveAccount();
}
6.编写账户的业务层实现类代码如下:
package com.txw.service.impl;
import com.txw.service.IAccountService;
/**
* 账户的业务层实现类
*/
@SuppressWarnings("all") // 注解警告信息
public class AccountServiceImpl implements IAccountService {
public AccountServiceImpl(){
System.out.println("对象创建了");
}
public void saveAccount(){
System.out.println("service中的saveAccount方法执行了。。。");
}
public void init(){
System.out.println("对象初始化了。。。");
}
public void destroy(){
System.out.println("对象销毁了。。。");
}
}
7.在resources目录下创建bean.xml的代码如下:
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans.xsd">
<!--把对象的创建交给spring来管理-->
<!--spring对bean的管理细节
1.创建bean的三种方式
2.bean对象的作用范围
3.bean对象的生命周期
-->
<!--创建Bean的三种方式 -->
<!-- 第一种方式:使用默认构造函数创建。
在spring的配置文件中使用bean标签,配以id和class属性之后,且没有其他属性和标签时。
采用的就是默认构造函数创建bean对象,此时如果类中没有默认构造函数,则对象无法创建。
<bean id="accountService" class="com.txw.service.impl.AccountServiceImpl"></bean>
-->
<!-- 第二种方式: 使用普通工厂中的方法创建对象(使用某个类中的方法创建对象,并存入spring容器)
<bean id="instanceFactory" class="com.txw.factory.InstanceFactory"></bean>
<bean id="accountService" factory-bean="instanceFactory" factory-method="getAccountService"></bean>
-->
<!-- 第三种方式:使用工厂中的静态方法创建对象(使用某个类中的静态方法创建对象,并存入spring容器)
<bean id="accountService" class="com.txw.factory.StaticFactory" factory-method="getAccountService"></bean>
-->
<!-- bean的作用范围调整
bean标签的scope属性:
作用:用于指定bean的作用范围
取值: 常用的就是单例的和多例的
singleton:单例的(默认值)
prototype:多例的
request:作用于web应用的请求范围
session:作用于web应用的会话范围
global-session:作用于集群环境的会话范围(全局会话范围),当不是集群环境时,它就是session
<bean id="accountService" class="com.txw.service.impl.AccountServiceImpl" scope="prototype"></bean>
-->
<!-- bean对象的生命周期
单例对象
出生:当容器创建时对象出生
活着:只要容器还在,对象一直活着
死亡:容器销毁,对象消亡
总结:单例对象的生命周期和容器相同
多例对象
出生:当我们使用对象时spring框架为我们创建
活着:对象只要是在使用过程中就一直活着。
死亡:当对象长时间不用,且没有别的对象引用时,由Java的垃圾回收器回收
-->
<bean id="accountService" class="com.txw.service.impl.AccountServiceImpl"
scope="prototype" init-method="init" destroy-method="destroy"></bean>
</beans>
8.编写使用普通工厂中的方法创建对象(使用某个类中的方法创建对象,并存入spring容器)的代码如下:
package com.txw.factory;
import com.txw.service.IAccountService;
import com.txw.service.impl.AccountServiceImpl;
/**
* 模拟一个工厂类(该类可能是存在于jar包中的,我们无法通过修改源码的方式来提供默认构造函数)
*/
@SuppressWarnings("all") // 注解警告信息
public class InstanceFactory {
public IAccountService getAccountService(){
return new AccountServiceImpl();
}
}
9.编写使用工厂中的静态方法创建对象(使用某个类中的静态方法创建对象,并存入spring容器)的代码如下:
package com.txw.factory;
import com.txw.service.IAccountService;
import com.txw.service.impl.AccountServiceImpl;
/**
* 模拟一个工厂类(该类可能是存在于jar包中的,我们无法通过修改源码的方式来提供默认构造函数)
*/
@SuppressWarnings("all") // 注解警告信息
public class StaticFactory {
public static IAccountService getAccountService(){
return new AccountServiceImpl();
}
}
10.编写测试的代码如下:
package com.txw.ui;
import com.txw.service.IAccountService;
import org.springframework.context.support.ClassPathXmlApplicationContext;
/**
* 模拟一个表现层,用于调用业务层
*/
@SuppressWarnings("all") // 注解警告信息
public class Client {
public static void main(String[] args) {
// 1.获取核心容器对象
// ApplicationContext ac = new ClassPathXmlApplicationContext("bean.xml");
ClassPathXmlApplicationContext ac = new ClassPathXmlApplicationContext("bean.xml");
// 2.根据id获取Bean对象
IAccountService as = (IAccountService)ac.getBean("accountService");
as.saveAccount();
// 手动关闭容器
ac.close();
}
}
全局session,如图所示:
