验证实时归档+高性能模式的场景下，自动切换模式在各场景下的故障机制

  • 一、测试环境说明

1、测试环境信息：

主库MAL

备库MAL

确认监视器MAL

归档类型

模式

10.10.0.45

10.10.0.46

10.10.0.47

实时归档

高性能模式

2、测试场景：

故障切换

确认监视器

测试场景

验证点

自动切换

存在且正常

持续存在事务运行过程中，备库发生故障

1、事务是否中断

2、主库实例状态变化情况

自动切换

不存在或异常

持续存在事务运行过程中，备库发生故障

1、事务是否中断

2、主库实例状态变化情况

自动切换

存在且正常

持续存在事务运行过程中，主库发生故障

1、事务是否中断

2、备库实例状态变化情况

自动切换

不事务模拟：存在或异常

持续存在事务运行过程中，主库发生故障

1、事务是否中断

2、备库实例状态变化情况

3、事务模拟：

create table aaa.t1(id int,create_time TIMESTAMP) ;

begin

for i in 1..10000000 loop

insert into aaa.t1 values(i,now());

sleep(1);

commit;

end loop;

end;

  • 二、测试过程

2.1监视器正常，备库发生异常

1)主机执行事务；

2)关闭备机

3)查看主机的日志

2024-09-20 16:15:19.806 [INFO] dmwatcher P0000001941 T0000000000000002133  没有收到远程守护进程(DW_B01)消息，原状态为(OPEN)，距上次接收消息时间间隔(31)s, 设置远程守护进程为ERROR状态

2024-09-20 16:15:19.806 [INFO] dmwatcher P0000001941 T0000000000000002133  Local instance: 守护进程状态(OPEN) 实例状态(OK) 实例名(DW_A01) 模式(PRIMARY) 实例状态(OPEN) 归档状态(UNKNOWN) POCNT(12) FLSN(122860646) CLSN(122860657) SLSN(122860657) SSLSN(122860657)

2024-09-20 16:15:19.806 [INFO] dmwatcher P0000001941 T0000000000000002133  Instance: 守护进程状态(ERROR) 实例状态(OK) 实例名(DW_B01) 模式(STANDBY) 实例状态(OPEN) 归档状态(UNKNOWN) POCNT(12) FLSN(122860616) CLSN(122860616) SLSN(122860616) SSLSN(122860616)

2024-09-20 16:15:19.856 [WARNING] dmwatcher P0000001941 T0000000000000002133  Tcp port from dmwatcher vio(4) close, ip:10.10.0.46, port:5436, mid(-1), is confirm(FALSE), from name:DW_B01

2024-09-20 16:15:19.856 [INFO] dmwatcher P0000001941 T0000000000000002133  dw2_tcp_port_close_low, reset report_err to TRUE, ip:10.10.0.46, port:5436!

2024-09-20 16:15:19.856 [INFO] dmwatcher P0000001941 T0000000000000320569  dw2_group_tcp_recv_thread, receive tcp msg failed, close tcp port, vio:0, mid:-1, from_flag:0, from_name:DW_B01, dw_closed:1, ip:10.10.0.46, port:5436, errno:0, error:Failure occurs in data_recv_inet_once, code(0) len(8128, 0), code:-6007

2024-09-20 16:15:19.856 [INFO] dmwatcher P0000001941 T0000000000000320569  dw2_tcp_port_close_low, reset report_err to TRUE, ip:10.10.0.46, port:5436!

2024-09-20 16:15:19.857 [INFO] dmwatcher P0000001941 T0000000000000320568  dw2_tcp_port_close_low, reset report_err to TRUE, ip:10.10.0.46, port:5436!

2024-09-20 16:15:22.940 [ERROR] dmwatcher P0000001941 T0000000000000002135  Can't connect to DM server on '10.10.0.46' port(5436) errno(113)

2024-09-20 16:15:56.000 [INFO] dmwatcher P0000001941 T0000000000000002133  switch sub_state to sub_stat_start!

2024-09-20 16:15:56.000 [INFO] dmwatcher P0000001941 T0000000000000004877  本地实例的模式、状态或者归档状态发生变化，原状态是：

2024-09-20 16:15:56.000 [INFO] dmwatcher P0000001941 T0000000000000002133  设置GDW1守护进程为STARTUP(SUB:STARTUP)状态

2024-09-20 16:15:56.000 [INFO] dmwatcher P0000001941 T0000000000000004877  Instance: 守护进程状态(STARTUP) 实例状态(OK) 实例名(DW_A01) 模式(PRIMARY) 实例状态(OPEN) 归档状态(VALID) POCNT(12) FLSN(122860646) CLSN(122860657) SLSN(122860657) SSLSN(122860657)

2024-09-20 16:15:56.100 [INFO] dmwatcher P0000001941 T0000000000000004877  本地实例的模式、状态或者归档状态发生变化，新状态是：

2024-09-20 16:15:56.101 [INFO] dmwatcher P0000001941 T0000000000000004877  Instance: 守护进程状态(STARTUP) 实例状态(OK) 实例名(DW_A01) 模式(PRIMARY) 实例状态(SUSPEND) 归档状态(VALID) POCNT(12) FLSN(122860646) CLSN(122860657) SLSN(122860657) SSLSN(122860657)

2024-09-20 16:15:56.151 [INFO] dmwatcher P0000001941 T0000000000000002133  需要通过确认监视器确认是否可以执行故障处理，切换为CONFIRM状态

2024-09-20 16:15:56.151 [INFO] dmwatcher P0000001941 T0000000000000002133  switch sub_state to sub_stat_start!

2024-09-20 16:15:56.151 [INFO] dmwatcher P0000001941 T0000000000000002133  设置GDW1守护进程为CONFIRM(SUB:STARTUP)状态

2024-09-20 16:15:57.000 [INFO] dmwatcher P0000001941 T0000000000000002133  Local dmwatcher is in CONFIRM status, but has no confirm monitor or the monitor confirmed it cannot switch to FAILOVER!

2024-09-20 16:16:26.233 [INFO] dmwatcher P0000001941 T0000000000000002137  dw2_send_port_set from dmmonitor vio(8) set, mid(194439562), from name:dmmonitor, ip:::ffff:10.10.0.45, mon_confirm:FALSE

2024-09-20 16:17:04.015 [INFO] dmwatcher P0000001941 T0000000000000002133  Tcp msg send over (30)s, close tcp port(from_flag: 1, vio: 7)

2024-09-20 16:17:04.016 [WARNING] dmwatcher P0000001941 T0000000000000002133  Tcp port from dmmonitor vio(7) close, ip:::ffff:10.10.0.47, port:53934, mid(83782884), is confirm(TRUE), from name:dmmonitor

2024-09-20 16:17:04.016 [INFO] dmwatcher P0000001941 T0000000000000002133  dw2_tcp_port_close_low, reset report_err to TRUE, ip:, port:0!

2024-09-20 16:17:04.016 [INFO] dmwatcher P0000001941 T0000000000000323068  dw2_group_tcp_recv_thread, receive tcp msg failed, close tcp port, vio:0, mid:-1, from_flag:1, from_name:dmmonitor, dw_closed:1, ip:::ffff:10.10.0.47, port:53934, errno:0, error:Failure occurs in data_recv_inet_once, code(0) len(8128, 0), code:-6007

2024-09-20 16:17:04.016 [INFO] dmwatcher P0000001941 T0000000000000323068  dw2_tcp_port_close_low, reset report_err to TRUE, ip:, port:0!

2024-09-20 16:17:04.016 [INFO] dmwatcher P0000001941 T0000000000000323067  dw2_group_send_tcp_msg failed, from flag:1, from name:dmmonitor, close tcp port

2024-09-20 16:17:04.016 [INFO] dmwatcher P0000001941 T0000000000000323067  dw2_tcp_port_close_low, reset report_err to TRUE, ip:, port:0!

2024-09-20 16:17:04.016 [INFO] dmwatcher P0000001941 T0000000000000323067  dw2_group_info_send, send to port(from flag:1, from name:dmmonitor, ip:::ffff:10.10.0.47) over 5s, code:-6007!

2024-09-20 16:17:04.016 [INFO] dmwatcher P0000001941 T0000000000000323067  dw2_group_tcp_send_thread, code:-6007, from flag:1, from name:dmmonitor, ip:::ffff:10.10.0.47

2024-09-20 16:17:04.016 [INFO] dmwatcher P0000001941 T0000000000000323067  dw2_tcp_port_close_low, reset report_err to TRUE, ip:, port:0!

2024-09-20 16:20:56.879 [INFO] dmwatcher P0000001941 T0000000000000002137  dw2_send_port_set from dmmonitor vio(7) set, mid(83782884), from name:dmmonitor, ip:::ffff:10.10.0.47, mon_confirm:TRUE

2024-09-20 16:20:57.223 [INFO] dmwatcher P0000001941 T0000000000000002133  switch sub_state to pre_set_dw_stat!

2024-09-20 16:20:57.224 [INFO] dmwatcher P0000001941 T0000000000000002133  设置GDW1守护进程为FAILOVER(SUB:STARTUP)状态

2024-09-20 16:20:58.079 [INFO] dmwatcher P0000001941 T0000000000000002133  dw2_notify_set_dw_stat, dseq = 1726029919, from_dw_stat: NONE, to_dw_stat: DW_FAILOVER

2024-09-20 16:20:58.079 [INFO] dmwatcher P0000001941 T0000000000000002133  Send tcp msg to local ep DW_A01, hpc_seqno:0, code:0

2024-09-20 16:20:58.079 [INFO] dmwatcher P0000001941 T0000000000000002133  设置GDW1守护进程子状态为WAIT_SET_DW_STAT状态

2024-09-20 16:20:58.080 [INFO] dmwatcher P0000001941 T0000000000000002133  dw2_group_get_curr_ep_retcode, ep(DW_A01) cmd_ret:cmd=217, dseq=1726029919, code=100

2024-09-20 16:20:58.080 [INFO] dmwatcher P0000001941 T0000000000000002133  dw2_group_get_curr_ep_retcode, ep(DW_A01) cmd_ret:cmd=217, dseq=1726029919, code=0

2024-09-20 16:20:58.080 [INFO] dmwatcher P0000001941 T0000000000000002133  dw2_clear_ep_cmd_info_low, clear ep(DW_A01) cmd info, and reset curr_ep to NULL.

2024-09-20 16:20:58.080 [INFO] dmwatcher P0000001941 T0000000000000002133  notify ep(DW_A01) set dw_stat to DW_FAILOVER success!

2024-09-20 16:20:59.080 [INFO] dmwatcher P0000001941 T0000000000000002133  设置GDW1守护进程子状态为WAIT_TO_SUSPEND状态

2024-09-20 16:20:59.080 [INFO] dmwatcher P0000001941 T0000000000000002133  dw2_notify_chg_arch_status, dseq = 1726029920, rstat = 1

2024-09-20 16:20:59.080 [INFO] dmwatcher P0000001941 T0000000000000002133  Send tcp msg to local ep DW_A01, hpc_seqno:0, code:0

2024-09-20 16:20:59.080 [INFO] dmwatcher P0000001941 T0000000000000002133  设置GDW1守护进程子状态为WAIT_SET_ARCH状态

2024-09-20 16:20:59.081 [INFO] dmwatcher P0000001941 T0000000000000004877  实例(DW_B01)归档状态发生变化：VALID --> INVALID

2024-09-20 16:20:59.081 [INFO] dmwatcher P0000001941 T0000000000000002133  dw2_group_get_curr_ep_retcode, ep(DW_A01) cmd_ret:cmd=214, dseq=1726029920, code=0

2024-09-20 16:20:59.081 [INFO] dmwatcher P0000001941 T0000000000000002133  dw2_clear_ep_cmd_info_low, clear ep(DW_A01) cmd info, and reset curr_ep to NULL.

2024-09-20 16:20:59.081 [INFO] dmwatcher P0000001941 T0000000000000002133  dw2_notify_sql_exec, dseq = 1726029921, sql: ALTER DATABASE OPEN FORCE

2024-09-20 16:20:59.081 [INFO] dmwatcher P0000001941 T0000000000000002133  Send tcp msg to local ep DW_A01, hpc_seqno:0, code:0

2024-09-20 16:20:59.081 [INFO] dmwatcher P0000001941 T0000000000000002133  设置GDW1守护进程子状态为WAIT_TO_OPEN状态

2024-09-20 16:20:59.082 [INFO] dmwatcher P0000001941 T0000000000000002133  dw2_group_get_curr_ep_retcode, ep(DW_A01) cmd_ret:cmd=1, dseq=1726029921, code=100

2024-09-20 16:20:59.082 [INFO] dmwatcher P0000001941 T0000000000000002133  dw2_group_get_curr_ep_retcode, ep(DW_A01) cmd_ret:cmd=1, dseq=1726029921, code=0

2024-09-20 16:20:59.082 [INFO] dmwatcher P0000001941 T0000000000000002133  dw2_clear_ep_cmd_info_low, clear ep(DW_A01) cmd info, and reset curr_ep to NULL.

2024-09-20 16:20:59.082 [INFO] dmwatcher P0000001941 T0000000000000002133  本地守护进程为FAILOVER状态，本地实例为PRIMARY & OPEN，故障处理完成.

2024-09-20 16:20:59.082 [INFO] dmwatcher P0000001941 T0000000000000002133  设置GDW1守护进程子状态为SUB_STATE_CLEAR状态

2024-09-20 16:21:00.082 [INFO] dmwatcher P0000001941 T0000000000000002133  dw2_notify_set_dw_stat, dseq = 1726029922, from_dw_stat: DW_FAILOVER, to_dw_stat: NONE

2024-09-20 16:21:00.082 [INFO] dmwatcher P0000001941 T0000000000000002133  Send tcp msg to local ep DW_A01, hpc_seqno:0, code:0

2024-09-20 16:21:00.082 [INFO] dmwatcher P0000001941 T0000000000000002133  设置GDW1守护进程子状态为WAIT_CLEAR状态

2024-09-20 16:21:00.083 [INFO] dmwatcher P0000001941 T0000000000000002133  dw2_group_get_curr_ep_retcode, ep(DW_A01) cmd_ret:cmd=217, dseq=1726029922, code=0

2024-09-20 16:21:00.083 [INFO] dmwatcher P0000001941 T0000000000000002133  dw2_clear_ep_cmd_info_low, clear ep(DW_A01) cmd info, and reset curr_ep to NULL.

2024-09-20 16:21:00.083 [INFO] dmwatcher P0000001941 T0000000000000002133  notify ep(DW_A01) set dw_stat to NONE success!

2024-09-20 16:21:00.083 [INFO] dmwatcher P0000001941 T0000000000000002133  dw2_clear_ep_cmd_info_low, clear ep(DW_A01) cmd info.

2024-09-20 16:21:00.083 [INFO] dmwatcher P0000001941 T0000000000000002133  Clear all ep g_dw_status finished, Failover finished!

2024-09-20 16:21:00.083 [INFO] dmwatcher P0000001941 T0000000000000002133  switch sub_state to sub_stat_start!

2024-09-20 16:21:00.083 [INFO] dmwatcher P0000001941 T0000000000000002133  设置GDW1守护进程为OPEN(SUB:STARTUP)状态

整个过程大致如下：

①备库发生异常，主库检测不到备库报错

②将主库实例状态修改为suspend避免主从不一致

③主库守护进程状态修改为MON CONFIRM

④提交确认监视器处理，主库守护进程修改为FAILOVER

⑤监视器将备库归档状态从valid修改为invalid

⑥恢复主库实例状态为primary&open

⑦恢复主库守护进程open

小结：

运行中的事务会中断，主库先进行suspend后，等待监视器将从库的归档置为invalid后主库实例恢复为primary&open。

2.1.1主库修复入集群现象

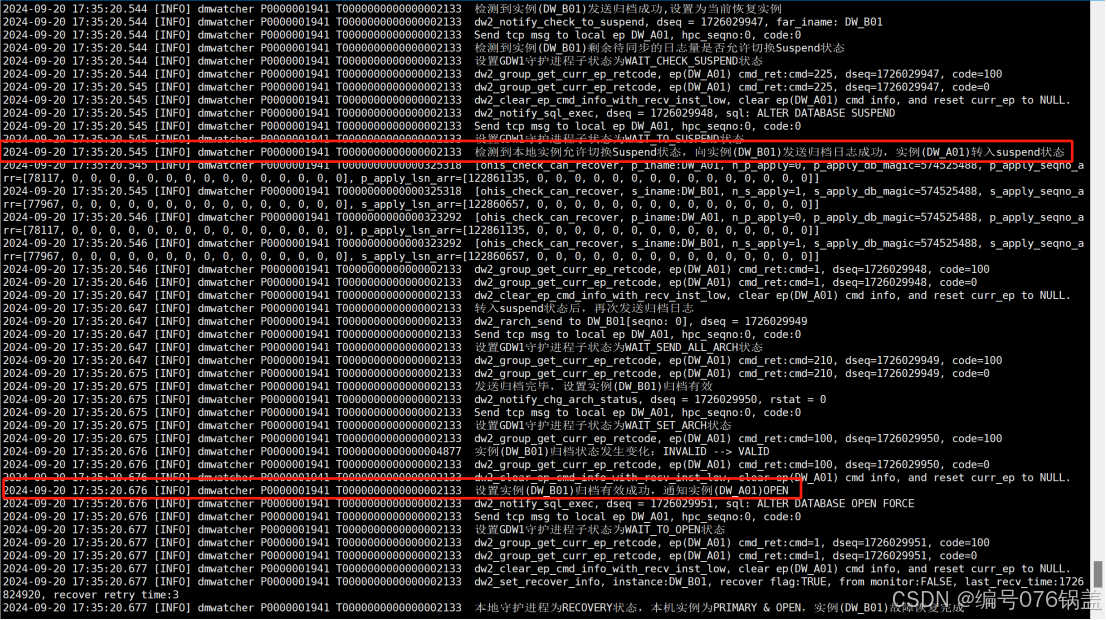

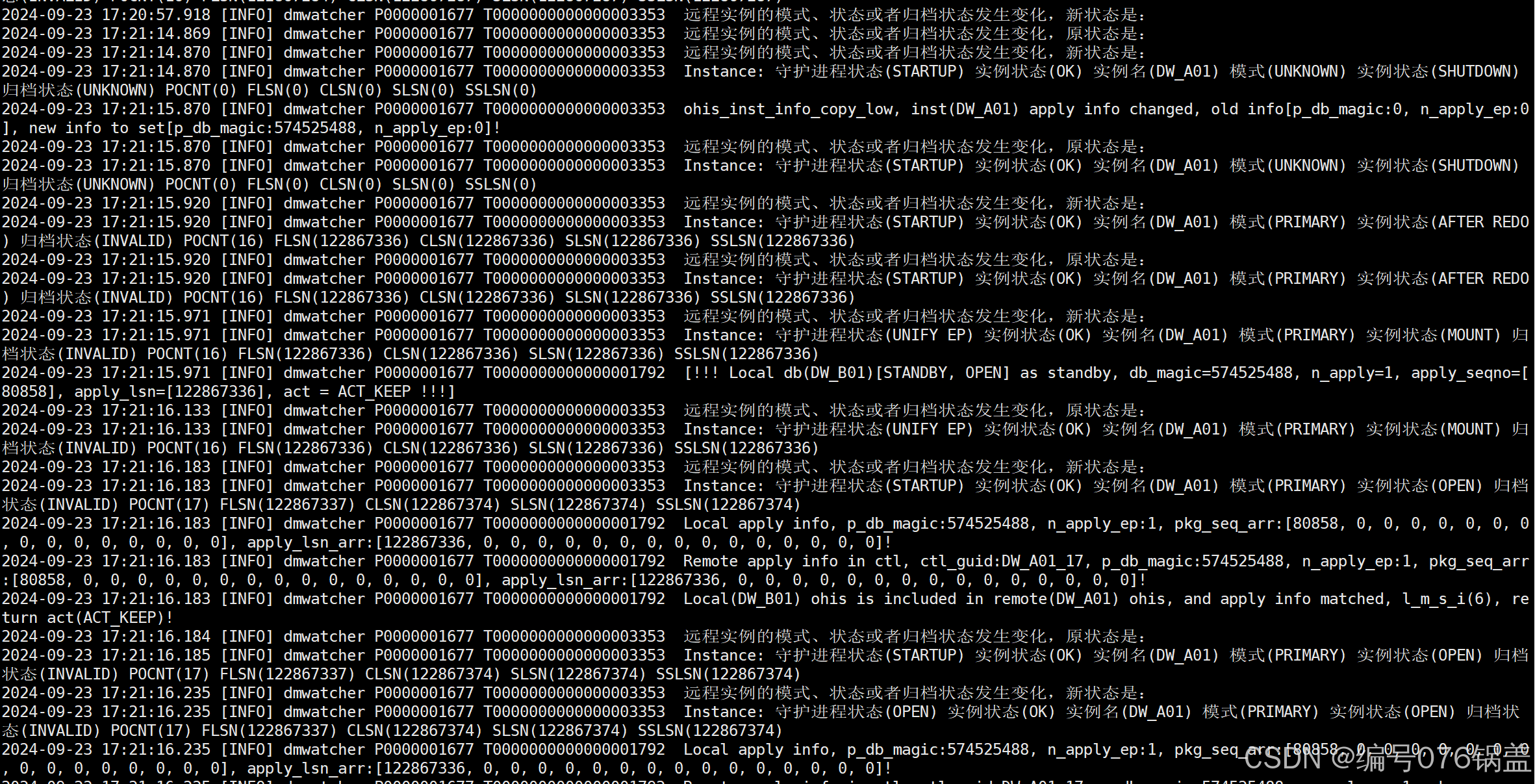

重新启动备库的过程中，主库也会产生一次suspend的切换，但是并没有出现事务写入中断的现象。

2.2监视器异常，备库发生异常

1)关闭监视器服务器

2)主机执行事务；

3)关闭备机

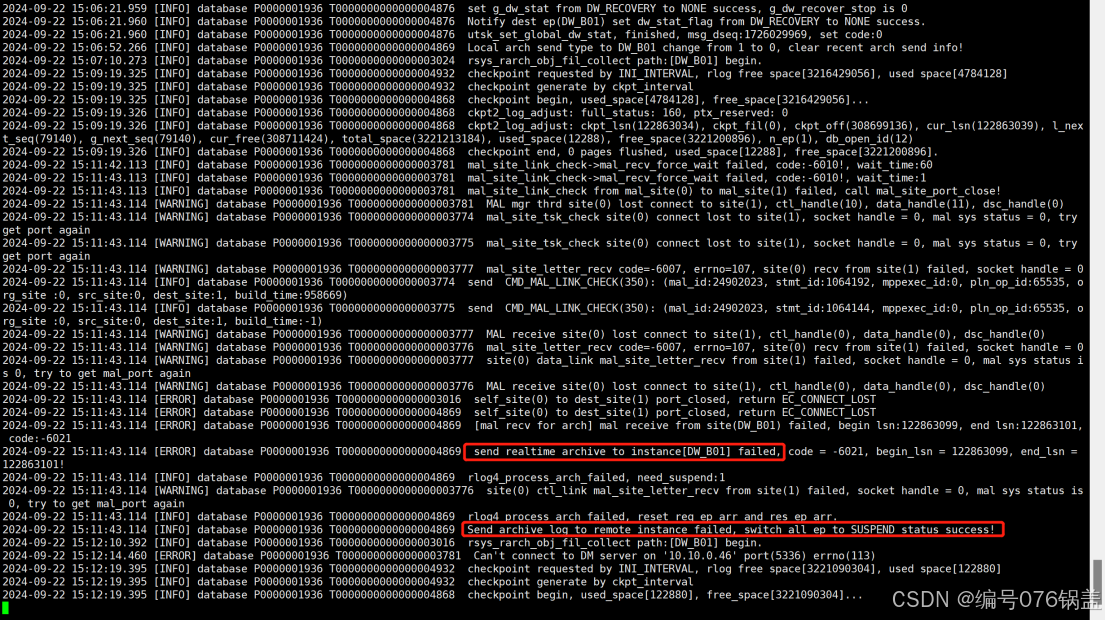

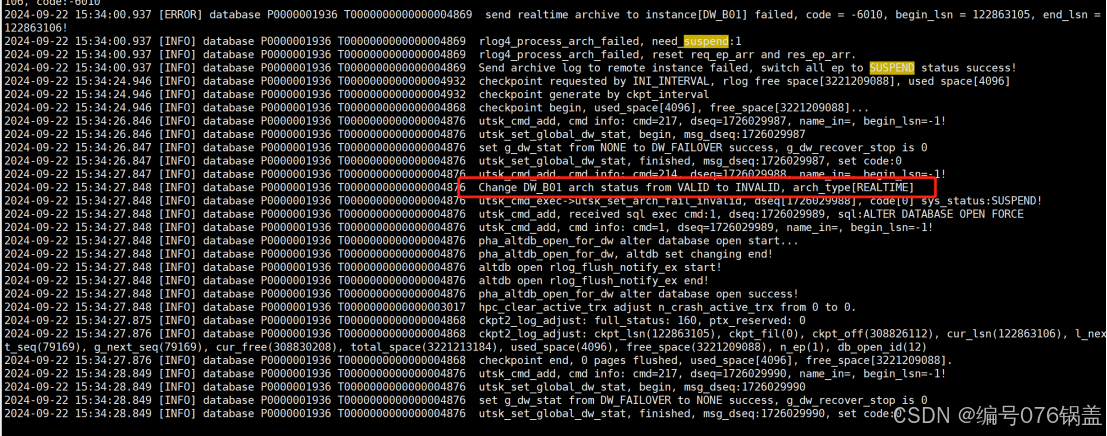

实例日志日式归档发送失败，实例suspend：

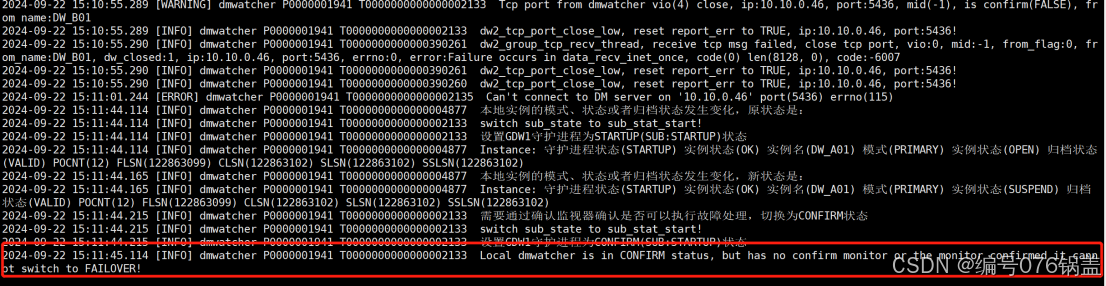

守护进程日志提示需要确认监视器处理，但没有确认监视器，因此实例处于suspend状态，而事务也停止了。

小结：

运行中的事务会中断，主库suspend后因没有确认监视器干涉处理，长期挂起。

2.2.1恢复场景1：启动监视器，不启动备机

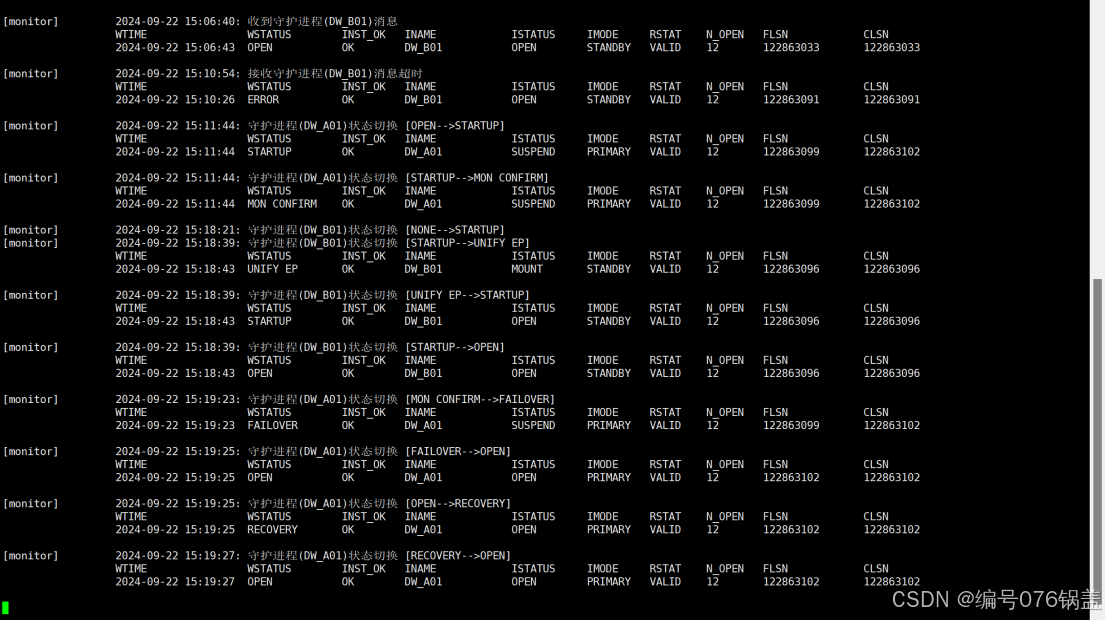

结论：守护进程干涉将备机的归档状态修改为invalid后，主库primary&open

2.2.2恢复场景2：不启动监视器，启动备机

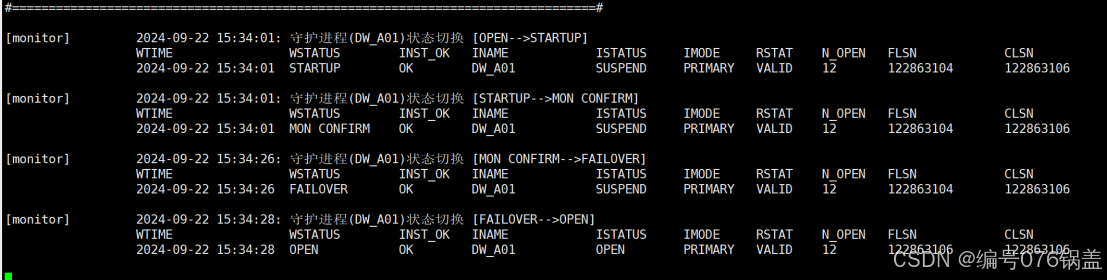

结论：主库守护进程检测到备库状态正常，实例自动恢复为primary&open状态

2.3监视器正常，主库发生异常

  1. 主机执行事务；
  2. 下电主库服务器

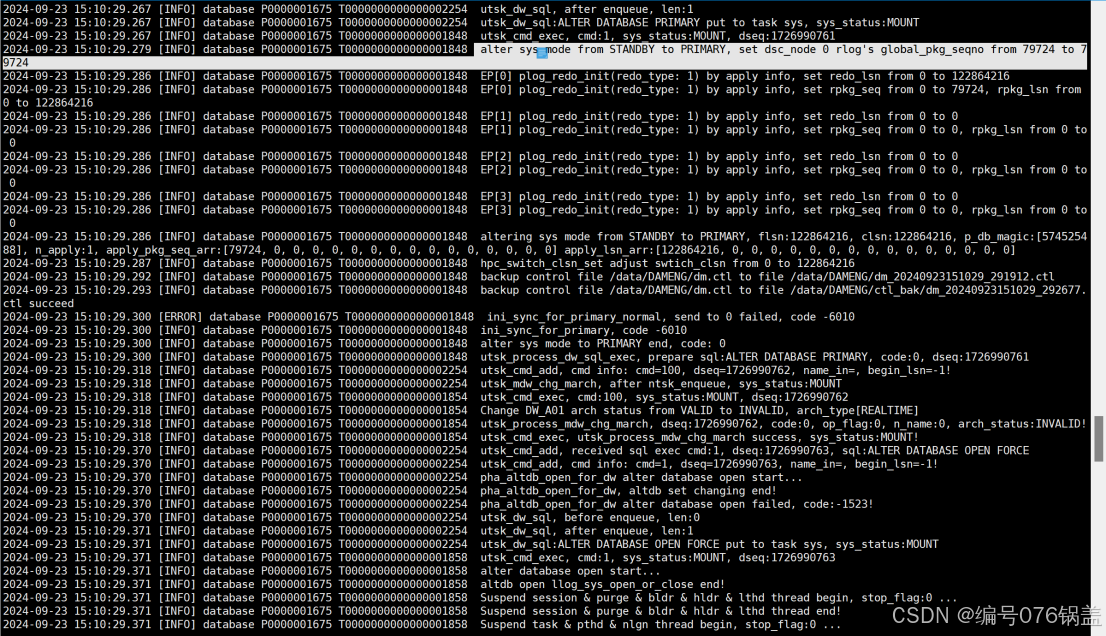

守护进程通知监视器主节点异常，监视器将主库arch修改为invalid后，切换备库为primary&open状态：

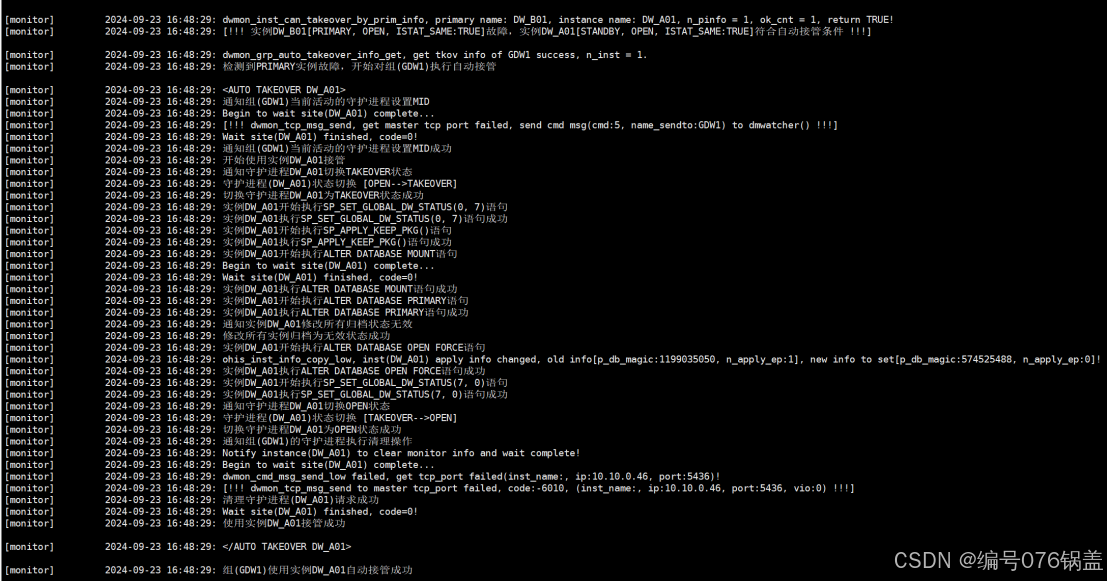

确认监视器详细列出了备机接管的工作机制

2.3.1主库修复加入集群现象

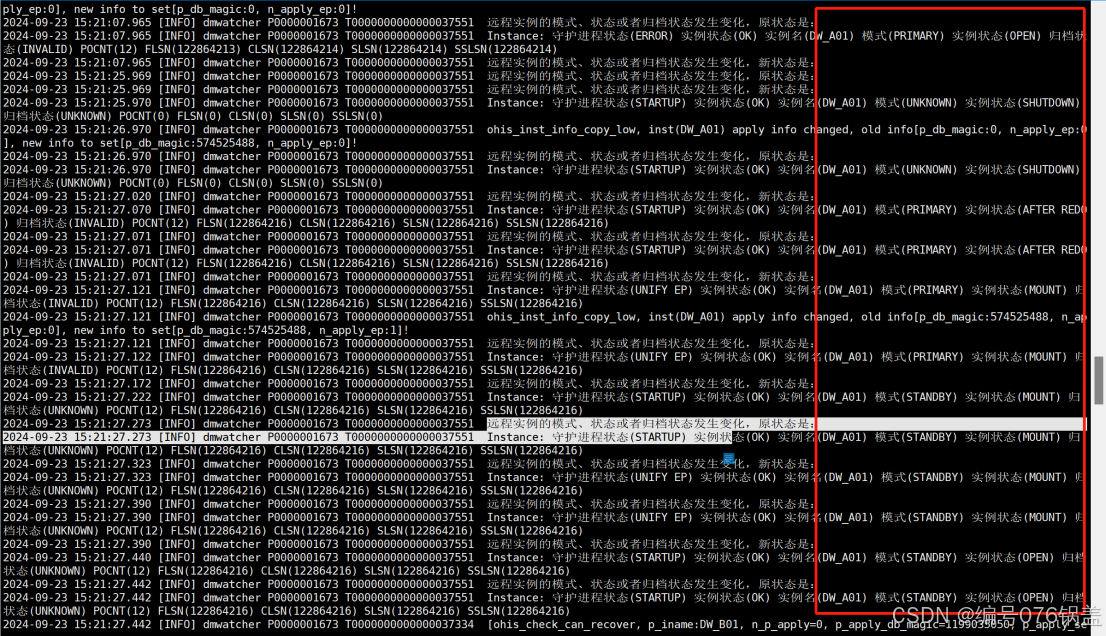

原主节点开机恢复后重新加入集群，实例切换为standby&open状态：

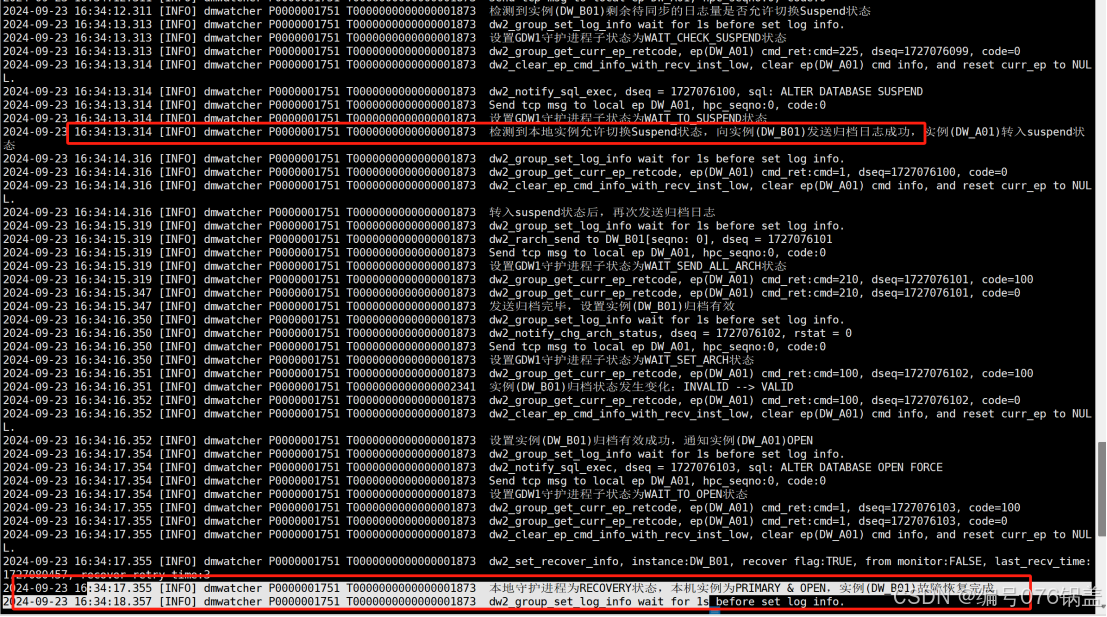

新主库在恢复过程中suspend来发送历史归档至恢复的实例，并设置恢复实例归档有效后，重新切换成Primary&open状态：

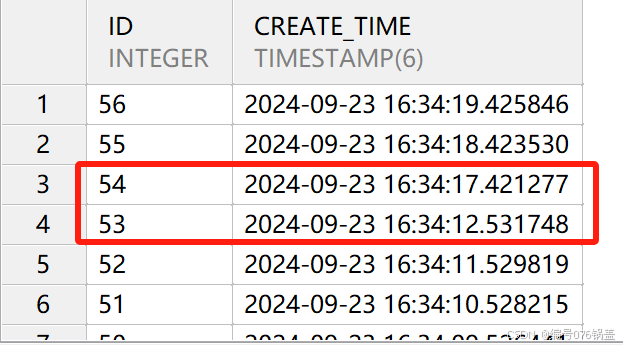

事务在这个过程中暂停了写入，新主库从suspend恢复open后继续写入：

2.4监视器异常，主库发生异常

  1. 主机执行事务；
  2. 下电确认监视器
  3. 下电主库服务器

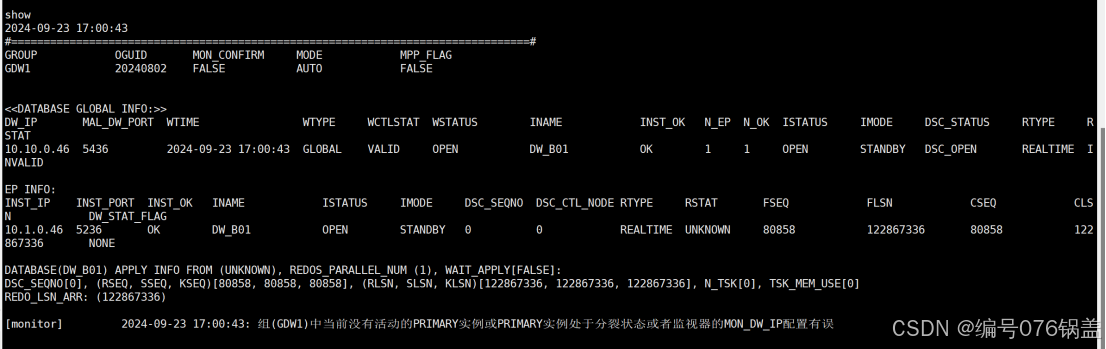

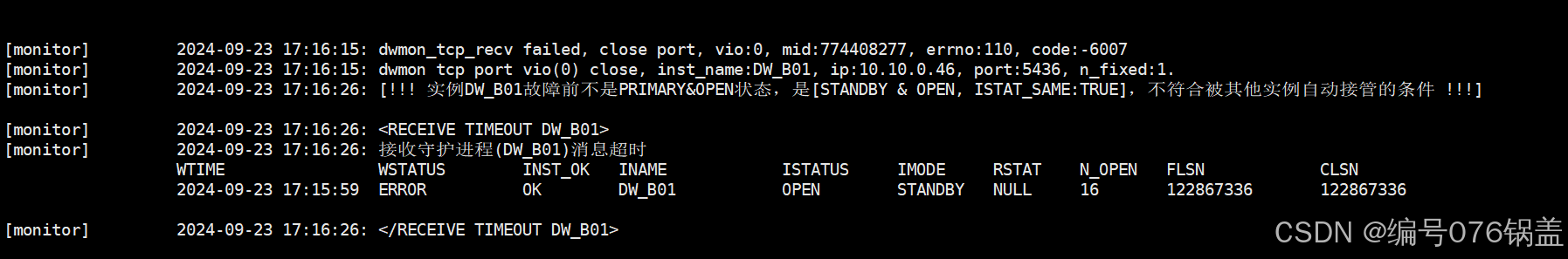

从非确认监视器查看获取不到primary库信息，也获取不到确认监视器，备库状态始终为standby

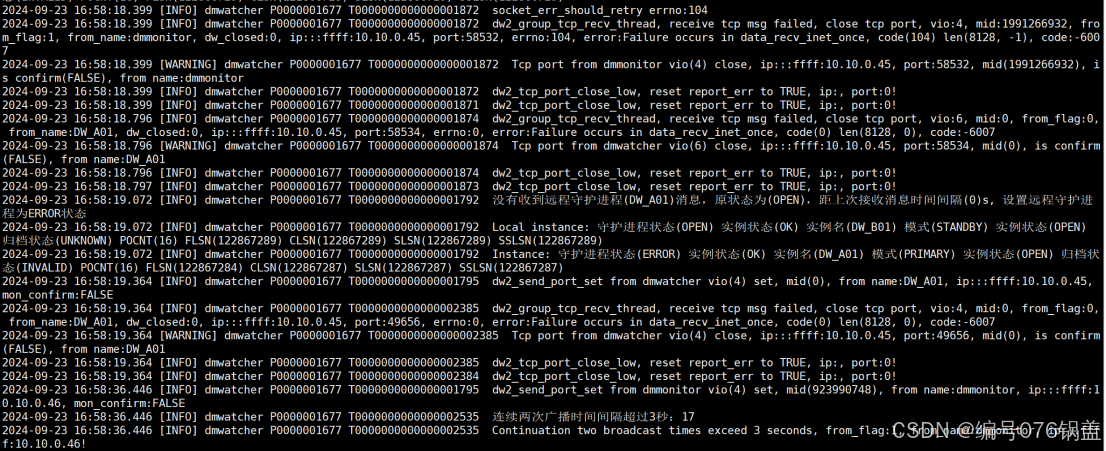

守护进程日志反馈找不到确认监视器干涉

2.4.1监视器恢复集群现象

在未进行主库修复前，仅启动确认监视器后，因原DW_B01是备库，不满足自动接管条件，集群无法提供业务支持：

2.4.2仅启动主库，不启动确认监视器

在关闭确认监视器的情况下，启动主库后，守护进程之间检测恢复正常，集群可正常提供对外访问：

三、总结：

场景现象结论
1监视器正常，备库异常主库自动切换为suspend后，监视器介入将备库归档置为invalid后主库恢复open，集群可正常对外提供服务
2监视器异常，备库异常因无监视器干涉，主库自动切换并一直处于suspend状态，集群无法对外提供服务
3监视器正常，主库异常备库自动切换为主库，集群可正常对外提供服务
4监视器异常，主库异常备库一直处于standby状态，集群无法对外提供服务
