ThroughputScorer是目前真正使用的评分器，评分算法也相对复杂，会用到协议以及无线通信较多的术语。

详细评分流程

由于该评分器代码较为复杂，下面现分析完整的评分流程，最后再单独介绍下吞吐量估算的代码。

rssi和throughput评分： rssiAndThroughputScore

int rssiBaseScore = calculateRssiScore(candidate);
int throughputBonusScore = calculateThroughputBonusScore(candidate);
int rssiAndThroughputScore = rssiBaseScore + throughputBonusScore;

当前网络加分： currentNetworkBoost

int currentNetworkBonusMin = mScoringParams.getCurrentNetworkBonusMin();
        int currentNetworkBonus = Math.max(currentNetworkBonusMin, rssiAndThroughputScore
                * mScoringParams.getCurrentNetworkBonusPercent() / 100);
int currentNetworkBoost = (candidate.isCurrentNetwork() && !unExpectedNoInternet)
                ? currentNetworkBonus : 0;

currentNetworkBonusMin默认值16，可通过 config_wifiFrameworkCurrentNetworkBonusMin 配置
currentNetworkBonusPercent默认值20，可通过 config_wifiFrameworkCurrentNetworkBonusPercent 配置

安全加分: securityAward

int securityAward = candidate.isOpenNetwork()
        ? 0
        : mScoringParams.getSecureNetworkBonus();

secureNetworkBonus 默认40分，可通过 config_wifiFrameworkSecureNetworkBonus 配置

计量网络评分： unmeteredAward

metered network(计量网络)通常是按照流量或时间计费。
```
int unmeteredAward = candidate.isMetered()
        ? 0
        : mScoringParams.getUnmeteredNetworkBonus();
```
对于非计量网络，加1000分。

unmeteredNetworkBonus 默认1000分，可通过 config_wifiFrameworkUnmeteredNetworkBonus 配置
临时网络评分： savedNetworkAward

Ephemeral Network也就是临时网络，通常是短暂连接。
```
int savedNetworkAward = candidate.isEphemeral() ? 0 : mScoringParams.getSavedNetworkBonus();
```
非临时网络，加500分。

savedNetworkBonus 默认500分，可通过 config_wifiFrameworkSavedNetworkBonus 配置

可信网络评分： trustedAward

int trustedAward = TRUSTED_AWARD; // 1000
if (!candidate.isTrusted() || candidate.isRestricted()) {
    // Saved networks are not untrusted or restricted, but clear anyway
    savedNetworkAward = 0;
    unmeteredAward = 0; // Ignore metered for untrusted and restricted networks
    if (candidate.isCarrierOrPrivileged()) {
        trustedAward = HALF_TRUSTED_AWARD;
    } else if (candidate.getNominatorId() == NOMINATOR_ID_SCORED) {
        Log.e(TAG, "ScoredNetworkNominator is not carrier or privileged!");
        trustedAward = 0;
    } else {
        trustedAward = 0;
    }
}

如果是可信网络(trusted and unrestricted), 加1000分。

对于非可信网络，作如下处理:

carrier WiFi or privileged app config

加一半分， trustedAward = 500
否则

不加分， trustedAward = 0

OEM PAID:

OEM 付费网络，一般是OEM与移动运营商或其他服务提供商合作，为其设备的用户提供特定的网络服务。

int notOemPaidAward = NOT_OEM_PAID_AWARD; // 500
if (candidate.isOemPaid()) {
    savedNetworkAward = 0; // Saved networks are not oem paid, but clear anyway
    unmeteredAward = 0; // Ignore metered for oem paid networks
    trustedAward = 0; // Ignore untrusted for oem paid networks.
    notOemPaidAward = 0;
}

OEM PRIVATE:

OEM 私有网络，通常并不会开放给普通用户，主要为设备的管理和维护提供了专用网络连接。OEM Private Network 可能用于设备的远程监控、诊断、升级或配置，由设备制造商或维护人员使用。

int notOemPrivateAward = NOT_OEM_PRIVATE_AWARD; // 500
if (candidate.isOemPrivate()) {
    savedNetworkAward = 0; // Saved networks are not oem paid, but clear anyway
    unmeteredAward = 0; // Ignore metered for oem paid networks
    trustedAward = 0; // Ignore untrusted for oem paid networks.
    notOemPaidAward = 0;
    notOemPrivateAward = 0;
}

计算总分

先根据主要的字段计算出基础的分数
```
int scoreToDetermineBucket = unmeteredAward + savedNetworkAward + trustedAward
                + notOemPaidAward + notOemPrivateAward + securityAward;
```
上面参与计算的参数除了securityAward是40分，其他都是500或1000。scoreToDetermineBucket主要用来确定一个大的分数范围，也就是决定在哪个bucket里面。

下面是scoreWithinBucket
```
int scoreWithinBucket = rssiBaseScore + throughputBonusScore + currentNetworkBoost
                + bandSpecificBonus;
```
最后通过scoreToDetermineBucket和scoreWithinBucket进行第一次打分,桶内(within bucket)分数最高500分，由getScoringBucketStepSize指定
```
int score = scoreToDetermineBucket
                + Math.min(mScoringParams.getScoringBucketStepSize(), scoreWithinBucket);
```
scoringBucketStepSize默认500，可以通过 config_wifiScoringBucketStepSize 配置
根据当前网络状态调整分数：

如果当前已连接网络可以访问互联网(currentNetworkHasInternet)，但是candidate没有互联网访问能力，那么是不会选择它的，直接赋予0分。
```
// do not select a network that has no internet when the current network has internet.
if (currentNetworkHasInternet && !candidate.isCurrentNetwork() && unExpectedNoInternet) {
    score = 0;
}
```

根据最近选择调整分数：

如果是recently-selected network，会打一个很高的分数(TOP_TIER_BASE_SCORE = 1000000)，也就是说偏向于连接最近选择过的网络。

如果多个网络都是recently-selected,那么可以通过rssi和throughtput再进行比较。

if (candidate.getLastSelectionWeight() > 0.0) {
    // Put a recently-selected network in a tier above everything else,
    // but include rssi and throughput contributions for BSSID selection.
    score = TOP_TIER_BASE_SCORE + rssiBaseScore + throughputBonusScore;
}

以上就是ThroughputScorer的评分流程。下面再看一下计算rssiBaseScore和throughputBonusScore使用到的两个函数calculateRssiScore()和calculateThroughputBonusScore()

calculateRssiScore()会针对6G网络的不同频宽，进行补偿加分，其他没什么特殊处理。

private int calculateRssiScore(Candidate candidate) {
    int rssiSaturationThreshold = mScoringParams.getSufficientRssi(candidate.getFrequency());
    int rssi = candidate.getScanRssi();
    if (mScoringParams.is6GhzBeaconRssiBoostEnabled()
            && ScanResult.is6GHz(candidate.getFrequency())) {
        switch (candidate.getChannelWidth()) {
            case ScanResult.CHANNEL_WIDTH_40MHZ:
                rssi += 3;
                break;
            case ScanResult.CHANNEL_WIDTH_80MHZ:
                rssi += 6;
                break;
            case ScanResult.CHANNEL_WIDTH_160MHZ:
                rssi += 9;
                break;
            case ScanResult.CHANNEL_WIDTH_320MHZ:
                rssi += 12;
                break;
            default:
                // do nothing
        }
    }

    rssi = Math.min(rssi, rssiSaturationThreshold);
    return (rssi + RSSI_SCORE_OFFSET) * RSSI_SCORE_SLOPE_IS_4;
}

calculateThroughputBonusScore()

吞吐量最高可加320分，由throughputBonusLimit指定，可以通过 config_wifiFrameworkThroughputBonusLimit 配置

以800Mbps为分界线，分别对小于800Mbps部分(throughputUpTo800Mbps)和大于800Mbps部分(throughputMoreThan800Mbps)进行计算后叠加。

int throughputScoreRaw = (throughputUpTo800Mbps
        * mScoringParams.getThroughputBonusNumerator()					// 120
        / mScoringParams.getThroughputBonusDenominator())				// 433
        + (throughputMoreThan800Mbps
        * mScoringParams.getThroughputBonusNumeratorAfter800Mbps()		// 1
        / mScoringParams.getThroughputBonusDenominatorAfter800Mbps());	// 16

代入分子分母，简化后的代码如下

int throughputScoreRaw = (throughputUpTo800Mbps * 120/433 + throughputMoreThan800Mbps /16);

可以看到，800Mbps以上的占比较少，对评分结果的影响也就更小。

得到根据throughputScoreRaw和throughputBonusLimit将评分限制在320分以内。

最后看一下是如何拿到吞吐量的int throughput = candidate.getPredictedThroughputMbps();

吞吐量预测

下面是预测吞吐量的方法，是现在WifiNetworkSelector.java中

private int predictThroughput(@NonNull ScanDetail scanDetail) {
    if (scanDetail.getScanResult() == null || scanDetail.getNetworkDetail() == null) {
        return 0;
    }
    int channelUtilizationLinkLayerStats = BssLoad.INVALID;
    if (mWifiChannelUtilization != null) {
        channelUtilizationLinkLayerStats =
                mWifiChannelUtilization.getUtilizationRatio(
                        scanDetail.getScanResult().frequency);
    }
    ClientModeManager primaryManager =
            mWifiInjector.getActiveModeWarden().getPrimaryClientModeManager();
    return mThroughputPredictor.predictThroughput(
            primaryManager.getDeviceWiphyCapabilities(),
            scanDetail.getScanResult().getWifiStandard(),
            scanDetail.getScanResult().channelWidth,
            scanDetail.getScanResult().level,
            scanDetail.getScanResult().frequency,
            scanDetail.getNetworkDetail().getMaxNumberSpatialStreams(),
            scanDetail.getNetworkDetail().getChannelUtilization(),
            channelUtilizationLinkLayerStats,
            mWifiGlobals.isBluetoothConnected());
}

channelUtilizationLinkLayerStats 的计算方法目前是固定的:

2G: 80
5G: 15
6G: 10

predictThroughput()

知道了channelUtilizationLinkLayerStats的计算方式，我们再来看看ThroughputPredictor的predictThroughput()方法，传入的参数如下:

DeviceWiphyCapabilities
wifiStandardAp
wifi标准
channelWidthAp
频宽，比如20Mhz, 40MHz, 80MHz, 160MHz.
rssiDbm
信号强度
frequency
频率
maxNumSpatialStreamAp
最大支持的空间流数量
channelUtilizationBssLoad
bssload中的channel Utilization字段，它代表了信道繁忙的时间(百分比)。
channelUtilizationLinkLayerStats
isBluetoothConnected
蓝牙是否已连接

具体实现如下

获取当前设备支持的最大空间流数量

// RX 和 TX 同步
int maxNumSpatialStreamDevice = Math.min(deviceCapabilities.getMaxNumberTxSpatialStreams(),
        deviceCapabilities.getMaxNumberRxSpatialStreams());
// 固定配置
if (mContext.getResources().getBoolean(
        R.bool.config_wifiFrameworkMaxNumSpatialStreamDeviceOverrideEnable)) {
    maxNumSpatialStreamDevice = mContext.getResources().getInteger(
            R.integer.config_wifiFrameworkMaxNumSpatialStreamDeviceOverrideValue);
}
// 取固定配置和芯片支持的最小值
int maxNumSpatialStream = Math.min(maxNumSpatialStreamDevice, maxNumSpatialStreamAp);

wifi标准确定

由于AP 和STA支持的WiFi标准一般是不一样的，所以需要同步，优先使用最高标准。

// Get minimum standard support between device and AP
int wifiStandard;
switch (wifiStandardAp) {
    case ScanResult.WIFI_STANDARD_11BE:
        if (deviceCapabilities.isWifiStandardSupported(ScanResult.WIFI_STANDARD_11BE)) {
            wifiStandard = ScanResult.WIFI_STANDARD_11BE;
            break;
        }
        //FALL THROUGH
    case ScanResult.WIFI_STANDARD_11AX:
        if (deviceCapabilities.isWifiStandardSupported(ScanResult.WIFI_STANDARD_11AX)) {
            wifiStandard = ScanResult.WIFI_STANDARD_11AX;
            break;
        }
        //FALL THROUGH
    case ScanResult.WIFI_STANDARD_11AC:
        if (deviceCapabilities.isWifiStandardSupported(ScanResult.WIFI_STANDARD_11AC)) {
            wifiStandard = ScanResult.WIFI_STANDARD_11AC;
            break;
        }
        //FALL THROUGH
    case ScanResult.WIFI_STANDARD_11N:
        if (deviceCapabilities.isWifiStandardSupported(ScanResult.WIFI_STANDARD_11N)) {
            wifiStandard = ScanResult.WIFI_STANDARD_11N;
            break;
        }
        //FALL THROUGH
    default:
        wifiStandard = ScanResult.WIFI_STANDARD_LEGACY;
}

频宽(channelWidth)确定

和WiFi Standard一样，也需要看看本地设备是否支持对应的频宽，优先选择支持的最大频宽

switch (channelWidthAp) {
    case ScanResult.CHANNEL_WIDTH_320MHZ:
        if (deviceCapabilities.isChannelWidthSupported(ScanResult.CHANNEL_WIDTH_320MHZ)) {
            channelWidth = ScanResult.CHANNEL_WIDTH_320MHZ;
            break;
        }
        // FALL THROUGH
    case ScanResult.CHANNEL_WIDTH_160MHZ:
        if (deviceCapabilities.isChannelWidthSupported(ScanResult.CHANNEL_WIDTH_160MHZ)) {
            channelWidth = ScanResult.CHANNEL_WIDTH_160MHZ;
            break;
        }
        // FALL THROUGH
    case ScanResult.CHANNEL_WIDTH_80MHZ:
        if (deviceCapabilities.isChannelWidthSupported(ScanResult.CHANNEL_WIDTH_80MHZ)) {
            channelWidth = ScanResult.CHANNEL_WIDTH_80MHZ;
            break;
        }
        // FALL THROUGH
    case ScanResult.CHANNEL_WIDTH_40MHZ:
        if (deviceCapabilities.isChannelWidthSupported(ScanResult.CHANNEL_WIDTH_40MHZ)) {
            channelWidth = ScanResult.CHANNEL_WIDTH_40MHZ;
            break;
        }
        // FALL THROUGH
    default:
        channelWidth = ScanResult.CHANNEL_WIDTH_20MHZ;
}

信道利用率计算

int channelUtilization = getValidChannelUtilization(frequency,
        channelUtilizationBssLoad,
        channelUtilizationLinkLayerStats,
        isBluetoothConnected);

private int getValidChannelUtilization(int frequency, int channelUtilizationBssLoad,
        int channelUtilizationLinkLayerStats, boolean isBluetoothConnected) {
    int channelUtilization;
    boolean is2G = ScanResult.is24GHz(frequency);
    if (isValidUtilizationRatio(channelUtilizationBssLoad)) {
        channelUtilization = channelUtilizationBssLoad;
    } else if (isValidUtilizationRatio(channelUtilizationLinkLayerStats)) {
        channelUtilization = channelUtilizationLinkLayerStats;
    } else {
        channelUtilization = is2G ? CHANNEL_UTILIZATION_DEFAULT_2G :
                CHANNEL_UTILIZATION_DEFAULT_ABOVE_2G;
    }

    if (is2G && isBluetoothConnected) {
        channelUtilization += CHANNEL_UTILIZATION_BOOST_BT_CONNECTED_2G;
        channelUtilization = Math.min(channelUtilization, MAX_CHANNEL_UTILIZATION);
    }
    if (mVerboseLoggingEnabled) {
        StringBuilder sb = new StringBuilder();
        Log.d(TAG, sb.append(" utilization (BssLoad) ").append(channelUtilizationBssLoad)
                .append(" utilization (LLStats) ").append(channelUtilizationLinkLayerStats)
                .append(" isBluetoothConnected: ").append(isBluetoothConnected)
                .append(" final utilization: ").append(channelUtilization)
                .toString());
    }
    return channelUtilization;
}

channelUtilization的值在0-255之间。

如果AP没有提供channelUtilization，那么就是用系统默认的channelUtilizationLinkLayerStats;如果系统没有配置channelUtilizationLinkLayerStats，那么is2G ? CHANNEL_UTILIZATION_DEFAULT_2G : CHANNEL_UTILIZATION_DEFAULT_ABOVE_2G,2G是95，其他是15, 2.4G的信道利用率更高也就是更为繁忙。

最后，2G情况下，如果连接了蓝牙，信道使用率会加上CHANNEL_UTILIZATION_BOOST_BT_CONNECTED_2G。因为蓝牙也是在2.4G，与2.4G的wifi有竞争关系，这里粗略地估计出蓝牙对wifi的影响，大约占用1/4的信道使用。

public static final int MAX_CHANNEL_UTILIZATION = 255;
public static final int CHANNEL_UTILIZATION_BOOST_BT_CONNECTED_2G = MAX_CHANNEL_UTILIZATION / 4;

至此，信道使用率已经计算完成，它的值在0-255之间。

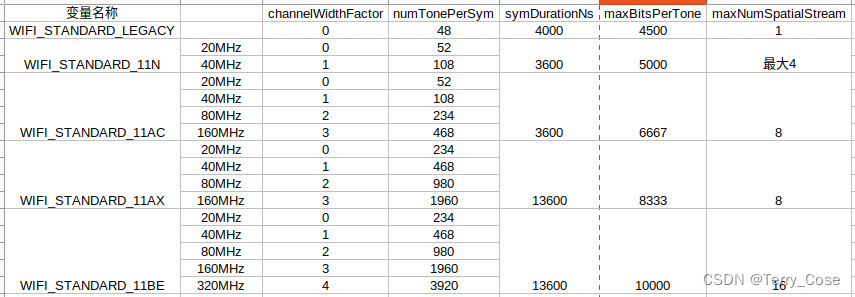

下面调用predictThroughputInternal()方法利用前面计算出的各种参数进行吞吐量的估算。

predictThroughputInternal()

该方法是真正实现吞吐量估算。现看看它的参数

private int predictThroughputInternal(@WifiStandard int wifiStandard, boolean is11bMode,
        int channelWidth, int rssiDbm, int maxNumSpatialStream,  int channelUtilization,
        int frequency) {

wifiStandard
is11bMode
11b几乎已经看不到了，最大传输速率只有11Mbps。
channelWidth
rssiDbm
maxNumSpatialStream
channelUtilization
frequency

基础参数计算

channelWidthFactor: 频宽因子，0(20MHz), 1(40MHz), 2(80MHz), 3(160MHz),4(320MHz)

numTonePerSym:其实就是子载波数量。表示一次信号传输可用的子载波数量。

symDurationNs: 一次传输的耗时，仅和具体的标准相关

maxBitsPerTone: tone指的是子载波，也就是单个子载波一次传输可以携带的数据长度？？？

maxNumSpatialStream: 空间流数量

最终结果如下
在这里插入图片描述

maxBitsPerTone的计算单独看一下

private static final int BIT_PER_TONE_SCALE = 1000;
private static final int MAX_BITS_PER_TONE_LEGACY = (int) Math.round((6 * 3.0 * BIT_PER_TONE_SCALE) / 4.0);
private static final int MAX_BITS_PER_TONE_11N = 	(int) Math.round((6 * 5.0 * BIT_PER_TONE_SCALE) / 6.0);
private static final int MAX_BITS_PER_TONE_11AC = 	(int) Math.round((8 * 5.0 * BIT_PER_TONE_SCALE) / 6.0);
private static final int MAX_BITS_PER_TONE_11AX = 	(int) Math.round((10 * 5.0 * BIT_PER_TONE_SCALE) / 6.0);
private static final int MAX_BITS_PER_TONE_11BE = 	(int) Math.round((12 * 5.0 * BIT_PER_TONE_SCALE) / 6.0);

它其实是通过码率和符号位长计算出来的：比如11AC支持的最大码率是5/6，由于其调制方式最高支持64-QAM，所以位长为6bit

RSSI && SNR

第一步得到的信息只能计算出理论的最高速率，还需要将环境因素考虑进去才能近似估算出实际的速率。环境因素包括信号强度RSSI和信噪比SNR。

如果配置了config_wifiEnable6GhzBeaconRssiBoost=true，那么需要对6G的RSSI往上微调一下，该功能可以通过配置关闭。这么做的原因是较宽的频宽虽然可以传输更多的数据，但同时也跟容易受到干扰而降低信号质量。主要还是为了提高估算的准确性。

if (mContext.getResources().getBoolean(R.bool.config_wifiEnable6GhzBeaconRssiBoost)
        && ScanResult.is6GHz(frequency)) {
    switch (channelWidth) {
        case ScanResult.CHANNEL_WIDTH_40MHZ:
            rssiDbm += 3;
            break;
        case ScanResult.CHANNEL_WIDTH_80MHZ:
            rssiDbm += 6;
            break;
        case ScanResult.CHANNEL_WIDTH_160MHZ:
            rssiDbm += 9;
            break;
        case ScanResult.CHANNEL_WIDTH_320MHZ:
            rssiDbm += 12;
            break;
        default:
            // do nothing
    }
}

SNR估算

噪声增益计算

int noiseFloorDbBoost = TWO_IN_DB * channelWidthFactor; // TWO_IN_DB = 3

channelWidthFactor是第一步中根据频宽计算出来的。所以这里应该是根据频宽来调整预期的噪声水平。

噪声强度计算

// Thermal noise floor power in dBm integrated over 20MHz with 5.5dB noise figure at 25C
private static final int NOISE_FLOOR_20MHZ_DBM = -96;
// A fudge factor to represent HW implementation margin in dB.
// Predicted throughput matches pretty well with OTA throughput with this fudge factor.
private static final int SNR_MARGIN_DB = 16;

int noiseFloorDbm = NOISE_FLOOR_20MHZ_DBM + noiseFloorDbBoost + SNR_MARGIN_DB;

NOISE_FLOOR_20MHZ_DBM = -96是20MHz下的噪声强度(以分贝毫瓦dbm为单位)，它是室温状态下5.5dB的噪声系数所产生的热噪声强度；SNR_MARGIN_DB=16是为了考虑硬件差异和其他可能的干扰因素而引入的修正值，所以这里计算出的noiseFloorDbm会更加保守,相对更高一些。而noiseFloorDbBoost是前面计算得来用于调整高频宽下的信噪比。

计算信噪比SNR(Signal-to-Noise Ratio)

int snrDb  = rssiDbm - noiseFloorDbm;

估算实际速率

计算实际的每个子载波传输的数据长度 bitPerTone
```
int bitPerTone = calculateBitPerTone(snrDb);
bitPerTone = Math.min(bitPerTone, maxBitsPerTone);
long bitPerToneTotal = bitPerTone * maxNumSpatialStream;
long numBitPerSym = bitPerToneTotal * numTonePerSym;
int phyRateMbps =  (int) ((numBitPerSym * MICRO_TO_NANO_RATIO) / (symDurationNs * BIT_PER_TONE_SCALE));
```
calculateBitPerTone()方法通过香农定理计算出单个子载波的速率(已经考虑了频宽的影响)，然后再乘上空间流数量，子载波数量，最后得到了估算的传输速率phyRateMbps
$10^{\frac{snrDb}{10} }$

$\times \log_{2}{(1+SNR)}$

最后考虑信道使用率(Channel Utilization)的影响，
```
int airTimeFraction = calculateAirTimeFraction(channelUtilization, channelWidthFactor);
int throughputMbps = (phyRateMbps * airTimeFraction) / MAX_CHANNEL_UTILIZATION;
```
计算方法如下，channelWidthFactor用来处理非20MHz的情况，因为channelUtilization是为20MHz频宽定义的。
```
// Calculate the available airtime fraction value which is multiplied by
// MAX_CHANNEL_UTILIZATION for integer representation. It is calculated as
// (1 - channelUtilization / MAX_CHANNEL_UTILIZATION) * MAX_CHANNEL_UTILIZATION
private int calculateAirTimeFraction(int channelUtilization, int channelWidthFactor) {
    int airTimeFraction20MHz = MAX_CHANNEL_UTILIZATION - channelUtilization;
    int airTimeFraction = airTimeFraction20MHz;
    // For the cases of 40MHz or above, need to take
    // (1 - channelUtilization / MAX_CHANNEL_UTILIZATION) ^ (2 ^ channelWidthFactor)
    // because channelUtilization is defined for primary 20MHz channel
    for (int i = 1; i <= channelWidthFactor; ++i) {
        airTimeFraction *= airTimeFraction;
        airTimeFraction /= MAX_CHANNEL_UTILIZATION;
    }
    if (mVerboseLoggingEnabled) {
        Log.d(TAG, " airTime20: " + airTimeFraction20MHz + " airTime: " + airTimeFraction);
    }
    return airTimeFraction;
}
```
(1 - channelUtilization / MAX_CHANNEL_UTILIZATION) ^ (2 ^ channelWidthFactor)是用来计算大于20MHz情况的公式，因为更高的频宽相应的需要更多的信道使用时间。
