我们在讲qq登陆的集成。

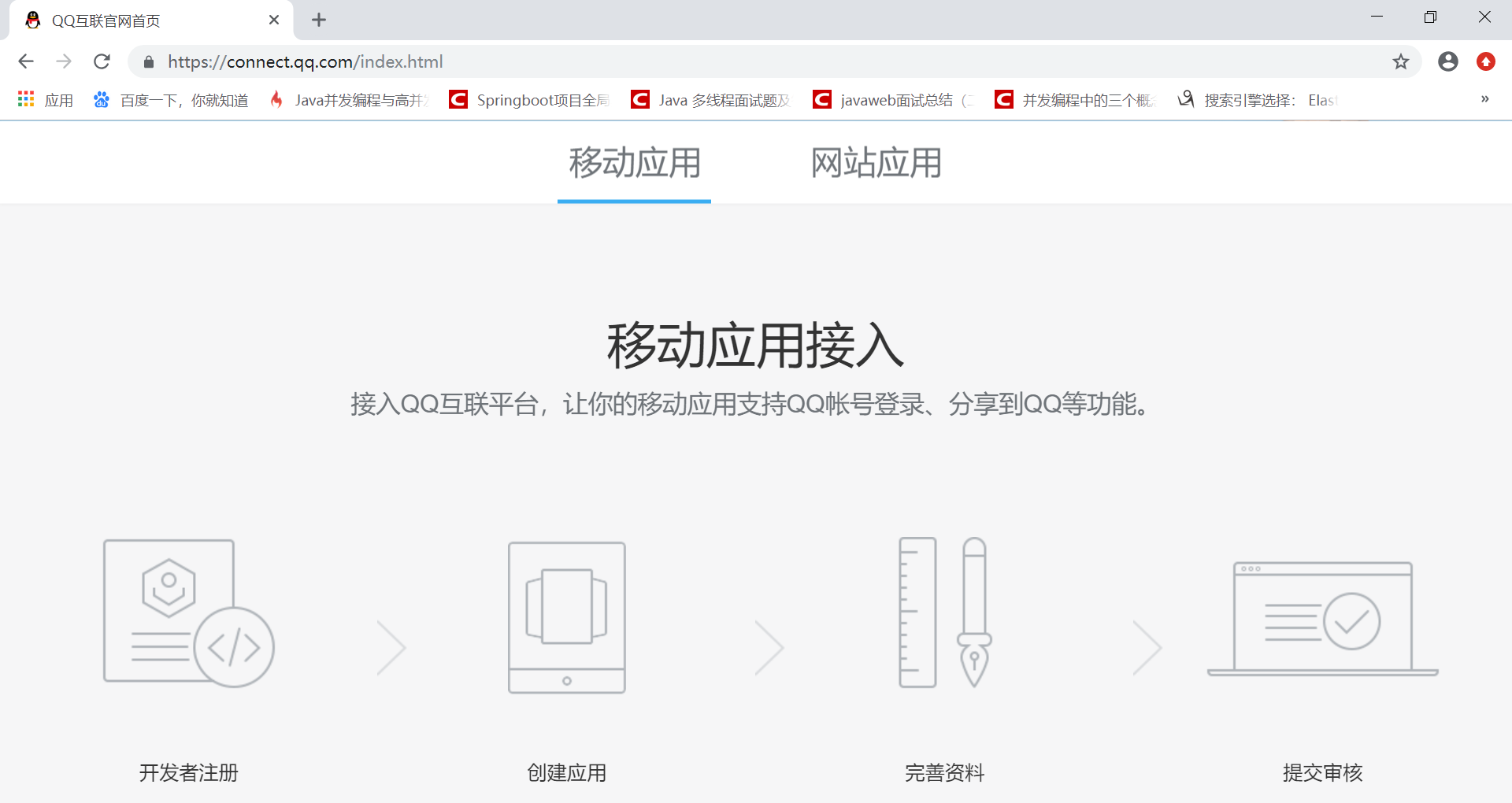

首先qq登陆的注册问题,我们需要去qq互联申请账号,
地址:https://connect.qq.com/index.html

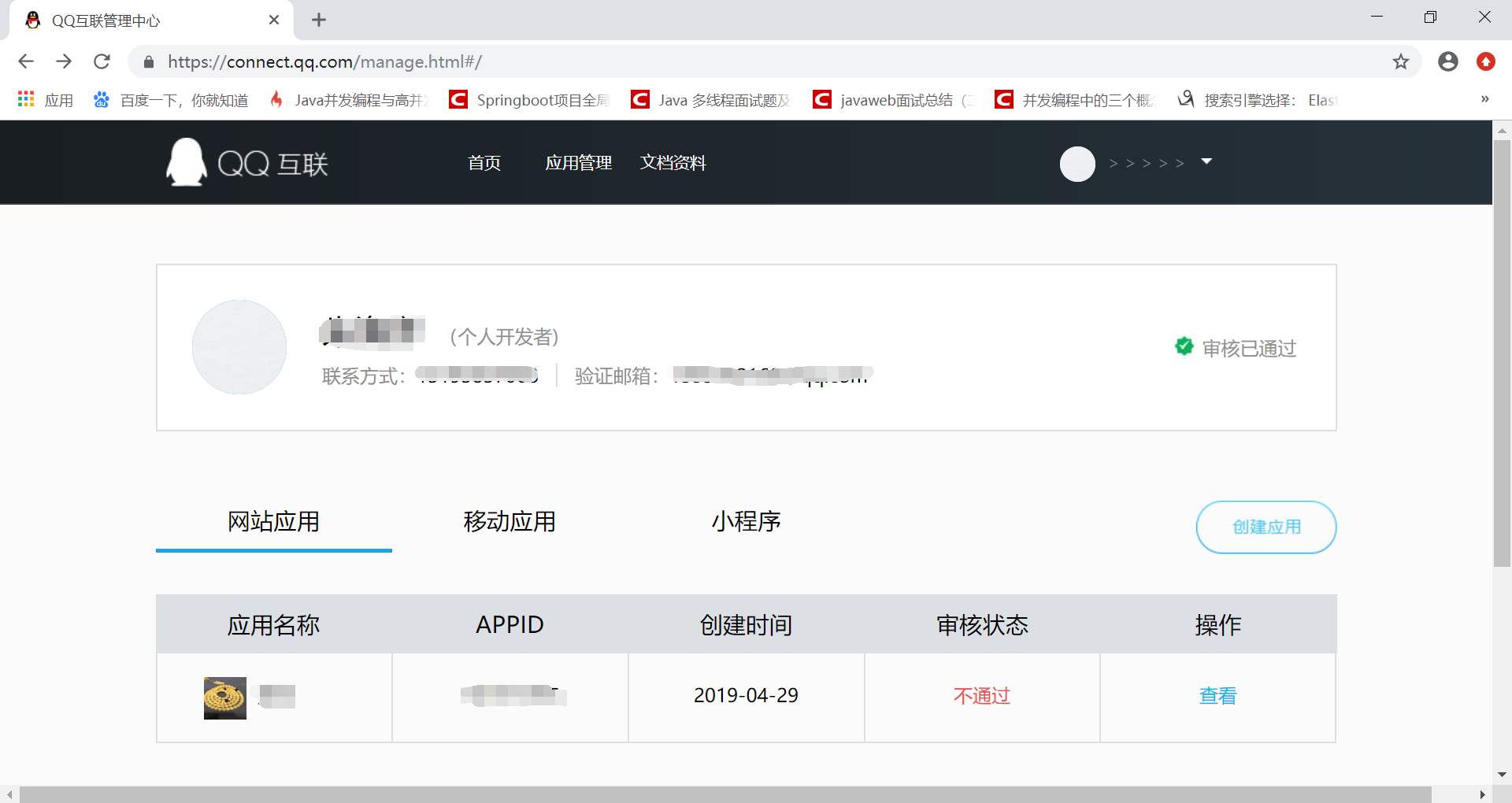

注册后在应用管理创建网站应用,设置回调地址:
获取app ID,app Key
注意就算审核不通过,你也可以登陆你自己的账号,测试是不会收到影响的
前期的东西都准备齐了现在我们就开始集成。
这是资料文档的地址一定要看完:
http://wiki.connect.qq.com/%E5%87%86%E5%A4%87%E5%B7%A5%E4%BD%9C_oauth2-0

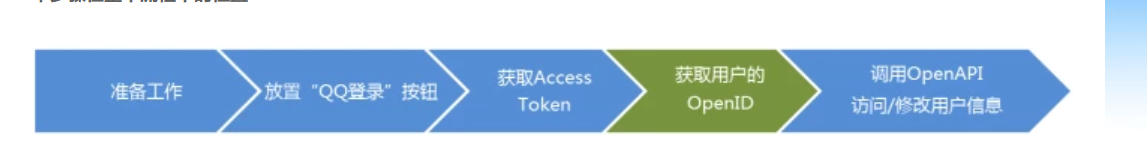

下面是文档中的基本操作顺序:
看完文档后就是代码集成部分:
maven 依赖:
<dependency>
<groupId>commons-httpclient</groupId>
<artifactId>commons-httpclient</artifactId>
<version>3.0.1</version>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-devtools</artifactId>
</dependency>
<dependency>
<groupId>org.apache.commons</groupId>
<artifactId>commons-io</artifactId>
<version>1.3.2</version>
</dependency>
<dependency>
<groupId>org.apache.commons</groupId>
<artifactId>commons-lang3</artifactId>
<version>3.4</version>
</dependency>
<dependency>
<groupId>org.apache.httpcomponents</groupId>
<artifactId>httpclient</artifactId>
<version>4.3.2</version>
</dependency>
<dependency>
<groupId>com.alibaba</groupId>
<artifactId>fastjson</artifactId>
<version>1.2.38</version>
</dependency>

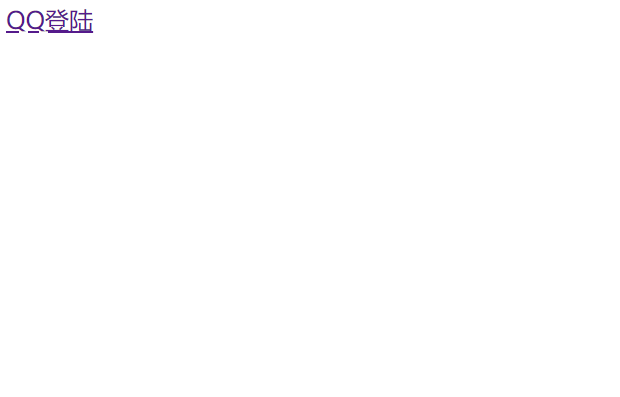

前端放置QQ登陆的按钮,login.html:
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<title>登录页面</title>
</head>
<body>
<a href="/login/qq">QQ登陆</a>
</body>
</html>
这个是登陆成功以后跳转的页面,index.html:
<!DOCTYPE html>
<html lang="en" xmlns:th="http://www.thymeleaf.org">
<head>
<meta charset="UTF-8">
<title>测试页面</title>
</head>
<body>
<span>欢迎:</span>
<p th:text="${nickName}"></p>
</body>
</html>
下面是application.properties,配置文件:
########qq的登陆密钥#####
oauth.qq.client_id=
oauth.qq.client_secret=
oauth.qq.redirect_uri=http://zhy.nat100.top/authorize/qq
oauth.qq.code_callback_uri=https://graph.qq.com/oauth2.0/authorize
oauth.qq.access_token_callback_uri=https://graph.qq.com/oauth2.0/token
oauth.qq.openid_callback_uri=https://graph.qq.com/oauth2.0/me
oauth.qq.user_info_callback_uri=https://graph.qq.com/user/get_user_info
下面是util类,HttpsUtils :
package com.haihua.haihua.Utils;
import org.apache.http.HttpEntity;
import org.apache.http.HttpResponse;
import org.apache.http.NameValuePair;
import org.apache.http.client.HttpClient;
import org.apache.http.client.config.RequestConfig;
import org.apache.http.client.entity.UrlEncodedFormEntity;
import org.apache.http.client.methods.CloseableHttpResponse;
import org.apache.http.client.methods.HttpGet;
import org.apache.http.client.methods.HttpPost;
import org.apache.http.conn.ssl.SSLConnectionSocketFactory;
import org.apache.http.conn.ssl.TrustStrategy;
import org.apache.http.entity.StringEntity;
import org.apache.http.impl.client.CloseableHttpClient;
import org.apache.http.impl.client.HttpClients;
import org.apache.http.impl.conn.PoolingHttpClientConnectionManager;
import org.apache.http.message.BasicNameValuePair;
import org.apache.http.ssl.SSLContextBuilder;
import org.apache.http.util.EntityUtils;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import javax.net.ssl.HostnameVerifier;
import javax.net.ssl.SSLContext;
import javax.net.ssl.SSLSession;
import java.io.BufferedReader;
import java.io.IOException;
import java.io.InputStream;
import java.io.InputStreamReader;
import java.nio.charset.Charset;
import java.security.GeneralSecurityException;
import java.security.cert.CertificateException;
import java.security.cert.X509Certificate;
import java.util.ArrayList;
import java.util.HashMap;
import java.util.List;
import java.util.Map;
import java.util.stream.Collectors;
/**
* Created by xslde on 2018/7/21
*/
public class HttpsUtils {
private static PoolingHttpClientConnectionManager connMgr;
private static RequestConfig requestConfig;
private static final int MAX_TIMEOUT = 7000;
private static final Logger logger = LoggerFactory.getLogger(HttpsUtils.class);
static {
// 设置连接池
connMgr = new PoolingHttpClientConnectionManager();
// 设置连接池大小
connMgr.setMaxTotal(100);
connMgr.setDefaultMaxPerRoute(connMgr.getMaxTotal());
// Validate connections after 1 sec of inactivity
connMgr.setValidateAfterInactivity(1000);
RequestConfig.Builder configBuilder = RequestConfig.custom();
// 设置连接超时
configBuilder.setConnectTimeout(MAX_TIMEOUT);
// 设置读取超时
configBuilder.setSocketTimeout(MAX_TIMEOUT);
// 设置从连接池获取连接实例的超时
configBuilder.setConnectionRequestTimeout(MAX_TIMEOUT);
requestConfig = configBuilder.build();
}
/**
* 发送 GET 请求(HTTP),不带输入数据
*
* @param url
* @return
*/
public static String doGet(String url) {
return doGet(url, new HashMap<String, Object>());
}
/**
* 发送 GET 请求(HTTP),K-V形式
*
* @param url
* @param params
* @return
*/
public static String doGet(String url, Map<String, Object> params) {
String apiUrl = url;
StringBuffer param = new StringBuffer();
int i = 0;
for (String key : params.keySet()) {
if (i == 0)
param.append("?");
else
param.append("&");
param.append(key).append("=").append(params.get(key));
i++;
}
apiUrl += param;
String result = null;
HttpClient httpClient = null;
if (apiUrl.startsWith("https")) {
httpClient = HttpClients.custom().setSSLSocketFactory(createSSLConnSocketFactory())
.setConnectionManager(connMgr).setDefaultRequestConfig(requestConfig).build();
} else {
httpClient = HttpClients.createDefault();
}
try {
HttpGet httpGet = new HttpGet(apiUrl);
HttpResponse response = httpClient.execute(httpGet);
HttpEntity entity = response.getEntity();
if (entity != null) {
InputStream instream = entity.getContent();
result = new BufferedReader(new InputStreamReader(instream)).lines().collect(Collectors.joining(System.lineSeparator()));
}
} catch (IOException e) {
logger.error(e.getMessage());
}
return result;
}
/**
* 发送 POST 请求(HTTP),不带输入数据
*
* @param apiUrl
* @return
*/
public static String doPost(String apiUrl) {
return doPost(apiUrl, new HashMap<String, Object>());
}
/**
* 发送 POST 请求,K-V形式
*
* @param apiUrl API接口URL
* @param params 参数map
* @return
*/
public static String doPost(String apiUrl, Map<String, Object> params) {
CloseableHttpClient httpClient = null;
if (apiUrl.startsWith("https")) {
httpClient = HttpClients.custom().setSSLSocketFactory(createSSLConnSocketFactory())
.setConnectionManager(connMgr).setDefaultRequestConfig(requestConfig).build();
} else {
httpClient = HttpClients.createDefault();
}
String httpStr = null;
HttpPost httpPost = new HttpPost(apiUrl);
CloseableHttpResponse response = null;
try {
httpPost.setConfig(requestConfig);
List<NameValuePair> pairList = new ArrayList<>(params.size());
for (Map.Entry<String, Object> entry : params.entrySet()) {
NameValuePair pair = new BasicNameValuePair(entry.getKey(), entry.getValue().toString());
pairList.add(pair);
}
httpPost.setEntity(new UrlEncodedFormEntity(pairList, Charset.forName("UTF-8")));
response = httpClient.execute(httpPost);
HttpEntity entity = response.getEntity();
httpStr = EntityUtils.toString(entity, "UTF-8");
} catch (IOException e) {
logger.error(e.getMessage());
} finally {
if (response != null) {
try {
EntityUtils.consume(response.getEntity());
} catch (IOException e) {
logger.error(e.getMessage());
}
}
}
return httpStr;
}
/**
* 发送 POST 请求,JSON形式
*
* @param apiUrl
* @param json json对象
* @return
*/
public static String doPost(String apiUrl, Object json) {
CloseableHttpClient httpClient = null;
if (apiUrl.startsWith("https")) {
httpClient = HttpClients.custom().setSSLSocketFactory(createSSLConnSocketFactory())
.setConnectionManager(connMgr).setDefaultRequestConfig(requestConfig).build();
} else {
httpClient = HttpClients.createDefault();
}
String httpStr = null;
HttpPost httpPost = new HttpPost(apiUrl);
CloseableHttpResponse response = null;
try {
httpPost.setConfig(requestConfig);
StringEntity stringEntity = new StringEntity(json.toString(), "UTF-8");// 解决中文乱码问题
stringEntity.setContentEncoding("UTF-8");
stringEntity.setContentType("application/json");
httpPost.setEntity(stringEntity);
response = httpClient.execute(httpPost);
HttpEntity entity = response.getEntity();
httpStr = EntityUtils.toString(entity, "UTF-8");
} catch (IOException e) {
logger.error(e.getMessage());
} finally {
if (response != null) {
try {
EntityUtils.consume(response.getEntity());
} catch (IOException e) {
logger.error(e.getMessage());
}
}
}
return httpStr;
}
/**
* 创建SSL安全连接
*
* @return
*/
private static SSLConnectionSocketFactory createSSLConnSocketFactory() {
SSLConnectionSocketFactory sslsf = null;
try {
SSLContext sslContext = new SSLContextBuilder().loadTrustMaterial(null, new TrustStrategy() {
public boolean isTrusted(X509Certificate[] chain, String authType) throws CertificateException {
return true;
}
}).build();
sslsf = new SSLConnectionSocketFactory(sslContext, new HostnameVerifier() {
@Override
public boolean verify(String arg0, SSLSession arg1) {
return true;
}
});
} catch (GeneralSecurityException e) {
logger.error(e.getMessage());
}
return sslsf;
}
}
下面是接受properties值的实体类和config类:(注意实体我是用了Lombok的Data属性,你可以自己手动getter,setter)
package com.haihua.haihua.properties;
import lombok.Data;
@Data
public class QQProperties {
private String client_id;
private String client_secret;
private String redirect_uri;
private String code_callback_uri;
private String access_token_callback_uri;
private String openid_callback_uri;
private String user_info_callback_uri;
}
package com.haihua.haihua.properties;
import org.springframework.boot.context.properties.ConfigurationProperties;
import org.springframework.stereotype.Component;
@Component//注入到spring容器,方便后面使用
@ConfigurationProperties(prefix = "oauth")//对应application.yml中,oauth下参数
public class OAuthProperties {
//获取applicaiton.yml下qq下所有的参数
private QQProperties qq = new QQProperties();
public QQProperties getQQ() {
return qq;
}
public void setQQ(QQProperties qq) {
this.qq = qq;
}
}
下面是接受qq信息的实体类 ,QQDTO.java:
package com.haihua.haihua.entity;
import lombok.Data;
@Data
public class QQDTO {
private String ret; //返回码
private String msg; //如果ret<0,会有相应的错误信息提示,返回数据全部用UTF-8编码。
private String nickname; //用户在QQ空间的昵称。
private String figureurl; //大小为30×30像素的QQ空间头像URL。
private String figureurl_1; //大小为50×50像素的QQ空间头像URL。
private String figureurl_2; //大小为100×100像素的QQ空间头像URL。
private String figureurl_qq_1; //大小为40×40像素的QQ头像URL。
private String figureurl_qq_2; //大小为100×100像素的QQ头像URL。需要注意,不是所有的用户都拥有QQ的100x100的头像,但40x40像素则是一定会有。
private String gender; //性别。 如果获取不到则默认返回"男"
private String is_yellow_vip; //标识用户是否为黄钻用户(0:不是;1:是)。
private String vip; //标识用户是否为黄钻用户(0:不是;1:是)
private String yellow_vip_level; //黄钻等级
private String level; //黄钻等级
private String is_yellow_year_vip; //标识是否为年费黄钻用户(0:不是; 1:是)
}
下面是接受qq应用的实体类 ,QQDTO.java:
package com.haihua.haihua.entity;
import lombok.Data;
@Data
public class QQOpenidDTO {
private String openid;
private String client_id;
}
下面则是控制类,LoginAction.java:
package com.haihua.haihua.controller;
import com.google.gson.Gson;
import com.haihua.haihua.Utils.HttpsUtils;
import com.haihua.haihua.entity.QQDTO;
import com.haihua.haihua.entity.QQOpenidDTO;
import com.haihua.haihua.properties.OAuthProperties;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.util.StringUtils;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PostMapping;
import javax.servlet.http.HttpServletResponse;
import java.io.IOException;
import java.util.HashMap;
import java.util.Map;
import java.util.UUID;
/**
* Created by xslde on 2018/7/21
*/
@Controller
public class LoginAction {
private Logger logger = LoggerFactory.getLogger(getClass());
@GetMapping("/login")
public String login() {
return "login";
}
@Autowired
private OAuthProperties oauth;
//QQ登陆对外接口,只需将该接口放置html的a标签href中即可
@GetMapping("/login/qq")
public void loginQQ(HttpServletResponse response) {
try {
response.sendRedirect(oauth.getQQ().getCode_callback_uri() + //获取code码地址
"?client_id=" + oauth.getQQ().getClient_id()//appid
+ "&state=" + UUID.randomUUID() + //这个说是防攻击的,就给个随机uuid吧
"&redirect_uri=" + oauth.getQQ().getRedirect_uri() +//这个很重要,这个是回调地址,即就收腾讯返回的code码
"&response_type=code");//授权模式,授权码模式
} catch (IOException e) {
e.printStackTrace();
}
}
//接收回调地址带过来的code码
@GetMapping("/authorize/qq")
public String authorizeQQ(Map<String, String> msg, String code,Model model) {
HashMap<String, Object> params = new HashMap<>();
params.put("code", code);
params.put("grant_type", "authorization_code");
params.put("redirect_uri", oauth.getQQ().getRedirect_uri());
params.put("client_id", oauth.getQQ().getClient_id());
params.put("client_secret", oauth.getQQ().getClient_secret());
//获取access_token如:access_token=9724892714FDF1E3ED5A4C6D074AF9CB&expires_in=7776000&refresh_token=9E0DE422742ACCAB629A54B3BFEC61FF
String result = HttpsUtils.doGet(oauth.getQQ().getAccess_token_callback_uri(), params);
//对拿到的数据进行切割字符串
String[] strings = result.split("&");
//切割好后放进map
Map<String, String> reulsts = new HashMap<>();
for (String str : strings) {
String[] split = str.split("=");
if (split.length > 1) {
reulsts.put(split[0], split[1]);
}
}
//到这里access_token已经处理好了
//下一步获取openid,只有拿到openid才能拿到用户信息
String openidContent = HttpsUtils.doGet(oauth.getQQ().getOpenid_callback_uri() + "?access_token=" + reulsts.get("access_token"));
//接下来对openid进行处理
//截取需要的那部分json字符串
String openid = openidContent.substring(openidContent.indexOf("{"), openidContent.indexOf("}") + 1);
Gson gson = new Gson();
//将返回的openid转换成DTO
QQOpenidDTO qqOpenidDTO = gson.fromJson(openid, QQOpenidDTO.class);
//接下来说说获取用户信息部分
//登陆的时候去数据库查询用户数据对于openid是存在,如果存在的话,就不用拿openid获取用户信息了,而是直接从数据库拿用户数据直接认证用户,
// 否则就拿openid去腾讯服务器获取用户信息,并存入数据库,再去认证用户
//下面关于怎么获取用户信息,并登陆
params.clear();
params.put("access_token", reulsts.get("access_token"));//设置access_token
params.put("openid", qqOpenidDTO.getOpenid());//设置openid
params.put("oauth_consumer_key", qqOpenidDTO.getClient_id());//设置appid
String userInfo = HttpsUtils.doGet(oauth.getQQ().getUser_info_callback_uri(), params);
QQDTO qqDTO = gson.fromJson(userInfo, QQDTO.class);
//这里拿用户昵称,作为用户名,openid作为密码(正常情况下,在开发时候用openid作为用户名,再自己定义个密码就可以了)
try {
logger.info("nickName:"+qqDTO.getNickname()+";opendId:"+qqOpenidDTO.getOpenid());
model.addAttribute("nickName",qqDTO.getNickname());
} catch (Exception e) {
msg.put("msg", "第三方登陆失败,请联系管理!");
logger.error(e.getMessage());
return "login";
}
return "index";
}
}
实现后请求域名加 qq/login
点击QQ登录以后跳转:
点击即可登录:
这就完成了qq登录的基本功能。
