Kettle8.2连接ElasticSearch7.x插件

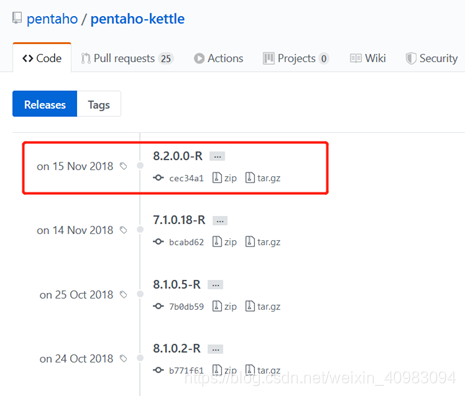

一、下载kettle8.2的发布版源码包，具体地址：

https://github.com/pentaho/pentaho-kettle/releases?after=8.1.0.6-R

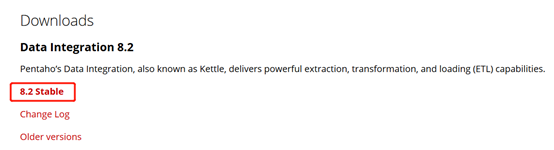

二、下载kettle8.2发布版工具，具体地址：

https://community.hitachivantara.com/s/article/data-integration-kettle

三、kettle8.2.0源码编译及插件使用:

1.解压源码包pentaho-kettle-8.2.0.0-R.tar.gz

2.进入pentaho-kettle-8.0.0-R，修改pom.xml（红色部分）文件（解决编译时部分包找不到的问题）

<repositories>     <repository>       <id>pentaho-public</id>       <name>Pentaho Public</name>       <url>http://nexus.pentaho.org/content/groups/omni/</url>       <releases>         <enabled>true</enabled>         <updatePolicy>daily</updatePolicy>       </releases>       <snapshots>         <enabled>true</enabled>         <updatePolicy>interval:15</updatePolicy>       </snapshots>     </repository>          <repository>       <id>pentaho-public1</id>       <name>/</name>       <url>http://oss.sonatype.org/content/groups/public/</url>     </repository>     <repository>       <id>pentaho-public2</id>       <name>/</name>       <url>https://nexus.pentaho.org/repository/proxy-public-release/</url>     </repository>     <repository>       <id>pentaho-public3</id>       <name>/</name>       <url>https://nexus.pentaho.org/repository/proxy-public-snapshot/</url>     </repository>   </repositories>

3.进入pentaho-kettle-8.2.0.0-R\plugins目录，修改pom.xml文件内容(加快编译速度)

<profile>       <id>highdeps</id>       <activation>         <property>           <name>!skipDefault</name>         </property>       </activation>       <modules>         <module>elasticsearch-bulk-insert</module>       </modules>     </profile>

4.pentaho-kettle-8.2.0.0-R\plugins\elasticsearch-bulk-insert\core目录，修改pom.xml文件内容。（添加es7连接客户端，注释transport连接客户端，修改es的版本号）

<elasticsearch.version>7.2.0</elasticsearch.version> <dependency>       <groupId>org.elasticsearch.client</groupId>       <artifactId>elasticsearch-rest-high-level-client</artifactId>       <version>7.2.0</version>       </dependency>     <dependency>       <groupId>org.elasticsearch</groupId>       <artifactId>elasticsearch</artifactId>       <version>${elasticsearch.version}</version>       <scope>compile</scope>     </dependency>   </dependencies> <!--          <dependency>         <groupId>org.elasticsearch.client</groupId>         <artifactId>transport</artifactId>         <version>${elasticsearch.version}</version>         <scope>compile</scope>     </dependency>          -->

5.pentaho-kettle-8.2.0.0-R\plugins\elasticsearch-bulk-insert\core\src\main\java\org\pentaho\di\trans\steps\elasticsearchbulk 目录修改ElasticSearchBulk.java文件内容，如下：

package org.pentaho.di.trans.steps.elasticsearchbulk; import java.io.IOException; import java.net.UnknownHostException; import java.util.ArrayList; import java.util.Date; import java.util.List; import java.util.Map; import java.util.concurrent.TimeUnit; import org.apache.commons.lang.StringUtils; import org.apache.http.HttpHost; import org.elasticsearch.action.DocWriteRequest.OpType; import org.elasticsearch.action.bulk.BulkItemResponse; import org.elasticsearch.action.bulk.BulkRequest; import org.elasticsearch.action.bulk.BulkResponse; import org.elasticsearch.action.index.IndexRequest; import org.elasticsearch.client.RequestOptions; import org.elasticsearch.client.RestClient; import org.elasticsearch.client.RestHighLevelClient; import org.elasticsearch.client.transport.NoNodeAvailableException; import org.elasticsearch.common.settings.Settings; import org.elasticsearch.common.xcontent.XContentBuilder; import org.elasticsearch.common.xcontent.XContentFactory; import org.elasticsearch.common.xcontent.XContentType; import org.pentaho.di.core.exception.KettleException; import org.pentaho.di.core.exception.KettleStepException; import org.pentaho.di.core.row.RowDataUtil; import org.pentaho.di.core.row.RowMetaInterface; import org.pentaho.di.core.row.ValueMetaInterface; import org.pentaho.di.i18n.BaseMessages; import org.pentaho.di.trans.Trans; import org.pentaho.di.trans.TransMeta; import org.pentaho.di.trans.step.BaseStep; import org.pentaho.di.trans.step.StepDataInterface; import org.pentaho.di.trans.step.StepInterface; import org.pentaho.di.trans.step.StepMeta; import org.pentaho.di.trans.step.StepMetaInterface; import org.pentaho.di.trans.steps.elasticsearchbulk.ElasticSearchBulkMeta.Server; /**  * Does bulk insert of data into ElasticSearch  *  * @author webdetails  * @since 16-02-2011  */ public class ElasticSearchBulk extends BaseStep implements StepInterface {   private static final String INSERT_ERROR_CODE = null;   private static Class<?> PKG = ElasticSearchBulkMeta.class; // for i18n   private ElasticSearchBulkMeta meta;   private ElasticSearchBulkData data; //  private Client client;   private RestHighLevelClient client;   private String index;   private String type; //  BulkRequestBuilder currentRequest;   BulkRequest currentRequest = new BulkRequest();   private int batchSize = 2;   private boolean isJsonInsert = false;   private int jsonFieldIdx = 0;   private String idOutFieldName = null;   private Integer idFieldIndex = null;   private Long timeout = null;   private TimeUnit timeoutUnit = TimeUnit.MILLISECONDS;   private int numberOfErrors = 0; //  private List<IndexRequestBuilder> requestsBuffer;   private List<IndexRequest> requestsBuffer;   private boolean stopOnError = true;   private boolean useOutput = true;   private Map<String, String> columnsToJson;   private boolean hasFields;   private IndexRequest.OpType opType = org.elasticsearch.action.DocWriteRequest.OpType.CREATE;   public ElasticSearchBulk( StepMeta stepMeta, StepDataInterface stepDataInterface, int copyNr, TransMeta transMeta,                             Trans trans ) {     super( stepMeta, stepDataInterface, copyNr, transMeta, trans );   }   public boolean processRow( StepMetaInterface smi, StepDataInterface sdi ) throws KettleException {     Object[] rowData = getRow();     if ( rowData == null ) {       if ( currentRequest != null && currentRequest.numberOfActions() > 0 ) {         processBatch( false );       }       setOutputDone();       return false;     }     if ( first ) {       first = false;       setupData(); //      currentRequest = client.prepareBulk(); //      requestsBuffer = new ArrayList<IndexRequestBuilder>( this.batchSize );     //   try {     //            client.bulk(currentRequest, RequestOptions.DEFAULT);                // } catch (IOException e1) {                //     rejectAllRows( e1.getLocalizedMessage() );                //       String msg = BaseMessages.getString( PKG, "ElasticSearchBulk.Log.Exception", e1.getLocalizedMessage() );                //       logError( msg );                //       throw new KettleStepException( msg, e1 );                // }       requestsBuffer = new ArrayList<IndexRequest>( this.batchSize );       initFieldIndexes();     }     try {       data.inputRowBuffer[data.nextBufferRowIdx++] = rowData;       return indexRow( data.inputRowMeta, rowData ) || !stopOnError;     } catch ( KettleStepException e ) {       throw e;     } catch ( Exception e ) {       rejectAllRows( e.getLocalizedMessage() );       String msg = BaseMessages.getString( PKG, "ElasticSearchBulk.Log.Exception", e.getLocalizedMessage() );       logError( msg );       throw new KettleStepException( msg, e );     }   }   /**    * Initialize <code>this.data</code>    *    * @throws KettleStepException    */   private void setupData() throws KettleStepException {     data.nextBufferRowIdx = 0;     data.inputRowMeta = getInputRowMeta().clone(); // only available after first getRow();     data.inputRowBuffer = new Object[batchSize][];     data.outputRowMeta = data.inputRowMeta.clone();     meta.getFields( data.outputRowMeta, getStepname(), null, null, this, repository, metaStore );   }   private void initFieldIndexes() throws KettleStepException {     if ( isJsonInsert ) {       Integer idx = getFieldIdx( data.inputRowMeta, environmentSubstitute( meta.getJsonField() ) );       if ( idx != null ) {         jsonFieldIdx = idx.intValue();       } else {         throw new KettleStepException( BaseMessages.getString( PKG, "ElasticSearchBulk.Error.NoJsonField" ) );       }     }     idOutFieldName = environmentSubstitute( meta.getIdOutField() );     if ( StringUtils.isNotBlank( meta.getIdInField() ) ) {       idFieldIndex = getFieldIdx( data.inputRowMeta, environmentSubstitute( meta.getIdInField() ) );       if ( idFieldIndex == null ) {         throw new KettleStepException( BaseMessages.getString( PKG, "ElasticSearchBulk.Error.InvalidIdField" ) );       }     } else {       idFieldIndex = null;     }   }   private static Integer getFieldIdx( RowMetaInterface rowMeta, String fieldName ) {     if ( fieldName == null ) {       return null;     }     for ( int i = 0; i < rowMeta.size(); i++ ) {       String name = rowMeta.getValueMeta( i ).getName();       if ( fieldName.equals( name ) ) {         return i;       }     }     return null;   }   /**    * @param rowMeta The metadata for the row to be indexed    * @param row     The data for the row to be indexed    */   private boolean indexRow( RowMetaInterface rowMeta, Object[] row ) throws KettleStepException {     try { //      IndexRequestBuilder requestBuilder = client.prepareIndex( index, type ); //      requestBuilder.setOpType( this.opType );       IndexRequest indexRequest = new IndexRequest(index);       indexRequest.type(type);       indexRequest.opType(this.opType);       if ( idFieldIndex != null ) { //        requestBuilder.setId( "" + row[idFieldIndex] ); // "" just in case field isn't string         indexRequest.id("" + row[idFieldIndex]);       }       if ( isJsonInsert ) { //        addSourceFromJsonString( row, requestBuilder );         addSourceFromJsonString( row, indexRequest );       } else { //        addSourceFromRowFields( requestBuilder, rowMeta, row );         addSourceFromRowFields( indexRequest, rowMeta, row );       } // currentRequest = new BulkRequest(); //      currentRequest.add( requestBuilder ); //      requestsBuffer.add( requestBuilder );       currentRequest.add( indexRequest );       requestsBuffer.add( indexRequest );       if ( currentRequest.numberOfActions() >= batchSize ) {         return processBatch( true );       } else {         return true;       }     } catch ( KettleStepException e ) {       throw e;     } catch ( NoNodeAvailableException e ) {       throw new KettleStepException( BaseMessages.getString( PKG, "ElasticSearchBulkDialog.Error.NoNodesFound" ) );     } catch ( Exception e ) {       throw new KettleStepException( BaseMessages.getString( PKG, "ElasticSearchBulk.Log.Exception", e               .getLocalizedMessage() ), e );     }   } //  /** //   * @param row //   * @param requestBuilder //   */ //  private void addSourceFromJsonString( Object[] row, IndexRequestBuilder requestBuilder ) throws KettleStepException { //    Object jsonString = row[jsonFieldIdx]; //    if ( jsonString instanceof byte[] ) { //      requestBuilder.setSource( (byte[]) jsonString, XContentType.JSON ); //    } else if ( jsonString instanceof String ) { //      requestBuilder.setSource( (String) jsonString, XContentType.JSON ); //    } else { //      throw new KettleStepException( BaseMessages.getString( "ElasticSearchBulk.Error.NoJsonFieldFormat" ) ); //    } //  }   /**    * @param row    * @param IndexRequest    */   private void addSourceFromJsonString( Object[] row, IndexRequest indexRequest ) throws KettleStepException {        Object jsonString = row[jsonFieldIdx];        if ( jsonString instanceof byte[] ) {                  indexRequest.source( (byte[]) jsonString, XContentType.JSON );        } else if ( jsonString instanceof String ) {                  indexRequest.source( (String) jsonString, XContentType.JSON );        } else {                  throw new KettleStepException( BaseMessages.getString( "ElasticSearchBulk.Error.NoJsonFieldFormat" ) );        }   } //  /** //   * @param requestBuilder //   * @param rowMeta //   * @param row //   * @throws IOException //   */ //  private void addSourceFromRowFields( IndexRequestBuilder requestBuilder, RowMetaInterface rowMeta, Object[] row ) //          throws IOException { //    XContentBuilder jsonBuilder = XContentFactory.jsonBuilder().startObject(); // //    for ( int i = 0; i < rowMeta.size(); i++ ) { //      if ( idFieldIndex != null && i == idFieldIndex ) { // skip id //        continue; //      } // //      ValueMetaInterface valueMeta = rowMeta.getValueMeta( i ); //      String name = hasFields ? columnsToJson.get( valueMeta.getName() ) : valueMeta.getName(); //      Object value = row[i]; //      if ( value instanceof Date && value.getClass() != Date.class ) { //        Date subDate = (Date) value; //        // create a genuine Date object, or jsonBuilder will not recognize it //        value = new Date( subDate.getTime() ); //      } //      if ( StringUtils.isNotBlank( name ) ) { //        jsonBuilder.field( name, value ); //      } //    } // //    jsonBuilder.endObject(); //    requestBuilder.setSource( jsonBuilder ); //  }   /**    * @param requestBuilder    * @param rowMeta    * @param row    * @throws IOException    */   private void addSourceFromRowFields( IndexRequest indexRequest, RowMetaInterface rowMeta, Object[] row )                  throws IOException {        XContentBuilder jsonBuilder = XContentFactory.jsonBuilder().startObject();        for ( int i = 0; i < rowMeta.size(); i++ ) {                  if ( idFieldIndex != null && i == idFieldIndex ) { // skip id                           continue;                  }                            ValueMetaInterface valueMeta = rowMeta.getValueMeta( i );                  String name = hasFields ? columnsToJson.get( valueMeta.getName() ) : valueMeta.getName();                  Object value = row[i];                  if ( value instanceof Date && value.getClass() != Date.class ) {                           Date subDate = (Date) value;                           // create a genuine Date object, or jsonBuilder will not recognize it                           value = new Date( subDate.getTime() );                  }                  if ( StringUtils.isNotBlank( name ) ) {                           jsonBuilder.field( name, value );                  }        }        jsonBuilder.endObject();        indexRequest.source( jsonBuilder );   }   public boolean init( StepMetaInterface smi, StepDataInterface sdi ) {     meta = (ElasticSearchBulkMeta) smi;     data = (ElasticSearchBulkData) sdi;     if ( super.init( smi, sdi ) ) {       try {         numberOfErrors = 0;         initFromMeta();         initClient();         return true;       } catch ( Exception e ) {         logError( BaseMessages.getString( PKG, "ElasticSearchBulk.Log.ErrorOccurredDuringStepInitialize" )                 + e.getMessage() );       }       return true;     }     return false;   }   private void initFromMeta() {     index = environmentSubstitute( meta.getIndex() );     type = environmentSubstitute( meta.getType() );     batchSize = meta.getBatchSizeInt( this );     try {       timeout = Long.parseLong( environmentSubstitute( meta.getTimeOut() ) );     } catch ( NumberFormatException e ) {       timeout = null;     }     timeoutUnit = meta.getTimeoutUnit();     isJsonInsert = meta.isJsonInsert();     useOutput = meta.isUseOutput();     stopOnError = meta.isStopOnError();     columnsToJson = meta.getFieldsMap();     this.hasFields = columnsToJson.size() > 0;     this.opType =             StringUtils.isNotBlank( meta.getIdInField() ) && meta.isOverWriteIfSameId() ? OpType.INDEX : OpType.CREATE;   }   private boolean processBatch( boolean makeNew ) throws KettleStepException {        BulkResponse response = null; //    ActionFuture<BulkResponse> actionFuture = currentRequest.execute();     try{             response = client.bulk(currentRequest, RequestOptions.DEFAULT);        } catch (IOException e1) {                         rejectAllRows( e1.getLocalizedMessage() );                      String msg = BaseMessages.getString( PKG, "ElasticSearchBulk.Log.Exception", e1.getLocalizedMessage() );                      logError( msg );                      throw new KettleStepException( msg, e1 );                }     boolean responseOk = false; //    try { //      if ( timeout != null && timeoutUnit != null ) { //        response = actionFuture.actionGet( timeout, timeoutUnit ); //      } else { //        response = actionFuture.actionGet(); //      } //    } catch ( ElasticsearchException e ) { //      String msg = BaseMessages.getString( PKG, "ElasticSearchBulk.Error.BatchExecuteFail", e.getLocalizedMessage() ); //      if ( e instanceof ElasticsearchTimeoutException ) { //        msg = BaseMessages.getString( PKG, "ElasticSearchBulk.Error.Timeout" ); //      } //      logError( msg ); //      rejectAllRows( msg ); //    }     if ( response != null ) {       responseOk = handleResponse( response );       requestsBuffer.clear();     } else { // have to assume all failed       numberOfErrors += currentRequest.numberOfActions();       setErrors( numberOfErrors );     }     if ( makeNew ) { //      currentRequest = client.prepareBulk();       try{                   client.bulk(currentRequest, RequestOptions.DEFAULT);          } catch (IOException e1) {                         rejectAllRows( e1.getLocalizedMessage() );                      String msg = BaseMessages.getString( PKG, "ElasticSearchBulk.Log.Exception", e1.getLocalizedMessage() );                      logError( msg );                      throw new KettleStepException( msg, e1 );                }       data.nextBufferRowIdx = 0;       data.inputRowBuffer = new Object[batchSize][];     } else {       currentRequest = null;       data.inputRowBuffer = null;     }     return responseOk;   }   /**    * @param response    * @return <code>true</code> if no errors    */   private boolean handleResponse( BulkResponse response ) {     boolean hasErrors = response.hasFailures();     if ( hasErrors ) {       logError( response.buildFailureMessage() );     }     int errorsInBatch = 0;     if ( hasErrors || useOutput ) {       for ( BulkItemResponse item : response ) {         if ( item.isFailed() ) {           // log           logDetailed( item.getFailureMessage() );           errorsInBatch++;           if ( getStepMeta().isDoingErrorHandling() ) {             rejectRow( item.getItemId(), item.getFailureMessage() );           }         } else if ( useOutput ) {           if ( idOutFieldName != null ) {             addIdToRow( item.getId(), item.getItemId() );           }           echoRow( item.getItemId() );         }       }     }     numberOfErrors += errorsInBatch;     setErrors( numberOfErrors );     int linesOK = currentRequest.numberOfActions() - errorsInBatch;     if ( useOutput ) {       setLinesOutput( getLinesOutput() + linesOK );     } else {       setLinesWritten( getLinesWritten() + linesOK );     }     return !hasErrors;   }   private void addIdToRow( String id, int rowIndex ) {     data.inputRowBuffer[rowIndex] =             RowDataUtil.resizeArray( data.inputRowBuffer[rowIndex], getInputRowMeta().size() + 1 );     data.inputRowBuffer[rowIndex][getInputRowMeta().size()] = id;   }   /**    * Send input row to output    *    * @param rowIndex    */   private void echoRow( int rowIndex ) {     try {       putRow( data.outputRowMeta, data.inputRowBuffer[rowIndex] );     } catch ( KettleStepException e ) {       logError( e.getLocalizedMessage() );     } catch ( ArrayIndexOutOfBoundsException e ) {       logError( e.getLocalizedMessage() );     }   }   /**    * Send input row to error.    *    * @param index    * @param errorMsg    */   private void rejectRow( int index, String errorMsg ) {     try {       putError( getInputRowMeta(), data.inputRowBuffer[index], 1, errorMsg, null, INSERT_ERROR_CODE );     } catch ( KettleStepException e ) {       logError( e.getLocalizedMessage() );     } catch ( ArrayIndexOutOfBoundsException e ) {       logError( e.getLocalizedMessage() );     }   }   private void rejectAllRows( String errorMsg ) {     for ( int i = 0; i < data.nextBufferRowIdx; i++ ) {       rejectRow( i, errorMsg );     }   }   private void initClient() throws UnknownHostException {     Settings.Builder settingsBuilder = Settings.builder();     settingsBuilder.put( Settings.Builder.EMPTY_SETTINGS );     meta.getSettingsMap().entrySet().stream().forEach( ( s ) -> settingsBuilder.put( s.getKey(),             environmentSubstitute( s.getValue() ) ) ); //    PreBuiltTransportClient tClient = new PreBuiltTransportClient( settingsBuilder.build() ); // //    for ( Server server : meta.getServers() ) { //      tClient.addTransportAddress( new TransportAddress( //              InetAddress.getByName( environmentSubstitute( server.getAddress() ) ), //              server.getPort() ) ); //    } // //    client = tClient;     RestHighLevelClient rclient=null;     for ( Server server : meta.getServers() ) {           rclient = new RestHighLevelClient(RestClient.builder(new HttpHost(server.getAddress(), Integer.valueOf(server.getPort()), "http")));     }     client = rclient;     /** With the upgrade to elasticsearch 6.3.0, removed the NodeBuilder,      *  which was removed from the elasticsearch 5.0 API, see:      *  https://www.elastic.co/guide/en/elasticsearch/reference/5.0/breaking_50_java_api_changes      *  .html#_nodebuilder_removed      */   }   private void disposeClient() throws IOException{     if ( client != null ) {       client.close();     }   }   public void dispose( StepMetaInterface smi, StepDataInterface sdi ) {     meta = (ElasticSearchBulkMeta) smi;     data = (ElasticSearchBulkData) sdi;     try {       disposeClient();     } catch ( Exception e ) {       logError( e.getLocalizedMessage(), e );     }     super.dispose( smi, sdi );   } }

6.pentaho-kettle-8.2.0.0-R\plugins\elasticsearch-bulk-insert\core\src\main\java\org\pentaho\di\ui\trans\steps\elasticsearchbulk目录下修改ElasticSearchBulkDialog.java 文件

package org.pentaho.di.ui.trans.steps.elasticsearchbulk; import java.util.Map; import org.apache.commons.lang.StringUtils; import org.apache.http.HttpHost; import org.eclipse.swt.SWT; import org.eclipse.swt.custom.CTabFolder; import org.eclipse.swt.custom.CTabItem; import org.eclipse.swt.events.FocusListener; import org.eclipse.swt.events.ModifyEvent; import org.eclipse.swt.events.ModifyListener; import org.eclipse.swt.events.SelectionAdapter; import org.eclipse.swt.events.SelectionEvent; import org.eclipse.swt.events.SelectionListener; import org.eclipse.swt.events.ShellAdapter; import org.eclipse.swt.events.ShellEvent; import org.eclipse.swt.layout.FormAttachment; import org.eclipse.swt.layout.FormData; import org.eclipse.swt.layout.FormLayout; import org.eclipse.swt.widgets.Button; import org.eclipse.swt.widgets.Composite; import org.eclipse.swt.widgets.Control; import org.eclipse.swt.widgets.Display; import org.eclipse.swt.widgets.Event; import org.eclipse.swt.widgets.Group; import org.eclipse.swt.widgets.Label; import org.eclipse.swt.widgets.Listener; import org.eclipse.swt.widgets.MessageBox; import org.eclipse.swt.widgets.Shell; import org.eclipse.swt.widgets.Text; import org.elasticsearch.action.admin.indices.get.GetIndexRequest; import org.elasticsearch.client.RequestOptions; import org.elasticsearch.client.RestClient; import org.elasticsearch.client.RestHighLevelClient; import org.elasticsearch.client.core.MainResponse; import org.elasticsearch.client.transport.NoNodeAvailableException; import org.elasticsearch.common.settings.Settings; import org.elasticsearch.discovery.MasterNotDiscoveredException; import org.pentaho.di.core.Const; import org.pentaho.di.core.Props; import org.pentaho.di.core.exception.KettleException; import org.pentaho.di.core.row.RowMetaInterface; import org.pentaho.di.i18n.BaseMessages; import org.pentaho.di.trans.TransMeta; import org.pentaho.di.trans.step.BaseStepMeta; import org.pentaho.di.trans.step.StepDialogInterface; import org.pentaho.di.trans.steps.elasticsearchbulk.ElasticSearchBulkMeta; import org.pentaho.di.trans.steps.elasticsearchbulk.ElasticSearchBulkMeta.Server; import org.pentaho.di.ui.core.dialog.ErrorDialog; import org.pentaho.di.ui.core.widget.ColumnInfo; import org.pentaho.di.ui.core.widget.LabelComboVar; import org.pentaho.di.ui.core.widget.LabelTextVar; import org.pentaho.di.ui.core.widget.TableView; import org.pentaho.di.ui.core.widget.TextVar; import org.pentaho.di.ui.trans.step.BaseStepDialog; public class ElasticSearchBulkDialog extends BaseStepDialog implements StepDialogInterface {   private ElasticSearchBulkMeta model;   private static Class<?> PKG = ElasticSearchBulkMeta.class;   private CTabFolder wTabFolder;   private FormData fdTabFolder;   private CTabItem wGeneralTab;   private Composite wGeneralComp;   private FormData fdGeneralComp;   private Label wlBatchSize;   private TextVar wBatchSize;   private LabelTextVar wIdOutField;   private Group wIndexGroup;   private FormData fdIndexGroup;   private Group wSettingsGroup;   private FormData fdSettingsGroup;   private String[] fieldNames;   private CTabItem wFieldsTab;   private LabelTextVar wIndex;   private LabelTextVar wType;   private ModifyListener lsMod;   private Button wIsJson;   private Label wlIsJson;   private Label wlUseOutput;   private Button wUseOutput;   private LabelComboVar wJsonField;   private TableView wFields;   private CTabItem wServersTab;   private TableView wServers;   private CTabItem wSettingsTab;   private TableView wSettings;   private LabelTimeComposite wTimeOut;   private Label wlStopOnError;   private Button wStopOnError;   private Button wTest;   private Button wTestCl;   private LabelComboVar wIdInField;   private Button wIsOverwrite;   private Label wlIsOverwrite;   public ElasticSearchBulkDialog( Shell parent, Object in, TransMeta transMeta, String sname ) {     super( parent, (BaseStepMeta) in, transMeta, sname );     model = (ElasticSearchBulkMeta) in;   }   public String open() {     Shell parent = getParent();     Display display = parent.getDisplay();     shell = new Shell( parent, SWT.DIALOG_TRIM | SWT.RESIZE | SWT.MAX | SWT.MIN );     props.setLook( shell );     setShellImage( shell, model );     lsMod = new ModifyListener() {       public void modifyText( ModifyEvent e ) {         model.setChanged();       }     };     changed = model.hasChanged();     FormLayout formLayout = new FormLayout();     formLayout.marginWidth = Const.FORM_MARGIN;     formLayout.marginHeight = Const.FORM_MARGIN;     shell.setLayout( formLayout );     shell.setText( BaseMessages.getString( PKG, "ElasticSearchBulkDialog.DialogTitle" ) );     int middle = props.getMiddlePct();     int margin = Const.MARGIN;     // Stepname line     wlStepname = new Label( shell, SWT.RIGHT );     wlStepname.setText( BaseMessages.getString( PKG, "System.Label.StepName" ) );     props.setLook( wlStepname );     fdlStepname = new FormData();     fdlStepname.left = new FormAttachment( 0, 0 );     fdlStepname.top = new FormAttachment( 0, margin );     fdlStepname.right = new FormAttachment( middle, -margin );     wlStepname.setLayoutData( fdlStepname );     wStepname = new Text( shell, SWT.SINGLE | SWT.LEFT | SWT.BORDER );     wStepname.setText( stepname );     props.setLook( wStepname );     wStepname.addModifyListener( lsMod );     fdStepname = new FormData();     fdStepname.left = new FormAttachment( middle, 0 );     fdStepname.top = new FormAttachment( 0, margin );     fdStepname.right = new FormAttachment( 100, 0 );     wStepname.setLayoutData( fdStepname );     wTabFolder = new CTabFolder( shell, SWT.BORDER );     props.setLook( wTabFolder, Props.WIDGET_STYLE_TAB );     // GENERAL TAB     addGeneralTab();     // Servers TAB     addServersTab();     // Fields TAB     addFieldsTab();     // Settings TAB     addSettingsTab();     //     // BUTTONS //     // //     wOK = new Button( shell, SWT.PUSH );     wOK.setText( BaseMessages.getString( PKG, "System.Button.OK" ) );     wCancel = new Button( shell, SWT.PUSH );     wCancel.setText( BaseMessages.getString( PKG, "System.Button.Cancel" ) );     setButtonPositions( new Button[]{wOK, wCancel}, margin, null );     fdTabFolder = new FormData();     fdTabFolder.left = new FormAttachment( 0, 0 );     fdTabFolder.top = new FormAttachment( wStepname, margin );     fdTabFolder.right = new FormAttachment( 100, 0 );     fdTabFolder.bottom = new FormAttachment( wOK, -margin );     wTabFolder.setLayoutData( fdTabFolder );     // //     // Std Listeners //     //     addStandardListeners();     wTabFolder.setSelection( 0 );     // Set the shell size, based upon previous time...     setSize();     getData( model );     model.setChanged( changed );     shell.open();     while ( !shell.isDisposed() ) {       if ( !display.readAndDispatch() ) {         display.sleep();       }     }     return stepname;   }   private void addStandardListeners() {     // Add listeners     lsOK = new Listener() {       public void handleEvent( Event e ) {         ok();       }     };     lsCancel = new Listener() {       public void handleEvent( Event e ) {         cancel();       }     };     lsMod = new ModifyListener() {       public void modifyText( ModifyEvent event ) {         model.setChanged();       }     };     wOK.addListener( SWT.Selection, lsOK );     wCancel.addListener( SWT.Selection, lsCancel );     lsDef = new SelectionAdapter() {       public void widgetDefaultSelected( SelectionEvent e ) {         ok();       }     };     wStepname.addSelectionListener( lsDef );     // window close     shell.addShellListener( new ShellAdapter() {       public void shellClosed( ShellEvent e ) {         cancel();       }     } );   }   /**    */   private void addGeneralTab() {     wGeneralTab = new CTabItem( wTabFolder, SWT.NONE );     wGeneralTab.setText( BaseMessages.getString( PKG, "ElasticSearchBulkDialog.General.Tab" ) );     wGeneralComp = new Composite( wTabFolder, SWT.NONE );     props.setLook( wGeneralComp );     FormLayout generalLayout = new FormLayout();     generalLayout.marginWidth = 3;     generalLayout.marginHeight = 3;     wGeneralComp.setLayout( generalLayout );     // Index GROUP     fillIndexGroup( wGeneralComp );     // Options GROUP     fillOptionsGroup( wGeneralComp );     fdGeneralComp = new FormData();     fdGeneralComp.left = new FormAttachment( 0, 0 );     fdGeneralComp.top = new FormAttachment( wStepname, Const.MARGIN );     fdGeneralComp.right = new FormAttachment( 100, 0 );     fdGeneralComp.bottom = new FormAttachment( 100, 0 );     wGeneralComp.setLayoutData( fdGeneralComp );     wGeneralComp.layout();     wGeneralTab.setControl( wGeneralComp );   }   private void fillIndexGroup( Composite parentTab ) {     wIndexGroup = new Group( parentTab, SWT.SHADOW_NONE );     props.setLook( wIndexGroup );     wIndexGroup.setText( BaseMessages.getString( PKG, "ElasticSearchBulkDialog.IndexGroup.Label" ) );     FormLayout indexGroupLayout = new FormLayout();     indexGroupLayout.marginWidth = 10;     indexGroupLayout.marginHeight = 10;     wIndexGroup.setLayout( indexGroupLayout );     // Index     wIndex = new LabelTextVar( transMeta, wIndexGroup, BaseMessages.getString( PKG, "ElasticSearchBulkDialog.Index"             + ".Label" ), BaseMessages.getString( PKG, "ElasticSearchBulkDialog.Index.Tooltip" ) );     wIndex.addModifyListener( lsMod );     // Type     wType =             new LabelTextVar( transMeta, wIndexGroup, BaseMessages.getString( PKG, "ElasticSearchBulkDialog.Type"                     + ".Label" ),                     BaseMessages.getString( PKG, "ElasticSearchBulkDialog.Type.Tooltip" ) );     wType.addModifyListener( lsMod );     // Test button     wTest = new Button( wIndexGroup, SWT.PUSH );     wTest.setText( BaseMessages.getString( PKG, "ElasticSearchBulkDialog.TestIndex.Label" ) );     wTest.setToolTipText( BaseMessages.getString( PKG, "ElasticSearchBulkDialog.TestIndex.Tooltip" ) );     wTest.addListener( SWT.Selection, new Listener() {       public void handleEvent( Event arg0 ) {         test( TestType.INDEX );       }     } );     Control[] connectionControls = new Control[]{wIndex, wType};     placeControls( wIndexGroup, connectionControls );     BaseStepDialog.positionBottomButtons( wIndexGroup, new Button[]{wTest}, Const.MARGIN, wType );     fdIndexGroup = new FormData();     fdIndexGroup.left = new FormAttachment( 0, Const.MARGIN );     fdIndexGroup.top = new FormAttachment( wStepname, Const.MARGIN );     fdIndexGroup.right = new FormAttachment( 100, -Const.MARGIN );     wIndexGroup.setLayoutData( fdIndexGroup );   }   private void addServersTab() {     wServersTab = new CTabItem( wTabFolder, SWT.NONE );     wServersTab.setText( BaseMessages.getString( PKG, "ElasticSearchBulkDialog.ServersTab.TabTitle" ) );     FormLayout serversLayout = new FormLayout();     serversLayout.marginWidth = Const.FORM_MARGIN;     serversLayout.marginHeight = Const.FORM_MARGIN;     Composite wServersComp = new Composite( wTabFolder, SWT.NONE );     wServersComp.setLayout( serversLayout );     props.setLook( wServersComp );     // Test button     wTestCl = new Button( wServersComp, SWT.PUSH );     wTestCl.setText( BaseMessages.getString( PKG, "ElasticSearchBulkDialog.TestCluster.Label" ) );     wTestCl.setToolTipText( BaseMessages.getString( PKG, "ElasticSearchBulkDialog.TestCluster.Tooltip" ) );     wTestCl.addListener( SWT.Selection, new Listener() {       public void handleEvent( Event arg0 ) {         test( TestType.CLUSTER );       }     } );     setButtonPositions( new Button[]{wTestCl}, Const.MARGIN, null );     ColumnInfo[] columnsMeta = new ColumnInfo[2];     columnsMeta[0] =             new ColumnInfo( BaseMessages.getString( PKG, "ElasticSearchBulkDialog.ServersTab.Address.Column" ),                     ColumnInfo.COLUMN_TYPE_TEXT, false );     columnsMeta[0].setUsingVariables( true );     columnsMeta[1] =             new ColumnInfo( BaseMessages.getString( PKG, "ElasticSearchBulkDialog.ServersTab.Port.Column" ),                     ColumnInfo.COLUMN_TYPE_TEXT, true );     wServers =             new TableView( transMeta, wServersComp, SWT.BORDER | SWT.FULL_SELECTION | SWT.MULTI, columnsMeta, 1, lsMod,                     props );     FormData fdServers = new FormData();     fdServers.left = new FormAttachment( 0, Const.MARGIN );     fdServers.top = new FormAttachment( 0, Const.MARGIN );     fdServers.right = new FormAttachment( 100, -Const.MARGIN );     fdServers.bottom = new FormAttachment( wTestCl, -Const.MARGIN );     wServers.setLayoutData( fdServers );     FormData fdServersComp = new FormData();     fdServersComp.left = new FormAttachment( 0, 0 );     fdServersComp.top = new FormAttachment( 0, 0 );     fdServersComp.right = new FormAttachment( 100, 0 );     fdServersComp.bottom = new FormAttachment( 100, 0 );     wServersComp.setLayoutData( fdServersComp );     wServersComp.layout();     wServersTab.setControl( wServersComp );   }   private void addSettingsTab() {     wSettingsTab = new CTabItem( wTabFolder, SWT.NONE );     wSettingsTab.setText( BaseMessages.getString( PKG, "ElasticSearchBulkDialog.SettingsTab.TabTitle" ) );     FormLayout serversLayout = new FormLayout();     serversLayout.marginWidth = Const.FORM_MARGIN;     serversLayout.marginHeight = Const.FORM_MARGIN;     Composite wSettingsComp = new Composite( wTabFolder, SWT.NONE );     wSettingsComp.setLayout( serversLayout );     props.setLook( wSettingsComp );     ColumnInfo[] columnsMeta = new ColumnInfo[2];     columnsMeta[0] =             new ColumnInfo( BaseMessages.getString( PKG, "ElasticSearchBulkDialog.SettingsTab.Property.Column" ),                     ColumnInfo.COLUMN_TYPE_TEXT, false );     columnsMeta[1] =             new ColumnInfo( BaseMessages.getString( PKG, "ElasticSearchBulkDialog.SettingsTab.Value.Column" ),                     ColumnInfo.COLUMN_TYPE_TEXT, false );     columnsMeta[1].setUsingVariables( true );     wSettings =             new TableView( transMeta, wSettingsComp, SWT.BORDER | SWT.FULL_SELECTION | SWT.MULTI, columnsMeta, 1, lsMod,                     props );     FormData fdServers = new FormData();     fdServers.left = new FormAttachment( 0, Const.MARGIN );     fdServers.top = new FormAttachment( 0, Const.MARGIN );     fdServers.right = new FormAttachment( 100, -Const.MARGIN );     fdServers.bottom = new FormAttachment( 100, -Const.MARGIN );     wSettings.setLayoutData( fdServers );     FormData fdServersComp = new FormData();     fdServersComp.left = new FormAttachment( 0, 0 );     fdServersComp.top = new FormAttachment( 0, 0 );     fdServersComp.right = new FormAttachment( 100, 0 );     fdServersComp.bottom = new FormAttachment( 100, 0 );     wSettingsComp.setLayoutData( fdServersComp );     wSettingsComp.layout();     wSettingsTab.setControl( wSettingsComp );   }   private void addFieldsTab() {     wFieldsTab = new CTabItem( wTabFolder, SWT.NONE );     wFieldsTab.setText( BaseMessages.getString( PKG, "ElasticSearchBulkDialog.FieldsTab.TabTitle" ) );     FormLayout fieldsLayout = new FormLayout();     fieldsLayout.marginWidth = Const.FORM_MARGIN;     fieldsLayout.marginHeight = Const.FORM_MARGIN;     Composite wFieldsComp = new Composite( wTabFolder, SWT.NONE );     wFieldsComp.setLayout( fieldsLayout );     props.setLook( wFieldsComp );     wGet = new Button( wFieldsComp, SWT.PUSH );     wGet.setText( BaseMessages.getString( PKG, "System.Button.GetFields" ) );     wGet.setToolTipText( BaseMessages.getString( PKG, "System.Tooltip.GetFields" ) );     lsGet = new Listener() {       public void handleEvent( Event e ) {         getPreviousFields( wFields );       }     };     wGet.addListener( SWT.Selection, lsGet );     setButtonPositions( new Button[]{wGet}, Const.MARGIN, null );     final int fieldsRowCount = model.getFields().size();     String[] names = this.fieldNames != null ? this.fieldNames : new String[]{""};     ColumnInfo[] columnsMeta = new ColumnInfo[2];     columnsMeta[0] =             new ColumnInfo( BaseMessages.getString( PKG, "ElasticSearchBulkDialog.NameColumn.Column" ),                     ColumnInfo.COLUMN_TYPE_CCOMBO, names, false );     columnsMeta[1] =             new ColumnInfo( BaseMessages.getString( PKG, "ElasticSearchBulkDialog.TargetNameColumn.Column" ),                     ColumnInfo.COLUMN_TYPE_TEXT, false );     wFields =             new TableView( transMeta, wFieldsComp, SWT.BORDER | SWT.FULL_SELECTION | SWT.MULTI, columnsMeta,                     fieldsRowCount,                     lsMod, props );     FormData fdFields = new FormData();     fdFields.left = new FormAttachment( 0, Const.MARGIN );     fdFields.top = new FormAttachment( 0, Const.MARGIN );     fdFields.right = new FormAttachment( 100, -Const.MARGIN );     fdFields.bottom = new FormAttachment( wGet, -Const.MARGIN );     wFields.setLayoutData( fdFields );     FormData fdFieldsComp = new FormData();     fdFieldsComp.left = new FormAttachment( 0, 0 );     fdFieldsComp.top = new FormAttachment( 0, 0 );     fdFieldsComp.right = new FormAttachment( 100, 0 );     fdFieldsComp.bottom = new FormAttachment( 100, 0 );     wFieldsComp.setLayoutData( fdFieldsComp );     wFieldsComp.layout();     wFieldsTab.setControl( wFieldsComp );   }   private void fillOptionsGroup( Composite parentTab ) {     int margin = Const.MARGIN;     wSettingsGroup = new Group( parentTab, SWT.SHADOW_NONE );     props.setLook( wSettingsGroup );     wSettingsGroup.setText( BaseMessages.getString( PKG, "ElasticSearchBulkDialog.SettingsGroup.Label" ) );     FormLayout settingGroupLayout = new FormLayout();     settingGroupLayout.marginWidth = 10;     settingGroupLayout.marginHeight = 10;     wSettingsGroup.setLayout( settingGroupLayout );     // Timeout     wTimeOut =             new LabelTimeComposite( wSettingsGroup, BaseMessages.getString( PKG, "ElasticSearchBulkDialog.TimeOut"                     + ".Label" ),                     BaseMessages.getString( PKG, "ElasticSearchBulkDialog.TimeOut.Tooltip" ) );     props.setLook( wTimeOut );     wTimeOut.addModifyListener( lsMod );     // BatchSize     wlBatchSize = new Label( wSettingsGroup, SWT.RIGHT );     wlBatchSize.setText( BaseMessages.getString( PKG, "ElasticSearchBulkDialog.BatchSize.Label" ) );     props.setLook( wlBatchSize );     wBatchSize = new TextVar( transMeta, wSettingsGroup, SWT.SINGLE | SWT.LEFT | SWT.BORDER );     props.setLook( wBatchSize );     wBatchSize.addModifyListener( lsMod );     // Stop on error     wlStopOnError = new Label( wSettingsGroup, SWT.RIGHT );     wlStopOnError.setText( BaseMessages.getString( PKG, "ElasticSearchBulkDialog.StopOnError.Label" ) );     wStopOnError = new Button( wSettingsGroup, SWT.CHECK | SWT.RIGHT );     wStopOnError.setToolTipText( BaseMessages.getString( PKG, "ElasticSearchBulkDialog.StopOnError.Tooltip" ) );     wStopOnError.addSelectionListener( new SelectionListener() {       public void widgetDefaultSelected( SelectionEvent arg0 ) {         widgetSelected( arg0 );       }       public void widgetSelected( SelectionEvent arg0 ) {         model.setChanged();       }     } );     // ID input     wIdInField =             new LabelComboVar( transMeta, wSettingsGroup, BaseMessages.getString( PKG,                     "ElasticSearchBulkDialog.IdField.Label" ), BaseMessages.getString( PKG,                     "ElasticSearchBulkDialog.IdField.Tooltip" ) );     props.setLook( wIdInField );     wIdInField.getComboWidget().setEditable( true );     wIdInField.addModifyListener( lsMod );     wIdInField.addFocusListener( new FocusListener() {       public void focusLost( org.eclipse.swt.events.FocusEvent e ) {       }       public void focusGained( org.eclipse.swt.events.FocusEvent e ) {         getPreviousFields( wIdInField );       }     } );     getPreviousFields( wIdInField );     wlIsOverwrite = new Label( wSettingsGroup, SWT.RIGHT );     wlIsOverwrite.setText( BaseMessages.getString( PKG, "ElasticSearchBulkDialog.Overwrite.Label" ) );     wIsOverwrite = new Button( wSettingsGroup, SWT.CHECK | SWT.RIGHT );     wIsOverwrite.setToolTipText( BaseMessages.getString( PKG, "ElasticSearchBulkDialog.Overwrite.Tooltip" ) );     wIsOverwrite.addSelectionListener( new SelectionListener() {       public void widgetDefaultSelected( SelectionEvent arg0 ) {         widgetSelected( arg0 );       }                  public void widgetSelected( SelectionEvent arg0 ) {         model.setChanged();       }     } );     // Output rows     wlUseOutput = new Label( wSettingsGroup, SWT.RIGHT );     wlUseOutput.setText( BaseMessages.getString( PKG, "ElasticSearchBulkDialog.UseOutput.Label" ) );     wUseOutput = new Button( wSettingsGroup, SWT.CHECK | SWT.RIGHT );     wUseOutput.setToolTipText( BaseMessages.getString( PKG, "ElasticSearchBulkDialog.UseOutput.Tooltip" ) );     wUseOutput.addSelectionListener( new SelectionListener() {       public void widgetDefaultSelected( SelectionEvent arg0 ) {         widgetSelected( arg0 );       }       public void widgetSelected( SelectionEvent arg0 ) {         wIdOutField.setEnabled( wUseOutput.getSelection() );         model.setChanged();       }     } );     // ID out field     wIdOutField =             new LabelTextVar( transMeta, wSettingsGroup, BaseMessages.getString( PKG,                     "ElasticSearchBulkDialog.IdOutField.Label" ), BaseMessages.getString( PKG,                     "ElasticSearchBulkDialog.IdOutField.Tooltip" ) );     props.setLook( wIdOutField );     wIdOutField.setEnabled( wUseOutput.getSelection() );     wIdOutField.addModifyListener( lsMod );     // use json     wlIsJson = new Label( wSettingsGroup, SWT.RIGHT );     wlIsJson.setText( BaseMessages.getString( PKG, "ElasticSearchBulkDialog.IsJson.Label" ) );     wIsJson = new Button( wSettingsGroup, SWT.CHECK | SWT.RIGHT );     wIsJson.setToolTipText( BaseMessages.getString( PKG, "ElasticSearchBulkDialog.IsJson.Tooltip" ) );     wIsJson.addSelectionListener( new SelectionListener() {                         public void widgetDefaultSelected( SelectionEvent arg0 ) {         widgetSelected( arg0 );       }       public void widgetSelected( SelectionEvent arg0 ) {         wJsonField.setEnabled( wIsJson.getSelection() );         wFields.setEnabled( !wIsJson.getSelection() );         wFields.setVisible( !wIsJson.getSelection() );         wGet.setEnabled( !wIsJson.getSelection() );         model.setChanged();       }     } );     // Json field     wJsonField =             new LabelComboVar( transMeta, wSettingsGroup, BaseMessages.getString( PKG,                     "ElasticSearchBulkDialog.JsonField.Label" ), BaseMessages.getString( PKG,                     "ElasticSearchBulkDialog.JsonField.Tooltip" ) );     wJsonField.getComboWidget().setEditable( true );     props.setLook( wJsonField );     wJsonField.addModifyListener( lsMod );     wJsonField.addFocusListener( new FocusListener() {       public void focusLost( org.eclipse.swt.events.FocusEvent e ) {       }       public void focusGained( org.eclipse.swt.events.FocusEvent e ) {         getPreviousFields( wJsonField );       }     } );     getPreviousFields( wJsonField );     wJsonField.setEnabled( wIsJson.getSelection() );     Control[] settingsControls = new Control[]{wlBatchSize, wBatchSize, wlStopOnError, wStopOnError, wTimeOut,       wIdInField, wlIsOverwrite, wIsOverwrite, wlUseOutput, wUseOutput, wIdOutField, wlIsJson, wIsJson,       wJsonField};     placeControls( wSettingsGroup, settingsControls );     fdSettingsGroup = new FormData();     fdSettingsGroup.left = new FormAttachment( 0, margin );     fdSettingsGroup.top = new FormAttachment( wIndexGroup, margin );     fdSettingsGroup.right = new FormAttachment( 100, -margin );     wSettingsGroup.setLayoutData( fdSettingsGroup );   }   private void getPreviousFields( LabelComboVar combo ) {     String value = combo.getText();     combo.removeAll();     combo.setItems( getInputFieldNames() );     if ( value != null ) {       combo.setText( value );     }   }   private String[] getInputFieldNames() {     if ( this.fieldNames == null ) {       try {         RowMetaInterface r = transMeta.getPrevStepFields( stepname );         if ( r != null ) {           fieldNames = r.getFieldNames();         }       } catch ( KettleException ke ) {         new ErrorDialog( shell, BaseMessages.getString( PKG, "ElasticSearchBulkDialog.FailedToGetFields.DialogTitle" ),                 BaseMessages.getString( PKG, "ElasticSearchBulkDialog.FailedToGetFields.DialogMessage" ), ke );         return new String[0];       }     }     return fieldNames;   }   private void getPreviousFields( TableView table ) {     try {       RowMetaInterface r = transMeta.getPrevStepFields( stepname );       if ( r != null ) {         BaseStepDialog.getFieldsFromPrevious( r, table, 1, new int[]{1, 2}, null, 0, 0, null );       }     } catch ( KettleException ke ) {       new ErrorDialog( shell, BaseMessages.getString( PKG, "System.Dialog.GetFieldsFailed.Title" ), BaseMessages               .getString( PKG, "System.Dialog.GetFieldsFailed.Message" ), ke );     }   }   private void placeControls( Group group, Control[] controls ) {     Control previousAbove = group;     Control previousLeft = group;     for ( Control control : controls ) {       if ( control instanceof Label ) {         addLabelAfter( control, previousAbove );         previousLeft = control;       } else {         addWidgetAfter( control, previousAbove, previousLeft );         previousAbove = control;         previousLeft = group;       }     }   }   private void addWidgetAfter( Control widget, Control widgetAbove, Control widgetLeft ) {     props.setLook( widget );     FormData fData = new FormData();     fData.left = new FormAttachment( widgetLeft, Const.MARGIN );     fData.top = new FormAttachment( widgetAbove, Const.MARGIN );     fData.right = new FormAttachment( 100, -Const.MARGIN );     widget.setLayoutData( fData );   }   private void addLabelAfter( Control widget, Control widgetAbove ) {     props.setLook( widget );     FormData fData = new FormData();     fData.top = new FormAttachment( widgetAbove, Const.MARGIN );     fData.right = new FormAttachment( Const.MIDDLE_PCT, -Const.MARGIN );     widget.setLayoutData( fData );   }   /**    * Read the data from the ElasticSearchBulkMeta object and show it in this dialog.    *    * @param in The ElasticSearchBulkMeta object to obtain the data from.    */   public void getData( ElasticSearchBulkMeta in ) {     wIndex.setText( Const.NVL( in.getIndex(), "" ) );     wType.setText( Const.NVL( in.getType(), "" ) );     wBatchSize.setText( Const.NVL( in.getBatchSize(), "" + ElasticSearchBulkMeta.DEFAULT_BATCH_SIZE ) );     wStopOnError.setSelection( in.isStopOnError() );     wTimeOut.setText( Const.NVL( in.getTimeOut(), "" ) );     wTimeOut.setTimeUnit( in.getTimeoutUnit() );     wIdInField.setText( Const.NVL( in.getIdInField(), "" ) );     wIsOverwrite.setSelection( in.isOverWriteIfSameId() );     wIsJson.setSelection( in.isJsonInsert() );     wJsonField.setText( Const.NVL( in.getJsonField(), "" ) );     wJsonField.setEnabled( wIsJson.getSelection() ); // listener not working here     wUseOutput.setSelection( in.isUseOutput() );     wIdOutField.setText( Const.NVL( in.getIdOutField(), "" ) );     wIdOutField.setEnabled( wUseOutput.getSelection() ); // listener not working here     // Fields     mapToTableView( model.getFieldsMap(), wFields );     // Servers     for ( ElasticSearchBulkMeta.Server server : model.getServers() ) {       wServers.add( server.address, "" + server.port );     }     wServers.removeEmptyRows();     wServers.setRowNums();     // Settings     mapToTableView( model.getSettingsMap(), wSettings );     wStepname.selectAll();     wStepname.setFocus();   }   private void mapToTableView( Map<String, String> map, TableView table ) {     for ( String key : map.keySet() ) {       table.add( key, map.get( key ) );     }     table.removeEmptyRows();     table.setRowNums();   }   private void cancel() {     stepname = null;     model.setChanged( changed );     dispose();   }   private void ok() {     try {       toModel( model );     } catch ( KettleException e ) {       new ErrorDialog( shell, BaseMessages.getString( PKG, "ElasticSearchBulkDialog.ErrorValidateData.DialogTitle" ),               BaseMessages.getString( PKG, "ElasticSearchBulkDialog.ErrorValidateData.DialogMessage" ), e );     }     dispose();   }   private void toModel( ElasticSearchBulkMeta in ) throws KettleException { // copy info to ElasticSearchBulkMeta     stepname = wStepname.getText();     in.setType( wType.getText() );     in.setIndex( wIndex.getText() );     in.setBatchSize( wBatchSize.getText() );     in.setTimeOut( Const.NVL( wTimeOut.getText(), null ) );     in.setTimeoutUnit( wTimeOut.getTimeUnit() );     in.setIdInField( wIdInField.getText() );     in.setOverWriteIfSameId( StringUtils.isNotBlank( wIdInField.getText() ) && wIsOverwrite.getSelection() );     in.setStopOnError( wStopOnError.getSelection() );     in.setJsonInsert( wIsJson.getSelection() );     in.setJsonField( wIsJson.getSelection() ? wJsonField.getText() : null );     in.setIdOutField( wIdOutField.getText() );     in.setUseOutput( wUseOutput.getSelection() );     in.clearFields();     if ( !wIsJson.getSelection() ) {       for ( int i = 0; i < wFields.getItemCount(); i++ ) {         String[] row = wFields.getItem( i );         if ( StringUtils.isNotBlank( row[0] ) ) {           in.addField( row[0], row[1] );         }       }     }     in.clearServers();     for ( int i = 0; i < wServers.getItemCount(); i++ ) {       String[] row = wServers.getItem( i );       if ( StringUtils.isNotBlank( row[0] ) ) {         try {           in.addServer( row[0], Integer.parseInt( row[1] ) );         } catch ( NumberFormatException nfe ) {           in.addServer( row[0], ElasticSearchBulkMeta.DEFAULT_PORT );         }       }     }     in.clearSettings();     for ( int i = 0; i < wSettings.getItemCount(); i++ ) {       String[] row = wSettings.getItem( i );       in.addSetting( row[0], row[1] );     }   }   private enum TestType {     INDEX, CLUSTER,   }   private void test( TestType testType ) {     try {       ElasticSearchBulkMeta tempMeta = new ElasticSearchBulkMeta();       toModel( tempMeta );        if ( !tempMeta.getServers().isEmpty() ) {       Settings.Builder settingsBuilder = Settings.builder();       settingsBuilder.put( Settings.Builder.EMPTY_SETTINGS );       tempMeta.getSettingsMap().entrySet().stream().forEach( ( s ) -> settingsBuilder.put( s.getKey(), transMeta               .environmentSubstitute( s.getValue() ) ) );       RestHighLevelClient rclient=null; //        try ( PreBuiltTransportClient client = new PreBuiltTransportClient( settingsBuilder.build() ) ) { // //        for ( Server server : tempMeta.getServers() ) { // //          client.addTransportAddress( new TransportAddress( //                  InetAddress.getByName( transMeta.environmentSubstitute( server.getAddress() ) ), //                  server.getPort() ) ); // //        }         for ( Server server : tempMeta.getServers() ) {              rclient = new RestHighLevelClient(RestClient.builder(new HttpHost(server.getAddress(), Integer.valueOf(server.getPort()), "http")));         } //        AdminClient admin = rclient.admin();         String[] index = tempMeta.getIndex().split(",");         GetIndexRequest request = new GetIndexRequest();         request.indices(index);         request.local(false);         request.humanReadable(true);         boolean exists  = rclient.indices().exists(request, RequestOptions.DEFAULT);         switch ( testType ) {           case INDEX:             if ( StringUtils.isBlank( tempMeta.getIndex() ) ) {               showError( BaseMessages.getString( PKG, "ElasticSearchBulk.Error.NoIndex" ) );               break;             }             // First check to see if the index exists //            IndicesExistsRequestBuilder indicesExistBld = admin.indices().prepareExists( tempMeta.getIndex() ); //            IndicesExistsResponse indicesExistResponse = indicesExistBld.execute().get();             if ( !exists ) {               showError( BaseMessages.getString( PKG, "ElasticSearchBulkDialog.Error.NoIndex" ) );               return;             } //            RecoveryRequestBuilder indicesBld = rclient.indices().prepareRecoveries( tempMeta.getIndex() ); //            ActionFuture<RecoveryResponse> lafInd = indicesBld.execute(); //            String shards = "" + lafInd.get().getSuccessfulShards() + "/" + lafInd.get().getTotalShards();             showMessage( BaseMessages.getString( PKG, "ElasticSearchBulkDialog.TestIndex.TestOK", "true" ) );             break;           case CLUSTER: //            ClusterStateRequestBuilder clusterBld = admin.cluster().prepareState(); //            ActionFuture<ClusterStateResponse> lafClu = clusterBld.execute(); //            ClusterStateResponse cluResp = lafClu.actionGet(); //            String name = cluResp.getClusterName().value(); //            ClusterState cluState = cluResp.getState(); //            int numNodes = cluState.getNodes().getSize(); //            showMessage( BaseMessages.getString( PKG, "ElasticSearchBulkDialog.TestCluster.TestOK", name, numNodes ) );                MainResponse response = rclient.info(RequestOptions.DEFAULT);             showMessage( BaseMessages.getString( PKG, "ElasticSearchBulkDialog.TestCluster.TestOK", response.getClusterName(), response.getVersion() ) );             break;           default:             break;         }       }else{            showError( "Servers is null" );       }     } catch ( NoNodeAvailableException | MasterNotDiscoveredException e ) {       showError( BaseMessages.getString( PKG, "ElasticSearchBulkDialog.Error.NoNodesFound" ) );     } catch ( Exception e ) {       showError( e.getLocalizedMessage() );     }   }   private void showError( String message ) {     MessageBox mb = new MessageBox( shell, SWT.OK | SWT.ICON_ERROR );     mb.setMessage( message );     mb.setText( BaseMessages.getString( PKG, "System.Dialog.Error.Title" ) );     mb.open();   }   private void showMessage( String message ) {     MessageBox mb = new MessageBox( shell, SWT.OK | SWT.ICON_INFORMATION );     mb.setMessage( message );     mb.setText( BaseMessages.getString( PKG, "ElasticSearchBulkDialog.Test.TestOKTitle" ) );     mb.open();   }   @Override   public String toString() {     return this.getClass().getName();   } }

7.进入pentaho-kettle-8.2.0.0-R目录，打开cmd命令窗口，执行mvn clean package -Dmaven.test.skip=true进行打包编译，过程中会出现错误，进入pentaho-kettle-8.2.0.0-R\plugins\elasticsearch-bulk-insert\assemblies\plugin\target目录查看是否存在名称为elasticsearch-bulk-insert-plugin-8.2.0.0-342.zip的包，如果存在则不用在乎错误。如果不存在，请根据提示进行修改，再执行命令直到出现elasticsearch-bulk-insert-plugin-8.2.0.0-342.zip包为止

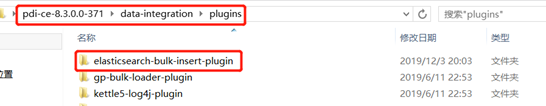

8.进入kettle工具安装目录pdi-ce-2.0.0-342\data-integration\plugins，删除elasticsearch-bulk-insert-plugin文件夹

9.elasticsearch-bulk-insert-plugin-8.2.0.0-342.zip解压，将elasticsearch-bulk-insert-plugin文件夹移动到工具安装目录pdi-ce-         8.2.0.0-342\data-integration\plugins下即可。

10.进入工具安装目录pdi-ce-8.2.0.0-342\data-integration，执行Spoon.bat。

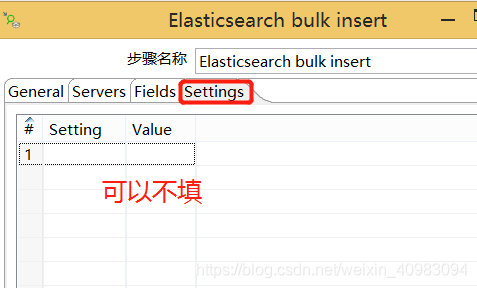

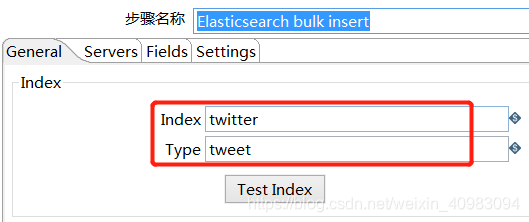

11.填写Index type Servers 等信息，

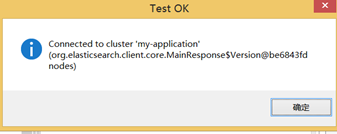

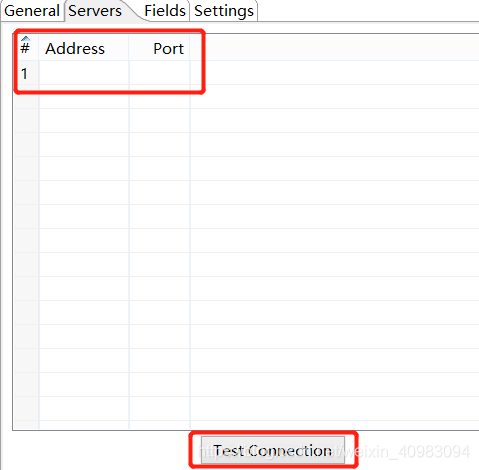

12.点击“test connection” 出现如下，kettle连接Elastic插件可以使用了。

注意：8.2.0源码编译后的es插件目前支持es7.x版本的（7.2.0&7.4.3都适用）
