一、准备工作
1.1 Vue 源码的获取
1.2 源目录结构
Vue 在开发的时候首先会按照功能把代码拆分到不同的文件夹,然后再拆分成小的模块,这样的代码结构清楚,可以提高代码的可读性和可维护性
src
├─compiler 编译相关
├─core Vue 核心库(与平台无关的代码)
│ components 定义 vue 自带的 keep-alive 组件
│ global-api 定义 vue 静态方法
│ instance 创建 vue 实例(构造函数、初始化、生命周期函数)
│ observer 响应式机制实现(本章重点)
│ util 公共成员
│ vdom 虚拟dom
├─platforms 和平台相关代码
│ web
│ weex 基于vue移动端框架
├─server SSR,服务端渲染
├─sfc 单文件组件(.vue 文件编译为 js 对象)
└─shared 公共的代码
1.3 了解 Flow
- 官网:https://flow.org/
- JavaScript 的静态类型检查器
- Flow 的静态类型检查错误是通过静态类型推断实现的
- 文件开头通过 // @flow 或者 /* @flow */ 声明
/* @flow */
function square(n: number): number {
return n * n;
}
square("2"); // Error!
- 具体的使用方式请参考博客 JavaScript 深度剖析 - 类型系统 + TypeScript
1.4 调试设置
打包工具 Rollup
- Vue.js 源码的打包工具使用的是 Rollup,比 Webpack 轻量
- Webpack 把所有文件当做模块,Rollup 只处理 js 文件更适合在 Vue.js 这样的库中使用
- Rollup 打包不会生成冗余的代码
安装依赖
npm i
设置 sourcemap(代码地图)
- package.json 文件中的 dev 脚本中添加参数 --sourcemap
"dev": "rollup -w -c scripts/config.js --sourcemap --environment TARGET:webfull-dev"
执行 dev
- 首先我们先将 dist 目录删除,以便看得更清楚
npm run dev
执行打包,用的是 rollup,-w 参数是监听文件的变化,文件变化自动重新打
包- 此时 dist 目录重新生成内容如下,新增了 vue.js 和 vue.js.map
- 至于其他版本的 js 文件我们后续可以通过调用
npm run build
得到
调试

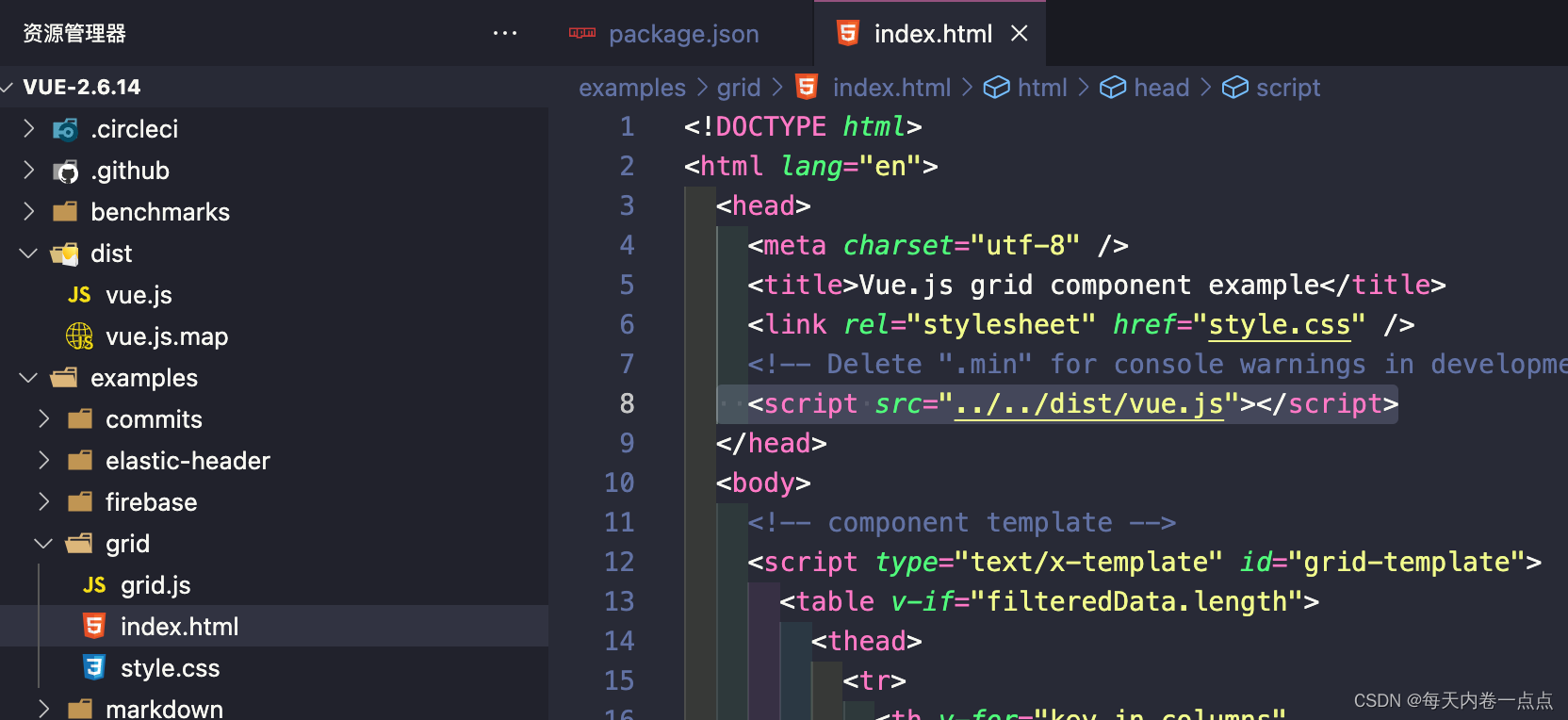

- examples 的 index.html 示例中引入的 vue.min.js 改为 vue.js

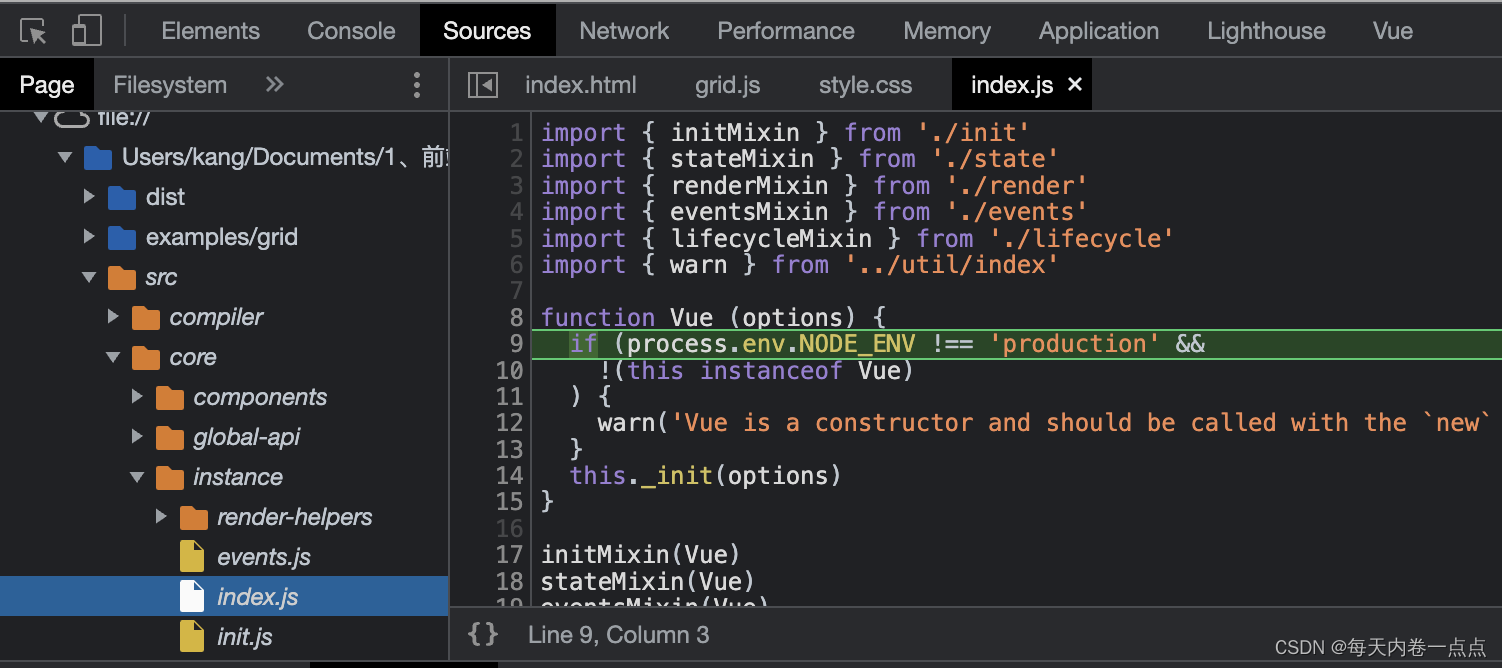

- 打开 Chrome 的调试工具中的 Source
1.5 Vue 的不同构建版本
npm run build
重新打包所有文件- 官方文档 - 对不同构建版本的解释
UMD | CommonJS | ES Module | |
---|---|---|---|
Full | vue.js | vue.common.js | vue.esm.js |
Runtime-only | vue.runtime.js | vue.runtime.common.js | vue.runtime.esm.js |
Full (production) | vue.min.js | ||
Runtime-only(production) | vue.runtime.min.js |
术语
- 完整版:同时包含编译器和运行时的版本
- 编译器:用来将模板字符串编译成为 JavaScript 渲染函数的代码,体积大、效率低
- 运行时:用来创建 Vue 实例、渲染并处理虚拟 DOM 等的代码,体积小、效率高。基本上就是除去编译器的代码
- UMD:UMD 版本通用的模块版本,支持多种模块方式。 vue.js 默认文件就是运行时 + 编译器的 UMD 版本
- CommonJS(cjs):CommonJS 版本用来配合老的打包工具比如 Browserify 或 webpack 1
- ES Module:从 2.6 开始 Vue 会提供两个 ES Modules (ESM) 构建文件,为现代打包工具提供的版本
- ESM 格式被设计为可以被静态分析,所以打包工具可以利用这一点来进行“tree-shaking”并将用不到的代码排除出最终的包
- ES6 模块与 CommonJS 模块的差异
Runtime + Compiler(完整版) vs Runtime-only(运行时版本)
// 完整版
<script src="../../dist/vue.js"></script>
// Compiler
// 需要编译器,把 template 转换成 render 函数
const vm = new Vue({
el: '#app',
template: '<h1>{{ msg }}</h1>',
data: {
msg: 'Hello Vue'
}
})
// 运行时版本(效率更高,少了3000多行的编译代码,推荐使用)
<script src="../../dist/vue.runtime.js"></script>
// Runtime
// 不需要编译器
const vm = new Vue({
el: '#app',
// template: '<h1>{{ msg }}</h1>',报错
render (h) {
return h('h1', this.msg)
},
data: {
msg: 'Hello Vue'
}
})
- 基于 Vue-CLI 创建的项目默认使用的是 vue.runtime.esm.js(运行时版本)
// src/main.js
import Vue from 'vue'
- 可以通过查看 webpack 的配置文件查看使用版本(终端输入)
vue inspect > output.js
// output.js
resolve: {
alias: {
...
vue$: 'vue/dist/vue.runtime.esm.js'
}
}
- 注意:
*.vue
文件中的模板是在构建时预编译的,最终打包后的结果不需要编译器,只需要运行时版本即可
1.6 寻找入口文件
- 查看 dist/vue.js 的构建过程
执行构建
npm run dev
# "dev": "rollup -w -c scripts/config.js --sourcemap --environment TARGET:web-full-dev"
# --environment TARGET:web-full-dev 设置环境变量 TARGET
- script/config.js 的执行过程
- 作用:生成 rollup 构建的配置文件
- 使用环境变量 TARGET = web-full-dev
// 判断环境变量是否有 TARGET
// 如果有的话 使用 genConfig() 生成 rollup 配置文件
if (process.env.TARGET) {
module.exports = genConfig(process.env.TARGET)
} else {
// 否则获取全部配置
exports.getBuild = genConfig
exports.getAllBuilds = () => Object.keys(builds).map(genConfig)
}
- genConfig(name)
- 根据环境变量 TARGET 获取配置信息
- builds[name] 获取生成配置的信息
const builds = {
...
// Runtime+compiler development build (Browser)
'web-full-dev': {
// 入口
entry: resolve('web/entry-runtime-with-compiler.js'),
// 出口
dest: resolve('dist/vue.js'),
// 模块化方式
format: 'umd',
// 打包方式(开发或生产模式)
env: 'development',
// 别名
alias: { he: './entity-decoder' },
// 文件头
banner
},
}
- resolve()
- 获取入口和出口文件的绝对路径
const aliases = require('./alias')
const resolve = p => {
// 根据路径中的前半部分去 alias 中找别名
const base = p.split('/')[0]
if (aliases[base]) {
return path.resolve(aliases[base], p.slice(base.length + 1))
} else {
return path.resolve(__dirname, '../', p)
}
}
// scripts/alias
const path = require('path')
// 转换为绝对路径
const resolve = p => path.resolve(__dirname, '../', p)
module.exports = {
...
web: resolve('src/platforms/web'),
}
- 结果
- 把 src/platforms/web/entry-runtime-with-compiler.js 构建成 dist/vue.js,如果设置 --sourcemap 会生成 vue.js.map
- src/platform 文件夹下是 Vue 可以构建成不同平台下使用的库,目前有 weex 和 web,还有服务器端渲染的库
1.7 从入口开始
通过查看源码解决下面问题
- 观察以下代码,通过阅读源码,回答在页面上输出的结果
const vm = new Vue({
el: '#app',
template: '<h3>Hello Template</h3>',
render(h) {
return h('h4', 'Hello Render')
}
})
- 阅读源码记录
- src/platform/web/entry-runtime-with-compiler.js
- el 不能是 body 或者 html 标签
- 如果没有 render,把 template 转换成 render 函数
- 如果有 render 方法,直接调用 mount 挂载 DOM
- 如果 new Vue 同时设置了 template 和 render() ,此时只会执行 render()
// 保留 Vue 实例的 $mount 方法
const mount = Vue.prototype.$mount
Vue.prototype.$mount = function (
el?: string | Element,
// 非ssr情况下为 false,ssr 时候为true
hydrating?: boolean
): Component {
// 获取 el 对象
el = el && query(el)
/* istanbul ignore if */
// el 不能是 body 或者 html
if (el === document.body || el === document.documentElement) {
// 判断是否是生产环境
process.env.NODE_ENV !== 'production' && warn(
`Do not mount Vue to <html> or <body> - mount to normal elements instead.`
)
return this
}
const options = this.$options
// resolve template/el and convert to render function
// 判断是否有 render 函数
// 把 template/el 转换成 render 函数
if (!options.render) {
...
}
// 调用 mount 方法,渲染 DOM
return mount.call(this, el, hydrating)
}
- 调试代码
- 调试的方法
const vm = new Vue({
el: '#app',
template: '<h3>Hello Template</h3>',
render(h) {
return h('h4', 'Hello Render')
}
})
二、Vue 初始化的过程
2.1 Vue 的构造函数在哪里
- src/platform/web/entry-runtime-with-compiler.js 中引用了 ‘./runtime/index’
- src/platform/web/runtime/index.js
- 设置 Vue.config
- 设置平台相关的指令和组件
- 指令 v-model、v-show
- 组件 transition、transition-group
- 设置平台相关的
__patch__
方法(打补丁方法,对比新旧的 VNode) - 设置 $mount 方法,挂载 DOM
import config from 'core/config'
...
// install platform runtime directives & components
// 设置平台相关的指令和组件(运行时)
// extend() 将第二个参数对象成员 拷贝到 第一个参数对象中去
// 指令 v-model、v-show
extend(Vue.options.directives, platformDirectives)
// 组件 transition、transition-group
extend(Vue.options.components, platformComponents)
// install platform patch function
// 设置平台相关的 __patch__ 方法 (虚拟DOM 转换成 真实DOM)
// 判断是否是浏览器环境(是 - 直接返回, 非 - 空函数 noop
Vue.prototype.__patch__ = inBrowser ? patch : noop
// public mount method
// 设置 $mount 方法,挂载 DOM
Vue.prototype.$mount = function (
el?: string | Element,
hydrating?: boolean
): Component {
el = el && inBrowser ? query(el) : undefined
return mountComponent(this, el, hydrating)
}
- src/platform/web/runtime/index.js 中引用了 ‘core/index’
- src/core/index.js
- 定义了 Vue 的静态方法
- initGlobalAPI(Vue)
- src/core/index.js 中引用了 ‘./instance/index’
- src/core/instance/index.js
- 定义了 Vue 的构造函数
// 此处不用 class 的原因是因为方便后续给 Vue 实例混入实例成员
function Vue (options) {
if (process.env.NODE_ENV !== 'production' &&
!(this instanceof Vue)
) {
warn('Vue is a constructor and should be called with the `new` keyword')
}
// 调用 _init() 方法
this._init(options)
}
// 注册 vm 的 _init() 方法,初始化 vm
initMixin(Vue)
// 注册 vm 的 $data/$props/$set/$delete/$watch
stateMixin(Vue)
// 初始化事件相关方法
// $on/$once/$off/$emit
eventsMixin(Vue)
// 初始化生命周期相关的混入方法
// _update/$forceUpdate/$destroy
lifecycleMixin(Vue)
// 混入 render
// $nextTick/_render
renderMixin(Vue)
export default Vue
2.2 四个导出 Vue 的模块
- src/platforms/web/entry-runtime-with-compiler.js
- web 平台相关的入口
- 重写了平台相关的 $mount() 方法
- 注册了 Vue.compile() 方法,传递一个 HTML 字符串返回 render 函数
- src/platforms/web/runtime/index.js
- web 平台相关
- 注册和平台相关的全局指令:v-model、v-show
- 注册和平台相关的全局组件: v-transition、v-transition-group
- 全局方法
__patch__
:把虚拟 DOM 转换成真实 DOM- $mount:挂载方法
- src/core/index.js
- 与平台无关
- 设置了 Vue 的静态方法,initGlobalAPI(Vue)
- src/core/instance/index.js
- 与平台无关
- 定义了构造函数,调用了 this._init(options) 方法
- 给 Vue 中混入了常用的实例成员
2.3 静态成员初始化
src/core/global-api/index.js
- 初始化 Vue 的静态方法
- 可参考 Vue 文档全局 API
export function initGlobalAPI (Vue: GlobalAPI) {
...
// 初始化 Vue.config 对象
Object.defineProperty(Vue, 'config', configDef)
// exposed util methods.
// NOTE: these are not considered part of the public API - avoid relying on
// them unless you are aware of the risk.
// 这些工具方法不视作全局API的一部分,除非你已经意识到某些风险,否则不要去依赖他们
Vue.util = {
warn,
extend,
mergeOptions,
defineReactive
}
// 静态方法 set/delete/nextTick
Vue.set = set
Vue.delete = del
Vue.nextTick = nextTick
// 2.6 explicit observable API
// 让一个对象可响应
Vue.observable = <T>(obj: T): T => {
observe(obj)
return obj
}
// 初始化 Vue.options 对象,并给其扩展
// components/directives/filters
Vue.options = Object.create(null)
ASSET_TYPES.forEach(type => {
Vue.options[type + 's'] = Object.create(null)
})
// this is used to identify the "base" constructor to extend all plain-object
// components with in Weex's multi-instance scenarios.
// 这是用来标识 "base "构造函数,在Weex的多实例方案中,用它来扩展所有普通对象组件
Vue.options._base = Vue
// 设置 keep-alive 组件
extend(Vue.options.components, builtInComponents)
// 注册 Vue.use() 用来注册插件
initUse(Vue)
// 注册 Vue.mixin() 实现混入
initMixin(Vue)
// 注册 Vue.extend() 基于传入的options返回一个组件的构造函数
initExtend(Vue)
// 注册 Vue.directive()、Vue.component()、Vue.filter()
initAssetRegisters(Vue)
}
2.4 实例成员初始化
src/core/instance/index.js
- 定义 Vue 的构造函数
- 初始化 Vue 的实例成员
- 可参考 Vue 实例文档
// 此处不用 class 的原因是因为方便后续给 Vue 实例混入实例成员
function Vue (options) {
if (process.env.NODE_ENV !== 'production' &&
!(this instanceof Vue)
) {
warn('Vue is a constructor and should be called with the `new` keyword')
}
// 调用 _init() 方法
this._init(options)
}
// 注册 vm 的 _init() 方法,初始化 vm
initMixin(Vue)
// 注册 vm 的 $data/$props/$set/$delete/$watch
stateMixin(Vue)
// 初始化事件相关方法
// $on/$once/$off/$emit
eventsMixin(Vue)
// 初始化生命周期相关的混入方法
// _update/$forceUpdate/$destroy
lifecycleMixin(Vue)
// 混入 render
// $nextTick/_render
renderMixin(Vue)
- initMixin(Vue):初始化 _init() 方法
export function initMixin (Vue: Class<Component>) {
// 给 Vue 实例增加 _init() 方法
// 合并 options / 初始化操作
Vue.prototype._init = function (options?: Object) {
const vm: Component = this
// a uid
vm._uid = uid++
let startTag, endTag
/* istanbul ignore if */
if (process.env.NODE_ENV !== 'production' && config.performance && mark) {
startTag = `vue-perf-start:${vm._uid}`
endTag = `vue-perf-end:${vm._uid}`
mark(startTag)
}
// a flag to avoid this being observed
// 如果是 Vue 实例不需要被 observe
vm._isVue = true
// merge options
// 合并 options
if (options && options._isComponent) {
// optimize internal component instantiation
// since dynamic options merging is pretty slow, and none of the
// internal component options needs special treatment.
// 优化内部组件实例化,因为动态选项合并非常慢,而且内部组件选项都不需要特殊处理。
initInternalComponent(vm, options)
} else {
vm.$options = mergeOptions(
resolveConstructorOptions(vm.constructor),
options || {},
vm
)
}
/* istanbul ignore else */
if (process.env.NODE_ENV !== 'production') {
initProxy(vm)
} else {
vm._renderProxy = vm
}
// expose real self
vm._self = vm
// vm 的生命周期相关变量初始化
// $children/$parent/$root/$refs
initLifecycle(vm)
// vm 的事件监听初始化, 父组件绑定在当前组件上的事件
initEvents(vm)
// vm 的编译render初始化
// $slots/$scopedSlots/_c/$createElement/$attrs/$listeners
initRender(vm)
// beforeCreate 生命钩子的回调
callHook(vm, 'beforeCreate')
// 把 inject 的成员注入到 vm 上
initInjections(vm) // resolve injections before data/props
// 初始化 vm 的 _props/methods/_data/computed/watch
initState(vm)
// 初始化 provide
initProvide(vm) // resolve provide after data/props
// created 生命钩子的回调
callHook(vm, 'created')
/* istanbul ignore if */
if (process.env.NODE_ENV !== 'production' && config.performance && mark) {
vm._name = formatComponentName(vm, false)
mark(endTag)
measure(`vue ${vm._name} init`, startTag, endTag)
}
// 调用 $mount() 挂载
if (vm.$options.el) {
vm.$mount(vm.$options.el)
}
}
}
- initState(vm)
export function initState (vm: Component) {
vm._watchers = []
const opts = vm.$options
// 将props成员转换成响应式数据,并注入到vue实例
if (opts.props) initProps(vm, opts.props)
// 初始化选项中的方法(methods)
if (opts.methods) initMethods(vm, opts.methods)
// 数据的初始化
if (opts.data) {
// 把data中的成员注入到Vue实例 并转换为响应式对象
initData(vm)
} else {
// observe数据的响应式处理
observe(vm._data = {}, true /* asRootData */)
}
if (opts.computed) initComputed(vm, opts.computed)
if (opts.watch && opts.watch !== nativeWatch) {
initWatch(vm, opts.watch)
}
}
三、首次渲染
- Vue 初始化完毕,开始真正的执行
- 调用 new Vue() 之前,已经初始化完毕
四、数据响应式原理
4.1 响应式处理的入口
- src\core\instance\init.js
initState(vm)
vm 状态的初始化- 初始化了 _data、_props、methods 等
- src\core\instance\state.js
export function initState (vm: Component) {
...
// 数据的初始化
if (opts.data) {
// 把 data 中的成员注入到 Vue 实例,并转换为响应式对象
initData(vm)
} else {
// observe 数据的响应式处理,响应式处理入口,如果 data 没有传入,则转换成空对象
observe(vm._data = {}, true /* asRootData */)
}
...
}
initData(vm)
vm 数据的初始化
function initData (vm: Component) {
let data = vm.$options.data
// 初始化 _data,组件中 data 是函数,调用函数返回结果
// 否则直接返回 data
data = vm._data = typeof data === 'function'
? getData(data, vm)
: data || {}
...
// proxy data on instance
// 获取 data 中的所有属性
const keys = Object.keys(data)
// 获取 props / methods
const props = vm.$options.props
const methods = vm.$options.methods
let i = keys.length
// 判断 data 上的成员是否和 props/methods 重名
...
// observe data
// 数据的响应式处理
observe(data, true /* asRootData */)
}
- src\core\observer\index.js
- observe(value, asRootData)
- 负责为每一个 Object 类型的 value 创建一个 observer 实例
/**
* Attempt to create an observer instance for a value,
* returns the new observer if successfully observed,
* or the existing observer if the value already has one.
*/
// 试图为一个 value 创建一个 observer,
// 如果创建成功,则返回新的 observer,
// 或返回已存在的 observer
export function observe (value: any, asRootData: ?boolean): Observer | void {
// 判断 value 是否是对象 是否是 VNode虚拟DOM 的实例
// 如果不是对象/是VNode实例:不需要做响应式处理 直接返回
if (!isObject(value) || value instanceof VNode) {
return
}
let ob: Observer | void
// 如果 value 有 __ob__(observer对象) 属性
// 判断 value.__ob__ 属性是否是 observer 的实例
if (hasOwn(value, '__ob__') && value.__ob__ instanceof Observer) {
// 赋值 最终返回
ob = value.__ob__
} else if (
shouldObserve &&
!isServerRendering() &&
(Array.isArray(value) || isPlainObject(value)) &&
Object.isExtensible(value) &&
!value._isVue
) {
// 创建一个 Observer 对象
ob = new Observer(value)
}
// 处理为根的数据
if (asRootData && ob) {
ob.vmCount++
}
return ob
}
4.2 Observer
- src\core\observer\index.js
- 对对象做响应化处理
- 对数组做响应化处理
/**
- Observer class that is attached to each observed
- object. Once attached, the observer converts the target
- object's property keys into getter/setters that
- collect dependencies and dispatch updates.
*/
// Observer 类附加到每个被观察的对象上
// 一旦被附加,Observer 就会将目标对象的属性键转换为 getter/setter,
// 用来收集依赖关系并派发更新(发送通知)
export class Observer {
// 观测对象
value: any;
// 依赖对象
dep: Dep;
// 实例计数器
vmCount: number; // number of vms that have this object as root $data
constructor (value: any) {
this.value = value
this.dep = new Dep()
// 初始化实例的 vmCount 为0
this.vmCount = 0
// def 调用 defineProperty 默认不可枚举
// 将实例挂载到观察对象的 __ob__ 属性
def(value, '__ob__', this)
// 数组的响应式处理
if (Array.isArray(value)) {
if (hasProto) {
protoAugment(value, arrayMethods)
} else {
copyAugment(value, arrayMethods, arrayKeys)
}
// 为数组中的每一个对象创建一个 observer 实例
this.observeArray(value)
} else {
// 遍历对象中的每一个属性,转换成 setter/getter
this.walk(value)
}
}
/**
- Walk through all properties and convert them into
- getter/setters. This method should only be called when
- value type is Object.
*/
// 遍历所有属性,并将它们转换为getter/setter
// 只有当值类型为Object时,才应调用此方法
walk (obj: Object) {
// 获取观察对象的每一个属性
const keys = Object.keys(obj)
// 遍历每一个属性,设置为响应式数据
for (let i = 0; i < keys.length; i++) {
defineReactive(obj, keys[i])
}
}
/**
- Observe a list of Array items.
*/
observeArray (items: Array<any>) {
for (let i = 0, l = items.length; i < l; i++) {
observe(items[i])
}
}
}
- walk(obj)
- 遍历 obj 的所有属性,为每一个属性调用 defineReactive() 方法,设置 getter/setter
4.3 defineReactive()
- src\core\observer\index.js
- defineReactive(obj, key, val, customSetter, shallow)
- 为一个对象定义一个响应式的属性,每一个属性对应一个 dep 对象
- 如果该属性的值是对象,继续调用 observe
- 如果给属性赋新值,继续调用 observe
- 如果数据更新发送通知
对象响应式处理
/**
* Define a reactive property on an Object.
*/
// 为一个对象定义一个响应式的属性
export function defineReactive (
obj: Object,
key: string,
val: any,
customSetter?: ?Function,
shallow?: boolean
) {
// 创建依赖对象实例
const dep = new Dep()
// 获取 obj 的属性描述符对象
const property = Object.getOwnPropertyDescriptor(obj, key)
// 通过 configurable 指定当前属性是否为可配置的
// 如果为不可配置 意味不可删除/重新定义 直接返回
if (property && property.configurable === false) {
return
}
// 提供预定义的存取器函数
// cater for pre-defined getter/setters
const getter = property && property.get
const setter = property && property.set
// 参数为两个,获取 value
if ((!getter || setter) && arguments.length === 2) {
val = obj[key]
}
// 判断是否递归观察子对象,并将子对象属性都转换成 getter/setter,返回子观察对象
let childOb = !shallow && observe(val)
Object.defineProperty(obj, key, {
enumerable: true,
configurable: true,
get: function reactiveGetter () {
// 如果预定义的 getter 存在则 value 等于getter 调用的返回值
// 否则直接赋予属性值
const value = getter ? getter.call(obj) : val
// 如果存在当前依赖目标,即 watcher 对象,则建立依赖
if (Dep.target) {
// 如果子观察目标存在,建立在对象依赖关系
dep.depend()
if (childOb) {
childOb.dep.depend()
// 如果属性是数组,则特殊处理收集数组对象依赖
if (Array.isArray(value)) {
dependArray(value)
}
}
}
// 返回属性值
return value
},
set: function reactiveSetter (newVal) {
// 如果预定义的 getter 存在则 value 等于getter 调用的返回值
// 否则直接赋予属性值
const value = getter ? getter.call(obj) : val
// 如果新值等于旧值或者新值旧值为NaN则不执行
/* eslint-disable no-self-compare */
if (newVal === value || (newVal !== newVal && value !== value)) {
return
}
/* eslint-enable no-self-compare */
if (process.env.NODE_ENV !== 'production' && customSetter) {
customSetter()
}
// 如果没有 setter 直接返回
// #7981: for accessor properties without setter
if (getter && !setter) return
// 如果预定义setter存在则调用,否则直接更新新值
if (setter) {
setter.call(obj, newVal)
} else {
val = newVal
}
// 如果新值是对象,观察子对象并返回 子的 observer 对象
childOb = !shallow && observe(newVal)
// 派发更新(发布更改通知)
dep.notify()
}
})
}
数组的响应式处理
- Observer 的构造函数中
// 获取 arrayMethods 特有的成员 返回的是包含名字的数组
const arrayKeys = Object.getOwnPropertyNames(arrayMethods)
export class Observer {
...
constructor (value: any) {
...
// 数组的响应式处理
if (Array.isArray(value)) {
// 判断当前浏览器是否支持对象的原型属性
if (hasProto) {
protoAugment(value, arrayMethods)
} else {
copyAugment(value, arrayMethods, arrayKeys)
}
// 为数组中的每一个对象创建一个 observer 实例
this.observeArray(value)
} else {
// 遍历对象中每一个属性,转换成 setter / getter
this.walk(value)
}
}
/**
* Augment a target Object or Array by intercepting
* the prototype chain using __proto__
*/
// 通过使用__proto__拦截原型链来增强目标对象或数组
function protoAugment (target, src: Object) {
/* eslint-disable no-proto */
target.__proto__ = src
/* eslint-enable no-proto */
}
/**
* Augment a target Object or Array by defining
* hidden properties.
*/
// 通过定义隐藏属性来增强目标对象或数组
/* istanbul ignore next */
function copyAugment (target: Object, src: Object, keys: Array<string>) {
for (let i = 0, l = keys.length; i < l; i++) {
const key = keys[i]
def(target, key, src[key])
}
}
}
- 处理数组修改数据的方法
- vue 通过重写数组的某些方法来监听数组变化,重写后的方法中会手动触发通知该数组的所有依赖进行更新
- src\core\observer\array.js
const arrayProto = Array.prototype
// 使用数组的原型创建一个新的对象
export const arrayMethods = Object.create(arrayProto)
// 修改数组元素的方法
const methodsToPatch = [
'push',
'pop',
'shift',
'unshift',
'splice',
'sort',
'reverse'
]
/**
* Intercept mutating methods and emit events
*/
// 拦截突变方法,并发出事件
methodsToPatch.forEach(function (method) {
// cache original method
// 保存数组原方法
const original = arrayProto[method]
// 调用 Object.defineProperty() 重新定义修改数组的方法
def(arrayMethods, method, function mutator (...args) {
// 执行数组的原始方法
const result = original.apply(this, args)
// 获取数组对象的 ob 对象
const ob = this.__ob__
// 存储数组新增的元素
let inserted
switch (method) {
case 'push':
case 'unshift':
inserted = args
break
case 'splice':
inserted = args.slice(2)
break
}
// 对插入的新元素,重新遍历数组元素设置为响应式数据
if (inserted) ob.observeArray(inserted)
// notify change
// 调用了修改数组的方法,调用数组的ob对象发送通知
ob.dep.notify()
return result
})
})
4.4 Dep 类
- 在 defineReactive() 的 getter 中创建 dep 对象,并判断 Dep.target 是否有值,如果有, 调用 dep.depend()
- dep.depend() 内部调用 Dep.target.addDep(this),也就是 watcher 的 addDep() 方法,它内部最调用 dep.addSub(this),把 watcher 对象,添加到 dep.subs.push(watcher) 中,也就是把订阅者添加到 dep 的 subs 数组中,当数据变化的时候调用 watcher 对象的 update() 方法
- 什么时候设置的 Dep.target? 通过首次渲染的案例调试观察。调用 mountComponent() 方法的时候,创建了渲染 watcher 对象,执行 watcher 中的 get() 方法
- get() 方法内部调用 pushTarget(this),把当前 Dep.target = watcher,同时把当前 watcher 入栈,因为有父子组件嵌套的时候先把父组件对应的 watcher 入栈,再去处理子组件的 watcher,子组件的处理完毕后,再把父组件对应的 watcher 出栈,继续操作
- Dep.target 用来存放目前正在使用的watcher。全局唯一,并且一次也只能有一个 watcher 被使用
export function defineReactive (...) {
// 创建依赖对象实例 收集每一个属性的依赖
const dep = new Dep()
...
// 判断是否递归观察子对象,并将子对象属性都转换成 getter/setter,返回子观察对象
let childOb = !shallow && observe(val)
Object.defineProperty(obj, key, {
...
get: function reactiveGetter () {
...
// 如果存在当前依赖目标,即 watcher 对象,则建立依赖
if (Dep.target) {
dep.depend()
// 如果子观察目标存在,建立子对象的依赖关系
if (childOb) {
// 为当前子对象收集依赖
childOb.dep.depend()
// 如果属性是数组,则特殊处理收集数组对象依赖
if (Array.isArray(value)) {
dependArray(value)
}
}
}
// 返回属性值
return value
},
set: function reactiveSetter (newVal) {
...
// 派发更新(发布更改通知)
dep.notify()
}
})
}
- src\core\observer\dep.js
- 依赖对象
- 记录 watcher 对象
- depend() – watcher 记录对应的 dep
- 发布通知
let uid = 0
// dep 是个可观察对象,可以有多个指令订阅它
/**
* A dep is an observable that can have multiple
* directives subscribing to it.
*/
export default class Dep {
// 静态属性,watcher 对象
static target: ?Watcher;
// dep 实例 Id
id: number;
// dep 实例对应的 watcher 对象/订阅者数组
subs: Array<Watcher>;
constructor () {
this.id = uid++
this.subs = []
}
// 添加新的订阅者 watcher 对象
addSub (sub: Watcher) {
this.subs.push(sub)
}
// 移除订阅者
removeSub (sub: Watcher) {
remove(this.subs, sub)
}
// 将观察对象和 watcher 建立依赖
depend () {
if (Dep.target) {
// 如果 target 存在,把 dep 对象添加到 watcher 的依赖中
Dep.target.addDep(this)
}
}
// 发布通知
notify () {
// stabilize the subscriber list first
const subs = this.subs.slice()
if (process.env.NODE_ENV !== 'production' && !config.async) {
// subs aren't sorted in scheduler if not running async
// we need to sort them now to make sure they fire in correct
// order
subs.sort((a, b) => a.id - b.id)
}
// 调用每个订阅者的update方法实现更新
for (let i = 0, l = subs.length; i < l; i++) {
subs[i].update()
}
}
}
// Dep.target 用来存放目前正在使用的watcher
// 全局唯一,并且一次也只能有一个watcher被使用
// The current target watcher being evaluated.
// This is globally unique because only one watcher
// can be evaluated at a time.
Dep.target = null
const targetStack = []
// 入栈并将当前 watcher 赋值给 Dep.target
// 父子组件嵌套的时候先把父组件对应的 watcher 入栈,
// 再去处理子组件的 watcher,子组件的处理完毕后,再把父组件对应的 watcher 出栈,继续操作
export function pushTarget (target: ?Watcher) {
targetStack.push(target)
Dep.target = target
}
export function popTarget () {
// 出栈操作
targetStack.pop()
Dep.target = targetStack[targetStack.length - 1]
}
4.5 vm.$set
功能
- 官方文档
- 向响应式对象中添加一个属性,并确保这个新属性同样是响应式的,且触发视图更新。它必须用于向响应式对象上添加新属性,因为 Vue 无法探测普通的新增属性 (比如this.myObject.newProperty = ‘hi’)
- 注意:对象不能是 Vue 实例,或者 Vue 实例的根数据对象
vm.$set(vm, 'abc', 'z') // 提示警告
vm.$set(vm.$data, 'abc', 'z') // 提示警告
示例
// 参数:要给哪个对象增加成员、增加属性的名称、属性值
vm.$set(obj, 'foo', 'test')
// 更新数组
vm.$set(vm.arr, 0, 100)
定义位置
- Vue.set()
- src/core/global-api/index.js
// 静态方法 set/delete/nextTick
Vue.set = set
Vue.delete = del
Vue.nextTick = nextTick
- vm.$set()
- src/core/instance/index.js
// instance/index.js
// 注册 vm 的 $data/$props/$set/$delete/$watch
stateMixin(Vue)
// instance/state.js
Vue.prototype.$set = set
Vue.prototype.$delete = del
源码
- set() 方法
- observer/index.js
/**
* Set a property on an object. Adds the new property and
* triggers change notification if the property doesn't
* already exist.
*/
// 设置对象的属性。添加新的属性,如果该属性不存在,则触发更改通知
export function set (target: Array<any> | Object, key: any, val: any): any {
if (process.env.NODE_ENV !== 'production' &&
(isUndef(target) || isPrimitive(target))
) {
warn(`Cannot set reactive property on undefined, null, or primitive value: ${(target: any)}`)
}
// 判断 target 是否是数组,key 是否是合法的索引
if (Array.isArray(target) && isValidArrayIndex(key)) {
// 判断当前key和数组length的最大值给length
// 当我们调用$set传递的索引有可能超过数组的length属性
target.length = Math.max(target.length, key)
// 通过 splice 对key位置的元素进行替换
// splice 在 array.js 进行了响应化的处理
target.splice(key, 1, val)
return val
}
// 如果 key 在对象中已经存在且不是原型成员 直接赋值
if (key in target && !(key in Object.prototype)) {
target[key] = val
return val
}
// 获取 target 中的 observer 对象
const ob = (target: any).__ob__
// 如果 target 是 vue 实例或者 $data 直接返回
if (target._isVue || (ob && ob.vmCount)) {
process.env.NODE_ENV !== 'production' && warn(
'Avoid adding reactive properties to a Vue instance or its root $data ' +
'at runtime - declare it upfront in the data option.'
)
return val
}
// 如果 ob 不存在,target 不是响应式对象直接赋值
if (!ob) {
target[key] = val
return val
}
// 如果 ob 存在,把 key 设置为响应式属性
defineReactive(ob.value, key, val)
// 发送通知
ob.dep.notify()
return val
}
4.6 vm.$delet
功能
- 官方文档
- 删除对象的属性。如果对象是响应式的,确保删除能触发更新视图。这个方法主要用于避开 Vue 不能检测到属性被删除的限制,但是你应该很少会使用它
- 注意:目标对象不能是一个 Vue 实例或 Vue 实例的根数据对象
示例
vm.$delete(vm.obj, 'msg')
vm.$delete(vm.arr, 0)
定义位置
- Vue.delete()
- global-api/index.js
// 静态方法 set/delete/nextTick
Vue.set = set
Vue.delete = del
Vue.nextTick = nextTick
- vm.$delete()
- src/core/instance/index.js
// instance/index.js
// 注册 vm 的 $data/$props/$set/$delete/$watch
stateMixin(Vue)
// instance/state.js
Vue.prototype.$set = set
Vue.prototype.$delete = del
源码
- delete() 方法
- src/core/observer/index.js
/**
- Delete a property and trigger change if necessary.
*/
// 删除一个属性并在必要时触发更改
export function del (target: Array<any> | Object, key: any) {
if (process.env.NODE_ENV !== 'production' &&
(isUndef(target) || isPrimitive(target))
) {
warn(`Cannot delete reactive property on undefined, null, or primitive value: ${(target: any)}`)
}
// 判断是否是数组,以及 key 是否合法
if (Array.isArray(target) && isValidArrayIndex(key)) {
// 如果是数组通过 splice 删除
// splice 做过响应式处理
target.splice(key, 1)
return
}
// 获取 target 的 ob 对象
const ob = (target: any).__ob__
// target 如果是 Vue 实例或者 $data 对象,直接返回
if (target._isVue || (ob && ob.vmCount)) {
process.env.NODE_ENV !== 'production' && warn(
'Avoid deleting properties on a Vue instance or its root $data ' +
'- just set it to null.'
)
return
}
// 如果 target 对象没有 key 属性直接返回
if (!hasOwn(target, key)) {
return
}
// 删除属性
delete target[key]
// 判断是否是响应式的
if (!ob) {
return
}
// 通过 ob 发送通知
ob.dep.notify()
}
4.7 vm.$watch
- 官方文档
- vm.$watch( expOrFn, callback, [options] )
功能
- 观察 Vue 实例变化的一个表达式或计算属性函数。回调函数得到的参数为新值和旧值。表达式只接受监督的键路径。对于更复杂的表达式,用一个函数取代
参数
- expOrFn:要监视的 $data 中的属性,可以是表达式或函数
- callback:数据变化后执行的函数
- 函数:回调函数
- 对象:具有 handler 属性(字符串或者函数),如果该属性为字符串则 methods 中相应的定义
- options:可选的选项
- deep:布尔类型,深度监听
- immediate:布尔类型,是否立即执行一次回调函数
示例
const vm = new Vue({
el: '#app',
data: {
a: '1',
b: '2',
msg: 'Hello vue',
user: {
firstName: '诸葛',
lastName: '亮'
}
}
})
// expOrFn 是表达式
vm.$watch('msg', function (newVal, oldVal) {
onsole.log(newVal, oldVal)
})
vm.$watch('user.firstName', function (newVal, oldVal) {
console.log(newVal)
})
// expOrFn 是函数
vm.$watch(function () {
return this.a + this.b
}, function (newVal, oldVal) {
console.log(newVal)
})
// deep 是 true,消耗性能
vm.$watch('user', function (newVal, oldVal) {
// 此时的 newVal 是 user 对象
console.log(newVal === vm.user)
}, {
deep: true
})
// immediate 是 true
vm.$watch('msg', function (newVal, oldVal) {
console.log(newVal)
}, {
immediate: true
})
4.8 三种类型的 Watcher 对象
- 没有静态方法,因为 $watch 方法中要使用 Vue 的实例
- Watcher 分三种:计算属性 Watcher、用户 Watcher (侦听器)、渲染 Watcher
- 创建顺序:计算属性 Watcher、用户 Watcher (侦听器)、渲染 Watcher
- vm.$watch()
- src\core\instance\state.js
源码
Vue.prototype.$watch = function (
expOrFn: string | Function,
cb: any,
options?: Object
): Function {
// 获取 Vue 实例 this
const vm: Component = this
if (isPlainObject(cb)) {
// 判断如果 cb 是对象执行 createWatcher
return createWatcher(vm, expOrFn, cb, options)
}
options = options || {}
// 标记为用户 watcher
options.user = true
// 创建用户 watcher 对象
const watcher = new Watcher(vm, expOrFn, cb, options)
// 判断 immediate 如果为 true
if (options.immediate) {
// 立即执行一次 cb 回调,并且把当前值传入
try {
cb.call(vm, watcher.value)
} catch (error) {
handleError(error, vm, `callback for immediate watcher "${watcher.expression}"`)
}
}
// 返回取消监听的方法
return function unwatchFn () {
watcher.teardown()
}
}
4.9 异步更新队列-nextTick()
- 官方文档
- Vue 更新 DOM 是异步执行的,批量的
- 在下次 DOM 更新循环结束之后执行延迟回调。在修改数据之后立即使用这个方法,获取更新后的 DOM
- vm.$nextTick(function () { /* 操作 DOM */ }) / Vue.nextTick(function () {})
vm.$nextTick() 代码演示
<div id="app">
<p ref="p1">{{ msg }}</p>
</div>
<script src="../../dist/vue.js"></script>
<script>
const vm = new Vue({
el: '#app',
data: { msg: 'Hello nextTick', name: 'Vue.js', title: 'Title' },
mounted() {
this.msg = 'Hello World'
this.name = 'Hello snabbdom'
this.title = 'Vue.js'
this.$nextTick(() => {
console.log(this.$refs.p1.textContent)
})
}
})
</script>
定义位置
- src\core\instance\render.js
Vue.prototype.$nextTick = function (fn: Function) {
return nextTick(fn, this)
}
源码
- 手动调用 vm.$nextTick()
- 在 Watcher 的 queueWatcher 中执行 nextTick()
- src\core\util\next-tick.js
const callbacks = []
let pending = false
function flushCallbacks () {
pending = false
const copies = callbacks.slice(0)
callbacks.length = 0
// 遍历回到函数数组 依次调用
for (let i = 0; i < copies.length; i++) {
copies[i]()
}
}
// Here we have async deferring wrappers using microtasks.
// In 2.5 we used (macro) tasks (in combination with microtasks).
// However, it has subtle problems when state is changed right before repaint
// (e.g. #6813, out-in transitions).
// Also, using (macro) tasks in event handler would cause some weird behaviors
// that cannot be circumvented (e.g. #7109, #7153, #7546, #7834, #8109).
// So we now use microtasks everywhere, again.
// A major drawback of this tradeoff is that there are some scenarios
// where microtasks have too high a priority and fire in between supposedly
// sequential events (e.g. #4521, #6690, which have workarounds)
// or even between bubbling of the same event (#6566).
// 在这里,我们有使用微任务的异步延迟包装器。
// 在2.5中,我们使用了(宏)任务(与微任务相结合)。
// 然而,当状态在重绘之前就被改变时,它有微妙的问题。
// 另外,在事件处理程序中使用(宏)任务会导致一些奇怪的行为。
// 另外,在事件处理程序中使用(宏)任务会导致一些奇怪的行为。
// 所以我们现在又到处使用微任务。
// 这种权衡的一个主要缺点是,有些情况下,
// 微任务的优先级太高,在所谓的顺序事件之间开火,甚至在同一事件的冒泡之间开火
let timerFunc
// The nextTick behavior leverages the microtask queue, which can be accessed
// via either native Promise.then or MutationObserver.
// MutationObserver has wider support, however it is seriously bugged in
// UIWebView in iOS >= 9.3.3 when triggered in touch event handlers. It
// completely stops working after triggering a few times... so, if native
// Promise is available, we will use it:
// nextTick行为利用了微任务队列,
// 可以通过原生的Promise.then或MutationObserver访问
// MutationObserver有更广泛的支持,然而在iOS >= 9.3.3的UIWebView中,
// 当在触摸事件处理程序中触发时,它有严重的bug。
// 触发几次后就完全停止工作了......所以,如果原生Promise可用,我们会使用它。
/* istanbul ignore next, $flow-disable-line */
if (typeof Promise !== 'undefined' && isNative(Promise)) {
const p = Promise.resolve()
timerFunc = () => {
p.then(flushCallbacks)
// In problematic UIWebViews, Promise.then doesn't completely break, but
// it can get stuck in a weird state where callbacks are pushed into the
// microtask queue but the queue isn't being flushed, until the browser
// needs to do some other work, e.g. handle a timer. Therefore we can
// "force" the microtask queue to be flushed by adding an empty timer.
// 在有问题的UIWebViews中,Promise.then并没有完全break,
// 但它可能会卡在一个奇怪的状态,即回调被推送到微任务队列中,
// 但队列并没有被刷新,直到浏览器需要做一些其他工作,例如处理一个计时器
// 因此,我们可以通过添加一个空的定时器来 "强制 "微任务队列被刷新。
if (isIOS) setTimeout(noop)
}
isUsingMicroTask = true
} else if (!isIE && typeof MutationObserver !== 'undefined' && (
isNative(MutationObserver) ||
// PhantomJS and iOS 7.x
MutationObserver.toString() === '[object MutationObserverConstructor]'
)) {
// Use MutationObserver where native Promise is not available,
// e.g. PhantomJS, iOS7, Android 4.4
// (#6466 MutationObserver is unreliable in IE11)
// 在没有本地Promise的地方使用MutationObserver
let counter = 1
const observer = new MutationObserver(flushCallbacks)
const textNode = document.createTextNode(String(counter))
observer.observe(textNode, {
characterData: true
})
timerFunc = () => {
counter = (counter + 1) % 2
textNode.data = String(counter)
}
isUsingMicroTask = true
} else if (typeof setImmediate !== 'undefined' && isNative(setImmediate)) {
// Fallback to setImmediate.
// Technically it leverages the (macro) task queue,
// but it is still a better choice than setTimeout.
// 降级到setImmediate
// 从技术上讲,它利用了(宏)任务队列,
// 但它仍然是比setTimeout更好的选择
timerFunc = () => {
setImmediate(flushCallbacks)
}
} else {
// Fallback to setTimeout.
// 降级到 setTimeout
timerFunc = () => {
setTimeout(flushCallbacks, 0)
}
}
export function nextTick (cb?: Function, ctx?: Object) {
let _resolve
// callbacks 存储所有的回调函数
// 把 cb 加上异常处理存入 callbacks 数组中
callbacks.push(() => {
if (cb) {
try {
// 调用 cb()
cb.call(ctx)
} catch (e) {
handleError(e, ctx, 'nextTick')
}
} else if (_resolve) {
_resolve(ctx)
}
})
// 判断队列是否正在被处理
if (!pending) {
pending = true
// 调用
timerFunc()
}
// $flow-disable-line
if (!cb && typeof Promise !== 'undefined') {
// 返回 promise 对象
return new Promise(resolve => {
_resolve = resolve
})
}
}
