TDesign学习：（三）t-enhanced-table树形表格

数据结构

const data = ref([
  {
    id: 1,
    parent_id: 0,
    name: '系统管理',
    children: [
      {
        id: 2,
        parent_id: 1,
        name: '用户管理',
        children: []
      },
      {
        id: 3,
        parent_id: 1,
        name: '角色管理',
        children: null  // 注意：null会被自动转换为[]
      }
    ]
  }
]);

配置表

子节点配置

const treeConfig: EnhancedTableProps['tree'] = reactive({
  childrenKey: 'children',      // 指定子节点字段名
  treeNodeColumnIndex: 2,        // 展开子节点的按钮放在第2列
  indent: 50,                    // 节点缩进像素
  expandTreeNodeOnClick: true,   // 点击节点时展开/折叠
});

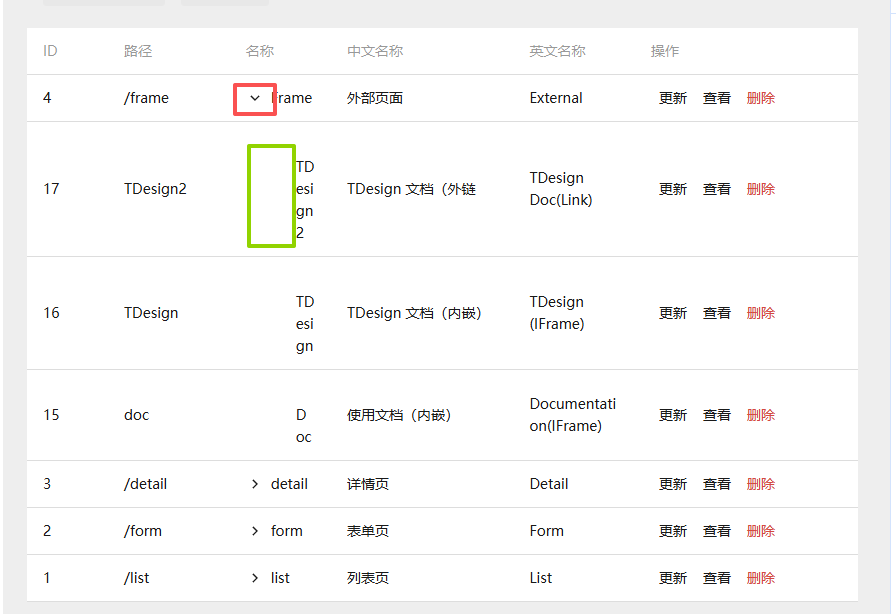

treeNodeColumnIndex： 红框
indent：绿框的宽度

表格属性

    <t-enhanced-table
      ref="tableRef"
      v-model:expandedTreeNodes="expandedTreeNodes" //子节点
      row-key="id"
      :data="data" //绑定数据
      :columns="columns" //表头设置与字段绑定
      :tree="treeConfig" //
      :tree-expand-and-fold-icon="treeExpandIcon" //修改按钮图标
    ></t-enhanced-table>

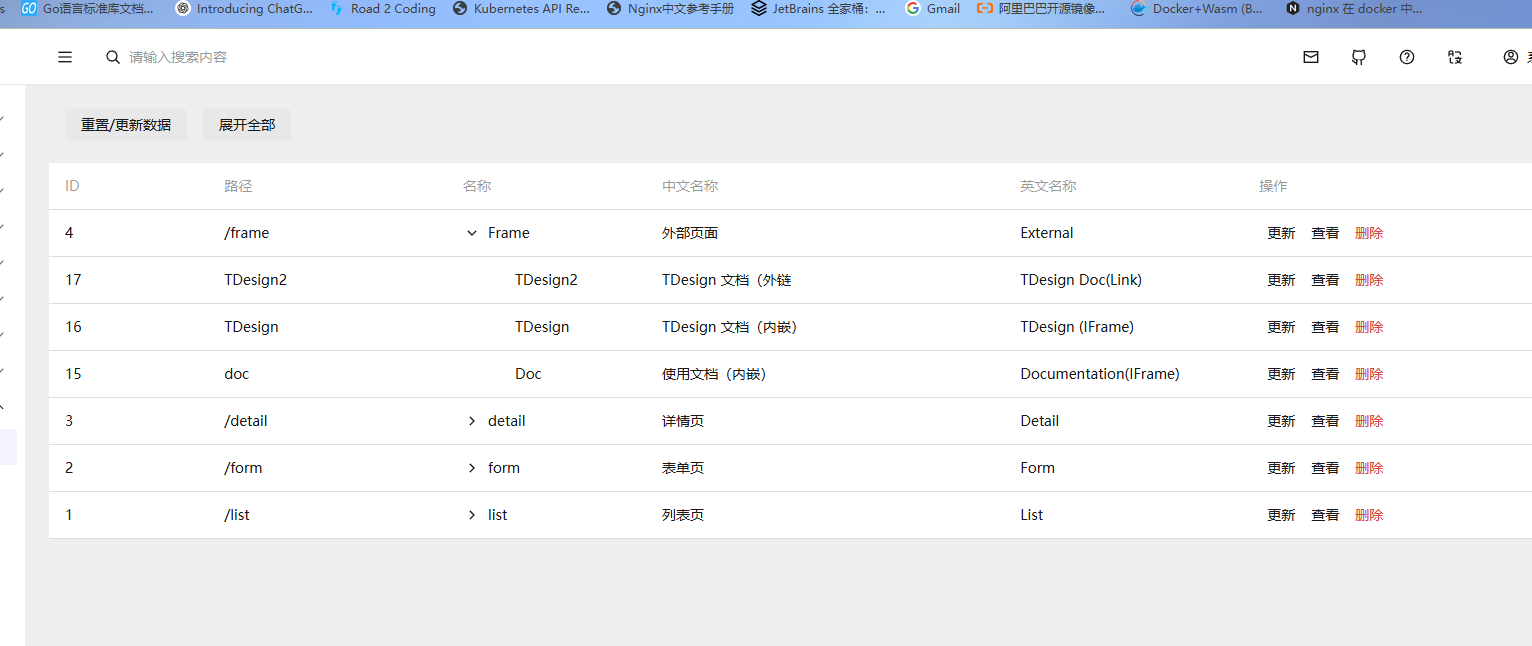

例子

<template>
  <div>
    <div>
      <t-button theme="default" style="margin-left: 16px" @click="resetData">重置/更新数据</t-button>
      <t-button theme="default" style="margin-left: 16px" @click="onExpandAllToggle">{{ expandAll ? '收起全部' : '展开全部' }}</t-button>
    </div>
    <br />
    <!-- 树形结构 EnhancedTable -->
    <t-enhanced-table
      ref="tableRef"
      v-model:expandedTreeNodes="expandedTreeNodes"
      row-key="id"
      :data="data"
      :columns="columns"
      :tree="treeConfig"
      :tree-expand-and-fold-icon="treeExpandIcon"
    ></t-enhanced-table>
  </div>
</template>
<script lang="tsx" setup>
import { ref, reactive, onMounted } from 'vue';
import {
  EnhancedTable as TEnhancedTable,
  MessagePlugin,
  EnhancedTableProps,
  EnhancedTableInstanceFunctions,
  ButtonProps,
  TableRowData,
} from 'tdesign-vue-next';
import { ChevronRightIcon, ChevronDownIcon } from 'tdesign-icons-vue-next';
import { getMenuList } from '@/api/system/menu';

const treeExpandIcon: EnhancedTableProps['treeExpandAndFoldIcon'] = (h, { type }) => {
  return type === 'expand' ? <ChevronRightIcon /> : <ChevronDownIcon />;
};
// 定义菜单数据结构
interface MenuData {
  id: number;
  parent_id: number;
  path: string;
  name: string;
  zh_cn: string;
  en_us: string;
  single: boolean;
  hidden: boolean;
  frame_blank: boolean;
  children?: MenuData[];
}

const tableRef = ref<EnhancedTableInstanceFunctions>(null);
const data = ref<MenuData[]>([]);
const loading = ref(false);

// 树形配置
const expandedTreeNodes = ref<EnhancedTableProps['expandedTreeNodes']>([]);
const treeConfig: EnhancedTableProps['tree'] = reactive({
  childrenKey: 'children',
  treeNodeColumnIndex: 2,
  indent: 25,
  expandTreeNodeOnClick: true,
});

// 从接口获取菜单数据
const fetchMenuData = async () => {
  loading.value = true;
  try {
    const response = await getMenuList();

    // 直接使用接口返回的树形结构数据
    data.value = response || [];
    MessagePlugin.success('菜单数据加载成功');
  } catch (error) {
    MessagePlugin.error('菜单数据加载失败');
    console.error('获取菜单数据失败:', error);
  } finally {
    loading.value = false;
  }
};

// 重置数据和展开节点
const resetData: ButtonProps['onClick'] = () => {
  fetchMenuData();
  expandedTreeNodes.value = [];
};

const onEditClick = (row: TableRowData) => {
  const newData = {
    ...row,
    zh_cn: `修改后的-${row.zh_cn}`,
  };
  tableRef.value.setData(row.id, newData);
  MessagePlugin.success('菜单数据已更新');
};

const onDeleteConfirm = (row: TableRowData) => {
  tableRef.value.remove(row.id);
  MessagePlugin.success('删除成功');
};

const onLookUp = (row: TableRowData) => {
  const allRowData = tableRef.value.getData(row.id);
  const message = '当前菜单全部数据，包含节点路径、父节点、子节点、是否展开、是否禁用等';
  MessagePlugin.success(`打开控制台查看${message}`);
  console.log(`${message}：`, allRowData);
};

const columns: EnhancedTableProps['columns'] = [
  {
    colKey: 'id',
    title: 'ID',
    ellipsis: true,
    width: 80,
  },
  {
    colKey: 'path',
    title: '路径',
    width: 120,
  },
  {
    colKey: 'name',
    title: '名称',
    width: 100,
  },
  {
    width: 180,
    colKey: 'zh_cn',
    title: '中文名称',
    ellipsis: true,
  },
  {
    colKey: 'en_us',
    title: '英文名称',
    width: 120,
  },
  {
    colKey: 'operate',
    width: 220,
    title: '操作',
    cell: (h, { row }) => (
      <div class="tdesign-table-demo__table-operations">
        <t-link variant="text" hover="color" onClick={() => onEditClick(row)}>
          更新
        </t-link>
        <t-link variant="text" hover="color" onClick={() => onLookUp(row)}>
          查看
        </t-link>
        <t-popconfirm content="确认删除吗" onConfirm={() => onDeleteConfirm(row)}>
          <t-link variant="text" hover="color" theme="danger">
            删除
          </t-link>
        </t-popconfirm>
      </div>
    ),
  },
];

const expandAll = ref(false);

const onExpandAllToggle: ButtonProps['onClick'] = () => {
  expandAll.value = !expandAll.value;
  expandAll.value ? tableRef.value.expandAll() : tableRef.value.foldAll();
};

// 组件挂载时加载数据
onMounted(() => {
  fetchMenuData();
});
</script>

<style>
.tdesign-table-demo__table-operations .t-link {
  padding: 0 8px;
}
</style>
