需求:通过鼠标拉动窗口边界,调整窗口显示大小;

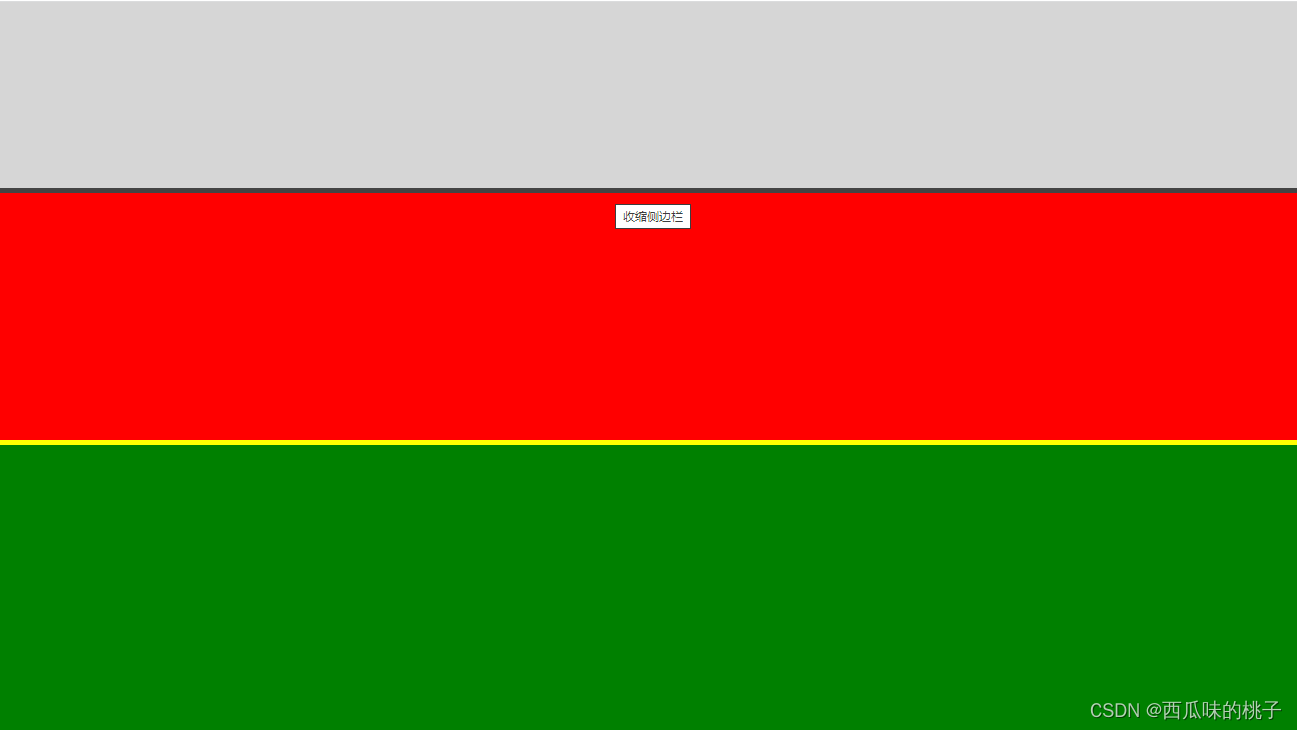

如下图:
HTML
<div class="box" id="box">
<div class="left" id="left">
<!--上div内容-->
</div>
<!-- 通过一个 div 来充当区域边框实现拖动 -->
<div id="resize" class="resize" title="收缩侧边栏"></div>
<div class="mid" id="center">
<!--中间div内容-->
</div>
<div id="resize2" class="resize" title="收缩侧边栏"></div>
<div class="mid2" id="right">
<!--下div内容-->
</div>
</div>
JS代码
let resize = document.getElementById('resize');
let resize2 = document.getElementById('resize2');
let left = document.getElementById('left');
let mid = document.getElementById('center');
let right = document.getElementById('right');
let box = document.getElementById('box');
// 鼠标按下事件
resize.onmousedown = function (e) {
// 记录坐标起始位置
let startY = e.clientY;
// 左边元素起始高度
left.left = left.offsetHeight;
console.log('高度:', resize.left);
// 鼠标拖动事件
document.onmousemove = function (e) {
// 鼠标拖动的终止位置
let endX = e.clientY;
// console.log(e.clientY,"e.clientY");
// (endx-startx)= 移动的距离。 resize.left + 移动的距离=左边区域最后的宽度
let moveLen = left.left + (endX - startY);
console.log(moveLen, resize.offsetHeight, "移动的距离移动的距离");
// 左右两边区域的总宽度 = 大容器宽度 - 中间区域拖拉框的宽度
let maxWidth = 1110 - resize.offsetHeight;
// 限制上边区域的最小高度为30px
if (moveLen < 30) moveLen = 30;
// 中间区域最小宽度为 150px 限制上边区域到150后不能再拉宽
if (moveLen > maxWidth - 150) moveLen = maxWidth - 150;
// 设置左边区域的高度,通过换算为百分比的形式,实现窗体放大缩小自适应
// console.log(moveLen / maxWidth * 100);
left.style.height = moveLen + 'px';
// 右边区域即是总大小 - 左边宽度 - 拖动条宽度
// console.log(((maxWidth - moveLen) / maxWidth * 100));
mid.style.height = ((maxWidth - moveLen) - right.clientHeight) + 'px';
};
// 鼠标松开事件
document.onmouseup = function (evt) {
document.onmousemove = null;
document.onmouseup = null;
resize.releaseCapture && resize.releaseCapture(); //当你不在需要继续获得鼠标消息就要应该调用ReleaseCapture()释放掉
};
resize.setCapture && resize.setCapture(); //该函数在属于当前线程的指定窗口里设置鼠标捕获
return false;
};
resize2.onmousedown = function (e) {
// 记录坐标起始位置
let startY = e.clientY;
// 左边元素起始高度
right.right = right.offsetHeight;
// 鼠标拖动事件
document.onmousemove = function (e) {
// 鼠标拖动的终止位置
let endX = e.clientY;
console.log(e.clientY, "e.clientY");
// (endx-startx)= 移动的距离。 resize.left + 移动的距离=左边区域最后的宽度
let moveLen = right.right - (endX - startY);
console.log(moveLen, resize.offsetHeight, "移动的距离移动的距离");
// 左右两边区域的总高度 = 大容器高度 - 中间区域拖拉框的高度
let maxWidth = 1110 - resize.offsetHeight * 2;
// 限制左边区域的最小高度为30px
if (moveLen < 30) moveLen = 30;
// 右边区域最小宽度为 150px 限制左边区域到150后不能再拉宽
if (moveLen > maxWidth - 150) moveLen = maxWidth - 150;
// 设置左边区域的宽度,通过换算为百分比的形式,实现窗体放大缩小自适应
// console.log(moveLen / maxWidth * 100);
right.style.height = moveLen + 'px';
// 右边区域即是总大小 - 左边宽度 - 拖动条宽度
// console.log(((maxWidth - moveLen) / maxWidth * 100));
mid.style.height = ((maxWidth - moveLen) - left.clientHeight) + 'px';
};
// 鼠标松开事件
document.onmouseup = function (evt) {
document.onmousemove = null;
document.onmouseup = null;
resize.releaseCapture && resize.releaseCapture(); //当你不在需要继续获得鼠标消息就要应该调用ReleaseCapture()释放掉
};
resize.setCapture && resize.setCapture(); //该函数在属于当前线程的指定窗口里设置鼠标捕获
return false;
};
<style>
*{
margin: 0;
padding: 0;
}
html,body {
width: 100%;
height: 100%;
}
.box {
width: 100%;
height: 100%;
/* display: flex; */
}
/*左侧div样式*/
.left {
width: 100%;
/*左侧初始化宽度*/
height: 300px;
background: #d6d6d6;
/* flex-shrink: 0; */
}
/*拖拽区div样式*/
.resize {
cursor: row-resize;
position: relative;
background-color: yellow;
width: 100%;
height: 5px;
background-size: cover;
background-position: center;
font-size: 32px;
}
/*拖拽区鼠标悬停样式*/
.resize:hover {
background-color: #444444;
}
/*右侧div'样式*/
.mid {
width: 100%;
/*右侧初始化宽度*/
height: 500px;
background-color: red;
/* flex-shrink: 0; */
}
.mid2 {
width: 100%;
/*右侧初始化宽度*/
height: 300px;
background-color: green;
/* flex-shrink: 0; */
}
</style>
水平拖拽可以直接下载https://download.csdn.net/download/weixin_41843107/88376505
