网关gateway路由以及过滤器
- 一、路由
- 二、过滤器
- 1、路由过滤器
- 1、AddRequestHeader
- 2、AddRequestParameter
- 3、AddResponseHeader
- 4、DedupeResponseHeader
- 5、Spring Cloud CircuitBreaker
- 6、FallbackHeaders
- 7、MapRequestHeader
- 8、PrefixPath
- 9、PreserveHostHeader
- 10、RequestRateLimiter
- 11、RedirectTo
- 12、RemoveRequestHeader
- 13、RemoveResponseHeader
- 14、RemoveRequestParameter
- 15、RequestHeaderSize
- 16、RewritePath
- 17、RewriteLocationResponseHeader
- 18、RewriteResponseHeader
- 19、SaveSession
- 20、SecureHeaders
- 21、SetPath
- 22、SetRequestHeader
- 23、SetResponseHeader
- 24、SetStatus
- 25、StripPrefix
- 26、Retry
- 27、RequestSize
- 28、SetRequestHostHeader
- 29、ModifyRequestBody
- 30、ModifyResponseBody
- 31、default
- 2、全局过滤器
- 3、头部过滤器
一、路由
1、两种配置用法
1、快捷配置
spring:
cloud:
gateway:
routes:
- id: hwk-test-microservice
uri: https://sougou.com/
predicates:
- Cookie=mycookie,mycookievalue
- Path=/hwk-test-microservice/**
filters:
- StripPrefix=1
2、展开式配置
spring:
cloud:
gateway:
routes:
- id: hwk-test-microservice
uri: https://sougou.com/
predicates:
- Path=/hwk-test-microservice/**
- name: Cookie
args:
name: mycookie
regexp: mycookievalue
filters:
- StripPrefix=1
2、路由断言
1、After
在配置时间之后的请求会路由
spring:
cloud:
gateway:
routes:
- id: hwk-test-microservice
uri: http://www.baidu.com
predicates:
- After=2019-09-15T20:58:18.786182+08:00[Asia/Shanghai]
- Path=/hwk-test-microservice/**
filters:
- StripPrefix=1
2、Before
在配置时间之前的请求会路由
spring:
cloud:
gateway:
routes:
- id: hwk-test-microservice
uri: http://www.baidu.com
predicates:
- Before=2019-09-15T20:58:18.786182+08:00[Asia/Shanghai]
- Path=/hwk-test-microservice/**
filters:
- StripPrefix=1
3、Between
在配置时间之间的请求会被路由
pring:
cloud:
gateway:
routes:
- id: hwk-test-microservice
uri: http://www.baidu.com
predicates:
- Between=2019-09-15T20:58:18.786182+08:00[Asia/Shanghai], 2019-09-16T20:58:18.786182+08:00[Asia/Shanghai]
- Path=/hwk-test-microservice/**
filters:
- StripPrefix=1
4、Cookie
根据cookie中是否有该cookie匹配路由
spring:
cloud:
gateway:
routes:
- id: hwk-test-microservice
uri: https://sougou.com/
predicates:
- Cookie=mycookie,mycookievalue
- Path=/hwk-test-microservice/**
filters:
- StripPrefix=1
5、Header
根据header中是否有该header匹配路由
spring:
cloud:
gateway:
routes:
- id: hwk-test-microservice
uri: https://sougou.com/
predicates:
- Header=X-Request-Id, \d+
- Path=/hwk-test-microservice/**
filters:
- StripPrefix=1
6、Host
根据请求域名进行路由匹配
spring:
cloud:
gateway:
routes:
- id: hwk-test-microservice
uri: https://sougou.com/
predicates:
- Host=localhost:10100,**.anotherhost.org
- Path=/hwk-test-microservice/**
filters:
- StripPrefix=1
7、Method
根据请求类型进行路由匹配
spring:
cloud:
gateway:
routes:
- id: hwk-test-microservice
uri: https://sougou.com/
predicates:
- Method=GET,POST
- Path=/hwk-test-microservice/**
filters:
- StripPrefix=1
8、Path
常规路径配置进行路由匹配,matchOptionalTrailingSeparator匹配尾部分隔符,默认true
spring:
cloud:
gateway:
routes:
- id: hwk-test-microservice
uri: https://sougou.com/
predicates:
- Path=/hwk-test-microservice/**,/hwk-test1-microservice/**
filters:
- StripPrefix=1
9、Query
根据query参数进行路由匹配
spring:
cloud:
gateway:
routes:
- id: hwk-test-microservice
uri: https://sougou.com/
predicates:
- Query=red, gree.
- Path=/hwk-test-microservice/**
filters:
- StripPrefix=1
10、Weight
监听器初始化权重属性,过滤器根据权重过滤出待匹配权重路由,核心处理器根据匹配路由跳转
spring:
cloud:
gateway:
routes:
- id: hwk-test-microservice
uri: https://sougou.com/
predicates:
- Weight=group1, 8
- Path=/hwk-test-microservice/**
filters:
- StripPrefix=1
- id: hwk-test1-microservice
uri: http://www.baidu.com
predicates:
- Weight=group1, 2
- Path=/hwk-test-microservice/**
filters:
- StripPrefix=1
- id: hwk-test2-microservice
uri: http://www.baidu.com
predicates:
- Weight=group1, 9
- Path=/hwk-test-microservice/**
filters:
- StripPrefix=1
11 、RemoteAddr
根据远程请求ip+子网掩码进行路由匹配,大于子网掩码的ip能正常访问
spring:
cloud:
gateway:
routes:
- id: hwk-test-microservice
uri: http://www.baidu.com
predicates:
- RemoteAddr=192.168.3.1/27
- Path=/hwk-test-microservice/**
filters:
- StripPrefix=1
12 、XForwardedRemoteAddr
根据远程请求头部代理ip+子网掩码进行路由匹配,大于子网掩码的ip能正常访问,新版本增加
spring:
cloud:
gateway:
routes:
- id: hwk-test-microservice
uri: http://www.baidu.com
predicates:
- XForwardedRemoteAddr=192.168.3.1/27
- Path=/hwk-test-microservice/**
filters:
- StripPrefix=1
二、过滤器
1、路由过滤器
1、AddRequestHeader
请求头部增加设置header
spring:
cloud:
gateway:
routes:
- id: hwk-test-microservice
uri: http://www.baidu.com
predicates:
- Path=/hwk-test-microservice/**
filters:
- StripPrefix=1
- AddRequestHeader=X-Request-red, blue
2、AddRequestParameter
地址增加请求参数
spring:
cloud:
gateway:
routes:
- id: hwk-test-microservice
uri: http://www.baidu.com
predicates:
- Path=/hwk-test-microservice/**
filters:
- StripPrefix=1
- AddRequestParameter=red, blue
3、AddResponseHeader
返回头部增加header
spring:
cloud:
gateway:
routes:
- id: hwk-test-microservice
uri: http://www.baidu.com
predicates:
- Path=/hwk-test-microservice/**
filters:
- StripPrefix=1
- AddResponseHeader=X-Response-Red, Blue
4、DedupeResponseHeader
头部重复header消除,需要有策略,没有设置策略,默认保留第一个
spring:
cloud:
gateway:
routes:
- id: hwk-test-microservice
uri: http://www.baidu.com
predicates:
- Path=/hwk-test-microservice/**
filters:
- StripPrefix=1
- DedupeResponseHeader=Access-Control-Allow-Credentials Access-Control-Allow-Origin
5、Spring Cloud CircuitBreaker
springcloud断路器,这部分可以展开调研
spring:
cloud:
gateway:
routes:
- id: circuitbreaker_route
uri: lb://backing-service:8088
predicates:
- Path=/consumingServiceEndpoint
filters:
- name: CircuitBreaker
args:
name: myCircuitBreaker
fallbackUri: forward:/inCaseOfFailureUseThis
- RewritePath=/consumingServiceEndpoint, /backingServiceEndpoint
6、FallbackHeaders
在断路器fallback地址头部增加异常细节,需要和断路器结合使用
spring:
cloud:
gateway:
routes:
- id: ingredients
uri: lb://ingredients
predicates:
- Path=//ingredients/**
filters:
- name: CircuitBreaker
args:
name: fetchIngredients
fallbackUri: forward:/fallback
- id: ingredients-fallback
uri: http://localhost:9994
predicates:
- Path=/fallback
filters:
- name: FallbackHeaders
args:
executionExceptionTypeHeaderName: Test-Header
7、MapRequestHeader
将第一个header的值赋值给第二个header
spring:
cloud:
gateway:
routes:
- id: hwk-test-microservice
uri: http://www.baidu.com
predicates:
- Path=/hwk-test-microservice/**
filters:
- StripPrefix=1
- MapRequestHeader=X-Request-Blue, X-Request-Red
8、PrefixPath
给请求路径加前缀
spring:
cloud:
gateway:
routes:
- id: hwk-test-microservice
uri: http://www.baidu.com
predicates:
- Path=/hwk-test-microservice/**
filters:
- StripPrefix=1
- PrefixPath=/mypath
9、PreserveHostHeader
此筛选器设置路由筛选器检查的请求属性,以确定是否应发送原始主机标头,而不是HTTP客户端确定的主机标头
spring:
cloud:
gateway:
routes:
- id: hwk-test-microservice
uri: http://www.baidu.com
predicates:
- Path=/hwk-test-microservice/**
filters:
- StripPrefix=1
- PreserveHostHeader
10、RequestRateLimiter
网关限流,需要实现KeyResolver,默认实现PrincipalNameKeyResolver
@Bean
KeyResolver userKeyResolver() {
return exchange -> Mono.just(exchange.getRequest().getQueryParams().getFirst("user"));
}
spring:
cloud:
gateway:
routes:
- id: hwk-test-microservice
uri: http://www.baidu.com
predicates:
- Path=/hwk-test-microservice/**
filters:
- StripPrefix=1
- name: RequestRateLimiter
args:
rate-limiter: "#{@redisRateLimiter}"
key-resolver: "#{@userKeyResolver}"
11、RedirectTo
重定向到指定地址以及状态码
spring:
cloud:
gateway:
routes:
- id: hwk-test-microservice
uri: http://www.baidu.com
predicates:
- Path=/hwk-test-microservice/**
filters:
- StripPrefix=1
- RedirectTo=302, https://www.baidu.com/
12、RemoveRequestHeader
移除请求头header
spring:
cloud:
gateway:
routes:
- id: hwk-test-microservice
uri: http://www.baidu.com
predicates:
- Path=/hwk-test-microservice/**
filters:
- StripPrefix=1
- RemoveRequestHeader=X-Request-Foo
13、RemoveResponseHeader
移除返回头header
spring:
cloud:
gateway:
routes:
- id: hwk-test-microservice
uri: http://www.baidu.com
predicates:
- Path=/hwk-test-microservice/**
filters:
- StripPrefix=1
- RemoveResponseHeader=X-Request-Foo
14、RemoveRequestParameter
移除请求参数
spring:
cloud:
gateway:
routes:
- id: hwk-test-microservice
uri: http://www.baidu.com
predicates:
- Path=/hwk-test-microservice/**
filters:
- StripPrefix=1
- RemoveRequestParameter=red
15、RequestHeaderSize
请求头header的value值总体不能超过指定size,超过了,会在返回的请求头header里增加errorMessage信息
spring:
cloud:
gateway:
routes:
- id: hwk-test-microservice
uri: http://www.baidu.com
predicates:
- Path=/hwk-test-microservice/**
filters:
- StripPrefix=1
- RequestHeaderSize=1000B
16、RewritePath
路径重写,支持正则
spring:
cloud:
gateway:
routes:
- id: hwk-test-microservice
uri: http://www.baidu.com
predicates:
- Path=/hwk-test-microservice/**
filters:
- StripPrefix=1
- RewritePath=/hwk-test-microservice/?(?<segment>.*), /$\{segment}
17、RewriteLocationResponseHeader
重写返回头部的location信息
spring:
cloud:
gateway:
routes:
- id: rewritelocationresponseheader_route
uri: http://example.org
filters:
- RewriteLocationResponseHeader=AS_IN_REQUEST, Location, ,
18、RewriteResponseHeader
替换返回头部header的值
spring:
cloud:
gateway:
routes:
- id: hwk-test-microservice
uri: http://www.baidu.com
predicates:
- Path=/hwk-test-microservice/**
filters:
- StripPrefix=1
- RewriteResponseHeader=X-Response-Red, password=[^&]+, password=***
19、SaveSession
保存WebSession,与spring security结合使用
spring:
cloud:
gateway:
routes:
- id: hwk-test-microservice
uri: http://www.baidu.com
predicates:
- Path=/hwk-test-microservice/**
filters:
- StripPrefix=1
- SaveSession
20、SecureHeaders
spring:
cloud:
gateway:
routes:
- id: hwk-test-microservice
uri: http://www.baidu.com
predicates:
- Path=/hwk-test-microservice/**
filters:
- StripPrefix=1
21、SetPath
根据模版设置path
spring:
cloud:
gateway:
routes:
- id: hwk-test-microservice
uri: http://www.baidu.com
predicates:
- Path=/hwk-test-microservice/{segment}
filters:
- SetPath=/{segment}
22、SetRequestHeader
替换原有请求header为新给定值,不是添加
spring:
cloud:
gateway:
routes:
- id: hwk-test-microservice
uri: http://www.baidu.com
predicates:
- Path=/hwk-test-microservice/**
filters:
- SetRequestHeader=X-Request-Red, Blue
23、SetResponseHeader
替换原有返回header为新给定值,不是添加
spring:
cloud:
gateway:
routes:
- id: hwk-test-microservice
uri: http://www.baidu.com
predicates:
- Path=/hwk-test-microservice/**
filters:
- SetResponseHeader=X-Response-Red, Blue
24、SetStatus
设置返回状态为指定状态
spring:
cloud:
gateway:
set-status:
original-status-header-name: original-http-status
spring:
cloud:
gateway:
routes:
- id: hwk-test-microservice
uri: http://www.baidu.com
predicates:
- Path=/hwk-test-microservice/**
filters:
- SetStatus=UNAUTHORIZED
spring:
cloud:
gateway:
routes:
- id: hwk-test-microservice
uri: http://www.baidu.com
predicates:
- Path=/hwk-test-microservice/**
filters:
- SetStatus=401
25、StripPrefix
去掉指定数量的地址前缀
spring:
cloud:
gateway:
routes:
- id: hwk-test-microservice
uri: http://www.baidu.com
predicates:
- Path=/hwk-test-microservice/**
filters:
- StripPrefix=2
26、Retry
指定时间间隔重新请求
spring:
cloud:
gateway:
routes:
- id: hwk-test-microservice
uri: http://www.baidu.com
predicates:
- Path=/hwk-test-microservice/**
filters:
- StripPrefix=2
- name: Retry
args:
retries: 3
statuses: INTERNAL_SERVER_ERROR
methods: GET
backoff:
firstBackoff: 10ms
maxBackoff: 50ms
factor: 2
basedOnPreviousValue: false
- id: hwk-test-microservice
uri: http://www.baidu.com
predicates:
- Path=/hwk-test-microservice/**
filters:
- Retry=3,INTERNAL_SERVER_ERROR,GET,10ms,50ms,2,false
27、RequestSize
请求内容最大大小,content-length
spring:
cloud:
gateway:
routes:
- id: hwk-test-microservice
uri: http://www.baidu.com
predicates:
- Path=/hwk-test-microservice/**
filters:
- StripPrefix=1
- name: RequestSize
args:
maxSize: 5000000
28、SetRequestHostHeader
设置请求头host
spring:
cloud:
gateway:
routes:
- id: hwk-test-microservice
uri: http://www.baidu.com
predicates:
- Path=/hwk-test-microservice/**
filters:
- name: SetRequestHostHeader
args:
host: example.org
29、ModifyRequestBody
修改请求体
@Bean
public RouteLocator routes(RouteLocatorBuilder builder) {
return builder.routes()
.route("rewrite_request_obj", r -> r.host("*.rewriterequestobj.org")
.filters(f -> f.prefixPath("/httpbin")
.modifyRequestBody(String.class, Hello.class, MediaType.APPLICATION_JSON_VALUE,
(exchange, s) -> return Mono.just(new Hello(s.toUpperCase())))).uri(uri))
.build();
}
static class Hello {
String message;
public Hello() { }
public Hello(String message) {
this.message = message;
}
public String getMessage() {
return message;
}
public void setMessage(String message) {
this.message = message;
}
}
30、ModifyResponseBody
修改返回体
@Bean
public RouteLocator routes(RouteLocatorBuilder builder) {
return builder.routes()
.route("rewrite_response_upper", r -> r.host("*.rewriteresponseupper.org")
.filters(f -> f.prefixPath("/httpbin")
.modifyResponseBody(String.class, String.class,
(exchange, s) -> Mono.just(s.toUpperCase()))).uri(uri))
.build();
}
31、default
全局增加过滤,所有route都生效
spring:
cloud:
gateway:
default-filters:
- AddResponseHeader=X-Response-Default-Red, Default-Blue
- PrefixPath=/httpbin
2、全局过滤器
1、Netty Routing Filter
Gateway最后一个执行的过滤器,主要的操作是通过Netty实现的HttpClient 请求其他微服务的Http 服务
2、Netty Write Response Filter
如果ServerWebExchangeUtils.CLIENT_RESPONSE_CONN_ATTR连接存在,则对返回执行过滤

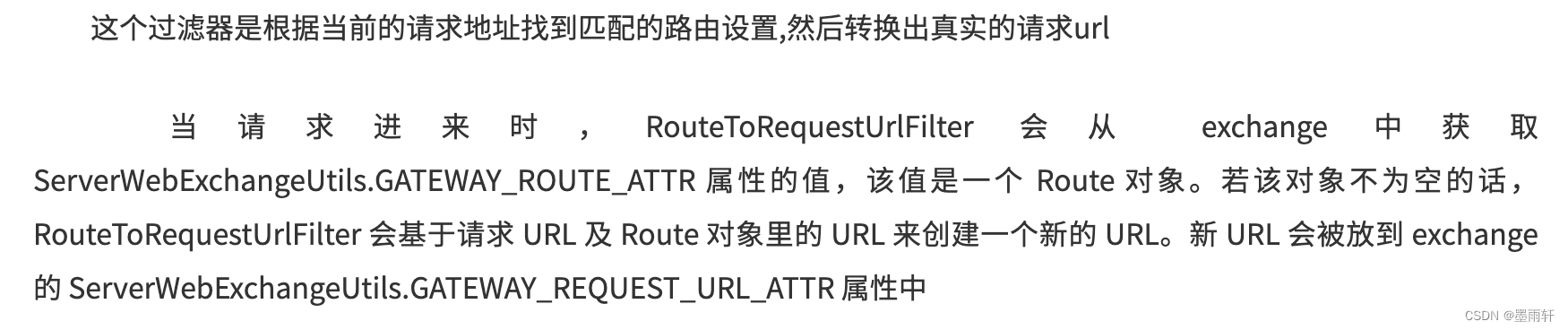

3、RouteToRequestUrl Filter
如果ServerWebExchangeUtils.GATEWAY_ROUTE_ATTR有值匹配,则执行路由替换为请求地址过滤
4、Websocket Routing Filter
如果ServerWebExchangeUtils.GATEWAY_REQUEST_URL_ATTR有值匹配,则执行ws请求过滤
spring:
cloud:
gateway:
routes:
# SockJS route
- id: websocket_sockjs_route
uri: http://localhost:3001
predicates:
- Path=/websocket/info/**
# Normal Websocket route
- id: websocket_route
uri: ws://localhost:3001
predicates:
- Path=/websocket/**
5、ReactiveLoadBalancerClientFilter
通过ReactorLoadBalancer解析uri服务为真实host+端口
若无法找到服务,则默认报错503,可以改为官方配置404,spring.cloud.gateway.loadbalancer.use404=true
spring:
cloud:
gateway:
routes:
- id: hwk-test-microservice
uri: lb://hwk-test-microservice
predicates:
- Path=/hwk-test-microservice/**

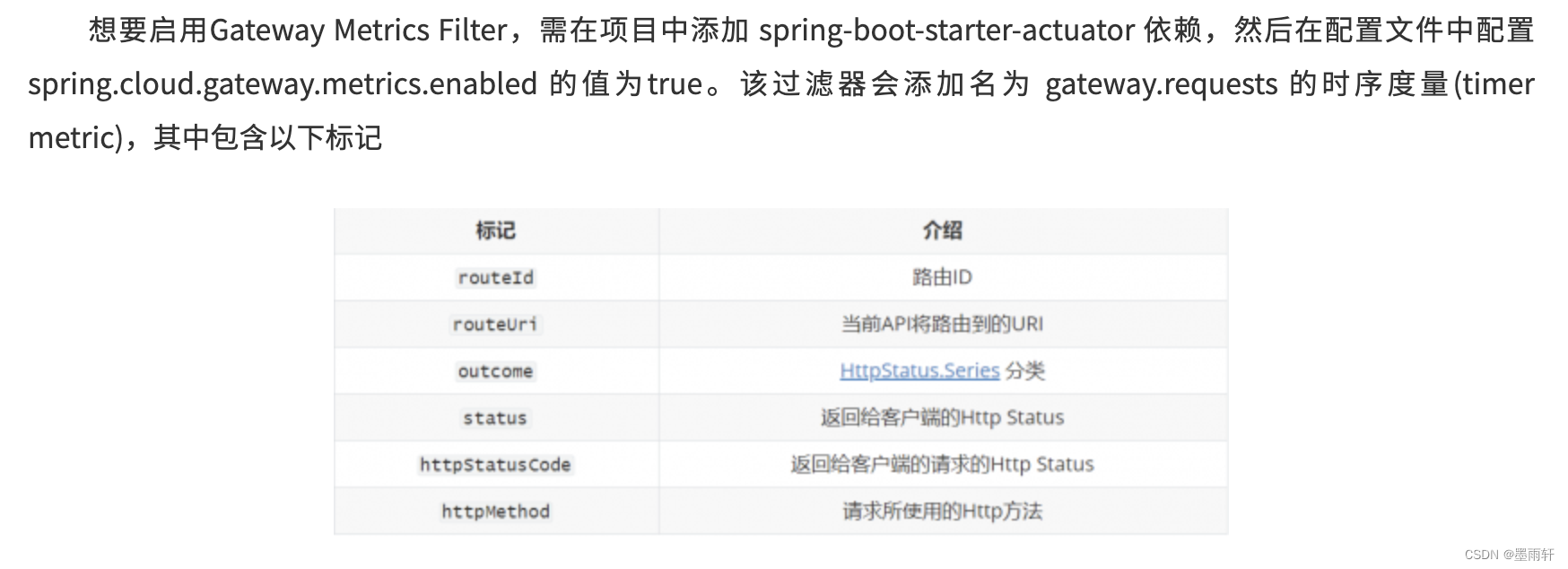

6、Gateway Metrics Filter
针对路由请求的监控过滤

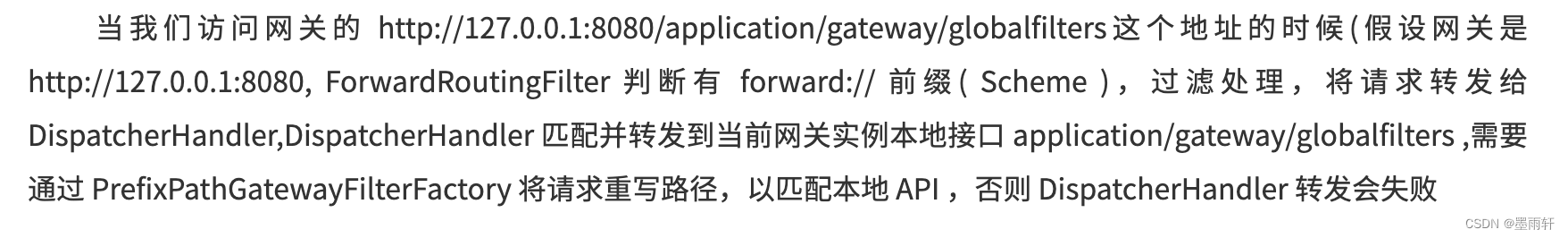

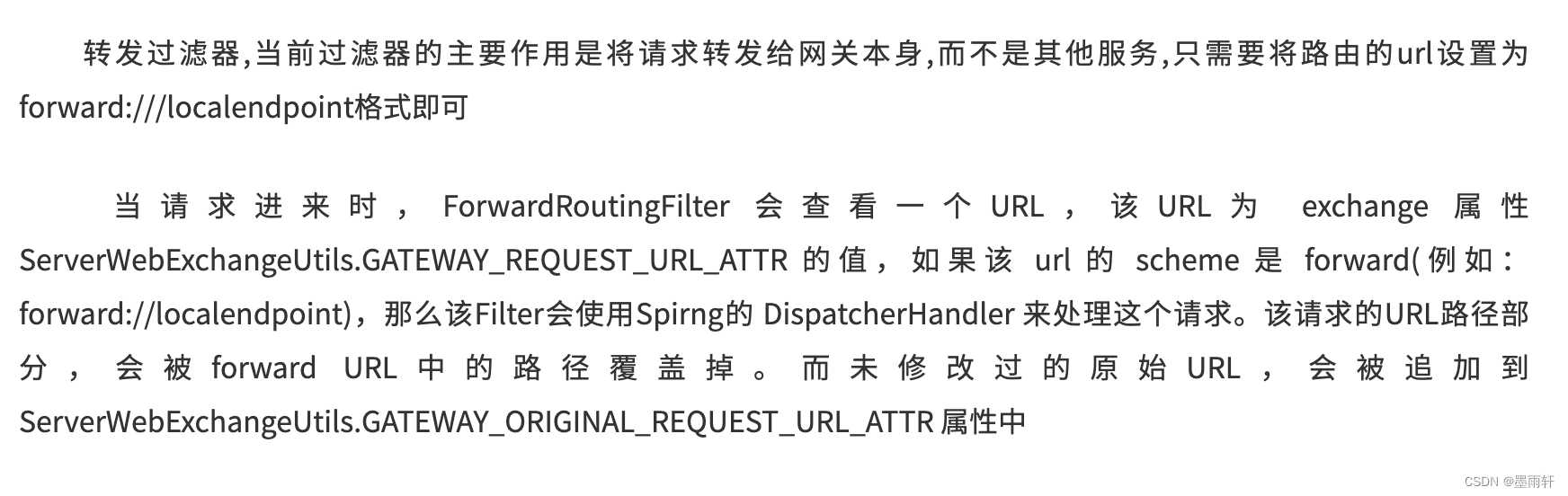

7、Forward Routing Filter
转发路由网关过滤器。其根据 forward:// 前缀( Scheme )过滤处理,将请求转发到当前网关实例本地接口。
spring:
application:
name: juejin-gateway
cloud:
gateway:
routes:
- id: forward_sample
uri: forward:///globalfilters
order: 10000
predicates:
- Path=/globalfilters
filters:
- PrefixPath=/application/gateway
8、Forward Path Filter
使请求request path从一个地址重定向到另一个地址过滤
9、Marking An Exchange As Routed
通过ServerWebExchangeUtils.isAlreadyRouted和ServerWebExchangeUtils.setAlreadyRouted来设置和判定过滤器是否执行
3、头部过滤器
在向下游发送请求之前,头部过滤器应用于请求,例如在NettyRoutingFilter中。
1、Forwarded Headers Filter
Forwarded Headers筛选器创建要发送到下游服务的Forwarded标头,它将当前请求的主机标头、scheme和端口添加到任何现有的Forwarded标头。
RFC 7239(June 2014)提出了一个标准化的Forwarded头部,来携带反向代理的基本信息,用于替代X-Forwarded系列及X-Real-IP等非标准化的头部。而ForwardedHeadersFilter便是提供了Forwarded头部的转发支持,目前经过gateway的请求会带上一个转发信息的Forwarded(host,proto,for)。
2、RemoveHopByHop Headers Filter
RemoveHopByHop标头筛选器从转发的请求中删除标头。
默认删除Connection、Keep-Alive、Proxy-Authenticate、Proxy-Authorization、TE、Trailer、Transfer-Encoding、Upgrade
spring.cloud.gateway.filter.remove-hop-by-hop.headers
3、XForwarded Headers Filter
XForwarded Headers筛选器创建各种X-Forwarded-*标头以发送到下游服务。
创建单个标头,默认true
spring.cloud.gateway.x-forwarded.for-enabled
spring.cloud.gateway.x-forwarded.host-enabled
spring.cloud.gateway.x-forwarded.port-enabled
spring.cloud.gateway.x-forwarded.proto-enabled
spring.cloud.gateway.x-forwarded.prefix-enabled
附加多个标头,默认true
spring.cloud.gateway.x-forwarded.for-append
spring.cloud.gateway.x-forwarded.host-append
spring.cloud.gateway.x-forwarded.port-append
spring.cloud.gateway.x-forwarded.proto-append
spring.cloud.gateway.x-forwarded.prefix-append
