一、目标

分析某右的通讯协议，实现段子爬虫

某右版本 5.5.10

Note:

frida rpc调用

二、分析

我们上篇文章分析完了，某右的通讯协议流程是请求参数→AES加密→密文做sign签名 ,所以我们需要通过frida的rpc调用Aes加解密函数和密文签名函数。

用jeb打开之前分析的 com.izuiyou.network.NetCrypto 类,可以找到目标函数

 public static native byte[] decodeAES(byte[] arg0, boolean arg1) {
  }

public static native byte[] encodeAES(byte[] arg0) {
  }

public static native String getProtocolKey() {
  }

public static native void setProtocolKey(String arg0) {
  }

public static native String sign(String arg0, byte[] arg1) {
  }

我们以调用encodeAES为例，encodeAES函数的参数和返回值都是byte数组，但是encodeAES的参数实际是个字符串，所以我们在python调用时传入字符串，然后在js代码中来转成byte[]类型。

返回值的处理比较麻烦，因为python和js对byte[]类型的处理可能不一样，所以我们在js代码中把byte数组转成对应hex字符串，然后再返回给python。

run.py

@app.route('/aesenc', methods=['POST']) # 数据加密
def zy_aesenc():
global gScript

    data = request.get_data()
    print(data.decode("utf-8"))

    res = gScript.exports.callencaes(data.decode("utf-8"))
return res

hook.js

function callEncodeAes(strData){
var result = 'null';

	Java.perform(function() {
var ZYNetCrypto = Java.use("com.izuiyou.network.NetCrypto");

var strIn = Java.use('java.lang.String');
var byteIn = strIn.$new(strData).getBytes();

var res = ZYNetCrypto.encodeAES(byteIn);

        result =  Bytes2HexString(res);

    });

return result;
}

某右请求的返回值也是加密数据，解密函数由decodeAES完成，调用decodeAES的时候遇到一个问题，decodeAES函数的返回值是byte[]类型，但是实际上是String类型的明文。所以一开始我们用

	var result = this.decodeAES(arg1,arg2);
var strIn = Java.use('java.lang.String');
var outStr = strIn.$new(result);

这种方式把类型转换成String，然后直接返回给python代码，结果总是异常报错，百思不得其解。最后还是用encodeAES一样的方式来转成hex字符串来输出:

run.py

@app.route('/aesdec', methods=['POST']) # 数据解密
def zy_aesdec():
global gScript

    data = request.get_data()
    res = gScript.exports.calldecaes(data.decode("utf-8"))
return res

hook.js

// 解密
function callDecodeAes(dataBuf){
var rc = 'null';

var arr = HexString2Bytes(dataBuf);

    Java.perform(function() {
var ZYNetCrypto = Java.use("com.izuiyou.network.NetCrypto");
var res = ZYNetCrypto.decodeAES(arr,true);
		rc = Bytes2HexString(res);
    });

return rc;
}

最后我们用一个python来组装获取某右热门数据的请求

# 获取数据
def get_data(uri, msg):
    postData = dataAesEnc(msg)
# print(postData)
    sign = dataSign(postData)
# print(sign)
    protocolKey = dataGetKey()
# print(protocolKey)

    url = uri + str(sign)
    headers = { 'ZYP': 'mid=239631186',
'X-Xc-Agent' : 'av=5.5.11,dt=0',
'User-Agent': 'okhttp/3.12.2 Zuiyou/5.5.11 (Android/27)',
'X-Xc-Proto-Req' : protocolKey,
'Request-Type' : 'text/json',
'Content-Type' : 'application/xcp',
                }
    byte_data = bytes.fromhex(postData)

# proxies = {'http': '127.0.0.1:8888',
#  'https': '127.0.0.1:8888'
#  }

try:
# ,proxies=proxies
        r = requests.post(url, headers=headers, data=byte_data, verify=False,stream=True,timeout=15)

# print(r.headers['X-Xc-Proto-Res'])
# key是 cat开头的就需要把返回包里面的duck key设置进去，
if protocolKey.find('cat') == 0:
            print(protocolKey)
            print(r.headers['X-Xc-Proto-Res'])
            dataSetKey(r.headers['X-Xc-Proto-Res'])
# 这里要做一些错误处理
        bufRc =  r.raw.read();
        rcStr = dataAesDec(bufRc.hex())
        rc = bytes.fromhex(rcStr).decode("utf-8")
return rc

except RequestException as e:
        print(e)

def main():
# 手机端首页推荐地址
    uri = 'http://api.izuiyou.com/index/recommend?sign='
    msg = '{"filter":"all","auto":0,"tab":"推荐","direction":"down","c_types":[1,2,11,15,16,51,17,52,53,40,50,41,22,25,27],"sdk_ver":{"tt":"3.1.0.3","tx":"4.211.1081","bd":"5.86","mimo":"5.0.3","tt_aid":"5004095","tx_aid":"1106701465","bd_aid":"c8655095","mimo_aid":"2882303761518470184"},"ad_wakeup":1,"h_ua":"Mozilla\/5.0 (Linux; Android 8.1.0; Redmi 6A Build\/O11019; wv) AppleWebKit\/537.36 (KHTML, like Gecko) Version\/4.0 Chrome\/62.0.3202.84 Mobile Safari\/537.36","manufacturer":"Xiaomi","h_av":"5.5.11","h_dt":0,"h_os":27,"h_app":"zuiyou","h_model":"Redmi 6A","h_did":"866655030396869","h_nt":1,"h_m":239631186,"h_ch":"xiaomi","h_ts":1603179121590,"token":"T7K4Nnqg98_aFV9JwkfuiZtvPrRJ02EXxbnm7TXr3qiIWWaT1vjNNNCpcUu112TDw_VXu","android_id":"57b9b8465c2e440b","h_ids":{"imei2":"878739042239784","meid":"98001184062989","imei1":"878739042239776","imei":"98001184062989"},"h_os_type":"miui"}'

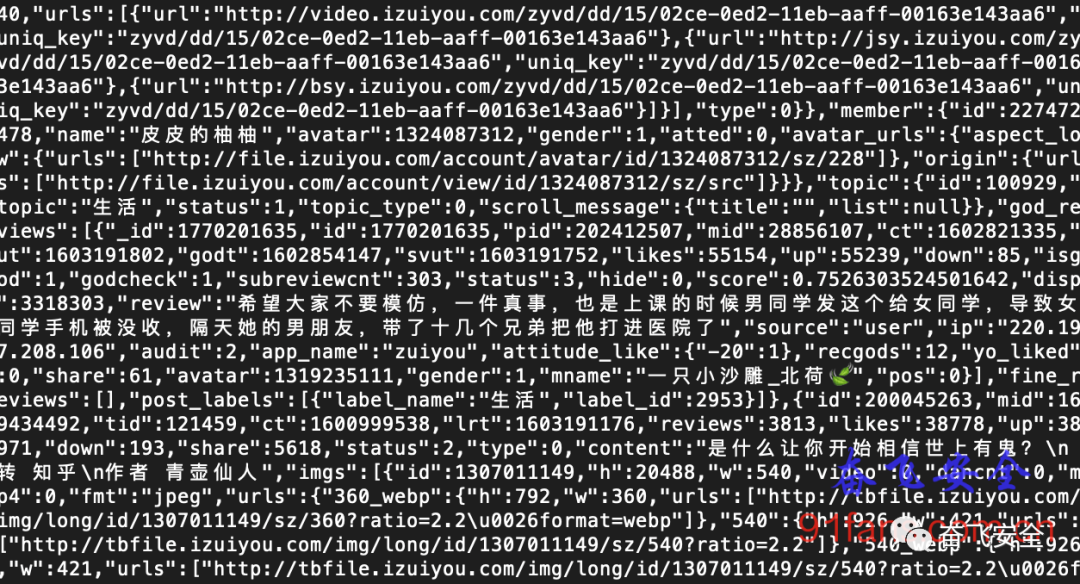

    items = get_data(uri, msg)
    print(items)
