Flutter - 7 : 一个附带删除动画与拖动删除的GridView

友情提示 : 这个仅仅只是做出来看的,用到的东西可能会对其他人有些许提示效果,然而并不能保证这个东西一定不会出现错误。

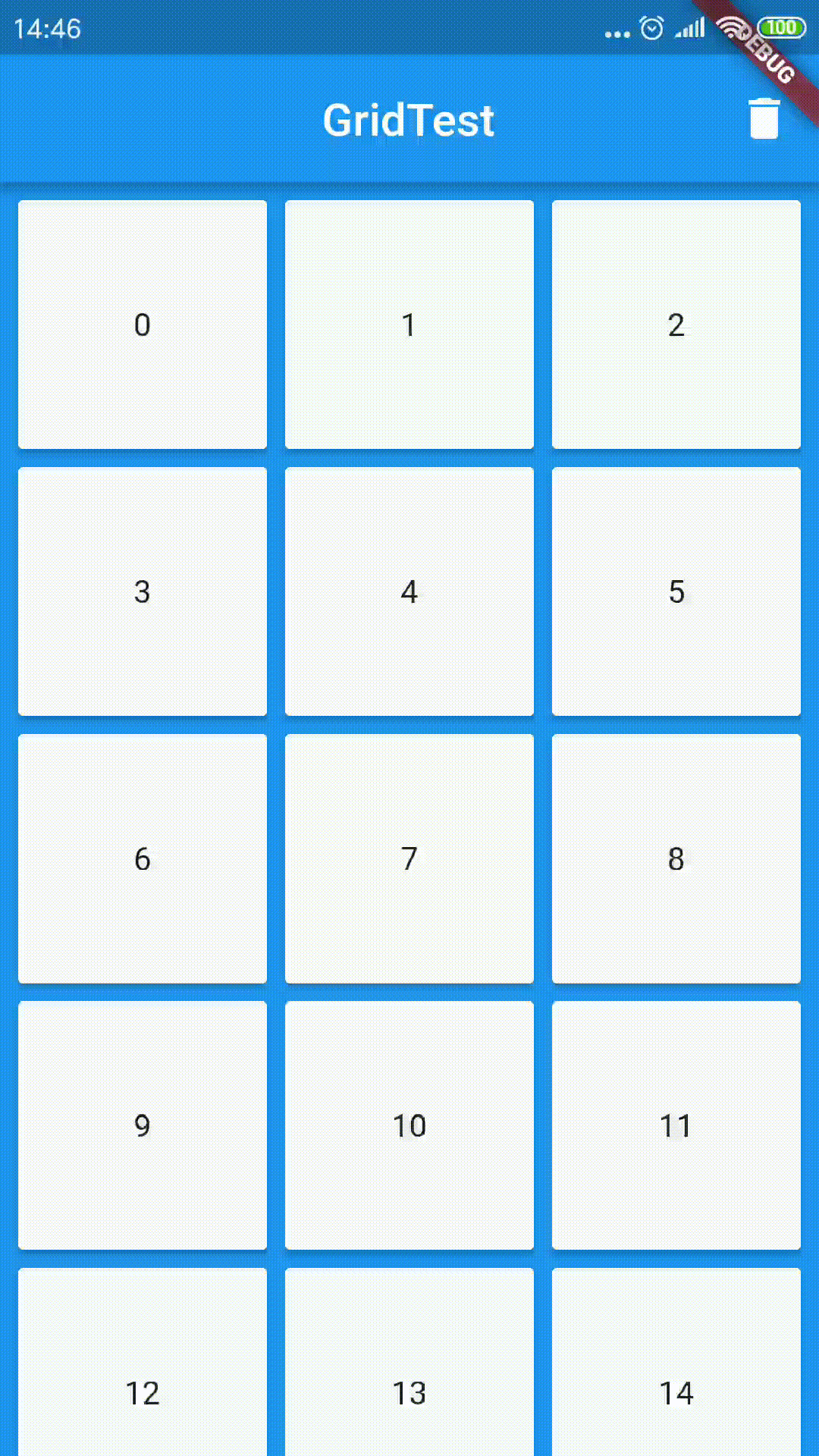

接上次的listview,这次是一个gridview,官方好像没有给提供这样的网格控件出来,然而这样的东西,多多少少又是有一些使用的,所以也可以自己做一个出来,不过可能会比单纯的列表要麻烦一些,主要的问题在于动画位置的计算。这里仅仅是计算了再所有的item大小都是一样的状况。下面是效果图:

实现方法:

原理上来说,是先触发删除状态,刷新布局,然后再选择item,选中之后item回调通知gridview,将其记录为一个数组,然后点击删除之后,回调父控件进行数据的删除,然后刷新布局,这时候会为需要的item添加一个位移动画,动画完成再次刷新布局,去掉动画控件。
对于长按拖动,是利用了LongPressDraggableDragTarget进行实现,本身并不复杂。

下面是代码:

第一步:

首先是定义的状态与方法,会在下面的代码中用到的。
唯一需要了解的只是几个int值,因为需要在父控件当中对gridview进行操作(比如触发删除状态,全选等等),所以就需要获取状态,可以使用GlobalKey去实现这一部分,只是GlobalKey本身是维护了一个静态的map在里面,个人而言并不喜欢这样的方法,所以直接写了一个Map的参数,把这几个需要用到的方法在initState的时候直接添加进了里面,在dispose的时候,再把这个map清理掉。

const int Trigger = 1;
const int Cancle = 2;
const int SelectAll = 3;
const int Delete = 4;
const int CurrentState = 5;

typedef OnItemBuild = void Function(Size size);

typedef ResultCallBack = bool Function();

typedef IndexCallBack = void Function(int index);

typedef OnActionFinished = int Function(
    List<int> indexes); // 进行数据清除工作,并返回当前list的length

typedef OnItemSelectedChanged = void Function(
    int index, bool isSelected); // 选中状态回调
第二步:

下面是widget控件,用的是GridViewbuilder,所以也就需要SliverGridDelegate,这部分的参数和正常的GridView一样。区别只是取消删除状态的回调onActionCancled,以及删除行为完成的回调onActionFinished,当然里面还有一个InkWell在后面的Item控件当中,所以会有一个IndexCallBack 用来对item进行回调事件的。

class CustomAnimateGrid extends StatefulWidget {
  final SliverGridDelegate delegate;
  final IndexedWidgetBuilder itemBuilder;
  final Function onActionCancled;
  final OnActionFinished onActionFinished;
  final IndexCallBack onItemPressed;
  int itemCount;
  final Axis scrollDirection;
  final bool reverse;
  final ScrollController controller;
  final bool primary;
  final ScrollPhysics physics;
  final bool shrinkWrap;
  final EdgeInsetsGeometry padding;
  final Map<int, Function> actionToken;

  CustomAnimateGrid({
    Key key,
    @required this.delegate,
    @required this.itemCount,
    @required this.itemBuilder,
    @required this.onActionCancled,
    @required this.onActionFinished,
    @required this.actionToken,
    this.onItemPressed,
    this.scrollDirection = Axis.vertical,
    this.reverse = false,
    this.controller,
    this.primary,
    this.physics,
    this.shrinkWrap = false,
    this.padding,
  }) : super(key: key);

  @override
  State<StatefulWidget> createState() {
    return _CustomAnimateGridState();
  }
}
第三步:

然后是控件的State,这里维护了两个数组用来记录下标,最终是用来计算动画起始位置的时候使用的,size这个属性是item的大小,获取方法是:WidgetsBinding.instance.addPostFrameCallback(onAfterRender);
添加之后,widget会在最后一帧的时候调用onAfterRender这个方法,这时候控件的大小,位置,均可以直接获取到。

位置获取方法如下:

context.findRenderObject().getTransformTo(null)?.getTranslation().x;
context.findRenderObject().getTransformTo(null)?.getTranslation().y;

底部的删除条使用了statefulBuilder,其状态就可以单独维护,而不需要刷新整个控件。

class _CustomAnimateGridState extends State<CustomAnimateGrid>
    with TickerProviderStateMixin {
  final List<int> selectedItems = []; // 被选中的item的index集合
  final List<int> remainsItems = []; // 删除后将会保留的item的index集合

  Size _itemSize;

  StateSetter _deleteSheetState;

  AnimationController _slideController;
  AnimationController _deleteSheetController;
  Animation<Offset> _deleteSheetAnimation;

  int _oldItemCount;

  bool _needToAnimate = false; // 是否需要进行平移动画
  bool _readyToDelete = false; // 是否是删除状态
  bool _singleDelete = false; // 是否是单独删除状态,长按item触发

  bool _canAccept = false; // 长按删除时,是否移动到了指定位置

  @override
  void initState() {
    super.initState();
    initActionTokenes();
    _slideController =
        AnimationController(vsync: this, duration: Duration(milliseconds: 250));
    _deleteSheetController =
        AnimationController(vsync: this, duration: Duration(milliseconds: 150));
    _deleteSheetAnimation =
        Tween(begin: Offset(0.0, 1.0), end: Offset(0.0, 0.0)).animate(
            CurvedAnimation(
                parent: _deleteSheetController, curve: Curves.easeOut));
  }

  @override
  void dispose() {
    super.dispose();
    widget.actionToken.clear();
    _slideController.dispose();
    _deleteSheetController.dispose();
  }

  void initActionTokenes() {
    if (!widget.actionToken.containsKey(Trigger)) {
      widget.actionToken[Trigger] = triggerDeleteAction;
    }
    if (!widget.actionToken.containsKey(Cancle)) {
      widget.actionToken[Cancle] = cancleDeleteAction;
    }
    if (!widget.actionToken.containsKey(SelectAll)) {
      widget.actionToken[SelectAll] = selectAllItems;
    }
    if (!widget.actionToken.containsKey(Delete)) {
      widget.actionToken[Delete] = doDeleteAction;
    }
    if (!widget.actionToken.containsKey(CurrentState)) {
      widget.actionToken[CurrentState] = getCurrentState;
    }
  }

  @override
  Widget build(BuildContext context) {
    return WillPopScope(
        child: Stack(
          children: <Widget>[
            GridView.builder(
                gridDelegate: widget.delegate,
                itemCount: widget.itemCount,
                scrollDirection: widget.scrollDirection,
                reverse: widget.reverse,
                controller: widget.controller,
                primary: widget.primary,
                physics: (widget.physics != null
                    ? widget.physics
                    : BouncingScrollPhysics(
                        parent: AlwaysScrollableScrollPhysics())),
                shrinkWrap: widget.shrinkWrap,
                padding: widget.padding,
                itemBuilder: (context, index) {
                  bool isSelected = selectedItems.contains(index);

                  Animation<Offset> slideAnimation;
                  // 需要动画时,添加一个位移动画
                  if (_needToAnimate) {
                    slideAnimation = createTargetItemSlideAnimation(index);
                  }
                  return _GridItem(
                    index,
                    _readyToDelete,
                    widget.itemBuilder(context, index),
                    onItemSelected,
                    widget.onItemPressed,
                    triggerSingleDelete,
                    cancleSingleDelete,
                    isSelected,
                    slideAnimation,
                    onItemBuild: itemBuildCallBack,
                  );
                }),
            StatefulBuilder(
              builder: (context, state) {
                _deleteSheetState = state;
                return Offstage(
                  offstage: !_singleDelete,
                  child: Align(
                    alignment: Alignment.bottomCenter,
                    child: SlideTransition(
                      position: _deleteSheetAnimation,
                      child: DragTarget<int>(onWillAccept: (data) {
                        _canAccept = true;
                        return data != null; // dada不是null的时候,接收该数据。
                      }, onAccept: (data) {
                        doSingleDelete(data);
                      }, onLeave: (data) {
                        _canAccept = false;
                      }, builder: (context, candidateData, rejectedData) {
                        return SizedBox(
                          width: MediaQuery.of(context).size.width,
                          height: 64.0,
                          child: Material(
                            color: Colors.black54,
                            child: Center(
                              child: Icon(
                                Icons.delete_forever,
                                color: Colors.red,
                              ),
                            ),
                          ),
                        );
                      }),
                    ),
                  ),
                );
              },
            )
          ],
        ),
        onWillPop: onBackPressed);
  }

  // 拦截返回按键
  Future<bool> onBackPressed() async {
    if (_readyToDelete) {
      cancleDeleteAction();
      return false;
    }
    return true;
  }

  // 首次触发时,计算item所占空间的大小,用于计算位移动画的位置
  void itemBuildCallBack(Size size) {
    if (_itemSize == null) {
      _itemSize = size;
    }
  }

  // Item选中状态回调 --- 将其从选中item的list中添加或删除
  void onItemSelected(int index, bool isSelected) {
    if (isSelected) {
      selectedItems.add(index);
    } else {
      selectedItems.remove(index);
    }
  }

  // 长按Item触发底部删除条状态回调
  void triggerSingleDelete() {
    _deleteSheetState(() {
      _singleDelete = true;
      _deleteSheetController.forward();
    });
  }

  // 未移动至底部删除条,取消单独删除状态
  bool cancleSingleDelete() {
    // 未移动到指定位置时,隐藏底部删除栏,并刷新item状态 --- 移动到指定位置时,只修改item的状态,不刷新布局
    if (!_canAccept) {
      _deleteSheetController.reverse().whenComplete(() {
        _deleteSheetState(() {
          _canAccept = false;
          _singleDelete = false;
        });
      });
    }
    return _canAccept;
  }

  // 移动至底部删除条,删除item,然后取消状态单独删除状态
  void doSingleDelete(int index) {
    _deleteSheetController.reverse().whenComplete(() {
      _deleteSheetState(() {
        _canAccept = false;
        _singleDelete = false;
        selectedItems.add(index);
      });
      doDeleteAction();
    });
  }

  // 触发删除状态,刷新布局,显示可选择的checkbox
  void triggerDeleteAction() {
    setState(() {
      _readyToDelete = true;
    });
  }

  // 将所有item设置为被选中状态
  void selectAllItems() {
    setState(() {
      if (selectedItems.length != widget.itemCount) {
        selectedItems.clear();
        for (int i = 0; i < widget.itemCount; i++) {
          selectedItems.add(i);
        }
      } else {
        selectedItems.clear();
      }
    });
  }

  // 取消删除状态,刷新布局
  void cancleDeleteAction() {
    setState(() {
      _readyToDelete = false;
      selectedItems.clear();
      widget.onActionCancled();
    });
  }

  // 删除Item,执行动画,完成后重绘界面
  void doDeleteAction() {
    _readyToDelete = false;
    if (selectedItems.length == 0 || selectedItems.length == widget.itemCount) {
      // 未选中ite或选中了所有item --- 删除item,然后刷新布局,无动画效果
      setState(() {
        widget.itemCount =
            widget.onActionFinished(selectedItems.reversed.toList());
        selectedItems.clear();
      });
    } else {
      // 选中部分item --- 计算需要动画的item,刷新item布局,加入动画控件,然后统一执行动画,结束后刷新布局
      getRemainsItemsList();
      setState(() {
        _needToAnimate = true;
        widget.itemCount =
            widget.onActionFinished(selectedItems.reversed.toList());
      });
      _slideController.forward().whenComplete(() {
        setState(() {
          _slideController.value = 0.0;
          _needToAnimate = false;
          selectedItems.clear();
          remainsItems.clear();
        });
      });
    }
  }

  // 获取将会保留的item的index集合
  void getRemainsItemsList() {
    _oldItemCount = widget.itemCount;
    for (int i = 0; i < _oldItemCount; i++) {
      if (selectedItems.contains(i)) {
        continue;
      }
      remainsItems.add(i);
    }
  }

  // 创建指定item的位移动画
  Animation<Offset> createTargetItemSlideAnimation(int index) {
    int startIndex = remainsItems[index];
    if (startIndex != index) {
      Tween<Offset> tween = Tween(
          begin: getTargetOffset(remainsItems[index], index),
          end: Offset(0.0, 0.0));
      return tween.animate(
          CurvedAnimation(parent: _slideController, curve: Curves.easeOut));
    }
    return null;
  }

  // 返回动画的位置
  Offset getTargetOffset(int startIndex, int endIndex) {
    SliverGridDelegateWithFixedCrossAxisCount delegate = widget.delegate;
    int horizionalSeparation = (startIndex % delegate.crossAxisCount) -
        (endIndex % delegate.crossAxisCount);
    int verticalSeparation = (startIndex ~/ delegate.crossAxisCount) -
        (endIndex ~/ delegate.crossAxisCount);

    double dx = (delegate.crossAxisSpacing + _itemSize.width) *
        horizionalSeparation /
        _itemSize.width;
    double dy = (delegate.mainAxisSpacing + _itemSize.height) *
        verticalSeparation /
        _itemSize.width;

    return Offset(dx, dy);
  }

  bool getCurrentState() {
    return _readyToDelete;
  }
}
第四步:

最后是在item的外面添加动画以及拖动控件,相对上面这一部分就没有什么麻烦的了。

class _GridItem extends StatefulWidget {
  final int index;

  final bool readyToDelete;

  final Widget child;

  final OnItemSelectedChanged onItemSelectedChanged;

  final IndexCallBack onItemPressed;

  final Function singleDeleteStart;
  final ResultCallBack singleDeleteCancle;

  final Animation<Offset> slideAnimation;

  final OnItemBuild onItemBuild;

  _GridItemState _state;

  bool _isSelected;

  _GridItem(
      this.index,
      this.readyToDelete,
      this.child,
      this.onItemSelectedChanged,
      this.onItemPressed,
      this.singleDeleteStart,
      this.singleDeleteCancle,
      this._isSelected,
      this.slideAnimation,
      {this.onItemBuild});

  @override
  State<StatefulWidget> createState() {
    _state = _GridItemState();
    return _state;
  }
}

class _GridItemState extends State<_GridItem> with TickerProviderStateMixin {
  Size _size;

  bool _isDragging = false;

  @override
  void initState() {
    super.initState();
    // 获取当前控件的size属性,当渲染完成之后,自动回调,无需unregist
    WidgetsBinding.instance.addPostFrameCallback(onAfterRender);
  }

  @override
  void didUpdateWidget(_GridItem oldWidget) {
    super.didUpdateWidget(oldWidget);
    // 获取当前控件的size属性,当渲染完成之后,自动回调,无需unregist
    WidgetsBinding.instance.addPostFrameCallback(onAfterRender);
  }

  void onAfterRender(Duration timeStamp) {
    _size = context.size;
    widget.onItemBuild(_size);
  }

  @override
  Widget build(BuildContext context) {
    return InkWell(
      child: buildItem(context),
      onTap: () {
        // 未触发删除状态时,可以调用传入的点击回调参数
        if (!widget.readyToDelete) {
          widget.onItemPressed(widget.index);
        }
      },
    );
  }

  Widget buildItem(BuildContext context) {
    return (widget.readyToDelete
        ? Stack(
            children: <Widget>[
              widget.child,
              Align(
                alignment: Alignment.topRight,
                child: StatefulBuilder(builder: (context, state) {
                  return Checkbox(
                      value: widget._isSelected,
                      onChanged: (isSelected) {
                        state(() {
                          widget._isSelected = isSelected;
                          widget.onItemSelectedChanged(
                              widget.index, isSelected);
                        });
                      });
                }),
              )
            ],
          )
        : LongPressDraggable<int>(
            data: widget.index,
            child: (_isDragging
                ? Material(
                    color: Colors.transparent,
                  )
                : buildItemChild()),
            feedback: StatefulBuilder(builder: (context, state) {
              return SizedBox.fromSize(size: _size, child: widget.child);
            }),
            onDragStarted: () {
              setState(() {
                _isDragging = true;
                widget.singleDeleteStart();
              });
            },
            onDragEnd: (details) {
              if (widget.singleDeleteCancle()) {
                _isDragging = false;
              } else {
                setState(() {
                  _isDragging = false;
                });
              }
            },
            onDraggableCanceled: (velocity, offset) {
              setState(() {
                _isDragging = false;
                widget.singleDeleteCancle();
              });
            },
          ));
  }

  // 若动画不为空,则添加动画控件
  Widget buildItemChild() {
    if (widget.slideAnimation != null) {
      return SlideTransition(
        position: widget.slideAnimation,
        child: widget.child,
      );
    }
    return widget.child;
  }
}
最后:

这样,整个控件就结束了,最后加上父布局的代码,只有一个statelewidget

void main() {
  SystemChrome.setPreferredOrientations([DeviceOrientation.portraitUp])
      .then((Null) {
    runApp(ForFun());
  });
}

class ForFun extends StatelessWidget {
  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      title: 'ForFun',
      theme: ThemeData(
        primaryColorDark: Colors.blueAccent,
        primaryColor: Colors.blue,
        primaryColorLight: Colors.lightBlue,
        primarySwatch: Colors.blue,
      ),
      home: TestListPage(),
    );
  }
}

class TestListPage extends StatelessWidget {
  final List<String> list = [
    "0",
    "1",
    "2",
    "3",
    "4",
    "5",
    "6",
    "7",
    "8",
    "9",
    "10",
    "11",
    "12",
    "13",
    "14",
    "15",
    "16",
    "17",
    "18",
    "19",
    "20",
    "21",
    "22",
    "23",
    "24",
    "25",
  ];

  StateSetter _actionState;
  final Map<int, Function> map = {}; // 这部分需要的方法调用也可以用GlobalKey去做。

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      backgroundColor: Colors.blue,
      appBar: AppBar(
        centerTitle: true,
        title: Text("GridTest"),
        actions: <Widget>[
          StatefulBuilder(builder: (context, state) {
            _actionState = state;
            if (map[CurrentState]()) {
              return Row(
                children: <Widget>[
                  IconButton(
                      icon: Icon(
                        Icons.done_all,
                        color: Colors.white,
                      ),
                      onPressed: () {
                        map[SelectAll]();
                      }),
                  IconButton(
                      icon: Icon(
                        Icons.delete_forever,
                        color: Colors.red,
                      ),
                      onPressed: () {
                        state(() {
                          map[Delete]();
                        });
                      })
                ],
              );
            }
            return IconButton(
                icon: Icon(
                  Icons.delete,
                  color: Colors.white,
                ),
                onPressed: () {
                  state(() {
                    map[Trigger]();
                  });
                });
          }),
        ],
      ),
      body: createGrid(),
    );
  }

  CustomAnimateGrid createGrid() {
    return CustomAnimateGrid(
      actionToken: map,
      delegate: SliverGridDelegateWithFixedCrossAxisCount(
        crossAxisCount: 3,
        crossAxisSpacing: 8.0,
        mainAxisSpacing: 8.0,
        childAspectRatio: 1.0,
      ),
      padding: EdgeInsets.all(8.0),
      itemCount: list.length,
      itemBuilder: itemBuilder,
      onActionCancled: (){
        _actionState((){});
      },
      onActionFinished: (indexes) {
        _actionState((){});
        indexes.forEach((index) {
          list.removeAt(index);
        });
        return list.length;
      },
    );
  }

  Widget itemBuilder(BuildContext context, int index) {
    return Material(
      elevation: 2.0,
      borderRadius: BorderRadius.all(Radius.circular(2.0)),
      child: Center(
        child: Text(list[index]),
      ),
    );
  }
}
本集完!
展开阅读全文

没有更多推荐了,返回首页
