springBoot
1.引入:
上一篇我们学习了如何在maven项目中使用springBoot来实现spring,springMVC,Mybatis构架一个web项目,今天我们就来学习一下springBoot的一些基础原理。
2.相关原理:
在使用springBoot之前,我们使用了大量的xml文件来进行项目配置,这其实是非常不合理的,xml太多了后代码维护更加的困难,使用了springBoot之后,就只需要pom,application,mappers,就可以实现ssm框架的搭建,这其中的原因是什么?我们就来说明一下它的其他注解。
1.@Configuration

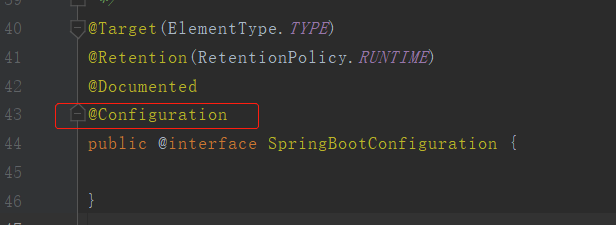

使用于类上,被该注解标注的类,就叫配置类,相当于就是一个xml文件。下面是SpringBootConfiguration注解中的配置类。
2.@ComponentScan

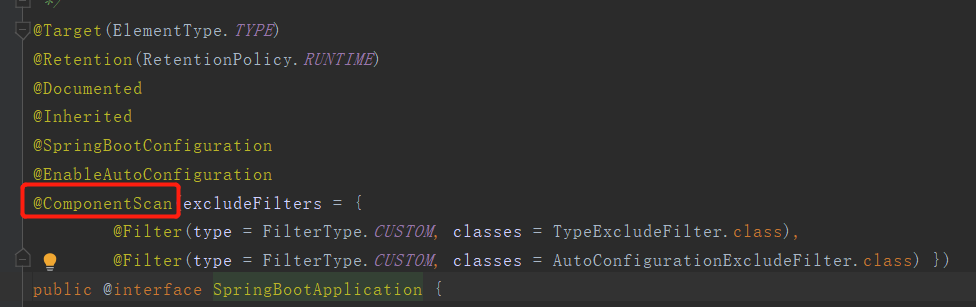

在启动类的@SpringBootApplication注解中,点击进去可以看到,下面有该注解,意思就是包扫描,和以前xml中的context:component-scan一样,这也就是为什么我们的启动类要放在最外面的原因,不然扫描不到其他包
3.@bean
使用在方法上,该方法的返回值交由spring来进行管理,之前在学习spring的DI,使用过一个工厂类来进行实例化,其中就用到了@bean。
@Component("MySql")
public class MySql implements dao {
//使用工厂注入user
@Autowired
@Qualifier("getInstance")
User user=null;
@Override
public User insert() {
System.out.println("创建成功");
return user;
}
}
@Component("UserFactory")
public class UserFactory {
//通过user类来注入到工厂中,工厂返回
@Autowired
@Qualifier("User")
User user=null;
@Bean("getInstance")
public User getInstance(){
return this.user;
}
}
4.@conditional
springBoot扩展了很多注解,这些注解和原来的xml中没有对应的关系了,条件注解就是其中之一
conditional的衍生注解@ConditionalOnBean。是否在容器中有这个MyController.class的对象,有则满足条件,没有则不满足条件
@Bean
@ConditionalOnBean(MyController.class)
public Bean1 initBean1(){
System.out.println("条件满足,initBean1被创建调用");
return new Bean1();
}
conditional的其他衍生:
@ConditionalOnMissingBean:容器中没有指定的某些bean对象才会满足条件
@ConditionalOnClass:大量springboot自动配置类使用的条件注解,依赖资源由指定的类才满足条件
@ConditionalOnMissingClass:依赖没有该指定类才满足条件
@ConditionalOnWebApplication:当前进程是web工程满足条件
@ConditionalOnNotWebApplication:当前进程不是web工程满足条件
nginx
1.引入
web项目通常情况下都需要高并发,一个相同的web应用可以被部署在很多服务器上,也可以在一个服务器上开很多个相同的web应用(web项目集群),这就出现了一个问题,当一个请求发送出去的时候,究竟分配给哪个服务器来解决,这就需要使用一个工具nginx。使用nginx来做负载均衡,可以很大程度上的提高了用户的使用感觉。

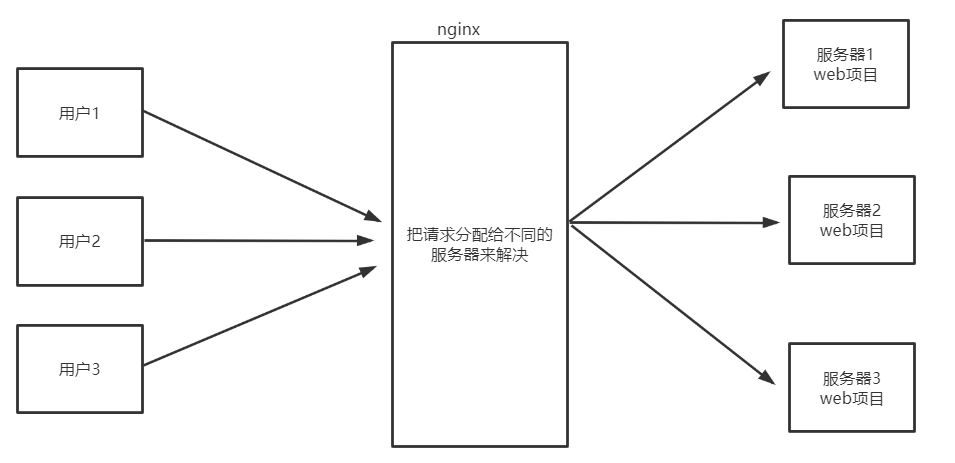

客户端通过网络,使用域名+80默认端口访问到nginx的服务器,通过nginx的计算可以负载均衡的访问后端服务器集群.
2.nginx访问流程:
要使用nginx作为代理服务器,就需要在nginx中配置相关信息(nginx.conf):
http {
server{
#配置OU系统-8091
listen 80;
server_name www.ou.com;
location / {
proxy_pass http://127.0.0.1:8091/;
}
}
}

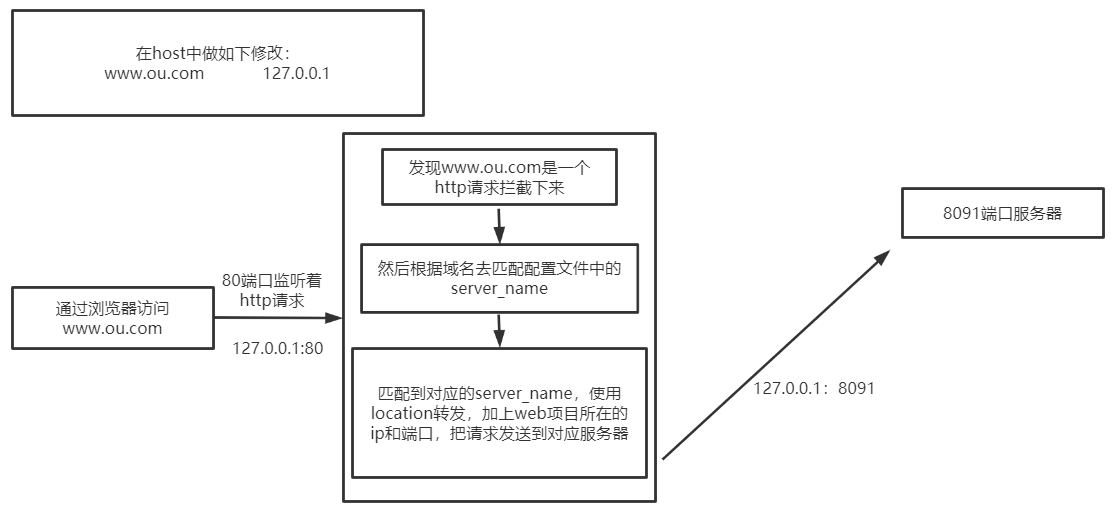

这是我配置的一个项目信息,访问的流程如下:
配置语法:
http{ 内容表示nginx作为http服务器代理运行的所有逻辑
server{ 每一个server {} 都代表一个虚拟服务器,接收请求,
配置逻辑不同,到达nginx的请求会分配给不同的server处理
虚拟服务器内容}
server{
虚拟服务器内容
}
server{
虚拟服务器内容
}
}
**server**
在http的内容中可以配置多个server,每个server都是一个可以接收http请求的虚拟服务器,和能接受http请求的真实服务器是一样
**listen**
表示该server在nginx中运行时监听的nginx服务器上所有该端口的访问
**server_name**
listen发现请求后,判断请求中的host头,匹配则进入该server.不同的2个server配置中,监听端口和域名名称不能相同
**location /**
负责计算请求uri路径,判断和规则匹配与否,一旦匹配进入到location内部,不匹配则不处理. location /表示所有路径以/开始的都能匹配上
**proxy_pass**
代理路径,一旦进入location,可以通过这个关键字转向后端服务器.

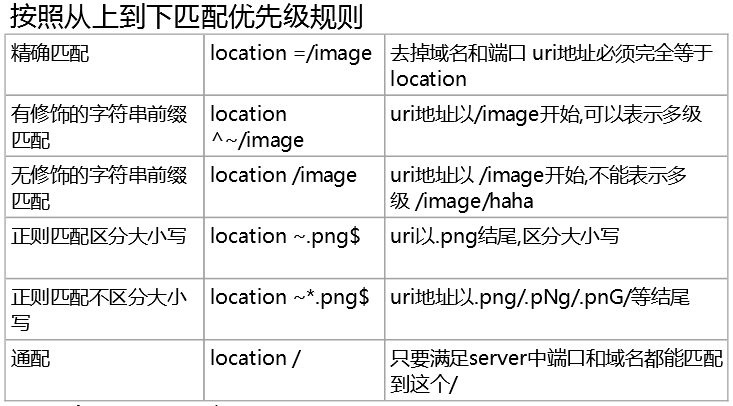

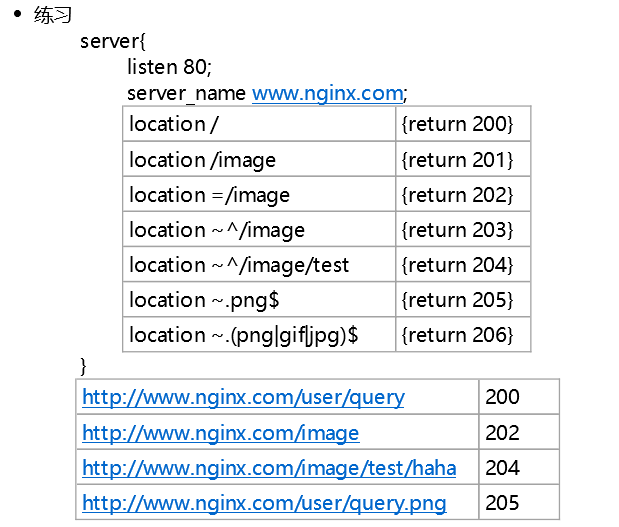

3.location的匹配规则和优先级:
在配置文件中的server中,配置了一个location,其作用其实相当于可以做过滤,把符合匹配条件的请求发送到指定服务器,其他不满足的请求过滤掉。
4.负载均衡:
轮询:
比如说有三个端口8091 8092 8093,使用轮询的话就是轮番寻访这三个端口,比如第一个请求访问8093,第二个访问8092,第三个访问8091.

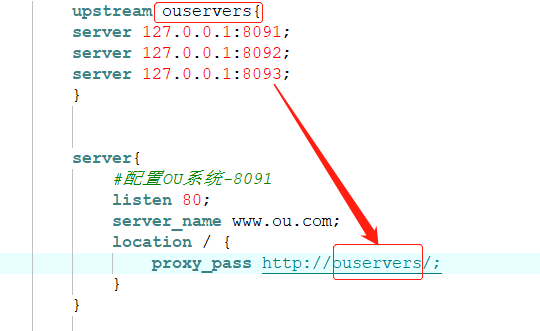

使用轮询需要引入关键字upstream(也是在配置文件中进行),使用list来进行管理。名为ouservers的list列表:
轮询中的权重配置:
在轮询的基础上,可以加入权重配置。这样就可以根据不同服务器的性能,来分配不同的权重,性能好的权重大,性能差的权重小,权重为0表示不再访问。
upstream ouservers{
server 127.0.0.1:8091 wegith=1;
server 127.0.0.1:8092 weight=1;
server 127.0.0.1:8093 weight=1;
}
5.动静分离
静态资源访问:
所谓的动静分离,实际上就是把web项目中的静态资源(js,html,css,img),从web项目中剥离出来放入nginx中来访问,方法就是把原来web项目static文件夹中的静态资源,放到nginx的根目录下,文件名为easymall。
这样所有的请求和/匹配的,无论后面/xxx/xxx什么什么的,都会与这个location匹配,然后进入到easymall文件中寻找对应的静态资源。
location /{
#相对于nginx的根目录
root easymall;
}
动态资源的访问:
所谓的动态资源访问,其实就是访问后台代码,从contrller层进入。
location =/user/query/point {
#转向ouservers集群
proxy_pass http://ouservers/user/query/point;
}
流程:前端通过nginx来进行静态资源的访问,当你点击用户积分查询的时候,就需要使用后台代码的动态资源来查询,我们可以看到在controller层中的注解中表明了这个访问路径,所以在location中我们使用精确匹配来执行,就可以找到该动态资源。
