1.Maven依赖
2.ExcelUtil工具类代码
3.Test测试
4.遇到的问题
公司要写导出Excel的功能,就写了一下,顺便记录记录,代码从这里copy来的,自己改了一下。源码应该是3.9的poi版本,里面挺多类已经不推荐使用了,我用的poi是3.17。
1.Maven依赖
<!-- 数据导出到xlsx -->
<dependency>
<groupId>org.apache.xmlbeans</groupId>
<artifactId>xmlbeans</artifactId>
<version>2.6.0</version>
</dependency>
<dependency>
<groupId>org.apache.poi</groupId>
<artifactId>poi</artifactId>
<version>3.17</version>
</dependency>
<dependency>
<groupId>org.apache.poi</groupId>
<artifactId>poi-ooxml</artifactId>
<version>3.17</version>
</dependency>
2.ExcelUtil工具类代码
import org.apache.poi.ss.usermodel.BorderStyle;
import org.apache.poi.ss.usermodel.CellType;
import org.apache.poi.ss.usermodel.HorizontalAlignment;
import org.apache.poi.ss.usermodel.VerticalAlignment;
import org.apache.poi.ss.util.CellRangeAddress;
import org.apache.poi.xssf.usermodel.*;
import javax.servlet.http.HttpServletResponse;
import java.awt.*;
import java.io.IOException;
import java.io.OutputStream;
import java.util.List;
import static org.apache.poi.ss.usermodel.CellType.NUMERIC;
public class ExcelUtil {
/**
* 导出excel
*
* @param title 导出表的标题
* @param rowsName 导出表的列名
* @param dataList 需要导出的数据
* @param fileName 生成excel文件的文件名
* @param response
*/
public void exportExcel(String title, String[] rowsName, List<String[]> dataList, String fileName, HttpServletResponse response) throws Exception {
OutputStream output = response.getOutputStream();
response.reset();
response.setHeader("Content-disposition",
"attachment; filename=" + fileName);
response.setContentType("application/msexcel");
this.export(title, rowsName, dataList, fileName, output);
this.close(output);
}
/**
* 数据导出
* @param title
* @param rowName
* @param dataList
* @param fileName
* @param out
* @throws Exception
*/
private void export(String title, String[] rowName, List<String[]> dataList, String fileName, OutputStream out) throws Exception {
//查看poi使用的是什么版本的jar包
//System.out.println("!!!!!!!!!"+ XSSFCellStyle.class.getProtectionDomain().getCodeSource().getLocation());
try {
// 创建工作簿对象
XSSFWorkbook workbook = new XSSFWorkbook();
// 创建工作表
XSSFSheet sheet = workbook.createSheet(title);
// 产生表格标题行
XSSFRow rowm = sheet.createRow(0);
//创建表格标题列
XSSFCell cellTiltle = rowm.createCell(0);
// sheet样式定义; getColumnTopStyle(); getStyle()均为自定义方法 --在下面,可扩展
// 获取列头样式对象
XSSFCellStyle columnTopStyle = this.getColumnTopStyle(workbook);
// 获取单元格样式对象
XSSFCellStyle style = this.getStyle(workbook);
//合并表格标题行,合并列数为列名的长度,第一个0为起始行号,第二个1为终止行号,第三个0为起始列好,第四个参数为终止列号
sheet.addMergedRegion(new CellRangeAddress(0, 1, 0, (rowName.length - 1)));
//设置标题行样式
cellTiltle.setCellStyle(columnTopStyle);
//设置标题行值
cellTiltle.setCellValue(title);
// 定义所需列数
int columnNum = rowName.length;
// 在索引2的位置创建行(最顶端的行开始的第二行)
XSSFRow rowRowName = sheet.createRow(2);
// 将列头设置到sheet的单元格中
for (int n = 0; n < columnNum; n++) {
// 创建列头对应个数的单元格
XSSFCell cellRowName = rowRowName.createCell(n);
// 设置列头单元格的数据类型
cellRowName.setCellType(CellType.STRING);
XSSFRichTextString text = new XSSFRichTextString(rowName[n]);
// 设置列头单元格的值
cellRowName.setCellValue(text);
// 设置列头单元格样式
cellRowName.setCellStyle(columnTopStyle);
}
// 将查询出的数据设置到sheet对应的单元格中
for (int i = 0; i < dataList.size(); i++) {
// 遍历每个对象
Object[] obj = dataList.get(i);
// 创建所需的行数
XSSFRow row = sheet.createRow(i + 3);
for (int j = 0; j < obj.length; j++) {
// 设置单元格的数据类型
XSSFCell cell = null;
if (j == 0) {
cell = row.createCell(j, NUMERIC);
cell.setCellValue(i + 1);
} else {
cell = row.createCell(j, CellType.STRING);
if (!"".equals(obj[j]) && obj[j] != null) {
// 设置单元格的值
cell.setCellValue(obj[j].toString());
}
}
cell.setCellStyle(style); // 设置单元格样式
}
}
// 让列宽随着导出的列长自动适应
for (int colNum = 0; colNum < columnNum; colNum++) {
int columnWidth = sheet.getColumnWidth(colNum) / 256;
for (int rowNum = 0; rowNum < sheet.getLastRowNum(); rowNum++) {
XSSFRow currentRow;
// 当前行未被使用过
if (sheet.getRow(rowNum) == null) {
currentRow = sheet.createRow(rowNum);
} else {
currentRow = sheet.getRow(rowNum);
}
if (currentRow.getCell(colNum) != null) {
XSSFCell currentCell = currentRow.getCell(colNum);
if (currentCell.getCellType() == 1) {
int length = currentCell.getStringCellValue()
.getBytes().length;
if (columnWidth < length) {
columnWidth = length;
}
}
}
}
if (colNum == 0) {
sheet.setColumnWidth(colNum, (columnWidth - 2) * 256);
} else {
sheet.setColumnWidth(colNum, (columnWidth + 8) * 256);
}
}
workbook.write(out);
} catch (Exception e) {
e.printStackTrace();
}
}
/*
* 列头单元格样式
*/
private XSSFCellStyle getColumnTopStyle(XSSFWorkbook workbook) {
// 设置字体
XSSFFont font = workbook.createFont();
// 设置字体大小
font.setFontHeightInPoints((short) 16);
// 字体加粗
font.setBold(true);
// 设置字体名字
font.setFontName("Courier New");
// 设置样式;
XSSFCellStyle style = workbook.createCellStyle();
// 设置底边框;
style.setBorderBottom(BorderStyle.THIN);
// 设置底边框颜色;
style.setBottomBorderColor(new XSSFColor(Color.BLACK));
// 设置左边框;
style.setBorderLeft(BorderStyle.THIN);
// 设置左边框颜色;
style.setLeftBorderColor(new XSSFColor(Color.BLACK));
// 设置右边框;
style.setBorderRight(BorderStyle.THIN);
// 设置右边框颜色;
style.setRightBorderColor(new XSSFColor(Color.BLACK));
// 设置顶边框;
style.setBorderTop(BorderStyle.THIN);
// 设置顶边框颜色;
style.setTopBorderColor(new XSSFColor(Color.BLACK));
// 在样式用应用设置的字体;
style.setFont(font);
// 设置自动换行;
style.setWrapText(false);
// 设置水平对齐的样式为居中对齐;
style.setAlignment(HorizontalAlignment.CENTER);
// 设置垂直对齐的样式为居中对齐;
style.setVerticalAlignment(VerticalAlignment.CENTER);
return style;
}
/*
* 列数据信息单元格样式
*/
private XSSFCellStyle getStyle(XSSFWorkbook workbook) {
// 设置字体
XSSFFont font = workbook.createFont();
// 设置字体大小
// font.setFontHeightInPoints((short)10);
// 字体加粗
// font.setBold(true);
// 设置字体名字
font.setFontName("Courier New");
// 设置样式;
XSSFCellStyle style = workbook.createCellStyle();
// 设置底边框;
style.setBorderBottom(BorderStyle.THIN);
// 设置底边框颜色;
//style.setBottomBorderColor(new XSSFColor(Color.RED));
// 设置左边框;
style.setBorderLeft(BorderStyle.THIN);
// 设置左边框颜色;
style.setLeftBorderColor(new XSSFColor(Color.BLACK));
// 设置右边框;
style.setBorderRight(BorderStyle.THIN);
// 设置右边框颜色;
style.setRightBorderColor(new XSSFColor(Color.BLACK));
// 设置顶边框;
style.setBorderTop(BorderStyle.THIN);
// 设置顶边框颜色;
style.setTopBorderColor(new XSSFColor(Color.BLACK));
// 在样式用应用设置的字体;
style.setFont(font);
// 设置自动换行;
style.setWrapText(false);
// 设置水平对齐的样式为居中对齐;
style.setAlignment(HorizontalAlignment.CENTER);
// 设置垂直对齐的样式为居中对齐;
style.setVerticalAlignment(VerticalAlignment.CENTER);
return style;
}
/**
* 关闭输出流
*
* @param os
*/
private void close(OutputStream os) {
if (os != null) {
try {
os.close();
} catch (IOException e) {
e.printStackTrace();
}
}
}
}
3.Test测试
@GetMapping("/test")
public R test(HttpServletResponse response) {
ExcelUtil excelUtil = new ExcelUtil();
List<String[]> el = new ArrayList<>();
//需要导出的数据
List<ReportLogDataDto> reportList = reportService.getReportList();
if (reportList.isEmpty()) {
return R.failed("查询到的报表条数为0");
}
//遍历取出数据,封装成List<String[]>的形式
reportList.forEach(item -> {
int count = 0;
String[] col = new String[8];
//这行是给编号留出一个空位
col[count++] = "";
col[count++] = item.getCode();
col[count++] = item.getRoomName();
col[count++] = item.getStartTime();
col[count++] = item.getEndTime();
col[count++] = item.getIsFinished();
col[count++] = item.getFailureReason();
col[count++] = item.getTime();
el.add(col);
});
//这里是列名
String[] name = {"编号", "设备编号", "房间名", "开始时间", "结束时间", "是否完成消毒", "失败原因", "时间段"};
try {
excelUtil.exportExcel("消毒报表", name, el, "DisinfectionReport.xlsx", response);
System.out.println("excel finished");
} catch (Exception e) {
e.printStackTrace();
}
return R.ok();
}

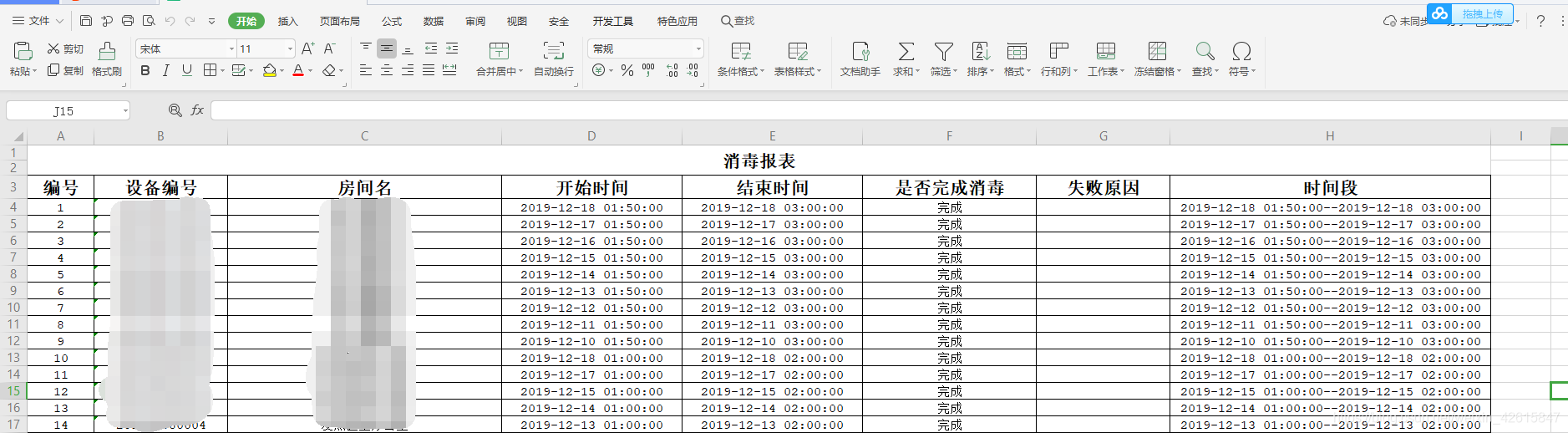

我是用SwaggerUI看的,结果如下:
4.遇到的问题
1)jar包的升级导致CELL_TYPE_STRING、XSSFCell.CELL_TYPE_NUMERIC等无法使用

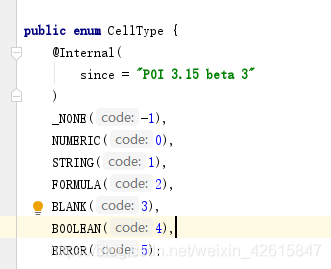

可以使用CellType.STRING、CellType.NUMERIC等等代替。图片是CellType中的内容,可以看出,从3.15就可以使用新的参数了。新的版本都会有旧版本的替代方法,改改就好了。
同时,以下也可以进行替换
POI旧版本 | POI新版本 |
HSSFCellStyle.BORDER_THIN | BorderStyle.THIN |
HSSFColor.BLACK.index | new XSSFColor(Color.BLACK) |
HSSFCellStyle.ALIGN_CENTER | HorizontalAlignment.CENTER |
HSSFCellStyle.VERTICAL_CENTER | VerticalAlignment.CENTER |
2)Caused by: java.lang.NoSuchMethodError: org.apache.poi.hssf.usermodel.XSSFCell.setEncoding(S)V
这可能是由于poi版本覆盖,或者没有正确的引用poi的jar包导致的,我最开始用的jar包,应该是poi3.9,但是下载依赖的时候,会自动把3.17的版本也下载下来,自动覆盖了3.9的版本,导致虽然没有报错,但是 HSSFCellStyle 和部分class一直提示NoSuchMethodError。
ExcelUtil代码中有一行sysout语句如下,这行会把使用的class所在的路径打印出来,通过打印出的信息,可以看看自己用的jar包到底是哪里的,版本号是多少,这个其实也算是版本升级导致的问题了。建议使用新版本的poi,别用老的了。
System.out.println("!!!!!!!!!"+ XSSFCellStyle.class.getProtectionDomain().getCodeSource().getLocation());
