应用场景
多交互、多数据源
用户的使用方式复杂
不同身份的用户有不同的使用方式(比如普通用户和管理员)
多个用户之间可以协作
与服务器大量交互,或者使用了WebSocket
View要从多个来源获取数据
从组件角度看,如果你的应用有以下场景,可以考虑使用 Redux。
某个组件的状态,需要共享
某个状态需要在任何地方都可以拿到
一个组件需要改变全局状态
一个组件需要改变另一个组件的状态
设计思想
Redux 的设计思想很简单,就两句话。
(1)Web 应用是一个状态机,视图与状态是一一对应的。
(2)所有的状态,保存在一个对象里面。
学习文档
-
英文文档: https://redux.js.org/
-
中文文档: http://www.redux.org.cn/
-
Github: https://github.com/reactjs/redux
redux 是什么?
-
redux是一个独立专门用于做状态管理的JS库(不是react插件库)
-
它可以用在react, angular, vue等项目中, 但基本与react配合使用
-
作用: 集中式管理react应用中多个组件共享的状态

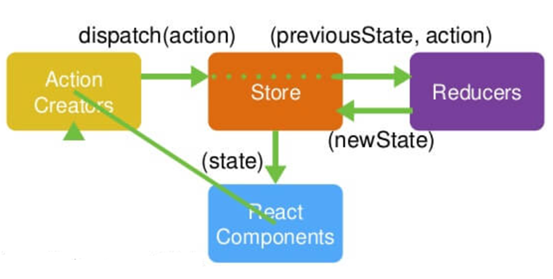

redux 工作流程
对上图进行简单叙述:
首先store是保持数据的容器,且整个应用只能有一个 store
state 对象是包含了所有的数据,可以理解为Store生成的快照,是一个数据集合,用来包装数据的
Action 描述当前要发生的事情,是组件用来改变state唯一方法,
因为组件不能直接去改变state,所以将进行修改的数据它会辅助的运输到store
而dispatch()便是将Action发到Store的工具
当Store收到Action以后,必须给出一个新的State,
这种State的计算过程叫做Renducers
Reducer 是一个函数,它接受 Action 和当前 State 作为参数,返回一个新的 State
实际应用中,Reducer 函数不用像上面这样手动调用,
store.dispatch方法会触发 Reducer 的自动执行。
为此,Store 需要知道 Reducer 函数,做法就是在生成 Store 的时候,
将 Reducer 传入createStore方法。这样就实现了监听绑定。
==========================================================
上面的描述可以结合我下面的计数器demo结合看
描述这么多,大体的意思,可以这样理解:
组件想要对state进行操作,需要先将修改的数据传入到Action中,然后再运输到store中
(当Action中的数据刚提交到store中的时候,便会绑定上Reducer函数,这个函数进行处理将旧的store中的state进行对比计算后便会将新的state更新到store tree中,最后组件再去store中获取最新的state)
redux 三个核心
1、action
-
标识要执行行为的对象
-
包含2个方面的属性
a. type: 标识属性, 值为字符串, 唯一, 必要属性
b. xxx: 数据属性, 值类型任意, 可选属性
- 例子:
const action = {
type: ‘INCREMENT’,
data: 2
}
- Action Creator(创建Action的工厂函数)
const increment = (number) => ({type: ‘INCREMENT’, data: number})
2、reducer
-
根据老的state和action, 产生新的state的纯函数
-
样例
export default function counter(state = 0, action) {
switch (action.type) {
case 'INCREMENT':
return state + action.data
case 'DECREMENT':
return state - action.data
default:
return state
}
}
- 注意
a. 返回一个新的状态
b. 不要修改原来的状态
3、 store
Store 就是保存数据的地方,你可以把它看成一个容器。整个应用只能有一个 Store。
-
将state,action与reducer联系在一起的对象
-
如何得到此对象?
import {createStore} from 'redux'
import reducer from './reducers'
const store = createStore(reducer)
- 此对象的功能?
getState(): 得到state
dispatch(action): 分发action, 触发reducer调用, 产生新的state
subscribe(listener): 注册监听, 当产生了新的state时, 自动调用
redux的核心API
1、createStore()
1) 作用:
创建包含指定reducer的store对象
createStore这个函数,用来生成 Store。
2) 编码:
import {createStore} from 'redux'
import counter from './reducers/counter'
const store = createStore(counter)
2、 store对象
1) 作用:
redux库最核心的管理对象
2) 它内部维护着:
state
reducer
3) 核心方法:
getState()
dispatch(action)
subscribe(listener)
4) 编码:
store.getState()
store.dispatch({type:'INCREMENT', number})
store.subscribe(render)
3、 applyMiddleware()
1) 作用:
应用上基于redux的中间件(插件库)
2) 编码:
import {createStore, applyMiddleware} from 'redux'
import thunk from 'redux-thunk' // redux异步中间件
const store = createStore(
counter,
applyMiddleware(thunk) // 应用上异步中间件
)
4.、combineReducers()
1) 作用:
合并多个reducer函数
2) 编码:
export default combineReducers({
user,
chatUser,
chat
})
什么情况下需要使用redux
-
总体原则: 能不用就不用, 如果不用比较吃力才考虑使用
-
某个组件的状态,需要共享
-
某个状态需要在任何地方都可以拿到
-
一个组件需要改变全局状态
-
一个组件需要改变另一个组件的状态
安装
npm install --save redux
计数器(demo)
效果如下图:
1、在src下面创建index.js入口文件,配置如下:
import React from 'react';
import ReactDOM from 'react-dom';
import App from './components/app.jsx';
import store from './redux/store'
function render() {
ReactDOM.render(<App store={store}/>,document.getElementById('root'));
}
// 初始化渲染
render()
// 订阅监听(store状态发生变化,便会自动调用进行重绘)
store.subscribe(render)
2、在src文件夹下面创建components文件夹
(1)此文件夹中包含根组件app.jsx文件,配置如下:
import React, { Component } from 'react'
import * as action from '../redux/actions'
export default class App extends Component {
increment = () =>{
// 获取增加的数量
const num = this.select.value*1
// 调用state更新方法
this.props.store.dispatch(action.increment(num))
}
decrement = ()=> {
// 获取减少的数量
const num = this.select.value*1
// 调用state更新方法
this.props.store.dispatch(action.decrement(num))
}
incrementIfOdd = () => {
// 得到选择的数量
const num = this.select.value * 1
// 得到原本的count状态
const count = this.props.store.getState()
// 判断,满足条件才更新状态
if (count % 2 ===1) {
// 更新状态
this.props.store.dispatch(action.increment(num))
}
}
render() {
const count = this.props.store.getState()
return (
<div id="app">
<p>click {count} times</p>
<div>
<select ref={select => this.select = select}>
<option value="1">1</option>
<option value="2">2</option>
<option value="3">3</option>
</select>
<button onClick={this.increment}>+</button>
<button onClick={this.decrement}>-</button>
<button onClick={this.incrementIfOdd}>increment if odd</button>
</div>
</div>
)
}
}
3、在src文件夹下面创建redux文件夹
(1)创建文件 store.js(此文件是创建如redux工作流程图 Action Creators,初始化)
import {createStore} from 'redux'
import {counter} from './reducers'
const store = createStore(counter)
console.log(store)
export default store
(2)创建文件 action.js(此文件用来操作store)
/*
包含所有的 action creator
*/
import { INCREMENT, DECREMENT } from "./action_type";
// 增加
export const increment = (number) => ({type: INCREMENT, data:number})
// 减少
export const decrement = (number) => ({type: DECREMENT, data:number})
(3)创建文件 action_type.js(定义action配置类型)
/*
包含所有action type 的常量字符串
*/
export const INCREMENT = 'INCREMENT'
export const DECREMENT = 'DECREMENT'
(4) 创建文件 reducers.js(用来监听store状态,将新的state更新到store)
/**
*
* 包含N个reducer 函数的模板
*
*/
import {INCREMENT, DECREMENT} from './action_type.js'
export function counter(state=0,action) {
console.log('counter()',state,action)
switch (action.type) {
case INCREMENT:
return state + action.data
case DECREMENT:
return state - action.data
default:
return state
}
}
React-Redux
(1) 一个react插件库
(2) 专门用来简化react应用中使用redux
React-Redux将所有组件分成两大类
1、 UI组件
只负责 UI 的呈现,不带有任何业务逻辑
通过props接收数据(一般数据和函数)
不使用任何 Redux 的 API
一般保存在components文件夹下
2、 容器组件
负责管理数据和业务逻辑,不负责UI的呈现
使用 Redux 的 API
一般保存在containers文件夹下
相关API
1、Provider
让所有组件都可以得到state数据
<Provider store={store}>
<App />
</Provider>
2、connect()
用于包装 UI 组件生成容器组件
import { connect } from 'react-redux'
connect(
mapStateToprops,
mapDispatchToProps
)(Counter)
3、mapStateToprops()
将外部的数据(即state对象)转换为UI组件的标签属性
const mapStateToprops = function (state) {
return {
value: state
}
}
4、 mapDispatchToProps()
将分发action的函数转换为UI组件的标签属性
简洁语法可以直接指定为actions对象或包含多个action方法的对象
安装
npm install --save react-redux
使用
1、以下文件不变
redux/action-types.js文件不变
redux/actions.js文件不变
redux/reducers.js文件不变
2、将原来components文件夹下面的app.jsx文件改为counter.jsx(作为UI组件)配置如下:
import React, { Component } from 'react'
import PropTypes from 'prop-types'
export default class Counter extends Component {
static propTypes = {
count: PropTypes.number.isRequired,
increment: PropTypes.func.isRequired,
decrement: PropTypes.func.isRequired
}
increment = () =>{
// 获取增加的数量
const num = this.select.value*1
// 调用state更新方法
this.props.increment(num)
}
decrement = ()=> {
// 获取减少的数量
const num = this.select.value*1
// 调用state更新方法
this.props.decrement(num)
}
incrementIfOdd = () => {
// 得到选择的数量
const num = this.select.value * 1
// 得到原本的count状态
const {count} = this.props
// 判断,满足条件才更新状态
if (count % 2 ===1) {
// 更新状态
this.props.increment(num)
}
}
render() {
const {count} = this.props
return (
<div id="app">
<p>click {count} times</p>
<div>
<select ref={select => this.select = select}>
<option value="1">1</option>
<option value="2">2</option>
<option value="3">3</option>
</select>
<button onClick={this.increment}>+</button>
<button onClick={this.decrement}>-</button>
<button onClick={this.incrementIfOdd}>increment if odd</button>
</div>
</div>
)
}
}
3、修改index.js 文件,配置如下:
import React from 'react';
import ReactDOM from 'react-dom';
import {Provider} from 'react-redux'
import App from './containers/app'
import store from './redux/store'
ReactDOM.render((
<Provider store={store}>
<App/>
</Provider>
)
,document.getElementById('root'));
4、创建containers文件夹(此文件夹下面的文件作为容器组件),并在下面创建app.jsx文件,配置如下:
import React, { Component } from 'react'
import {increment,decrement} from '../redux/actions'
import Counter from '../components/counter'
// 用来连接react组件和redux
import {connect} from 'react-redux'
// 返回的是一个新的组件
export default connect(
state =>({count:state}),
{increment,decrement}
)(Counter)
问题
-
redux默认是不能进行异步处理的,
-
应用中又需要在redux中执行异步任务(ajax, 定时器)
Redux 异步编程
下载redux插件(异步中间件)
npm install --save redux-thunk
1、index.js
import {createStore, applyMiddleware} from 'redux'
import thunk from 'redux-thunk'
// 根据 counter 函数创建store对象
const store = createStore(counter,applyMiddleware(thunk) // 应用上异步中间件 )
2、redux/actions.js
// 异步action creator(返回一个函数)
export const incrementAsync = number => {return dispatch => {setTimeout(() => { dispatch(increment(number))}, 1000) } }
3、 components/counter.jsx
incrementAsync = () => { const number = this.refs.numSelect.value*1 this.props.incrementAsync(number) }
4、containers/app.jsx
import {increment, decrement, incrementAsync} from '../redux/actions'
// 向外暴露连接App组件的包装组件
export default connect( state => ({count: state}),{increment, decrement, incrementAsync})(Counter)
Redux调试工具
1. 安装chrome浏览器插件
redux-devtools
2. 下载工具依赖包
npm install --save-dev redux-devtools-extension
3. 编码
import { composeWithDevTools } from 'redux-devtools-extension'
const store = createStore( counter, composeWithDevTools(applyMiddleware(thunk)))
