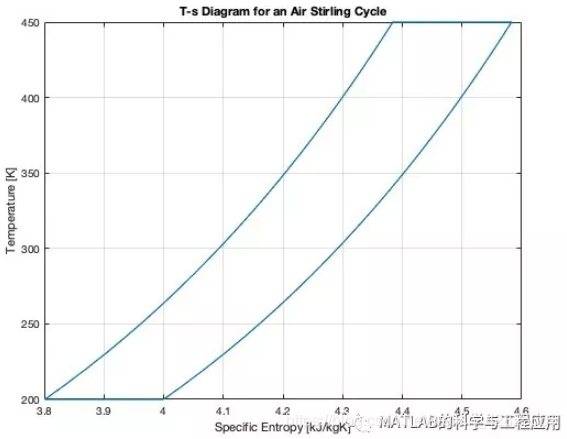

【源码】斯特林Stirling循环的温度熵图

斯特林循环是由4个理想的热力学过程划分的。

This Stirling cycle is classified by 4 idealized thermodynamic processes.

首先，气体经过等温压缩，然后以恒定体积加热。

First the gas undergoes isothermal compression, and then is heated at a constant volume.

接下来，让气体在恒定温度下膨胀，然后在恒定体积下冷却。

Next, the gas is allowed to expand at a constant temperature, and is then cooled at a constant volume.

这个循环不断重复，相应的工作不断地从气体的膨胀中提取出来。

This cycle repeats and work is continually extracted from the expansion of the gas.

该函数输出T向量和s向量，其中每个向量对应于其各自的轴。

This function outputs a T vector, and an s vector, where each corresponds to its respective axis.

这允许使用plot(s,T)轻松绘制图表。

This allows the diagram to easily be plotted using plot(s,T).

输入参数包括TL, TH, vmin, vmax和s1。

The input parameters are TL, TH, vmin, vmax, and s1.

TL和TH对应于循环的低温和高温，而vmin和vmax表示由内部气缸几何形状限定的最小和最大比容。

TL and TH correspond to the low and high temperatures of the cycle while vmin and vmax represent the minimum and maximum specific volumes defined by the geometry of the internal cylinder.

参考熵值由s1定义，它表示在进行等温压缩之前空气的比熵。

A reference entropy value is defined by s1, which represents the specific entropy of the air prior to undergoing isothermal compression.

所有输入参数都采用SI单位：

All input parameters are taken in SI units:

TL [K]

TH [K]

vmin [m^3]

vmax [m^3]

s1 [kJ/kgK]
