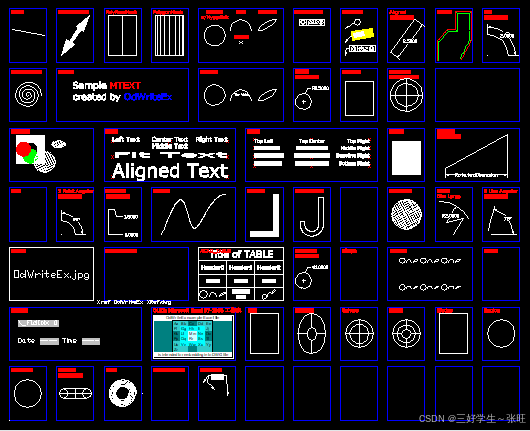

本节课程带你使用ODA
曲线类
点
using System;
using System.Collections.Generic;
using System.Text;
using Teigha.Runtime;
using Teigha.DatabaseServices;
using Teigha.Geometry;
using Teigha.Colors;
namespace CDevGuideExamplesProject
{
public class DBPointEx
{
public DBPointEx(String path)
{
using (Database db = new Database(true, true))
{
// Changes point marker to "cross" instead of default "dot".
db.Pdmode = 2;
TransactionManager tm = db.TransactionManager;
using (Transaction ta = tm.StartTransaction())
{
using (BlockTableRecord btr = (BlockTableRecord)db.CurrentSpaceId.GetObject(OpenMode.ForWrite))
{
const int interval = 1;
for (int i = 0; i < 4; i++)
for (int j = 0; j < 4; j++)
// Creates DBPoint entity and adds it into the Block Table Record.
using (DBPoint dbPoint = new DBPoint())
{
btr.AppendEntity(dbPoint);
// Sets position for every DBPoint entity.
dbPoint.Position = new Point3d(interval * j, interval * i, 0);
// Sets color for every DBPoint entity.
dbPoint.Color = Color.FromRgb((byte)(i * 60), (byte)(j * 60), 200);
// Sets thickness for every DBPoint entity.
dbPoint.Thickness = j;
// Sets thickness for every DBPoint entity.
dbPoint.EcsRotation = i * 0.314;
}
}
ta.Commit();
}
db.SaveAs(path + "DBPointEx.dwg", DwgVersion.Current);
}
}
}
}
直线
using System;
using System.Collections.Generic;
using System.Text;
using Teigha.Runtime;
using Teigha.DatabaseServices;
using Teigha.Geometry;
using Teigha.Colors;
namespace CDevGuideExamplesProject
{
public class LineEx
{
public LineEx(String path)
{
using (Database db = new Database(true, true))
{
TransactionManager tm = db.TransactionManager;
using (Transaction ta = tm.StartTransaction())
{
using (BlockTableRecord btr = (BlockTableRecord)db.CurrentSpaceId.GetObject(OpenMode.ForWrite))
{
// Number of lines.
const int lineNum = 10;
// Line color from color index.
short color = 1;
for (int i = 0; i < lineNum; i++)
// Creates Line entity and adds it into the Block Table Record.
using (Line line = new Line())
{
btr.AppendEntity(line);
if (color == 7)
color = 1;
// Sets the same start point for all Line entity.
line.StartPoint = new Point3d(0, 0, 0);
// Sets end point for Line entity depending on its number.
line.EndPoint = new Point3d((Math.Cos(2 * Math.PI / lineNum * i) * 10), (Math.Sin(2 * Math.PI / lineNum * i) * 10), 0);
// Sets color from color index for Line entity depending on its number.
line.Color = Color.FromColorIndex(ColorMethod.ByAci, color++);
// Sets Thickness for Line entity depending on its number.
line.Thickness = (double)i / 10;
// Prints values of Angle, Delta and Thickness properties.
Console.WriteLine("Angle is: " + line.Angle);
Console.WriteLine("Delta is: " + line.Delta);
Console.WriteLine("Thickness is: " + line.Thickness + "\n");
}
}
ta.Commit();
}
db.SaveAs(path + "LineEx.dwg", DwgVersion.Current);
}
}
}
}
圆弧
using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using Teigha.Runtime;
using Teigha.DatabaseServices;
using Teigha.Geometry;
using Teigha.Colors;
namespace CDevGuideExamplesProject
{
public class ArcEx
{
public ArcEx(String path)
{
using (Database db = new Database(true, true))
{
TransactionManager tm = db.TransactionManager;
using (Transaction ta = tm.StartTransaction())
{
using (BlockTableRecord btr = (BlockTableRecord)db.CurrentSpaceId.GetObject(OpenMode.ForWrite))
{
Arc arc1 = new Arc();
btr.AppendEntity(arc1);
arc1.Radius = 1;
arc1.StartAngle = 0.0;
arc1.EndAngle = Math.PI;
arc1.Thickness = 1;
Arc arc2 = new Arc(Point3d.Origin, 1.5, Math.PI / 4, 5 * Math.PI / 4);
btr.AppendEntity(arc2);
Arc arc3 = new Arc(Point3d.Origin, new Vector3d(0, 0, -1), 2.0, 0.0, Math.PI / 2);
btr.AppendEntity(arc3);
arc3.Thickness = 0.5;
}
ta.Commit();
}
db.SaveAs(path + "ArcEx.dwg", DwgVersion.Current);
}
}
}
}
圆形
using System;
using System.Collections.Generic;
using System.Text;
using Teigha.Runtime;
using Teigha.DatabaseServices;
using Teigha.Geometry;
using Teigha.Colors;
namespace CDevGuideExamplesProject
{
public class CircleEx
{
public CircleEx(String path)
{
using (Database db = new Database(true, true))
{
TransactionManager tm = db.TransactionManager;
using (Transaction ta = tm.StartTransaction())
{
using (BlockTableRecord btr = (BlockTableRecord)db.CurrentSpaceId.GetObject(OpenMode.ForWrite))
{
// Number of circles.
const int cirNum = 10;
// Circle color from color index.
short color = 1;
// Circle thickness.
short thickness = 0;
// Angle for calculating circle center.
double alpha = 0.0;
// Circle radius.
double radius = 1;
for (int i = 0; i < cirNum; i++)
// Creates Circle entity and adds it into the Block Table Record.
using (Circle cir = new Circle())
{
btr.AppendEntity(cir);
// Sets Circle properties
cir.Center = new Point3d(Math.Cos(alpha), Math.Sin(alpha), 0);
cir.Radius = radius;
cir.Thickness = thickness;
// Sets color from color index for Circle entity.
cir.Color = Color.FromColorIndex(ColorMethod.ByAci, color);
thickness++;
radius += 0.5;
alpha += 2 * Math.PI / cirNum;
color++;
if (color == 7)
color = 1;
// Prints Circle properties.
Console.WriteLine("Center is: " + cir.Center);
Console.WriteLine("Radius is: " + cir.Radius);
Console.WriteLine("Circumference is: " + cir.Circumference);
Console.WriteLine("Thickness is: " + cir.Thickness);
Console.WriteLine("Normal is: " + cir.Normal + "\n");
}
}
ta.Commit();
}
db.SaveAs(path + "CircleEx.dwg", DwgVersion.Current);
db.Dispose();
}
}
}
}
椭圆
using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using Teigha.Runtime;
using Teigha.DatabaseServices;
using Teigha.Geometry;
using Teigha.Colors;
namespace CDevGuideExamplesProject
{
public class EllipseEx
{
public EllipseEx(String path)
{
using (Database db = new Database(true, true))
{
TransactionManager tm = db.TransactionManager;
using (Transaction ta = tm.StartTransaction())
{
using (BlockTableRecord btr = (BlockTableRecord)db.CurrentSpaceId.GetObject(OpenMode.ForWrite))
{
Ellipse el1 = new Ellipse(Point3d.Origin, new Vector3d(0, 0, 1), new Vector3d(2, 0, 0), 0.5, 0.0, 2 * Math.PI);
btr.AppendEntity(el1);
el1.Color = Color.FromColorIndex(ColorMethod.ByAci, 1);
Ellipse el2 = new Ellipse(Point3d.Origin, new Vector3d(1, 0, 0), new Vector3d(0, 0, 2), 0.5, 0.0, 2 * Math.PI);
btr.AppendEntity(el2);
el2.Color = Color.FromColorIndex(ColorMethod.ByAci, 2);
Ellipse el3 = new Ellipse();
btr.AppendEntity(el3);
el3.Set(Point3d.Origin, new Vector3d(1, 0, 1), new Vector3d(-2 * Math.Cos(Math.PI / 4), 0, 2 * Math.Sin(Math.PI / 4)), 0.5, 0.0, 2 * Math.PI);
el3.Color = Color.FromColorIndex(ColorMethod.ByAci, 3);
Ellipse el4 = new Ellipse();
btr.AppendEntity(el4);
el4.Set(Point3d.Origin, new Vector3d(1, 0, -1), new Vector3d(2 * Math.Cos(Math.PI / 4), 0, 2 * Math.Sin(Math.PI / 4)), 0.5, 0.0, 2 * Math.PI);
el4.Color = Color.FromColorIndex(ColorMethod.ByAci, 4);
Ellipse elArc1 = new Ellipse();
btr.AppendEntity(elArc1);
elArc1.Set(new Point3d(5, 0, 0), new Vector3d(0, 0, 1), new Vector3d(1, 0, 0), 0.7, Math.PI / 4, 3 * Math.PI / 4);
elArc1.Color = Color.FromColorIndex(ColorMethod.ByAci, 1);
Ellipse elArc2 = new Ellipse();
btr.AppendEntity(elArc2);
elArc2.Set(new Point3d(5, 0, 0), new Vector3d(0, 0, 1), new Vector3d(1, 0, 0), 0.7, -5*Math.PI / 4, Math.PI / 4);
elArc2.Color = Color.FromRgb(20, 20, 255);
}
ta.Commit();
}
db.SaveAs(path + "EllipseEx.dwg", DwgVersion.Current);
}
}
}
}
3D多段线 Polyline3d
using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using Teigha.Runtime;
using Teigha.DatabaseServices;
using Teigha.Geometry;
using Teigha.Colors;
namespace CDevGuideExamplesProject.Polyline3dEx
{
public class Polyline3dEx
{
public Polyline3dEx(String path)
{
using (Database db = new Database(true, true))
{
TransactionManager tm = db.TransactionManager;
using (Transaction ta = tm.StartTransaction())
{
using (BlockTableRecord btr = (BlockTableRecord)db.CurrentSpaceId.GetObject(OpenMode.ForWrite))
{
// Creates Polyline3d entity with specified parameters
Polyline3d pLine1 = new Polyline3d(Poly3dType.SimplePoly, createCollectionForPolyline(1), false);
btr.AppendEntity(pLine1);
printPlolylineParams(pLine1);
// Creates empty Polyline3d entity then append vertices and set properties
Polyline3d pLine2 = new Polyline3d();
btr.AppendEntity(pLine2);
pLine2.Closed = false;
foreach (Point3d pt in createCollectionForPolyline(2))
pLine2.AppendVertex(new PolylineVertex3d(pt));
// Converts created SimplePoly polyline to QuadSplinePoly type
pLine2.ConvertToPolyType(Poly3dType.QuadSplinePoly);
printPlolylineParams(pLine2);
// Creates Polyline3d entity with specified parameters
Polyline3d pLine3 = new Polyline3d(Poly3dType.SimplePoly, createCollectionForPolyline(3), false);
btr.AppendEntity(pLine3);
pLine3.Closed = true;
// Converts created SimplePoly polyline to QuadSplinePoly type
pLine3.ConvertToPolyType(Poly3dType.QuadSplinePoly);
// Straightens QuadSplinePoly polyline
pLine3.Straighten();
// Converts created SimplePoly polyline to CubicSplinePoly type
pLine3.ConvertToPolyType(Poly3dType.CubicSplinePoly);
printPlolylineParams(pLine3);
// Creates Polyline3d entity with specified parameters
Polyline3d pLine4 = new Polyline3d(Poly3dType.SimplePoly, createCollectionForPolyline(4), false);
btr.AppendEntity(pLine4);
// Vertices to be inserted to SimplePoly polyline
PolylineVertex3d vrtx1 = new PolylineVertex3d(new Point3d(45, -1, -3));
PolylineVertex3d vrtx2 = new PolylineVertex3d(new Point3d(45, 12, -3));
ObjectId[] verticesID = new ObjectId[12];
int j = 0;
foreach (ObjectId obj in pLine4)
{
using (DBObject dbObj = (DBObject)tm.GetObject(obj, OpenMode.ForRead))
{
if (dbObj is PolylineVertex3d)
{
// Gets all vertices IDs
verticesID[j] = obj;
j++;
}
}
}
// Insrets vertices
pLine4.InsertVertexAt(ObjectId.Null, vrtx1);
pLine4.InsertVertexAt(verticesID[11], vrtx2);
// Creates spline fitted polyline of CubicSplinePoly type and segments number of 2
pLine4.SplineFit(Poly3dType.CubicSplinePoly, 2);
printPlolylineParams(pLine4);
}
ta.Commit();
}
db.SaveAs(path + "Polyline3dEx.dwg", DwgVersion.Current);
}
}
// Creates collection of Point3ds as a polyline vertices
Point3dCollection createCollectionForPolyline(int i)
{
Point3d[] p3d = new Point3d[12];
p3d[0] = new Point3d(6 + 10 * i, 0, 0);
p3d[1] = new Point3d(1 + 10 * i, 1, 0);
p3d[2] = new Point3d(0 + 10 * i, 2, -3);
p3d[3] = new Point3d(5 + 10 * i, 3, -3);
p3d[4] = new Point3d(6 + 10 * i, 4, 0);
p3d[5] = new Point3d(1 + 10 * i, 5, 0);
p3d[6] = new Point3d(0 + 10 * i, 6, -3);
p3d[7] = new Point3d(5 + 10 * i, 7, -3);
p3d[8] = new Point3d(6 + 10 * i, 8, 0);
p3d[9] = new Point3d(1 + 10 * i, 9, 0);
p3d[10] = new Point3d(0 + 10 * i, 10, -3);
p3d[11] = new Point3d(5 + 10 * i, 11, -3);
return new Point3dCollection(p3d);
}
// Prints polyline parameters to the console
void printPlolylineParams(Polyline3d pLine)
{
Console.WriteLine("Polytype is " + pLine.PolyType);
Console.WriteLine("Closed is " + pLine.Closed);
int i = 0;
// Gets vertices of a polyline and prints parameters of control and simple vertices
foreach (ObjectId objId in pLine)
{
using (DBObject obj = (DBObject)objId.GetObject(OpenMode.ForRead))
{
if (obj is PolylineVertex3d)
{
PolylineVertex3d pt = (PolylineVertex3d)obj;
if ((pt.VertexType == Vertex3dType.ControlVertex) || (pt.VertexType == Vertex3dType.SimpleVertex))
{
Console.WriteLine("Vertex #" + i + ": " + pt.Position);
i++;
}
}
}
}
Console.WriteLine("Length is " + pLine.Length + System.Environment.NewLine);
}
}
}
射线[Ray]
using System;
using System.Collections.Generic;
using System.Text;
using Teigha.Runtime;
using Teigha.DatabaseServices;
using Teigha.Geometry;
using Teigha.Colors;
namespace CDevGuideExamplesProject
{
public class RayEx
{
public RayEx(String path)
{
using (Database db = new Database(true, true))
{
TransactionManager tm = db.TransactionManager;
using (Transaction ta = tm.StartTransaction())
{
using (BlockTableRecord btr = (BlockTableRecord)db.CurrentSpaceId.GetObject(OpenMode.ForWrite))
{
// Number of rays.
const int rayNum = 10;
// Ray color from color index.
short color = 1;
for (int i = 0; i < rayNum; i++)
// Creates Ray entity and adds it into the Block Table Record.
using (Ray ray = new Ray())
{
btr.AppendEntity(ray);
if (color == 7)
color = 1;
// Sets the same base point for all Ray entity.
ray.BasePoint = new Point3d(0, 0, 0);
// Sets second point for Ray entity depending on its number.
ray.SecondPoint = new Point3d((Math.Cos(2 * Math.PI / rayNum * i) * 10), (Math.Sin(2 * Math.PI / rayNum * i) * 10), 0);
// Sets color from color index for Ray entity depending on its number.
ray.Color = Color.FromColorIndex(ColorMethod.ByAci, color++);
// Prints value of UnitDir property.
Console.WriteLine("UnitDir is: " + ray.UnitDir + "\n");
}
}
ta.Commit();
}
db.SaveAs(path + "RayEx.dwg", DwgVersion.Current);
}
}
}
}
多线[Mline]
using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using Teigha.Runtime;
using Teigha.DatabaseServices;
using Teigha.Geometry;
using Teigha.Colors;
namespace CDevGuideExamplesProject.MlineEx
{
public class MlineEx
{
public MlineEx(String path)
{
using (Database db = new Database(true, true))
{
TransactionManager tm = db.TransactionManager;
using (Transaction ta = tm.StartTransaction())
{
using (BlockTableRecord btr = (BlockTableRecord)db.CurrentSpaceId.GetObject(OpenMode.ForWrite))
{
// Multiline style
MlineStyle mlStyle = new MlineStyle();
Ray ray = new Ray();
btr.AppendEntity(ray);
ray.Color = Color.FromRgb(100, 100, 100);
ray.UnitDir = new Vector3d(1, 0, 0);
Mline mline1 = new Mline();
btr.AppendEntity(mline1);
mline1.AppendSegment(Point3d.Origin);
mline1.Justification = MlineJustification.Bottom;
mline1.AppendSegment(new Point3d(2, 2, 0));
mline1.AppendSegment(new Point3d(4, 0, 0));
mline1.AppendSegment(new Point3d(6, 6, 0));
mline1.AppendSegment(new Point3d(16, 16, 0));
mline1.MoveVertexAt(3, new Point3d(6, 2, 0));
Point3d removedVertex = new Point3d();
mline1.RemoveLastSegment(out removedVertex);
Console.WriteLine("mline1:");
printMline(mline1);
Mline mline2 = new Mline();
btr.AppendEntity(mline2);
mline2.Justification = MlineJustification.Top;
mline2.AppendSegment(new Point3d(8, 0, 0));
mline2.AppendSegment(new Point3d(10, 2, 0));
mline2.AppendSegment(new Point3d(12, 0, 0));
mline2.AppendSegment(new Point3d(14, 2, 0));
Console.WriteLine("mline2:");
printMline(mline2);
// Sets multiline style
using (DBDictionary dic = (DBDictionary)tm.GetObject(db.MLStyleDictionaryId, OpenMode.ForWrite))
{
dic["ODA"] = mlStyle;
mlStyle.Name = "ODAstyle";
mlStyle.Description = "123";
mlStyle.ShowMiters = true;
mlStyle.StartInnerArcs = true;
// Defines caps shapes
mlStyle.StartRoundCap = true;
mlStyle.EndSquareCap = true;
// Set multiline as filled by color
mlStyle.Filled = true;
mlStyle.FillColor = Color.FromRgb(255, 200, 255);
Teigha.Colors.Color color = Teigha.Colors.Color.FromRgb(255, 0, 0);
// Adds multiline elements of specific color and offset
mlStyle.Elements.Add(new MlineStyleElement(0, color, db.ByLayerLinetype), true);
mlStyle.Elements.Add(new MlineStyleElement(0.5, color, db.ByLayerLinetype), true);
mlStyle.Elements.Add(new MlineStyleElement(0.7, color, db.ByLayerLinetype), true);
mlStyle.Elements.Add(new MlineStyleElement(2, color, db.ByLayerLinetype), true);
}
Mline mline3 = new Mline();
btr.AppendEntity(mline3);
// Applies created style to the Mline entity
mline3.Style = mlStyle.Id;
// Sets caps to be drawn
mline3.SupressStartCaps = false;
mline3.SupressEndCaps = false;
// Appends multiline segments
mline3.AppendSegment(new Point3d(16, 0, 0));
mline3.AppendSegment(new Point3d(18, 2, 0));
mline3.AppendSegment(new Point3d(20, 0, 0));
mline3.AppendSegment(new Point3d(22, 2, 0));
Console.WriteLine("mline3:");
printMline(mline3);
Mline mline4 = new Mline();
btr.AppendEntity(mline4);
mline4.AppendSegment(new Point3d(24, 0, 0));
mline4.AppendSegment(new Point3d(26, 2, 0));
mline4.AppendSegment(new Point3d(28, 0, 0));
mline4.AppendSegment(new Point3d(30, 2, 0));
mline4.Scale = 0.1;
mline4.IsClosed = true;
Console.WriteLine("mline4:");
printMline(mline4);
}
ta.Commit();
}
db.SaveAs(path + "MlineEx.dwg", DwgVersion.Current);
}
}
// Prints Mline entity info
void printMline(Mline mline)
{
for (int i = 0; i < mline.NumberOfVertices; i++)
{
Console.WriteLine("\tvertex" + i + ": " + mline.VertexAt(i));
}
Console.WriteLine("\tJustification: " + mline.Justification);
Console.WriteLine("\tIsClosed: " + mline.IsClosed);
Console.WriteLine("\tStyle: " + ((MlineStyle)mline.Style.GetObject(OpenMode.ForRead)).Name + System.Environment.NewLine);
}
}
}
文字
单行文字[DBText]
using System;
using System.Collections.Generic;
using System.Text;
using Teigha.Runtime;
using Teigha.DatabaseServices;
using Teigha.Geometry;
using Teigha.Colors;
namespace CDevGuideExamplesProject
{
public class DBTextEx
{
public DBTextEx(String path)
{
using(Database db = new Database(true, true))
{
// Changes point marker to "cross" instead of default "dot".
db.Pdmode = 2;
TransactionManager tm = db.TransactionManager;
using (Transaction ta = tm.StartTransaction())
{
using (BlockTableRecord btr = (BlockTableRecord)db.CurrentSpaceId.GetObject(OpenMode.ForWrite))
{
// Creates a DBText entity with default settings.
using (DBText dbText1 = new DBText())
{
btr.AppendEntity(dbText1);
dbText1.TextString = "This is a text with default settings";
}
// Creates a DBText entity with height of 1.
using (DBText dbText2 = new DBText())
{
btr.AppendEntity(dbText2);
dbText2.Position = new Point3d(0, -2, 0);
dbText2.Height = 1;
dbText2.TextString = "This is a text with Height of " + dbText2.Height;
}
// Creates a DBText entity with WidthFactor of 2.
using (DBText dbText3 = new DBText())
{
btr.AppendEntity(dbText3);
dbText3.Position = new Point3d(0, -4, 0);
dbText3.Height = 0.5;
dbText3.WidthFactor = 2;
dbText3.TextString = "This is a text with Height of " + dbText3.Height + " and WidthFactor of " + dbText3.WidthFactor;
}
// Creates a DBText entity with AlignmentPoint at (10, -6, 0) and TopLeft justify mode.
using (DBText dbText4 = new DBText())
{
btr.AppendEntity(dbText4);
dbText4.Position = new Point3d(0, -6, 0);
dbText4.Height = 0.5;
dbText4.AlignmentPoint = new Point3d(10, -6, 0);
using (DBPoint alignmentPoint4 = new DBPoint(dbText4.AlignmentPoint))
{
btr.AppendEntity(alignmentPoint4);
alignmentPoint4.Color = Color.FromRgb(255, 0, 0);
}
dbText4.Justify = AttachmentPoint.TopLeft;
dbText4.TextString = "This is a text with Position at " + dbText4.Position + ", AlignmentPoint at " + dbText4.AlignmentPoint + " and " + dbText4.Justify + " justify mode";
}
// Creates a DBText entity with AlignmentPoint at (10, -8, 0) and TopCenter justify mode.
using (DBText dbText5 = new DBText())
{
btr.AppendEntity(dbText5);
dbText5.Position = new Point3d(0, -8, 0);
dbText5.Height = 0.5;
dbText5.AlignmentPoint = new Point3d(10, -8, 0);
using (DBPoint alignmentPoint5 = new DBPoint(dbText5.AlignmentPoint))
{
btr.AppendEntity(alignmentPoint5);
alignmentPoint5.Color = Color.FromRgb(255, 0, 0);
}
dbText5.Justify = AttachmentPoint.TopCenter;
dbText5.TextString = "This is a text with Position at " + dbText5.Position + ", AlignmentPoint at " + dbText5.AlignmentPoint + " and " + dbText5.Justify + " mode";
}
// Creates a DBText entity with AlignmentPoint at (10, -10, 0) and TopRight justify mode.
using (DBText dbText6 = new DBText())
{
btr.AppendEntity(dbText6);
dbText6.Position = new Point3d(0, -10, 0);
dbText6.Height = 0.5;
dbText6.AlignmentPoint = new Point3d(10, -10, 0);
using (DBPoint alignmentPoint6 = new DBPoint(dbText6.AlignmentPoint))
{
btr.AppendEntity(alignmentPoint6);
alignmentPoint6.Color = Color.FromRgb(255, 0, 0);
}
dbText6.Justify = AttachmentPoint.TopRight;
dbText6.TextString = "This is a text with Position at " + dbText6.Position + ", AlignmentPoint at " + dbText6.AlignmentPoint + " and " + dbText6.Justify + " mode";
}
// Creates a DBText entity with AlignmentPoint at (10, -12, 0) and BaseCenter justify mode.
using (DBText dbText7 = new DBText())
{
btr.AppendEntity(dbText7);
dbText7.Position = new Point3d(0, -12, 0);
dbText7.Height = 0.5;
dbText7.AlignmentPoint = new Point3d(10, -12, 0);
using (DBPoint alignmentPoint7 = new DBPoint(dbText7.AlignmentPoint))
{
btr.AppendEntity(alignmentPoint7);
alignmentPoint7.Color = Color.FromRgb(255, 0, 0);
}
dbText7.Justify = AttachmentPoint.BaseCenter;
dbText7.TextString = "This is a text with Position at " + dbText7.Position + ", AlignmentPoint at " + dbText7.AlignmentPoint + " and " + dbText7.Justify + " mode";
}
// Creates a DBText entity with AlignmentPoint at (10, -14, 0) and BaseAlign justify mode.
using (DBText dbText8 = new DBText())
{
btr.AppendEntity(dbText8);
dbText8.Position = new Point3d(0, -14, 0);
dbText8.Height = 0.5;
dbText8.AlignmentPoint = new Point3d(10, -14, 0);
using (DBPoint alignmentPoint8 = new DBPoint(dbText8.AlignmentPoint))
{
btr.AppendEntity(alignmentPoint8);
alignmentPoint8.Color = Color.FromRgb(255, 0, 0);
}
dbText8.Justify = AttachmentPoint.BaseAlign;
dbText8.TextString = "This is a text with Position at " + dbText8.Position + ", AlignmentPoint at " + dbText8.AlignmentPoint + " and " + dbText8.Justify + " mode";
}
// Creates a DBText entity with AlignmentPoint at (10, -16, 0) and BaseFit justify mode.
using (DBText dbText9 = new DBText())
{
btr.AppendEntity(dbText9);
dbText9.Position = new Point3d(0, -16, 0);
dbText9.Height = 0.5;
dbText9.AlignmentPoint = new Point3d(10, -16, 0);
using (DBPoint alignmentPoint9 = new DBPoint(dbText9.AlignmentPoint))
{
btr.AppendEntity(alignmentPoint9);
alignmentPoint9.Color = Color.FromRgb(255, 0, 0);
}
dbText9.Justify = AttachmentPoint.BaseFit;
dbText9.TextString = "This is a text with Position at " + dbText9.Position + ", AlignmentPoint at " + dbText9.AlignmentPoint + " and " + dbText9.Justify + " mode";
}
// Creates a DBText entity with Oblique of -0.7.
using (DBText dbText10 = new DBText())
{
btr.AppendEntity(dbText10);
dbText10.Position = new Point3d(0, -18, 0);
dbText10.Height = 0.5;
dbText10.Oblique = -0.7;
dbText10.TextString = "This is a text with oblique angle of " + dbText10.Oblique;
}
// Creates a DBText entity with Oblique of 0.
using (DBText dbText11 = new DBText())
{
btr.AppendEntity(dbText11);
dbText11.Position = new Point3d(0, -20, 0);
dbText11.Height = 0.5;
dbText11.TextString = "This is a text with oblique angle of " + dbText11.Oblique;
}
// Creates a DBText entity with Oblique of 0.7.
using (DBText dbText12 = new DBText())
{
btr.AppendEntity(dbText12);
dbText12.Position = new Point3d(0, -22, 0);
dbText12.Height = 0.5;
dbText12.Oblique = 0.7;
dbText12.TextString = "This is a text with oblique angle of " + dbText12.Oblique;
}
// Creates a DBText entity with Rotation of -0.7.
using (DBText dbText13 = new DBText())
{
btr.AppendEntity(dbText13);
dbText13.Position = new Point3d(0, -24, 0);
dbText13.Height = 0.5;
dbText13.Rotation = -0.7;
dbText13.TextString = "This is a text with rotation angle of " + dbText13.Rotation;
}
// Creates a DBText entity with Rotation of 0.0.
using (DBText dbText14 = new DBText())
{
btr.AppendEntity(dbText14);
dbText14.Position = new Point3d(0, -26, 0);
dbText14.Height = 0.5;
dbText14.TextString = "This is a text with rotation angle of " + dbText14.Rotation;
}
// Creates a DBText entity with Rotation of 0.7.
using (DBText dbText15 = new DBText())
{
btr.AppendEntity(dbText15);
dbText15.Position = new Point3d(0, -28, 0);
dbText15.Height = 0.5;
dbText15.Rotation = 0.7;
dbText15.TextString = "This is a text with rotation angle of " + dbText15.Rotation;
}
// Creates a DBText entity mirrored in X and Y directions.
using (DBText dbText16 = new DBText())
{
btr.AppendEntity(dbText16);
dbText16.Position = new Point3d(0, -30, 0);
dbText16.Height = 0.5;
dbText16.IsMirroredInX = true;
dbText16.IsMirroredInY = true;
dbText16.TextString = "This is a text mirrored in X and Y";
}
// Creates a DBText entity with thickness of 5.
using (DBText dbText17 = new DBText())
{
btr.AppendEntity(dbText17);
dbText17.Position = new Point3d(0, -32, 0);
dbText17.Height = 0.5;
dbText17.Thickness = 5;
dbText17.TextString = "This is a text with thickness of " + dbText17.Thickness;
}
}
ta.Commit();
}
db.SaveAs(path+"DBTextEx.dwg", DwgVersion.Current);
}
}
}
}
多行文字[MTex]
using System;
using System.Collections.Generic;
using System.Text;
using Teigha.Runtime;
using Teigha.DatabaseServices;
using Teigha.Geometry;
using Teigha.Colors;
using Teigha.GraphicsInterface;
namespace CDevGuideExamplesProject
{
public class MTextEx
{
// Special fragment elaboration callback function. Adds extracted text fragment to list and prints some info.
MTextFragmentCallbackStatus MTextDelegateFunct(MTextFragment frag, Object data)
{
((List<MTextFragment>)data).Add(frag);
Console.WriteLine("Text content is: " + frag.Text);
Console.WriteLine("Text color is: " + frag.Color.ColorIndex);
Console.WriteLine("Text height is: " + frag.CapsHeight);
Console.WriteLine("Oblique angle is: " + frag.ObliqueAngle);
Console.WriteLine("Font name is: " + frag.TrueTypeFont);
Console.WriteLine();
return MTextFragmentCallbackStatus.Continue;
}
public MTextEx(String path)
{
Database db = new Database(true, true);
// Changes point marker to "cross" instead of default "dot".
db.Pdmode = 2;
TransactionManager tm = db.TransactionManager;
using (Transaction ta = tm.StartTransaction())
{
using (BlockTableRecord btr = (BlockTableRecord)db.CurrentSpaceId.GetObject(OpenMode.ForWrite))
{
// Creates an MText entity contains text with different formatting options applied to single words or characters
// within a paragraph or a text section.
using (MText mtext1 = new MText())
{
btr.AppendEntity(mtext1);
mtext1.TextHeight = 0.2;
mtext1.Contents = "This is a multiline text with" + MText.ParagraphBreak + "paragraph breaks, " + MText.ParagraphBreak +
MText.BlockBegin + MText.ObliqueChange + "12;an oblique text, " + MText.BlockEnd + MText.ParagraphBreak +
MText.BlockBegin + MText.OverlineOn + "an overlined text, " + MText.OverlineOff + MText.BlockEnd + MText.ParagraphBreak +
MText.BlockBegin + MText.UnderlineOn + "an underlined text, " + MText.UnderlineOff + MText.BlockEnd + MText.ParagraphBreak +
MText.BlockBegin + MText.WidthChange + "2;a text with the changed width" + MText.BlockEnd + MText.ParagraphBreak +
MText.BlockBegin + MText.HeightChange + "0.5;a text with the changed height" + MText.BlockEnd + MText.ParagraphBreak +
MText.BlockBegin + "a text " + MText.ColorChange + "10;in " + MText.ColorChange + "100;different " + MText.ColorChange + "200;colors, " + MText.BlockEnd + MText.ParagraphBreak +
MText.BlockBegin + "a text " + MText.FontChange + "Times New Roman;in different " + MText.FontChange + "Tahoma;fonts" + MText.BlockEnd + MText.ParagraphBreak +
MText.BlockBegin + "a stacked text with different allignments: " + MText.AlignChange + "0;1" + MText.StackStart + "1/2; " + MText.AlignChange + "1;1" + MText.StackStart + "1/2; " + MText.AlignChange + "2;1" + MText.StackStart + "1/2;" + MText.BlockEnd + MText.ParagraphBreak +
MText.BlockBegin + "a text " + MText.TrackChange + "2;with the changed space" + MText.TrackChange + "0.4;between characters" + MText.BlockEnd + MText.ParagraphBreak;
mtext1.Location = new Point3d(0, 0, 0);
// Explodes mtext1 entity into a sequence of text fragments, passing each fragment to the MTextDelegateFunct function
// and stores each fragment in a list.
List<MTextFragment> aFrgm = new List<MTextFragment>();
mtext1.ExplodeFragments(new MTextFragmentCallback(MTextDelegateFunct), aFrgm);
}
// Creates an MText entity with text flowing from top to bottom.
using (MText mtext2 = new MText())
{
btr.AppendEntity(mtext2);
mtext2.TextHeight = 0.2;
mtext2.Location = new Point3d(-2.0, 0.0, 0.0);
mtext2.FlowDirection = FlowDirection.TopToBottom;
mtext2.Contents = "This is a multiline text with FlowDirection of " + mtext2.FlowDirection;
}
// Creates an MText entity with LineSpacingFactor of 2.
using (MText mtext3 = new MText())
{
btr.AppendEntity(mtext3);
mtext3.TextHeight = 0.2;
mtext3.Width = 2;
mtext3.Location = new Point3d(16.0, 0.0, 0.0);
mtext3.LineSpacingFactor = 2;
mtext3.Contents = "This is a multiline text with LineSpacingFactor of " + mtext3.LineSpacingFactor;
}
// Creates an MText entity with LineSpacingFactor of 0.8.
using (MText mtext4 = new MText())
{
btr.AppendEntity(mtext4);
mtext4.TextHeight = 0.2;
mtext4.Width = 2;
mtext4.Location = new Point3d(22.0, 0.0, 0.0);
mtext4.LineSpacingFactor = 0.8;
mtext4.Contents = "This is a multiline text with LineSpacingFactor of " + mtext4.LineSpacingFactor;
}
// Creates an MText entity with AtLeast value of LineSpacingStyle.
using (MText mtext5 = new MText())
{
btr.AppendEntity(mtext5);
mtext5.Location = new Point3d(28, 0.0, 0.0);
mtext5.TextHeight = 0.2;
mtext5.Width = 2;
mtext5.LineSpacingStyle = LineSpacingStyle.AtLeast;
mtext5.Contents = "This is a multiline text with LineSpacingStyle of " + MText.HeightChange + "0.6;" + mtext5.LineSpacingStyle;
}
// Creates an MText entity with Exactly value of LineSpacingStyle.
using (MText mtext6 = new MText())
{
btr.AppendEntity(mtext6);
mtext6.TextHeight = 0.2;
mtext6.Width = 2;
mtext6.Location = new Point3d(34.0, 0.0, 0.0);
mtext6.LineSpacingStyle = LineSpacingStyle.Exactly;
mtext6.Contents = "This is a multiline text with LineSpacingStyle of " + MText.HeightChange + "0.6;" + mtext6.LineSpacingStyle;
}
// Creates an MText entity with default BackgroundScaleFactor.
using (MText mtext7 = new MText())
{
btr.AppendEntity(mtext7);
mtext7.TextHeight = 0.2;
mtext7.Width = 4;
mtext7.Location = new Point3d(40, 0.0, 0.0);
mtext7.BackgroundFill = true;
mtext7.BackgroundFillColor = Color.FromRgb(250, 200, 250);
mtext7.Contents = "This is a multiline text with BackgroundScaleFactor of " + mtext7.BackgroundScaleFactor;
}
// Creates an MText entity with BackgroundScaleFactor of 5.
using (MText mtext8 = new MText())
{
btr.AppendEntity(mtext8);
mtext8.TextHeight = 0.2;
mtext8.Width = 4;
mtext8.Location = new Point3d(46, 0.0, 0.0);
mtext8.BackgroundFill = true;
mtext8.BackgroundFillColor = Color.FromRgb(250, 200, 250);
mtext8.BackgroundScaleFactor = 5;
mtext8.Contents = "This is a multiline text with BackgroundScaleFactor of " + mtext8.BackgroundScaleFactor;
}
// Creates an MText entity with TopLeft attachment point.
using (MText mtext9 = new MText())
{
btr.AppendEntity(mtext9);
mtext9.TextHeight = 0.2;
mtext9.Width = 3;
mtext9.Location = new Point3d(0, -10, 0);
mtext9.Attachment = AttachmentPoint.TopLeft;
mtext9.Contents = "This is a multiline text with " + mtext9.Attachment + " attachment point";
// Creates an DBPoint entity indicating the attachment point.
using (DBPoint attPoint9 = new DBPoint(mtext9.Location))
{
btr.AppendEntity(attPoint9);
}
}
// Creates an MText entity with TopCenter attachment point.
using (MText mtext10 = new MText())
{
btr.AppendEntity(mtext10);
mtext10.TextHeight = 0.2;
mtext10.Width = 3;
mtext10.Location = new Point3d(5, -10, 0);
mtext10.Attachment = AttachmentPoint.TopCenter;
mtext10.Contents = "This is a multiline text with " + mtext10.Attachment + " attachment point";
// Creates an DBPoint entity indicating the attachment point.
using (DBPoint attPoint10 = new DBPoint(mtext10.Location))
{
btr.AppendEntity(attPoint10);
}
}
// Creates an MText entity with TopRight attachment point.
using (MText mtext11 = new MText())
{
btr.AppendEntity(mtext11);
mtext11.TextHeight = 0.2;
mtext11.Width = 3;
mtext11.Location = new Point3d(10, -10, 0);
mtext11.Attachment = AttachmentPoint.TopRight;
mtext11.Contents = "This is a multiline text with " + mtext11.Attachment + " attachment point";
// Creates an DBPoint entity indicating the attachment point.
using (DBPoint attPoint11 = new DBPoint(mtext11.Location))
{
btr.AppendEntity(attPoint11);
}
}
// Creates an MText entity with MiddleLeft attachment point.
using (MText mtext12 = new MText())
{
btr.AppendEntity(mtext12);
mtext12.TextHeight = 0.2;
mtext12.Width = 3;
mtext12.Location = new Point3d(0, -15, 0);
mtext12.Attachment = AttachmentPoint.MiddleLeft;
mtext12.Contents = "This is a multiline text with " + mtext12.Attachment + " attachment point";
// Creates an DBPoint entity indicating the attachment point.
using (DBPoint attPoint12 = new DBPoint(mtext12.Location))
{
btr.AppendEntity(attPoint12);
}
}
// Creates an MText entity with MiddleCenter attachment point.
using (MText mtext13 = new MText())
{
btr.AppendEntity(mtext13);
mtext13.TextHeight = 0.2;
mtext13.Width = 3;
mtext13.Location = new Point3d(5, -15, 0);
mtext13.Attachment = AttachmentPoint.MiddleCenter;
mtext13.Contents = "This is a multiline text with " + mtext13.Attachment + " attachment point";
// Creates an DBPoint entity indicating the attachment point.
using (DBPoint attPoint13 = new DBPoint(mtext13.Location))
{
btr.AppendEntity(attPoint13);
}
}
// Creates an MText entity with MiddleRight attachment point.
using (MText mtext14 = new MText())
{
btr.AppendEntity(mtext14);
mtext14.TextHeight = 0.2;
mtext14.Width = 3;
mtext14.Location = new Point3d(10, -15, 0);
mtext14.Attachment = AttachmentPoint.MiddleRight;
mtext14.Contents = "This is a multiline text with " + mtext14.Attachment + " attachment point";
// Creates an DBPoint entity indicating the attachment point.
using (DBPoint attPoint14 = new DBPoint(mtext14.Location))
{
btr.AppendEntity(attPoint14);
}
}
// Creates an MText entity with BottomLeft attachment point.
using (MText mtext15 = new MText())
{
btr.AppendEntity(mtext15);
mtext15.TextHeight = 0.2;
mtext15.Width = 3;
mtext15.Location = new Point3d(0, -20, 0);
mtext15.Attachment = AttachmentPoint.BottomLeft;
mtext15.Contents = "This is a multiline text with " + mtext15.Attachment + " attachment point";
// Creates an DBPoint entity indicating the attachment point.
using (DBPoint attPoint15 = new DBPoint(mtext15.Location))
{
btr.AppendEntity(attPoint15);
}
}
// Creates an MText entity with BottomCenter attachment point.
using (MText mtext16 = new MText())
{
btr.AppendEntity(mtext16);
mtext16.TextHeight = 0.2;
mtext16.Width = 3;
mtext16.Location = new Point3d(5, -20, 0);
mtext16.Attachment = AttachmentPoint.BottomCenter;
mtext16.Contents = "This is a multiline text with " + mtext16.Attachment + " attachment point";
// Creates an DBPoint entity indicating the attachment point.
using (DBPoint attPoint16 = new DBPoint(mtext16.Location))
{
btr.AppendEntity(attPoint16);
}
}
// Creates an MText entity with BottomRight attachment point.
using (MText mtext17 = new MText())
{
btr.AppendEntity(mtext17);
mtext17.TextHeight = 0.2;
mtext17.Width = 3;
mtext17.Location = new Point3d(10, -20, 0);
mtext17.Attachment = AttachmentPoint.BottomRight;
mtext17.Contents = "This is a multiline text with " + mtext17.Attachment + " attachment point";
// Creates an DBPoint entity indicating the attachment point.
using (DBPoint attPoint17 = new DBPoint(mtext17.Location))
{
btr.AppendEntity(attPoint17);
}
}
// Creates an MText entity and sets dynamic columns.
using (MText mtext18 = new MText())
{
btr.AppendEntity(mtext18);
mtext18.Location = new Point3d(15, -10, 0);
mtext18.TextHeight = 0.2;
mtext18.Height = 3;
mtext18.SetDynamicColumns(5, 0.4, true);
mtext18.Contents = "This is a multiline text with " + mtext18.ColumnType + " type of columns. " + MText.ParagraphBreak +
"ColumnWidth is: " + mtext18.ColumnWidth + MText.ParagraphBreak +
"ColumnColumnGutterWidth is: " + mtext18.ColumnGutterWidth + MText.ParagraphBreak +
"ColumnAutoHeight is: " + mtext18.ColumnAutoHeight + MText.ParagraphBreak +
"ColumnFlowReversed is: " + mtext18.ColumnFlowReversed + MText.ParagraphBreak + MText.ParagraphBreak +
"Teigha.NET for .dwg files is a managed .NET component containing tools for working with .dwg file data. Built on top of the Teigha for .dwg files C++ development environment, Teigha.NET for .dwg files exposes access to .dwg application development using the .NET framework using any .NET language (C#, Visual Basic).";
}
// Creates an MText entity and sets dynamic columns in flow reversed mode.
using (MText mtext19 = new MText())
{
btr.AppendEntity(mtext19);
mtext19.Location = new Point3d(15, -15, 0);
mtext19.TextHeight = 0.2;
mtext19.Height = 3;
mtext19.SetDynamicColumns(5, 0.4, true);
mtext19.ColumnFlowReversed = true;
mtext19.Contents = "This is a multiline text with " + mtext19.ColumnType + " type of columns. " + MText.ParagraphBreak +
"ColumnWidth is: " + mtext19.ColumnWidth + MText.ParagraphBreak +
"ColumnColumnGutterWidth is: " + mtext19.ColumnGutterWidth + MText.ParagraphBreak +
"ColumnAutoHeight is: " + mtext19.ColumnAutoHeight + MText.ParagraphBreak +
"ColumnFlowReversed is: " + mtext19.ColumnFlowReversed + MText.ParagraphBreak + MText.ParagraphBreak +
"Teigha.NET for .dwg files is a managed .NET component containing tools for working with .dwg file data. Built on top of the Teigha for .dwg files C++ development environment, Teigha.NET for .dwg files exposes access to .dwg application development using the .NET framework using any .NET language (C#, Visual Basic).";
}
// Creates an MText entity and sets static columns.
using (MText mtext20 = new MText())
{
btr.AppendEntity(mtext20);
mtext20.Location = new Point3d(35, -10, 0);
mtext20.TextHeight = 0.2;
mtext20.Height = 2;
mtext20.SetStaticColumns(5, 0.5, 2);
mtext20.Contents = "This is a multiline text with " + mtext20.ColumnType + " type of columns. " + MText.ParagraphBreak +
"ColumnWidth is: " + mtext20.ColumnWidth + MText.ParagraphBreak +
"ColumnColumnGutterWidth is: " + mtext20.ColumnGutterWidth + MText.ParagraphBreak +
"ColumnCount is: " + mtext20.ColumnCount + MText.ParagraphBreak +
"ColumnFlowReversed is: " + mtext20.ColumnFlowReversed + MText.ParagraphBreak + MText.ParagraphBreak +
"Teigha.NET for .dwg files is a managed .NET component containing tools for working with .dwg file data. Built on top of the Teigha for .dwg files C++ development environment, Teigha.NET for .dwg files exposes access to .dwg application development using the .NET framework using any .NET language (C#, Visual Basic).";
}
// Creates an MText entity and sets the rotation angle.
using (MText mtext21 = new MText())
{
btr.AppendEntity(mtext21);
mtext21.Location = new Point3d(0, -30, 0);
mtext21.TextHeight = 0.4;
mtext21.Rotation = 0.7;
mtext21.Contents = "Rotation angle is: " + mtext21.Rotation;
}
}
ta.Commit();
}
db.SaveAs(path + "MTextEx.dwg", DwgVersion.Current);
db.Dispose();
}
}
}
Helix
using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using Teigha.Runtime;
using Teigha.DatabaseServices;
using Teigha.Geometry;
using Teigha.Colors;
namespace CDevGuideExamplesProject.HelixEx
{
public class HelixEx
{
public HelixEx(String path)
{
using (Database db = new Database(true, true))
{
TransactionManager tm = db.TransactionManager;
using (Transaction ta = tm.StartTransaction())
{
using (BlockTableRecord btr = (BlockTableRecord)db.CurrentSpaceId.GetObject(OpenMode.ForWrite))
{
// Creates an expanding helix (BaseRadius < TopRadius)
Helix helix1 = new Helix();
btr.AppendEntity(helix1);
helix1.AxisVector = Vector3d.YAxis;
helix1.StartPoint = new Point3d(0.5, 0.0, 0);
helix1.SetAxisPoint(new Point3d(0.0, 0.0, 0), false);
helix1.Constrain = ConstrainType.Height;
helix1.TopRadius = 2;
helix1.Height = 7.0;
helix1.Turns = 4.0;
helix1.CreateHelix();
// Creates a helix converging to a point (TopRadius == 0)
Helix helix2 = new Helix();
btr.AppendEntity(helix2);
helix2.AxisVector = new Vector3d(0, 1, 0);
helix2.StartPoint = new Point3d(-8.0, 0.0, 0);
helix2.SetAxisPoint(new Point3d(-10.0, 0.0, 0), false);
helix2.TopRadius = 0;
helix2.Constrain = ConstrainType.Height;
helix2.Height = 7.0;
helix2.Turns = 4.0;
helix2.CreateHelix();
// Creates a narrowing helix (BaseRadius > TopRadius)
Helix helix3 = new Helix();
btr.AppendEntity(helix3);
helix3.CopyFrom(helix2);
helix3.StartPoint = new Point3d(-18.0, 0.0, 0);
helix3.SetAxisPoint(new Point3d(-20.0, 0.0, 0), false);
helix3.TopRadius = 0.5;
helix3.CreateHelix();
// Creates a cylindrical helix (BaseRadius == TopRadius)
Helix helix4 = new Helix();
btr.AppendEntity(helix4);
helix4.CopyFrom(helix1);
helix4.StartPoint = new Point3d(12.0, 0.0, 0);
helix4.SetAxisPoint(new Point3d(10.0, 0.0, 0), false);
helix4.TopRadius = 2;
helix4.CreateHelix();
// Creates a helix diverging from a point (BaseRadius == 0)
Helix helix5 = new Helix();
btr.AppendEntity(helix5);
helix5.CopyFrom(helix1);
helix5.SetAxisPoint(new Point3d(20.0, 0.0, 0), false);
helix5.BaseRadius = 0.0;
helix5.TopRadius = 2;
helix5.CreateHelix();
// Creates a helix with the Height of 4
Helix helix6 = new Helix();
btr.AppendEntity(helix6);
helix6.AxisVector = Vector3d.YAxis;
helix6.TopRadius = 2;
helix6.StartPoint = new Point3d(-18.0, 10.0, 0);
helix6.SetAxisPoint(new Point3d(-20.0, 10.0, 0), false);
helix6.Turns = 3;
helix6.Constrain = ConstrainType.Height;
helix6.Height = 4;
helix6.CreateHelix();
// Creates a helix with the Height changed to 7 with ConstrainType.TurnHeight
Helix helix7 = new Helix();
btr.AppendEntity(helix7);
helix7.CopyFrom(helix6);
helix7.StartPoint = new Point3d(-12.0, 10.0, 0);
helix7.SetAxisPoint(new Point3d(-14.0, 10.0, 0), false);
helix7.Turns = 3;
helix7.Constrain = ConstrainType.TurnHeight;
helix7.Height = 7;
helix7.CreateHelix();
// Creates a helix with the Height changed to 7 with ConstrainType.Turns
Helix helix8 = new Helix();
btr.AppendEntity(helix8);
helix8.CopyFrom(helix7);
helix8.StartPoint = new Point3d(-6.0, 10.0, 0);
helix8.SetAxisPoint(new Point3d(-8.0, 10.0, 0), false);
helix8.Turns = 3;
helix8.Constrain = ConstrainType.Turns;
helix8.Height = 7;
helix8.CreateHelix();
// Creates a helix with the TurnHeight changed to 2 with ConstrainType.Turns
Helix helix9 = new Helix();
btr.AppendEntity(helix9);
helix9.CopyFrom(helix6);
helix9.StartPoint = new Point3d(-0.0, 10.0, 0);
helix9.SetAxisPoint(new Point3d(-2.0, 10.0, 0), false);
helix9.Constrain = ConstrainType.Turns;
helix9.TurnHeight = 2;
helix9.CreateHelix();
// Creates a helix with the TurnHeight changed to 2 with ConstrainType.TurnHeight
Helix helix10 = new Helix();
btr.AppendEntity(helix10);
helix10.CopyFrom(helix6);
helix10.StartPoint = new Point3d(6.0, 10.0, 0);
helix10.SetAxisPoint(new Point3d(4.0, 10.0, 0), false);
helix10.Constrain = ConstrainType.TurnHeight;
helix10.TurnHeight = 2;
helix10.CreateHelix();
// Creates a helix with clockwise turns direction
Helix helix11 = new Helix();
btr.AppendEntity(helix11);
helix11.CopyFrom(helix6);
helix11.StartPoint = new Point3d(-18.0, 20.0, 0);
helix11.SetAxisPoint(new Point3d(-20.0, 20.0, 0), false);
helix11.Twist = false;
helix11.CreateHelix();
// Creates a helix with the Turns changed to 5 with ConstrainType.TurnHeight
Helix helix12 = new Helix();
btr.AppendEntity(helix12);
helix12.CopyFrom(helix11);
helix12.StartPoint = new Point3d(-12.0, 20.0, 0);
helix12.SetAxisPoint(new Point3d(-14.0, 20.0, 0), false);
helix12.Constrain = ConstrainType.TurnHeight;
helix12.Turns = 5;
helix12.CreateHelix();
// Creates a helix with the Turns changed to 5 with ConstrainType.Height
Helix helix13 = new Helix();
btr.AppendEntity(helix13);
helix13.CopyFrom(helix11);
helix13.StartPoint = new Point3d(-6.0, 20.0, 0);
helix13.SetAxisPoint(new Point3d(-8.0, 20.0, 0), false);
helix13.Constrain = ConstrainType.Height;
helix13.Turns = 5;
helix13.CreateHelix();
}
ta.Commit();
}
db.SaveAs(path + "HelixEx.dwg", DwgVersion.Current);
}
}
}
}
其他
块定义
using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using Teigha.Runtime;
using Teigha.DatabaseServices;
using Teigha.Geometry;
namespace CDevGuideExamplesProject
{
public class BlockEx
{
const String path1 = "BlockEx1.dwg";
public BlockEx(string path)
{
using (Database db = new Database(true, true))
{
TransactionManager tm = db.TransactionManager;
using (Transaction ta = tm.StartTransaction())
{
using (BlockTable bt = (BlockTable)ta.GetObject(db.BlockTableId, OpenMode.ForWrite))
{
// Get the modelspace block
using (BlockTableRecord modelSpace = (BlockTableRecord)tm.GetObject(bt[BlockTableRecord.ModelSpace], OpenMode.ForWrite))
{
// Create a new database to be attached as external reference
CreateDatabase(path);
// Attach the created database as an exernal reference to the current database
ObjectId xRefId = db.AttachXref(path1, "ExternalBlock");
// Create a BlockReference object that refer to the external block and add it to the modelspace block
using (BlockTableRecord xBlock = (BlockTableRecord)xRefId.GetObject(OpenMode.ForWrite))
{
// Reload xref
ObjectIdCollection xrefCollection = new ObjectIdCollection();
xrefCollection.Add(xBlock.ObjectId);
db.ReloadXrefs(xrefCollection);
// Create a block reference and append it to modelspace
BlockReference xBlockRef = new BlockReference(Point3d.Origin, xRefId);
modelSpace.AppendEntity(xBlockRef);
}
}
}
ta.Commit();
}
db.SaveAs(path + "BlockEx2.dwg", DwgVersion.Current);
}
}
// Create a new database, add new block definition and block reference objects. This database will be attached as an external reference.
static void CreateDatabase(String path)
{
Database db = new Database(true, true);
TransactionManager tm = db.TransactionManager;
using (Transaction ta = tm.StartTransaction())
{
using (BlockTableRecord modelSpace = (BlockTableRecord)ta.GetObject(db.CurrentSpaceId, OpenMode.ForWrite))
{
using (BlockTable bt = (BlockTable)ta.GetObject(db.BlockTableId, OpenMode.ForWrite))
{
using (BlockTableRecord blk1 = new BlockTableRecord())
{
blk1.Name = "Block1";
bt.Add(blk1);
blk1.Origin = new Point3d(0, 5, 0);
// Add some entities to the block definition blk1
Circle cir1 = new Circle();
blk1.AppendEntity(cir1);
cir1.Radius = 3;
Circle cir2 = new Circle();
cir2.Thickness = 1;
blk1.AppendEntity(cir2);
cir2.Radius = 5;
Line line = new Line(new Point3d(0, -6, 0), new Point3d(0, 6, 0));
blk1.AppendEntity(line);
// Create a block reference for the block definition blk1, set additional properties and explode this block reference
using (BlockReference blockRef = new BlockReference(Point3d.Origin, blk1.ObjectId))
{
modelSpace.AppendEntity(blockRef);
blockRef.ScaleFactors = new Scale3d(2, 2, 2);
blockRef.Rotation = 0.7;
blockRef.Position = new Point3d(5, 0, 0);
try
{
blockRef.ExplodeToOwnerSpace();
}
catch (Teigha.Runtime.Exception ex)
{
System.Console.WriteLine("The block cannot be exploded");
System.Console.WriteLine("{0}", ex.Message);
}
}
}
}
}
ta.Commit();
}
db.SaveAs(path + path1, DwgVersion.Current);
db.Dispose();
}
}
}
绑定
using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using Teigha.Runtime;
using Teigha.DatabaseServices;
using Teigha.Geometry;
namespace CDevGuideExamplesProject
{
public class BindXrefsEx
{
//const String path1a = "c:\\AL-01-20-010.dwg";
//const String path1aa = "X-01-PITCH.dwg";
//const String path1aa = "AL-01-20-010.dwg";
//const String path2a = "c:\\ArcEx2.dwg";
const String path1a = "master.dwg";
//const String path2a = "D:\\Sample\\xref\\masterBind.dwg";
public BindXrefsEx(string path)
{
using (Database db = new Database(false, false))
{
TransactionManager tm = db.TransactionManager;
using (Transaction ta = tm.StartTransaction())
{
db.ReadDwgFile(path + path1a, FileOpenMode.OpenForReadAndAllShare, false, "", false);
//db.ReadDwgFile(path + path1aa, FileOpenMode.OpenForReadAndAllShare, false, "", false);
ObjectIdCollection xrefCollection = new ObjectIdCollection();
using (BlockTable bt = (BlockTable)db.BlockTableId.GetObject(OpenMode.ForWrite)) //.Open(OpenMode.ForRead))
{
foreach (ObjectId id in bt)
{
using (BlockTableRecord pBlock = (BlockTableRecord)id.GetObject(OpenMode.ForWrite))
{
XrefStatus status = pBlock.XrefStatus;
if (pBlock.XrefStatus != XrefStatus.NotAnXref)
{
switch (status)
{
case Teigha.DatabaseServices.XrefStatus.Unresolved:
{
ObjectIdCollection xrefCollectTmp = new ObjectIdCollection();
xrefCollectTmp.Add(id);
try
{
db.ReloadXrefs(xrefCollectTmp);
xrefCollection.Add(id);
}
catch (Teigha.Runtime.Exception ex)
{
if (ex.Message == "eFileNotFound")
{
continue;
}
}
}
break;
case Teigha.DatabaseServices.XrefStatus.Resolved:
xrefCollection.Add(id);
break;
case Teigha.DatabaseServices.XrefStatus.FileNotFound:
case Teigha.DatabaseServices.XrefStatus.Unreferenced:
case Teigha.DatabaseServices.XrefStatus.Unloaded:
try
{
db.DetachXref(pBlock.Id);
}
catch (Teigha.Runtime.Exception ex)
{
if (ex.Message == "eXRefDependent")
{
continue;
}
}
break;
default:
break;
}
// db.ReloadXrefs(xrefCollection);
}
}
}
try
{
db.ReloadXrefs(xrefCollection);
db.BindXrefs(xrefCollection, true);
}
catch (Teigha.Runtime.Exception ex)
{
System.Console.WriteLine("The block cannot be bound");
System.Console.WriteLine("{0}", ex.Message);
}
}
ta.Commit();
//ta.Abort();
}
db.SaveAs(path + "masterBind.dwg", DwgVersion.Current);
}
}
}
}
扫一扫
1786
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
