华为云CCE学习笔记-部署harbor（helm模板）

一、创建CCE集群

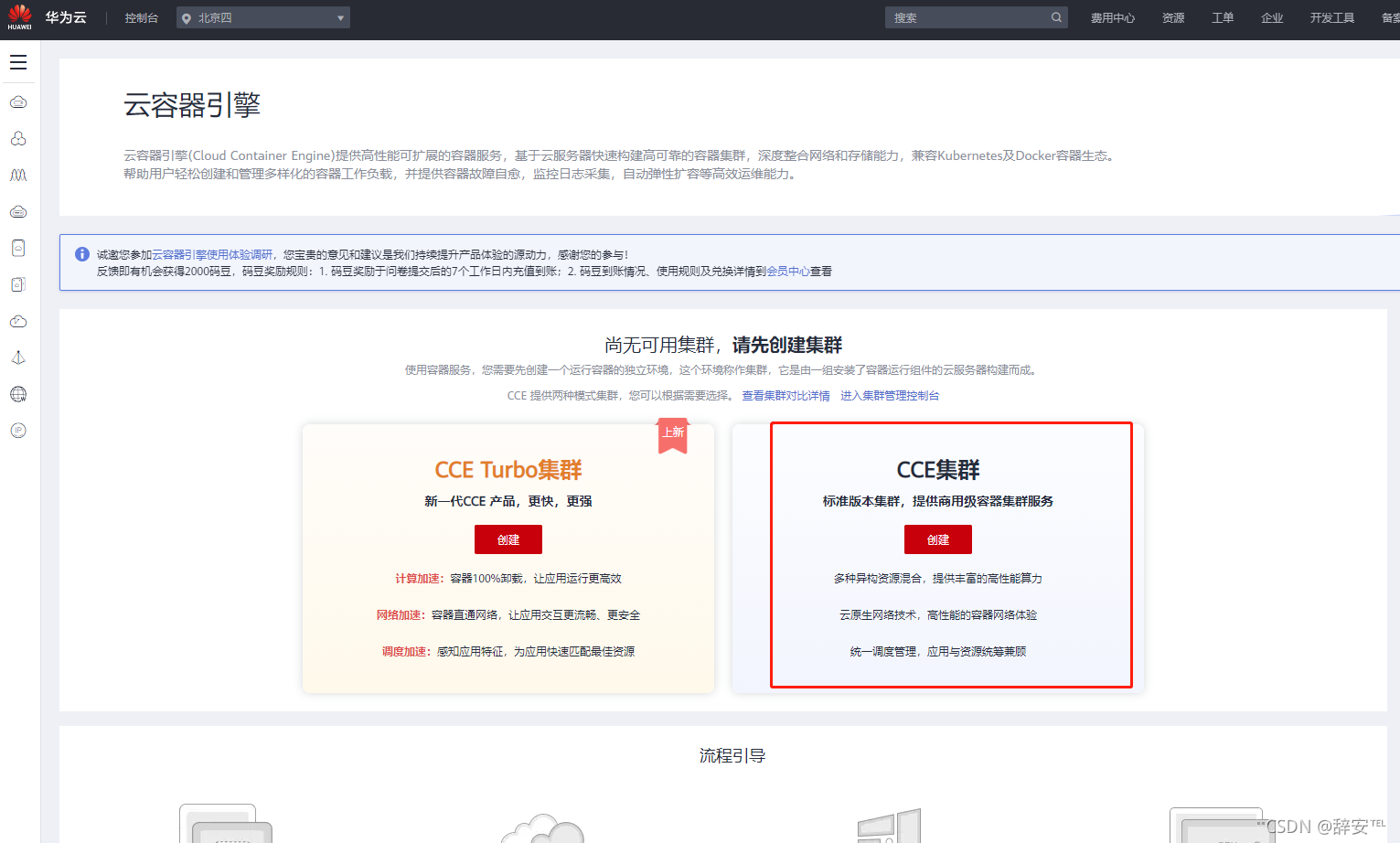

登录华为云进入CCE控制台，创建CCE集群

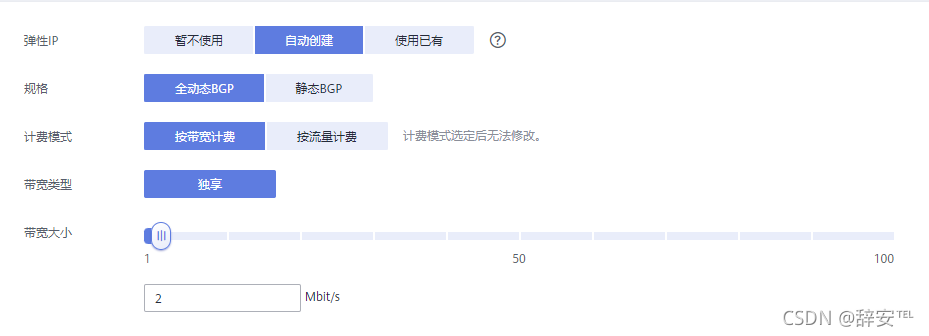

集群配置自定义，由于要拉取第三方镜像要有弹性ip

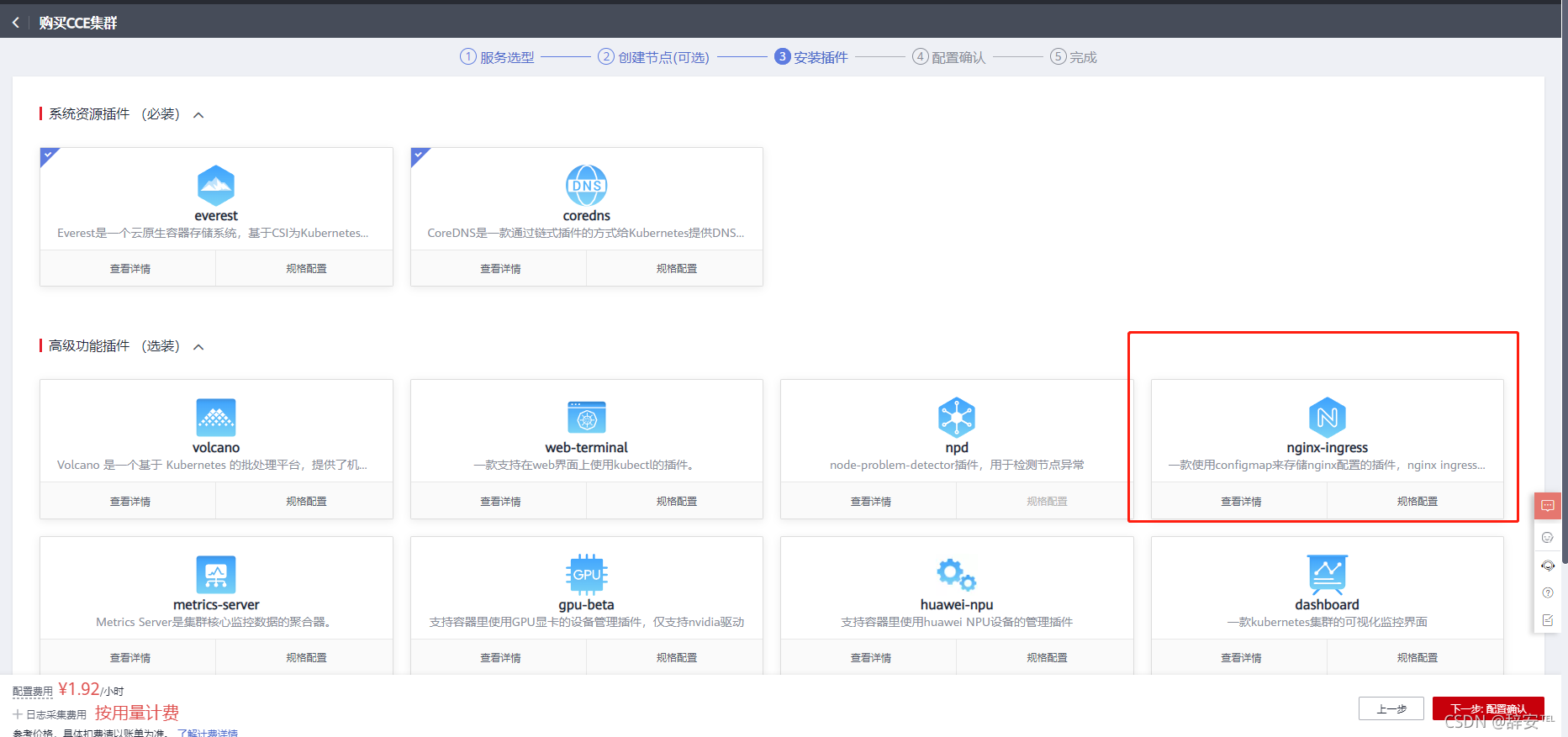

使用ingress对外暴露访问，安装nginx-ingress插件

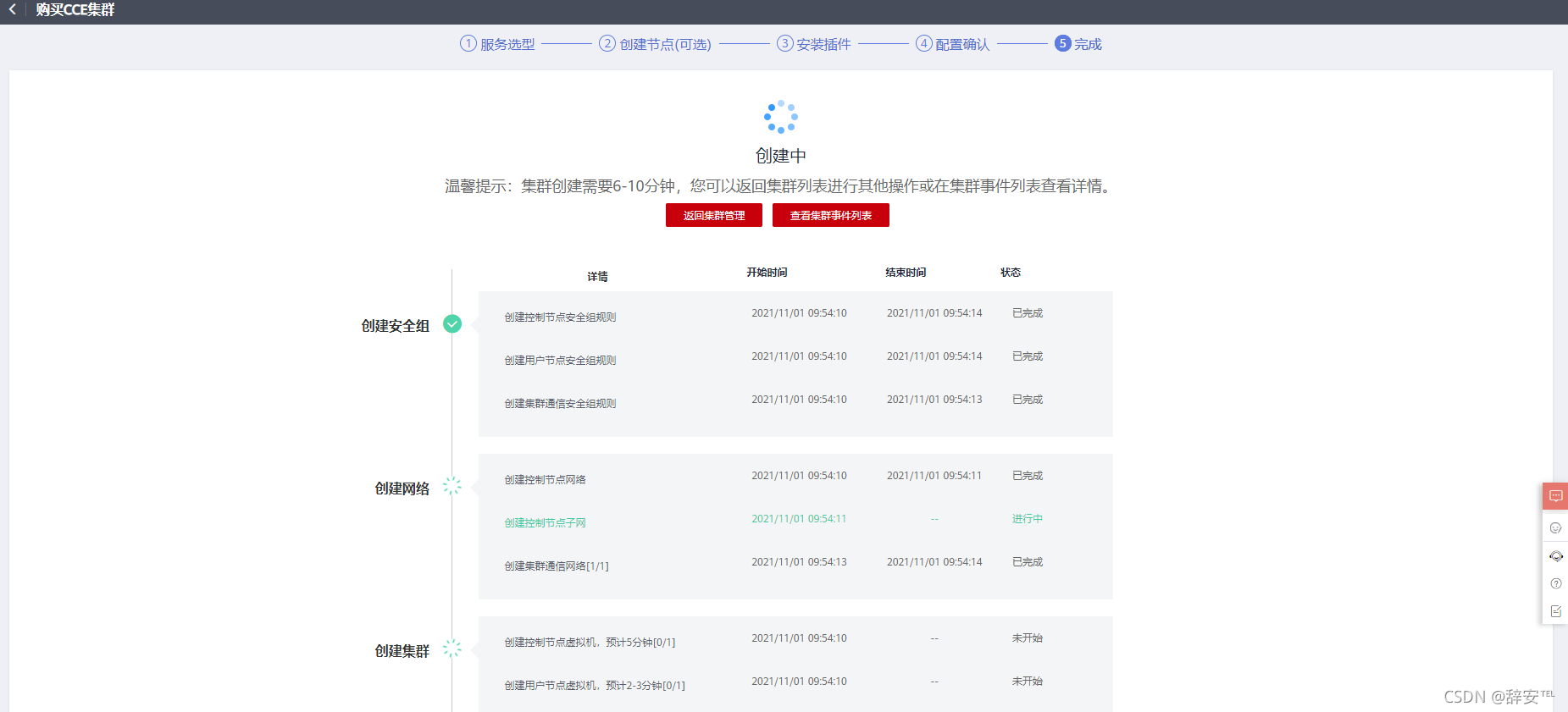

等待安装成功

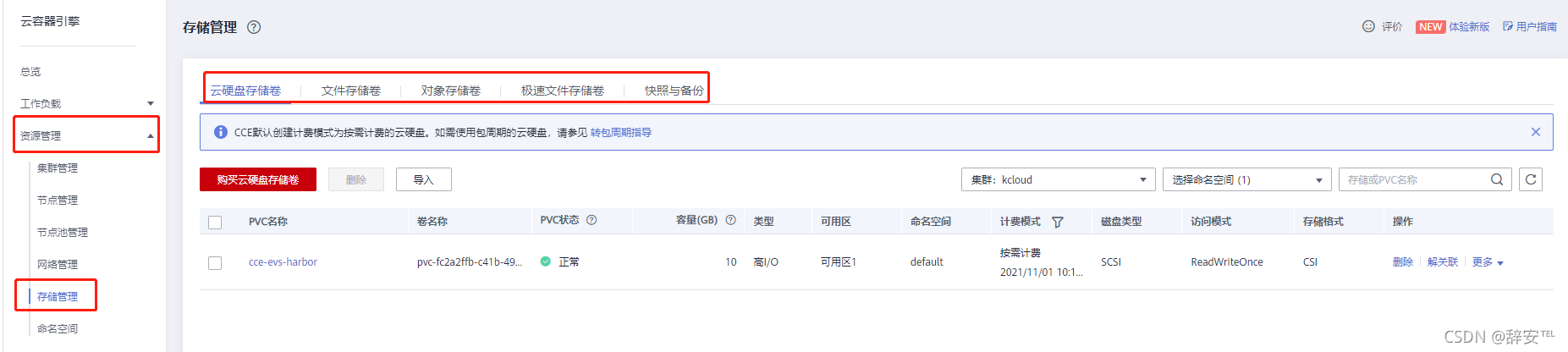

创建PV、PVC，记住PVC的名称后面会用到

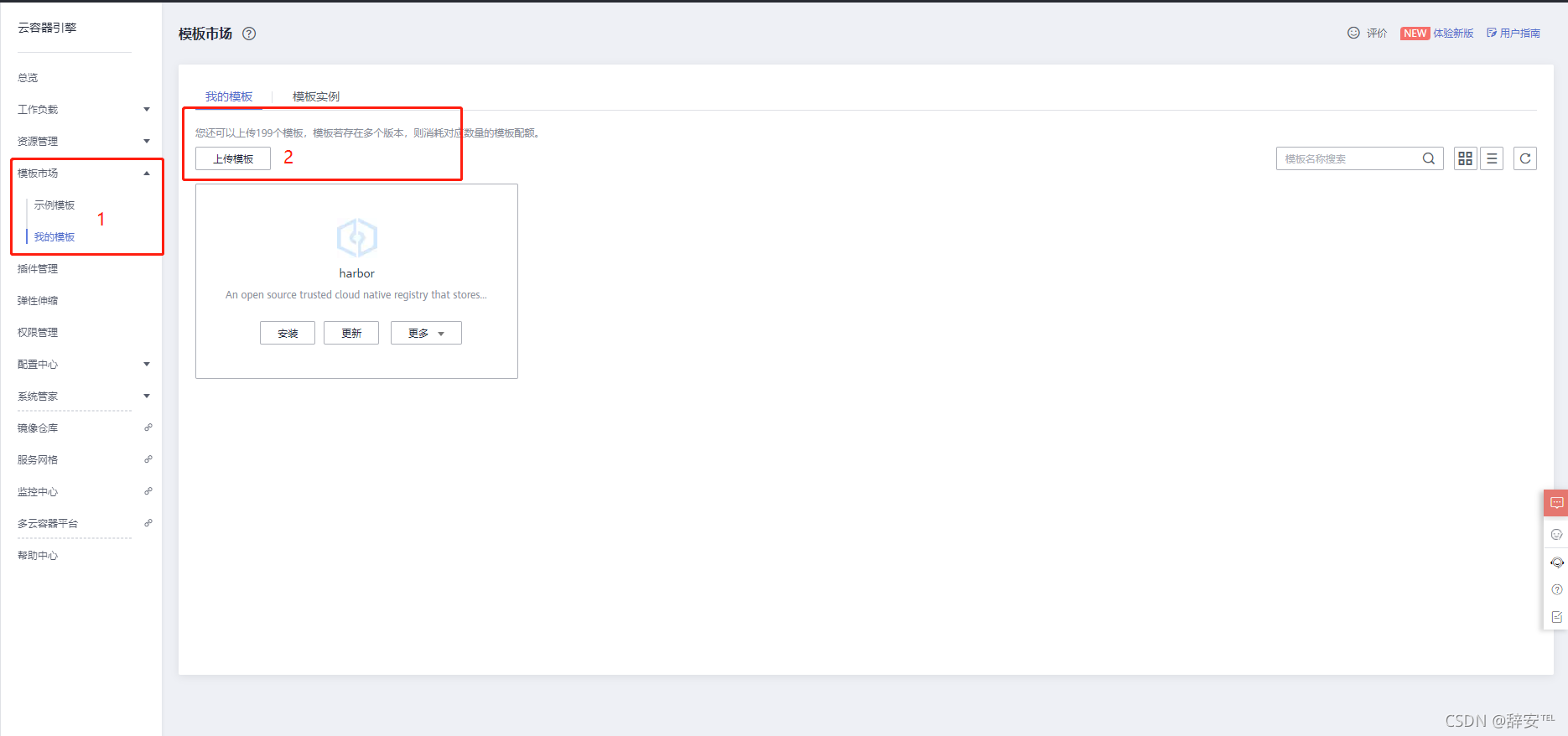

创建完成后，点击模板市场上传harbor模板

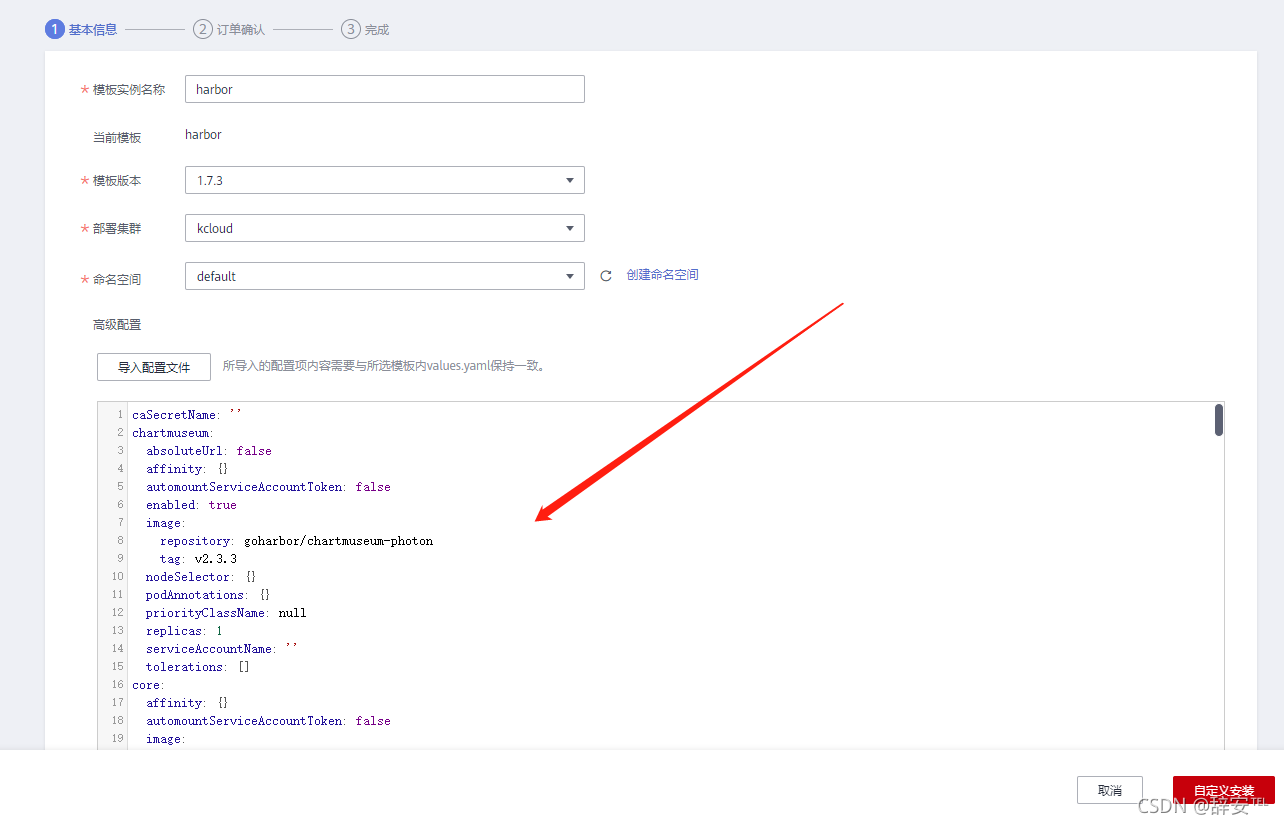

上传完成后点击安装,修改配置文件

设置持久卷

persistentVolumeClaim:
    chartmuseum:
      accessMode: ReadWriteOnce
      existingClaim: 'cce-evs-harbor' ##PVC的名称
      size: 5Gi
      storageClass: ''
      subPath: 'chartmuseum'   ## 子文件目录
    database:
      accessMode: ReadWriteOnce
      existingClaim: 'cce-evs-harbor'
      size: 1Gi
      storageClass: ''
      subPath: 'database'
    jobservice:
      accessMode: ReadWriteOnce
      existingClaim: 'cce-evs-harbor'
      size: 1Gi
      storageClass: ''
      subPath: 'jobservice'
    redis:
      accessMode: ReadWriteOnce
      existingClaim: 'cce-evs-harbor'
      size: 1Gi
      storageClass: ''
      subPath: 'redis'
    registry:
      accessMode: ReadWriteOnce
      existingClaim: 'cce-evs-harbor'
      size: 5Gi
      storageClass: ''
      subPath: 'registry'
    trivy:
      accessMode: ReadWriteOnce
      existingClaim: 'cce-evs-harbor'
      size: 5Gi
      storageClass: ''
      subPath: 'trivy'

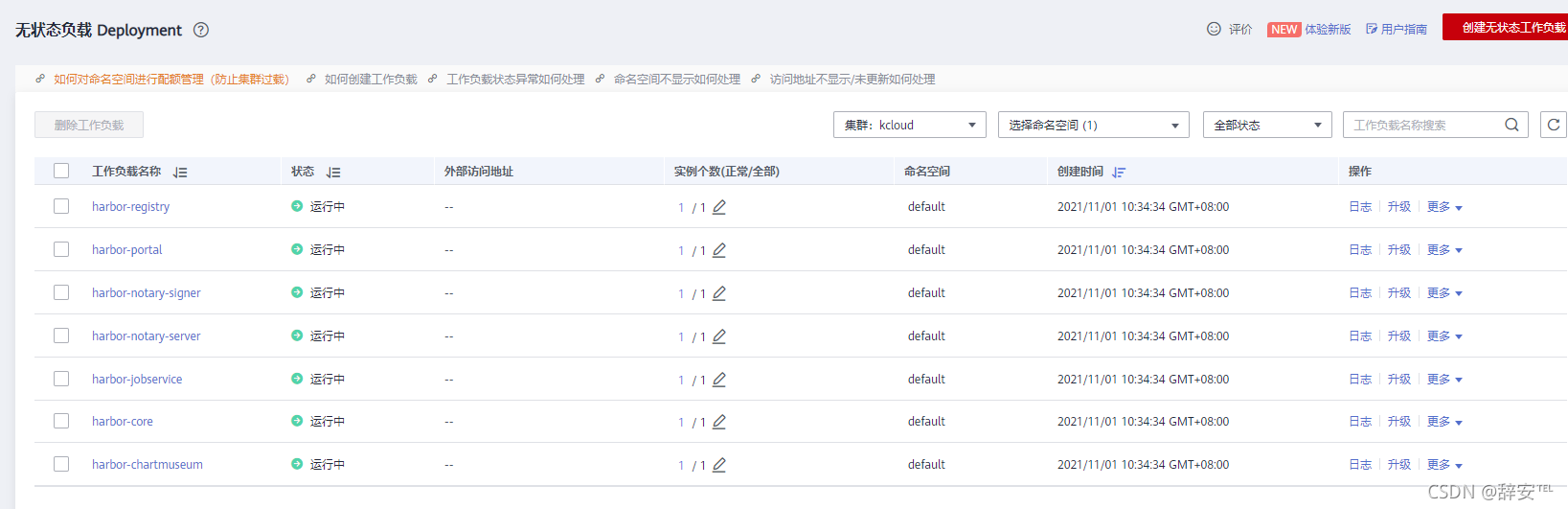

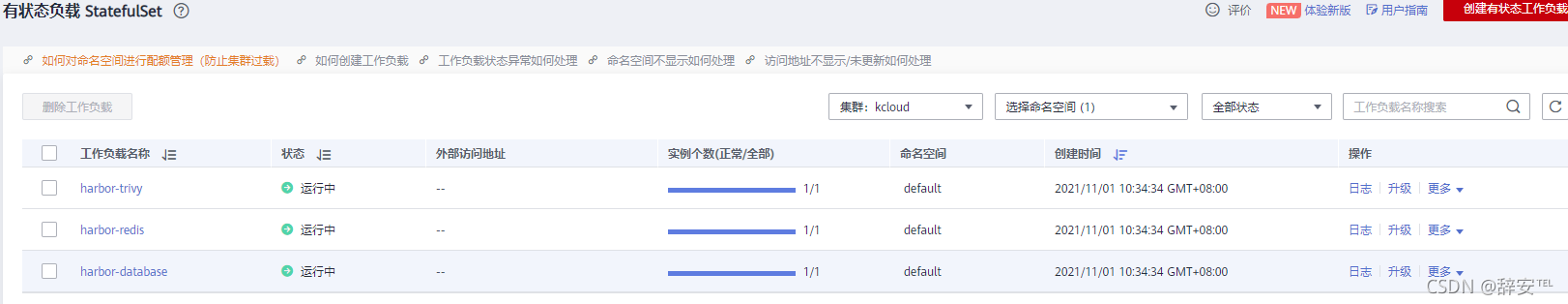

查看运行状态，此处可能拉取镜像较慢。

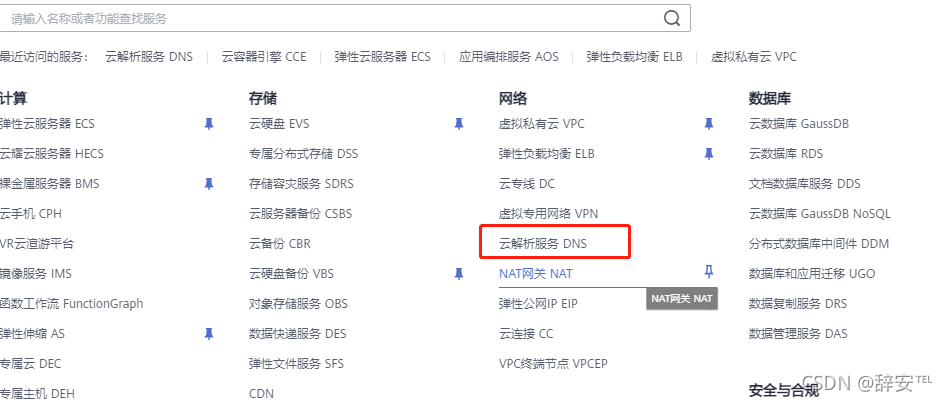

设置私网地址解析

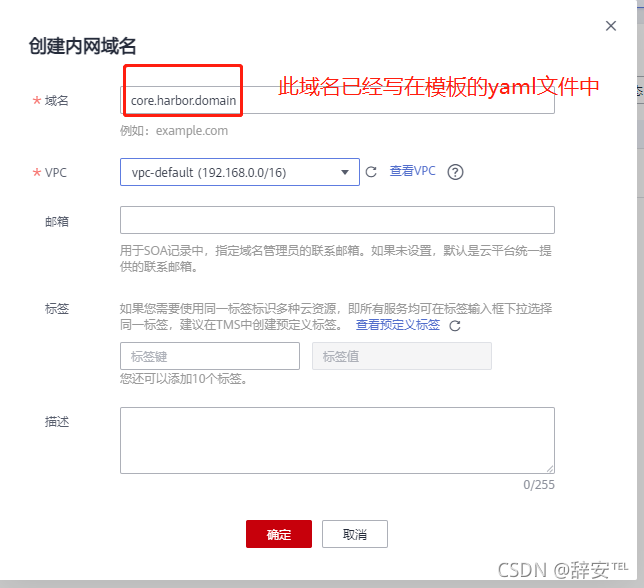

创建内网解析，

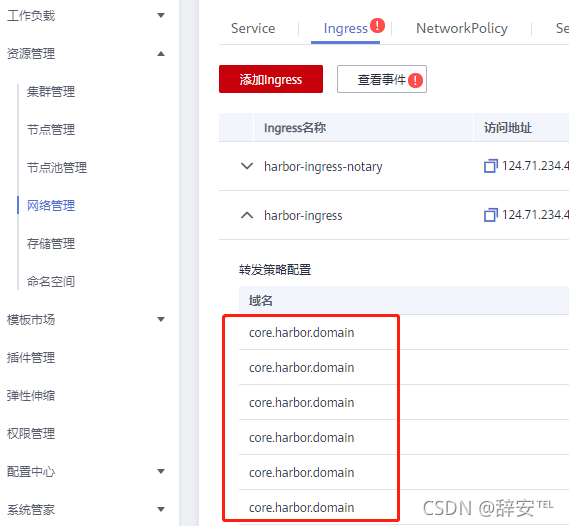

在集群控制面板网络>ingress也可以看到该域名

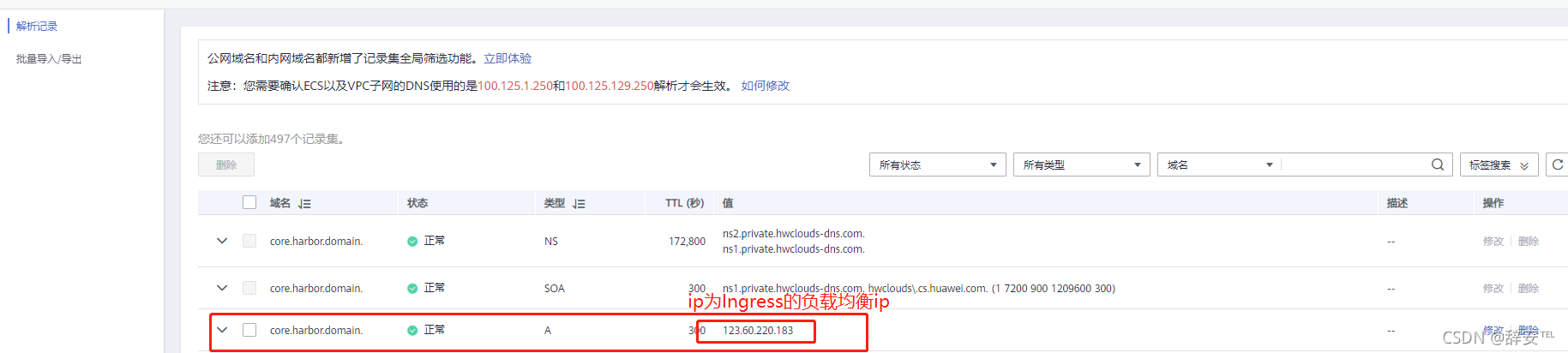

添加解析记录集

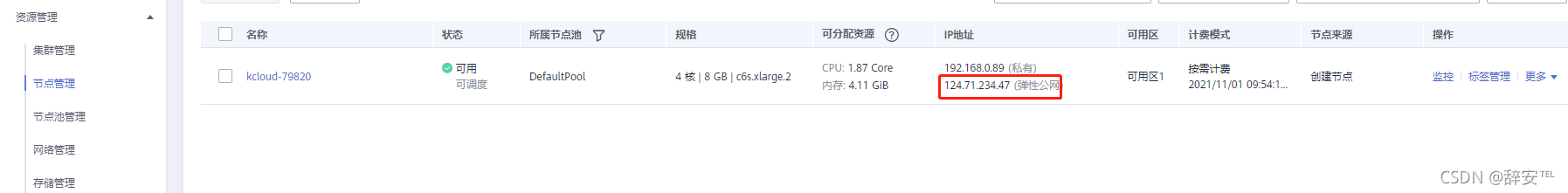

使用node的弹性ip使用ssh工具连接

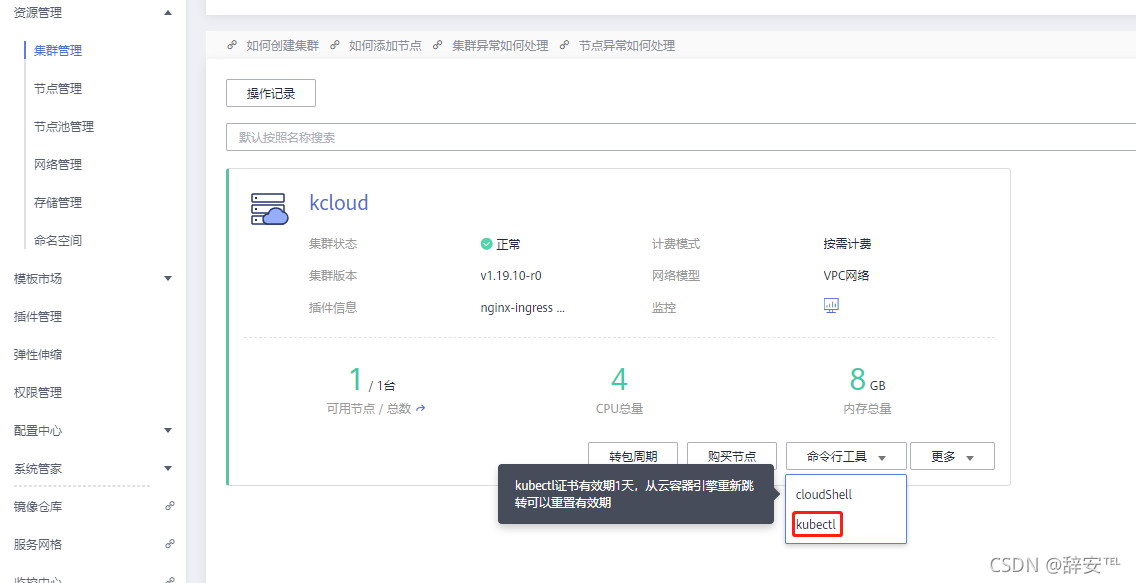

下载kubectl配置文件

用节点docker login 登录harbor仓库，用户admin 密码Harbor12345访问出现错误访问不了报X509的错误

[root@kcloud-79820 ~]# mkdir .kube
[root@kcloud-79820 ~]# vi .kube/config
[root@kcloud-79820 ~]# docker login  https://core.harbor.domain.com
Username: admin
Password:
Error response from daemon: Get https://core.harbor.domain.com/v2/: x509: certificate is valid for ingress.local, not core.harbor.domain.com

解决方法

[root@kcloud-79820 ~]# mkdir -p  /etc/docker/certs.d/core.harbor.domain
[root@kcloud-79820 ~]# kubectl get secrets
NAME                       TYPE                                  DATA   AGE
default-secret             kubernetes.io/dockerconfigjson        1      125m
default-token-52frd        kubernetes.io/service-account-token   3      126m
harbor-chartmuseum         Opaque                                1      89m
harbor-core                Opaque                                8      89m
harbor-database            Opaque                                1      89m
**harbor-ingress             kubernetes.io/tls                     3      89m**
harbor-jobservice          Opaque                                2      89m
harbor-notary-server       Opaque                                5      89m
harbor-registry            Opaque                                2      89m
harbor-registry-htpasswd   Opaque                                1      89m
harbor-trivy               Opaque                                2      89m
paas.elb                   cfe/secure-opaque                     3      125m
[root@kcloud-79820 ~]# kubectl get secrets/harbor-ingress  -o jsonpath="{.data.ca\.crt}" | base64 --decode > /etc/docker/certs.d/core.harbor.domain/ca.crt

登录成功

[root@kcloud-79820 ~]# docker login core.harbor.domain
Username: admin
Password:
WARNING! Your password will be stored unencrypted in /root/.docker/config.json.
Configure a credential helper to remove this warning. See
https://docs.docker.com/engine/reference/commandline/login/#credentials-store

Login Succeeded

本地登录harbor
C:\Windows\System32\drivers\etc\hosts
后面添加一条

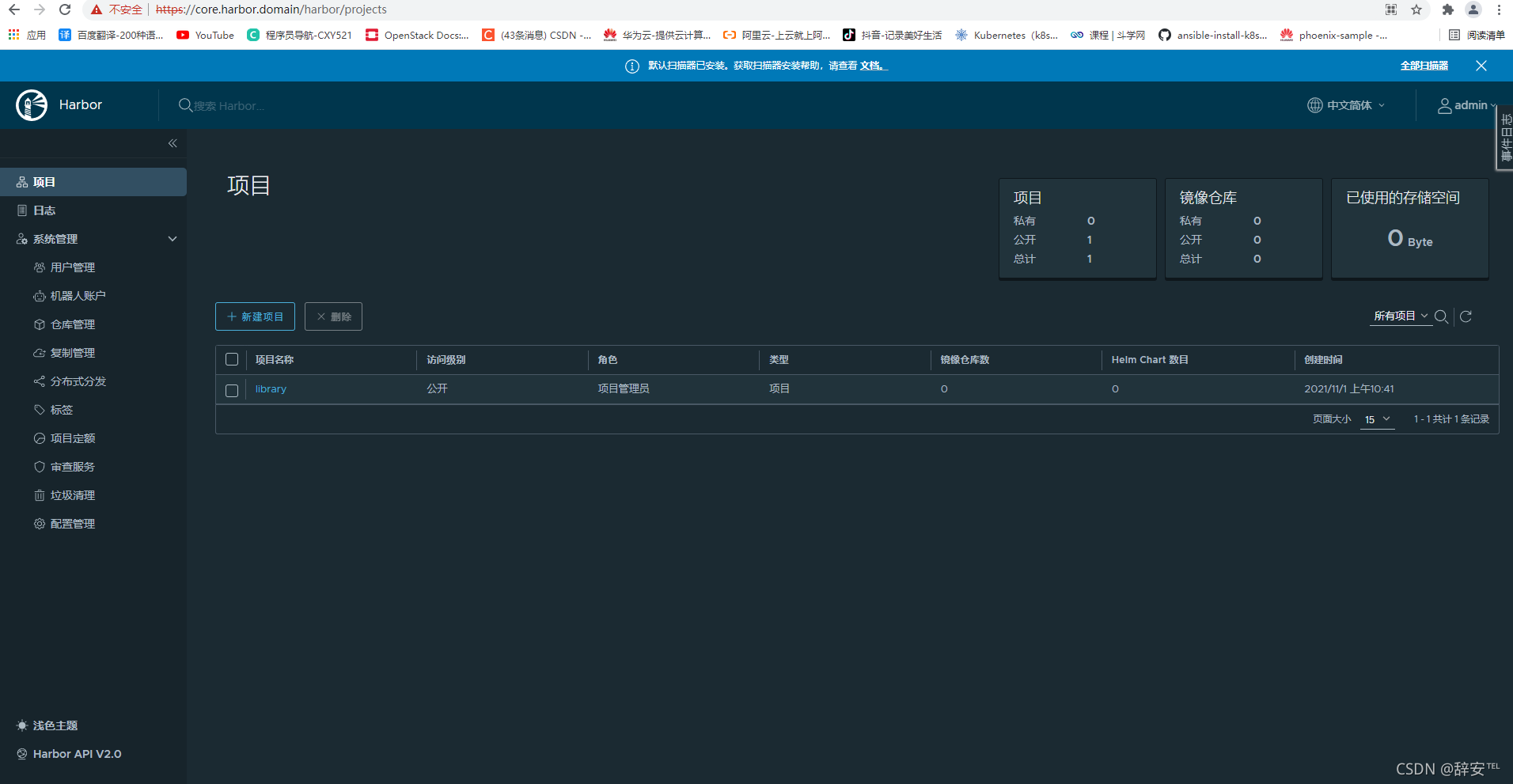

使用本地浏览器https://core.harbor.domain/ 进行访问，登录成功
