Hive 利用 JsonSerde 处理 JSON 格式数据

JsonSerde 的 github 地址：https://github.com/rcongiu/Hive-JSON-Serde
JsonSerde 的 jar下载地址：http://www.congiu.net/hive-json-serde/

1. 基本使用

   1. 配置 Hive

   2. 下载 json-serde-1.3.7-jar-with-dependencies.jar 并上传到 HiveServer2 所在服务器的 /etc/hive/auxlib 目录下

      [root@cdh01 auxlib]# pwd
      /etc/hive/auxlib
      [root@cdh01 auxlib]# ll
      总用量 84
      -rw-r--r-- 1 root root 82101 6月  26 22:18 json-serde-1.3.7-jar-with-dependencies.jar


   3. 创建外部表

      创建表sql：

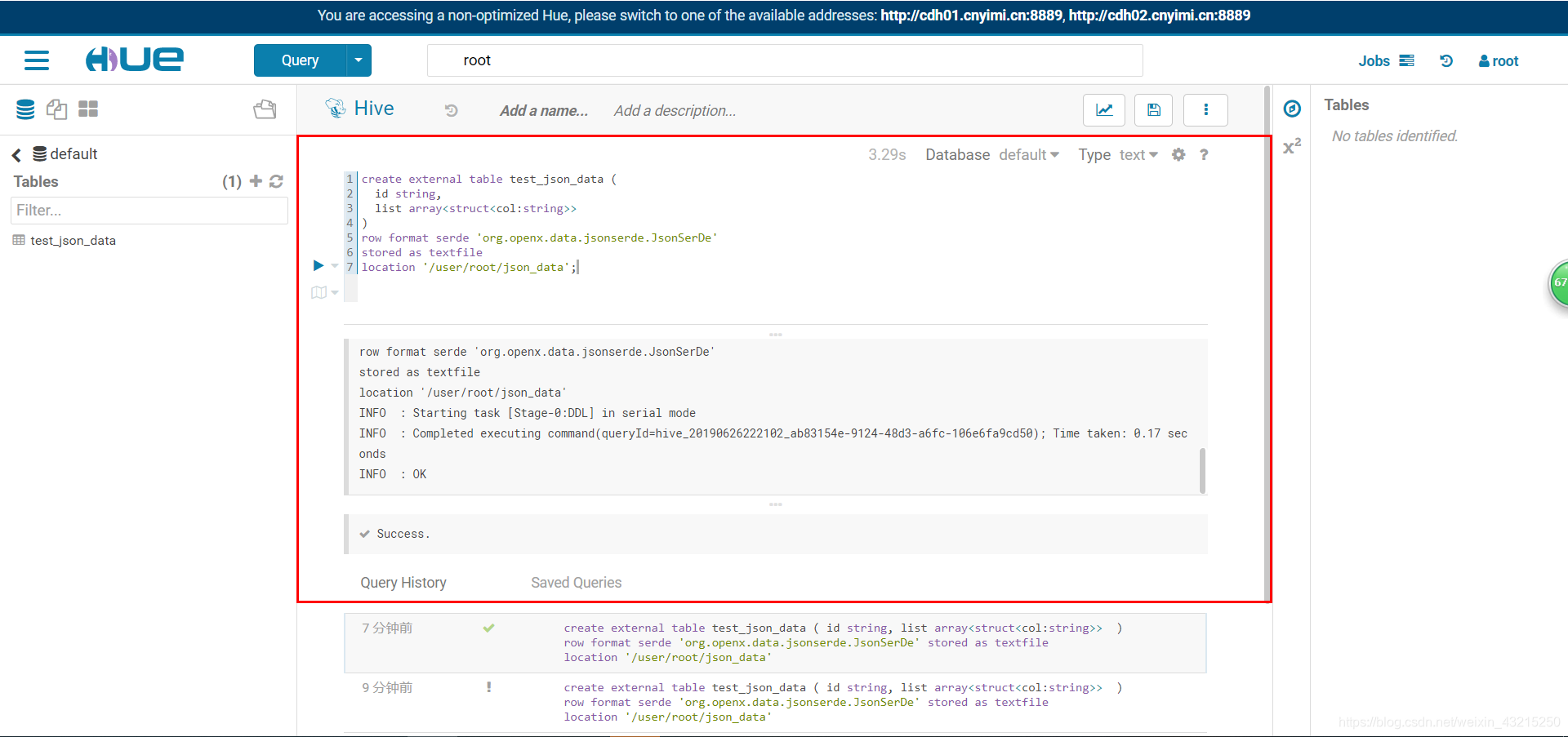

      create external table test_json_data (
        id string,
        list array<struct<col:string>>
      ) common "测试Json表"
      row format serde 'org.openx.data.jsonserde.JsonSerDe'
      stored as textfile
      location '/user/root/json_data';


      测试数据：

      注意: 一行一条 json 数据

      {"id": "1000","list": [{"col": "value1"}, {"col": "value2"}, {"col": "value3"}]}




   4. 查询表数据

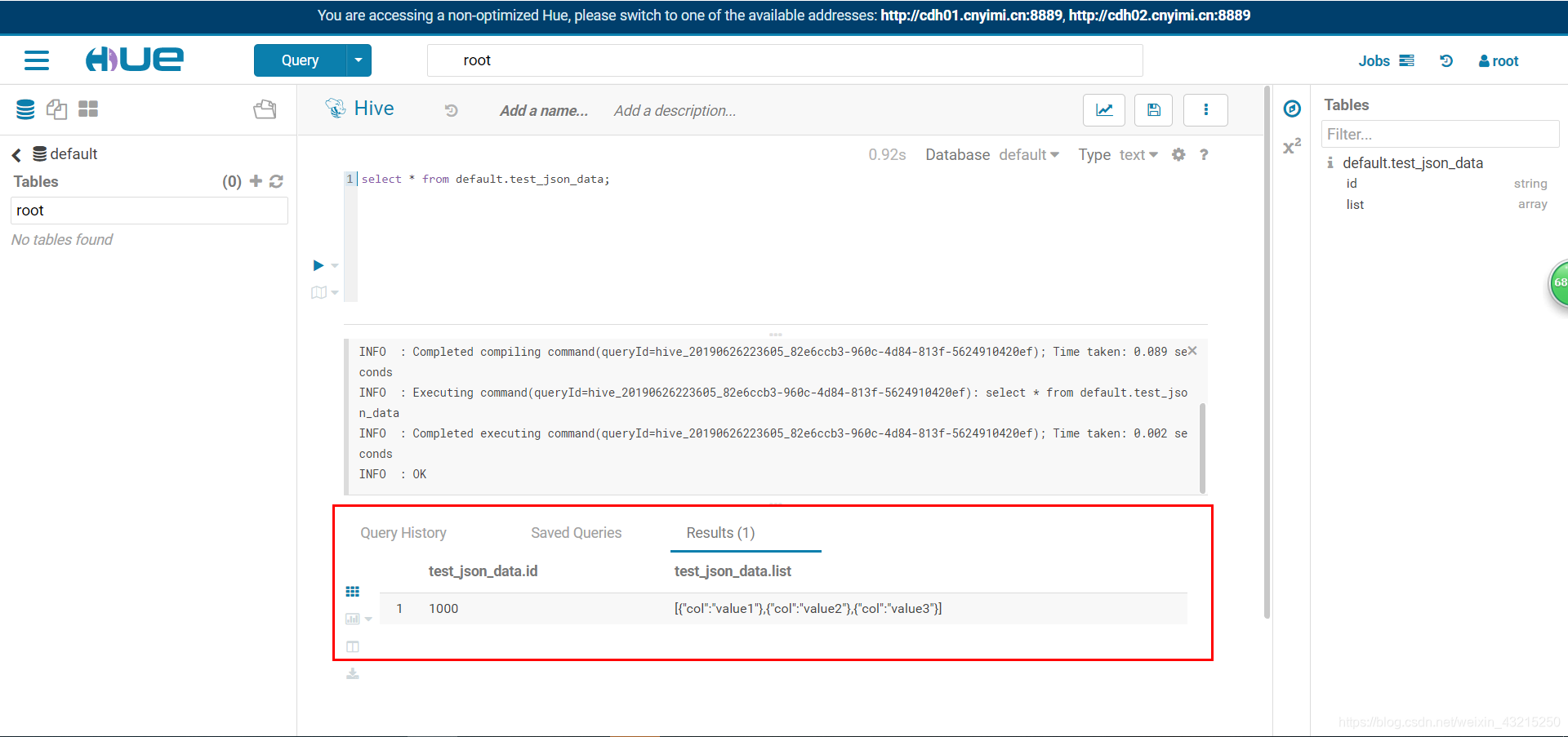

      select * from test_json_data;




   select b.basiclist.col from test_json_data t
   LATERAL VIEW explode(t.list) b as basiclist;




2. 查询复杂字段

   测试数据 data.txt

   {"one":true,"three":["red","yellow","orange"],"two":19.5,"four":"poop"}
   {"one":false,"three":["red","yellow","black"],"two":129.5,"four":"stars"}
   {"one":false,"three":["pink","gold"],"two":222.56,"four":"fiat"}


   建表语句：

   DROP TABLE test;
   CREATE TABLE test (
     one boolean,
     three array<string>,
     two double,
     four string
   )
   ROW FORMAT SERDE 'org.openx.data.jsonserde.JsonSerDe'
   STORED AS TEXTFILE;


   加载数据

   LOAD DATA LOCAL INPATH '/root/tmp/data.txt' OVERWRITE INTO TABLE test;


   hive> LOAD DATA LOCAL INPATH '/root/tmp/data.txt' OVERWRITE INTO TABLE test;
   Loading data to table default.test
   OK
   Time taken: 3.22 seconds


   查询

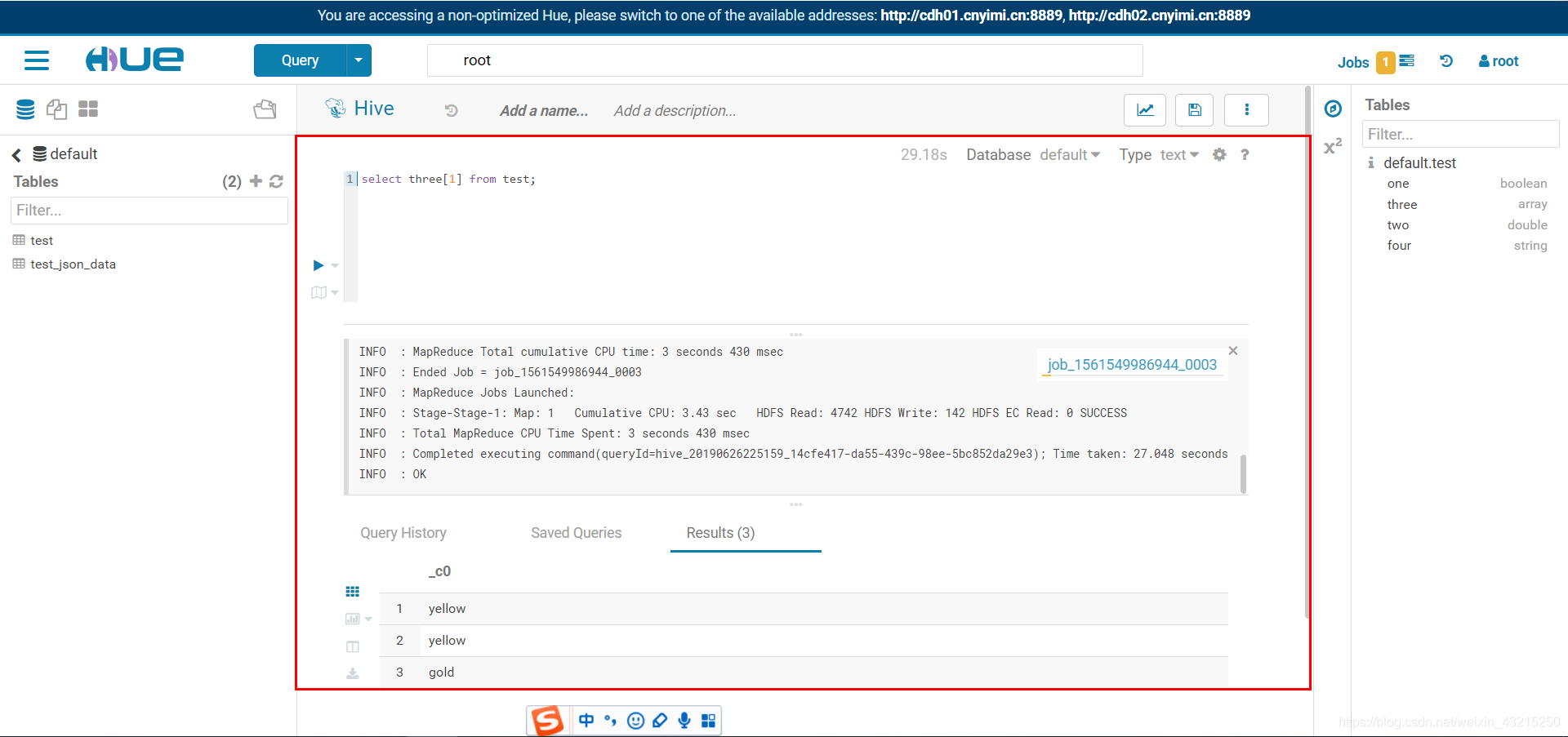

   select three[1] from test;




3. 定义嵌套结构

   测试数据 nesteddata.txt

   {"country":"Switzerland","languages":["German","French","Italian"],"religions":{"catholic":[10,20],"protestant":[40,50]}}


   建表语句：

   DROP TABLE json_nested_test;
   CREATE TABLE json_nested_test (
     country string,
     languages array<string>,
     religions map<string,array<int>>
   )
   ROW FORMAT SERDE 'org.openx.data.jsonserde.JsonSerDe'
   STORED AS TEXTFILE;


   加载数据

   LOAD DATA LOCAL INPATH '/root/tmp/nesteddata.txt' OVERWRITE INTO TABLE  json_nested_test ;


   查询

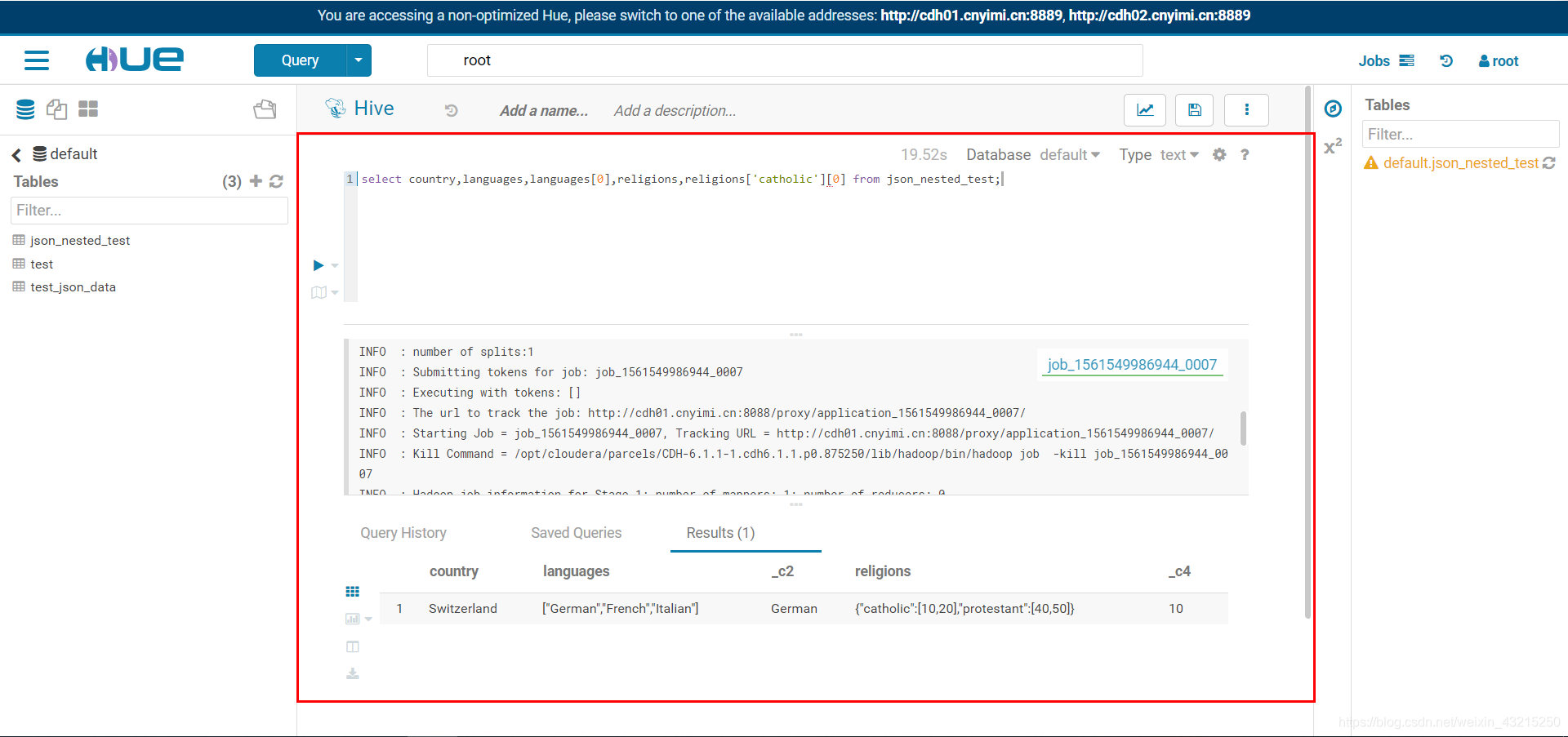

   select country,languages,languages[0],religions,religions['catholic'][0] from json_nested_test;




4. Arrays结构

   测试数据 people.txt

   ["John", 26 ]
   ["Mary", 23 ]


   建表语句：

   DROP TABLE people;
   CREATE TABLE people (
   	name string,
   	age int
   )
   ROW FORMAT SERDE 'org.openx.data.jsonserde.JsonSerDe'
   STORED AS TEXTFILE;


   加载数据

   LOAD DATA LOCAL INPATH '/root/tmp/people.txt' OVERWRITE INTO TABLE  people;


   查询

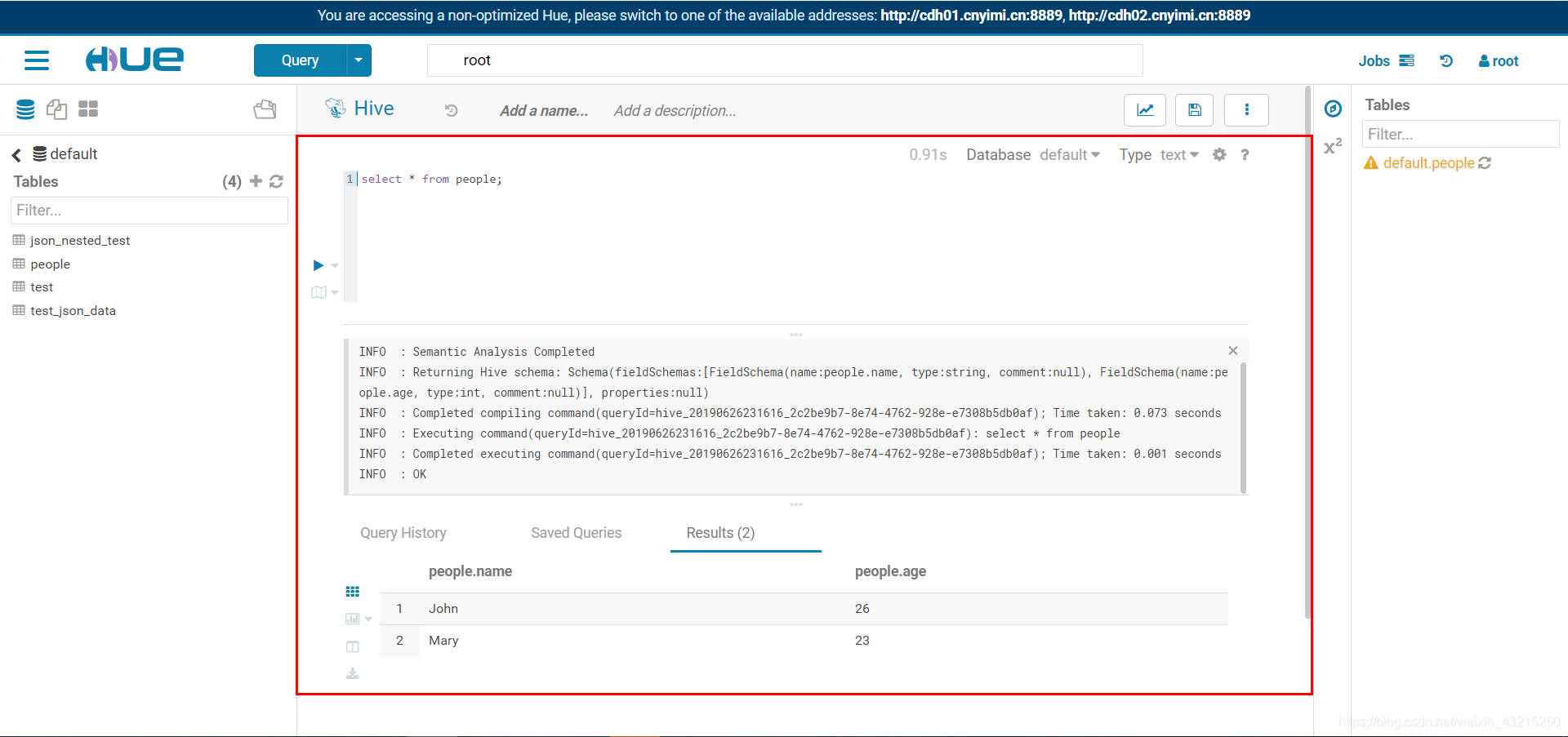

   select * from people;




   复杂 Arrays 结构
   测试数据 complex_array.txt

   ["John", { street:"10 green street", city:"Paris" }]
   ["Mary", { street:"20 red street", city:"Shanghai" }]


   建表语句：

   DROP TABLE complex_array ;
   CREATE TABLE complex_array (
   	name string,
   	address struct<street:string,city:string>
   )
   ROW FORMAT SERDE 'org.openx.data.jsonserde.JsonSerDe'
   STORED AS TEXTFILE;


   加载数据

   LOAD DATA LOCAL INPATH '/root/tmp/complex_array .txt' OVERWRITE INTO TABLE  complex_array ;


   查询

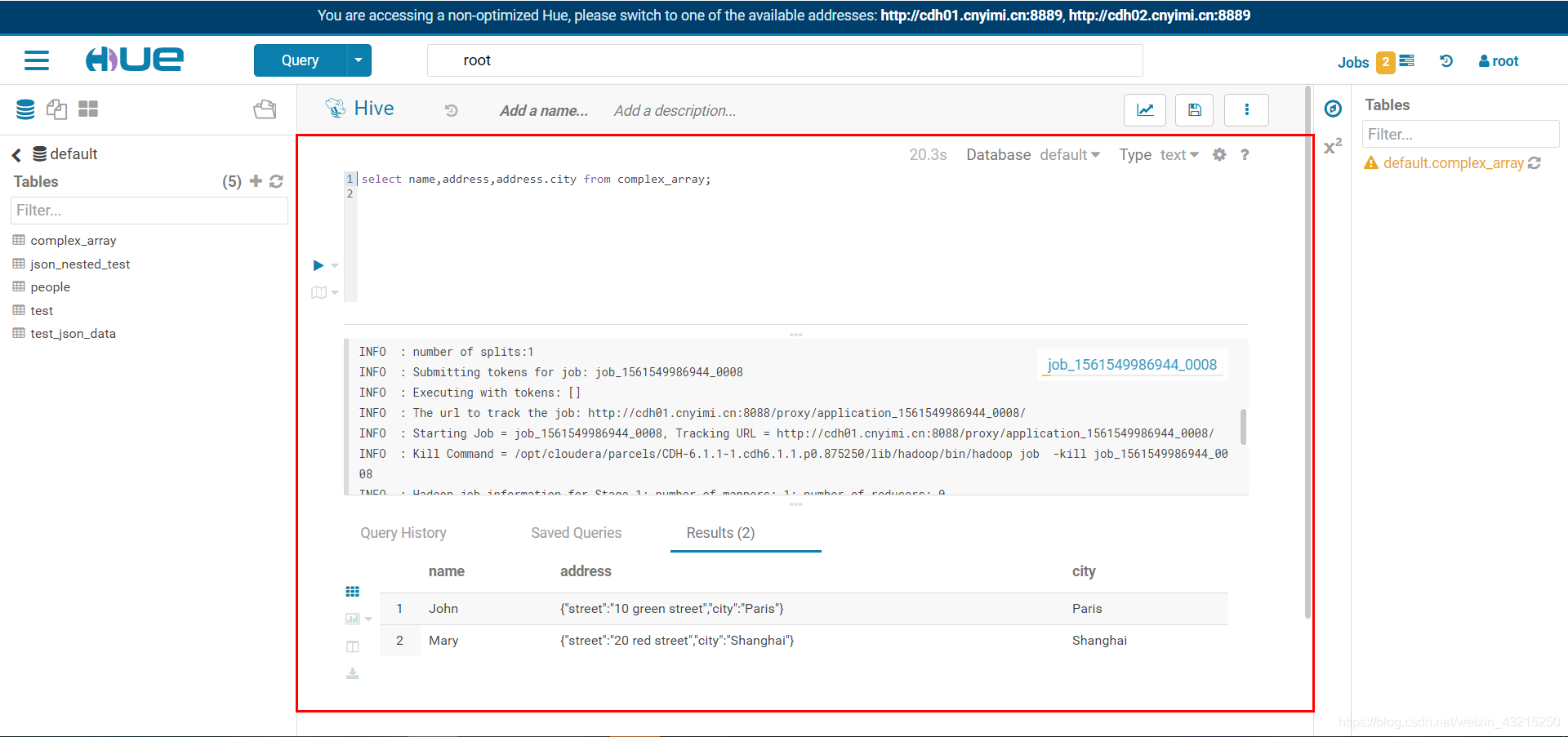

   select name,address,address.city from complex_array;




5. 导入格式错误的数据

   测试数据 complex_array.txt

   {"country":"Italy","languages" "Italian","religions":{"catholic":"90"}}


   上面 json 少了一个 :

   建表语句：

   DROP TABLE json_table;
   CREATE TABLE json_table (
     country string,
     languages string,
     religions map<string,string>
   )
   ROW FORMAT SERDE 'org.openx.data.jsonserde.JsonSerDe'
   STORED AS TEXTFILE;


   加载数据

   LOAD DATA LOCAL INPATH '/root/tmp/json_table.txt' OVERWRITE INTO TABLE  json_table ;


   查询

   select * from json_table;


   报错信息

   # Hive CLI
   hive> select * from json_table;
   OK
   Failed with exception java.io.IOException:org.apache.hadoop.hive.serde2.SerDeException: Row is not a valid JSON Object - JSONException: Expected a ':' after a key at 32 [character 33 line 1]
   Time taken: 0.367 seconds

   # Beeline
   0: jdbc:hive2://192.168.1.101:10000> select * from json_table;
   INFO  : Compiling command(queryId=hive_20190627212905_2ddbcd4f-65aa-4cf3-95a3-76e3caea230e): select * from json_table
   INFO  : Semantic Analysis Completed
   INFO  : Returning Hive schema: Schema(fieldSchemas:[FieldSchema(name:json_table.country, type:string, comment:null), FieldSchema(name:json_table.languages, type:string, comment:null), FieldSchema(name:json_table.religions, type:map<string,string>, comment:null)], properties:null)
   INFO  : Completed compiling command(queryId=hive_20190627212905_2ddbcd4f-65aa-4cf3-95a3-76e3caea230e); Time taken: 0.083 seconds
   INFO  : Executing command(queryId=hive_20190627212905_2ddbcd4f-65aa-4cf3-95a3-76e3caea230e): select * from json_table
   INFO  : Completed executing command(queryId=hive_20190627212905_2ddbcd4f-65aa-4cf3-95a3-76e3caea230e); Time taken: 0.001 seconds
   INFO  : OK
   Error: java.io.IOException: org.apache.hadoop.hive.serde2.SerDeException: Row is not a valid JSON Object - JSONException: Expected a ':' after a key at 32 [character 33 line 1] (state=,code=0)



   设置忽略掉格式错误的数据

   ALTER TABLE json_table SET SERDEPROPERTIES ( "ignore.malformed.json" = "true");


   再次查询，错误的数据被空行替代

   # Hive CLI
   hive> select * from json_table;
   OK
   19/06/27 21:31:38 WARN jsonserde.JsonSerDe: Ignoring malformed JSON: Row is not a valid JSON Object - JSONException: Expected a ':' after a key at 32 [character 33 line 1]
   NULL	NULL	NULL
   Time taken: 0.088 seconds, Fetched: 1 row(s)

   # Beeline
   0: jdbc:hive2://192.168.1.101:10000> select * from json_table;
   INFO  : Compiling command(queryId=hive_20190627212905_2ddbcd4f-65aa-4cf3-95a3-76e3caea230e): select * from json_table
   INFO  : Semantic Analysis Completed
   INFO  : Returning Hive schema: Schema(fieldSchemas:[FieldSchema(name:json_table.country, type:string, comment:null), FieldSchema(name:json_table.languages, type:string, comment:null), FieldSchema(name:json_table.religions, type:map<string,string>, comment:null)], properties:null)
   INFO  : Completed compiling command(queryId=hive_20190627212905_2ddbcd4f-65aa-4cf3-95a3-76e3caea230e); Time taken: 0.083 seconds
   INFO  : Executing command(queryId=hive_20190627212905_2ddbcd4f-65aa-4cf3-95a3-76e3caea230e): select * from json_table
   INFO  : Completed executing command(queryId=hive_20190627212905_2ddbcd4f-65aa-4cf3-95a3-76e3caea230e); Time taken: 0.001 seconds
   INFO  : OK
   Error: java.io.IOException: org.apache.hadoop.hive.serde2.SerDeException: Row is not a valid JSON Object - JSONException: Expected a ':' after a key at 32 [character 33 line 1] (state=,code=0)
   0: jdbc:hive2://192.168.1.101:10000> select * from json_table;
   INFO  : Compiling command(queryId=hive_20190627213144_97ef602d-92f8-463c-93b4-113f3686922f): select * from json_table
   INFO  : Semantic Analysis Completed
   INFO  : Returning Hive schema: Schema(fieldSchemas:[FieldSchema(name:json_table.country, type:string, comment:null), FieldSchema(name:json_table.languages, type:string, comment:null), FieldSchema(name:json_table.religions, type:map<string,string>, comment:null)], properties:null)
   INFO  : Completed compiling command(queryId=hive_20190627213144_97ef602d-92f8-463c-93b4-113f3686922f); Time taken: 0.086 seconds
   INFO  : Executing command(queryId=hive_20190627213144_97ef602d-92f8-463c-93b4-113f3686922f): select * from json_table
   INFO  : Completed executing command(queryId=hive_20190627213144_97ef602d-92f8-463c-93b4-113f3686922f); Time taken: 0.0 seconds
   INFO  : OK
   +---------------------+-----------------------+-----------------------+
   | json_table.country  | json_table.languages  | json_table.religions  |
   +---------------------+-----------------------+-----------------------+
   | NULL                | NULL                  | NULL                  |
   +---------------------+-----------------------+-----------------------+
   1 row selected (0.131 seconds)


6. 映射Hive关键字

   测试数据 mytable.txt

   { "myfield" : "name","timestamp" : "2019-06-27 21:56:30"}


   建表语句

   CREATE TABLE mytable (
     myfield string,
     ts string
   )
   ROW FORMAT SERDE 'org.openx.data.jsonserde.JsonSerDe'
   WITH SERDEPROPERTIES ( "mapping.ts" = "timestamp" )
   STORED AS TEXTFILE;


   加载数据

   LOAD DATA LOCAL INPATH '/root/tmp/mytable.txt' OVERWRITE INTO TABLE mytable;


   查询

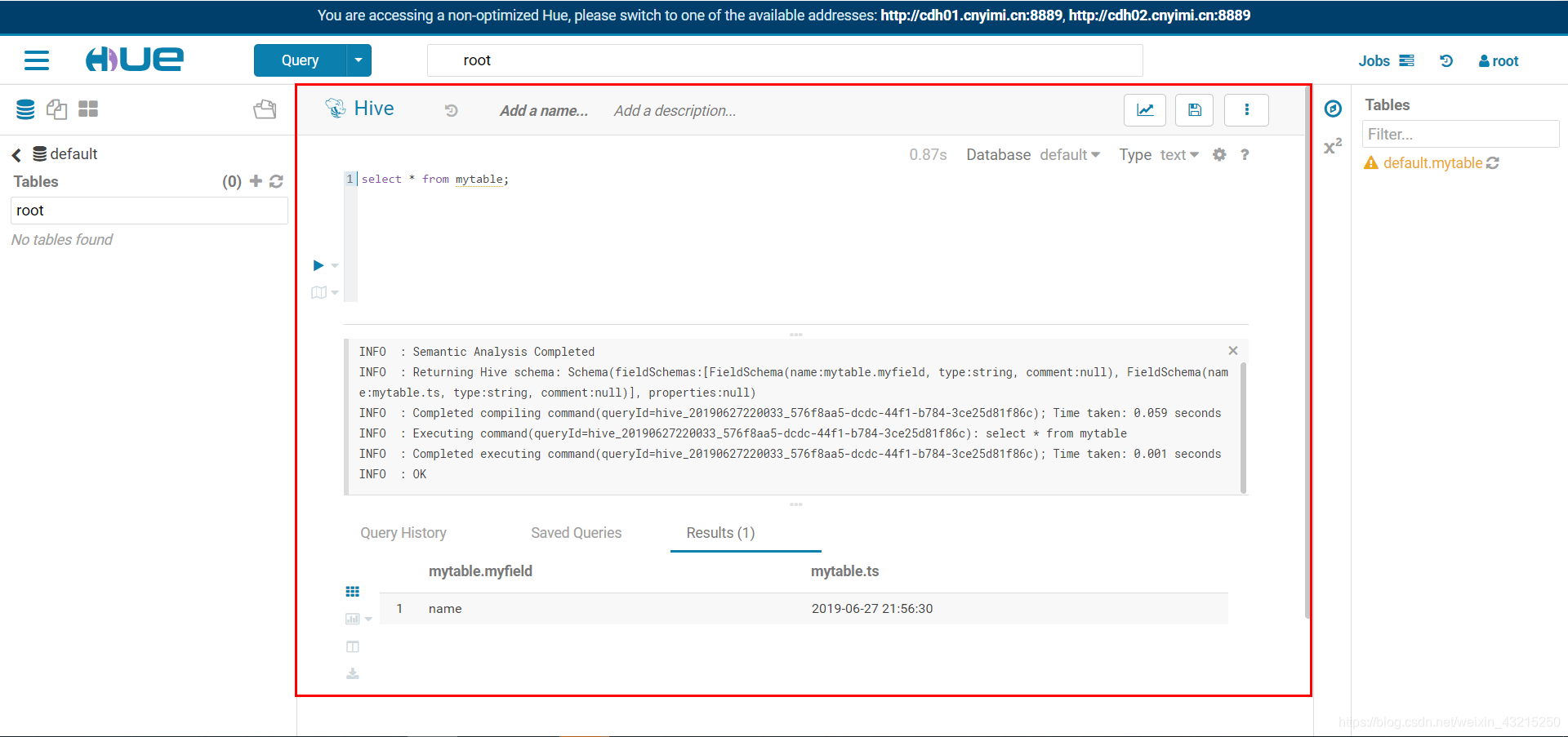

   select * from mytable;




Apache自带的 org.apache.hive.hcatalog.data.JsonSerDe 不支持忽略格式错误数据和字段映射等。
