基于最优路径的抢险救援

基于最优路径的抢险救援

部分摘要

本文主要对部队在救灾过程中的路线提供最优方案，在灾情中争分夺秒是重中之重，因此良好的路线规划为救灾过程提供了有力的保障。问题一与问题二主要结合Dijkstra算法进行模型的构建，通过构建节点的知识表示，对节点与路线构造为图结构，并通过模型输出满足问题条件的最优路径。
由于问题三在对路径的最优方案上有了更深层次的要求，需要考虑的因素也更为丰富，使用粒子群算法将多种因素纳入其中，对救援方案进行设计。考虑到在现实中从起点到中间的路径错综复杂，且每条路径的路段数量不确定，我们绘制了一般交通网络图。，针对每条路径给出以行驶总时间为变量的正态密度函数。最后对所得函数变形处理，得到判断最优路径的数学模型，并根据模型求出最优路径。
本文构建的模型经检验在解决问题上有着良好的效率，并且提供的最优路径方案与救援方案有着一定的现实意义。

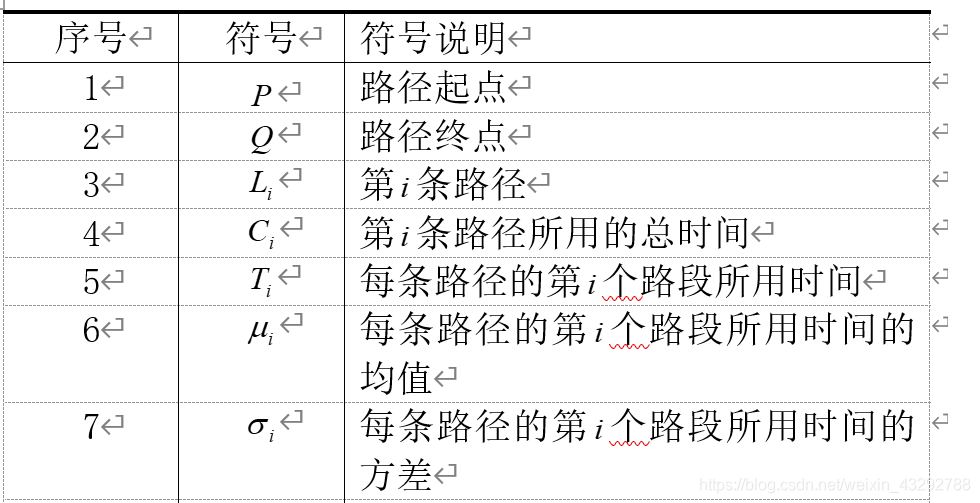

部分符号说明

程序代码

#导入pandas库
import pandas as pd

#定义列表，存储起点与终点
team = [['D1','D2'],['27','28']]

#找到所有从起始点到终点的路径
def all_path_find(graph,start,end,path=[]):
    #定义函数，入参为图、起点、终点、路径
    path = path +[start]
    #存储路径信息
    if start == end:
        #如果起点和终点一样，返回路径
        return [path]

    paths = [] #存储所有路径
    for node in graph[start]:
        #在起点中进行循环
        if node not in path:
            #如果不在，执行函数进行查找,结果存入newpaths中
            newpaths = all_path_find(graph,node,end,path)
            #遍历路劲信息，并添加到总paths中
            for newpath in newpaths:
                paths.append(newpath)
    return paths
def short_path_find(graph,start,end,path=[]):
    print('start')
    # 定义查找最短路径函数，入参为图、起点、终点、路径
    path = path +[start]
    if start == end:
        return path
    shortestPath = []
    for node in graph[start]:
        if node not in path:
            newpath = short_path_find(graph,node,end,path)
            if newpath:
                #判断如果不是最短路径或者长度小于最短路径时，将路径赋值给最短路径
                if not shortestPath or len(newpath)<len(shortestPath):
                    shortestPath = newpath
    print('end')
    return shortestPath

graph={#定义路线图的字典，key值为点的坐标，values为与此点相邻的点
    '1':['2'],
    '2':['1','3','47','D2'],
    '3':['2','4','33','48','32','D2'],
    '4':['3','5','33','50','Z01'],
    '5':['4','34','6','49'],
    '6':['5','36','7','51'],
    '7':['6','8','52','Z04'],
    '8':['7','9','42','52'],
    '9':['8','10','45','Z03','D1'],
    '10':['9','11','45','D1'],
    '11':['10','46','D1'],
    '12':['D2','13','32'],
    '13':['12','21','32','14'],
    '14':['15','13','21','35'],
    '15':['25','14','16','37'],
    '16':['17','39','15','Z06'],
    '17':['16','18'],
    '18':['29','17','19','41'],
    '19':['18','20','31','43'],
    '20':['19','31'],
    '21':['13','14','22'],
    '22':['21','23'],
    '23':['24','25','22'],
    '24':['25','23','26'],
    '25':['15','23','24','Z06'],
    '26':['27','24','Z06'],
    '27':['26','28'],
    '28':['27','29','30','Z06'],
    '29':['18','28','30','31'],
    '30':['28','29','31'],
    '31':['29','30','19','20'],
    '32':['12','13','33','D2'],
    '33':['3','4','32','34'],
    '34':['5','33','35','36'],
    '35':['14','34'],
    '36':['6','34'],
    '37':['15','Z04'],
    '38':['42','Z04'],
    '39':['16','40'],
    '40':['39','42'],
    '41':['18','Z05'],
    '42':['8','38','40','45'],
    '43':['19','44'],
    '44':['43','45','46','Z05'],
    '45':['9','10','42','44','46'],
    '46':['11','44','45'],
    '47':['2','48'],
    '48':['3','47','Z01'],
    '49':['5','50'],
    '50':['4','49','53'],
    '51':['6','Z02'],
    '52':['7','8','Z02','Z03'],
    '53':['50','55','56','59'],
    '54':['55','57','Z02'],
    '55':['53','54','58','59'],
    '56':['53','60'],
    '57':['54','58','Z03'],
    '58':['55','57','59','61'],
    '59':['53','55','58','62'],
    '60':['56','62'],
    '61':['58','Z03'],
    '62':['59','60'],
    'Z01':['4','48','50'],
    'Z02':['51','52','54'],
    'Z03':['9','52','57','61','D1'],
    'Z04':['7','37','38'],
    'Z05':['41','44'],
    'Z06':['25','26','28','16'],
    'D1':['9','10','11','Z03'],
    'D2':['2','3','12','32']

}
shortpath = [] #定义存储最短路径列表
for i in range(0,1):
    print(i)
    #在所有编号中进行迭代，入参为遍历的所有起点与终点的组合
    shortpath.append(short_path_find(graph,str(team[0][i]),str(team[1][i])))
print("最优路径",shortpath)
