MarriageEvidence结婚证书合约案例分析
一、合约场景分析
谨以白头之约书向鸿笺，好将红叶之盟载明鸳谱。三千年来，结婚证书的形式一直在变化，但我们相信，它承载的美好爱情和对幸福婚姻生活的向往从未变过。使用区块链技术，让结婚证书上链，定格在区块链的历史长河中——永存。
源码贡献者：
github：Blockchain_Key
源码分析者：
github：Blockchain_Key
源码链接：
https://github.com/WeBankBlockchain/SmartDev-Contract/tree/master/contracts/business_template/marriage_evidence
二丶基础合约介绍
1. 角色合约
Characters.sol：
pragma solidity^0.4.25;
import "./Roles.sol";
contract Character{
using Roles for Roles.Role;
Roles.Role private _character;
event characterAdded(address amount,string summary);
event characterRemoved(address amount);
event characterRevised(address amount,string summary);
event characterSeeked(address amount);
address owner;
address[] characters;
constructor()public{
owner = msg.sender;
}
modifier onlyOwner(){
require(owner == msg.sender,"Only owner can call");
_;
}
function isCharacter(address amount)public view returns(bool){
return _character.has(amount);
}
function _addCharacter(address amount,string _summary)internal{
_character.add(amount,_summary);
characters.push(amount);
emit characterAdded(amount,_summary);
}
function _removeCharacter(address amount)internal{
_character.remove(amount);
emit characterRemoved(amount);
}
function _reviseCharacter(address amount,string _summary)internal{
_character.revise(amount,_summary);
emit characterRevised(amount,_summary);
}
function _seekCharacter(address amount)internal view returns(string){
return _character.seek(amount);
emit characterSeeked(amount);
}
function _removeCharacterByAddress(address amount)internal{
for (uint i = 0; i < characters.length; i++) {
if (amount == characters[i])
for (uint j = i; j < characters.length-1; j++)
characters[j] = characters[j+1];
characters.length--;
}
}
function addCharacter(address amount,string _summary)public onlyOwner{
require(!isCharacter(amount),"The character already exist");
_addCharacter(amount,_summary);
}
function removeCharacter(address amount)public onlyOwner{
require(isCharacter(amount),"The character does not exist");
_removeCharacter(amount);
_removeCharacterByAddress(amount);
}
function reviseCharacter(address amount,string _summary)public onlyOwner{
require(isCharacter(amount),"The character does not exist");
_reviseCharacter(amount,_summary);
}
function seekCharacter(address amount)public view returns(string) {
require(isCharacter(amount),"The character does not exist");
return _seekCharacter(amount);
}
function getAllCharater()public view returns(address[]){
return characters;
}
}
Roles.sol：
pragma solidity^0.4.25;
library Roles{
struct Role{
mapping(address=>bool) bearer;
mapping(address=>string) summary;
}
//判断角色
function has(Role storage role,address amount)internal view returns(bool){
require(amount!=address(0),"Address is zero address");
return role.bearer[amount];
}
//添加角色
function add(Role storage role,address amount,string _summary)internal{
require(!has(role,amount),"Address already exists");
role.bearer[amount] = true;
role.summary[amount] = _summary;
}
//删除角色
function remove(Role storage role,address amount)internal{
require(has(role,amount),"Address does not exist");
role.bearer[amount] = false;
}
//修改角色
function revise(Role storage role,address amount,string _summary)internal {
require(has(role,amount),"Address does not exist");
role.summary[amount] = _summary;
}
//查询角色
function seek(Role storage role,address amount)internal view returns(string){
require(has(role,amount),"Address does not exist");
return role.summary[amount];
}
}
（1）功能说明
本合约支持角色操作。包含角色的增删改查：
（2）接口说明
提供了两个合约：Roles合约，Character合约。其中Character合约是对外服务合约，Roles合约是库合约，用于数据和逻辑抽象化。
Character合约：对外服务的唯一接口。包含：
- addCharacter(address amount,string summary): 管理员进行添加角色操作。amount是添加角色的地址， _summary添加角色的基本信息
- removeCharacter(address amount): 管理员进行删除角色操作。amount是删除角色的地址
- reviseCharacter(address amount,string _summary)：管理员进行修改角色信息操作。amount是修改角色的地址， _summary修改角色的基本信息
- seekCharacter(address amount): 任何人都可以进行查询角色信息操作。amount是查询角色的地址
- getAllCharater()：任何人都可以进行查看当前存在的所有角色操作。
- isCharacter(address amount): 任何人都可以进行查看当前地址是否已经被添加为角色。amount是查询的地址
（3）使用说明
角色的增删改查，整个过程如下：
合约初始化：
- 以管理员地址部署Character合约
合约调用：
- 管理员调用Character.addCharacter提交添加角色请求，参数传入添加角色的地址，角色的基本信息
- 任何人调用Character.getAllCharater提交查看角色请求
- 任何人调用Character.isCharacter提交查询当前地址是否已经被添加成功
- 管理员调用Character.reviseCharacter提交修改角色信息请求，参数传入修改角色的地址，修改角色的基本信息
- 任何人调用Character.seekCharacter提交查询角色信息请求，参数传入查询角色的地址
- 管理员调用Character.removeCharacter提交删除角色的请求，参数传入删除角色的地址
- 任何人调用Character.isCharacter提交查询角色是否还存在请求，参数传入查询角色的地址
- 任何人调用Character.getAllCharater提交查看角色请求
2. 存证合约
Evidence.sol
pragma solidity ^0.4.25;
contract EvidenceSignersDataABI
{
//验证是否是合法地址
function verify(address addr)public constant returns(bool){}
//根据索引值返回签名者地址
function getSigner(uint index)public constant returns(address){}
//返回签名人数
function getSignersSize() public constant returns(uint){}
}
contract Evidence{
string evidence; //存证信息
address[] signers;//储存合法签名者地址
address public factoryAddr;//工厂合约地址
//返回事件信息，查看log->判断正确或错误的信息
event addSignaturesEvent(string evi);
event newSignaturesEvent(string evi, address addr);
event errorNewSignaturesEvent(string evi, address addr);
event errorAddSignaturesEvent(string evi, address addr);
event addRepeatSignaturesEvent(string evi);
event errorRepeatSignaturesEvent(string evi, address addr);
//查看此地址是否为合法签名者地址
function CallVerify(address addr) public constant returns(bool) {
return EvidenceSignersDataABI(factoryAddr).verify(addr);
}
//初始化，创建存证合约
constructor(string evi, address addr) {
factoryAddr = addr;
//tx.origin =>启动交易的原始地址（其实就是部署者的地址）
//如果是外部调用，在此可以理解为函数调用者地址
if(CallVerify(tx.origin))
{
evidence = evi;
signers.push(tx.origin);
newSignaturesEvent(evi,addr);
}
else
{
errorNewSignaturesEvent(evi,addr);
}
}
//返回签名信息，合约签名者地址，当前签名者地址
function getEvidence() public constant returns(string,address[],address[]){
uint length = EvidenceSignersDataABI(factoryAddr).getSignersSize();
address[] memory signerList = new address[](length);
for(uint i= 0 ;i<length ;i++)
{
signerList[i] = (EvidenceSignersDataABI(factoryAddr).getSigner(i));
}
return(evidence,signerList,signers);
}
//添加签名者地址（此地址必须为合约签名者地址）
function addSignatures() public returns(bool) {
for(uint i= 0 ;i<signers.length ;i++)
{
//此时的tx.orgin为当前调用此方法的调用者地址
if(tx.origin == signers[i])
{
addRepeatSignaturesEvent(evidence);
return true;
}
}
if(CallVerify(tx.origin))
{
signers.push(tx.origin);
addSignaturesEvent(evidence);
return true;
}
else
{
errorAddSignaturesEvent(evidence,tx.origin);
return false;
}
}
//返回所有的合约签名者地址
function getSigners()public constant returns(address[])
{
uint length = EvidenceSignersDataABI(factoryAddr).getSignersSize();
address[] memory signerList = new address[](length);
for(uint i= 0 ;i<length ;i++)
{
signerList[i] = (EvidenceSignersDataABI(factoryAddr).getSigner(i));
}
return signerList;
}
}
EvidenceFactory.sol
pragma solidity ^0.4.25;
import "Evidence.sol";
contract EvidenceFactory{
address[] signers; //存储签名者地址
event newEvidenceEvent(address addr); //新签证事件，返回地址
//传入签名内容 string类型，创建合约Evidence并初始化
function newEvidence(string evi)public returns(address)
{
//this:代表当前工厂合约的地址
Evidence evidence = new Evidence(evi, this);
newEvidenceEvent(evidence);
return evidence;
}
//获得签证信息
function getEvidence(address addr) public constant returns(string,address[],address[]){
return Evidence(addr).getEvidence();
}
function addSignatures(address addr) public returns(bool) {
return Evidence(addr).addSignatures();
}
//初始化合约，导入签名者们的地址（数组传参）为合法签名者地址
//只有合法签名者才有资格进行签证
constructor(address[] evidenceSigners){
for(uint i=0; i<evidenceSigners.length; ++i) {
signers.push(evidenceSigners[i]);
}
}
// 验证身份是否为合法签名者地址
function verify(address addr)public constant returns(bool){
for(uint i=0; i<signers.length; ++i) {
if (addr == signers[i])
{
return true;
}
}
return false;
}
//根据索引值返回合约签名者地址
function getSigner(uint index)public constant returns(address){
uint listSize = signers.length;
//判断索引值是否越界
if(index < listSize)
{
return signers[index];
}
else
{
return 0;
}
}
//获取当前合约签名者人数
function getSignersSize() public constant returns(uint){
return signers.length;
}
//返回所有合约签名者的地址
function getSigners() public constant returns(address[]){
return signers;
}
}
（1）功能说明
实现普通存证信息的创建，存储，获取
（2）接口说明
newEvidence(string evi)public returns(address)：创建新签证事件，返回地址- getEvidence(address addr) public constant returns(string,address[],address[])：获取存证信息
- addSignatures(address addr) public returns(bool)：添加合法签名者
- getSigner(uint index)public constant returns(address)：返回签名者地址
- getSignersSize() public constant returns(uint)：获取总签名人数
- getSigners() public constant returns(address[])：返回所有合约签名者的地址
（3）使用说明
-
部署合约，初始化传入2个用户地址
0x76c4e6e1d093092135d79677b724ae3470cdd6e3
0xad6110c4f698ec996667fd5e2da0cdf5f1ee78e8
-
查看合法签名者地址
-
查看是否为合法地址
-
创建签证合约（只有合法签名者才能成功创建）
-
查看签证信息
-
合法签名者签名签证合约
-
再次查看签证信息
三丶业务合约介绍
1. 结婚证书合约
MarriageEvidence.sol
pragma solidity^0.4.25;
import "./EvidenceFactory.sol";
import "./Character.sol";
contract MarriageEvidence is Character{
address admin;
address eviContractAddress;
address eviAddress;
constructor() public Character{
admin = msg.sender;
}
modifier adminOnly{
require(msg.sender == admin ,"require admin");
_;
}
modifier charactersMustBeAddedFirst{
require(getAllCharater().length != 0,"It is null");
_;
}
modifier signersOnly{
require(EvidenceFactory(eviContractAddress).verify(msg.sender),"you not is signer");
_;
}
function deployEvi() external adminOnly charactersMustBeAddedFirst{
addCharacter(msg.sender,"民政局");
EvidenceFactory evi = new EvidenceFactory(getAllCharater());
eviContractAddress = address(evi);
}
function getSigners() public constant returns(address[]){
return EvidenceFactory(eviContractAddress).getSigners();
}
function newEvi(string _evi)public adminOnly returns(address){
eviAddress = EvidenceFactory(eviContractAddress).newEvidence(_evi);
return eviAddress;
}
function sign() public signersOnly returns(bool) {
return EvidenceFactory(eviContractAddress).addSignatures(eviAddress);
}
function getEvi() public constant returns(string,address[],address[]){
return EvidenceFactory(eviContractAddress).getEvidence(eviAddress);
}
}
（1）功能说明
实现结婚证书的创建，发放，夫妻签名，验证合法性等
（2）接口说明
- addCharacter(address amount,string _summary)：传入要添加的夫妻地址，以及基本信息
- deployEvi() external adminOnly charactersMustBeAddedFirst：此方法必须要提前添加人物角色
- getSigners() public constant returns(address[])：获取夫妻地址，返回地址数组
- newEvi(string _evi)public adminOnly returns(address)：传入结婚信息，创建结婚证书请求，返回证书地址
- sign() public signersOnly returns(bool)：夫妻分调用此接口对证书进行签名，使其具有合法性
- getEvi()public constant returns(string,address[],address[])：获取结婚证书相关信息
（3）使用说明
-

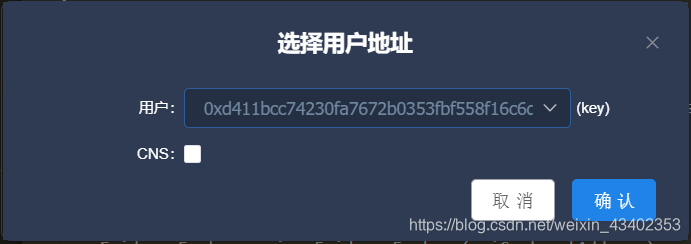

部署 MarriageEvidence 合约(民政局管理员key调用部署合约)
-

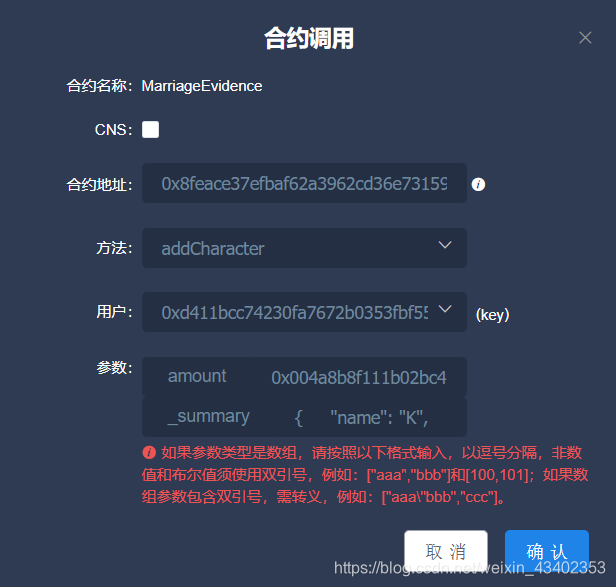

调用添加角色接口
民政局管理员Key调用方法：

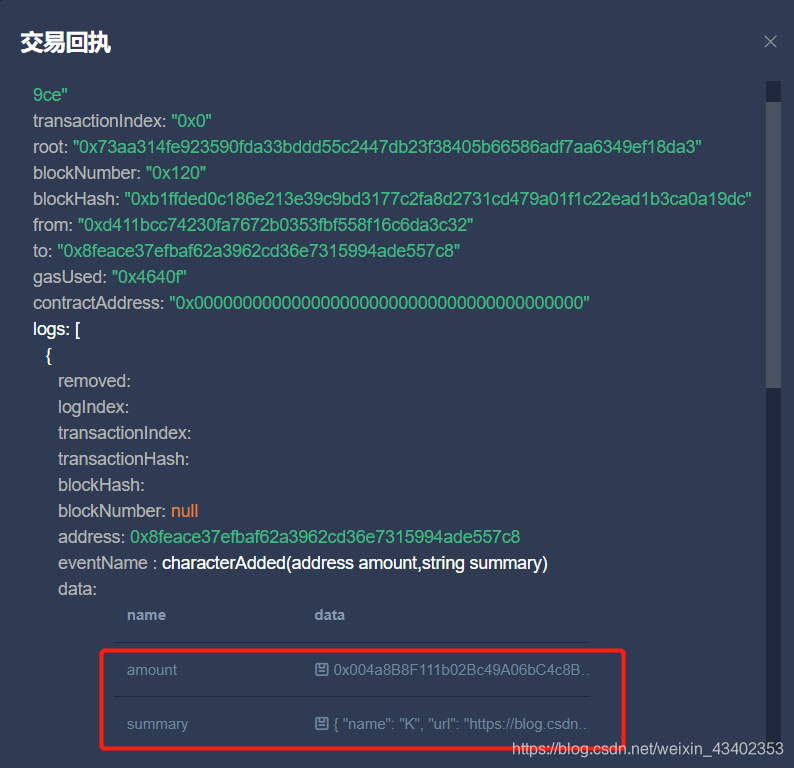

添加丈夫地址：0x004a8b8f111b02bc49a06bc4c8b19c29048b939c
添加丈夫信息：{ "name": "K", "url": "https://blog.csdn.net/weixin_43402353", "id": 321183200007270010, "sex": male, "address": { "street": "科技园路.", "city": "江苏苏州", "country": "中国" } }

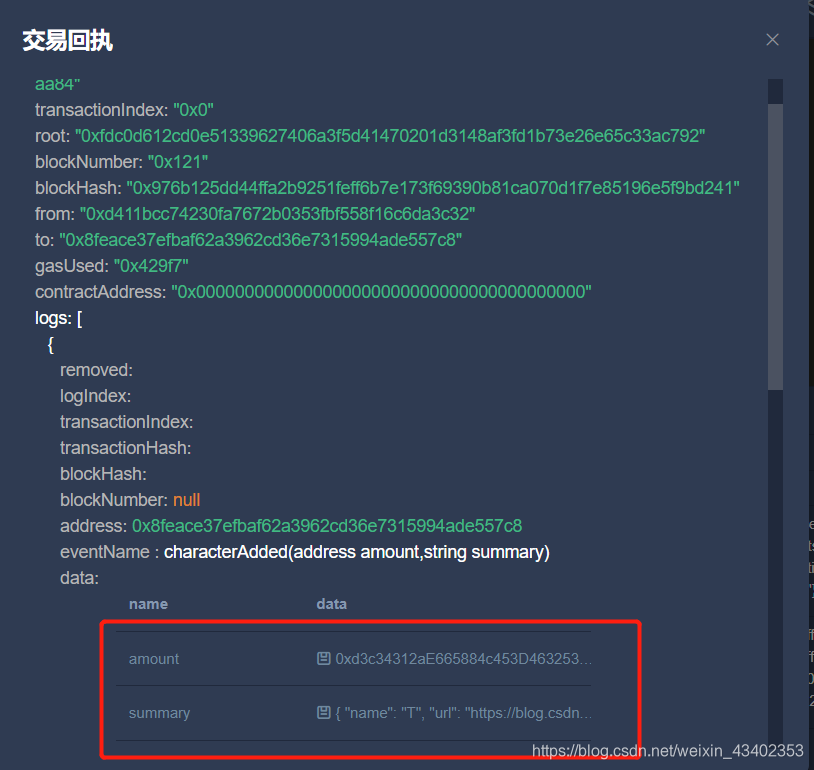

添加妻子地址：0xd3c34312ae665884c453d46325341d649eb3c05b
添加妻子信息：{ "name": "T", "url": "https://blog.csdn.net/weixin_43402353", "id": 320382200012100001, "sex": female, "address": { "street": "国际中心", "city": "江苏扬州", "country": "中国" } }
-

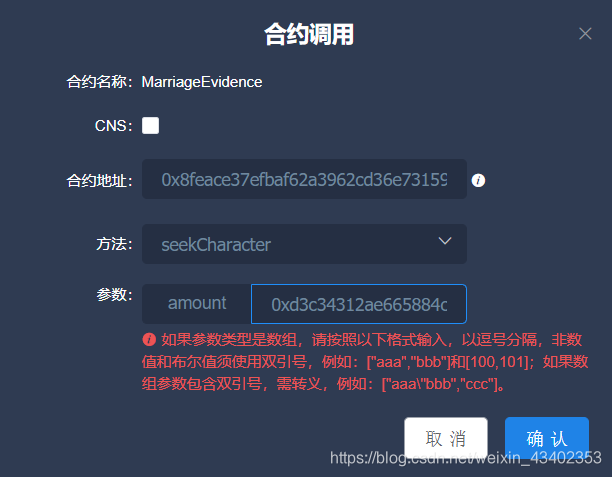

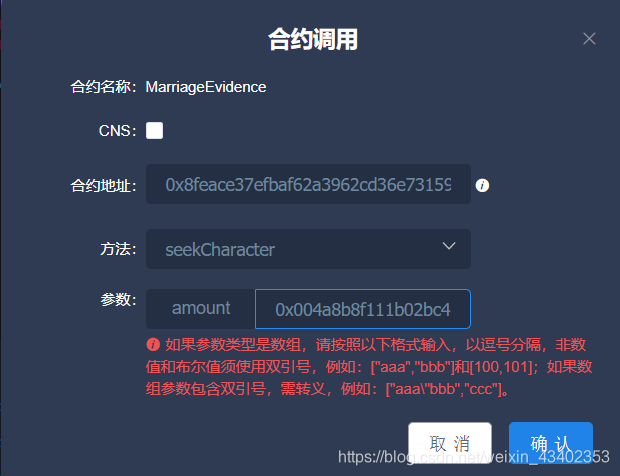

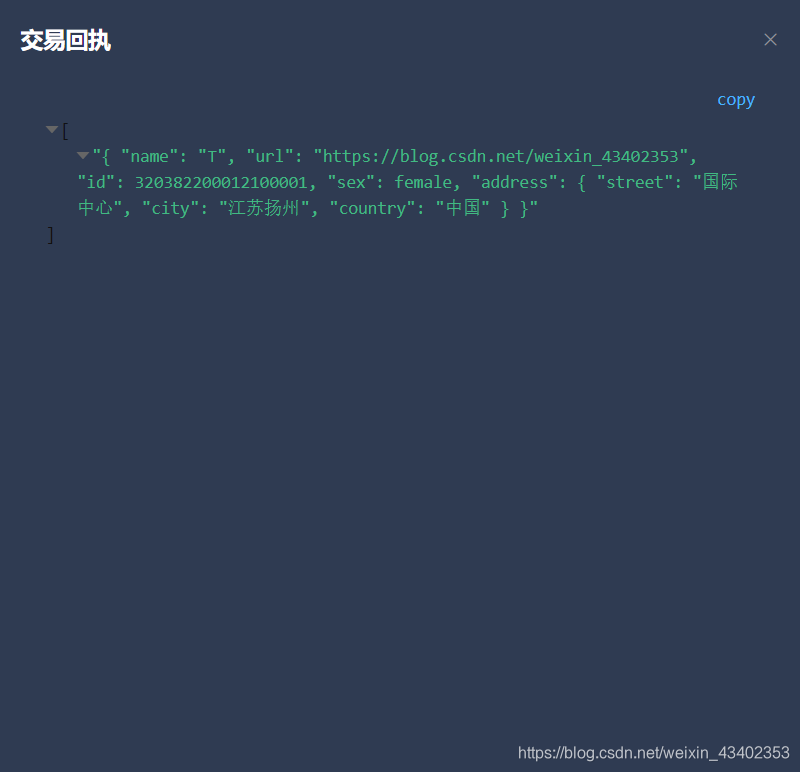

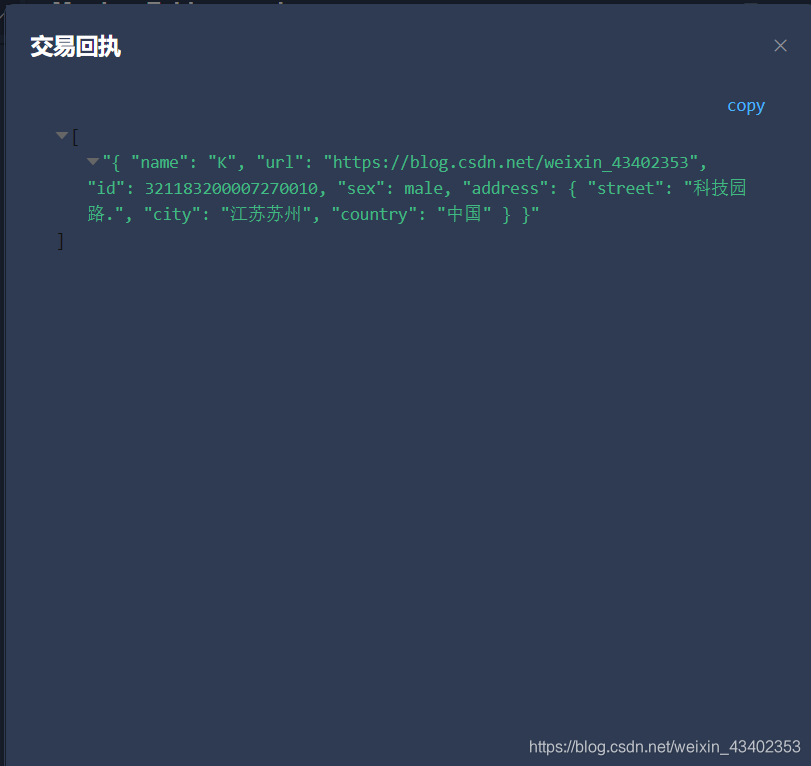

调用查看信息接口
-

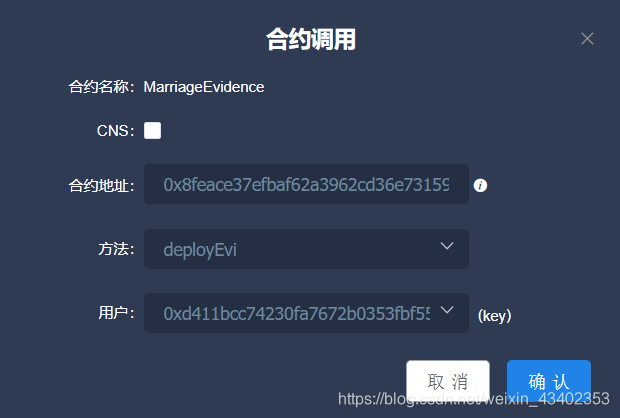

部署存证合约(调用
deployEvi方法)
-

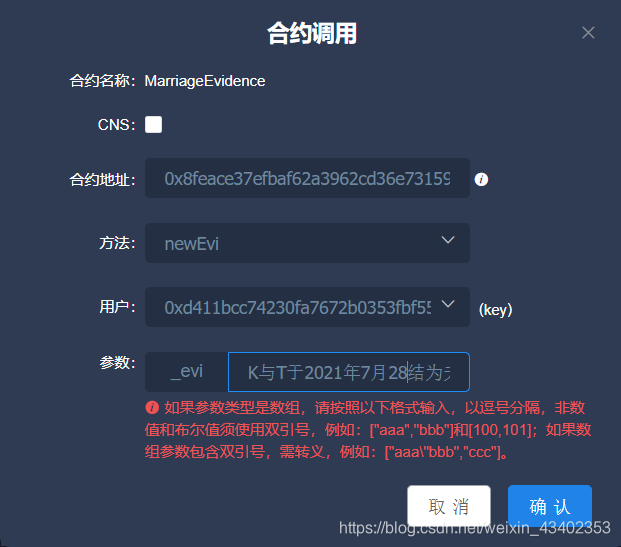

创建结婚证书(本质上是支持多签的一条存证)
-

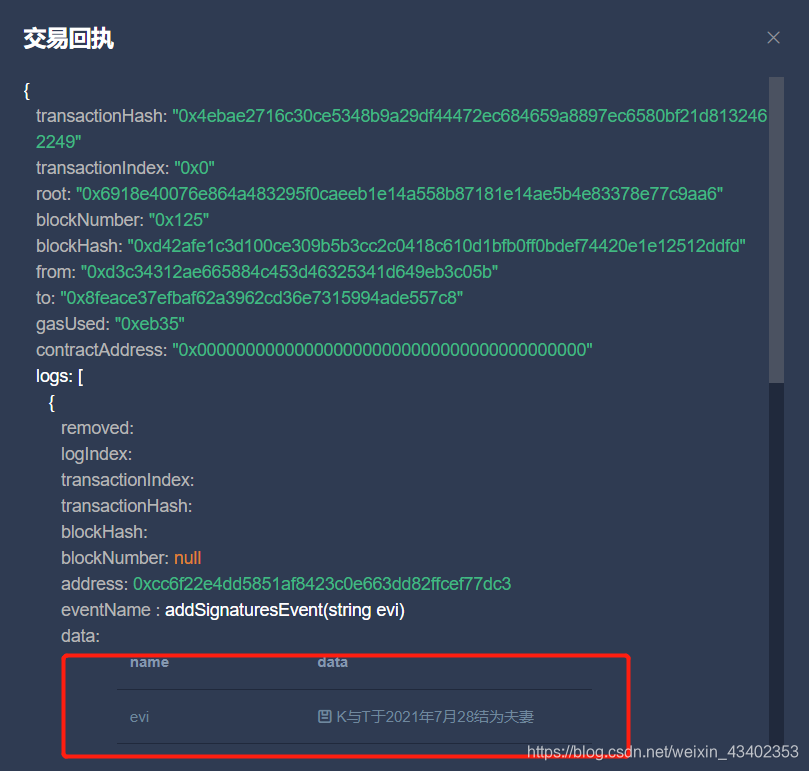

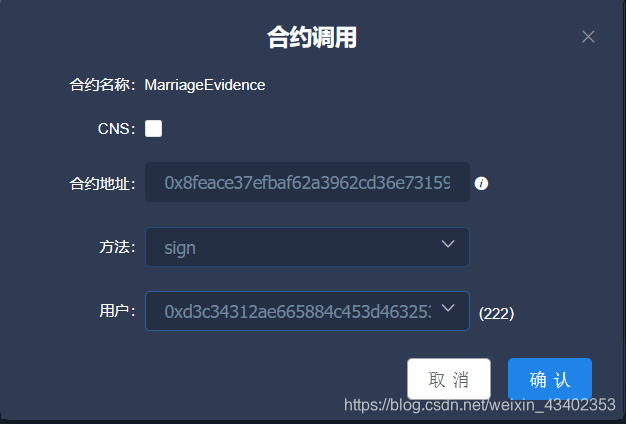

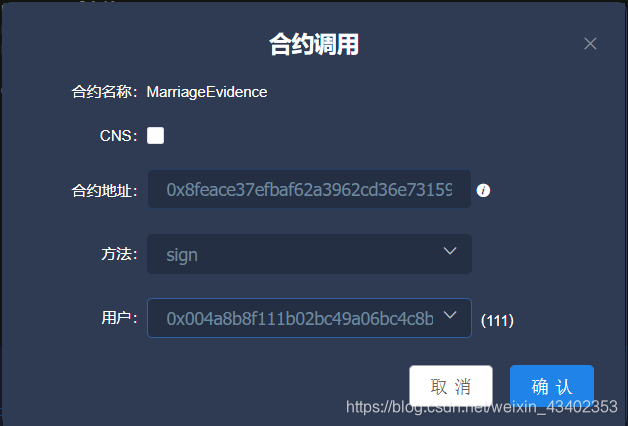

调用sign接口(夫妻分别签名)
-

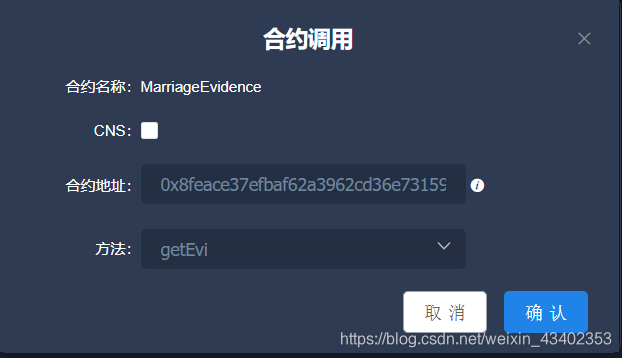

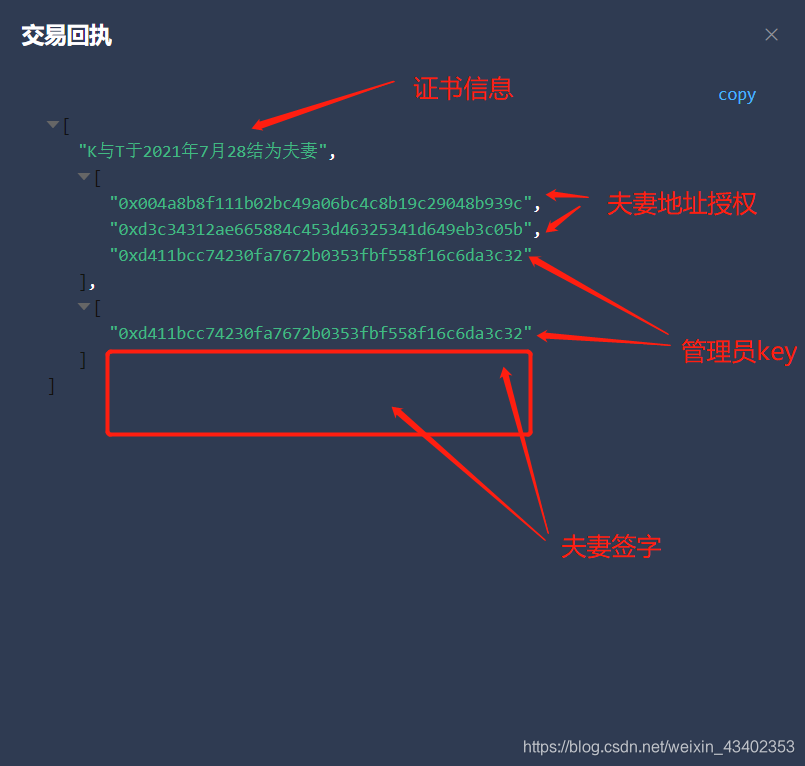

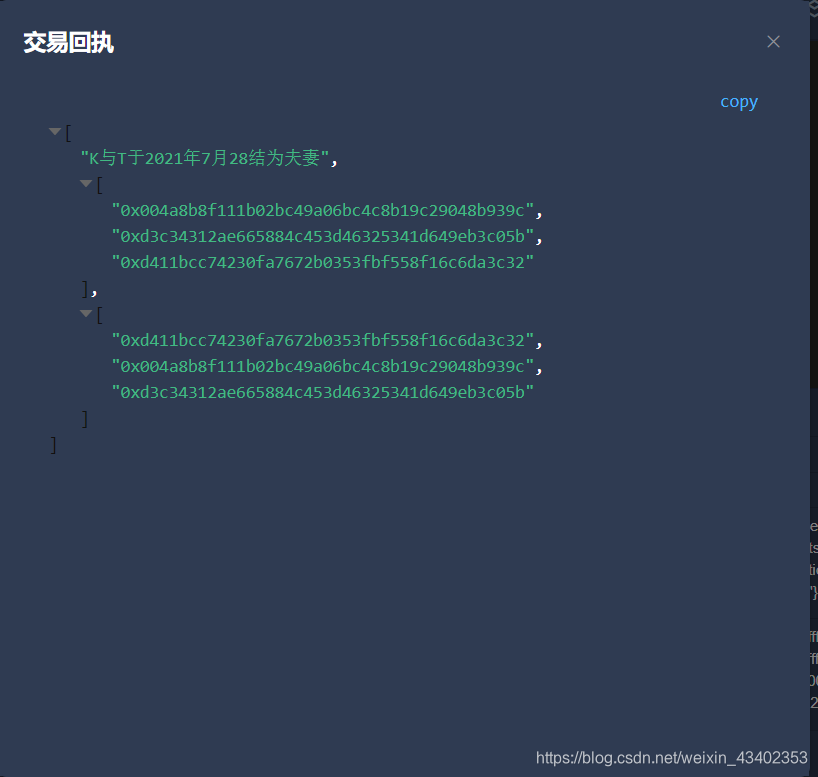

调用
getEvi查看证书
