2.Ls1046文件系统的制作与镜像打包与解包

已于 2025-02-08 15:54:37 修改
阅读量766 收藏 5
点赞数 10
分类专栏： 用博客重走Linux驱动登神之路 文章标签： linux
于 2025-02-08 14:17:35 首次发布
版权声明：本文为博主原创文章，遵循 CC 4.0 BY-SA 版权协议，转载请附上原文出处链接和本声明。
本文链接：https://blog.csdn.net/weixin_43637668/article/details/145514724
版权

一、使用ubuntu-base镜像制作

参考传送门：

firefly-rk3399开发板–从0开始制作ubuntu镜像
https://blog.csdn.net/Yongheng6/article/details/140086423

1.下载ubuntu-base镜像

清华大学开源软件镜像
https://mirrors.tuna.tsinghua.edu.cn/ubuntu-cdimage/ubuntu-base/releases/

2.解压到自己创建的rootfs_ubuntu文件夹下
$ tar -xvf ubuntu-base-18.04.5-base-arm64.tar.gz -C rootfs_ubuntu/
3.安装 qemu-user-static

不懂qemu的自行去百度

$ sudo apt-get install qemu-user-static
$ sudo cp /usr/bin/qemu-aarch64-static ./rootfs_ubuntu/usr/bin/
4.修改apt源

这里用华为的arm源，阿里源狗都不用

$ cat etc/apt/sources.list
deb http://mirrors.huaweicloud.com/ubuntu-ports/ bionic main multiverse restricted universe
deb http://mirrors.huaweicloud.com/ubuntu-ports/ bionic-backports main multiverse restricted universe
deb http://mirrors.huaweicloud.com/ubuntu-ports/ bionic-proposed main multiverse restricted universe
deb http://mirrors.huaweicloud.com/ubuntu-ports/ bionic-security main multiverse restricted universe
deb http://mirrors.huaweicloud.com/ubuntu-ports/ bionic-updates main multiverse restricted universe
deb-src http://mirrors.huaweicloud.com/ubuntu-ports/ bionic main multiverse restricted universe
deb-src http://mirrors.huaweicloud.com/ubuntu-ports/ bionic-backports main multiverse restricted universe
deb-src http://mirrors.huaweicloud.com/ubuntu-ports/ bionic-proposed main multiverse restricted universe
deb-src http://mirrors.huaweicloud.com/ubuntu-ports/ bionic-security main multiverse restricted universe
deb-src http://mirrors.huaweicloud.com/ubuntu-ports/ bionic-updates main multiverse restricted universe
5.配置DNS
$ vi ./etc/resolv.conf
填入这写

nameserver 8.8.8.8
nameserver 114.114.114.114
6.创建挂载/卸载ubuntu-base文件系统脚本mnt_ubuntu.sh
#!/bin/bash
mnt() {
    echo "MOUNTING"
    sudo mount -t proc /proc ./rootfs_ubuntu/proc
    sudo mount -t sysfs /sys ./rootfs_ubuntu/sys
    sudo mount -o bind /dev ./rootfs_ubuntu/dev
    sudo mount -o bind /dev/pts ./rootfs_ubuntu/dev/pts
    sudo chroot ./rootfs_ubuntu/
}
umnt() {
    echo "UNMOUNTING"
    sudo umount ./rootfs_ubuntu/proc
    sudo umount ./rootfs_ubuntu/sys
    sudo umount ./rootfs_ubuntu/dev/pts
    sudo umount ./rootfs_ubuntu/dev
}

if [ "$1" == "-m" ] ;
then
    mnt $1
elif [ "$1" == "-u" ];
then
    umnt $1
else
    echo ""
    echo "Either 1'st, 2'nd or both parameters were missing"
    echo ""
    echo "1'st parameter can be one of these: -m(mount) OR -u(umount)"
    echo "2'nd parameter is the full path of rootfs directory(with trailing '/')"
    echo ""
    echo "For example: ch-mount -m /media/sdcard/"
    echo ""
    echo 1st parameter : ${1}
    echo 2nd parameter : ./rootfs_ubuntu/
fi
7.运行挂载脚本，chroot进入rootfs_ubuntu
wxd@ubuntu:~/work/myrootfs$ ./mnt_ubuntu.sh  -m
MOUNTING
root@ubuntu:/#
8.在ubuntu-base中安装软件
# chmod 777 /tmp
# apt-get update
# apt-get install net-tools ethtool ifupdown psmisc nfs-common htop vim rsyslog iputils-ping language-pack-en-base sudo network-manager systemd iputils-ping openssh-sftp-server -y ssh rsync  bash-completion ssh rsync
9.其他系统设置
1.修改root密码
#passwd root               #这里设置root密码为root

2.设置主机名称和IP
# echo "localhost" > /etc/hostname
# echo "127.0.0.1 localhost" >> /etc/hosts
# echo "127.0.0.1 ubuntu" >> /etc/hosts
	/etc/hostname中存放的是主机名，/etc/hosts存放的是域名与ip的对应关系，域名与主机名没有任何关系，你可以为任何一个IP指定任意一个名字。
10.解除挂载
wxd@ubuntu:~/work/myrootfs$ ./mnt_ubuntu.sh  -u
11.压缩
# mv  rootfs_ubuntu  rootfs_ubuntu_bionic_arm64
# tar -cjvf rootfs_ubuntu_bionic_arm64.tar.gz rootfs_ubuntu_bionic_arm64

12.修改文件格式

有的开发板如RK的芯片的镜像为ext4格式，这里不做记录

二、使用debootstrap 制作根文件系统

参考传送门：

debootstrap 制作根文件系统
https://www.cnblogs.com/huaibovip/p/debootstrap-fs.html

debootstrap是debian/ubuntu下的一个工具，用来构建一套基本的根文件系统，其生成的目录符合Linux文件系统标准(FHS)，即包含了/boot、/etc、/bin、/usr等等目录，但它比发行版本的Linux体积小很多，当然功能也没那么强大，因此，只能说是“基本的系统”。

1.安装依赖
# apt-get install binfmt-support qemu-system-common qemu-user-static debootstrap
2.制作"base"文件系统
# sudo debootstrap --arch [平台] [发行版本代号] [构建目录] [镜像地址]

sudo debootstrap --arch=$1 --foreign $2 $RFSDIR http://mirrors.ustc.edu.cn/ubuntu-ports/

三、以ls1046为例讲解文件系统的制作流程

0.ls1046编译出ubuntu.img的过程逻辑

编译文件系统镜像大致流程为，判断文件系统文件夹flexbuild/build/rfs/rootfs_ubuntu_bionic_arm6里是否存在编译过的标志usr/aptpkg/.firststagedone，如果有则执行后续编译apps和打包等过程；如果没有则使用脚本flex-mkdistrorfs制作，该脚本大致分为两步，第一步为使用debootstrap制作文件系统，第二步为apt安装一些deb包，包括常用的软件和库，需要为后续编译apps做准备。

再之后将编译出的apps、网卡udev规则、内核模块全都拷贝到文件系统文件夹下

其脚本源码追踪为：

"autobuild")
	flex_autobuild_all

flex_autobuild_all() {
generate_kernel_img
    if [ "$BUILD_PERF" = "y" ]; then
	flex-builder -c perf -a $DESTARCH -f $CONFIGLIST
    fi

    flex-builder -i mkflashscr -f $CONFIGLIST
    generate_qoriq_all_firmware
    flex-builder -i mkbootpartition -a $DESTARCH -s -f $CONFIGLIST

    build_rfs_apps					<--文件系统的制作在这里面

    merge_apps_to_rfs				<--编译apps,合并到文件系统里在这里

build_rfs_apps() {
    if [ "$BUILD_UBUNTU_TINY" = "y" ]; then
	build_ubuntu_tiny
    fi

    if [ ! -f $RFSDIR/usr/aptpkg/.rfsblddone ]; then    <--是否存在编译过的标志usr/aptpkg/.firststagedone
	flex-builder -i mkrfs -r $DISTROTYPE:$DISTROSCALE -a $DESTARCH -f $CONFIGLIST
    fi

    flex-builder -c apps -a $DESTARCH -m all -f $CONFIGLIST
}

"mkrfs")
	generate_distro_rfs
	exit ;;

generate_distro_rfs() {
    if [ $DISTROTYPE = ubuntu -o $DISTROTYPE = debian ]; then
	build_distro_rfs_ubuntu
    elif [ $DISTROTYPE = buildroot ]; then
	build_distro_rfs_buildroot
    fi
}

build_distro_rfs_ubuntu() {
    if [ $DESTARCH = arm64 ]; then
	tarch=arm64
    elif [ $DESTARCH = arm32 ]; then
	tarch=armhf
    fi
    if [ $DISTROTYPE = ubuntu -o $DISTROTYPE = debian ] && [ -f $RFSDIR/usr/aptpkg/.rfsblddone ]; then
	echo $RFSDIR already exists!
	exit 0
    fi
    if [ $DISTROTYPE = ubuntu -o $DISTROTYPE = debian ] && [ -d $RFSDIR -a ! -f $RFSDIR/usr/aptpkg/.rfsblddone ]; then
	echo $RFSDIR exist but imcomplete, regenerate it ...
	sudo rm -rf $RFSDIR/*			<--文件系统不完整的话，会删除整个文件系统，如果是自己制作的文件系统，制作完后记得加上上面的标志文件
    fi
    mkdir -p $RFSDIR
    echo "building $RFSDIR ..."
    if [ $DESTARCH = arm64 ]; then
	prebuilt_rfs_name=$prebuilt_arm64_rfs_name
    elif [ $DESTARCH = arm32 ]; then
	prebuilt_rfs_name=$prebuilt_arm32_rfs_name
    fi

    if [ "$FETCH_PREBUILT_ROOTFS" = "y" -a -n "$prebuilt_rfs_name" ] && \
       [ $DISTROTYPE = ubuntu -o $DISTROTYPE = debian ] && [ $DISTROSCALE != tiny ]; then
	set +e
	curl -C - -f $prebuilt_rfs_url/$prebuilt_rfs_name -o $RFSDIR/$prebuilt_rfs_name
	var=`echo $?`
	set -e
	if [ $var = 0 ]; then
	    echo Extracting $prebuilt_rfs_name, waiting ...
	    sudo tar xf $RFSDIR/$prebuilt_rfs_name -C $RFSDIR
	    var=`echo $?`
	    if [ $var = 0 ]; then
		rm -f $RFSDIR/$prebuilt_rfs_name
	    fi
	else
	    echo Failed to download prebuilt $prebuilt_rfs_url/$prebuilt_rfs_name!
	    echo Building $DISTROTYPE from scratch ...
	    if [ -n "$BUILDARG" ]; then
		flex-mkdistrorfs $tarch $CODENAME ${BUILDARG}
	    else
		flex-mkdistrorfs $tarch $CODENAME additional_packages_list_$DISTROSCALE
	    fi
	fi
    elif [ $DISTROSCALE = tiny ] && [ $DISTROTYPE = ubuntu ]; then
        set +e
        if [ $DESTARCH = arm64 ]; then
            rfsname=$ubuntu_base_arm64
        elif [ $DESTARCH = arm32 ]; then
            rfsname=$ubuntu_base_arm32
        fi
        curl -C - -f $ubuntu_base_url/$rfsname -o $RFSDIR/$rfsname
        var=`echo $?`
        set -e
        if [ $var = 0 ]; then
            echo Extracting $rfsname, waiting ...
            sudo tar xf $RFSDIR/$rfsname -C $RFSDIR
            var=`echo $?`
            if [ $var = 0 ]; then
                rm -f $RFSDIR/$rfsname
            fi
        else
            echo Failed to download $ubuntu_base_url/$rfsname!
            exit
	fi
	if [ $DISTROSCALE = tiny ]; then
	    flex-mkdistrorfs $tarch $CODENAME additional_packages_list_tiny
	else
	    flex-mkdistrorfs $tarch $CODENAME additional_packages_list_moderate  <--ubuntu系统好像是执行的这里
	fi
    else
	echo Building $DISTROTYPE $CODENAME for $DESTARCH
	if [ -n "$BUILDARG" ]; then
	    echo flex-mkdistrorfs $tarch $CODENAME ${BUILDARG}
	    flex-mkdistrorfs $tarch $CODENAME ${BUILDARG}
	else
	    echo flex-mkdistrorfs $tarch $CODENAME additional_packages_list_$DISTROSCALE
	    flex-mkdistrorfs $tarch $CODENAME additional_packages_list_$DISTROSCALE
	fi
    fi

    if [ "$UDEV_RULES_QORIQ_NI_REMAP" = "y" ] && [ -d $RFSDIR/etc/udev/rules.d ]; then
	sudo cp -f $FBDIR/configs/udev/udev-rules-qoriq/72-fsl-dpaa-persistent-networking.rules $RFSDIR/etc/udev/rules.d
    fi																			↑这里不知道怎么回事，没有执行，自己手动拷进去吧
    fbprint_d $RFSDIR
}


merge_apps_to_rfs() {
    flex-builder -i merge-component -a $DESTARCH -f $CONFIGLIST
    flex-builder -i compressapps -a $DESTARCH -f $CONFIGLIST
    if [ $hostarch = x86_64 -o $hostarch = i686 ]; then
	if [ $DISTROTYPE = ubuntu -o $DISTROTYPE = debian ]; then
	    flex-builder -i compressrfs -a $DESTARCH -f $CONFIGLIST
	fi
	if [ "$BUILD_GUESTRFS" = "y" ] && [ $DISTROTYPE = ubuntu -o $DISTROTYPE = debian ]; then
	    flex-builder -i mkguestrfs -a $DESTARCH -B 3G -f $CONFIGLIST
	fi
    fi
    fbprint_d "$DESTARCH: Build $DISTROTYPE userland and apps components in $FBDIR/build/images!"
}

   "merge-component")
	merge_components
	exit ;;

merge_components() {
    if [ ! -d $RFSDIR ]; then
	echo $RFSDIR not exist, generating it ..
	generate_distro_rfs
    fi

    # install apps components
    if [ $DISTROTYPE = ubuntu -a $DISTROSCALE = tiny ]; then
	if [ $DESTARCH = arm64 ]; then
	    if [ ! -f $DESTDIR/usr/local/bin/restool ]; then
		flex-builder -c restool -a ${DESTARCH} -f $CONFIGLIST
	    fi
	    sudo mkdir -p $RFSDIR/usr/local/bin
	    sudo cp -f $DESTDIR/usr/local/bin/{ls-*,restool} $RFSDIR/usr/local/bin
	fi
    elif [ $DISTROTYPE = ubuntu -o $DISTROTYPE = debian ]; then
        if [ ! -f $DESTDIR/usr/local/bin/restool ]; then		<--usr/local/bin/restool 为apps编译出来的
	    echo components packages not exist, building it ..
	    flex-builder -c apps -a ${DESTARCH} -f $CONFIGLIST		<--如果没有需要重新编译
	fi
	sudo cp -rf $FBDIR/build/apps/components_$DESTARCH/* $RFSDIR	<--拷贝编译出的apps
    fi
    sudo chroot $RFSDIR ldconfig

    # install kernel modules
    libmodules=$FBDIR/build/linux/kernel/$DESTARCH/lib/modules
    if [ -d $libmodules ]; then
	rm -f $FBDIR/$libmodules/*/{build,source}
	sudo mkdir -p $RFSDIR/lib/modules
	sudo rm -rf $RFSDIR/lib/modules/*
	sudo cp -rf $libmodules/* $RFSDIR/lib/modules
	sudo rm -f $RFSDIR/lib/modules/*.tgz
    fi

    # install PFE firmware to $RFSDIR/lib/firmware
    if [ $CONFIG_MACHINE_LS1012ARDB = y -o $CONFIG_MACHINE_LS1012AFRWY = y ]; then
	if [ ! -f $FBDIR/build/firmware/qoriq-engine-pfe-bin/ls1012a/slow_path/ppfe_class_ls1012a.elf ]; then
	    flex-builder -c qoriq-engine-pfe-bin
	fi
	sudo mkdir -p $RFSDIR/lib/firmware
	. $FBDIR/configs/board/ls1012ardb/manifest
	sudo cp -f $FBDIR/$pfe_kernel $RFSDIR/lib/firmware/
	cd $RFSDIR/lib
	mkdir -p $FBDIR/build/images
	#tar cvzf $FBDIR/build/images/linux-lib-firmware.tgz firmware
	cd $FBDIR
    fi

    # install perf
    if [ -f $FBDIR/build/linux/kernel/$DESTARCH/perf ]; then
        sudo cp -f $FBDIR/build/linux/kernel/$DESTARCH/perf $RFSDIR/usr/bin
    fi

    if [ "$CONFIG_BUILD_QORIQ_EDGESCALE" = "y" ]; then
	if [ -f $RFSDIR/etc/rc.local ] && [ $DESTDIR/usr/local/bin/startup.sh ]; then
	    if ! grep startup.sh $RFSDIR/etc/rc.local; then
		sudo sed -i '/does nothing/a\/usr\/local\/bin\/startup.sh &' $RFSDIR/etc/rc.local
	    fi
	fi
    fi
    fbprint_d "merge kernel modules and apps components into $RFSDIR"
}
1.使用ubuntu_base制作文件系统

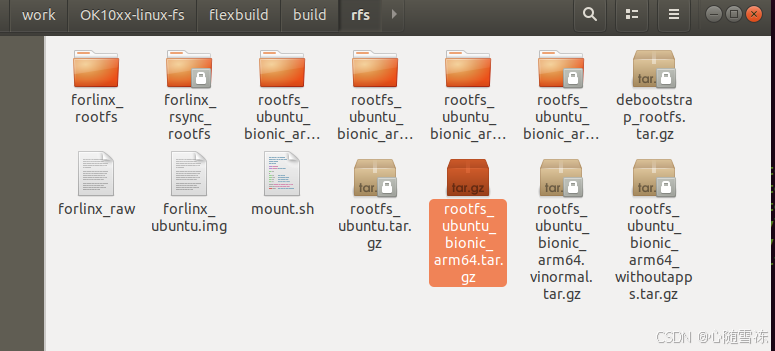

解压标题一制作好的压缩包rootfs_ubuntu_bionic_arm64.tar.gz

在这里插入图片描述

挂载一系列节点

wxd@ubuntu:~/work/OK10xx-linux-fs/flexbuild/build/rfs$ cat mount.sh
 mount -t proc /proc /home/wxd/work/OK10xx-linux-fs/flexbuild/build/rfs/rootfs_ubuntu_bionic_arm64/proc
 mount -t sysfs /sys /home/wxd/work/OK10xx-linux-fs/flexbuild/build/rfs/rootfs_ubuntu_bionic_arm64/sys
 mount -o bind /dev /home/wxd/work/OK10xx-linux-fs/flexbuild/build/rfs/rootfs_ubuntu_bionic_arm64/dev
 mount -o bind /dev/pts /home/wxd/work/OK10xx-linux-fs/flexbuild/build/rfs/rootfs_ubuntu_bionic_arm64/dev/pts

chroot手动执行安装一些flex-mkdistrorfs 第二步install_cfg_secondstage里的步骤

# chroot rootfs_ubuntu_bionic_arm64
root@ubuntu:/#

install_cfg_secondstage() {
    if [ -f /usr/aptpkg/.rfsblddone ] && [ ! -f /proc/cpuinfo ]; then
	return
    fi
    if [ -n "$3" ]; then
	packages_list=/usr/aptpkg/$3
    else
        packages_list=/usr/aptpkg/additional_packages_list_moderate		<--里面是需要apt安装的deb包
    fi
    . $packages_list

    # create user and passwd
    if [ ! -d /home/user ]; then
        useradd -m -d /home/user -s /bin/bash user		<--添加用户，设置密码
        gpasswd -a user sudo
        echo -e 'root\nroot\n' | passwd root
        echo -e 'user\nuser\n' | passwd user
	mkdir -p /home/user
	chown -R user:user /home/user
    fi
    # set default hostname
    echo localhost > /etc/hostname

    # set apt sources list to install additional packages
    asl=/etc/apt/sources.list
    if [ "$MKRFS_WITH_DEBOOTSTRAP" = y -a $DISTROTYPE = ubuntu ]; then
	rm -f $asl
	if [ $ARCH = "x86_64" -o $ARCH = "i686" ]; then
	    fn=archive; pn=ubuntu;
	else
	    fn=ports; pn=ubuntu-ports;
	fi
	echo deb http://mirrors.huaweicloud.com/ubuntu-ports/ bionic main multiverse restricted universe >> $asl
	echo deb http://mirrors.huaweicloud.com/ubuntu-ports/ bionic-backports main multiverse restricted universe >> $asl
	echo deb http://mirrors.huaweicloud.com/ubuntu-ports/ bionic-proposed main multiverse restricted universe >> $asl
	echo deb http://mirrors.huaweicloud.com/ubuntu-ports/ bionic-security main multiverse restricted universe >> $asl
	echo deb http://mirrors.huaweicloud.com/ubuntu-ports/ bionic-updates main multiverse restricted universe >> $asl
	echo deb-src http://mirrors.huaweicloud.com/ubuntu-ports/ bionic main multiverse restricted universe >> $asl
	echo deb-src http://mirrors.huaweicloud.com/ubuntu-ports/ bionic-backports main multiverse restricted universe >> $asl
	echo deb-src http://mirrors.huaweicloud.com/ubuntu-ports/ bionic-proposed main multiverse restricted universe >> $asl
	echo deb-src http://mirrors.huaweicloud.com/ubuntu-ports/ bionic-security main multiverse restricted universe >> $asl
	echo deb-src http://mirrors.huaweicloud.com/ubuntu-ports/ bionic-updates main multiverse restricted universe >> $asl
#	echo deb http://us.$fn.ubuntu.com/$pn/ $2 main restricted >> $asl
#	echo deb-src http://us.$fn.ubuntu.com/$pn/ $2 main restricted >> $asl
#	echo deb http://us.$fn.ubuntu.com/$pn/ $2-updates main restricted >> $asl
#	echo deb-src http://us.$fn.ubuntu.com/$pn/ $2-updates main restricted >> $asl
#	echo deb http://$fn.ubuntu.com/$pn $2-security main restricted >> $asl
#	echo deb-src http://$fn.ubuntu.com/$pn $2-security main restricted >> $asl

	# some packages (e.g. docker, iperf, netperf, etc) need to be installed from universe/multiverse
#	echo deb http://us.$fn.ubuntu.com/$pn/ $2 universe >> $asl
#	echo deb-src http://us.$fn.ubuntu.com/$pn/ $2 universe >> $asl
#	echo deb http://us.$fn.ubuntu.com/$pn/ $2-updates universe >> $asl
#	echo deb-src http://us.$fn.ubuntu.com/$pn/ $2-updates universe >> $asl
#	echo deb http://us.$fn.ubuntu.com/$pn/ $2 multiverse >> $asl
#	echo deb-src http://us.$fn.ubuntu.com/$pn/ $2 multiverse >> $asl
#	echo deb http://us.$fn.ubuntu.com/$pn/ $2-updates multiverse >> $asl
#	echo deb-src http://us.$fn.ubuntu.com/$pn/ $2-updates multiverse >> $asl
    elif [ "$MKRFS_WITH_DEBOOTSTRAP" = y -a $DISTROTYPE = debian ]; then
	rm -f $asl
	echo deb [arch=$1] http://mirrors.kernel.org/debian/ $2 main >> $asl
    fi

	apt-get update

    if [ $DISTROTYPE = ubuntu -a $DISTROSCALE != tiny ]; then
	if ! dpkg-query -W language-pack-en-base 1>/dev/null; then
	    echo installing language-pack-en-base ..
            DEBIAN_FRONTEND=noninteractive LC_ALL=C LANGUAGE=C LANG=C \
	    apt-get -y install language-pack-en-base
	fi
    fi



    if [ ! -f /proc/uptime ]; then
	mount -t proc proc /proc
    fi
    if [ ! -f /dev/pts/ptmx ]; then
	mount -t devpts devpts /dev/pts
    fi

    #apt-get -y upgrade



    # install cross toolchain for armhf on aarch64 machine
    if [ $ARCH = aarch64 -a $DISTROTYPE = ubuntu -a $DISTROSCALE != tiny ] && \
       [ -f /usr/bin/qemu-aarch64-static ]; then
        apt-get -y install crossbuild-essential-armhf gcc-arm-linux-gnueabihf
    fi

    # Add additional packages for user convenience
    echo installing additional packages: $additional_packages_list
    for pkg in $additional_packages_list; do
	echo installing $pkg ...
	DEBIAN_FRONTEND=noninteractive apt-get -y install $pkg || true
    done
    echo installed additional packages.

    if [ "$3" != "additional_packages_list_tiny" ]; then
        # install python lib six depended by building ovs-dpdk locally
        if ! pip show -q six; then
	    pip install six;
        fi
    fi

    # install extrinsic packages which is needed but not provided yet from official ubuntu
    if [ $DISTROSCALE != tiny ]; then
	pkglist=`cd /usr/aptpkg && ls *.sh`
	for pkg in $pkglist; do
	    pn=${pkg%.*}
	    if [ -n "$extrinsic_packages_list" ] && [ `echo $extrinsic_packages_list | grep -E $pn` ]; then
		echo installing extrinsic package $pn ...
		/usr/aptpkg/$pkg
	    fi
	done
    fi

    if [ $1 = arm64 ]; then
	tarch=aarch64-linux-gnu
    elif [ $1 = armhf ]; then
	tarch=arm-linux-gnueabihf
    fi

    if [ $1 = arm64 -o $1 = armhf ] && [ $DISTROSCALE != tiny ]; then
	cd /lib/$tarch && ln -sf  ../../usr/lib/$tarch/libxml2.so libxml2.so && \		<--编译apps要用到一些库
	ln -sf ../../usr/lib/$tarch/libpcap.so libpcap.so && \
	ln -sf ../../usr/lib/$tarch/libnuma.so libnuma.so && \
	ln -sf ../../usr/lib/$tarch/libssl.so libssl.so && \
	ln -sf ../../usr/lib/$tarch/libcrypto.so libcrypto.so
	cd /usr/lib && ln -sf $tarch/libcunit.so libcunit.so
    fi

    if [ -f /usr/bin/sudo -a ! -u /usr/bin/sudo ]; then
	chmod +s /usr/bin/sudo
    fi
    if [ -d /var/cache/man ]; then
	chown -R man:root /var/cache/man
    fi

    # some shared libraries locate in /lib/aarch64-linux-gnu(or /lib/arm-linux-gnueabihf) and /usr/local/lib
    LD_LIBRARY_PATH=/lib/$tarch
    echo export LD_LIBRARY_PATH=/usr/local/lib:$LD_LIBRARY_PATH >> /root/.bashrc
    echo export LD_LIBRARY_PATH=/usr/local/lib:$LD_LIBRARY_PATH >> /home/user/.bashrc

    # set friendly rows and columns for tty					<--这两句别加，深坑，查了一周vi为什么不正常
    #echo stty columns 237 rows 58 >> /root/.bashrc
    #echo stty columns 237 rows 58 >> /home/user/.bashrc

    tmpusr=`ls -t /home | cut -d' ' -f1 | head -1`
    if [ -d /home/$tmpusr -a "$tmpusr" != "user" ]; then
	rm -rf /home/$tmpusr
    fi
    if [ $DISTROSCALE != tiny -a $DISTROTYPE = ubuntu ]; then
	/usr/aptpkg/reconfigpkg.sh
    fi

    rm -rf /var/cache/apt/archives/*.deb


    if [ -f /proc/uptime ]; then
        umount /proc
    fi
    if [ -f /dev/pts ]; then
        umount /dev/pts -l
    fi

    # find /dev/* | grep -v pts | xargs rm -rf
    touch /usr/aptpkg/.rfsblddone		<--这
}

四、文件系统解包

欲讲解包，先聊打包

compress_distrorfs() {
    if [ -f $RFSDIR/proc/uptime ]; then
        sudo chroot $RFSDIR umount /proc
    fi
    cd $RFSDIR
    if [ $DISTROTYPE = ubuntu -o $DISTROTYPE = debian ]; then
	if [ $DISTROSCALE = tiny ]; then
	    tarballname=rootfs_${DISTROTYPE}_${CODENAME}_${DESTARCH}_tiny_`date +%Y%m%d%H%M`.tgz
	else
	    tarballname=rootfs_${DISTROTYPE}_${CODENAME}_${DESTARCH}_`date +%Y%m%d%H%M`.tgz
	fi
    fi
    echo packing $tarballname, waiting ...
    sudo tar czf $FBDIR/build/images/$tarballname *
    cd ..
    ln -sf $tarballname $FBDIR/build/images/rootfs_${DISTROTYPE}_${CODENAME}_${DESTARCH}.tgz

    if [ "$MACHINE" = "ls1012ardb" ]; then
    	make_ext4fs -s -T -I -l 7510982656 $FBDIR/build/images/ubuntu.img $RFSDIR	<--make_ext4fs就是打包命令，之前遇到过，打包/dev
    fi																		  下面的节点会报错，是github上下载编译了新的make_ext4fs才好
    if [ "$MACHINE" = "ls1043ardb" -o "$MACHINE" = "ls1046ardb"]; then
    	make_ext4fs -s -T -I -l 7473233920 $FBDIR/build/images/ubuntu.img $RFSDIR
    fi

    cd $FBDIR
    fbprint_d $FBDIR/build/images/$tarballname
}

编译出的镜像文件，文件类型为Android sparse image

$ file ubuntu.img
ubuntu.img: Android sparse image, version: 1.0, Total of 1828608 4096-byte output blocks in 24286 input chunks.

sparse压缩文件系统镜像，目的是方便传输/刷机/存储等。想查看内容需先转换为raw格式，

可以使用工具simg2img 来转化，simg2img 来自deb包 android-sdk-libsparse-utils

$ simg2img -h
Usage: simg2img <sparse_image_files> <raw_image_file>

$ simg2img ubuntu.img ubuntu_raw.img

转化后的镜像为ext4是可以挂载的
$ file ubuntu_raw.img
ubuntu_raw.img: Linux rev 1.0 ext4 filesystem data, UUID=57f8f4bc-abf4-655f-bf67-946fc0f9f25b (extents) (large files)
评论
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
