以下概念及操作均来自influxdb2 官方文档

InfluxDB2 is the platform purpose-built to collect, store, process and visualize time series data. Time series data is a sequence of data points indexed in time order. Data points typically consist of successive measurements made from the same source and are used to track changes over time. Examples of time series data include:

  • Industrial sensor data
  • Server performance metrics
  • Heartbeats per minute
  • Electrical activity in the brain
  • Rainfall measurements
  • Stock prices

使用docker安装

docker run \
 --name influxdb2 \
 --publish 8086:8086 \
 --mount type=volume,source=influxdb2-data,target=/var/lib/influxdb2 \
 --mount type=volume,source=influxdb2-config,target=/etc/influxdb2 \
 --env DOCKER_INFLUXDB_INIT_MODE=setup \
 --env DOCKER_INFLUXDB_INIT_USERNAME=ADMIN_USERNAME \
 --env DOCKER_INFLUXDB_INIT_PASSWORD=ADMIN_PASSWORD \
 --env DOCKER_INFLUXDB_INIT_ORG=ORG_NAME \
 --env DOCKER_INFLUXDB_INIT_BUCKET=BUCKET_NAME \
 influxdb:2

Example:
docker run \
 --name influxdb2 \
 --publish 8086:8086 \
 --mount type=volume,source=influxdb2-data,target=/var/lib/influxdb2 \
 --mount type=volume,source=influxdb2-config,target=/etc/influxdb2 \
 --env DOCKER_INFLUXDB_INIT_MODE=setup \
 --env DOCKER_INFLUXDB_INIT_USERNAME=influxdb \
 --env DOCKER_INFLUXDB_INIT_PASSWORD=influxdb \
 --env DOCKER_INFLUXDB_INIT_ORG=influxdb \
 --env DOCKER_INFLUXDB_INIT_BUCKET=influxdb \
 influxdb:2
  • –publish 8086:8086: Exposes the InfluxDB UI and HTTP API on the host’s 8086 port.
  • –mount type=volume,source=influxdb2-data,target=/var/lib/influxdb2: Creates a volume named influxdb2-data mapped to the InfluxDB data directory to persist data outside the container.
  • --mount type=volume,source=influxdb2-config,target=/etc/influxdb2: Creates a volume named influxdb2-config mapped to the InfluxDB configuration directory to make configurations available outside the container.
  • --env DOCKER_INFLUXDB_INIT_MODE=setup: Environment variable that invokes the automated setup of the initial organization, user, bucket, and token when creating the container.
  • --env DOCKER_INFLUXDB_INIT_<SETUP_OPTION>: Environment variables for initial setup options–replace the following with your own values:
      • ADMIN_USERNAME: The username for the initial user–an admin user with an API Operator token.
      • ADMIN_PASSWORD: The password for the initial user.
      • ORG_NAME: The name for the initial organization.
      • BUCKET_NAME: The name for the initial bucket.

If successful, the command starts InfluxDB initialized with the user, organization, bucket, and Operator token, and logs to stdout.

You can view the Operator token in the /etc/influxdb2/influx-configs file and use it to authorize creating an All Access token.

访问: http://127.0.0.1:8086/

操作 CLI

write

  • -b, --bucket or --bucket-id flag with the bucket name or ID to write do.
  • -p, --precision flag with the timestamp precision (s).
  • String-encoded line protocol.
influx write \
  --bucket influxdb \
  --precision s "
home,room=Living\ Room temp=21.1,hum=35.9,co=0i 1641024000
home,room=Kitchen temp=21.0,hum=35.9,co=0i 1641024000
home,room=Living\ Room temp=21.4,hum=35.9,co=0i 1641027600
home,room=Kitchen temp=23.0,hum=36.2,co=0i 1641027600
home,room=Living\ Room temp=21.8,hum=36.0,co=0i 1641031200
home,room=Kitchen temp=22.7,hum=36.1,co=0i 1641031200
home,room=Living\ Room temp=22.2,hum=36.0,co=0i 1641034800
home,room=Kitchen temp=22.4,hum=36.0,co=0i 1641034800
home,room=Living\ Room temp=22.2,hum=35.9,co=0i 1641038400
home,room=Kitchen temp=22.5,hum=36.0,co=0i 1641038400
home,room=Living\ Room temp=22.4,hum=36.0,co=0i 1641042000
home,room=Kitchen temp=22.8,hum=36.5,co=1i 1641042000
home,room=Living\ Room temp=22.3,hum=36.1,co=0i 1641045600
home,room=Kitchen temp=22.8,hum=36.3,co=1i 1641045600
home,room=Living\ Room temp=22.3,hum=36.1,co=1i 1641049200
home,room=Kitchen temp=22.7,hum=36.2,co=3i 1641049200
home,room=Living\ Room temp=22.4,hum=36.0,co=4i 1641052800
home,room=Kitchen temp=22.4,hum=36.0,co=7i 1641052800
home,room=Living\ Room temp=22.6,hum=35.9,co=5i 1641056400
home,room=Kitchen temp=22.7,hum=36.0,co=9i 1641056400
home,room=Living\ Room temp=22.8,hum=36.2,co=9i 1641060000
home,room=Kitchen temp=23.3,hum=36.9,co=18i 1641060000
home,room=Living\ Room temp=22.5,hum=36.3,co=14i 1641063600
home,room=Kitchen temp=23.1,hum=36.6,co=22i 1641063600
home,room=Living\ Room temp=22.2,hum=36.4,co=17i 1641067200
home,room=Kitchen temp=22.7,hum=36.5,co=26i 1641067200
"

Query

root@c2ecea1e4729:/# influx query '
from(bucket: "influxdb")
    |> range(start: 2022-01-01T08:00:00Z, stop: 2022-01-01T20:00:01Z)
    |> filter(fn: (r) => r._measurement == "home")
    |> filter(fn: (r) => r._field== "co" or r._field == "hum" or r._field == "temp")
'

结果

Result: _result
Table: keys: [_start, _stop, _field, _measurement, room]
                   _start:time                      _stop:time           _field:string     _measurement:string             room:string                      _time:time                  _value:int
------------------------------  ------------------------------  ----------------------  ----------------------  ----------------------  ------------------------------  --------------------------
2022-01-01T08:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                      co                    home                 Kitchen  2022-01-01T08:00:00.000000000Z                           0
2022-01-01T08:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                      co                    home                 Kitchen  2022-01-01T09:00:00.000000000Z                           0
2022-01-01T08:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                      co                    home                 Kitchen  2022-01-01T10:00:00.000000000Z                           0
2022-01-01T08:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                      co                    home                 Kitchen  2022-01-01T11:00:00.000000000Z                           0
2022-01-01T08:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                      co                    home                 Kitchen  2022-01-01T12:00:00.000000000Z                           0
2022-01-01T08:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                      co                    home                 Kitchen  2022-01-01T13:00:00.000000000Z                           1
2022-01-01T08:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                      co                    home                 Kitchen  2022-01-01T14:00:00.000000000Z                           1
2022-01-01T08:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                      co                    home                 Kitchen  2022-01-01T15:00:00.000000000Z                           3
2022-01-01T08:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                      co                    home                 Kitchen  2022-01-01T16:00:00.000000000Z                           7
2022-01-01T08:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                      co                    home                 Kitchen  2022-01-01T17:00:00.000000000Z                           9
2022-01-01T08:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                      co                    home                 Kitchen  2022-01-01T18:00:00.000000000Z                          18
2022-01-01T08:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                      co                    home                 Kitchen  2022-01-01T19:00:00.000000000Z                          22
2022-01-01T08:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                      co                    home                 Kitchen  2022-01-01T20:00:00.000000000Z                          26
Table: keys: [_start, _stop, _field, _measurement, room]
                   _start:time                      _stop:time           _field:string     _measurement:string             room:string                      _time:time                  _value:float
------------------------------  ------------------------------  ----------------------  ----------------------  ----------------------  ------------------------------  ----------------------------
2022-01-01T08:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                     hum                    home                 Kitchen  2022-01-01T08:00:00.000000000Z                          35.9
2022-01-01T08:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                     hum                    home                 Kitchen  2022-01-01T09:00:00.000000000Z                          36.2
2022-01-01T08:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                     hum                    home                 Kitchen  2022-01-01T10:00:00.000000000Z                          36.1
2022-01-01T08:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                     hum                    home                 Kitchen  2022-01-01T11:00:00.000000000Z                            36
2022-01-01T08:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                     hum                    home                 Kitchen  2022-01-01T12:00:00.000000000Z                            36
2022-01-01T08:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                     hum                    home                 Kitchen  2022-01-01T13:00:00.000000000Z                          36.5
2022-01-01T08:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                     hum                    home                 Kitchen  2022-01-01T14:00:00.000000000Z                          36.3
2022-01-01T08:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                     hum                    home                 Kitchen  2022-01-01T15:00:00.000000000Z                          36.2
2022-01-01T08:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                     hum                    home                 Kitchen  2022-01-01T16:00:00.000000000Z                            36
2022-01-01T08:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                     hum                    home                 Kitchen  2022-01-01T17:00:00.000000000Z                            36
2022-01-01T08:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                     hum                    home                 Kitchen  2022-01-01T18:00:00.000000000Z                          36.9
2022-01-01T08:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                     hum                    home                 Kitchen  2022-01-01T19:00:00.000000000Z                          36.6
2022-01-01T08:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                     hum                    home                 Kitchen  2022-01-01T20:00:00.000000000Z                          36.5
Table: keys: [_start, _stop, _field, _measurement, room]
                   _start:time                      _stop:time           _field:string     _measurement:string             room:string                      _time:time                  _value:float
------------------------------  ------------------------------  ----------------------  ----------------------  ----------------------  ------------------------------  ----------------------------
2022-01-01T08:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                    temp                    home                 Kitchen  2022-01-01T08:00:00.000000000Z                            21
2022-01-01T08:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                    temp                    home                 Kitchen  2022-01-01T09:00:00.000000000Z                            23
2022-01-01T08:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                    temp                    home                 Kitchen  2022-01-01T10:00:00.000000000Z                          22.7
2022-01-01T08:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                    temp                    home                 Kitchen  2022-01-01T11:00:00.000000000Z                          22.4
2022-01-01T08:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                    temp                    home                 Kitchen  2022-01-01T12:00:00.000000000Z                          22.5
2022-01-01T08:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                    temp                    home                 Kitchen  2022-01-01T13:00:00.000000000Z                          22.8
2022-01-01T08:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                    temp                    home                 Kitchen  2022-01-01T14:00:00.000000000Z                          22.8
2022-01-01T08:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                    temp                    home                 Kitchen  2022-01-01T15:00:00.000000000Z                          22.7
2022-01-01T08:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                    temp                    home                 Kitchen  2022-01-01T16:00:00.000000000Z                          22.4
2022-01-01T08:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                    temp                    home                 Kitchen  2022-01-01T17:00:00.000000000Z                          22.7
2022-01-01T08:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                    temp                    home                 Kitchen  2022-01-01T18:00:00.000000000Z                          23.3
2022-01-01T08:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                    temp                    home                 Kitchen  2022-01-01T19:00:00.000000000Z                          23.1
2022-01-01T08:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                    temp                    home                 Kitchen  2022-01-01T20:00:00.000000000Z                          22.7
Table: keys: [_start, _stop, _field, _measurement, room]
                   _start:time                      _stop:time           _field:string     _measurement:string             room:string                      _time:time                  _value:int
------------------------------  ------------------------------  ----------------------  ----------------------  ----------------------  ------------------------------  --------------------------
2022-01-01T08:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                      co                    home             Living Room  2022-01-01T08:00:00.000000000Z                           0
2022-01-01T08:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                      co                    home             Living Room  2022-01-01T09:00:00.000000000Z                           0
2022-01-01T08:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                      co                    home             Living Room  2022-01-01T10:00:00.000000000Z                           0
2022-01-01T08:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                      co                    home             Living Room  2022-01-01T11:00:00.000000000Z                           0
2022-01-01T08:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                      co                    home             Living Room  2022-01-01T12:00:00.000000000Z                           0
2022-01-01T08:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                      co                    home             Living Room  2022-01-01T13:00:00.000000000Z                           0
2022-01-01T08:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                      co                    home             Living Room  2022-01-01T14:00:00.000000000Z                           0
2022-01-01T08:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                      co                    home             Living Room  2022-01-01T15:00:00.000000000Z                           1
2022-01-01T08:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                      co                    home             Living Room  2022-01-01T16:00:00.000000000Z                           4
2022-01-01T08:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                      co                    home             Living Room  2022-01-01T17:00:00.000000000Z                           5
2022-01-01T08:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                      co                    home             Living Room  2022-01-01T18:00:00.000000000Z                           9
2022-01-01T08:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                      co                    home             Living Room  2022-01-01T19:00:00.000000000Z                          14
2022-01-01T08:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                      co                    home             Living Room  2022-01-01T20:00:00.000000000Z                          17
Table: keys: [_start, _stop, _field, _measurement, room]
                   _start:time                      _stop:time           _field:string     _measurement:string             room:string                      _time:time                  _value:float
------------------------------  ------------------------------  ----------------------  ----------------------  ----------------------  ------------------------------  ----------------------------
2022-01-01T08:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                     hum                    home             Living Room  2022-01-01T08:00:00.000000000Z                          35.9
2022-01-01T08:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                     hum                    home             Living Room  2022-01-01T09:00:00.000000000Z                          35.9
2022-01-01T08:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                     hum                    home             Living Room  2022-01-01T10:00:00.000000000Z                            36
2022-01-01T08:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                     hum                    home             Living Room  2022-01-01T11:00:00.000000000Z                            36
2022-01-01T08:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                     hum                    home             Living Room  2022-01-01T12:00:00.000000000Z                          35.9
2022-01-01T08:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                     hum                    home             Living Room  2022-01-01T13:00:00.000000000Z                            36
2022-01-01T08:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                     hum                    home             Living Room  2022-01-01T14:00:00.000000000Z                          36.1
2022-01-01T08:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                     hum                    home             Living Room  2022-01-01T15:00:00.000000000Z                          36.1
2022-01-01T08:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                     hum                    home             Living Room  2022-01-01T16:00:00.000000000Z                            36
2022-01-01T08:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                     hum                    home             Living Room  2022-01-01T17:00:00.000000000Z                          35.9
2022-01-01T08:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                     hum                    home             Living Room  2022-01-01T18:00:00.000000000Z                          36.2
2022-01-01T08:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                     hum                    home             Living Room  2022-01-01T19:00:00.000000000Z                          36.3
2022-01-01T08:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                     hum                    home             Living Room  2022-01-01T20:00:00.000000000Z                          36.4
Table: keys: [_start, _stop, _field, _measurement, room]
                   _start:time                      _stop:time           _field:string     _measurement:string             room:string                      _time:time                  _value:float
------------------------------  ------------------------------  ----------------------  ----------------------  ----------------------  ------------------------------  ----------------------------
2022-01-01T08:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                    temp                    home             Living Room  2022-01-01T08:00:00.000000000Z                          21.1
2022-01-01T08:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                    temp                    home             Living Room  2022-01-01T09:00:00.000000000Z                          21.4
2022-01-01T08:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                    temp                    home             Living Room  2022-01-01T10:00:00.000000000Z                          21.8
2022-01-01T08:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                    temp                    home             Living Room  2022-01-01T11:00:00.000000000Z                          22.2
2022-01-01T08:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                    temp                    home             Living Room  2022-01-01T12:00:00.000000000Z                          22.2
2022-01-01T08:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                    temp                    home             Living Room  2022-01-01T13:00:00.000000000Z                          22.4
2022-01-01T08:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                    temp                    home             Living Room  2022-01-01T14:00:00.000000000Z                          22.3
2022-01-01T08:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                    temp                    home             Living Room  2022-01-01T15:00:00.000000000Z                          22.3
2022-01-01T08:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                    temp                    home             Living Room  2022-01-01T16:00:00.000000000Z                          22.4
2022-01-01T08:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                    temp                    home             Living Room  2022-01-01T17:00:00.000000000Z                          22.6
2022-01-01T08:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                    temp                    home             Living Room  2022-01-01T18:00:00.000000000Z                          22.8
2022-01-01T08:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                    temp                    home             Living Room  2022-01-01T19:00:00.000000000Z                          22.5
2022-01-01T08:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                    temp                    home             Living Room  2022-01-01T20:00:00.000000000Z                          22.2

influxQL query

root@c2ecea1e4729:/# influx v1 shell

SELECT co,hum,temp,room FROM "influxdb".autogen.home WHERE time >= '2022-01-01T08:00:00Z' AND time <= '2022-01-01T20:00:00Z'

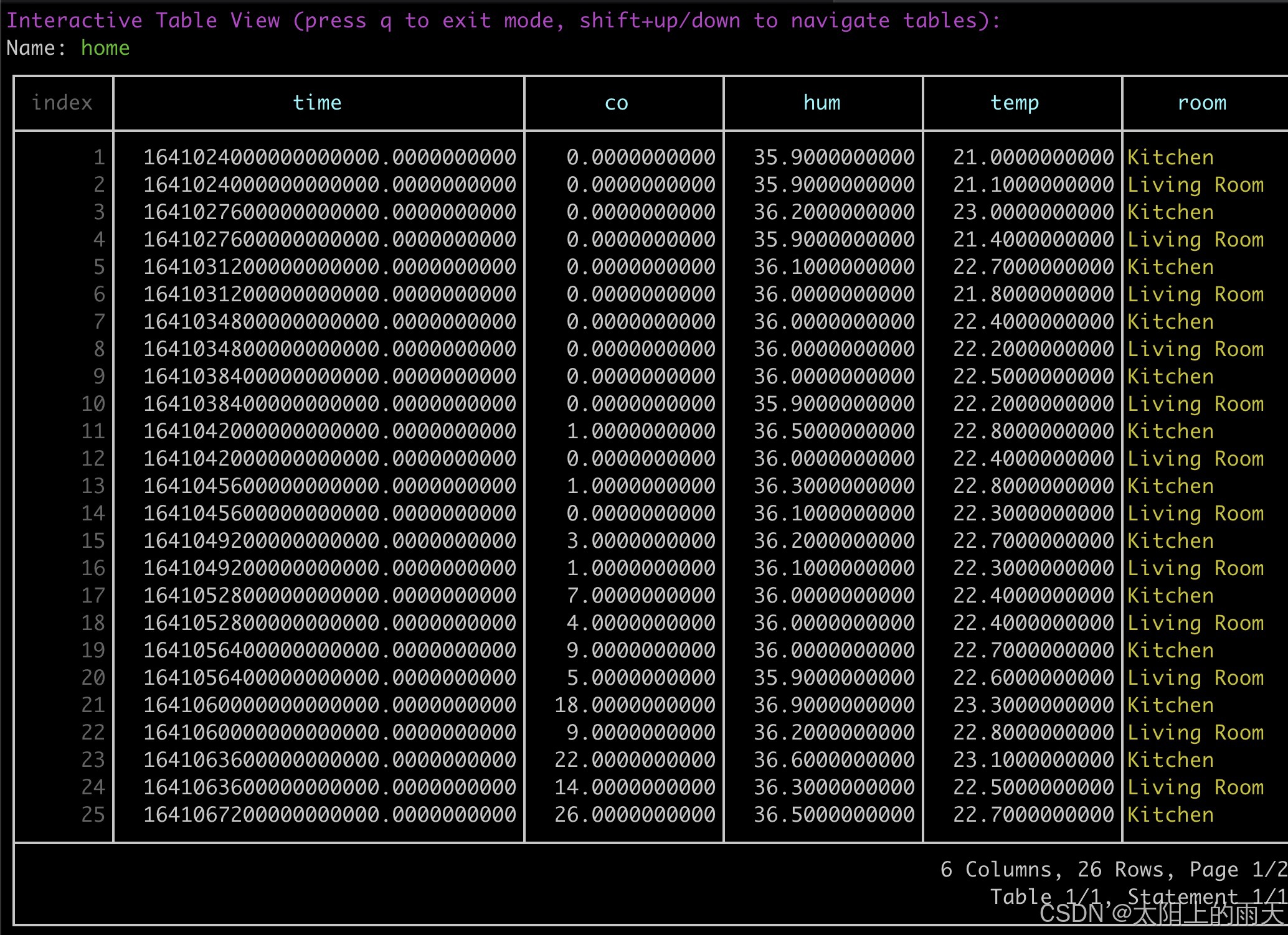

结果:
在这里插入图片描述

在数据中重新映射或赋值

使用map（）函数迭代数据中的每一行，并更新该行中的值。map（）是Flux中最有用的函数之一，将帮助您完成许多需要执行的数据处理操作。

influx query 'from(bucket: "influxdb")
    |> range(start: 2022-01-01T08:00:00Z, stop: 2022-01-01T20:00:01Z)
    |> filter(fn: (r) => r._measurement == "home")
    |> filter(fn: (r) => r._field == "hum")
    |> map(fn: (r) => ({r with _value: r._value / 100.0}))
'

分组数据

使用group（）函数按特定列值重新组合数据，为进一步处理做准备。

influx query 'from(bucket: "influxdb")
    |> range(start: 2022-01-01T08:00:00Z, stop: 2022-01-01T20:00:01Z)
    |> filter(fn: (r) => r._measurement == "home")
    |> group(columns: ["room", "_field"])
'

Aggregate or select specific data

Use Flux aggregate or selector functions to return aggregate or selected values from each input table.

mean（）返回每个输入表中指定列中非空值的平均值。

influx query 'from(bucket: "influxdb")
    |> range(start: 2022-01-01T08:00:00Z, stop: 2022-01-01T20:00:01Z)
    |> filter(fn: (r) => r._measurement == "home")
    |> filter(fn: (r) => r._field == "co" or r._field == "hum" or r._field == "temp")
    |> mean()
'

root@c2ecea1e4729:/# influx query 'from(bucket: "influxdb")
    |> range(start: 2022-01-01T08:00:00Z, stop: 2022-01-01T20:00:01Z)
    |> filter(fn: (r) => r._measurement == "home")
    |> filter(fn: (r) => r._field == "co" or r._field == "hum" or r._field == "temp")
    |> mean()
'
Result: _result
Table: keys: [_start, _stop, _field, _measurement, room]
                   _start:time                      _stop:time           _field:string     _measurement:string             room:string                  _value:float
------------------------------  ------------------------------  ----------------------  ----------------------  ----------------------  ----------------------------
2022-01-01T08:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                      co                    home                 Kitchen            6.6923076923076925
Table: keys: [_start, _stop, _field, _measurement, room]
                   _start:time                      _stop:time           _field:string     _measurement:string             room:string                  _value:float
------------------------------  ------------------------------  ----------------------  ----------------------  ----------------------  ----------------------------
2022-01-01T08:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                     hum                    home                 Kitchen            36.246153846153845
Table: keys: [_start, _stop, _field, _measurement, room]
                   _start:time                      _stop:time           _field:string     _measurement:string             room:string                  _value:float
------------------------------  ------------------------------  ----------------------  ----------------------  ----------------------  ----------------------------
2022-01-01T08:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                    temp                    home                 Kitchen            22.623076923076926
Table: keys: [_start, _stop, _field, _measurement, room]
                   _start:time                      _stop:time           _field:string     _measurement:string             room:string                  _value:float
------------------------------  ------------------------------  ----------------------  ----------------------  ----------------------  ----------------------------
2022-01-01T08:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                      co                    home             Living Room            3.8461538461538463
Table: keys: [_start, _stop, _field, _measurement, room]
                   _start:time                      _stop:time           _field:string     _measurement:string             room:string                  _value:float
------------------------------  ------------------------------  ----------------------  ----------------------  ----------------------  ----------------------------
2022-01-01T08:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                     hum                    home             Living Room             36.05384615384615
Table: keys: [_start, _stop, _field, _measurement, room]
                   _start:time                      _stop:time           _field:string     _measurement:string             room:string                  _value:float
------------------------------  ------------------------------  ----------------------  ----------------------  ----------------------  ----------------------------
2022-01-01T08:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                    temp                    home             Living Room             22.16923076923077

Aggregate functions

Aggregate functions drop columns that are not in the group key and return a single row for each input table with the aggregate value of that table.

influx query 'from(bucket: "influxdb")
    |> range(start: 2022-01-01T14:00:00Z, stop: 2022-01-01T20:00:01Z)
    |> filter(fn: (r) => r._measurement == "home")
    |> filter(fn: (r) => r._field == "temp")
    |> mean()
    |> duplicate(column: "_stop", as: "_time")
'

root@c2ecea1e4729:/# influx query 'from(bucket: "influxdb")
    |> range(start: 2022-01-01T14:00:00Z, stop: 2022-01-01T20:00:01Z)
    |> filter(fn: (r) => r._measurement == "home")
    |> filter(fn: (r) => r._field == "temp")
    |> mean()
    |> duplicate(column: "_stop", as: "_time")
'
Result: _result
Table: keys: [_start, _stop, _field, _measurement, room]
                   _start:time                      _stop:time           _field:string     _measurement:string             room:string                  _value:float                      _time:time
------------------------------  ------------------------------  ----------------------  ----------------------  ----------------------  ----------------------------  ------------------------------
2022-01-01T14:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                    temp                    home                 Kitchen            22.814285714285713  2022-01-01T20:00:01.000000000Z
Table: keys: [_start, _stop, _field, _measurement, room]
                   _start:time                      _stop:time           _field:string     _measurement:string             room:string                  _value:float                      _time:time
------------------------------  ------------------------------  ----------------------  ----------------------  ----------------------  ----------------------------  ------------------------------
2022-01-01T14:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                    temp                    home             Living Room             22.44285714285714  2022-01-01T20:00:01.000000000Z

将数据转换为关系模式

如果来自关系SQL或类SQL查询语言，如InfluxQL，Flux使用的数据模型与您习惯的不同。Flux返回多个表，每个表包含一个不同的字段。“关系”模式将每个字段构造为每行中的一列。
使用pivot（）函数根据时间戳将数据转换为“关系”模式。

influx query 'from(bucket: "influxdb")
    |> range(start: 2022-01-01T14:00:00Z, stop: 2022-01-01T20:00:01Z)
    |> filter(fn: (r) => r._measurement == "home")
    |> filter(fn: (r) => r._field == "co" or r._field == "hum" or r._field == "temp")
    |> filter(fn: (r) => r.room == "Kitchen")
    |> pivot(rowKey: ["_time"], columnKey: ["_field"], valueColumn: "_value")
'

root@c2ecea1e4729:/# influx query 'from(bucket: "influxdb")
    |> range(start: 2022-01-01T14:00:00Z, stop: 2022-01-01T20:00:01Z)
    |> filter(fn: (r) => r._measurement == "home")
    |> filter(fn: (r) => r._field == "co" or r._field == "hum" or r._field == "temp")
    |> filter(fn: (r) => r.room == "Kitchen")
    |> pivot(rowKey: ["_time"], columnKey: ["_field"], valueColumn: "_value")
'
Result: _result
Table: keys: [_start, _stop, _measurement, room]
                   _start:time                      _stop:time     _measurement:string             room:string                      _time:time                      co:int                     hum:float                    temp:float
------------------------------  ------------------------------  ----------------------  ----------------------  ------------------------------  --------------------------  ----------------------------  ----------------------------
2022-01-01T14:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                    home                 Kitchen  2022-01-01T14:00:00.000000000Z                           1                          36.3                          22.8
2022-01-01T14:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                    home                 Kitchen  2022-01-01T15:00:00.000000000Z                           3                          36.2                          22.7
2022-01-01T14:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                    home                 Kitchen  2022-01-01T16:00:00.000000000Z                           7                            36                          22.4
2022-01-01T14:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                    home                 Kitchen  2022-01-01T17:00:00.000000000Z                           9                            36                          22.7
2022-01-01T14:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                    home                 Kitchen  2022-01-01T18:00:00.000000000Z                          18                          36.9                          23.3
2022-01-01T14:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                    home                 Kitchen  2022-01-01T19:00:00.000000000Z                          22                          36.6                          23.1
2022-01-01T14:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                    home                 Kitchen  2022-01-01T20:00:00.000000000Z                          26                          36.5                          22.7

数据下采样

数据下采样是一种提高查询性能并优化长期数据存储的策略。简而言之，下采样可以减少查询返回的点数，而不会丢失数据的总体趋势。

有关数据下采样的更多信息，请参阅数据下采样。

最常见的数据下采样方法是按时间间隔或“窗口”。例如，您可能希望查询过去一小时的数据，并返回每五分钟窗口的平均值。

使用aggregateWindow()按指定的时间间隔对数据进行下采样：

  • 使用 every 参数指定每个窗口的持续时间。

  • 使用 fn 参数指定要应用于每个窗口的聚合函数或选择器函数。

  • （可选）使用 timeSrc 参数指定要使用哪个列值来为每个窗口创建新的聚合时间戳。默认值为 _stop。

influx query 'from(bucket: "influxdb")
    |> range(start: 2022-01-01T14:00:00Z, stop: 2022-01-01T20:00:01Z)
    |> filter(fn: (r) => r._measurement == "home")
    |> filter(fn: (r) => r._field == "temp")
    |> aggregateWindow(every: 2h, fn: mean)
'

root@c2ecea1e4729:/# influx query 'from(bucket: "influxdb")
    |> range(start: 2022-01-01T14:00:00Z, stop: 2022-01-01T20:00:01Z)
    |> filter(fn: (r) => r._measurement == "home")
    |> filter(fn: (r) => r._field == "temp")
    |> aggregateWindow(every: 2h, fn: mean)
'
Result: _result
Table: keys: [_start, _stop, _field, _measurement, room]
                   _start:time                      _stop:time           _field:string     _measurement:string             room:string                      _time:time                  _value:float
------------------------------  ------------------------------  ----------------------  ----------------------  ----------------------  ------------------------------  ----------------------------
2022-01-01T14:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                    temp                    home                 Kitchen  2022-01-01T16:00:00.000000000Z                         22.75
2022-01-01T14:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                    temp                    home                 Kitchen  2022-01-01T18:00:00.000000000Z            22.549999999999997
2022-01-01T14:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                    temp                    home                 Kitchen  2022-01-01T20:00:00.000000000Z            23.200000000000003
2022-01-01T14:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                    temp                    home                 Kitchen  2022-01-01T20:00:01.000000000Z                          22.7
Table: keys: [_start, _stop, _field, _measurement, room]
                   _start:time                      _stop:time           _field:string     _measurement:string             room:string                      _time:time                  _value:float
------------------------------  ------------------------------  ----------------------  ----------------------  ----------------------  ------------------------------  ----------------------------
2022-01-01T14:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                    temp                    home             Living Room  2022-01-01T16:00:00.000000000Z                          22.3
2022-01-01T14:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                    temp                    home             Living Room  2022-01-01T18:00:00.000000000Z                          22.5
2022-01-01T14:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                    temp                    home             Living Room  2022-01-01T20:00:00.000000000Z                         22.65
2022-01-01T14:00:00.000000000Z  2022-01-01T20:00:01.000000000Z                    temp                    home             Living Room  2022-01-01T20:00:01.000000000Z                          22.2

Automate processing with InfluxDB tasks

InfluxDB tasks are scheduled queries that can perform any of the data processing operations described above. Generally tasks then use the to() function to write the processed result back to InfluxDB.

For more information about creating and configuring tasks, see Get started with InfluxDB tasks.

Go操作Influxdb2

完整代码

安装依赖

First, you need to create a new go module. Run the commands below in your terminal.

mkdir -p influxdb_go_client
cd influxdb_go_client
go mod init influxdb_go_client
touch main.go

go get github.com/influxdata/influxdb-client-go/v2

获取Token

InfluxDB Cloud使用令牌来验证API访问。我们已为此设置过程为您创建了一个全访问令牌。

LVbJ5lreeauQy8QpILuBoTrqArti8hTRtrQDSG4_xoQefYIPl9yqJFYBt03a2kO5GNgcgKU0diYIMnEnJCVsYg==

初始化客户端

package main

import influxdb2 "github.com/influxdata/influxdb-client-go/v2"

const (
	TOKEN = "LVbJ5lreeauQy8QpILuBoTrqArti8hTRtrQDSG4_xoQefYIPl9yqJFYBt03a2kO5GNgcgKU0diYIMnEnJCVsYg=="
	url = "http://127.0.0.1:8086"
)
func main() {
	client := influxdb2.NewClient(url, TOKEN)
	defer client.Close()
}

写入数据

func main() {
	client := influxdb2.NewClient(url, TOKEN)
	defer client.Close()
	org := "influxdb"
	bucket := "influxdb"
	writeAPI := client.WriteAPIBlocking(org, bucket)
	for value := 0; value < 5; value++ {
		tags := map[string]string{
			"tagname1": "tagvalue1",
		}
		fields := map[string]interface{}{
			"field1": value,
		}
		point := write.NewPoint("measurement1", tags, fields, time.Now())
		time.Sleep(1 * time.Second)

		if err := writeAPI.WritePoint(context.Background(), point); err != nil {
			log.Fatal(err)
		}
	}
}

执行简单查询

influx query 'from(bucket: "influxdb")
  |> range(start: -10m)
'

 	org := "influxdb"

 	queryAPI := client.QueryAPI(org)
 	query := `from(bucket: "influxdb")
             |> range(start: -10m)
             |> filter(fn: (r) => r._measurement == "measurement1")`
 	results, err := queryAPI.Query(context.Background(), query)
 	if err != nil {
 		log.Fatal(err)
 	}
 	for results.Next() {
 		fmt.Println(results.Record())
 	}
 	if err := results.Err(); err != nil {
 		log.Fatal(err)
 	}

执行汇总查询

	org := "influxdb"
	queryAPI := client.QueryAPI(org)
	query := `from(bucket: "influxdb")
              |> range(start: -10m)
              |> filter(fn: (r) => r._measurement == "measurement1")
              |> mean()`
	results, err := queryAPI.Query(context.Background(), query)
	if err != nil {
		log.Fatal(err)
	}
	for results.Next() {
		fmt.Println(results.Record())
	}

	if err := results.Err(); err != nil {
		log.Fatal(err)
	}

Node操作Influxdb2

完整代码

安装依赖

First, you need to create a new go module. Run the commands below in your terminal.

mkdir -p influxdb_node_client
cd influxdb_go_client

npm install --save @influxdata/influxdb-client

获取Token

InfluxDB Cloud使用令牌来验证API访问。我们已为此设置过程为您创建了一个全访问令牌。

LVbJ5lreeauQy8QpILuBoTrqArti8hTRtrQDSG4_xoQefYIPl9yqJFYBt03a2kO5GNgcgKU0diYIMnEnJCVsYg==

初始化客户端

OPC实时数据发布到MQTT及存储InfluxDB时序数据库
04-01
在本项目中，“OPC实时数据发布到MQTT及存储InfluxDB时序数据库”描述了一个集成系统，该系统首先使用C#和WinForm开发，通过OPC_DA接口与自动化设备通信，获取实时生产数据。C#是一种广泛使用的面向对象的编程语言，...
Python的InfluxDB时序数据库读写代码
04-18
Python的InfluxDB时序数据库是一个专为时间序列数据设计的高性能、开源数据库。InfluxDB 2.0及以上版本提供了更加丰富的功能和优化的性能，使得它在监控、物联网(IoT)、日志分析等领域广泛应用。在这个场景中，我们...
InfluxDB时序数据库
m0_52647839的博客
04-25 945
influxdb是一个时序数据库，应用于物联网领域，用于存储时序数据。 InfluxDB Time Series Data Platform | InfluxData 启动后浏览器输入http://localhost:8086, 进入管理界面，第一次会让注册用户名及密码influxDB 的数据格式主要采用 行协议（Line Protocol），这是一种高效的文本格式，专为时间序列数据设计 行协议（Line Protocol）基本结构 Measurement（测量名称） 描述数据的类别（如 cp
InfluxDB时序数据库基本使用介绍
JAVA入门中
07-01 4265
InfluxDB就是一种时序数据库，除此之外目前业界流行的时序数据库还有Kdb、TDengine、Prometheus（本身内置了一个时序数据库）、Victoriametrics（另一个推荐的时序数据库）。InfluxDB由InfluxData公司开发，使用Go编程语言编写，适用于存储和检索操作监控、应用指标、物联网传感器数据和实时分析等领域的时间序列数据。它的数据模型基于时间序列，其中时间戳作为索引，不支持对过去数据的修改，因此特别适合。
influxdb时序数据库常用命令
醉古意的博客
07-10 1078
influxdb时序数据库常用命令
InfluxDB时序数据库-笔记
weixin_44860598的博客
12-11 1651
本笔记由在Bilibili学习的尚硅谷教学视频后整理得来。
InfluxDB 时序数据库基础介绍与使用
lenyan~的博客
08-16 731
InfluxDB 是一个功能强大且灵活的时序数据库，特别适合处理大规模的时序数据。介绍了 InfluxDB 的基本概念、安装配置、基本操作以及其高级功能。无论是在系统监控、物联网还是金融数据分析中，InfluxDB 都能够发挥其优势，帮助用户高效管理和分析时序数据。/ω＼)，支持一下。如果愿意的话关注一下。会对你有更多的帮助。每天都会不定时更新哦 >人
InfluxDB时序数据库笔记（一）
sinat_34806137的博客
11-17 1346
主要记录学习InfluxDB时序数据库时的部分关键知识点
(阿里云)influxdb时序数据库数据迁移
weixin_62477656的博客
05-15 577
(需提供源库信息并且只能进行全量同步不能只同步表结构)1.单击实例管理操作。
InfluxDB时序数据库安装和使用
ZHUSHANGLIN的博客
09-15 885
InfluxDB时序数据库
influxDB时序数据库的使用
kuokay的博客
04-27 991
简介 时序数据库 时序数据库全称为时间序列数据库。时间序列数据库主要用于指处理带时间标签（按照时间的顺序变化，即时间序列化）的数据，带时间标签的数据也称为时间序列数据。 时间序列数据主要由电力行业、化工行业等各类型实时监测、检查与分析设备所采集、产生的数据，这些工业数据的典型特点是：产生频率快（每一个监测点一秒钟内可产生多条数据）、严重依赖于采集时间（每一条数据均要求对应唯一的时间）、测点多信息量大（常规的实时监测系统均有成千上万的监测点，监测点每秒钟都产生数据，每天产生几十GB的数据量）。 什么是Infl
C#连接Influxdb时序数据库
一个老鸟的学习之路
10-24 1146
C# 连接Influxdb时序数据库的方法总结，其中包括初始化，连接，读取，写入等方法。/// InfluxDB辅助器。#region 属性。
windows influxdb时序数据库
03-23
总结来说，Windows上的InfluxDB是一个强大的时序数据库解决方案，它简化了时序数据的管理和分析，适用于各种实时监控和大数据场景。通过熟练掌握InfluxDB的使用，可以有效地管理和利用时间序列数据，为企业或项目...
influxDB时序数据库所需jar包
11-13
InfluxDB是一款高性能、专为时间序列数据设计的开源数据库，尤其适合监控、日志、IoT等场景。在Java项目中集成InfluxDB，通常需要依赖相关的jar包来实现与数据库的交互。本资源提供了在Java环境中使用InfluxDB所需的...
ASP.NET Core2读写InfluxDB时序数据库的方法教程
10-17
Influxdb是一个开源的分布式时序、时间和指标数据库，使用go语言编写，无需外部依赖，下面这篇文章主要给大家介绍了关于ASP.NET Core2读写InfluxDB时序数据库的相关资料，需要的朋友可以参考下
golang 柯里化（Currying）
最新发布
唐顺才的博客
05-28 127
使用场景：参数在语义上属于不同组，Go 语法无法在单次调用中声明多组可变参数，通过柯里化可以实现分步接收参数。有的参数是在不同时间段产生，使用Currying可以让函数记住（缓存）参数，避免应用代码去手工管理缓存的参数。
Go语言--语法基础5--基本数据类型--循环语句
m0_64734557的博客
05-25 394
语言允许用户在循环内使用循环。在数组和切片中它返回元素的索引值，在集合中返回。循环是一个循环控制结构，可以执行指定次数的循环。： 关系表达式或逻辑表达式，循环控制条件；： 一般为赋值表达式，给控制变量增量或减量。： 一般为赋值表达式，给控制变量赋初值；和 C 的 for(;只使用了一个值，则该值是下表中的第一个值。种形式，只有其中的一种使用分号。是否满足给定条件，若其值为真，执。对于映射，它返回下一个键值对的键。返回一个值或两个值。循环，执行循环体外语句。，进入第二次循环，再判别。
go 基础语法 【教程 go tour】
qq_26245471的博客
05-23 1224
本文介绍了Go语言的基础语法，包括包、变量、函数、流程控制、结构体、切片和映射等内容。在变量部分，Go语言支持隐式声明和显式声明，未初始化的变量会被赋予零值。短赋值语句:=可以在函数内使用，但不能在函数外使用。Go的基本类型包括布尔型、字符串、整数、浮点数和复数等。常量使用const关键字声明，不能用:=语法。流程控制部分介绍了for循环、if条件语句、switch分支和defer推迟执行。for循环可以省略初始化语句和后置语句，if语句可以在条件表达式前执行简短语句，switch分支无需为常量且取值不限于
评论
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包

打赏作者

太阳上的雨天

你的鼓励将是我创作的最大动力

¥1 ¥2 ¥4 ¥6 ¥10 ¥20
扫码支付：¥1
获取中
扫码支付

您的余额不足，请更换扫码支付或充值

打赏作者

实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
