所有想法，代码，方法参考网络
参考链接: HTML5 SVG 刻度线/圆形拼盘.
实现的非常简陋。

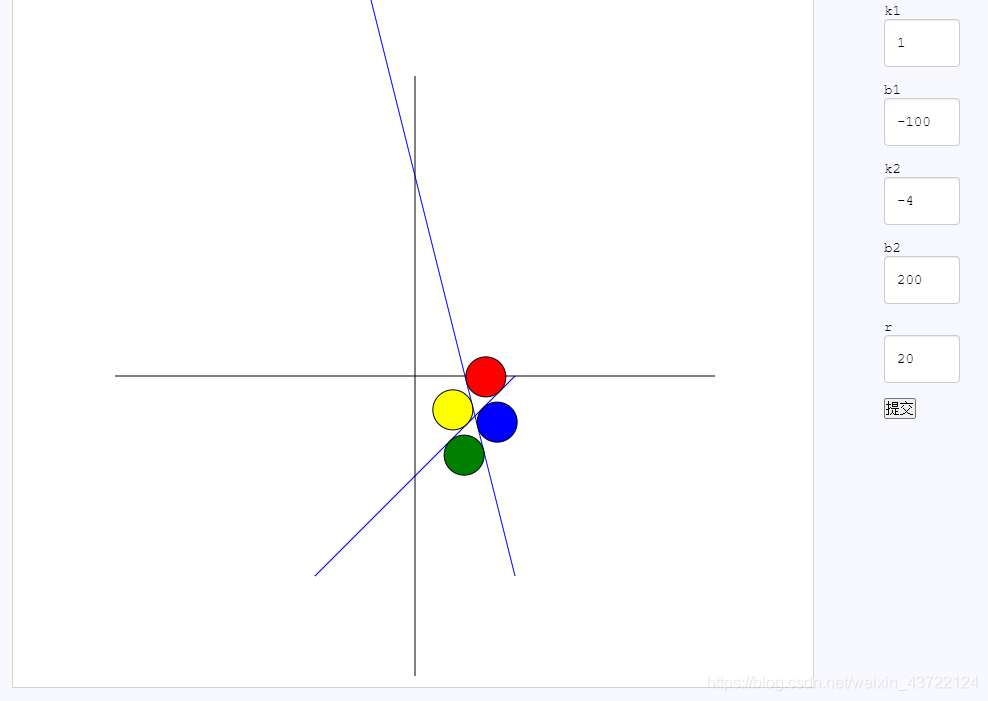

效果图：
知识补充：
-
document.querySelector("#demo");获取文档中 id=“demo” 的元素
-
parseInt()函数可解析一个字符串，并返回一个整数。
-
window.getComputedStyle()方法返回一个对象，该对象在应用活动样式表并解析这些值可能包含的任何基本计算后，报告元素的所有CSS属性的值。
Element.setAttribute方法用于为当前元素节点新增属性。如果同名属性已存在，则相当于编辑已存在的属性。
document.querySelectorAll方法与querySelector用法类似，区别是返回一个NodeList对象，包含所有匹配给定选择器的节点。 -
var element = document.createElementNS(namespaceURI, qualifiedName[,
options]); 一个字符串，指定命名空间URI与元素关联。namespaceURI创建的元素的属性使用namespaceURI的值进行初始化 。
qualifiedName指定要创建的元素类型的字符串，nodeName为所创建元素的属性被初始化为qualifiedName 的值。 -
appendChild() 方法可向节点的子节点列表的末尾添加新的子节点。
-
innerHTML 属性设置或返回表格行的开始和结束标签之间的 HTML。
1.html
<!DOCTYPE html>
<html>
<head>
<meta charset="utf-8" />
<title></title>
<link type="text/css" rel="stylesheet" href="style.css" />
<style type="text/css">
.box {
position: fixed;
width: 50px;
height: 250px;
right: 430px;
}
.form-group {
margin-bottom: 15px
}
.form-control {
display: block;
width: 100%;
height: 34px;
padding: 6px 12px;
font-size: 14px;
line-height: 1.42857143;
color: #555;
background-color: #fff;
background-image: none;
border: 1px solid #ccc;
border-radius: 4px;
-webkit-box-shadow: inset 0 1px 1px rgba(0, 0, 0, .075);
box-shadow: inset 0 1px 1px rgba(0, 0, 0, .075);
-webkit-transition: border-color ease-in-out .15s, box-shadow ease-in-out .15s;
-o-transition: border-color ease-in-out .15s, box-shadow ease-in-out .15s;
-webkit-transition: border-color ease-in-out .15s, -webkit-box-shadow ease-in-out .15s;
transition: border-color ease-in-out .15s, -webkit-box-shadow ease-in-out .15s;
transition: border-color ease-in-out .15s, box-shadow ease-in-out .15s;
transition: border-color ease-in-out .15s, box-shadow ease-in-out .15s, -webkit-box-shadow ease-in-out .15s
}
</style>
</head>
<body>
<!--数据部分-->
<div class="box">
<div class="form-group">
<label for="">k1</label>
<input type="text" class="form-control" name="k1" style="color:black;">
</div>
<div class="form-group">
<label for="">b1</label>
<input type="text" class="form-control" name="b1" style="color:black;">
</div>
<div class="form-group">
<label for="">k2</label>
<input type="text" class="form-control" name="k2" style="color:black;">
</div>
<div class="form-group">
<label for="">b2</label>
<input type="text" class="form-control" name="b2" style="color:black;">
</div>
<div class="form-group">
<label for="">r</label>
<input type="text" class="form-control" name="r" style="color:black;">
</div>
<button onclick="f()">提交</button><!--触发-->
</div>
<!--画图-->
<pre><svg width="<span id="preW"></span>" height="<span id="preH"></span>" viewBox="<span id="preFromX"> </span> <span id="preFromY"> </span> <span id="preToX"></span> <span id="preToY"></span>" preserveAspectRatio="<span id="preAR">xMaxYMax</span>" ></svg></pre>
<svg width="800" height="800" transform="scale(1,-1)"></svg><!-- 要转一下才能对于现实直角坐标的方向-->
<!--控制svg-->
<form>
<fieldset>

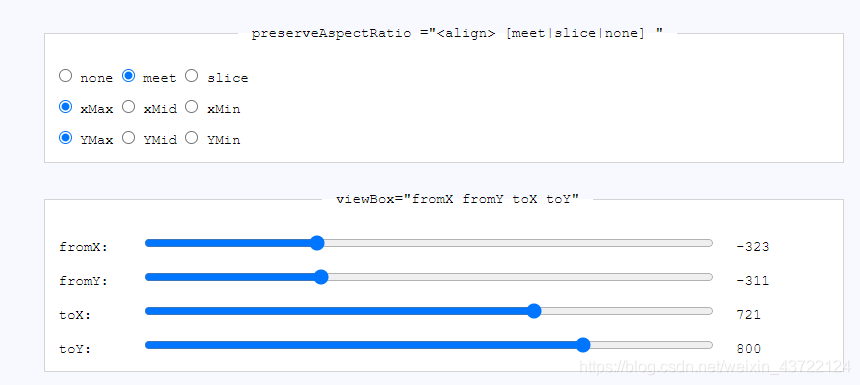

<legend>preserveAspectRatio ="<align> [meet|slice|none] "</legend>
<p id="msn">
<input type="radio" name="msn" value="none" checked> none
<input type="radio" name="msn" value="meet"> meet
<input type="radio" name="msn" value="slice"> slice
</p>
<p id="xctrl">
<input type="radio" name="xctrl" value="xMax" checked> <em>xMax</em>
<input type="radio" name="xctrl" value="xMid"> <em>xMid</em>
<input type="radio" name="xctrl" value="xMin"> <em>xMin</em>
</p>
<p id="yctrl">
<input type="radio" name="yctrl" value="YMax" checked> <em>YMax</em>
<input type="radio" name="yctrl" value="YMid"> <em>YMid</em>
<input type="radio" name="yctrl" value="YMin"> <em>YMin</em>
</p>
</fieldset>
<fieldset>
<legend>viewBox="fromX fromY toX toY"</legend>
<p>
<label>fromX: </label>
<input type="range" id="fromX"> <span id="spanFromX"></span>
</p>
<p>
<label>fromY: </label>
<input type="range" id="fromY"> <span id="spanFromY"></span>
</p>
<p>
<label>toX: </label>
<input type="range" min="100" max="1000" value="600" id="toX"> <span id="spanToX"></span>
</p>
<p>
<label>toY: </label>
<input type="range" min="100" max="1000" value="350" id="toY"> <span id="spanToY"></span>
</p>
</fieldset>
</form>
<script type="text/javascript" src="1.js"></script>
</body>
</html>
1.js
var svgCanvas = document.querySelector("svg");
var svgW = parseInt(window.getComputedStyle(svgCanvas, null).getPropertyValue("width")); //console.log(svgW)
var svgH = parseInt(window.getComputedStyle(svgCanvas, null).getPropertyValue("height")); //console.log(svgH)
document.querySelector("form").style.width = svgW + "px";
document.querySelector("#toX").value = svgW;
document.querySelector("#toY").value = svgH;
document.querySelector("#preW").innerHTML = svgW;
document.querySelector("#preH").innerHTML = svgH;
var preToX = document.querySelector("#preToX");
var preToY = document.querySelector("#preToY");
var preFromX = document.querySelector("#preFromX");
var preFromY = document.querySelector("#preFromY");
var preAR = document.querySelector("#preAR");
var spanFromX = document.querySelector("#spanFromX");
var spanFromY = document.querySelector("#spanFromY");
var spanToX = document.querySelector("#spanToX");
var spanToY = document.querySelector("#spanToY");
var inputFromX = document.querySelector("#fromX");
var inputFromY = document.querySelector("#fromY");
inputFromX.setAttribute("min", -svgW);
inputFromX.setAttribute("max", svgW);
inputFromX.setAttribute("value", -300);
inputFromY.setAttribute("min", -svgH);
inputFromY.setAttribute("max", svgH);
inputFromY.setAttribute("value", -140);
var inputToX = document.querySelector("#toX");
var inputToY = document.querySelector("#toY");
var radioXctrl = document.querySelectorAll("input[name='xctrl']");
var radioYctrl = document.querySelectorAll("input[name='yctrl']");
// svg动态画图
function f() {
try {
// 画一次清空一次
clearRect();
// 获得数据
let k1 = document.getElementsByName('k1')[0];
let b1 = document.getElementsByName('b1')[0];
let k2 = document.getElementsByName('k2')[0];
let b2 = document.getElementsByName('b2')[0];
let r = document.getElementsByName('r')[0];
// 计算圆心位置
var p0y = 100 * Number(k1.value) + Number(b1.value);
var p1y = Number(b1.value) - 100 * Number(k1.value);
var p2y = 100 * Number(k2.value) + Number(b2.value);
var p3y = Number(b2.value) - 100 * Number(k2.value);
var d1 = Math.pow(Math.pow(Number(r.value), 2) + Math.pow(Number(r.value) * Number(k1.value), 2), 0.5);
var d2 = Math.pow(Math.pow(Number(r.value), 2) + Math.pow(Number(r.value) * Number(k2.value), 2), 0.5);
var dx = (Number(b1.value) + d1 - Number(b2.value) - d2) / (Number(k2.value) - Number(k1.value));
var dy = Number(k1.value) * dx + Number(b1.value) + d1;
var dx1 = (Number(b1.value) + d1 - Number(b2.value) + d2) / (Number(k2.value) - Number(k1.value));
var dy1 = Number(k1.value) * dx1 + Number(b1.value) + d1;
var dx2 = (Number(b1.value) - d1 - Number(b2.value) - d2) / (Number(k2.value) - Number(k1.value));
var dy2 = Number(k1.value) * dx2 + Number(b1.value) - d1;
var dx3 = (Number(b1.value) - d1 - Number(b2.value) + d2) / (Number(k2.value) - Number(k1.value));
var dy3 = Number(k1.value) * dx3 + Number(b1.value) - d1;
// svg画图
var newLine = document.createElementNS("http:\/\/www.w3.org/2000/svg", "line");
newLine.setAttributeNS(null, "x1", 100);
newLine.setAttributeNS(null, "y1", p0y);
newLine.setAttributeNS(null, "x2", -100);
newLine.setAttributeNS(null, "y2", p1y);
newLine.setAttributeNS(null, "stroke", "rgb(0, 0, 255)");
newLine.setAttributeNS(null, "stroke-width", "1");
svgCanvas.appendChild(newLine);
var newLine = document.createElementNS("http:\/\/www.w3.org/2000/svg", "line");
newLine.setAttributeNS(null, "x1", 100);
newLine.setAttributeNS(null, "y1", p2y);
newLine.setAttributeNS(null, "x2", -100);
newLine.setAttributeNS(null, "y2", p3y);
newLine.setAttributeNS(null, "stroke", "rgb(0, 0, 255)");
newLine.setAttributeNS(null, "stroke-width", "1");
svgCanvas.appendChild(newLine);
var newLine = document.createElementNS("http:\/\/www.w3.org/2000/svg", "line");
newLine.setAttributeNS(null, "x1", 300);
newLine.setAttributeNS(null, "y1", 0);
newLine.setAttributeNS(null, "x2", -300);
newLine.setAttributeNS(null, "y2", 0);
newLine.setAttributeNS(null, "stroke", "rgb(0, 0, 3)");
newLine.setAttributeNS(null, "stroke-width", "1");
svgCanvas.appendChild(newLine);
var newLine = document.createElementNS("http:\/\/www.w3.org/2000/svg", "line");
newLine.setAttributeNS(null, "x1", 0);
newLine.setAttributeNS(null, "y1", 300);
newLine.setAttributeNS(null, "x2", 0);
newLine.setAttributeNS(null, "y2", -300);
newLine.setAttributeNS(null, "stroke", "rgb(0, 0, 3)");
newLine.setAttributeNS(null, "stroke-width", "1");
svgCanvas.appendChild(newLine);
var newcircle = document.createElementNS("http:\/\/www.w3.org/2000/svg", "circle");
newcircle.setAttributeNS(null, "cx", dx);
newcircle.setAttributeNS(null, "cy", dy);
newcircle.setAttributeNS(null, "r", Number(r.value));
newcircle.setAttributeNS(null, "fill", "red");
newcircle.setAttributeNS(null, "stroke", "rgb(0, 0, 3)");
newcircle.setAttributeNS(null, "stroke-width", "1");
svgCanvas.appendChild(newcircle);
var newcircle = document.createElementNS("http:\/\/www.w3.org/2000/svg", "circle");
newcircle.setAttributeNS(null, "cx", dx1);
newcircle.setAttributeNS(null, "cy", dy1);
newcircle.setAttributeNS(null, "r", Number(r.value));
newcircle.setAttributeNS(null, "fill", "yellow");
newcircle.setAttributeNS(null, "stroke", "rgb(0, 0, 3)");
newcircle.setAttributeNS(null, "stroke-width", "1");
svgCanvas.appendChild(newcircle);
var newcircle = document.createElementNS("http:\/\/www.w3.org/2000/svg", "circle");
newcircle.setAttributeNS(null, "cx", dx2);
newcircle.setAttributeNS(null, "cy", dy2);
newcircle.setAttributeNS(null, "r", Number(r.value));
newcircle.setAttributeNS(null, "fill", "blue");
newcircle.setAttributeNS(null, "stroke", "rgb(0, 0, 3)");
newcircle.setAttributeNS(null, "stroke-width", "1");
svgCanvas.appendChild(newcircle);
var newcircle = document.createElementNS("http:\/\/www.w3.org/2000/svg", "circle");
newcircle.setAttributeNS(null, "cx", dx3);
newcircle.setAttributeNS(null, "cy", dy3);
newcircle.setAttributeNS(null, "r", Number(r.value));
newcircle.setAttributeNS(null, "fill", "green");
newcircle.setAttributeNS(null, "stroke", "rgb(0, 0, 3)");
newcircle.setAttributeNS(null, "stroke-width", "1");
svgCanvas.appendChild(newcircle);
} catch (e) {
alert(e);
}
}
function clearRect() {
while (svgCanvas.firstChild) {
svgCanvas.removeChild(svgCanvas.firstChild);
}
}
// svg控制
function drawMarkers(e) {
console.log(inputFromX);
apX = document.querySelector('input[name="xctrl"]:checked').value;
apY = document.querySelector('input[name="yctrl"]:checked').value;
msn = document.querySelector('input[name="msn"]:checked').value;
// viewBox
if (e.type == "load") {
fromX = document.querySelector("#fromX").getAttribute("value");
fromY = document.querySelector("#fromY").getAttribute("value");
} else {
fromX = document.querySelector("#fromX").value;
fromY = document.querySelector("#fromY").value;
}
toX = document.querySelector("#toX").value;
toY = document.querySelector("#toY").value;
// preserveAspectRatio
if (msn == "none") {
alignParam = "none";
for (var i = 0; i < radioXctrl.length; i++) {
radioXctrl[i].disabled = true;
}
for (var j = 0; j < radioYctrl.length; j++) {
radioYctrl[j].disabled = true;
}
} else {
alignParam = apX + apY + " " + msn;
for (var i = 0; i < radioXctrl.length; i++) {
radioXctrl[i].disabled = false;
}
for (var j = 0; j < radioYctrl.length; j++) {
radioYctrl[j].disabled = false;
}
}
// <pre>
preFromX.innerHTML = fromX;
spanFromX.innerHTML = fromX;
preFromY.innerHTML = fromY;
spanFromY.innerHTML = fromY;
preToX.innerHTML = toX;
spanToX.innerHTML = toX;
preToY.innerHTML = toY;
spanToY.innerHTML = toY;
preAR.innerHTML = alignParam;
svgCanvas.setAttributeNS(null, "viewBox", fromX + " " + fromY + " " + toX + " " + toY);
svgCanvas.setAttributeNS(null, "preserveAspectRatio", alignParam);
}
// 监听动作
window.addEventListener("load", drawMarkers, false);
xctrl.addEventListener("change", drawMarkers, false);
yctrl.addEventListener("change", drawMarkers, false);
msn.addEventListener("change", drawMarkers, false);
inputFromX.addEventListener("input", drawMarkers, false);
inputFromY.addEventListener("input", drawMarkers, false);
inputToX.addEventListener("input", drawMarkers, false);
inputToY.addEventListener("input", drawMarkers, false);
style.css
* {
font-family: "Courier New", Courier, monospace;
font-size: 14px;
padding: 0;
margin: 0;
}
body {
background-color: GhostWhite;
}
p,
legend {
margin: 1em;
}
em {
font-style: normal;
}
svg {
border: 1px solid #d4d4d4;
display: block;
margin: 5em auto;
background-color: white;
}
pre {
background: black;
color: white;
padding: 1em;
margin: 0.5em;
text-align: center;
}
form {
margin: 1em auto;
}
fieldset {
margin: 2em 0;
border: 1px solid #d4d4d4;
background-color: white;
}
legend {
padding: 0 1em;
text-align: center;
}
label {
display: inline-block;
width: 10%;
}
[type='range'] {
width: 74%;
}
[type='radio']:disabled {
opacity: 0.2;
}
[type='radio']:disabled + em {
color: #d9d9d9;
}
form span {
display: inline-block;
width: 10%;
padding-left: 1em;
}
注意事项
链接: jquery 的 append 不适用于 svg 元素.
js文件不能有错，一点都不行。
理解参考网站：
链接: 图解SVG的核心概念
链接: SVG画布，坐标系统，视窗
拓展：
链接: 模板参考1
链接: 模板参考2
1590
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
