百度OCR识别使用教程（详细攻略）

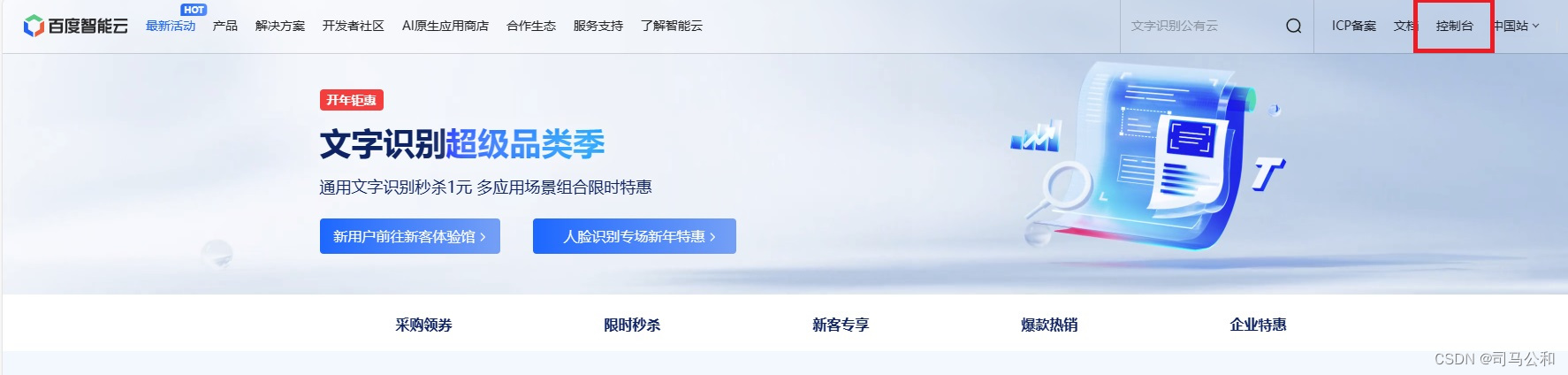

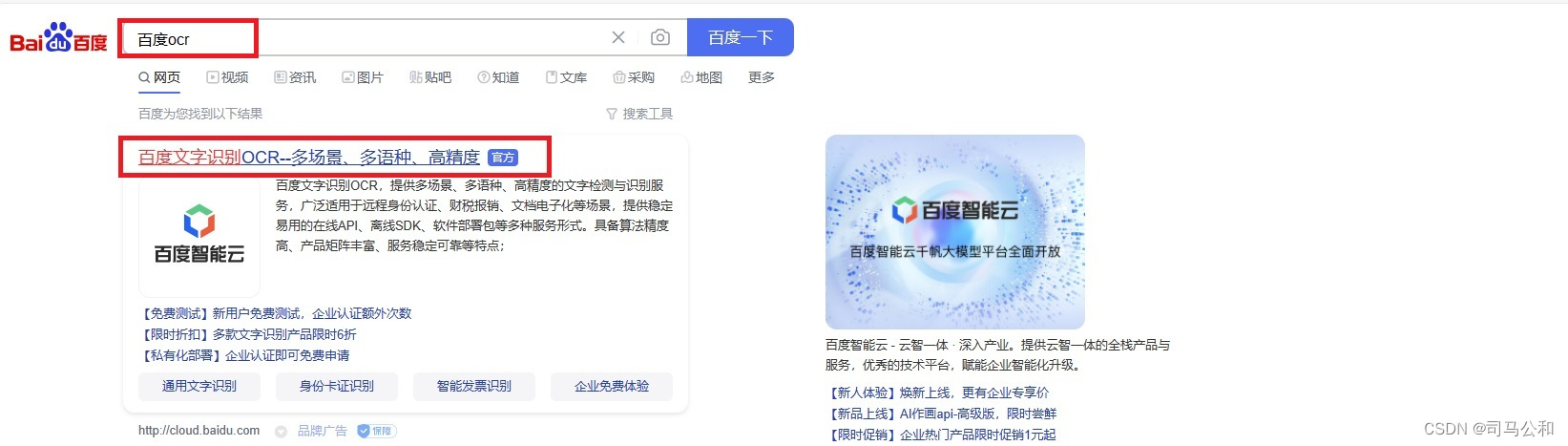

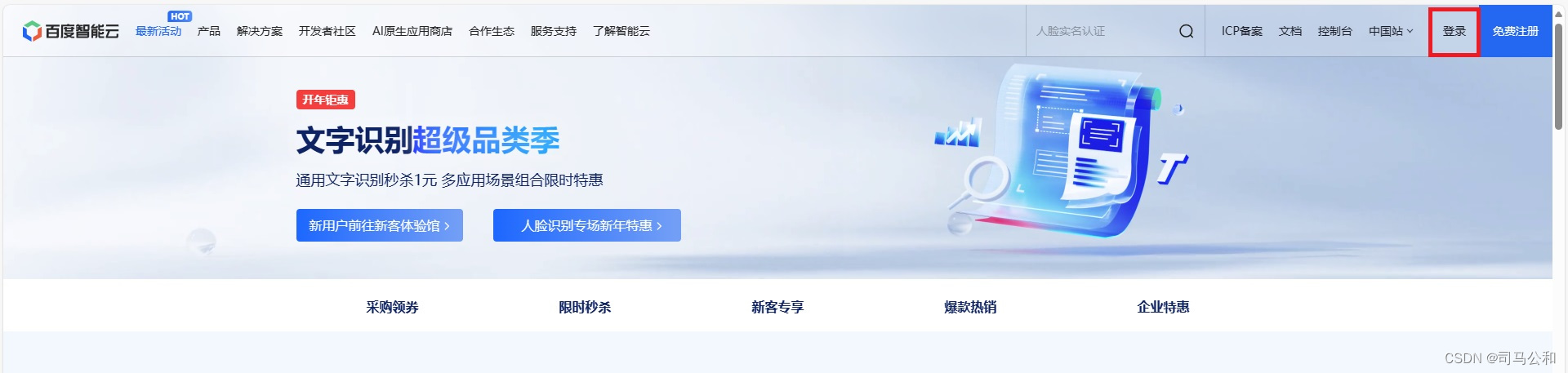

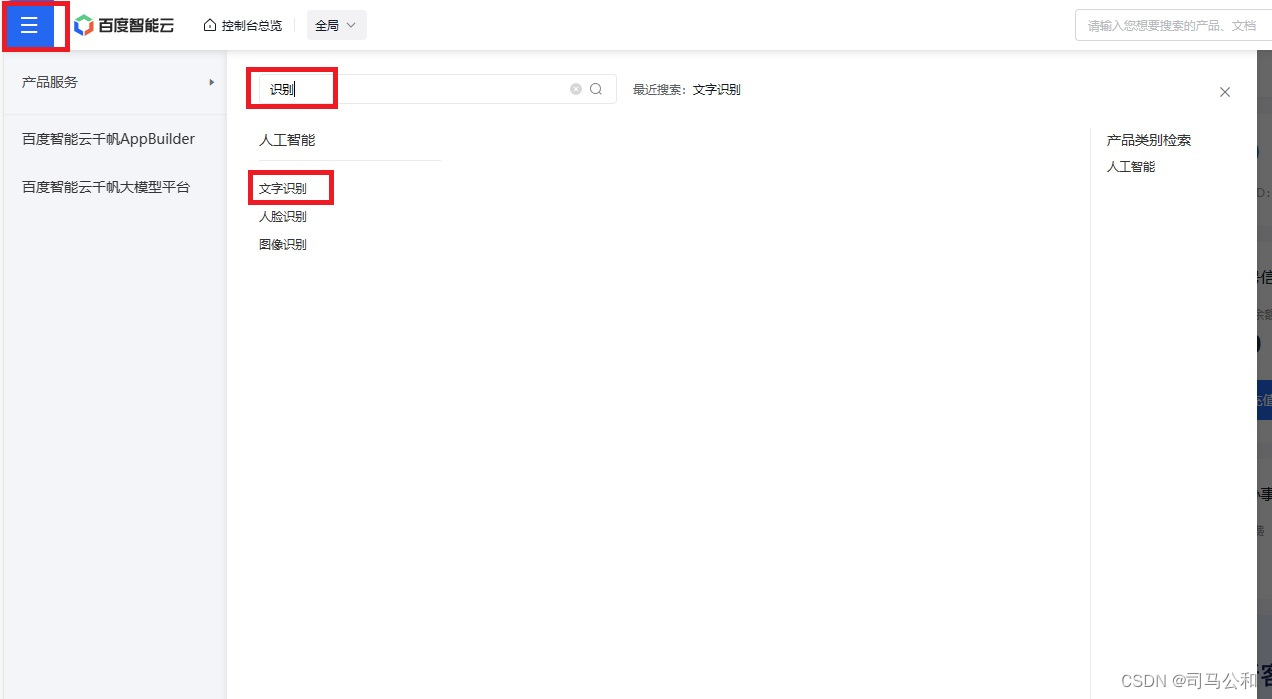

获取client_id和client_secret

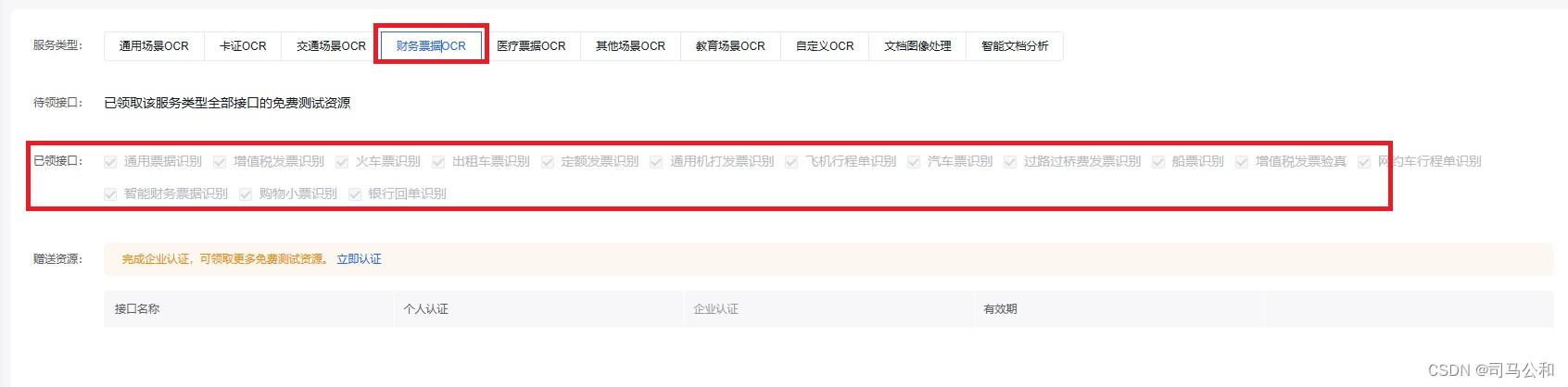

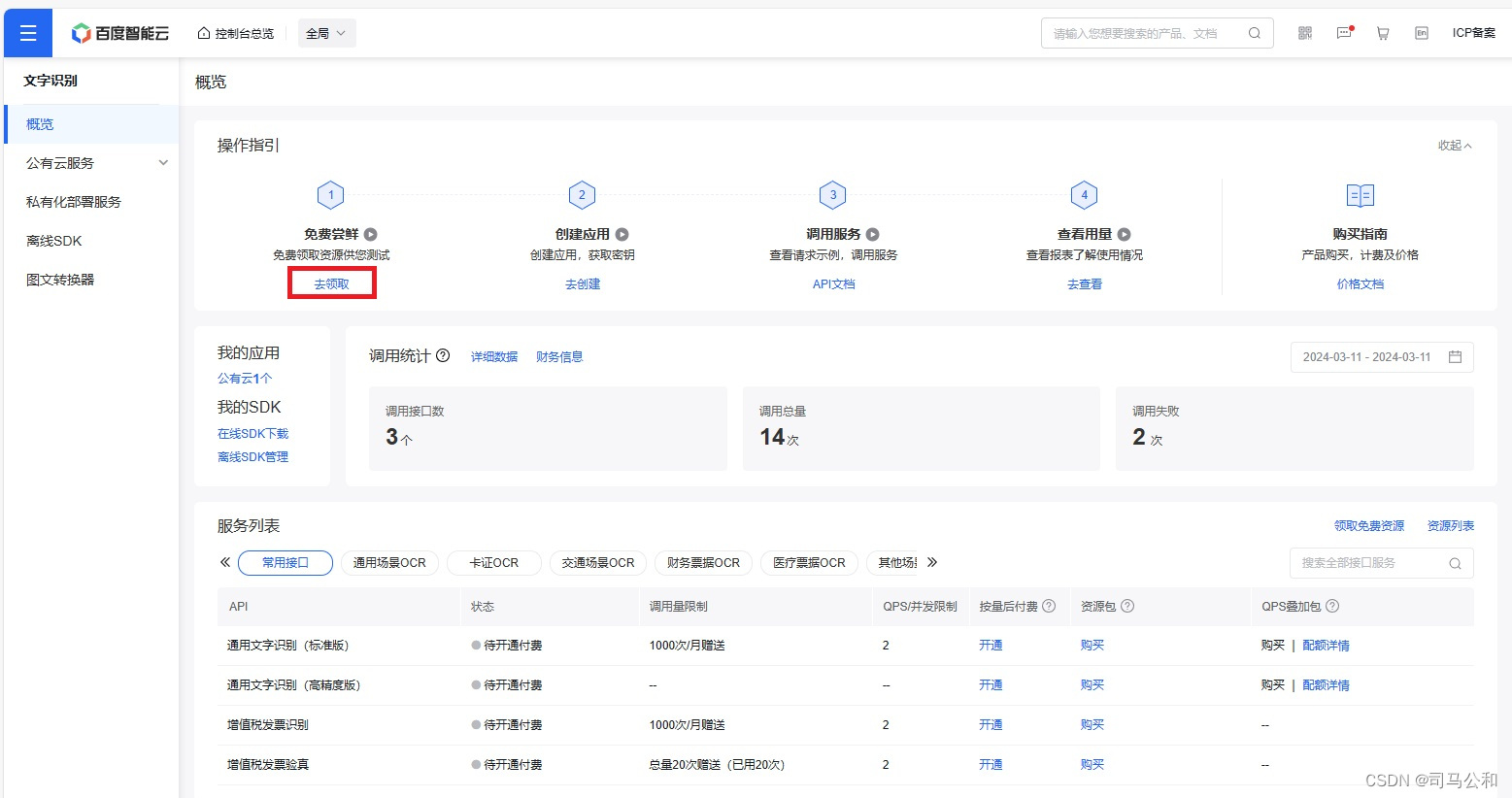

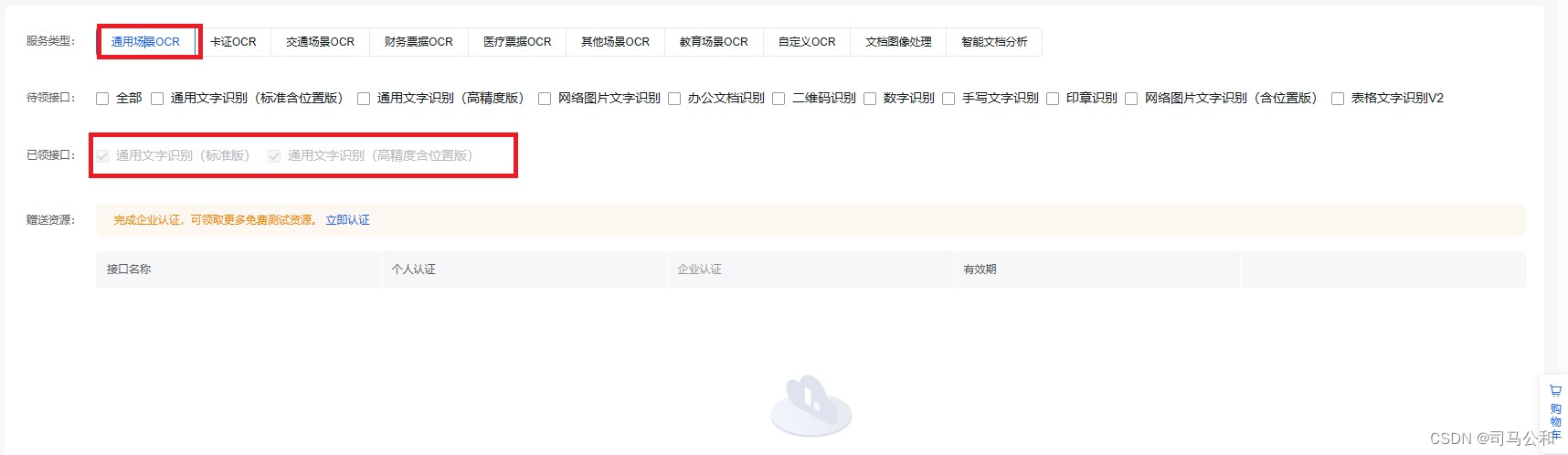

我已经领取过了，点击去领取根据后续指引领取

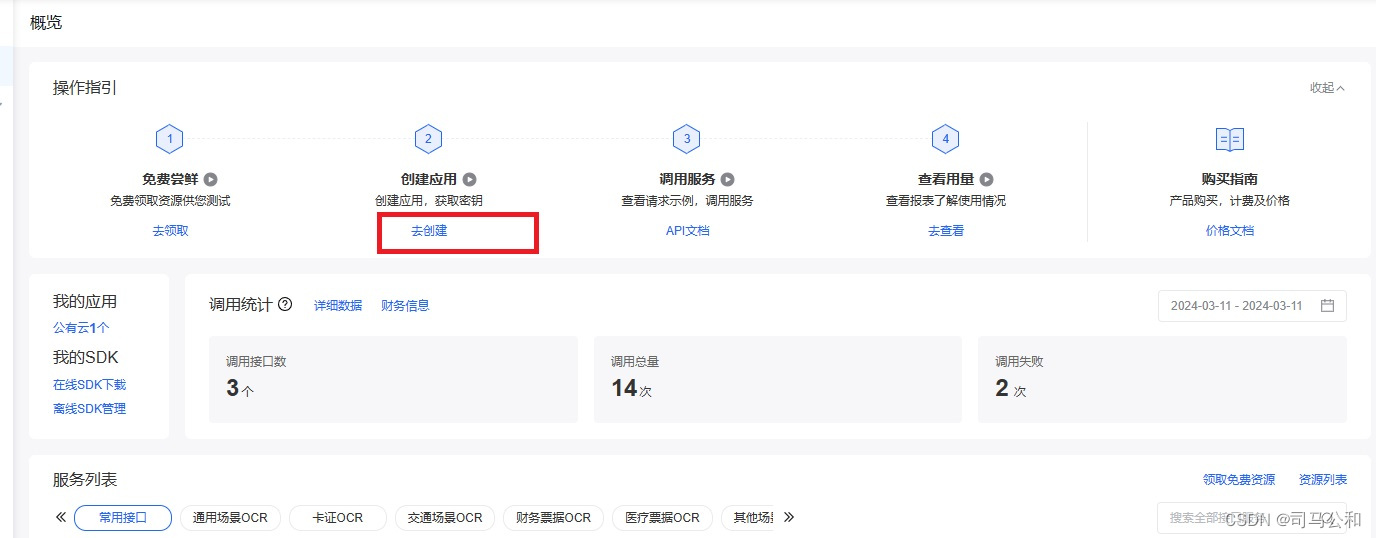

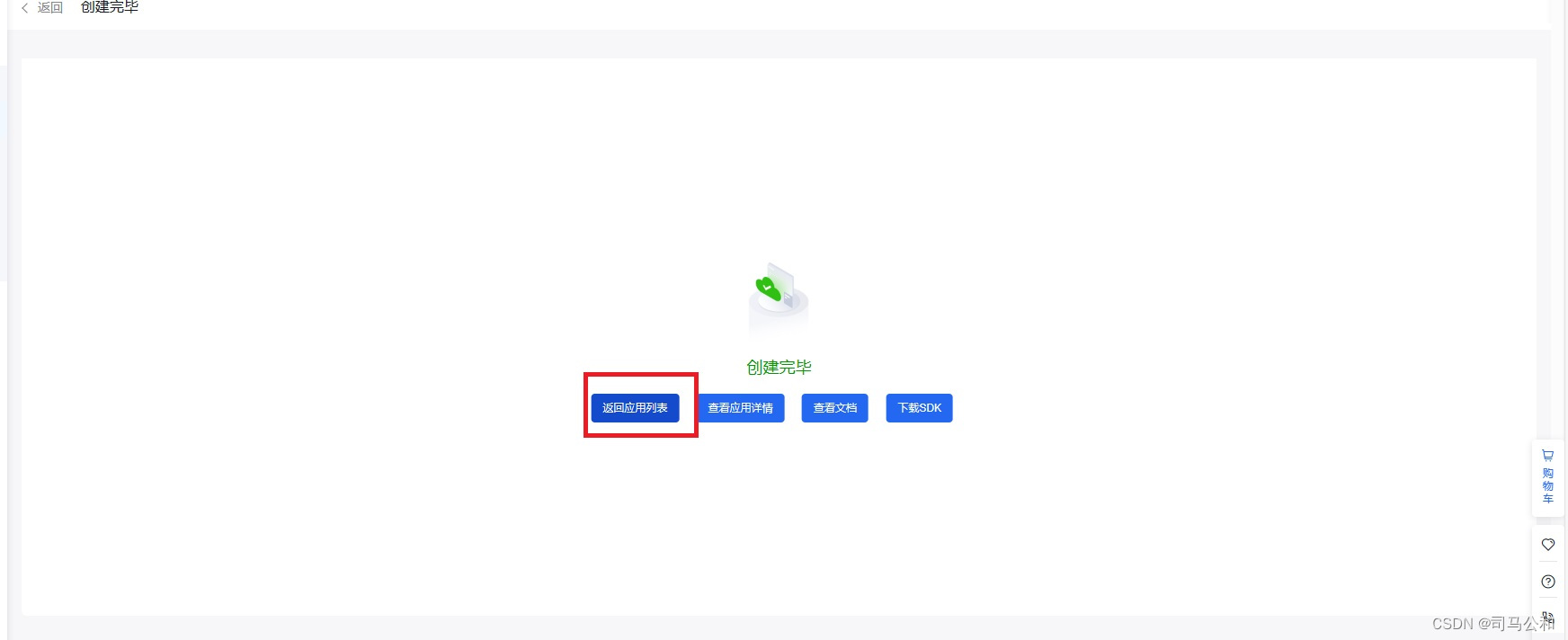

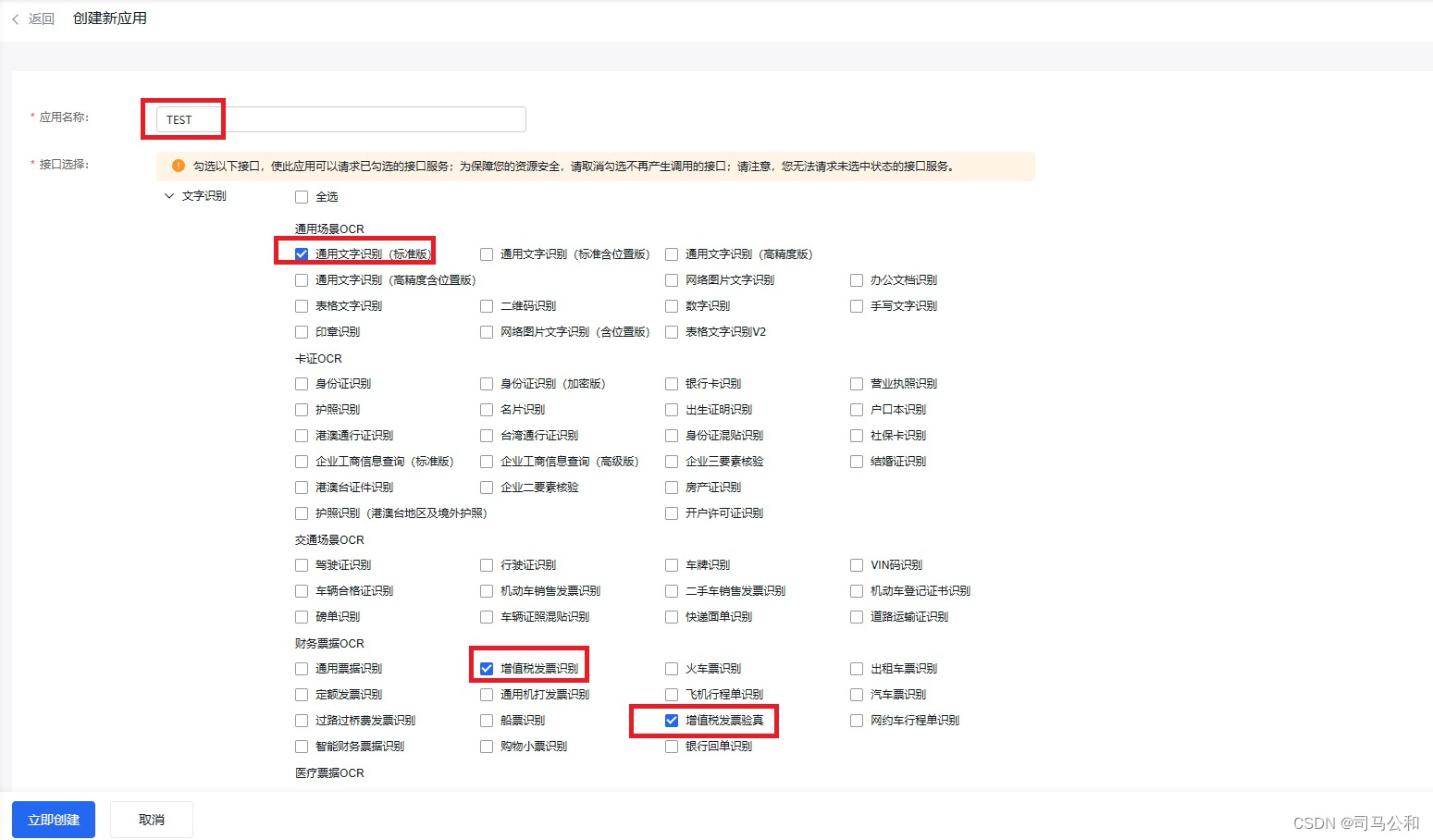

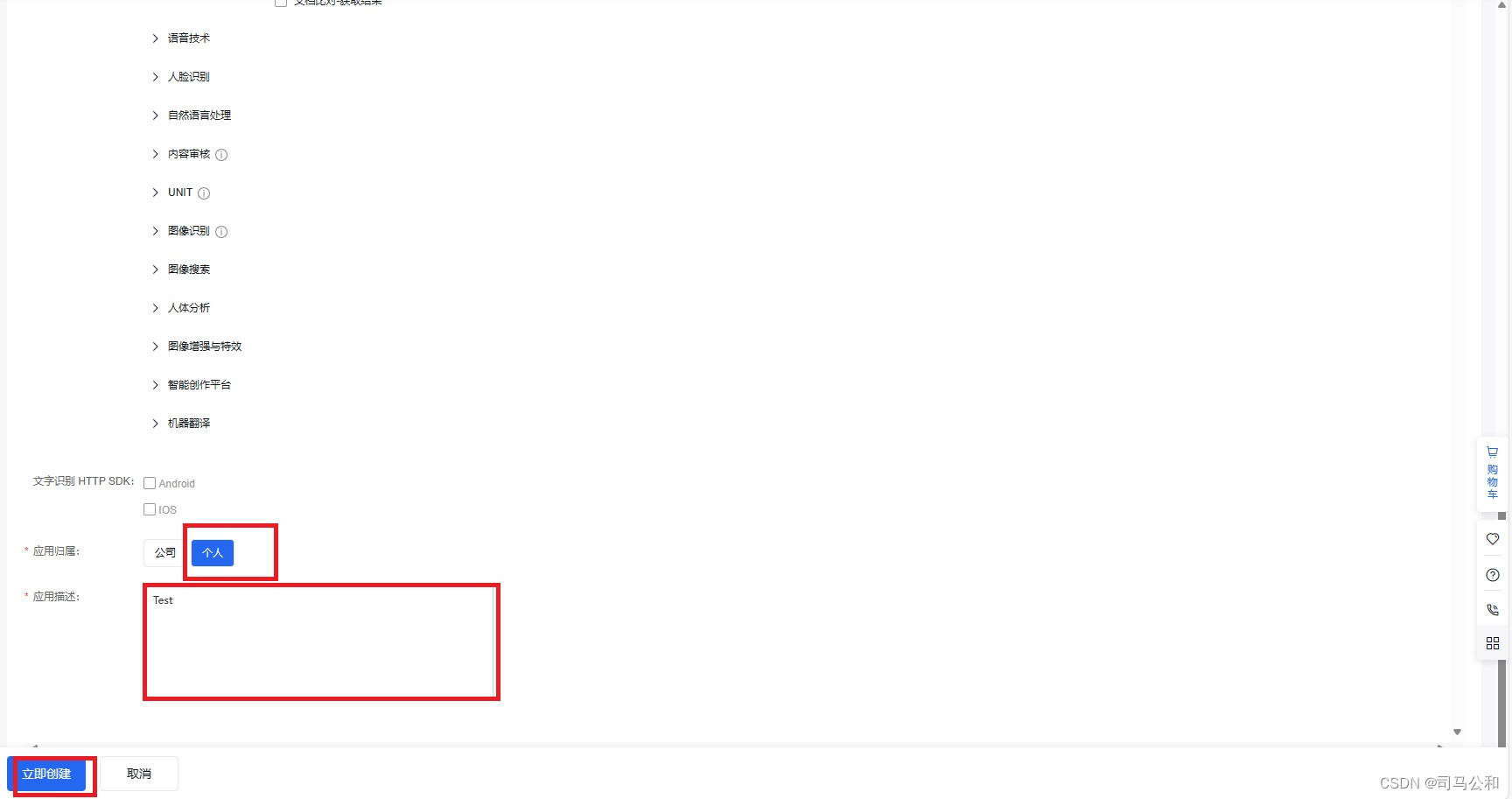

创建应用是要有通用文字识别（标准版）、增值税发票验真、增值税发票识别

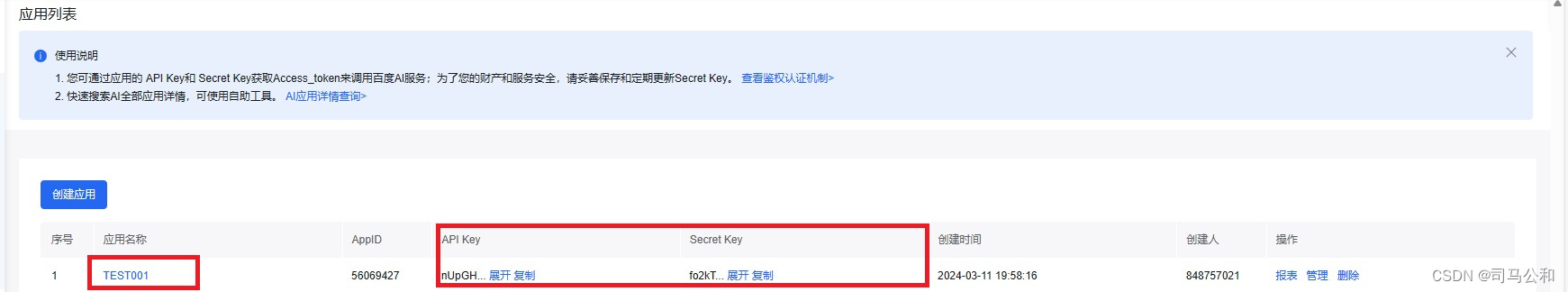

由于TEST应用已经存在所以我改名为TEST001，根据自己创建的名字找到对应的API Key和Secret Key

jar依赖

fastjson：格式化json字符串
log4j：日志输出
commons：集合操作工具类

<!--        fastjson-->
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>fastjson</artifactId>
            <version>1.2.28</version>
        </dependency>

<!--        log4j-->
        <dependency>
            <groupId>org.apache.logging.log4j</groupId>
            <artifactId>log4j-api</artifactId>
            <version>2.17.2</version>
        </dependency>

        <dependency>
            <groupId>org.apache.logging.log4j</groupId>
            <artifactId>log4j-core</artifactId>
            <version>2.17.2</version>
        </dependency>

        <!--tools-->
        <dependency>
            <groupId>commons-collections</groupId>
            <artifactId>commons-collections</artifactId>
            <version>3.2.2</version>
        </dependency>

        <dependency>
            <groupId>commons-codec</groupId>
            <artifactId>commons-codec</artifactId>
            <version>1.10</version>
        </dependency>

BaseImg64Util类

将图片转成字符串

import org.apache.logging.log4j.LogManager;
import org.apache.logging.log4j.Logger;

import java.io.FileInputStream;
import java.io.IOException;
import java.io.InputStream;
import java.net.URLEncoder;
import java.nio.charset.StandardCharsets;
import java.util.Base64;

public class BaseImg64Util {

    private static final Logger logger = LogManager.getLogger(BaseImg64Util.class);

    public static String getImageStrByPath(String imgPath)throws IOException {
        InputStream in = null;
        byte[] data = null;
        try {
            in = new FileInputStream(imgPath);
            data = new byte[in.available()];
            in.read(data);
        }catch (IOException e){
            logger.error("图片转Base64发生异常！", e);
            throw new RuntimeException(e);
        }finally {
            if (in != null){
                in.close();
            }
        }
        Base64.Encoder encoder = Base64.getEncoder();
        return URLEncoder.encode(encoder.encodeToString(data), StandardCharsets.UTF_8);
    }

    private BaseImg64Util() {
    }
}

CustomUtils类

实现逻辑包含：通用文字识别（标准版）、增值税发票识别、增值税发票验真、获取Token
注：搜索client_id=应用的API Key替换对应数据如：client_id=F1SJLiNolqAr
注：搜索client_secret=应用的Secret Key替换成对应数据如：client_secret=ayZYFnavTfYU
InvoiceDate：根据实际情况格式化：期望值格式为：20201011

import com.alibaba.fastjson.JSON;
import com.alibaba.fastjson.TypeReference;
import org.apache.commons.collections.MapUtils;
import org.apache.logging.log4j.LogManager;
import org.apache.logging.log4j.Logger;

import java.io.*;
import java.net.HttpURLConnection;
import java.net.URL;
import java.util.HashMap;
import java.util.Map;

public class CustomUtils {

    private static final Logger logger = LogManager.getLogger(CustomUtils.class);

    private final static String EQUAL_SIGN = "=";

    private final static String AND_SIGN = "&";


    public enum FieldEnum{
//        url
        AUTH_URL("AUTH_URL", "https://aip.baidubce.com/oauth/2.0/token?", "获取百度token"),
        GENERAL_BASIC("general_basic",  "https://aip.baidubce.com/rest/2.0/ocr/v1/general_basic?access_token=", "通用文字识别（标准版）"),
        VAT_INVOICE("vat_invoice",  "https://aip.baidubce.com/rest/2.0/ocr/v1/vat_invoice?access_token=", "增值税发票识别"),
        VAT_INVOICE_VERIFICATION("vat_invoice_verification",  "https://aip.baidubce.com/rest/2.0/ocr/v1/vat_invoice_verification?access_token=", "增值税发票验真"),
//        访问百度的参数
        GRANT_TYPE("grant_type", "grant_type=client_credentials", "必须参数，固定为client_credentials"),
        CLIENT_ID("client_id", "client_id=应用的API Key", "必须参数，应用的API Key"),
        CLIENT_SECRET("client_secret", "client_secret=应用的Secret Key", "必须参数，应用的Secret Key"),

        X_WWW_FORM_URLENCODED("Content-Type", "application/x-www-form-urlencoded", ""),
        CONTENT_TYPE_JSON("Content-Type", "application/json", ""),
        ACCEPT_JSON("Accept", "application/json", ""),
        IMAGE("image", "image", "image字段"),
        METHOD_GET("METHOD", "GET", "GET请求"),
        METHOD_POST("METHOD", "POST", "POST请求"),
        ACCESS_TOKEN("access_token", "", ""),
        ;
        private String key;
        private String val;
        private String note;

        public static void setAccessToken(String token){
            ACCESS_TOKEN.val = token;
        }

        FieldEnum(String key, String val, String note) {
            this.key = key;
            this.val = val;
            this.note = note;
        }

        public String getKey() {
            return key;
        }

        public String getVal() {
            return val;
        }

        public String getNote() {
            return note;
        }
    }

    /***
     * 工具类私有化禁止实例化
     * @author 司马公和
     * @date 2023/1/11 18:43
     * @param []
     * @return
     */
    private CustomUtils() {
    }

    /***
     * 发票验真
     * @author 司马公和
     * @date 2023/1/11 18:44
     * @param [params]
     * @return
     */
    public static Map<String, String> vatInvoiceVerification(Map<String, String> params) throws IOException {
        Map<String, String> result = new HashMap<>();
        if (MapUtils.isEmpty(params)){
            return result;
        }
        String checkCode = params.get("CheckCode");
        checkCode = checkCode.substring(checkCode.length() - 6);
        String param = "&invoice_code=" + params.get("InvoiceCode") + "&invoice_num=" + params.get("InvoiceNum") + "&invoice_date="
                + params.get("InvoiceDate").replaceAll("年", "").replaceAll("月", "").replaceAll("日", "")
                + "&check_code=" + checkCode + "&invoice_type=" + "elec_normal_invoice" + "&total_amount=" + params.get("TotalAmount");

        Map<String, String> map = new HashMap<>();
        map.put(FieldEnum.METHOD_POST.key, FieldEnum.METHOD_POST.val);
        map.put(FieldEnum.X_WWW_FORM_URLENCODED.key, FieldEnum.X_WWW_FORM_URLENCODED.val);
        map.put(FieldEnum.ACCEPT_JSON.key, FieldEnum.ACCEPT_JSON.val);
        String url = FieldEnum.VAT_INVOICE_VERIFICATION.val + FieldEnum.ACCESS_TOKEN.val + param;
        result = recognition(url, map);
        return result;
    }

    /***
     * 发票识别
     * @author 司马公和
     * @date 2023/1/11 18:45
     * @param [imagePath]
     * @return
     */
    public static Map<String, String> vatInvoice(String imagePath) throws IOException {
        Map<String, String> result = new HashMap<>();
        if (checkExists(imagePath)){
            return result;
        }
        String imageStr = BaseImg64Util.getImageStrByPath(imagePath);
        Map<String, String> params = new HashMap<>();
        params.put(FieldEnum.METHOD_POST.key, FieldEnum.METHOD_POST.val);
        params.put(FieldEnum.X_WWW_FORM_URLENCODED.key, FieldEnum.X_WWW_FORM_URLENCODED.val);
        params.put(FieldEnum.ACCEPT_JSON.key, FieldEnum.ACCEPT_JSON.val);
        params.put(FieldEnum.IMAGE.key, imageStr);
        String url = FieldEnum.VAT_INVOICE.val + FieldEnum.ACCESS_TOKEN.val;
        result = recognition(url, params);
        return JSON.parseObject(result.get("words_result"), new TypeReference<Map<String, String>>(){});
    }

    /***
     * 校验文件是否存在
     * @author 司马公和
     * @date 2023/1/11 18:45
     * @param [imagePath]
     * @return
     */
    public static boolean checkExists(String path){
        File file = new File(path);
        boolean bool = !file.exists();
        if (bool){
            logger.info("文件不存在！");
        }
        return bool;
    }

    /***
     * 图片文字识别
     * @author 司马公和
     * @date 2023/1/11 18:45
     * @param [imagePath]
     * @return
     */
    public static Map<String, String> generalBasic(String imagePath)throws IOException{
        Map<String, String> result = new HashMap<>();
        if (checkExists(imagePath)){
            return result;
        }
        String imageStr = BaseImg64Util.getImageStrByPath(imagePath);
        Map<String, String> params = new HashMap<>();
        params.put(FieldEnum.METHOD_POST.key, FieldEnum.METHOD_POST.val);
        params.put(FieldEnum.X_WWW_FORM_URLENCODED.key, FieldEnum.X_WWW_FORM_URLENCODED.val);
        params.put(FieldEnum.ACCEPT_JSON.key, FieldEnum.ACCEPT_JSON.val);
        params.put(FieldEnum.IMAGE.key, imageStr);
        String url = FieldEnum.GENERAL_BASIC.val + FieldEnum.ACCESS_TOKEN.val;
        result = recognition(url, params);
        return result;
    }

    /***
     * 获取Token
     * @author 司马公和
     * @date 2023/1/11 18:45
     * @param []
     * @return
     */
    public static Map<String, String> getToken(){
        Map<String, String> params = new HashMap<>();
        params.put(FieldEnum.METHOD_GET.key, FieldEnum.METHOD_GET.val);
        params.put(FieldEnum.X_WWW_FORM_URLENCODED.key, FieldEnum.CONTENT_TYPE_JSON.val);
        params.put(FieldEnum.ACCEPT_JSON.key, FieldEnum.ACCEPT_JSON.val);
        Map<String, String> result = recognition(getAccessTokenUrl(), params);
        FieldEnum.setAccessToken(result.get(FieldEnum.ACCESS_TOKEN.key));
        return result;
    }

    /***
     * 识别通用方法
     * @author 司马公和
     * @date 2023/1/11 18:46
     * @param [requestUrl, params]
     * @return
     */
    public static Map<String, String> recognition(String requestUrl, Map<String, String> params){
        HttpURLConnection connection = null;
        OutputStreamWriter writer = null;
        BufferedReader reader = null;
        StringBuilder builder = new StringBuilder();
        try {
            URL url = new URL(requestUrl);
            connection = (HttpURLConnection) url.openConnection();
            if (params.containsKey(FieldEnum.METHOD_POST.key)){
                connection.setRequestMethod(params.get(FieldEnum.METHOD_POST.key));
                params.remove(FieldEnum.METHOD_POST.key);
            }
            connection.setDoOutput(Boolean.TRUE);
            connection.setDoInput(Boolean.TRUE);
            connection.setUseCaches(Boolean.FALSE);
            if (params.containsKey(FieldEnum.CONTENT_TYPE_JSON.key)){
                connection.setRequestProperty("Content-Type", params.get(FieldEnum.CONTENT_TYPE_JSON.key));
                params.remove(FieldEnum.CONTENT_TYPE_JSON.key);
            }
            if (params.containsKey(FieldEnum.ACCEPT_JSON.key)){
                connection.setRequestProperty("Accept", params.get(FieldEnum.ACCEPT_JSON.key));
                params.remove(FieldEnum.ACCEPT_JSON.key);
            }
            if (MapUtils.isNotEmpty(params)){
                writer = new OutputStreamWriter(connection.getOutputStream());
                for (String key : params.keySet()) {
                    writer.write(key.concat(EQUAL_SIGN).concat(params.get(key)));
                }
                writer.flush();
            }
            if (connection.getResponseCode() == 200){
                reader = new BufferedReader(new InputStreamReader(connection.getInputStream()));
                String line = "";
                while ((line = reader.readLine()) != null){
                    builder.append(line);
                }
            }
        }catch (IOException e){
            logger.error("访问通用文字识别（标准版）异常！", e);
        }finally {
            try{
                if (writer != null){
                    writer.close();
                }
                if (reader != null){
                    reader.close();
                }
                if (connection != null){
                    connection.disconnect();
                }
            }catch (IOException e){
                logger.error("关闭连接失败！", e);
            }
        }
        Map<String, String> result = JSON.parseObject(builder.toString(), new TypeReference<Map<String, String>>(){});
        return result;
    }

    /***
     * 获取token连接
     * @author 司马公和
     * @date 2023/1/11 18:46
     * @param []
     * @return
     */
    public static String getAccessTokenUrl(){
        String accessTokenUrl = FieldEnum.AUTH_URL.val
                .concat(FieldEnum.GRANT_TYPE.val).concat(AND_SIGN)
                .concat(FieldEnum.CLIENT_ID.val).concat(AND_SIGN)
                .concat(FieldEnum.CLIENT_SECRET.val);
        return accessTokenUrl;
    }

}

测试类

import com.alibaba.fastjson.JSON;
import util.CustomUtils;

import java.util.Map;

public class Main {

    public static void main(String[] args) {
        try{
            String imagePath = "图片绝对地址";
//            获取Token 注：Token不需要每一次都获取，可进行缓存过期自动更新
            Map<String, String> token = CustomUtils.getToken();
            System.out.println("token：" + token);
//            通用文字识别（标准版）
            Map<String, String> map = CustomUtils.generalBasic(imagePath);
            System.out.println("通用文字识别（标准版）：" + JSON.toJSONString(map));
//            增值税发票识别
            map = CustomUtils.vatInvoice(imagePath);
            System.out.println("增值税发票识别：" + JSON.toJSONString(map));
//            增值税发票验真
            map = CustomUtils.vatInvoiceVerification(map);
            System.out.println("增值税发票验真：" + JSON.toJSONString(map));
        }catch (Exception e){
            System.out.println("异常！");
            e.printStackTrace();
        }
    }
}

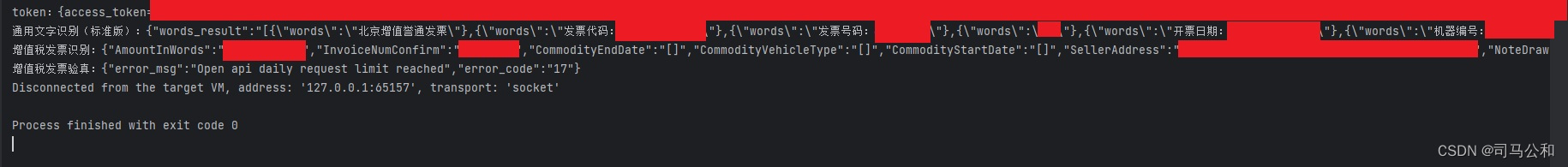

效果

注：由于验真次数已用完，无法获取详细信息，查验成功且发票为真VerifyMessage字段返回。“查验成功发票一致“
