USB Sync Interrupt(Read Mouse)

USB2.0 协议

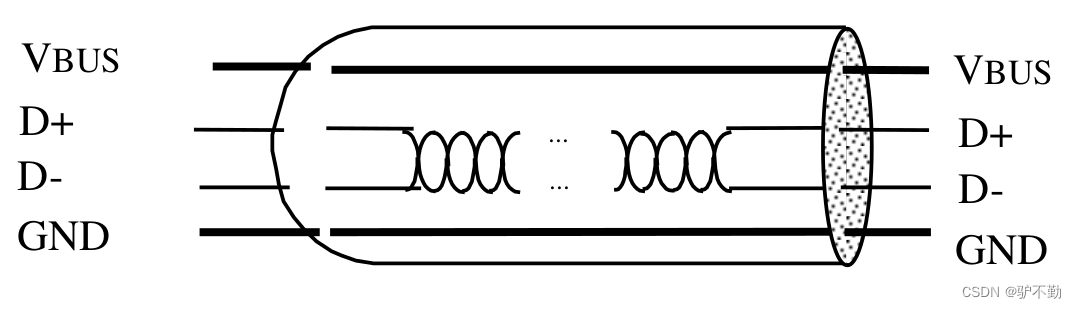

downstream: host, upstream: device

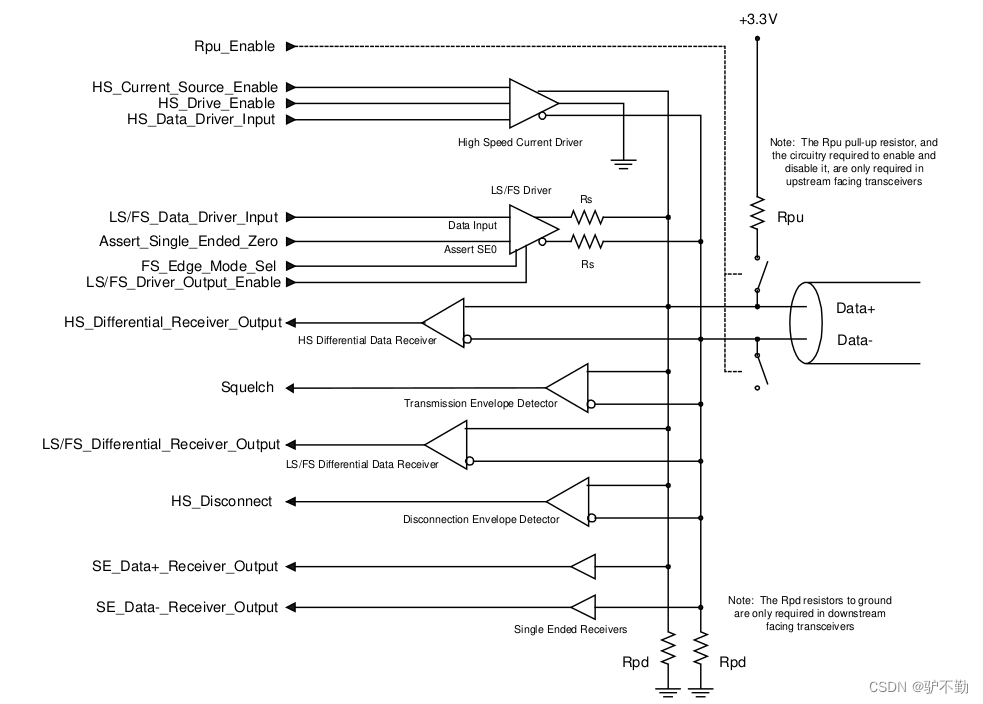

Pull-up Resistor (RPU): 1.5KΩ ±5%
Pull-down Resistor (RPD): 15 kΩ ±5%
Low-/full-speed Driver: 45 Ω ±10%

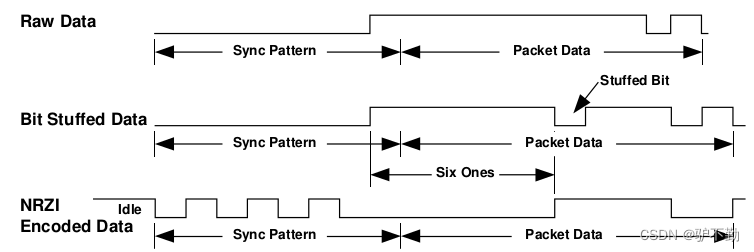

位填充

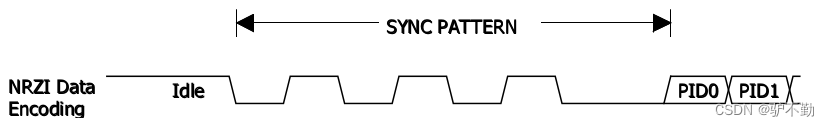

Sync Pattern Low-full-speed

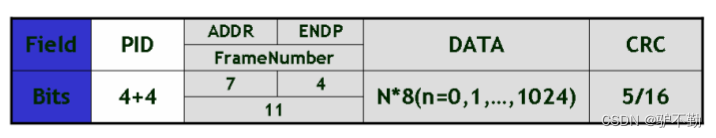

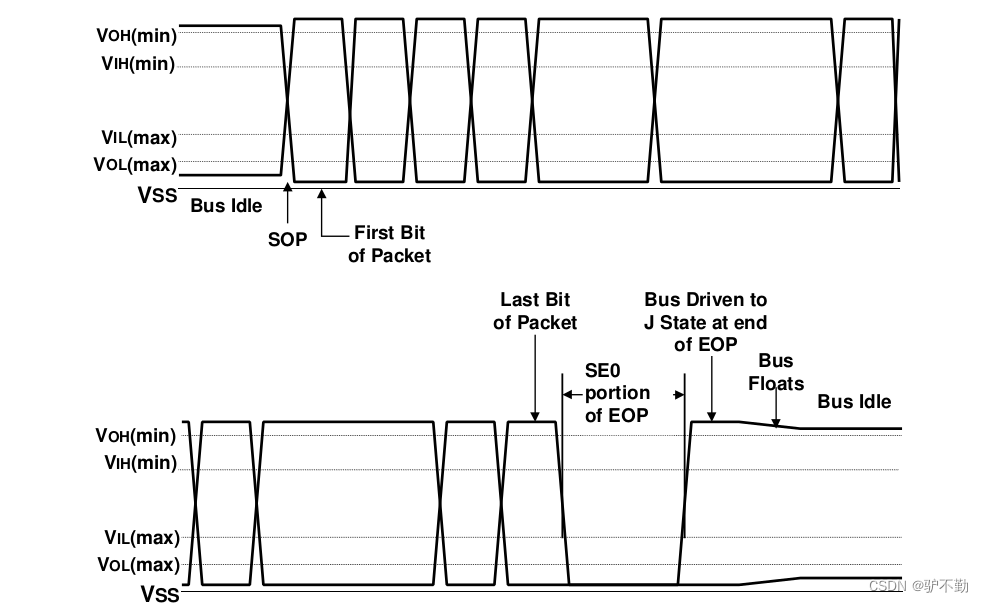

USB 2.0 Pakage format

Setup DATA

SOP	SYNC	PID	DATA	CRC	EOP
-	-	-	addr + ep	-	-

PID Format

Bit0(LSb)	Bit1	Bit2	Bit3	Bit4	Bit5	Bit6	Bit7(MSb)
PID0	PID1	PID2	PID3	PID0	PID1	PID2	PID3

PID Types

PID Type	PID Name	PID<3:0>	Description
Token	OUT	0001B	host-to-function
Token	IN	1001B	function-to-host
Token	SOF	0101B	Start-of-Frame
Token	SETUP	1101B	host-to-function SETUP to a control pipe
Data	DATA0	0011B	Data packet PID even
Data	DATA1	1011B	Data packet PID odd
Data	DATA2	0111B	Data packet PID high-speed, high bandwidth isochronous transaction in a microframe
Data	MDATA	1111B	Data packet PID high-speed for split and high bandwidth isochronous transactions
Handshake	ACK	0010B	Receiver accepts error-free data packet
Handshake	NAK	1010B	Receiving device cannot accept data or transmitting device cannot send data
Handshake	STALL	1110B	Endpoint is halted or a control pipe request is not supported
Handshake	NYET	0110B	No response yet from receiver
Special	PRE	1100B	(Token) Host-issued preamble. Enables downstream bus traffic to low-speed devices.
Special	ERR	1100B	(Handshake) Split Transaction Error Handshake (reuses PRE value)
Special	SPLIT	1000B	(Token) High-speed Split Transaction Token
Special	PING	0100B	(Token) High-speed flow control probe for a bulk/control endpoint
Special	Reserved	0000B	Reserved PID

*Note: PID bits are shown in MSb order. When sent on the USB, the rightmost bit (bit 0) will be sent first.

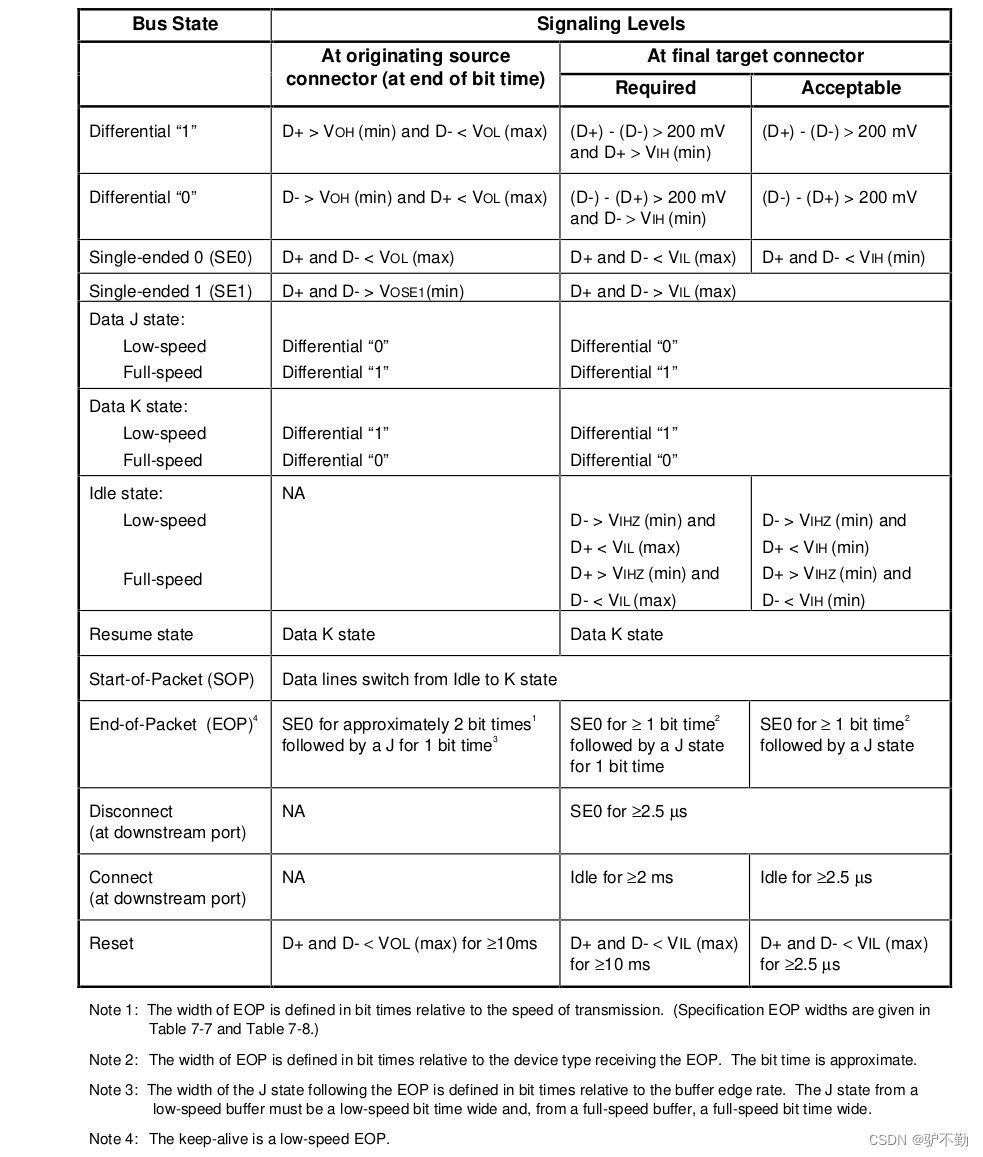

定义(Signaling Levels)->域定义(Field)->包定义(Packet)->事务定义(Transaction)->传输定义(Transfer)

****帧号域(Frame Number Field): **** 是一个11位的域，由主机在每帧的基础上递增。帧号域在达到其最大值7FFH时清0，并且只在每个(微)帧开始时发送SOF令牌。
  帧号域只有SOF令牌包用，主机没啥事情做就发这个，让设备知道主机还活着，SOF令牌大家都能收到，与地址无关。全速设备每秒1000个，称为帧(frame)，高速设备每秒8000个，称为微帧(micro frame)。

Status Stage Responses

Status Response	Control Write Transfer(data phase)	Control Read Transfer(handshake phase)
Function completes	Zero-length data packet	ACK handshake
Function has an error	STALL handshake	STALL handshake
Function is busy	NAK handshake	NAK handshake

Control Transfers

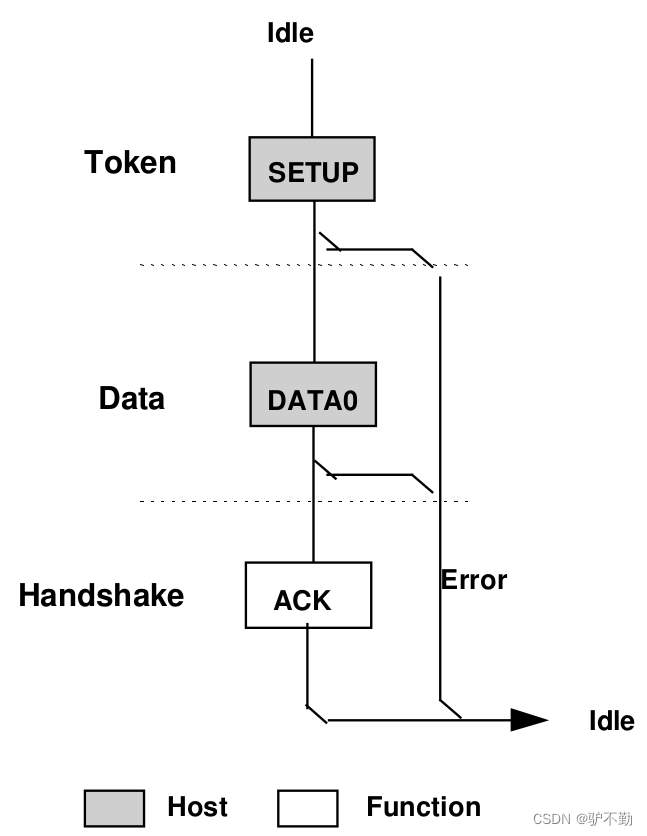

Control SETUP Transaction

Format of Setup Data[8 Bytes] Host-to-Device

Standard Device Requests

bmRequestType	bRequest	wValue	wIndex	wLength	Data
00000000B 00000001B 00000010B	CLEAR_FEATURE	Feature Selector	Zero Interface Endpoint	Zero	None
10000000B	GET_CONFIGURATION	Zero	Zero	One	Configuration Value
10000000B	GET_DESCRIPTOR	Descriptor Type and Descriptor Index	Zero or Language ID	Descriptor Length	Descriptor
10000001B	GET_INTERFACE	Zero	Interface	One	Alternate Interface
10000000B 10000001B 10000010B	GET_STATUS	Zero	Zero Interface Endpoint	Two	Device, Interface, or Endpoint Status
00000000B	SET_ADDRESS	Device Address	Zero	Zero	None
00000000B	SET_CONFIGURATION	Configuration Value	Zero	Zero	None
00000000B	SET_DESCRIPTOR	Descriptor Type and Descriptor Index	Zero or Language ID	Descriptor Length	Descriptor
00000000B 00000001B 00000010B	SET_FEATURE	Feature Selector	Zero Interface Endpoint	Zero	None
00000001B	SET_INTERFACE	Alternate Setting	Interface	Zero	None
10000010B	SYNCH_FRAME	Zero	Endpoint	Two	Frame Number

Standard Request Codes

bRequest	Value
GET_STATUS	0
CLEAR_FEATURE	1
Reserved	2
SET_FEATURE	3
Reserved	4
SET_ADDRESS	5
GET_DESCRIPTOR	6
SET_DESCRIPTOR	7
GET_CONFIGURATION	8
SET_CONFIGURATION	9
GET_INTERFACE	10
SET_INTERFACE	11
SYNCH_FRAME	12

Standard Feature Selectors

Feature Selector	Recipient	Value
DEVICE_REMOTE_WAKEUP	Device	1
ENDPOINT_HALT	Endpoint	0
TEST_MODE	Device	2

Descriptor Types

Descriptor Types	Value
DEVICE	1
CONFIGURATION	2
STRING	3
INTERFACE	4
ENDPOINT	5
DEVICE_QUALIFIER	6
OTHER_SPEED_CONFIGURATION	7
INTERFACE_POWER	8

Note: The INTERFACE_POWER descriptor is defined in the current revision of the USB Interface Power Management Specification.

Standard Device Descriptor

Offset	Field	Size	Value	Description
0	bLength	1	Number	Size of this descriptor in bytes
1	bDescriptorType	1	Constant	DEVICE Descriptor Type
2	bcdUSB	2	BCD	USB Specification Release Number in Binary-Coded Decimal (i.e., 2.10 is 210H).
4	bDeviceClass	1	Class	Class code(assigned by the USB-IF).
5	bDeviceSubClass	1	SubClass	These codes are qualified by the value of the bDeviceClass field.
6	bDeviceProtocol	1	Protocol	Protocol code (assigned by the USB-IF).
7	bMaxPacketSize0	1	Number	Maximum packet size for endpoint zero (only 8, 16, 32, or 64 are valid)
8	idVendor	2	ID	Vendor ID (assigned by the USB-IF)
10	idProduct	2	ID	Product ID (assigned by the manufacturer)
12	bcdDevice	2	BCD	Device release number in binary-coded decimal
14	iManufacturer	1	Index	Index of string descriptor describing manufacturer
15	iProduct	1	Index	Index of string descriptor describing product
16	iSerialNumber	1	Index	Index of string descriptor describing the device’s serial number
17	bNumConfigurations	1	Number	Number of possible configurations

Device_Qualifier Descriptor: GetDescriptor()

Offset	Field	Size	Value	Description
0	bLength	1	Number	Size of descriptor
1	bDescriptorType	1	Constant	Device Qualifier Type
2	bcdUSB	2	BCD	USB specification version number (e.g., 0200H for V2.00 )
4	bDeviceClass	1	Class	Class Code
5	bDeviceSubClass	1	SubClass	SubClass Code
6	bDeviceProtocol	1	Protocol	Protocol Code
7	bMaxPacketSize0	1	Number	Maximum packet size for other speed
8	bNumConfigurations	1	Number	Number of Other-speed Configurations
9	bReserved	1	Zero	Reserved for future use, must be zero

Standard Configuration Descriptor: SetConfiguration()

Offset	Field	Size	Value	Description
0	bLength	1	Number	Size of this descriptor in bytes
1	bDescriptorType	1	Constant	CONFIGURATION Descriptor Type
2	wTotalLength	2	Number	Total length of data returned for this configuration. Includes the combined length of all descriptors (configuration, interface, endpoint, and class- or vendor-specific) returned for this configuration.
4	bNumInterfaces	1	Number	Number of interfaces supported by this configuration
5	bConfigurationValue	1	Number	Value to use as an argument to the SetConfiguration() request to select this configuration
6	iConfiguration	1	Index	Index of string descriptor describing this configuration
7	bmAttributes	1	Bitmap	Configuration characteristics [D7:Reserved (set to one), D6:Self-powered, D5: Remote Wakeup, D4…0:Reserved (reset to zero)]
8	bMaxPower	1	mA	Maximum power consumption of the USB device from the bus in this specific configuration when the device is fully operational. Expressed in 2 mA units (i.e., 50 = 100 mA).

Other_Speed_Configuration Descriptor: GetDescriptor()

Offset	Field	Size	Value	Description
0	bLength	1	Number	Size of descriptor
1	bDescriptorType	1	Constant	Other_speed_Configuration Type
2	wTotalLength	2	Number	Total length of data returned
4	bNumInterfaces	1	Number	Number of interfaces supported by this speed configuration
5	bConfigurationValue	1	Number	Value to use to select configuration
6	iConfiguration	1	Index	Index of string descriptor
7	bmAttributes	1	Bitmap	Same as Configuration descriptor
8	bMaxPower	1	mA	Same as Configuration descriptor

Standard Interface Descriptor

Offset	Field	Size	Value	Description
0	bLength	1	Number	Size of this descriptor in bytes
1	bDescriptorType	1	Constant	INTERFACE Descriptor Type
2	bInterfaceNumber	1	Number	Number of this interface. Zero-based value identifying the index in the array of concurrent interfaces supported by this configuration.
3	bAlternateSetting	1	Number	Value used to select this alternate setting for the interface identified in the prior field
4	bNumEndpoints	1	Number	Number of endpoints used by this interface (excluding endpoint zero). If this value is zero, this interface only uses the Default Control Pipe.
5	bInterfaceClass	1	Class	Class code (assigned by the USB-IF).
6	bInterfaceSubClass	1	SubClass	Subclass code (assigned by the USB-IF). These codes are qualified by the value of the bInterfaceClass field.
7	bInterfaceProtocol	1	Protocol	Protocol code (assigned by the USB). These codes are qualified by the value of the bInterfaceClass and the bInterfaceSubClass fields.
8	iInterface	1	Index	Index of string descriptor describing this interface

Standard Endpoint Descriptor: GetDescriptor(Configuration)

Offset	Field	Size	Value	Description
0	bLength	1	Number	Size of this descriptor in bytes
1	bDescriptorType	1	Constant	ENDPOINT Descriptor Type
2	bEndpointAddress	1	Endpoint	The address of the endpoint on the USB device described by this descriptor.
3	bmAttributes	1	Bitmap	This field describes the endpoint’s attributes when it is configured using the bConfigurationValue.
4	wMaxPacketSize	2	Number	Maximum packet size this endpoint is capable of sending or receiving when this configuration is selected.
6	bInterval	1	Number	nterval for polling endpoint for data transfers. Expressed in frames or microframes depending on the device operating speed (i.e., either 1 millisecond or 125 µs units).

bEndpointAddress:

Bit 3...0: The endpoint number
Bit 6...4: Reserved, reset to zero
Bit 7: Direction, ignored for control endpoints
    0 = OUT endpoint
    1 = IN endpoint

bmAttributes:

bmAttributes:
This field describes the endpoint’s attributes when it is
configured using the bConfigurationValue.
Bits 1..0: Transfer Type
    00 = Control
    01 = Isochronous
    10 = Bulk
    11 = Interrupt
If not an isochronous endpoint, bits 5..2 are reserved
and must be set to zero. If isochronous, they are
defined as follows:
Bits 3..2: Synchronization Type
    00 = No Synchronization
    01 = Asynchronous
    10 = Adaptive
    11 = Synchronous
Bits 5..4: Usage Type
    00 = Data endpoint
    01 = Feedback endpoint
    10 = Implicit feedback Data endpoint
    11 = Reserved
Refer to Chapter 5 for more information.
All other bits are reserved and must be reset to zero.
Reserved bits must be ignored by the host.

wMaxPacketSize:

For all endpoints, bits 10..0 specify the maximum packet size (in bytes).
For high-speed isochronous and interrupt endpoints:
Bits 12..11 specify the number of additional transaction opportunities per microframe:
    00 = None (1 transaction per microframe)
    01 = 1 additional (2 per microframe)
    10 = 2 additional (3 per microframe)
    11 = Reserved
Bits 15..13 are reserved and must be set to zero.

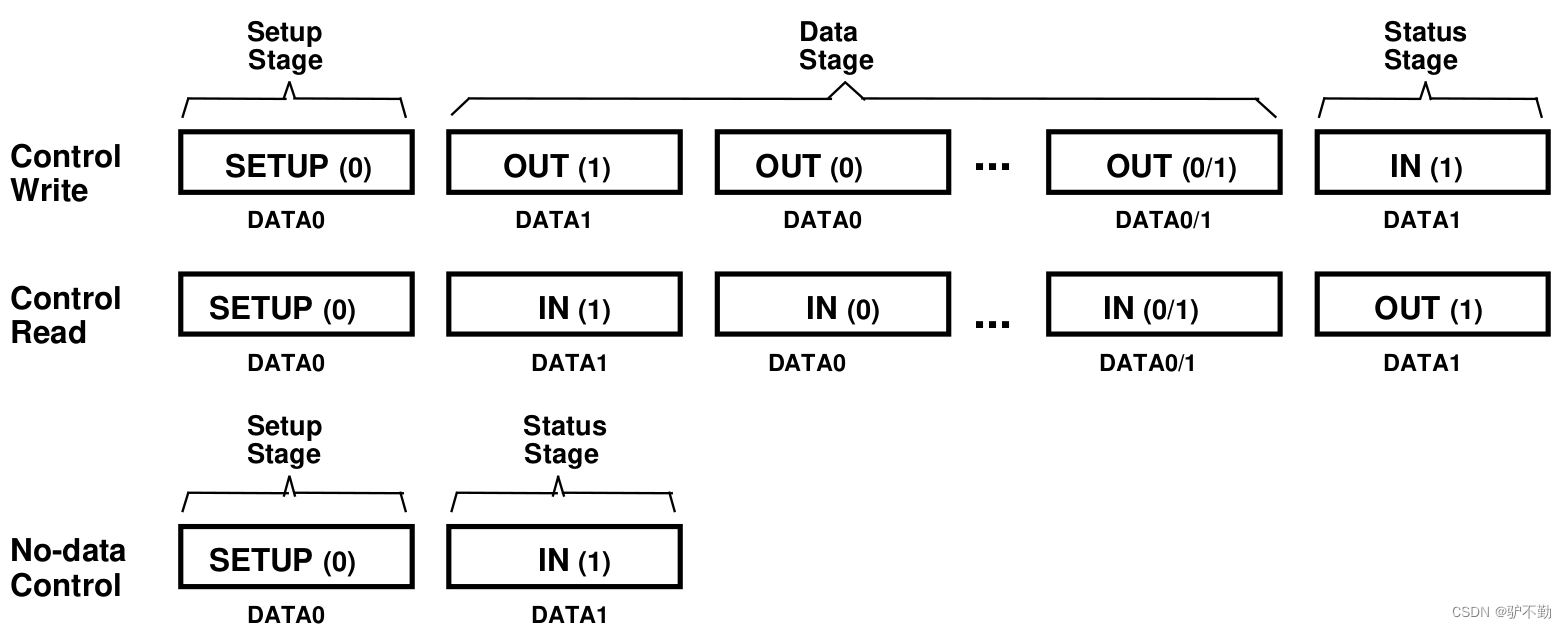

Control Read and Write Sequences Control SETUP Transaction

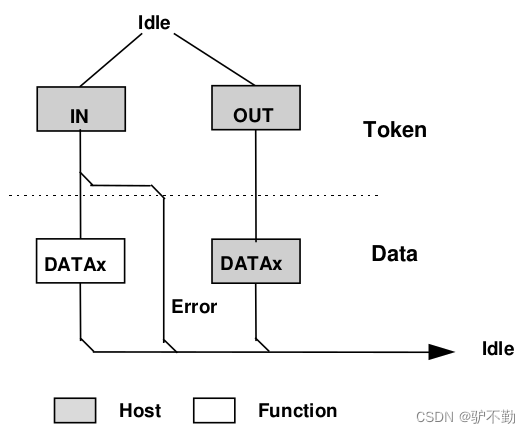

Isochronous Transaction Format

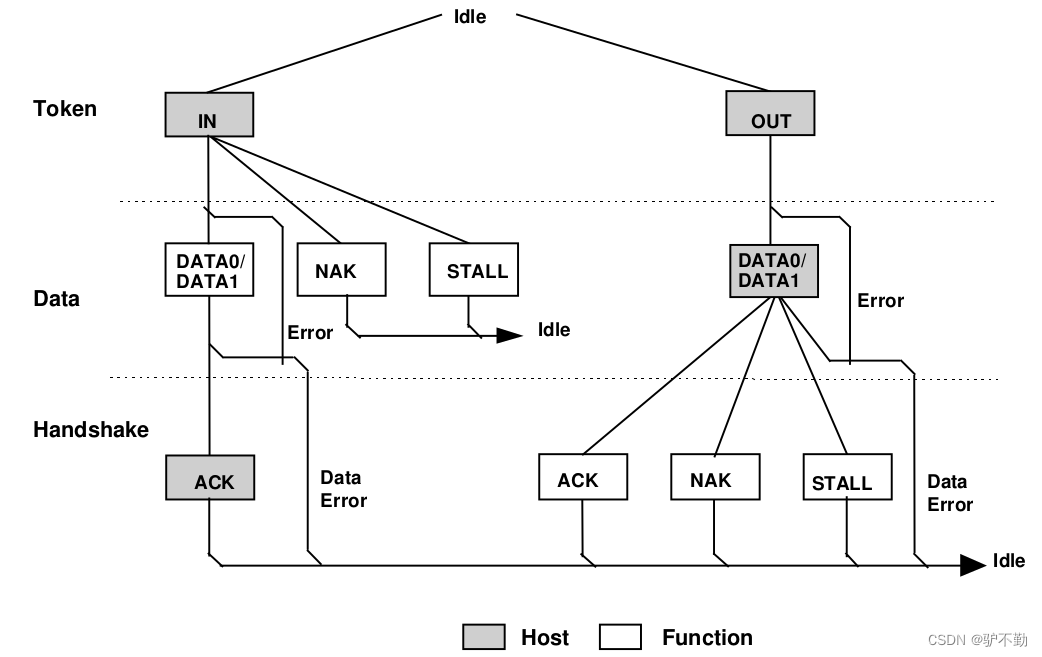

Interrupt Transaction Format

Bulk Transfers

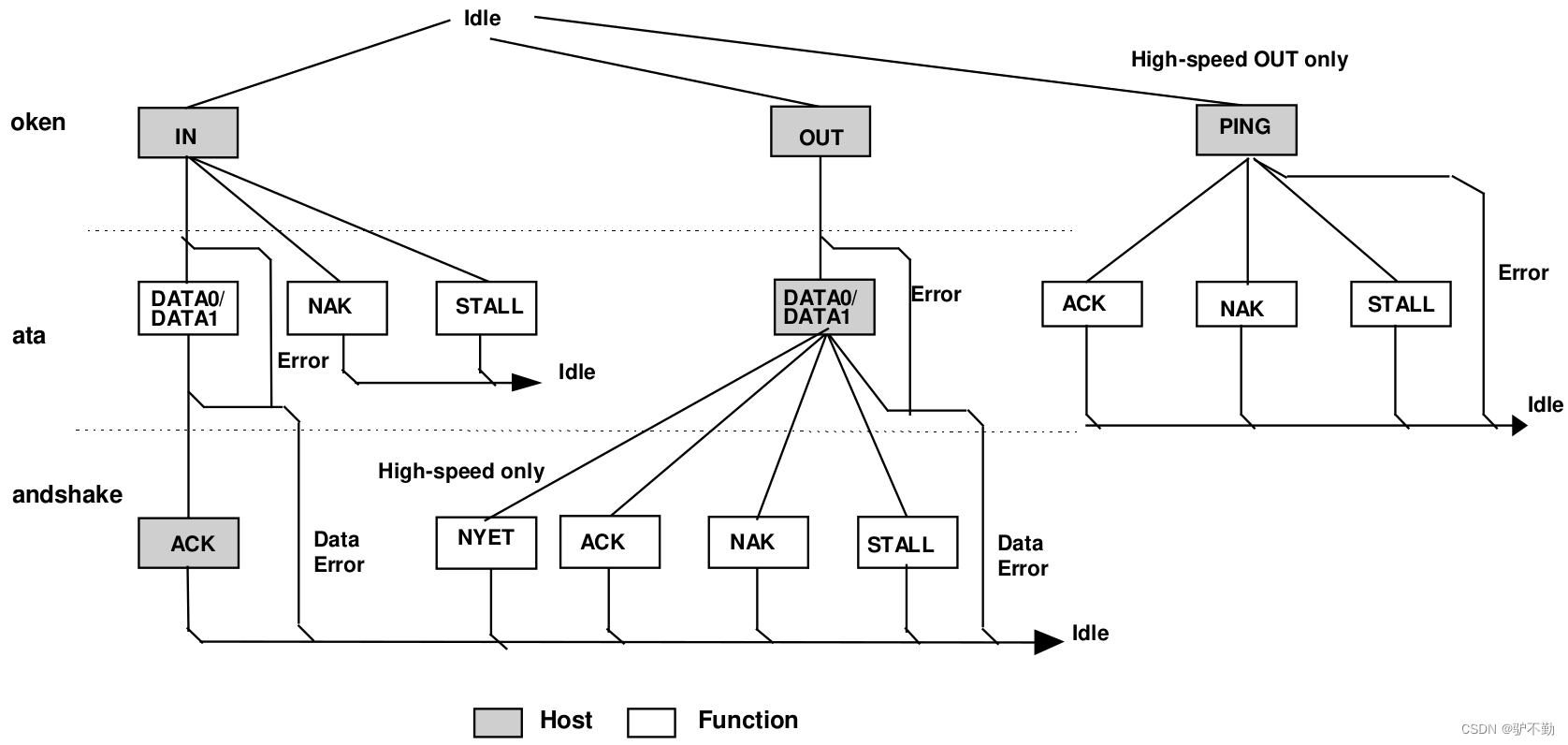

Bulk Transaction Format

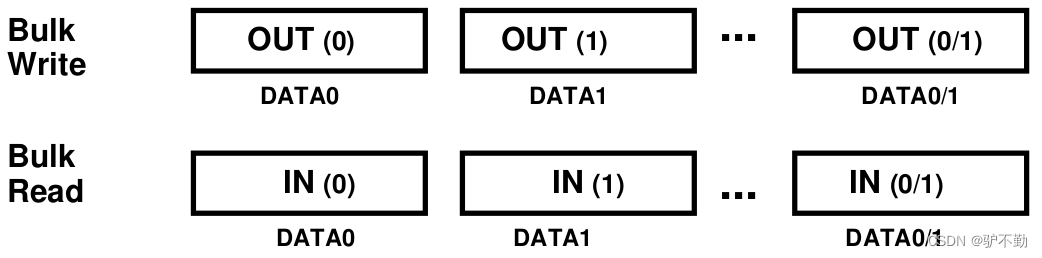

Bulk Reads and Writes

### USB HID 1.11

bInterfaceClass

3: HID class code

bInterfaceSubClass

0: No Subclass
1: Boot Interface Subclass
2 - 255: Reserved

bInterfaceProtocol

0: None
1: Keyboard
2: Mouse
3 - 255: Reserved

Protocol 2 (Mouse)

Byte	Bits	Description
0	0	Button 1(LEFT)
0	1	Button 2(RIGHT)
0	2	Button 3(MIDDLE)
0	4 to 7	Device-specific
1	0 to 7	X displacement
2	0 to 7	Y displacement
3 to n	0 to 7	Device specific (optional)

class libusb_config_descriptor/interface/endpoint

class libusb_device/context

Sequence Diagram

去读鼠标数据的序列图

示例代码

Note:
查找到鼠标USB 设备，并读取1000次数据
编译命令: $ gcc $(CFLAGS) main.c -lusb-1.0 -o test
运行命令: $ sudo ./test
执行操作: 晃动鼠标
编译选项(可不加):
CFLAGS := -Wall -Wundef -Wshadow -Wconversion -Werror=return-type -Werror=implicit-function-declaration -Werror=unused-variable -fno-strict-aliasing -fno-common -fshort-wchar -Wno-trigraphs -Os

#include <stdio.h>
#include <string.h>
#include "libusb-1.0/libusb.h"

#define le16_to_cpu(x) libusb_cpu_to_le16(libusb_cpu_to_le16(x))

static void print_device(libusb_device *dev, libusb_device_handle *handle)
{
	struct libusb_device_descriptor dev_desc;
	unsigned char iManufacturer_string[256] = {0};
	unsigned char iProduct_string[256] = {0};
	unsigned char iSerialNumber_string[256] = {0};
	const char *speed;
	int ret;

	switch (libusb_get_device_speed(dev)) {
	case LIBUSB_SPEED_LOW:		speed = "1.5M"; break;
	case LIBUSB_SPEED_FULL:		speed = "12M"; break;
	case LIBUSB_SPEED_HIGH:		speed = "480M"; break;
	case LIBUSB_SPEED_SUPER:	speed = "5G"; break;
	case LIBUSB_SPEED_SUPER_PLUS:	speed = "10G"; break;
	default:			speed = "Unknown";
	}

	ret = libusb_get_device_descriptor(dev, &dev_desc);
	if (ret < 0) {
		fprintf(stderr, "failed to get device descriptor");
		return;
	}

	if (!handle){
		ret = libusb_open(dev, &handle);
		if (ret < 0){
			perror("Opend libusb device failed");
		}
	}

	printf("Dev (bus %03d, device %03d): ID %04x:%04x speed: %s\r\n" \
			, libusb_get_bus_number(dev), libusb_get_device_address(dev), \
			 dev_desc.idVendor, dev_desc.idProduct, speed);

	if (NULL != handle){
		if (dev_desc.iManufacturer) {
			ret = libusb_get_string_descriptor_ascii(handle, dev_desc.iManufacturer, iManufacturer_string, sizeof(iManufacturer_string));
			if (ret <= 0)
				printf("Get iManufacturer string descriptor failed %s\n", (char *)iManufacturer_string);
		}

		if (dev_desc.iProduct) {
			ret = libusb_get_string_descriptor_ascii(handle, dev_desc.iProduct, iProduct_string, sizeof(iProduct_string));
			if (ret <= 0)
				printf("Get iProduct string descriptor failed %s\n", (char *)iProduct_string);
		}

		if (dev_desc.iSerialNumber) {
			ret = libusb_get_string_descriptor_ascii(handle, dev_desc.iSerialNumber, iSerialNumber_string, sizeof(iSerialNumber_string));
			if (ret <= 0)
				printf("Get iManufacturer string descriptor failed %s\n", (char *)iSerialNumber_string);
		}
	}

	printf("Deivces Descriptor:\n");
	printf(" bLength: \t%9d\n", dev_desc.bLength);
	printf(" bDescriptorType:%8d\n", dev_desc.bDescriptorType);
	printf(" bcdUSB: \t%6x.%02x\n", dev_desc.bcdUSB >> 8, dev_desc.bcdUSB & 0xFF);
	printf(" bDeviceClass: \t%9d\n", dev_desc.bDeviceClass);
	printf(" bDeviceSubClass:%8d\n", dev_desc.bDeviceSubClass);
	printf(" bDeviceProtocol:%8d\n", dev_desc.bDeviceProtocol);
	printf(" bMaxPacketSize0:%8d\n", dev_desc.bMaxPacketSize0);
	printf(" idVendor: \t   0x%04x\n", dev_desc.idVendor);
	printf(" idProduct: \t   0x%04x\n", dev_desc.idProduct);
	printf(" bcdDevice: \t%6x.%02x\n", dev_desc.bcdDevice >> 8, dev_desc.bcdDevice & 0xFF);
	printf(" iManufacturer: \t%d %s\n", dev_desc.iManufacturer, iManufacturer_string);
	printf(" iProduct: \t\t%d %s\n", dev_desc.iProduct, iProduct_string);
	printf(" iSerialNumber: \t%d %s\n", dev_desc.iSerialNumber, iSerialNumber_string);
	printf(" bNumConfigurations: \t%d\n", dev_desc.bNumConfigurations);

	if (handle)
		libusb_close(handle);
}


static void print_configration(struct libusb_config_descriptor *conf_desc)
{
	printf("  Configuration Descriptor:\n");
	printf("   bLength: \t\t%9d\n", conf_desc->bLength);
	printf("   bDescriptorType: \t%9d\n", conf_desc->bDescriptorType);
	printf("   wTotalLength: \t   0x%04x\n", conf_desc->wTotalLength);
	printf("   bNumInterfaces: \t%9d\n", conf_desc->bNumInterfaces);
	printf("   bConfigurationValue: \t%d\n", conf_desc->bConfigurationValue);
	printf("   iConfiguration: \t%9d\n", conf_desc->iConfiguration);
	printf("   bmAttributes: \t     0x%x\n", conf_desc->bmAttributes);
	printf("   MaxPower: \t\t%9dmA\n", 2*conf_desc->MaxPower);
}

static void print_interface(struct libusb_interface_descriptor *if_desc, unsigned char if_num, unsigned char alt)
{
	printf("    Interface Descriptor: %d altsetting %d\n", if_num, alt);
	printf("     bLength: \t\t%9d\n", if_desc->bLength);
	printf("     bDescriptorType: \t%9d\n", if_desc->bDescriptorType);
	printf("     bInterfaceNumber: \t%9d\n", if_desc->bInterfaceNumber);
	printf("     bAlternateSetting: %9d\n", if_desc->bAlternateSetting);
	printf("     bNumEndpoints: \t%9d\n", if_desc->bNumEndpoints);
	printf("     bInterfaceClass: \t%9d\n", if_desc->bInterfaceClass);
	printf("     bInterfaceSubClass:%9d\n", if_desc->bInterfaceSubClass);
	printf("     bInterfaceProtocol:%9d\n", if_desc->bInterfaceProtocol);
	printf("     iInterface: \t%9d\n", if_desc->iInterface);
}

static void print_endpoint(struct libusb_endpoint_descriptor *ep_desc, unsigned char ep_num)
{
	static const char * const typeattr[] = {
		"Control",
		"Isochronous",
		"Bulk",
		"Interrupt"
	};
	static const char * const syncattr[] = {
		"None",
		"Asynchronous",
		"Adaptive",
		"Synchronous"
	};
	static const char * const usage[] = {
		"Data",
		"Feedback",
		"Implicit feedback Data",
		"(reserved)"
	};

	static const char * const hb[] = { "1x", "2x", "3x", "(?\?)" };
	unsigned wmax = le16_to_cpu(ep_desc->wMaxPacketSize);

	printf("      Endpoint Descriptor:\n"
	       "        bLength             %5u\n"
	       "        bDescriptorType     %5u\n"
	       "        bEndpointAddress     0x%02x  EP %u %s\n"
	       "        bmAttributes        %5u\n"
	       "          Transfer Type            %s\n"
	       "          Synch Type               %s\n"
	       "          Usage Type               %s\n"
	       "        wMaxPacketSize     0x%04x  %s %d bytes\n"
	       "        bInterval           %5u\n",
	       ep_desc->bLength,
	       ep_desc->bDescriptorType,
	       ep_desc->bEndpointAddress,
	       ep_desc->bEndpointAddress & 0x0f,
	       (ep_desc->bEndpointAddress & 0x80) ? "IN" : "OUT",
	       ep_desc->bmAttributes,
	       typeattr[ep_desc->bmAttributes & 3],
	       syncattr[(ep_desc->bmAttributes >> 2) & 3],
	       usage[(ep_desc->bmAttributes >> 4) & 3],
	       wmax, hb[(wmax >> 11) & 3], wmax & 0x7ff,
	       ep_desc->bInterval);
}

int main(int argc, char *argv[])
{
	int ret, i;
	ssize_t list_size;

	libusb_device **devs;
	struct libusb_device *dev;

//	libusb_device_handle *handle = NULL;

    struct libusb_device_descriptor device_desc;
	struct libusb_config_descriptor *config_desc;
	struct libusb_interface_descriptor *interface_desc;
	struct libusb_endpoint_descriptor *endpoint_desc;

	libusb_device_handle *handle;
//	unsigned int dev_interface = 0;
	unsigned char dev_endpoint = 0;
	unsigned char data_buf[64] = {0};
	int transferred = 0;


	/* libusb_init */
	ret = libusb_init(NULL);
	if (ret < 0)
		return ret;

	/* get deive list */
	list_size = libusb_get_device_list(NULL, &devs);
	if (list_size < 0) {
		libusb_exit(NULL);
		return 1;
	}

	for (i = 0;  i < list_size; i++){
		if (devs[i] == NULL){
			printf("fialed to parse device descriptor");
			continue;
		}

		dev = devs[i];

		ret = libusb_get_device_descriptor(dev, &device_desc);
		if (ret < 0) {
			printf("failed to get device descriptor");
			continue;
		}

//		ret = libusb_open(dev, &handle);
//		if (0 != ret){
//			perror("Opend libusb device failed");
//		}

//		print_device(dev, NULL);

		for (unsigned char conf = 0; conf < device_desc.bNumConfigurations; conf++){
			/* entry device configuration, for descriptor */
			ret = libusb_get_config_descriptor(dev, conf, &config_desc);
			if (LIBUSB_SUCCESS != ret) {
				printf("Couldn't retrieve config descriptors\n");
				continue;
			}

//			print_configration(config_desc);

			/* entry configration interface, for descriptor */
			for (unsigned char interface = 0; interface < config_desc->bNumInterfaces; interface++)
			{
				for (unsigned char altsetting = 0; altsetting < config_desc->interface[interface].num_altsetting; altsetting++)
				{
					interface_desc = (struct libusb_interface_descriptor *)(&config_desc->interface[interface].altsetting[altsetting]);

					if ((LIBUSB_CLASS_HID != interface_desc->bInterfaceClass) || /* Human Interface Device */
					    (1 != interface_desc->bInterfaceSubClass) || /* Boot Interface Subclass */
						(2 != interface_desc->bInterfaceProtocol) /* Mouse */
						){
							continue;
					}

					print_device(dev, NULL);
					print_configration(config_desc);
					print_interface(interface_desc, interface, altsetting);

					for (unsigned char endpoint = 0; endpoint < interface_desc->bNumEndpoints; endpoint++)
					{
						endpoint_desc = (struct libusb_endpoint_descriptor *)(&interface_desc->endpoint[endpoint]);
						print_endpoint(endpoint_desc, endpoint);
#if 1
						/* open */
						ret = libusb_open(dev, &handle);
						if (0 != ret)
						{
							printf("opend usb handle fialed!!! %d", ret);
						}

//						dev_interface = interface;
						dev_endpoint = endpoint_desc->bEndpointAddress;

						/* claim interface */
						ret = libusb_set_auto_detach_kernel_driver(handle, 1);
						//ret = libusb_detach_kernel_driver(handle, interface);
						if(ret < 0) {
							printf("*** libusb_detach_kernel_driver failed! %d\n",ret);
							return -1;
						}
						ret = libusb_claim_interface(handle, interface);
						if(ret < 0)
						{
							printf("*** libusb_claim_interface failed! %d\n",ret);
							return -1;
						}


						for(int count = 0; count <1000; count++)
						{
							/* transfer data */
							ret = libusb_interrupt_transfer(handle, dev_endpoint, data_buf, 8, &transferred, 10000);
							if(ret != 0) {
								printf("*** interrupt_transfer failed! %d\n", ret);

								if (ret == LIBUSB_ERROR_TIMEOUT){
									printf("interrupt_transfer: timeout\r\n");
								}

								return -1;
							}

							printf("  data: %02x %02x %02x %02x %02x %02x %02x %02x: size %d\r\n"
														, data_buf[0], data_buf[1], data_buf[2], data_buf[3], data_buf[4], data_buf[5], data_buf[6], data_buf[7]
														, transferred);
						}

						/* release interface */
						libusb_release_interface(handle, interface);

						/* close */
						libusb_close(handle);
#endif
					}
				}
			}

			libusb_free_config_descriptor(config_desc);
		}
	}

	libusb_free_device_list(devs, 1);

	/* parse interface descriptor, find usb <Mouse> */

	/* exit */
	libusb_exit(NULL);

	return 0;
}
