地狱已满服务器搭建教程-2 网络配置篇 NMRIH Dedicate Server

简介:地狱已满(NMRIH)私人服务器 开放到互联网教程

服务器搭建篇:地狱已满服务器搭建教程-1 服务器安装篇
网络配置篇    :地狱已满服务器搭建教程-2 网络配置篇(本文)

本教程主要为个人自学所写,如有错误或值得改进的地方,欢迎留言指出,感激不尽

那么废话少说,直接进入正题

一、查看自己的网络环境

第一步: 确定自己的网络环境。如何判断自己的网络IP类型: https://www.bilibili.com/read/cv9854865

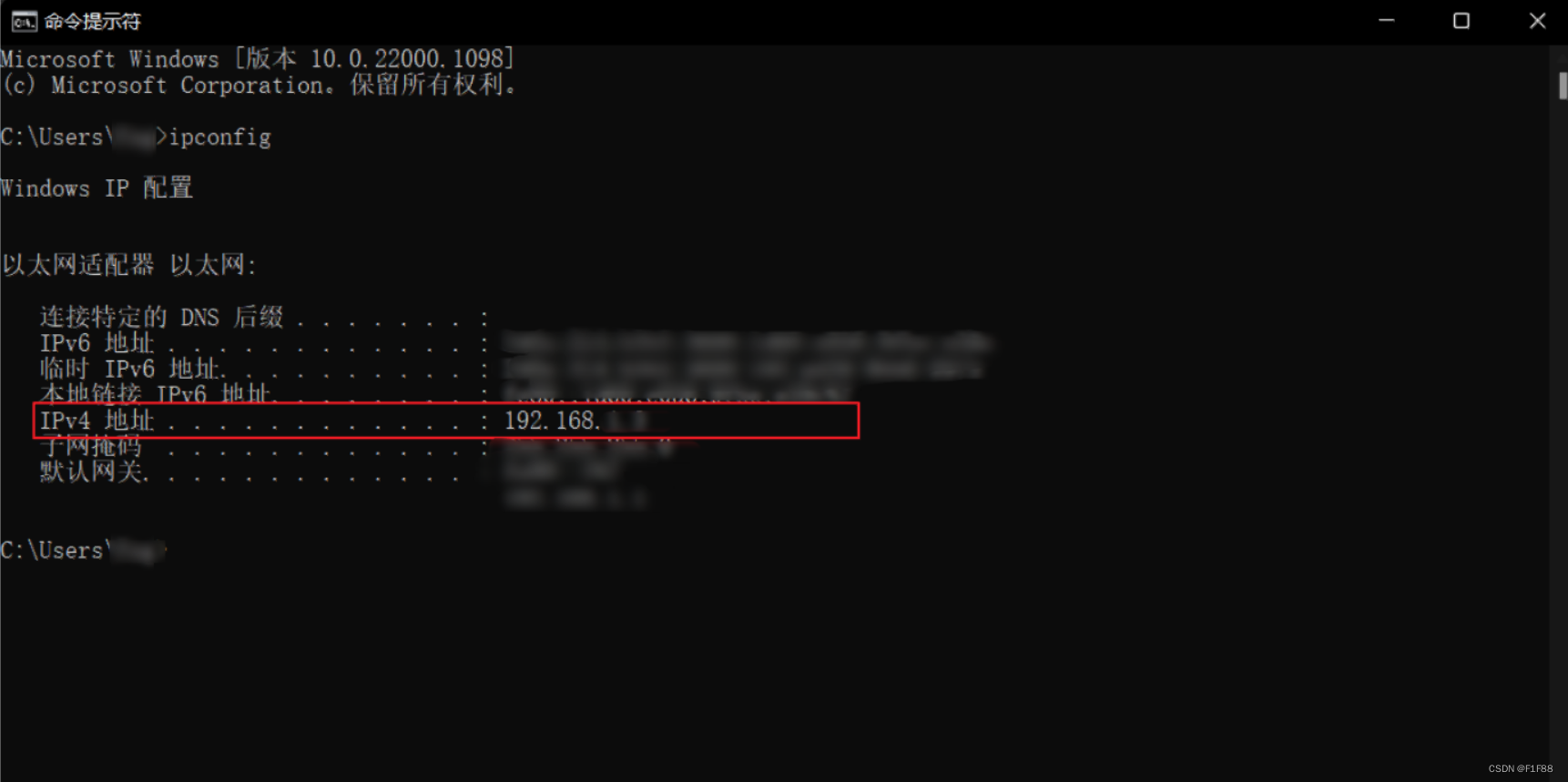

第二步: 获取用来搭建服务器的主机IP地址:按下 Win + R,输入 cmd 打开命令行,输入 ipconfig

ipconfig

在这里插入图片描述

第三步:

  • 如果 第一步 检查确定是 公网IP,跟 第二章
  • 如果 第一步 检查确定不是 公网IP,跟 第三章
  • 如果无法确定是不是 公网IP,可以直接跟 第三章

二、公网IP + 端口映射

前提:公网IP,且路由器有 端口映射DMZ 功能
           不同路由器后台界面不一定相同,请先在百度搜索:路由器型号 + 端口映射/内网穿透 确认你的路由器支持

  1. 查看路由器信息(一般在路由器底部)

    • 路由器管理后台 IP地址
    • 路由器管理后台 账户名密码

  2. 访问路由器管理后台

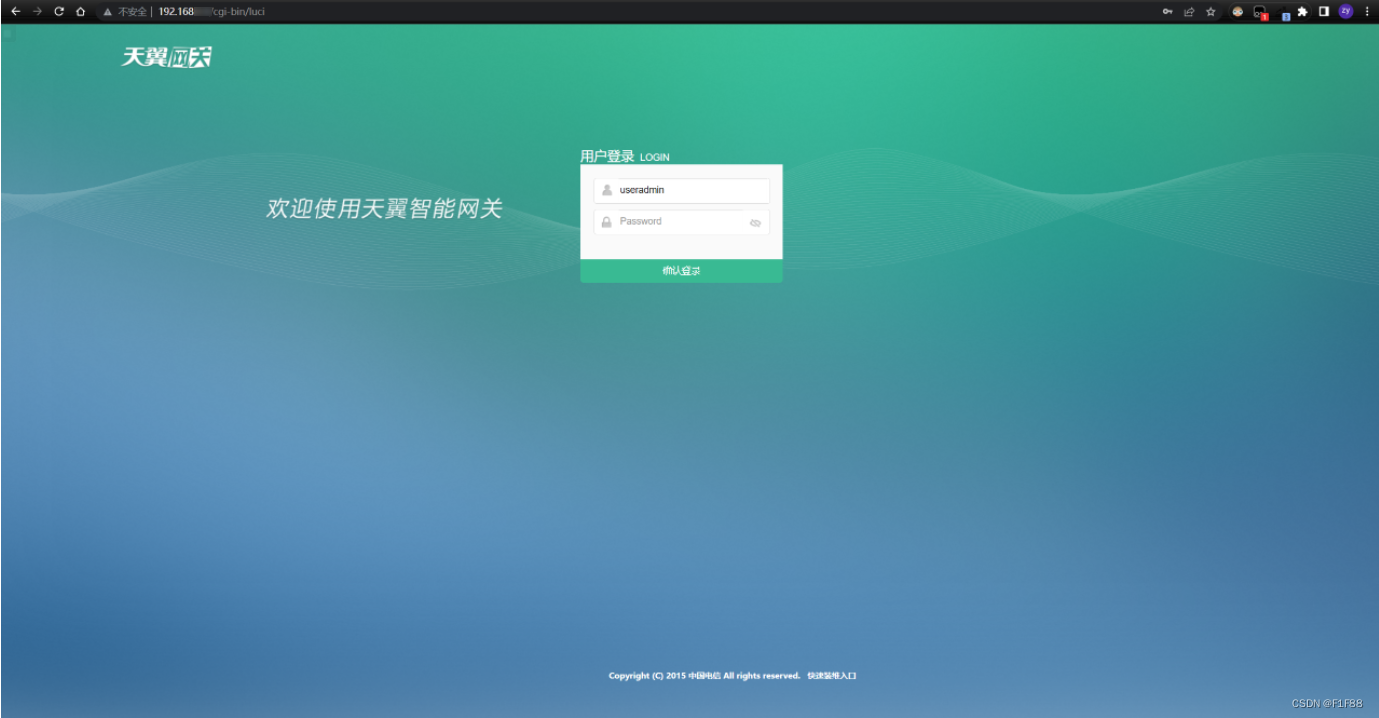

    在电脑浏览器输入路由器管理后台 IP地址,输入 账户名密码登录 登录后台系统

    在这里插入图片描述

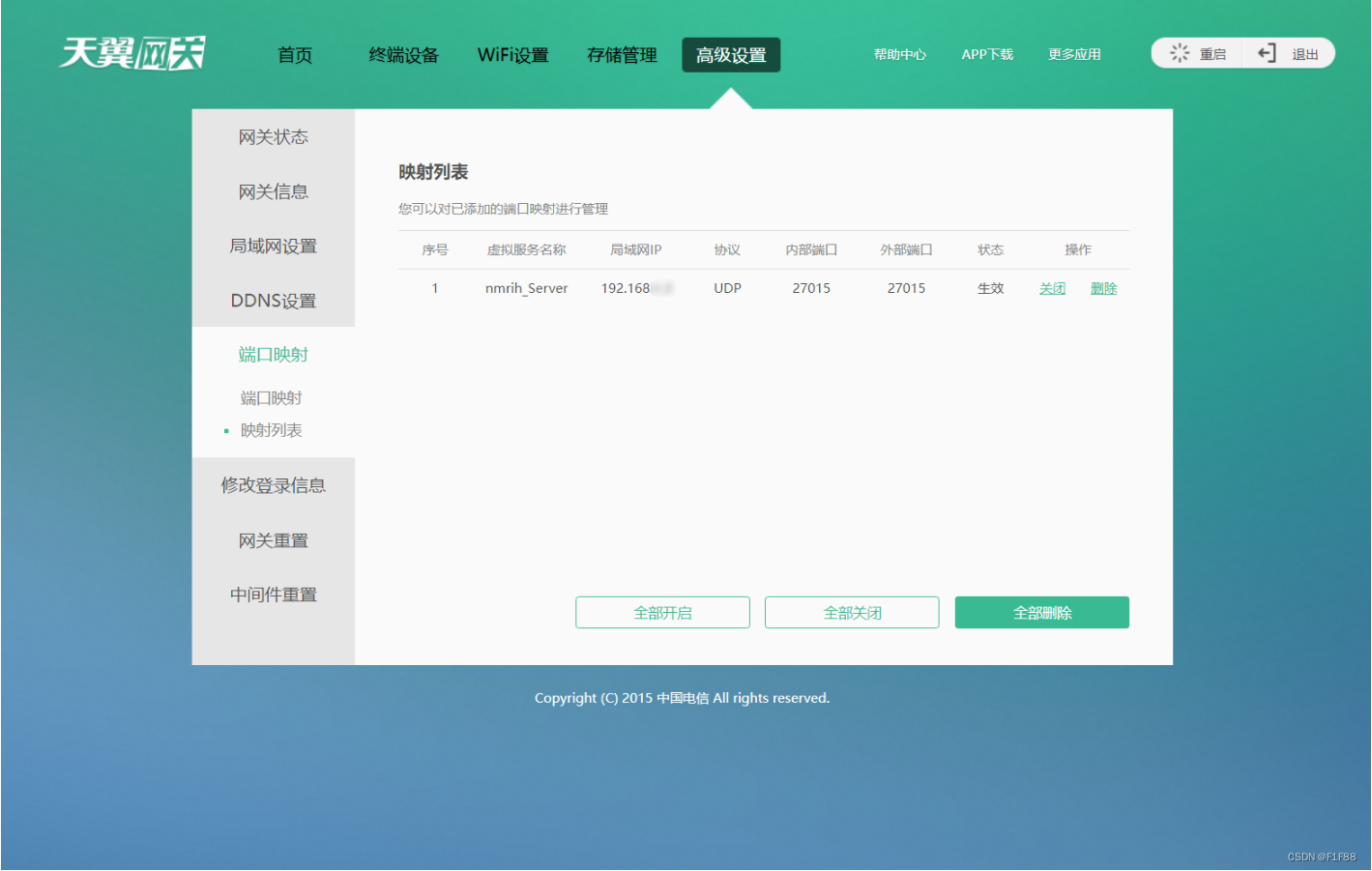

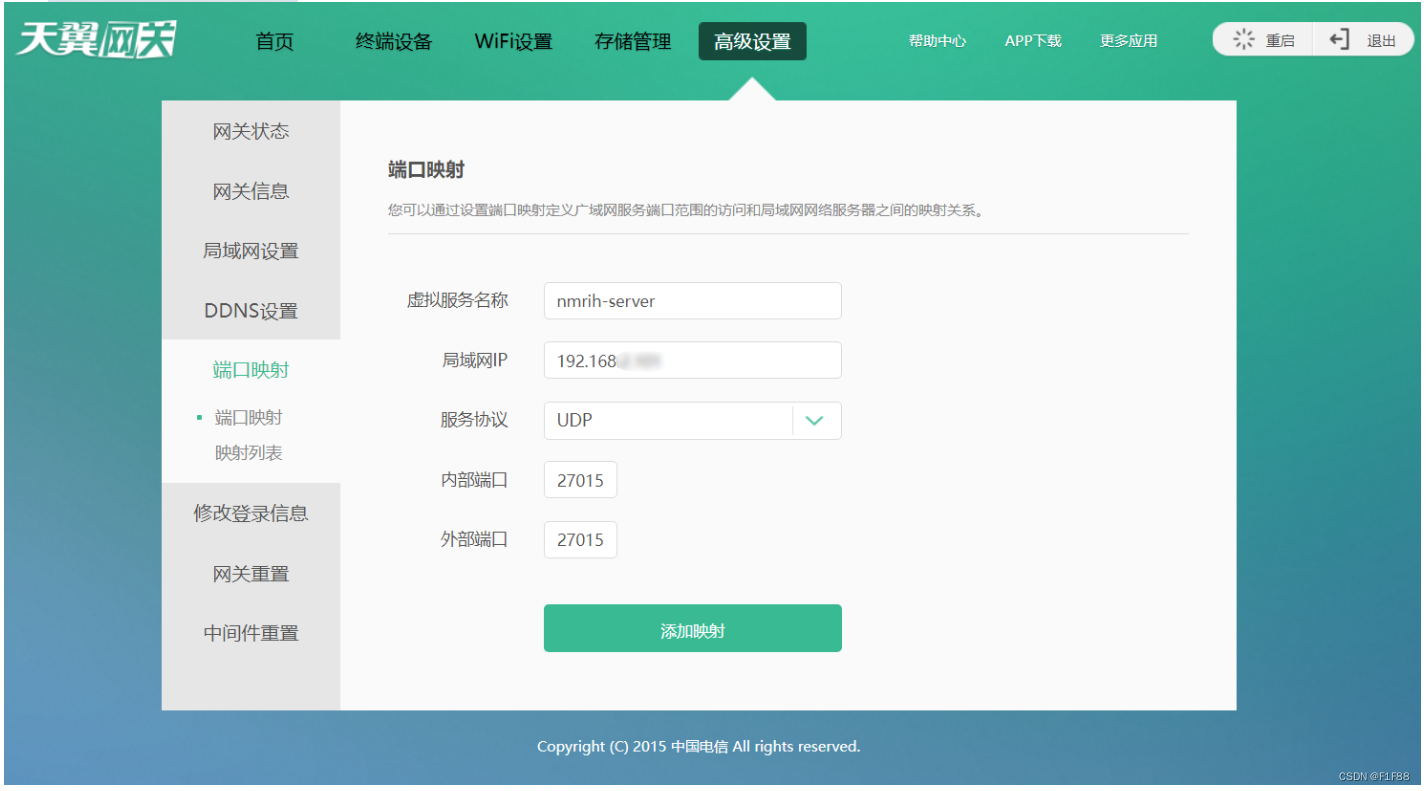

  3. 登陆后,找到 端口映射 功能,创建协议为 UDP,端口号为 27015 的映射

    • 服务名 :随意
    • 局域网IP :服务器主机IP地址(第一章 第2步 中查看的 IP地址)
    • 服务协议 :UDP
    • 内/外部端口:27015

    在这里插入图片描述

    在这里插入图片描述

########################################################################################
# 网络配置 - 公网IP + 端口映射方案 到此结束
# 下一步可以启动服务器,验证是否可以被别人访问到
# 如果无法连接,参考 文末答疑 或考虑使用第三章的 内网穿透 方案
########################################################################################


三、非公网IP

方法① - 申请公网IP

  • 打电话给运营商客服 --> 申请公网IP
  • 顺利的话十几分钟即可搞定,获得 动态公网IP,然后回到 第二章 跟着做即可
  • 如果不顺利再考虑使用内网穿透

方法② - 内网穿透 (frp)

1. 内网穿透 - 简介

介绍: 说简单点就是找一台有公网IP地址的主机,让它帮忙监听 27015 端口的数据,只要监听到数据就转发给内网主机处理

已知优点:

  • 选择多:现在有很多内网穿透服务提供商,如:花生壳、ngrok、星空frp等
  • 适应性强:无论是公网还是局域网IP都能使用
  • 安全性高:对于外界而言,他们是直接与代理主机交流,并不知道内网主机的地址

已知缺点:

  • 不稳定:下文示范使用的 frp 虽然有免费服务,但是免费的节点经常被ddos,导致服务不可用
  • 带宽受限:一方面受限于代理主机转发的带宽,一方面受限于本地主机的带宽
  • 延迟略高:因为用户需要先与代理联系,代理再转发数据给服务器(建议选择离服务器最近的代理)
  • 奇奇怪怪:有时只映射 UDP-27015 端口立马就可以在互联网搜到,有时只能通过 控制台connect 命令连接

2. 内网穿透 - 教程

本教程使用 星空frp 示范,如果自己有更好的选择,也可以使用其他的服务商

选择 星空frp 理由

  • 支持自定义外部端口
  • 免费套餐提供了 8M 的带宽,相当于 1MB/s,理论能够满足以下情况稳定运行
    • 1 个 【3倍全跑模式】 服务器,满 9 人
    • 3 - 4 个 【经典模式】 服务器,满 8 人

开始操作

  1. 注册一个星空frp账号并登录 (星空frp官网)

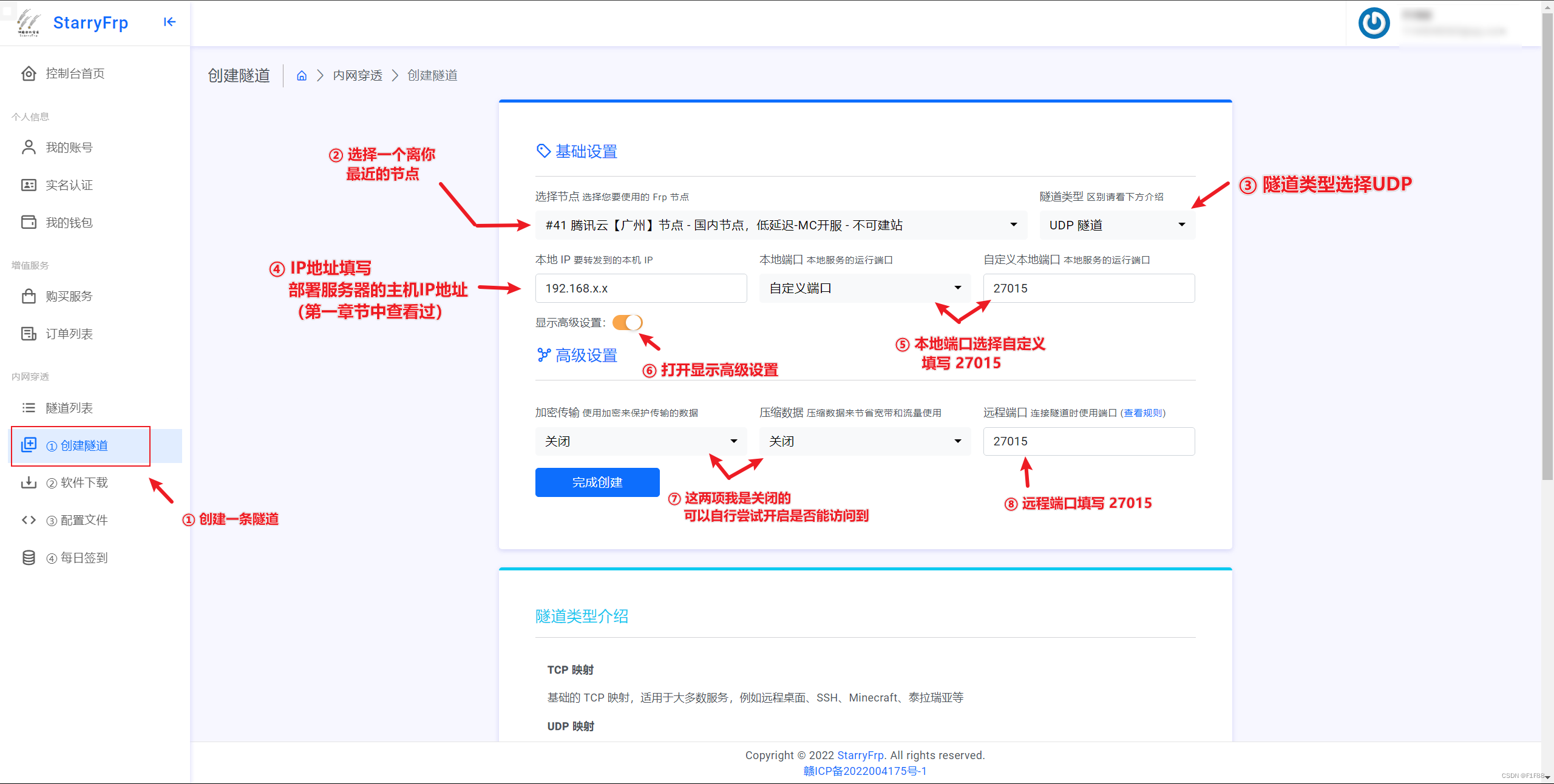

  2. 创建一条隧道用于转发服务器端口,具体步骤看图(可能需要实名验证)

    • 补充:图中 ④ 可以不填留空(前提是你的 frp客户端游戏服务器同一台主机

      在这里插入图片描述

  3. 下载 星空frp 客户端

    先下载星空frp客户端并解压,解压后有 4 个文件(下方有详细说明)

    • frpc.exe

      内网穿透客户端执行程序,直接运行无效

    • frpc.ini

      内网穿透配置文件,新添加的隧道信息要填写在这里

    • 点此使用【配置文件】启动.bat

      隧道信息配置完成后,双击运行就能启动内网穿透服务

    • 点此使用【启动命令】启动.bat

      不需要配置文件,在隧道列表中获取启动命令,双击运行并粘贴启动命令就能启动内网穿透服务

  4. 启动内网穿透服务

    配置文件启动启动命令启动 两种方式效果一样,推荐第二种,比较方便

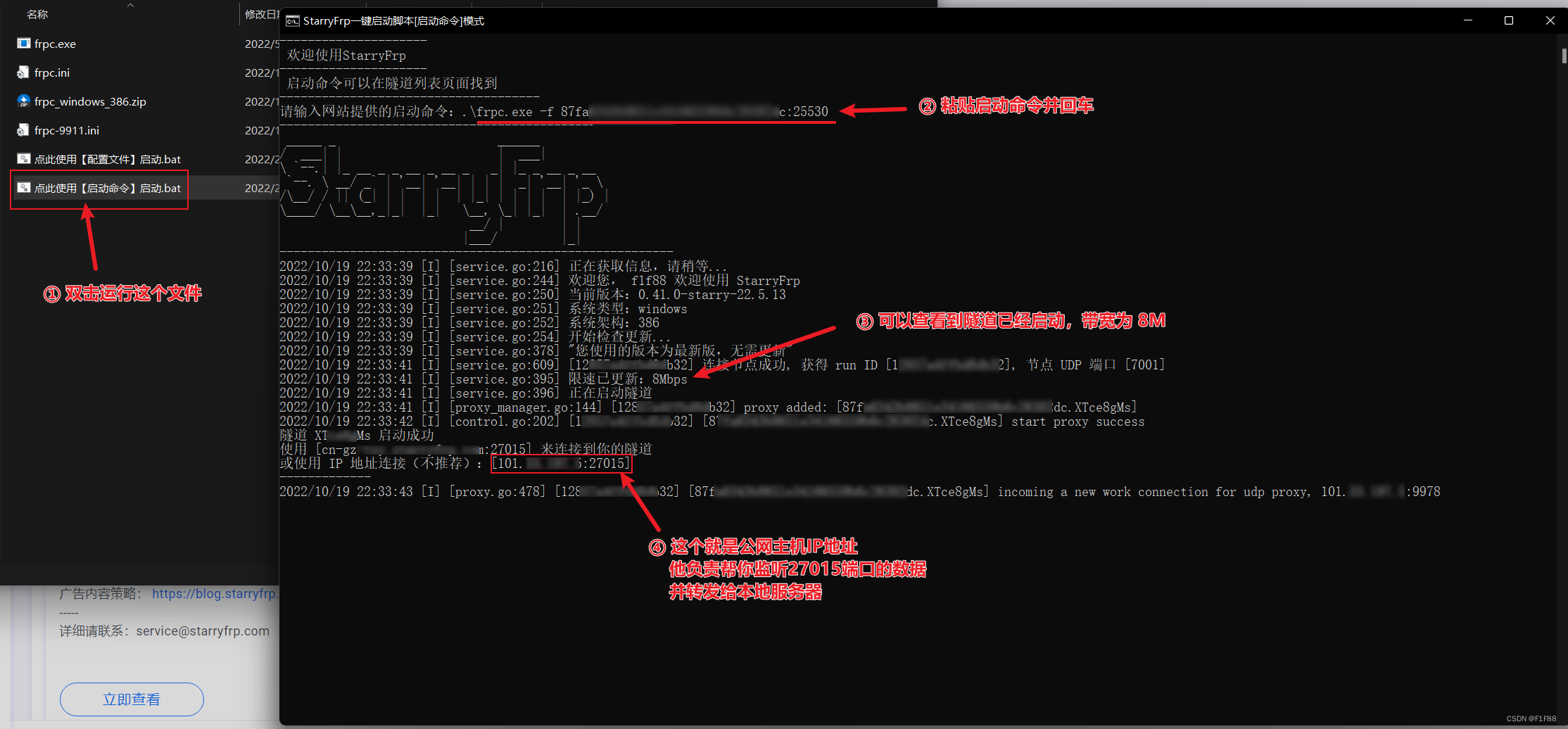

    ① 启动命令启动

    • 打开 隧道列表 确认隧道已经启动
    • 隧道列表 中获取 启动命令
    • 双击运行 点此使用【启动命令】启动.bat ,粘贴启动命令就能启动内网穿透服务
    • Tips:此方法每次启动内网穿透服务都需要粘贴启动命令

    在这里插入图片描述

    在这里插入图片描述

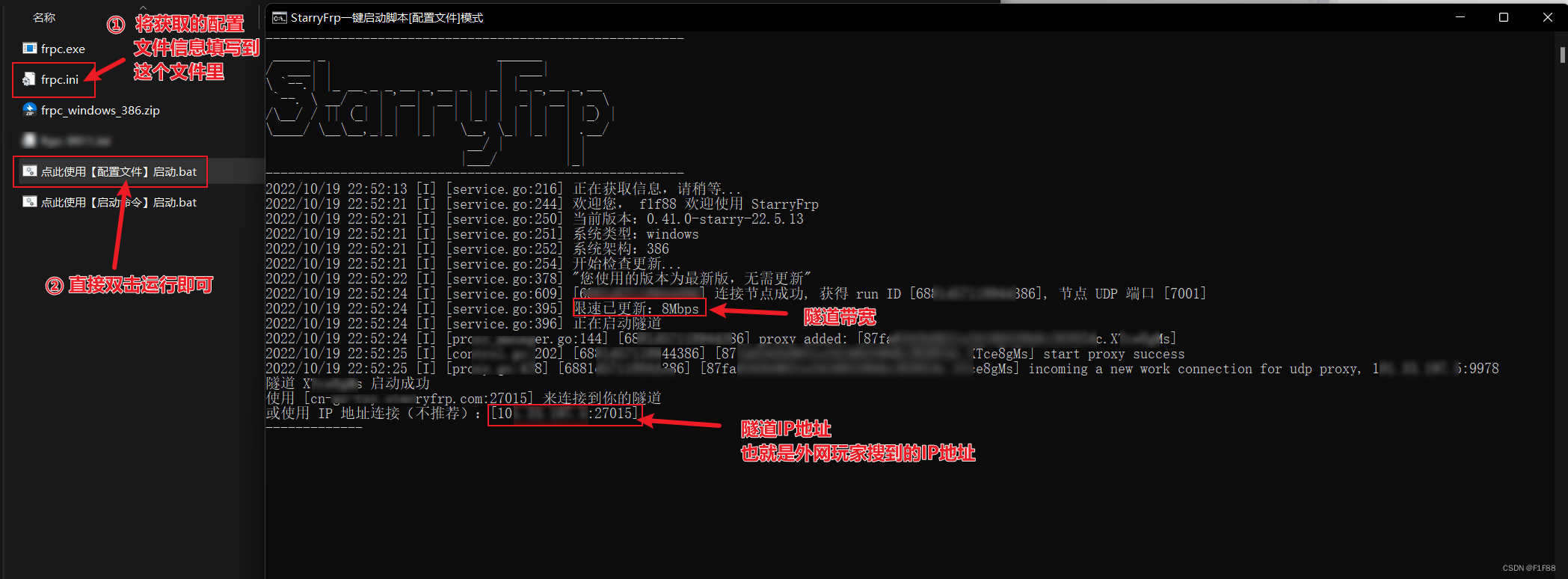

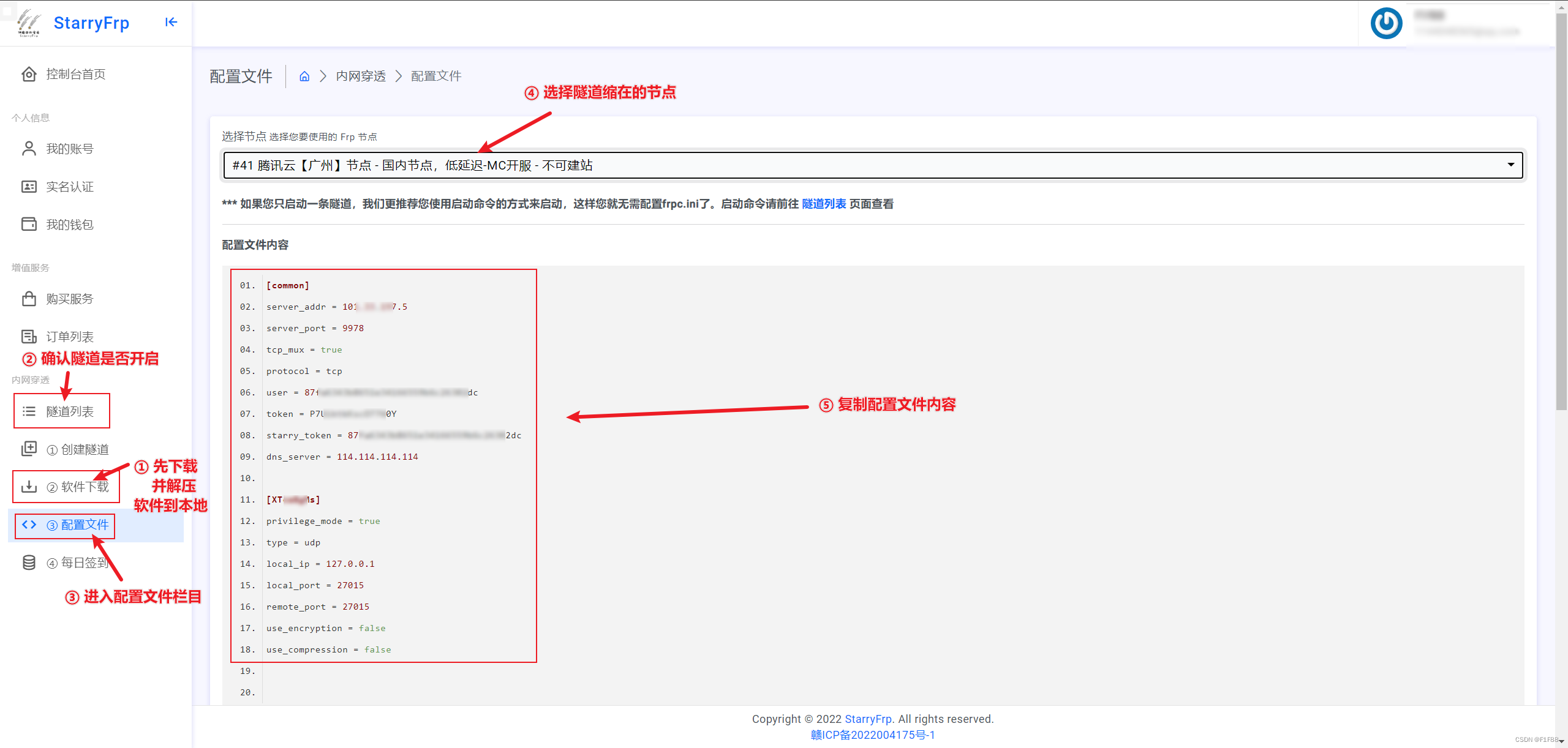

    ② 配置文件启动

    • 打开 隧道列表 确认隧道已经启动
    • 然后在 <>③配置文件 栏目,选择隧道所在的节点,复制配置文件内容
    • 编辑 frpc.ini 文件,粘贴配置文件内容(注:原有内容需清空,仅保留官网中复制来的配置文件)
    • 双击运行 点此使用【配置文件】启动.bat 即可启动内网穿透服务
    • Tips:此方法只需配置一次,以后直接双击运行 点此使用【配置文件】启动.bat 即可

    在这里插入图片描述

    在这里插入图片描述

########################################################################################

# 网络配置-内网穿透方案 到此结束
# 下一步可以启动服务器,验证是否可以被别人访问到
########################################################################################


疑难解答

  • 问题1:内网穿透创建隧道时提示 “端口已被占用”
    解答: 换一个端口即可,启动服务器时指定你设置的端口。比如换成27016,则启动命令如下

    srcds.exe ./srcds_run -game nmrih -port 27016 -maxplayers 8 +map nmo_suzhou

  • 问题2:云服务器设置了内网穿透,内网穿透也启动成功,但是无法连接服务器
    解答: 确保服务器安全组中对应的端口已经放行!

  • 问题3:是否需要开放 TCP 协议的 27015 端口
    参考: 官网建议-端口开放   |   维基:NMRIH 服务器安装 [英]
    解答: 开放 UDP 协议的 27015 端口即可。(参考文中建议 TCP-27015 端口仅在你需要使用远程控制台时在开启)

  • 问题4:路由器品牌和本文不同,找不到端口映射或不知道如何设置
    解答: 翻开路由器背面查看路由器型号,搜索 路由器型号 + 端口映射。(学会利用搜索引擎,能解决99%问题)

  • 问题5:一定要用端口映射吗?用 DMZ 是否可以
    解答: 可以,但是不建议,容易被他人攻击。(如:DDOS)

  • 问题6:好友收藏了我的服务器,过几天却从收藏里消失了,但在互联网能找到
    解答: 家用网络的公网IP一般是动态IP,每隔几天就会变动。(这就好比我收藏了你家的门牌号,但是过了几天你搬家了,收藏旧地址指向自然也随之变化了)

  • 问题7:家用电脑开服,有玩家成功加入服务器,但自己只能在局域网里可以看到自己的服务器
    个人理解: 无伤大雅。原因大概是你的游戏主机与服务器主机在同一的局域网内,使用的是C类局域网建立连接,所以只能在局域网中搜索到服务器。但对于互联网的其他人来说,他们不在你的路由器局域网里,只能与你的外网ip建立连接,所以能在互联网看到你的服务器。

  • 问题8:为什么服务器已经有其他玩家加入了,而我在 steam 邀请好友加入游戏,却怎么都进不来?

    解答: 如果在局域网内向好友发出游戏邀请,好友收到的可能是服务器的局域网IP地址。让好友试试在互联网搜索,或者在游戏控制台中输入 connect 公网IP地址:端口号

    例如:connect 123.23.34.56:27015

  • 问题9:(路由器端口映射设置完成) 或 (内网穿透配置完成,启动成功)。但是无法从互联网连接到服务器

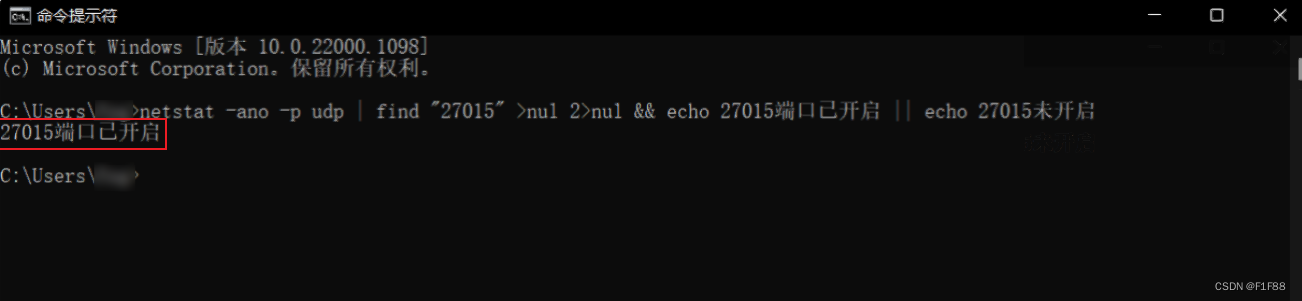

    1. 判断 27015 端口 是否已开启

      Windows 系统可在 cmd 命令行中输入如下命令检测:

      netstat -ano -p udp | find “27015” >nul 2>nul && echo 27015端口已开启 || echo 27015未开启


      在这里插入图片描述

    2. 检查是否被系统防火墙拦截

      先关闭所有杀毒软件和防火墙,看看好友是否能连接到你的服务器。
      如果能,说明被杀毒软件或者防火墙拦截了(以win11为例,在防火墙中放行 27015 端口步骤如下)

      命令行输入control 打开控制面板 	--> 	Windows Defender 防火墙	 -->	高级设置	-->	入站规则 -->
      --> 新建规则 	--> 	端口 	--> 下一页 	-->		选择 UDP 规则 --> 	特定本地端口填写27015 -->
      --> 下一页 		--> 允许连接 	--> 下一页 	--> 	规则全选 	 --> 	下一页 	--> 填写名称和描述

    3. 如果还是无法被好友发现,试试将官网推荐的端口号全部放行: 端口设置建议 [英]

    4. 如果走的是 第二章公网部署,考虑自己是内网而不是公网(并非自己设置的问题,要找运营商解决或使用内网穿透)

    5. 玄学!
