vue 中使用图片编辑器 tui-image-editor

一、简介

使用HTML Canvas实现的全功能图片编辑器。

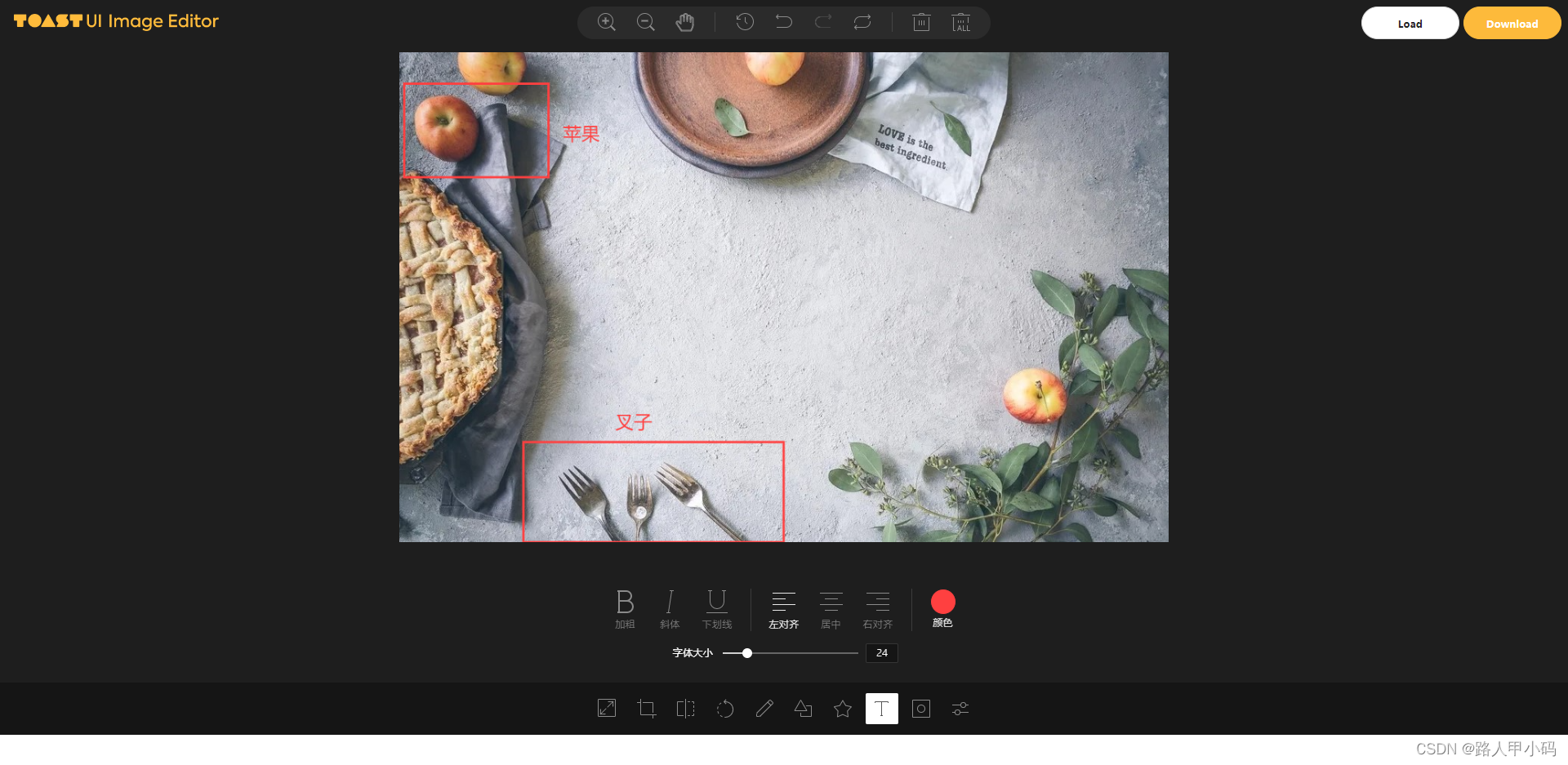

二、效果展示

三、使用

1.安装插件

npm i tui-image-editor

2.组件中使用

<template>
  <div class="box">
    <div class="drawing-container">
      <div id="tui-image-editor"></div>
    </div>
  </div>
</template>

<script>
import "tui-image-editor/dist/tui-image-editor.css";
import "tui-color-picker/dist/tui-color-picker.css";
import ImageEditor from "tui-image-editor";
export default {
  name: 'HelloWorld',
  // components:{ uiMarke },
  data () {
    return {
      instance: null
    }
  },
  mounted() {
    this.init();
  },
  methods:{
   init() {
      this.instance = new ImageEditor(
        document.querySelector("#tui-image-editor"),
        {
          includeUI: {
            loadImage: {
              path: require("@/assets/logo.png"),
              name: "image",
            },
            initMenu: "draw", // 默认打开的菜单项
            menuBarPosition: "bottom", // 菜单所在的位置
          },
          cssMaxWidth: 1000, // canvas 最大宽度
          cssMaxHeight: 600, // canvas 最大高度
        }
      );
      document.getElementsByClassName("tui-image-editor-main")[0].style.top = "45px"; // 图片距顶部工具栏的距离
    }
  }
}
</script>

<style scoped>
.box {
  width: 100%;
  height: 100%;
}
.drawing-container {
  height: 900px;
}
</style>

3.本地化语言为中文

data () {
    return {
      instance: null,
      locale_zh : {
        ZoomIn: "放大",
        ZoomOut: "缩小",
        Hand: "手掌",
        History: '历史',
        Resize: '调整宽高',
        Crop: "裁剪",
        DeleteAll: "全部删除",
        Delete: "删除",
        Undo: "撤销",
        Redo: "反撤销",
        Reset: "重置",
        Flip: "镜像",
        Rotate: "旋转",
        Draw: "画",
        Shape: "形状标注",
        Icon: "图标标注",
        Text: "文字标注",
        Mask: "遮罩",
        Filter: "滤镜",
        Bold: "加粗",
        Italic: "斜体",
        Underline: "下划线",
        Left: "左对齐",
        Center: "居中",
        Right: "右对齐",
        Color: "颜色",
        "Text size": "字体大小",
        Custom: "自定义",
        Square: "正方形",
        Apply: "应用",
        Cancel: "取消",
        "Flip X": "X 轴",
        "Flip Y": "Y 轴",
        Range: "区间",
        Stroke: "描边",
        Fill: "填充",
        Circle: "圆",
        Triangle: "三角",
        Rectangle: "矩形",
        Free: "曲线",
        Straight: "直线",
        Arrow: "箭头",
        "Arrow-2": "箭头2",
        "Arrow-3": "箭头3",
        "Star-1": "星星1",
        "Star-2": "星星2",
        Polygon: "多边形",
        Location: "定位",
        Heart: "心形",
        Bubble: "气泡",
        "Custom icon": "自定义图标",
        "Load Mask Image": "加载蒙层图片",
        Grayscale: "灰度",
        Blur: "模糊",
        Sharpen: "锐化",
        Emboss: "浮雕",
        "Remove White": "除去白色",
        Distance: "距离",
        Brightness: "亮度",
        Noise: "噪音",
        "Color Filter": "彩色滤镜",
        Sepia: "棕色",
        Sepia2: "棕色2",
        Invert: "负片",
        Pixelate: "像素化",
        Threshold: "阈值",
        Tint: "色调",
        Multiply: "正片叠底",
        Blend: "混合色",
        Width: "宽度",
        Height: "高度",
        "Lock Aspect Ratio": "锁定宽高比例",
      }
    }
  },

methods:{
   init() {
      this.instance = new ImageEditor(
        document.querySelector("#tui-image-editor"),
        {
          includeUI: {
            loadImage: {
              path: require("@/assets/logo.png"),
              name: "image",
            },
            initMenu: "draw", // 默认打开的菜单项
            menuBarPosition: "bottom", // 菜单所在的位置
            locale: this.locale_zh, // 本地化语言为中文
          },
          cssMaxWidth: 1000, // canvas 最大宽度
          cssMaxHeight: 600, // canvas 最大高度
        }
      );
      document.getElementsByClassName("tui-image-editor-main")[0].style.top = "45px"; // 图片距顶部工具栏的距离
    }
  }

4.修改样式

data () {
    return {
      instance: null,
      customTheme : {
        "common.bi.image": "", // 左上角logo图片
        "common.bisize.width": "0px",
        "common.bisize.height": "0px",
        "common.backgroundImage": "none",
        "common.backgroundColor": "#f3f4f6",
        "common.border": "1px solid #333",

        // header
        "header.backgroundImage": "none",
        "header.backgroundColor": "#f3f4f6",
        "header.border": "0px",

        // load button
        "loadButton.backgroundColor": "#fff",
        "loadButton.border": "1px solid #ddd",
        "loadButton.color": "#222",
        "loadButton.fontFamily": "NotoSans, sans-serif",
        "loadButton.fontSize": "12px",
        "loadButton.display": "none", // 隐藏

        // download button
        "downloadButton.backgroundColor": "#fdba3b",
        "downloadButton.border": "1px solid #fdba3b",
        "downloadButton.color": "#fff",
        "downloadButton.fontFamily": "NotoSans, sans-serif",
        "downloadButton.fontSize": "12px",
        "downloadButton.display": "none", // 隐藏

        // icons default
        "menu.normalIcon.color": "#8a8a8a",
        "menu.activeIcon.color": "#555555",
        "menu.disabledIcon.color": "#ccc",
        "menu.hoverIcon.color": "#e9e9e9",
        "submenu.normalIcon.color": "#8a8a8a",
        "submenu.activeIcon.color": "#e9e9e9",

        "menu.iconSize.width": "24px",
        "menu.iconSize.height": "24px",
        "submenu.iconSize.width": "32px",
        "submenu.iconSize.height": "32px",

        // submenu primary color
        "submenu.backgroundColor": "#1e1e1e",
        "submenu.partition.color": "#858585",

        // submenu labels
        "submenu.normalLabel.color": "#858585",
        "submenu.normalLabel.fontWeight": "lighter",
        "submenu.activeLabel.color": "#fff",
        "submenu.activeLabel.fontWeight": "lighter",

        // checkbox style
        "checkbox.border": "1px solid #ccc",
        "checkbox.backgroundColor": "#fff",

        // rango style
        "range.pointer.color": "#fff",
        "range.bar.color": "#666",
        "range.subbar.color": "#d1d1d1",

        "range.disabledPointer.color": "#414141",
        "range.disabledBar.color": "#282828",
        "range.disabledSubbar.color": "#414141",

        "range.value.color": "#fff",
        "range.value.fontWeight": "lighter",
        "range.value.fontSize": "11px",
        "range.value.border": "1px solid #353535",
        "range.value.backgroundColor": "#151515",
        "range.title.color": "#fff",
        "range.title.fontWeight": "lighter",

        // colorpicker style
        "colorpicker.button.border": "1px solid #1e1e1e",
        "colorpicker.title.color": "#fff",
      }
    }
  },

methods:{
   init() {
      this.instance = new ImageEditor(
        document.querySelector("#tui-image-editor"),
        {
          includeUI: {
            loadImage: {
              path: require("@/assets/logo.png"),
              name: "image",
            },
            initMenu: "draw", // 默认打开的菜单项
            menuBarPosition: "bottom", // 菜单所在的位置
            locale: this.locale_zh, // 本地化语言为中文
            theme: this.customTheme, // 自定义样式
          },
          cssMaxWidth: 1000, // canvas 最大宽度
          cssMaxHeight: 600, // canvas 最大高度
        }
      );
      document.getElementsByClassName("tui-image-editor-main")[0].style.top = "45px"; // 图片距顶部工具栏的距离
    }
  }
