接下来我们将学习一下相关函数的使用方法和功能。

GtkWidget *
gtk_dialog_get_content_area (GtkDialog *dialog);
GtkWidget *
gtk_dialog_add_button (GtkDialog *dialog,
                       const gchar *button_text,
                       gint response_id);
void
gtk_dialog_add_buttons (GtkDialog *dialog,
                        const gchar *first_button_text,
                        ...);
gint
gtk_dialog_run (GtkDialog *dialog);

以下例子使用以上函数主要实现了：
1. 在dialog上添加 label
2. 在dialog上添加 button
3. 点击添加的 button ，并完成一些功能

例子

#include <gtk/gtk.h>

static GtkWidget *create_window(const gint, const gint);

void button_clicked_cb(GtkWindow *window)
{
	GtkWidget *dialog;
	GtkWidget *label;
	GtkWidget *container;
	gint response;

	/// *** dialog
	dialog = gtk_dialog_new();
	gtk_window_set_title(GTK_WINDOW(dialog), "Dialog");
	gtk_widget_set_size_request(dialog, 200, 300);
	gtk_window_set_transient_for(GTK_WINDOW(dialog), window);
	/// *** 防止与同一程序的另一窗口进行交互，将dialog置于顶部
	gtk_window_set_modal(GTK_WINDOW(dialog), TRUE);
	/// *** label
	label = gtk_label_new("点击YES关闭程序\n点击NO关闭Dialog");
	/// ***
	container = gtk_dialog_get_content_area(GTK_DIALOG(dialog));
	g_object_set(label, "parent", container, NULL);
	/// ***
	// gtk_dialog_add_button(GTK_DIALOG(dialog), "YES", 1);
	// gtk_dialog_add_button(GTK_DIALOG(dialog), "NO", 2);
	/// *** 完成上面两行代码的功能
	gtk_dialog_add_buttons(GTK_DIALOG(dialog), "YES", 1, "NO", 2, NULL);

	gtk_widget_show_all(dialog);
	/// ***
	response = gtk_dialog_run(GTK_DIALOG(dialog));
	switch (response)
	{
	case 1: /// *** YES button
		g_print("The YES button has pressed\n");
		gtk_widget_destroy(GTK_WIDGET(window));
		break;
	case 2: /// *** NO button
		g_print("The NO button has pressed\n");
		gtk_widget_destroy(GTK_WIDGET(dialog));
		break;
	default:
		break;
	}
}

int main(int argc, char *argv[])
{
	gtk_init(&argc, &argv);

	GtkWidget *window;
	GtkWidget *button;

	/// *** Create a Window
	window = create_window(400, 500);
	/// *** Create a button
	button = gtk_button_new_with_mnemonic("_Open the dialog");
	g_object_set(button,
		     "margin", 50,
		     "parent", window,
		     NULL);
	g_signal_connect_swapped(button, "clicked", G_CALLBACK(button_clicked_cb), window);

	gtk_widget_show_all(window);
	gtk_main();
}

static GtkWidget *create_window(const gint w, const gint h)
{
	GtkWidget *window = gtk_window_new(GTK_WINDOW_TOPLEVEL);
	g_signal_connect(window, "destroy", G_CALLBACK(gtk_main_quit), NULL);
	gtk_window_set_default_size(GTK_WINDOW(window), w, h);
	gtk_window_set_position(GTK_WINDOW(window), GTK_WIN_POS_CENTER);
	gtk_window_set_title(GTK_WINDOW(window), "Hello GTK3");
	gtk_container_set_border_width(GTK_CONTAINER(window), 50);

	return window;
}

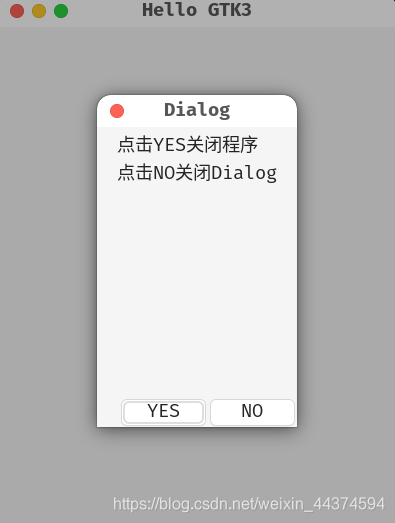

• 运行结果
