STM32蜂鸣器播放歌曲《小星星》

最新推荐文章于 2025-03-25 20:08:20 发布

逸丶羲

最新推荐文章于 2025-03-25 20:08:20 发布

阅读量1.1w

点赞数 7

本文链接：https://blog.csdn.net/weixin_44439920/article/details/112347695

版权

这篇博客介绍了如何使用STM32F103RB芯片通过STM32Cube配置并生成Keil文件，然后在Keil中编写代码，实现蜂鸣器播放歌曲《小星星》。主要步骤包括芯片选择、配置、代码编写，并给出了beep.c和beep.h的代码示例。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

一、芯片选择及配置

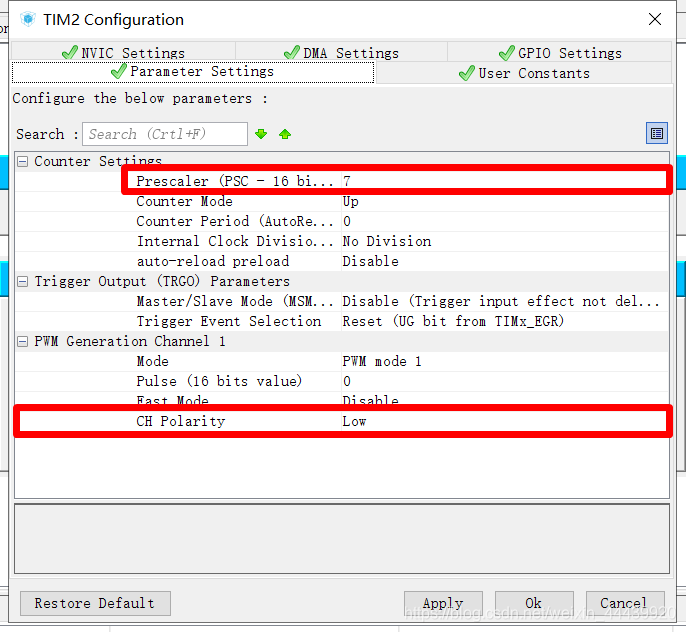

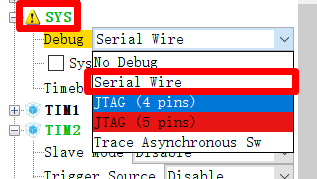

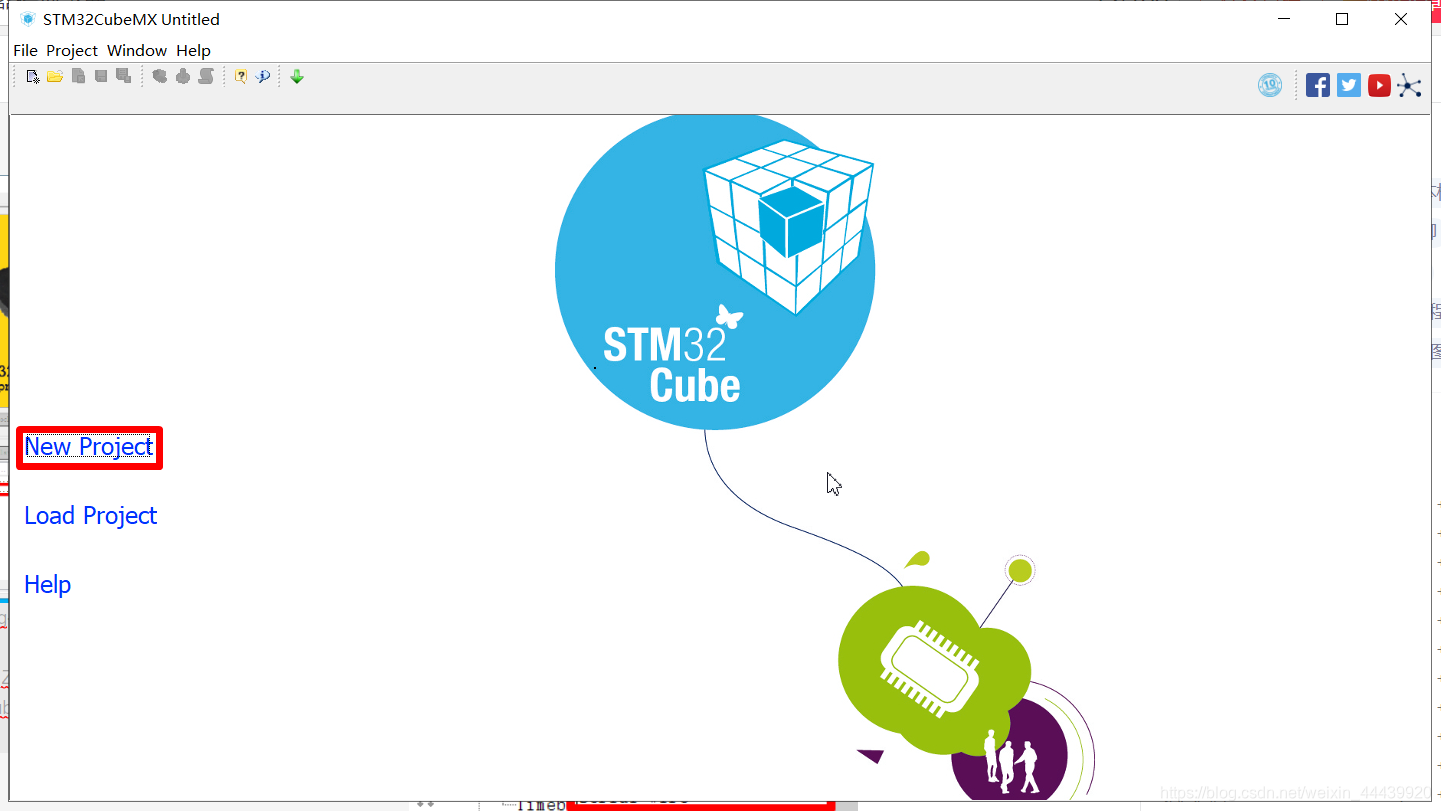

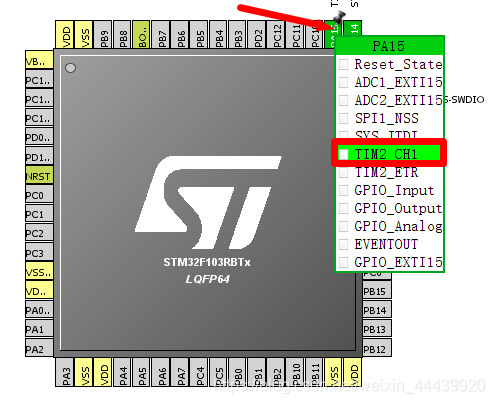

利用STM32Cube软件配置芯片并生成Keil文件。(需要提前配置环境，没有此软件可以跳过此步 )
在这里插入图片描述

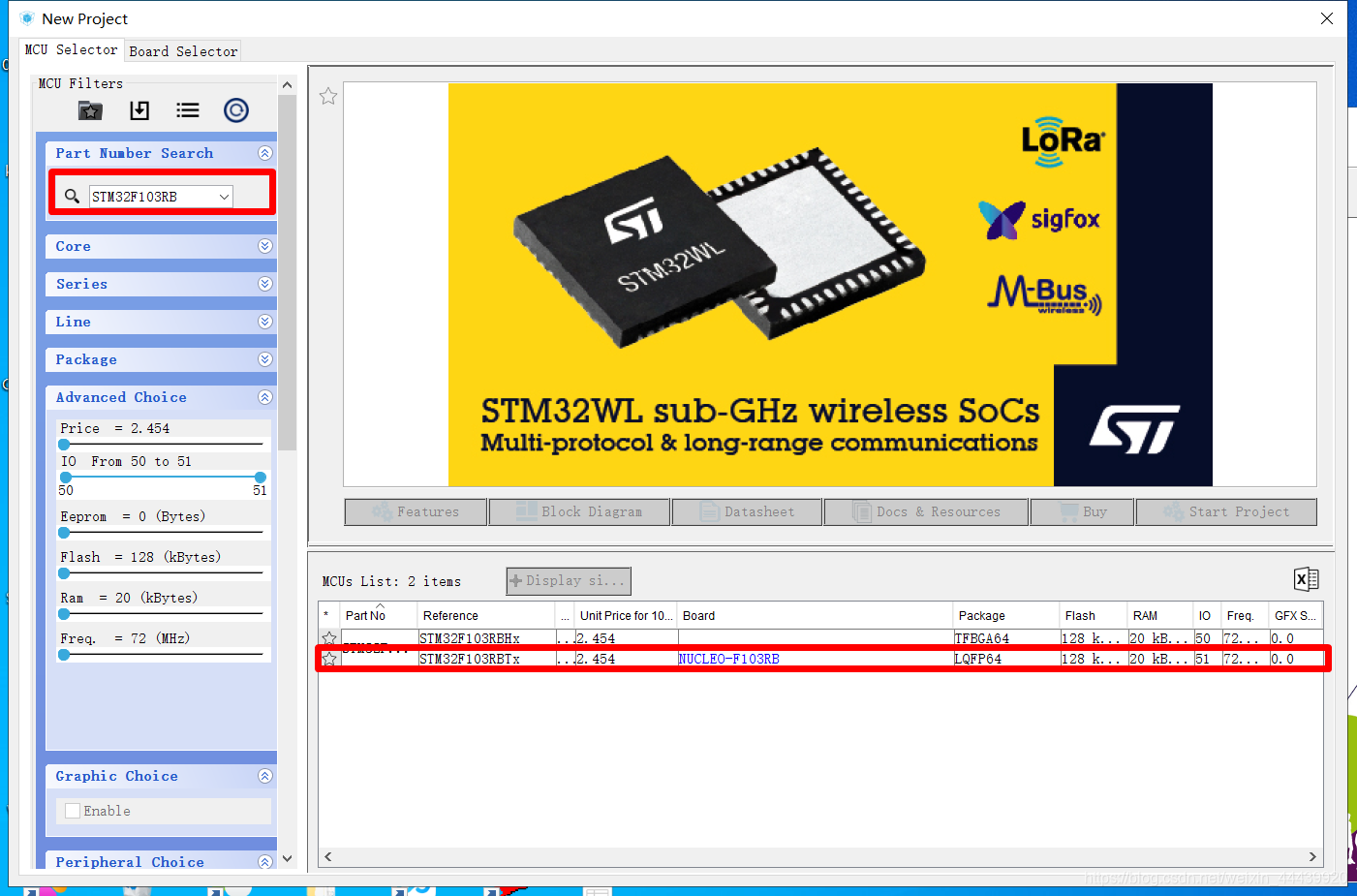

选用SMT32F103RB芯片

在这里插入图片描述

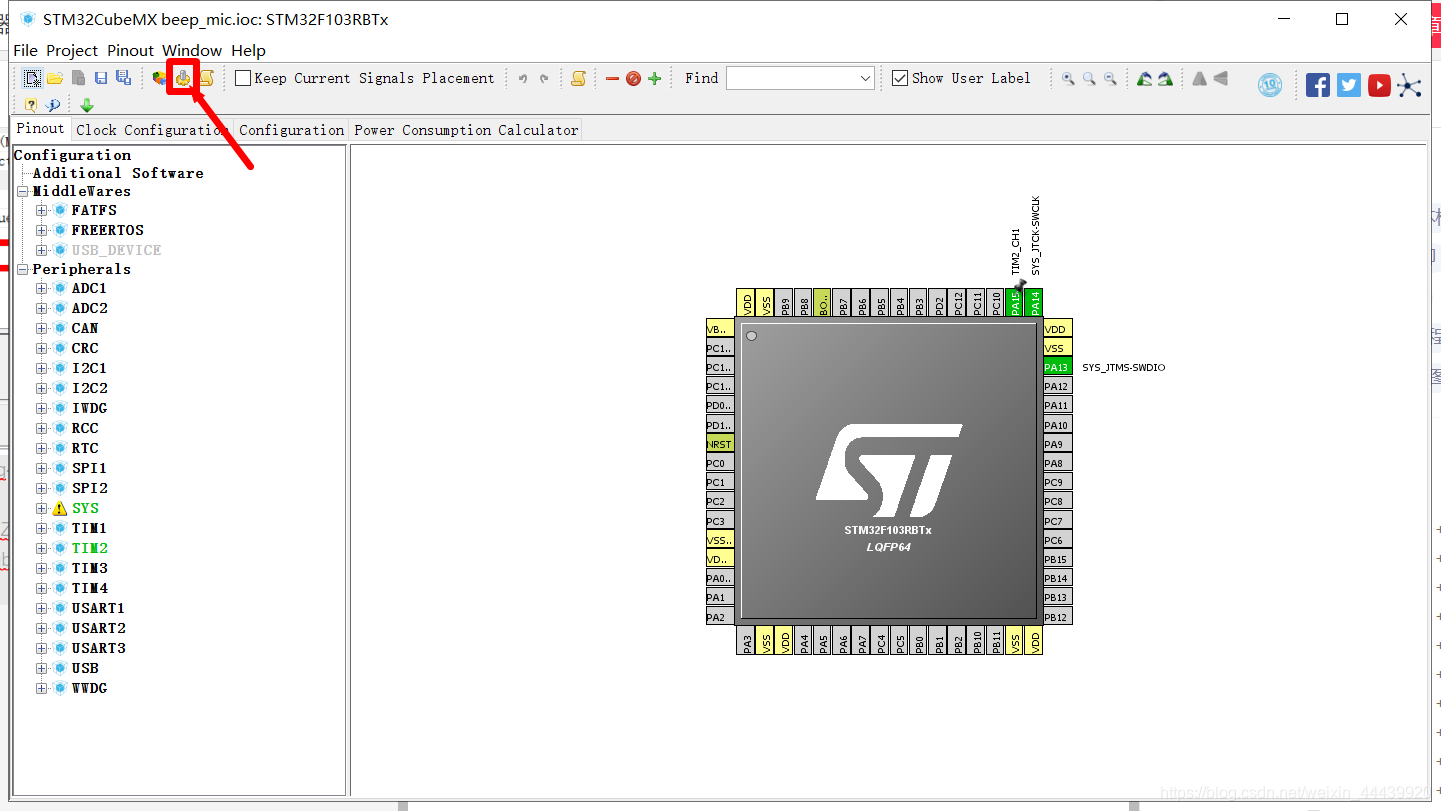

配置完成，点击此处生成Keil文件。

二、keil代码编程
main.c(偷懒把所有代码粘了进来)


/**
  ******************************************************************************
  * @file           : main.c
  * @brief          : Main program body
  ******************************************************************************
  ** This notice applies to any and all portions of this file
  * that are not between comment pairs USER CODE BEGIN and
  * USER CODE END. Other portions of this file, whether
  * inserted by the user or by software development tools
  * are owned by their respective copyright owners.
  *
  * COPYRIGHT(c) 2021 STMicroelectronics
  *
  * Redistribution and use in source and binary forms, with or without modification,
  * are permitted provided that the following conditions are met:
  *   1. Redistributions of source code must retain the above copyright notice,
  *      this list of conditions and the following disclaimer.
  *   2. Redistributions in binary form must reproduce the above copyright notice,
  *      this list of conditions and the following disclaimer in the documentation
  *      and/or other materials provided with the distribution.
  *   3. Neither the name of STMicroelectronics nor the names of its contributors
  *      may be used to endorse or promote products derived from this software
  *      without specific prior written permission.
  *
  * THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
  * AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE
  * IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE
  * DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE
  * FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL
  * DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR
  * SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER
  * CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY,
  * OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE
  * OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
  *
  ******************************************************************************
  */
/* Includes ------------------------------------------------------------------*/
#include "main.h"
#include "stm32f1xx_hal.h"

/* USER CODE BEGIN Includes */
#include "beep.h"

/* USER CODE END Includes */

/* Private variables ---------------------------------------------------------*/
TIM_HandleTypeDef htim2;

/* USER CODE BEGIN PV */
/* Private variables ---------------------------------------------------------*/

// 定义音符表
#define M1  523
#define M2  587
#define M3  659
#define M4  698
#define M5  784
#define M6  880
#define M7  988
#define ST  0

// 定义歌曲 表
const uint16_t mic[][2] =
{

	{
   M1,1},{
   M1,1},{
   M5,1},{
   M5,1},
	{
   M6,1},{
   M6,1},{
   M5,1},{
   ST,1},
	{
   M4,1},{
   M4,1},{
   M3,1},{
   M3,1},
