本文我们主要介绍使用SSM框架搭建一个简单项目的过程与注意事项。

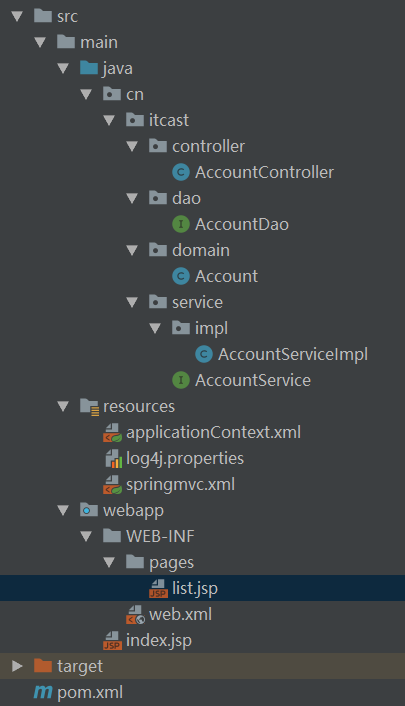

项目目录
持久层Dao 进行数据库读写操作,属于Mybatis
业务层Service 调用Dao层的函数,对数据库进行操作,以实现业务需求。属于Spring
控制层Controller 前端发送的请求被控制层拦截,控制层调用业务层Service的函数执行业务计算。执行完毕之后结果返回到前端页面。属于SpringMVC
前端 发送请求,服务器执行完请求之后,返回结果到前端。属于SpringMVC
web.xml 配置web项目的基本信息,可配置项目使用的框架。
applicationContext.xml配置Spring框架
springmvc.xml 配置mvc框架
log4j.properties配置日志处理
index.jsp项目运行后的主界面
list.jsp前端控制器处理后的页面
Web.xml配置
tomcat启动一个WEB项目的时候,WEB容器会去读取它的配置文件web.xml。web.xml文件是用来初始化配置信息:比如Welcome页面、servlet、servlet-mapping、filter、listener、启动加载级别等。
<!DOCTYPE web-app PUBLIC
"-//Sun Microsystems, Inc.//DTD Web Application 2.3//EN"
"http://java.sun.com/dtd/web-app_2_3.dtd" >
<web-app>
<display-name>Archetype Created Web Application</display-name>
<!--配置Spring的监听器-->
<listener>
<listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
</listener>
<!--读取spring配置文件-->
<context-param>
<param-name>contextConfigLocation</param-name>
<param-value>classpath:applicationContext.xml</param-value>
</context-param>
<!--配置前端控制器-->
<servlet>
<servlet-name>springmvc</servlet-name>
<servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
<!--加载springmvc.xml配置文件-->
<init-param>
<param-name>contextConfigLocation</param-name>
<param-value>classpath:springmvc.xml</param-value>
</init-param>
<!--启动服务器,创建该servlet-->
<load-on-startup>1</load-on-startup>
</servlet>
<servlet-mapping>
<servlet-name>springmvc</servlet-name>
<url-pattern>/</url-pattern>
</servlet-mapping>
<!--解决中文乱码的过滤器-->
<filter>
<filter-name>characterEncodingFilter</filter-name>
<filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
<init-param>
<param-name>encoding</param-name>
<param-value>UTF-8</param-value>
</init-param>
<init-param>
<param-name>forceEncoding</param-name>
<param-value>true</param-value>
</init-param>
</filter>
<filter-mapping>
<filter-name>characterEncodingFilter</filter-name>
<url-pattern>/*</url-pattern>
</filter-mapping>
</web-app>
**1、javaEE项目启动过程:首先加载Spring上下文环境配置文件,然后加载SpringMVC配置文件。
**
Spring配置加载过程:
tomcat服务器启动一个WEB项目的时候,WEB容器会去读取它的配置文件web.xml,然后会读取它的listener和context-param节点,然后紧接着会创建一个ServletContext(servlet上下文,全局的),这个web项目的所有部分都将共享这个上下文,容器将转换为键值对,并交给servletContext,可以获取当前该web应用对象,即servletContext对象,获取context-param值,进而获取资源,在web应用启动前操作) ,listener中ContextLoaderListener监听器的作用就是启动Web容器时,监听servletContext对象的变化,获取servletContext对象的,来自动装配ApplicationContext的配置信息。这样spring的加载过程就完成了。
SpringMVC配置加载过程:
配置DispatcherServlet,配置这个是拦截所有请求,都交给springmvc转发。
Servlet介绍:
Servlet通常称为服务端小程序,是服务端的程序,用于处理及响应客户的请求。Servlet是一个特殊的Java类,创建Servlet类自动继承HttpServlet。客户端通常只有GET和POST两种请求方式,Servlet为了响应这两种请求,必须重写doGet()和doPost()方法。大部分时候,Servlet对于所有的请求响应都是完全一样的,此时只需要重写service()方法即可响应客户端的所有请求。
filter设置
web.xml中配置了CharacterEncodingFilter,配置这个是拦截所有的资源并设置好编号格式。
encoding设置成utf-8就相当于request.setCharacterEncoding(“UTF-8”);
foreEncoding设置成true就相当于response.setCharacterEncoding(“UTF-8”);
Spring框架配置
applicationContext.xml是web.xml中读取的Spring配置文件,前几行是spring框架的版本信息。
配置注解扫描:Controller层我们不开启注解扫描,他们会被SpringMVC扫描。
整合mabits框架:配置连接池、SqlSessionFactory工厂、AccountDao接口所在包三项后实现整合mybatis。
进行事务管理配置,AOP增强。
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:mvc="http://www.springframework.org/schema/mvc"
xmlns:context="http://www.springframework.org/schema/context"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:tx="http://www.springframework.org/schema/tx"
xmlns:aop="http://www.springframework.org/schema/aop"
xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans.xsd
http://www.springframework.org/schema/mvc
http://www.springframework.org/schema/mvc/spring-mvc.xsd
http://www.springframework.org/schema/context
http://www.springframework.org/schema/context/spring-context.xsd http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx.xsd http://www.springframework.org/schema/aop https://www.springframework.org/schema/aop/spring-aop.xsd">
<!--开启spring注解扫描,不扫描controller-->
<context:component-scan base-package="cn.itcast">
<context:exclude-filter type="annotation" expression="org.springframework.stereotype.Controller"/>
</context:component-scan>
<!--Spring整合MyBatis框架-->
<!--配置连接池-->
<bean id="dataSource" class="com.mchange.v2.c3p0.ComboPooledDataSource">
<property name="driverClass" value="com.mysql.cj.jdbc.Driver"/>
<property name="jdbcUrl" value="jdbc:mysql://175.24.68.139:3306/ssm?serverTimezone=GMT%2B8"/>
<property name="user" value="root"/>
<property name="password" value="52wendyma"/>
</bean>
<!--配置SqlSessionFactory工厂-->
<bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
<property name="dataSource" ref="dataSource" />
</bean>
<!--配置AccountDao接口所在包-->
<bean id="mapperScanner" class="org.mybatis.spring.mapper.MapperScannerConfigurer">
<property name="basePackage" value="cn.itcast.dao"/>
</bean>
<!--配置Spring框架声明式事务管理-->
<!--配置事务管理器-->
<bean id="transactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
<property name="dataSource" ref="dataSource" />
</bean>
<!--配置事务通知-->
<tx:advice id="txAdvice" transaction-manager="transactionManager">
<tx:attributes>
<tx:method name="find*" read-only="true"/>
<tx:method name="*" isolation="DEFAULT"/>
</tx:attributes>
</tx:advice>
<!--配置AOP增强-->
<aop:config>
<aop:advisor advice-ref="txAdvice" pointcut="execution(* cn.itcast.service.impl.*ServiceImpl.*(..))"/>
</aop:config>
</beans>
SpringMVC的配置
MVC需要扫描Controller层的注解,需要开启注解扫描,并配置扫描的目录。
配置视图解析器对象。
配置过滤静态资源。因为dispatcherServlet默认会拦截http://localhost:8080下面的所有文件,包括静态资源文件,不配置过滤就无法访问到静态资源。
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:mvc="http://www.springframework.org/schema/mvc" xmlns:context="http://www.springframework.org/schema/context"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="
http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans.xsd
http://www.springframework.org/schema/mvc
http://www.springframework.org/schema/mvc/spring-mvc.xsd
http://www.springframework.org/schema/context
http://www.springframework.org/schema/context/spring-context.xsd">
<!--开启注解扫描,只扫描Controller注解-->
<context:component-scan base-package="cn.itcast">
<context:include-filter type="annotation" expression="org.springframework.stereotype.Controller" />
</context:component-scan>
<!--配置的视图解析器对象-->
<bean id="internalResourceViewResolver" class="org.springframework.web.servlet.view.InternalResourceViewResolver">
<property name="prefix" value="/WEB-INF/pages/"/>
<property name="suffix" value=".jsp"/>
</bean>
<!--过滤静态资源-->
<mvc:resources location="/css/" mapping="/css/**" />
<mvc:resources location="/images/" mapping="/images/**" />
<mvc:resources location="/js/" mapping="/js/**" />
<!--开启SpringMVC注解的支持-->
<mvc:annotation-driven/>
</beans>
项目逻辑结构
前端 index.jsp 发送请求,服务器执行完请求之后,返回结果到前端。属于SpringMVC
<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<html>
<head>
<title>Title</title>
</head>
<body>
<a href="account/findAll">测试查询</a>
<h3>测试包</h3>
<form action="account/save" method="post">
姓名:<input type="text" name="name" /><br/>
金额:<input type="text" name="money" /><br/>
<input type="submit" value="保存"/><br/>
</form>
</body>
</html>
控制层Controller 前端发送的请求被控制层拦截,控制层调用业务层Service的函数执行业务计算。执行完毕之后结果返回到前端页面。属于SpringMVC
业务层查询出的数据存到线性表list中,再把该线性表作为model的一个属性(Model对象可以封装数据)。
通过返回字符串list,后续可以从前端页面list.jsp获取该属性,并进行相关处理。
注解:使用@Controller 注解,在对应的方法上,视图解析器可以解析return 的jsp,html页面,并且跳转到相应页面;若返回json等内容到页面,则需要加@ResponseBody注解。
@RestController注解,相当于@Controller+@ResponseBody两个注解的结合,返回json数据不需要在控制层方法前面加@ResponseBody注解。但使用@RestController这个注解,就不能返回jsp,html页面,视图解析器无法解析jsp,html页面。本例中返回jsp页面就不加该注解。
@Controller
@RequestMapping("/account")
public class AccountController {
@Autowired
private AccountService accountService;
@RequestMapping("/findAll")
public String findAll(Model model){
System.out.println("表现层:查询所有账户...");
// 调用service的方法
// accountService.findAll();
List<Account> list = accountService.findAll();
model.addAttribute("list",list);
return "list";
}
@RequestMapping("/save")
public String save(Account account, HttpServletRequest request, HttpServletResponse response) throws IOException {
accountService.saveAccount(account);
//response.sendRedirect(request.getContextPath()+"/account/findAll");
return "redirect:/account/findAll";
}
}
业务层Service 调用Dao层的函数,对数据库进行操作,以实现业务需求。属于Spring
@Service("accountService")
public class AccountServiceImpl implements AccountService{
@Autowired
private AccountDao accountDao;
public List<Account> findAll() {
System.out.println("业务层:查询所有账户...");
//return null;
return accountDao.findAll();
}
public void saveAccount(Account account) {
System.out.println("业务层:保存帐户...");
accountDao.saveAccount(account);
}
}
持久层Dao 进行数据库读写操作,属于Mybatis
@Repository
public interface AccountDao {
// 查询所有账户
@Select("select * from account")
public List<Account> findAll();
// 保存帐户信息
@Insert("insert into account (name,money) values (#{name},#{money})")
public void saveAccount(Account account);
}
处理后的页面
list.jsp
<%@ page contentType="text/html;charset=UTF-8" language="java" isELIgnored="false" %>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<html>
<head>
<title>Title</title>
</head>
<body>
<h3>查询所有的帐户</h3>
<c:forEach items="${list}" var="account">
${account.id}
${account.name}
${account.money}
<\br>
</c:forEach>
</body>
</html>
账户模型 用来封装前端请求的数据
public class Account implements Serializable {
private Integer id;
private String name;
private Double money;
}
pom.xml
属于maven项目管理,可管理jar包
