WPF框架手敲实现嵌套页面,点击显示与切换

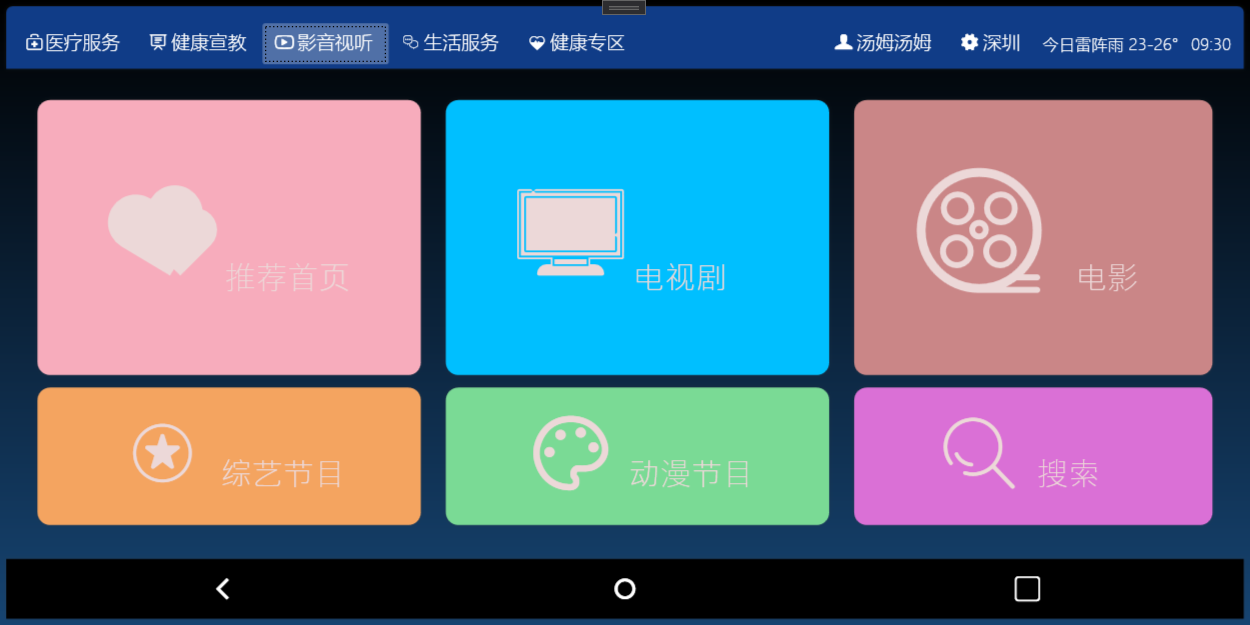

下面附上成果图吧,看了之后觉得适用就可以参考一下,否则就不要浪费时间了
操作时间
1.此篇作为学习记录,是一个WPF框架window嵌套用户控件的使用。点击按钮切换显示嵌套的内容
1.1首先创建MainView.xaml
CommandParameter="MovieView"注:MovieView根据自己View的名称
<Window.Resources>
<ResourceDictionary>
<ResourceDictionary.MergedDictionaries>
<ResourceDictionary>
<!--RadioButton样式-->
<Style TargetType="RadioButton" x:Key="NavButtonStyle">
<Setter Property="Foreground" Value="White"/>
<Setter Property="Template">
<Setter.Value>
<ControlTemplate TargetType="RadioButton">
<Border Background="Transparent" CornerRadius="2" Name="back">
<ContentControl Content="{TemplateBinding Content}" VerticalAlignment="Center" HorizontalAlignment="Center" Margin="10,5" FontSize="12"/>
</Border>
<!--Triggers按钮样式-->
<ControlTemplate.Triggers>
<Trigger Property="IsChecked" Value="True">
<Setter TargetName="back" Property="Background" Value="#44FFFFFF"/>
</Trigger>
</ControlTemplate.Triggers>
</ControlTemplate>
</Setter.Value>
</Setter>
</Style>
</ResourceDictionary>
</ResourceDictionary.MergedDictionaries>
</ResourceDictionary>
</Window.Resources>
<!--Background-->
<Window.Background>
<LinearGradientBrush EndPoint="0.5,1" StartPoint="0.5,0">
<GradientStop Color="Black" Offset="0"/>
<GradientStop Color="#FF164472" Offset="1"/>
</LinearGradientBrush>
</Window.Background>
<Border Margin="5" CornerRadius="5" x:Name="layout">
<Border.Effect>
<DropShadowEffect Color="Gray" ShadowDepth="0" BlurRadius="5" Opacity="0.3" Direction="0"/>
</Border.Effect>
<Grid>
<!--Top样式-->
<Border Background="#FF103C87" Height="50" VerticalAlignment="Top" CornerRadius="5,5,0,0"/>
<Grid Margin="5,5">
<!--NavigationHeight-->
<Grid.RowDefinitions>
<RowDefinition Height="50"/>
<RowDefinition Height="390"/>
<RowDefinition Height="50"/>
</Grid.RowDefinitions>
<!--left-->
<StackPanel Orientation="Horizontal" Grid.Row="0" HorizontalAlignment="Left" VerticalAlignment="Center">
<RadioButton Style="{StaticResource NavButtonStyle}" IsChecked="True" Command="{Binding NavChangedCommand}" CommandParameter="MovieView">
<WrapPanel>
<TextBlock Text="" FontFamily="/common/Resources/#iconfont" VerticalAlignment="Center" HorizontalAlignment="Center" FontSize="15" Margin="0,0,1,3"/>
<TextBlock Text="医疗服务" Margin="0,0,3,3" FontSize="15"/>
</WrapPanel>
</RadioButton>
<RadioButton Style="{StaticResource NavButtonStyle}" Command="{Binding NavChangedCommand}" CommandParameter="HealthEducationView">
<WrapPanel>
<TextBlock Text="" FontFamily="/common/Resources/#iconfont" VerticalAlignment="Center" HorizontalAlignment="Center" FontSize="15" Margin="0,0,3,3"/>
<TextBlock Text="健康宣教" Margin="0,0,3,3" FontSize="15"/>
</WrapPanel>
</RadioButton>
<RadioButton Style="{StaticResource NavButtonStyle}" Command="{Binding NavChangedCommand}" CommandParameter="MedicalView">
<WrapPanel>
<TextBlock Text="" FontFamily="/common/Resources/#iconfont" VerticalAlignment="Center" HorizontalAlignment="Center" FontSize="15" Margin="0,0,3,3"/>
<TextBlock Text="影音视听" Margin="0,0,3,3" FontSize="15"/>
</WrapPanel>
</RadioButton>
<RadioButton Style="{StaticResource NavButtonStyle}" Command="{Binding NavChangedCommand}" CommandParameter="LifeServiceView">
<WrapPanel>
<TextBlock Text="" FontFamily="/common/Resources/#iconfont" VerticalAlignment="Center" HorizontalAlignment="Center" FontSize="15" Margin="0,0,3,3"/>
<TextBlock Text="生活服务" Margin="0,0,3,3" FontSize="15"/>
</WrapPanel>
</RadioButton>
<RadioButton Style="{StaticResource NavButtonStyle}" Command="{Binding NavChangedCommand}" CommandParameter="HealthView">
<WrapPanel>
<TextBlock Text="" FontFamily="/common/Resources/#iconfont" VerticalAlignment="Center" HorizontalAlignment="Center" FontSize="15" Margin="0,0,3,3"/>
<TextBlock Text="健康专区" Margin="0,0,3,3" FontSize="15"/>
</WrapPanel>
</RadioButton>
</StackPanel>
<!--Right-->
<StackPanel Orientation="Horizontal" Grid.Row="0" HorizontalAlignment="Right" VerticalAlignment="Center">
<RadioButton Style="{StaticResource NavButtonStyle}" Command="{Binding NavChangedCommand}" CommandParameter="PersonalView">
<WrapPanel>
<TextBlock Text="" FontFamily="/common/Resources/#iconfont" VerticalAlignment="Center" HorizontalAlignment="Center" FontSize="15" Margin="0,0,3,3"/>
<TextBlock Text="汤姆汤姆" Margin="0,0,3,3" FontSize="15"/>
</WrapPanel>
</RadioButton>
<RadioButton Style="{StaticResource NavButtonStyle}" Command="{Binding NavChangedCommand}" CommandParameter="SetView">
<WrapPanel>
<TextBlock Text="" FontFamily="/common/Resources/#iconfont" VerticalAlignment="Center" HorizontalAlignment="Center" FontSize="15" Margin="0,0,3,3"/>
<TextBlock Text="深圳" Margin="0,0,3,3" FontSize="15"/>
</WrapPanel>
</RadioButton>
<Label Content="今日雷阵雨 23-26°" FontSize="13" Foreground="#FFFF" VerticalAlignment="Center"/>
<Label Content="09:30" FontSize="13" Foreground="#FFFF" VerticalAlignment="Center"/>
</StackPanel>
<!--中间嵌套层绑定-->
<Border VerticalAlignment="Bottom" Grid.Row="1">
<ContentControl Content="{Binding MainContent}"/>
</Border>
</Grid>
<!--Bottom-->
<Border Background="Black" VerticalAlignment="Bottom" Grid.Row="2">
<StackPanel Orientation="Horizontal" HorizontalAlignment="Center" VerticalAlignment="Bottom" >
<DockPanel Margin="150,12">
<Button BorderThickness="0" Background="Black">
<TextBlock Text="" FontFamily="/common/Resources/#iconfont" VerticalAlignment="Center" HorizontalAlignment="Center" FontSize="20" Foreground="White" Background="Black"/>
</Button>
</DockPanel>
<DockPanel Margin="150,12">
<Button BorderThickness="0" Background="Black">
<TextBlock Text="" FontFamily="/common/Resources/#iconfont" VerticalAlignment="Center" HorizontalAlignment="Center" FontSize="20" Foreground="White" Background="Black"/>
</Button>
</DockPanel>
<DockPanel Margin="150,12">
<Button BorderThickness="0" Background="Black">
<TextBlock Text="" FontFamily="/common/Resources/#iconfont" VerticalAlignment="Center" HorizontalAlignment="Center" FontSize="20" Foreground="White" Background="Black"/>
</Button >
</DockPanel>
</StackPanel>
</Border>
</Grid>
</Border>
1.2在MainView.xaml按F7去到MainView.xaml.cs页面
实例化会报错,因为没有创建,下一步创建
public MainView()
{
InitializeComponent();
MainViewModel model = new MainViewModel();
this.DataContext = model;
}
1.3创建MainViewModel .cs
class MainViewModel : NotifyBase
{
private FrameworkElement _mainContent;
public FrameworkElement MainContent
{
get { return _mainContent; }
set { _mainContent = value; this.DoNotify(); }
}
public CommandBase NavChangedCommand { get; set; }
public MainViewModel()
{
this.NavChangedCommand = new CommandBase();
this.NavChangedCommand.DoExecute = new Action<object>(DoNavChanged);
this.NavChangedCommand.DoCanExecute = new Func<object, bool>((o) => true);
DoNavChanged("HealthEducationView");/*健康宣教*/
DoNavChanged("MedicalView");/*影音视听*/
DoNavChanged("LifeServiceView");/*生活服务*/
DoNavChanged("HealthView");/*健康专区*/
DoNavChanged("PersonalView");/*个人中心*/
DoNavChanged("SetView");/*设置*/
DoNavChanged("MovieView");/*医疗服务*/
}
private void DoNavChanged(object obj)
{
Type type = Type.GetType("UItemplate.View." + obj.ToString());
ConstructorInfo cti = type.GetConstructor(System.Type.EmptyTypes);
this.MainContent = (FrameworkElement)cti.Invoke(null);
}
}
1.4创建NotifyBase.cs
class NotifyBase : INotifyPropertyChanged
{
public event PropertyChangedEventHandler PropertyChanged;
public void DoNotify([CallerMemberName] string propName = "")
{
PropertyChanged?.Invoke(this, new PropertyChangedEventArgs(propName));
}
}
1.5创建CommandBase.cs
public class CommandBase : ICommand
{
public event EventHandler CanExecuteChanged;
public bool CanExecute(object parameter)
{
return DoCanExecute?.Invoke(parameter) == true;
}
public void Execute(object parameter)
{
DoExecute?.Invoke(parameter);
}
public Action<object> DoExecute { get; set; }
public Func<object, bool> DoCanExecute { get; set; }
public void RaiseCanExecuteChanged()
{
CanExecuteChanged?.Invoke(this, new EventArgs());
}
}
