本来是想把border和background写一块的,结果写着写着发现background内容太多,先发border吧
目录
(4)borde-image-width:设置填充小方块的宽度
(5)border-image-outset:设置border-image在边框的位置
1.border-radius
border-radius这个属性在学习CSS2的时候也经常使用,现在对它进行拆分,先来做一个正方形如下,然后看看我们在CSS2中是怎么用的吧
(1)不做拆分
【例1】四角统一设置一个参数
<!DOCTYPE html>
<html lang="en">
<head>
<style>
div {
width: 100px;
height: 100px;
/* 居中三件套 */
position: absolute;
left: calc(50% - 100px);
top: calc(50% - 100px);
border: 2px solid #000;
/* 做圆 */
border-radius: 50%;
}
</style>
</head>
<body>
<div></div>
</body>
</html>
【结果】
【例2】设置两个参数
div {
width: 100px;
height: 100px;
/* 居中三件套 */
position: absolute;
left: calc(50% - 100px);
top: calc(50% - 100px);
border: 2px solid #000;
/* 两个参数 */
border-radius: 50px 30px;
}
【结果】左上与右下50px,右上与左下30px
【例3】设置三个参数
div {
width: 100px;
height: 100px;
position: absolute;
left: calc(50% - 100px);
top: calc(50% - 100px);
border: 2px solid #000;
border-radius: 50px 10px 20px;
}
【结果】左下与右上同为一个参数
【例4】设置4个参数
div {
width: 100px;
height: 100px;
position: absolute;
left: calc(50% - 100px);
top: calc(50% - 100px);
border: 2px solid #000;
border-radius: 10px 20px 30px 40px;
}
【结果】
(2)拆分
【例1】给每个角设置不同的值,该方法与传4个参数相同
div {
width: 100px;
height: 100px;
position: absolute;
left: calc(50% - 100px);
top: calc(50% - 100px);
border: 2px solid #000;
border-top-left-radius: 10px;
border-top-right-radius: 20px;
border-bottom-right-radius: 30px;
border-bottom-left-radius: 40px;
}
【结果】左上,右上,右下,左下的圆角像素分别为10px,20px,30px,40px
【例2】拆分后可各传两个参数,用左上角举例
div {
width: 100px;
height: 100px;
position: absolute;
left: calc(50% - 100px);
top: calc(50% - 100px);
border: 2px solid #000;
border-top-left-radius: 20px 20px;
}
先设置圆角为20px,使用控制台去改变参数值
【结果】可以看到第一个参数控制水平方向的弧度,第二个参数控制垂直方向的弧度
【总结】圆角相当于拿一个有弧度的图形去截直角,当水平与垂直方向的参数相同时,相当于去拿正圆截。
(3)大合并
将这八个参数同时写在border-radius中,如下
div {
width: 100px;
height: 100px;
position: absolute;
left: calc(50% - 100px);
top: calc(50% - 100px);
border: 2px solid #000;
border-radius: 10px 20px 30px 40px / 40px 30px 20px 10px;
}
【结果】由图可知,参数对应关系如下左上水平,右上水平,右下水平,左下水平 / 左上垂直,右上垂直,右下垂直,左下垂直
2.border-image
(1)border-image-source
该属性可控制边框由什么填充,可以是图片,也可以是渐变色等,需与slice配合使用,所以先讲完border-image-slice再举例
(2)border-image-slice
![](https://i-blog.csdnimg.cn/blog_migrate/7dac5af245f03eefec01d1decd60be20.png)

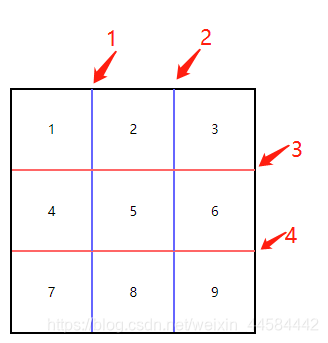

该图片,由线1,2,3,4分割成九块,除了第5个小方块,其他依次填充到边框的左上角,上中,右上角,右中,右下角,下中,左下角,左中,即将第五小块掏空,剩余部分作为边框,但是每一个小块都是独立的。
slice的属性值决定了如何切割该图片,最多传4个参数,4个参数依次为切割线3,2,4,1(上右下左)距离它最近边框的距离。例如,第二个参数为30px,第四个参数为20px时,则切割线2距离图片有边框的距离为30px,切割线1距离图片左边框的距离就为20px,即方块1的宽度为20px,方块3的宽度为30px,方块2的宽度是图片的宽减去方块1,3的宽度,然后按照border-image-repeat属性值的方式填充到上边框中间的位置。
【例】第一个方块边框填充渐变色,第二个方块边框填充图片(81px*81px)
<!DOCTYPE html>
<html lang="en">
<head>
<style>
* {
margin: 0;
padding: 0;
}
body {
background-color: #000;
}
.wrapper {
position: absolute;
top: calc(50% - 77px);
left: calc(50% - 160px);
}
.wrapper div {
float: left;
}
.demo1 {
width: 100px;
height: 100px;
background-color: #eee;
border: 27px solid #424242;
border-image-source: linear-gradient(#fcc, #ccf);
border-image-slice: 1;
margin-right: 12px;
}
.demo2 {
width: 100px;
height: 100px;
border: 27px solid #424242;
border-image-source: url(./red.png);
border-image-slice: 27 27 27 27;
}
</style>
</head>
<body>
<div class="wrapper">
<div class="demo1"></div>
<div class="demo2"></div>
</div>
</body>
</html>
【结果】
【备注】图片如下
【注】slice属性值不带像素,自动加px,也可为百分值,4个参数也可以合并为1/2/3个参数
(3)border-image-repeat
该属性决定了截取出来的图片在边框上的填充方式,属性值介绍如下
stretch:拉伸,默认属性
【例】
<!DOCTYPE html>
<html lang="en">
<head>
<style>
* {
margin: 0;
padding: 0;
}
body {
background-color: #000;
}
div {
position: absolute;
top: calc(50% - 77px);
left: calc(50% - 77px);
width: 100px;
height: 100px;
border: 27px solid #424242;
border-image-source: url(./red.png);
border-image-slice: 27 27 27 27;
border-image-repeat: stretch;
}
</style>
</head>
<body>
<div></div>
</body>
</html>
【结果】
repeat:平铺,当所给宽度不是切割后的小方块的整数倍时,直接用不完整的小方块从两边开始填充
【例】修改border-image-repeat的属性值为repeat
【结果】在控制台增加div的宽度,可以看到repeat的平铺方式
round:平铺,当所给宽度不是切割后的小方块的整数倍时,拉伸/压缩后填充
【例】修改border-image-repeat的属性值为round
【结果】在控制台增加div的宽度,可以看到round的平铺方式
space:平铺, 当所给宽度不是切割后的小方块的整数倍时,用空白填充不足的部分
【例】修改border-image-repeat的属性值为space
【结果】在控制台增加div的宽度,可以看到space的平铺方式
(4)borde-image-width:设置填充小方块的宽度
【例】
(5)border-image-outset:设置border-image在边框的位置
【例】
