Fink CDC数据同步（六）数据入湖Hudi

数据入湖Hudi

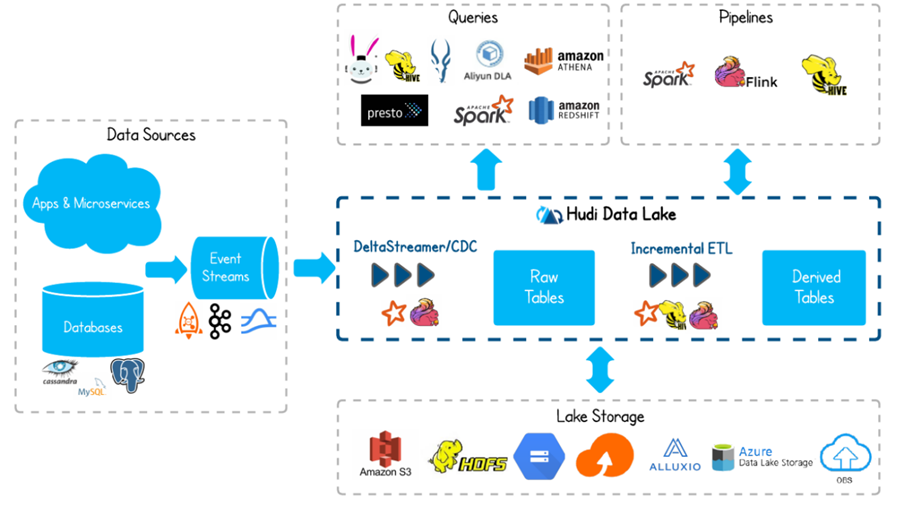

Apache Hudi(简称：Hudi)使得您能在hadoop兼容的存储之上存储大量数据，同时它还提供两种原语，使得除了经典的批处理之外，还可以在数据湖上进行流处理。这两种原语分别是：

• Update/Delete记录：Hudi使用细粒度的文件/记录级别索引来支持Update/Delete记录，同时还提供写操作的事务保证。查询会处理最后一个提交的快照，并基于此输出结果。
• 变更流：Hudi对获取数据变更提供了一流的支持：可以从给定的时间点获取给定表中已updated/inserted/deleted的所有记录的增量流，并解锁新的查询姿势（类别）。

配置

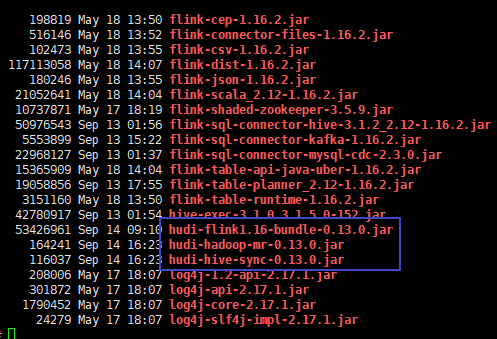

将hudi相关jar包放在flink安装目录的lib下

hudi-flink1.16-bundle-0.13.0.jar

hudi-hadoop-mr-0.13.0.jar

hudi-hive-sync-0.13.0.jar

确保/etc/profile配置了hadoop和hive的环境变量

#HADOOP_HOME
export HADOOP_HOME=/usr/hdp/3.1.5.0-152/hadoop
export HADOOP_CONF_DIR=/usr/hdp/3.1.5.0-152/hadoop/etc/hadoop
export HADOOP_COMMON_HOME=/usr/hdp/3.1.5.0-152/hadoop
export HADOOP_HDFS_HOME=/usr/hdp/3.1.5.0-152/hadoop
export HADOOP_YARN_HOME=/usr/hdp/3.1.5.0-152/hadoop
export HADOOP_MAPRED_HOME=/usr/hdp/3.1.5.0-152/hadoop
export PATH=$PATH:$HADOOP_HOME/bin:$HADOOP_HOME/sbin
export HADOOP_CLASSPATH=`hadoop classpath`

#HIVE HOME
export HIVE_HOME=/usr/hdp/3.1.5.0-152/hive
export PATH=$PATH:$HIVE_HOME/bin:$HIVE_HOME/sbin

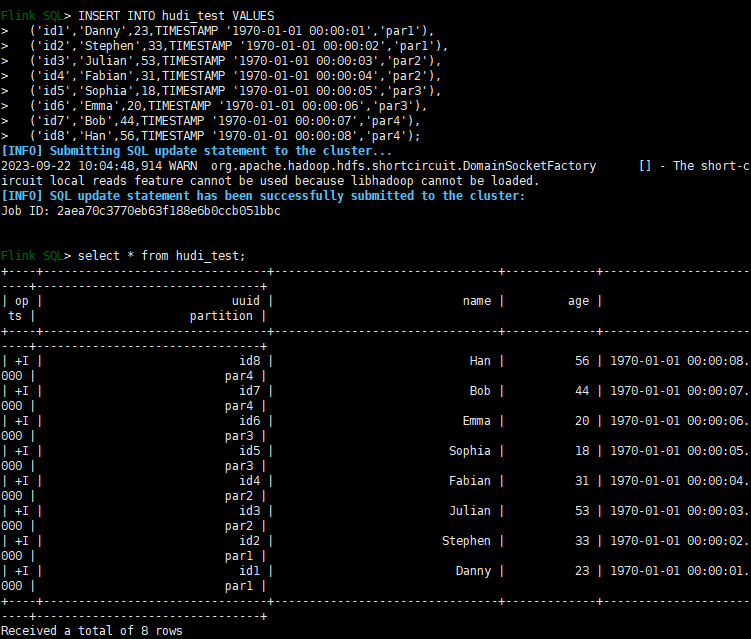

测试插入hudi表

set sql-client.execution.result-mode = tableau;
set execution.checkpointing.interval=30sec;
SET table.sql-dialect=default;

CREATE TABLE hudi_test(
  uuid VARCHAR(20) PRIMARY KEY NOT ENFORCED,
  name VARCHAR(10),
  age INT,
  ts TIMESTAMP(3),
  `partition` VARCHAR(20)
)
PARTITIONED BY (`partition`)
WITH (
  'connector' = 'hudi',  -- 连接器指定hudi
  'path' = 'hdfs://bigdata101:8020/hudi/hudi_test',  -- 数据存储地址
  'table.type' = 'MERGE_ON_READ' -- 表类型，默认COPY_ON_WRITE,可选MERGE_ON_READ
);

INSERT INTO hudi_test VALUES
  ('id1','Danny',23,TIMESTAMP '1970-01-01 00:00:01','par1'),
  ('id2','Stephen',33,TIMESTAMP '1970-01-01 00:00:02','par1'),
  ('id3','Julian',53,TIMESTAMP '1970-01-01 00:00:03','par2'),
  ('id4','Fabian',31,TIMESTAMP '1970-01-01 00:00:04','par2'),
  ('id5','Sophia',18,TIMESTAMP '1970-01-01 00:00:05','par3'),
  ('id6','Emma',20,TIMESTAMP '1970-01-01 00:00:06','par3'),
  ('id7','Bob',44,TIMESTAMP '1970-01-01 00:00:07','par4'),
  ('id8','Han',56,TIMESTAMP '1970-01-01 00:00:08','par4');

MySql数据写入Hudi表

建hudi表

create table hudi_user(
    id string not null,
    name string,
    birth string,
    gender string,
    primary key (id) not enforced
)
with (
    'connector' = 'hudi',
    'path' = 'hdfs://bigdata101:8020/hudi/hudi_user',
    'table.type' = 'MERGE_ON_READ',
    'write.option' = 'bulk_insert',
    'write.precombine.field' = 'id'
);

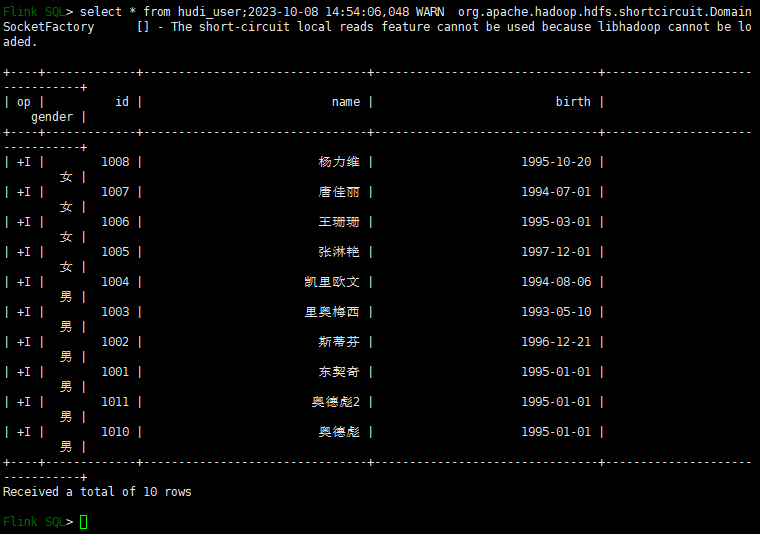

将MySql映射表的数据插入hudi表，此时会生成一个flink任务

insert into ods.hudi_user select * from mysql_user;

流式查询

上面的查询方式是非流式查询，流式查询会生成一个flink作业，并且实时显示数据源变更的数据。

流式查询（Streaming Query）需要设置read.streaming.enabled = true。再设置read.start-commit，如果想消费所有数据，设置值为earliest。

使用参数如下：

参数名称		是否必填	默认值	备注
read.streaming.enabled		FALSE	FALSE	设置为true，开启stream query
read.start-commit		FALSE	the latest commit	Instant time的格式为:’yyyyMMddHHmmss’
read.streaming_skip_compaction		FALSE	FALSE	是否不消费compaction commit，消费compaction commit会出现重复数据
clean.retain_commits		FALSE	10	当开启change log mode，保留的最大commit数量。如果checkpoint interval为5分钟，则保留50分钟的change log

建表：

create table hudi_user_read_streaming(
    id int not null ,
    name string,
    birth string,
    gender string,
    primary key (id) not enforced
)
with (
    'connector' = 'hudi',
    'path' = 'hdfs://bigdata101:8020/hudi/hudi_user',
    'table.type' = 'MERGE_ON_READ',
    'write.option' = 'bulk_insert',
    'write.precombine.field' = 'id',
    'read.streaming.enabled' = 'true',  -- 默认值false，设置为true，开启stream query
    'read.start-commit' = '20231008134557', -- start-commit之前提交的数据不显示，
    'read.streaming.check-interval' = '4'  -- 检查间隔，默认60s

);


insert into hudi_user_read_streaming select * from mysql_user;

select * from hudi_user_read_streaming;

此时，执行select 语句就会生成一个flink 作业

源端变更数据会实时展示出来

---
