学习记录557@flowable流程回退与终止

虽说本文的题目是流程回退和终止，但是其实抽象出来就是流程跳转，可以从某个节点跳转到另一个节点（顺序流下）。

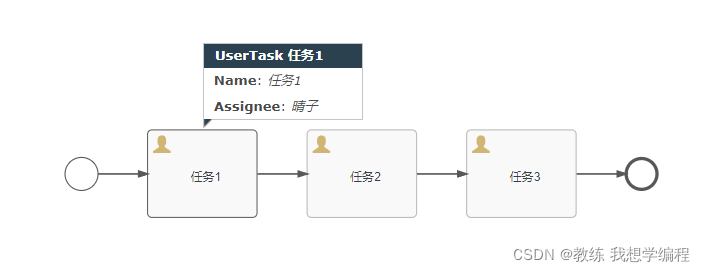

流程

<?xml version="1.0" encoding="UTF-8"?>
<definitions xmlns="http://www.omg.org/spec/BPMN/20100524/MODEL" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:flowable="http://flowable.org/bpmn" xmlns:bpmndi="http://www.omg.org/spec/BPMN/20100524/DI" xmlns:omgdc="http://www.omg.org/spec/DD/20100524/DC" xmlns:omgdi="http://www.omg.org/spec/DD/20100524/DI" typeLanguage="http://www.w3.org/2001/XMLSchema" expressionLanguage="http://www.w3.org/1999/XPath" targetNamespace="http://www.flowable.org/processdef" exporter="Flowable Open Source Modeler" exporterVersion="6.7.2">
  <process id="back" name="任务回退" isExecutable="true">
    <startEvent id="startEvent1" flowable:formFieldValidation="true"></startEvent>
    <userTask id="sid-8AC1482C-4FCE-463D-A53D-6217AF3A1470" name="任务1" flowable:assignee="晴子" flowable:formFieldValidation="true">
      <extensionElements>
        <modeler:initiator-can-complete xmlns:modeler="http://flowable.org/modeler"><![CDATA[false]]></modeler:initiator-can-complete>
      </extensionElements>
    </userTask>
    <sequenceFlow id="sid-3C0468ED-3273-4AA6-8CDE-E829CA26C949" sourceRef="startEvent1" targetRef="sid-8AC1482C-4FCE-463D-A53D-6217AF3A1470"></sequenceFlow>
    <userTask id="sid-C2F5C4B5-7635-4F28-8869-DDF42FF56161" name="任务2" flowable:assignee="樱木" flowable:formFieldValidation="true">
      <extensionElements>
        <modeler:initiator-can-complete xmlns:modeler="http://flowable.org/modeler"><![CDATA[false]]></modeler:initiator-can-complete>
      </extensionElements>
    </userTask>
    <sequenceFlow id="sid-1D6E7275-BB21-408D-81E3-54F2BEA1B232" sourceRef="sid-8AC1482C-4FCE-463D-A53D-6217AF3A1470" targetRef="sid-C2F5C4B5-7635-4F28-8869-DDF42FF56161"></sequenceFlow>
    <userTask id="sid-E6554C0D-CAB2-44BD-9A9C-AB52C7E1155D" name="任务3" flowable:assignee="三井寿" flowable:formFieldValidation="true">
      <extensionElements>
        <modeler:initiator-can-complete xmlns:modeler="http://flowable.org/modeler"><![CDATA[false]]></modeler:initiator-can-complete>
      </extensionElements>
    </userTask>
    <sequenceFlow id="sid-C561FA4D-323F-48F8-834D-262A8DE4B065" sourceRef="sid-C2F5C4B5-7635-4F28-8869-DDF42FF56161" targetRef="sid-E6554C0D-CAB2-44BD-9A9C-AB52C7E1155D"></sequenceFlow>
    <endEvent id="sid-801ADA46-08B6-4508-9C63-D6CD76677CF2"></endEvent>
    <sequenceFlow id="sid-D8445911-CE2A-4BDD-9237-EC02A4109C20" sourceRef="sid-E6554C0D-CAB2-44BD-9A9C-AB52C7E1155D" targetRef="sid-801ADA46-08B6-4508-9C63-D6CD76677CF2"></sequenceFlow>
  </process>
  <bpmndi:BPMNDiagram id="BPMNDiagram_back">
    <bpmndi:BPMNPlane bpmnElement="back" id="BPMNPlane_back">
      <bpmndi:BPMNShape bpmnElement="startEvent1" id="BPMNShape_startEvent1">
        <omgdc:Bounds height="30.0" width="30.0" x="100.0" y="163.0"></omgdc:Bounds>
      </bpmndi:BPMNShape>
      <bpmndi:BPMNShape bpmnElement="sid-8AC1482C-4FCE-463D-A53D-6217AF3A1470" id="BPMNShape_sid-8AC1482C-4FCE-463D-A53D-6217AF3A1470">
        <omgdc:Bounds height="80.0" width="100.0" x="175.0" y="138.0"></omgdc:Bounds>
      </bpmndi:BPMNShape>
      <bpmndi:BPMNShape bpmnElement="sid-C2F5C4B5-7635-4F28-8869-DDF42FF56161" id="BPMNShape_sid-C2F5C4B5-7635-4F28-8869-DDF42FF56161">
        <omgdc:Bounds height="80.0" width="100.0" x="320.0" y="138.0"></omgdc:Bounds>
      </bpmndi:BPMNShape>
      <bpmndi:BPMNShape bpmnElement="sid-E6554C0D-CAB2-44BD-9A9C-AB52C7E1155D" id="BPMNShape_sid-E6554C0D-CAB2-44BD-9A9C-AB52C7E1155D">
        <omgdc:Bounds height="80.0" width="100.0" x="465.0" y="138.0"></omgdc:Bounds>
      </bpmndi:BPMNShape>
      <bpmndi:BPMNShape bpmnElement="sid-801ADA46-08B6-4508-9C63-D6CD76677CF2" id="BPMNShape_sid-801ADA46-08B6-4508-9C63-D6CD76677CF2">
        <omgdc:Bounds height="28.0" width="28.0" x="610.0" y="164.0"></omgdc:Bounds>
      </bpmndi:BPMNShape>
      <bpmndi:BPMNEdge bpmnElement="sid-D8445911-CE2A-4BDD-9237-EC02A4109C20" id="BPMNEdge_sid-D8445911-CE2A-4BDD-9237-EC02A4109C20" flowable:sourceDockerX="50.0" flowable:sourceDockerY="40.0" flowable:targetDockerX="14.0" flowable:targetDockerY="14.0">
        <omgdi:waypoint x="564.95" y="178.0"></omgdi:waypoint>
        <omgdi:waypoint x="610.0" y="178.0"></omgdi:waypoint>
      </bpmndi:BPMNEdge>
      <bpmndi:BPMNEdge bpmnElement="sid-C561FA4D-323F-48F8-834D-262A8DE4B065" id="BPMNEdge_sid-C561FA4D-323F-48F8-834D-262A8DE4B065" flowable:sourceDockerX="50.0" flowable:sourceDockerY="40.0" flowable:targetDockerX="50.0" flowable:targetDockerY="40.0">
        <omgdi:waypoint x="419.94999999999067" y="178.0"></omgdi:waypoint>
        <omgdi:waypoint x="464.9999999999807" y="178.0"></omgdi:waypoint>
      </bpmndi:BPMNEdge>
      <bpmndi:BPMNEdge bpmnElement="sid-1D6E7275-BB21-408D-81E3-54F2BEA1B232" id="BPMNEdge_sid-1D6E7275-BB21-408D-81E3-54F2BEA1B232" flowable:sourceDockerX="50.0" flowable:sourceDockerY="40.0" flowable:targetDockerX="50.0" flowable:targetDockerY="40.0">
        <omgdi:waypoint x="274.9499999999907" y="178.0"></omgdi:waypoint>
        <omgdi:waypoint x="319.9999999999807" y="178.0"></omgdi:waypoint>
      </bpmndi:BPMNEdge>
      <bpmndi:BPMNEdge bpmnElement="sid-3C0468ED-3273-4AA6-8CDE-E829CA26C949" id="BPMNEdge_sid-3C0468ED-3273-4AA6-8CDE-E829CA26C949" flowable:sourceDockerX="15.0" flowable:sourceDockerY="15.0" flowable:targetDockerX="50.0" flowable:targetDockerY="40.0">
        <omgdi:waypoint x="129.9499984899576" y="178.0"></omgdi:waypoint>
        <omgdi:waypoint x="174.9999999999917" y="178.0"></omgdi:waypoint>
      </bpmndi:BPMNEdge>
    </bpmndi:BPMNPlane>
  </bpmndi:BPMNDiagram>
</definitions>

核心代码

特别注意repositoryService.getBpmnModel这附近的代码，是获取流程定义的详细内容的代码，特别是获取act的详细信息。
实际场景中是这样的，当前用户查询当前所处的节点，为用户展示流程的其他节点，让用户可以选择回退到哪个节点

//    流程回退
    @Transactional
    public void back() {
//        实际场景中是这样的，当前用户查询当前所处的节点，为用户展示流程的其他节点，让用户可以选择回退到哪个节点
        Task currentActivity = taskService.createTaskQuery().processInstanceId("921b0707-b626-11ec-8e37-3c9c0f202230").taskAssignee("三井寿").singleResult();
//        找到每个元素，包括节点和顺序流
        Process mainProcess = repositoryService.getBpmnModel("back:1:dd16163a-b625-11ec-9161-3c9c0f202230").getMainProcess();
        Collection<FlowElement> flowElements = mainProcess.getFlowElements();
        for (FlowElement flowElement:
             flowElements) {
            System.out.println(flowElement.getId());
        }
        String endNodeId = flowElements.stream().filter(f -> f instanceof EndEvent).collect(Collectors.toList()).get(0).getId();

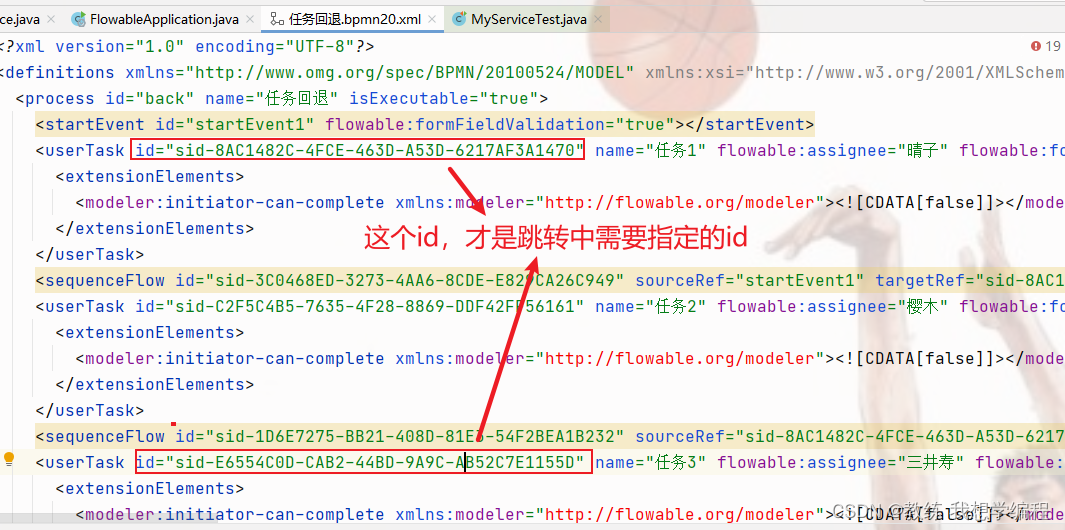

        //注意这里传入的参数是节点定义id，不是对应的那条记录的id
        //我这里测试就写死了，实际中是从flowElements中取出来的，FlowElement.getId()
        runtimeService.createChangeActivityStateBuilder().processInstanceId("921b0707-b626-11ec-8e37-3c9c0f202230").moveActivityIdTo(currentActivity.getTaskDefinitionKey(),"sid-C2F5C4B5-7635-4F28-8869-DDF42FF56161").changeState();
    }

//    流程终止
    @Transactional
    public void end() {
//      在当前节点直接终止
        Task currentActivity = taskService.createTaskQuery().processInstanceId("921b0707-b626-11ec-8e37-3c9c0f202230").taskAssignee("樱木").singleResult();
//        找到每个元素，包括节点和顺序流
        Process mainProcess = repositoryService.getBpmnModel("back:1:dd16163a-b625-11ec-9161-3c9c0f202230").getMainProcess();
        Collection<FlowElement> flowElements = mainProcess.getFlowElements();
        for (FlowElement flowElement:
                flowElements) {
            System.out.println(flowElement.getId());
        }
        String endNodeId = flowElements.stream().filter(f -> f instanceof EndEvent).collect(Collectors.toList()).get(0).getId();

        runtimeService.createChangeActivityStateBuilder().processInstanceId("921b0707-b626-11ec-8e37-3c9c0f202230").moveActivityIdTo(currentActivity.getTaskDefinitionKey(),endNodeId).changeState();

    }

机制思考

流程回退或者终止后act_ru_task表会改变为最新的状态，这个不用多解释。

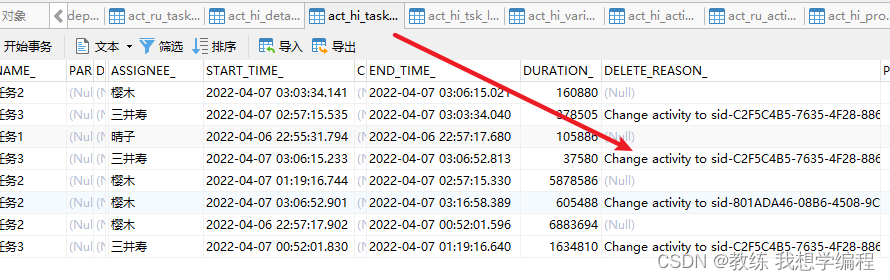

看下act_hi_taskinst表：

可以看出，有多个任务2，多个任务3，这些都是我操作过回退和终止造成的，在DELETE_REASON_字段中有解释，to ----，就是表明节点跳转到哪里而结束的。
